SKU: CF1SFGE

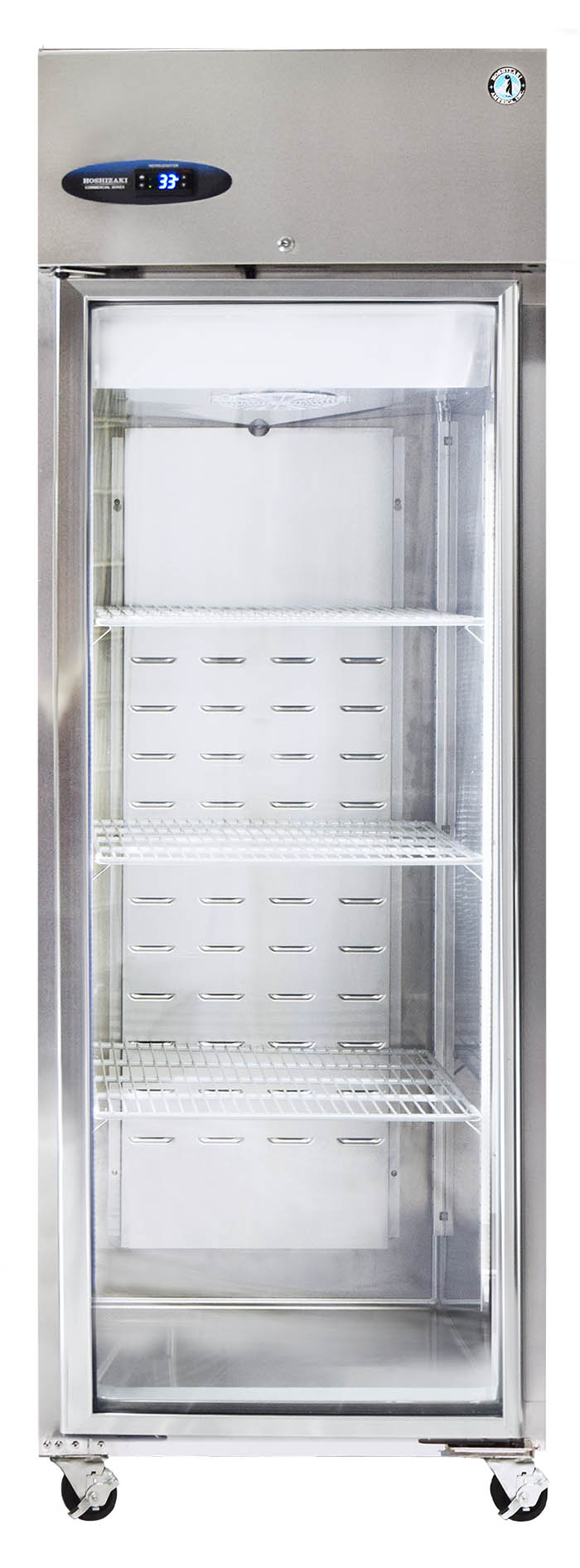

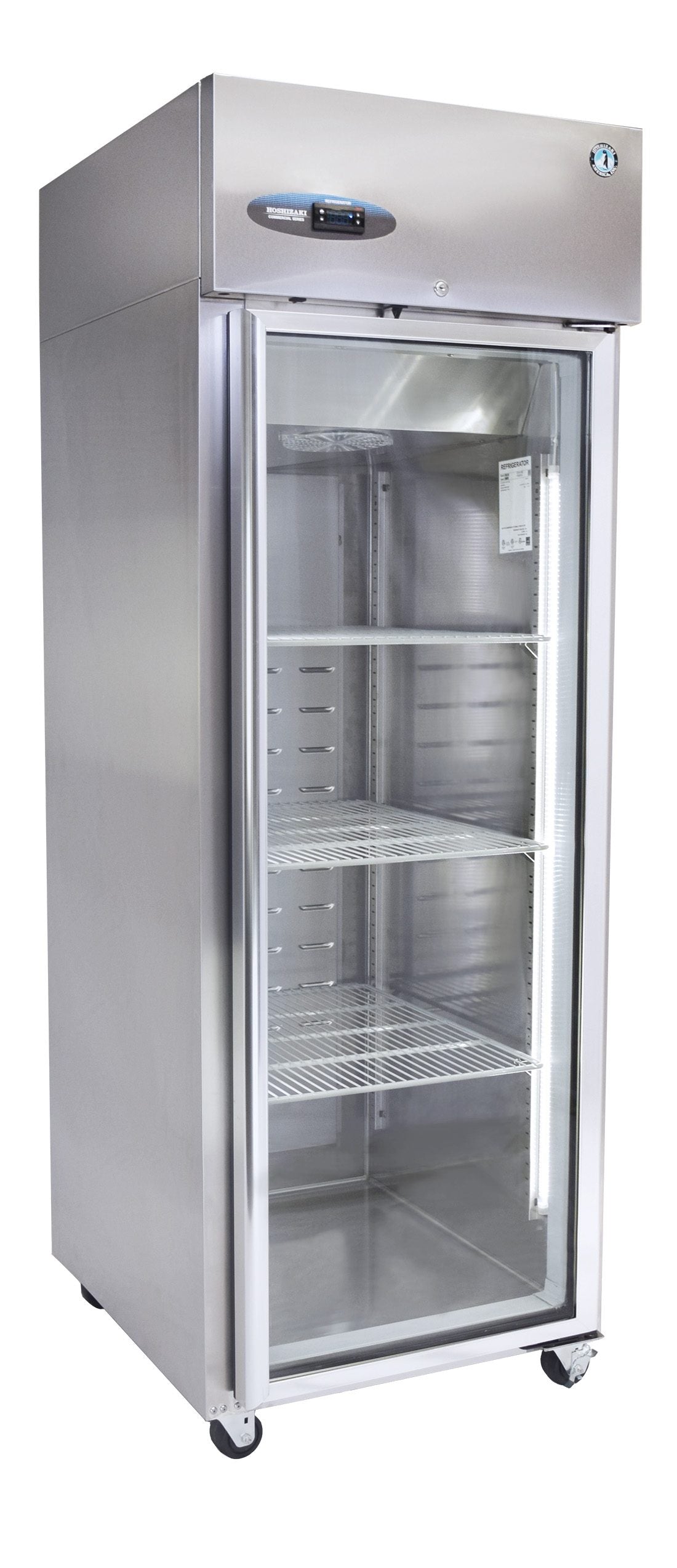

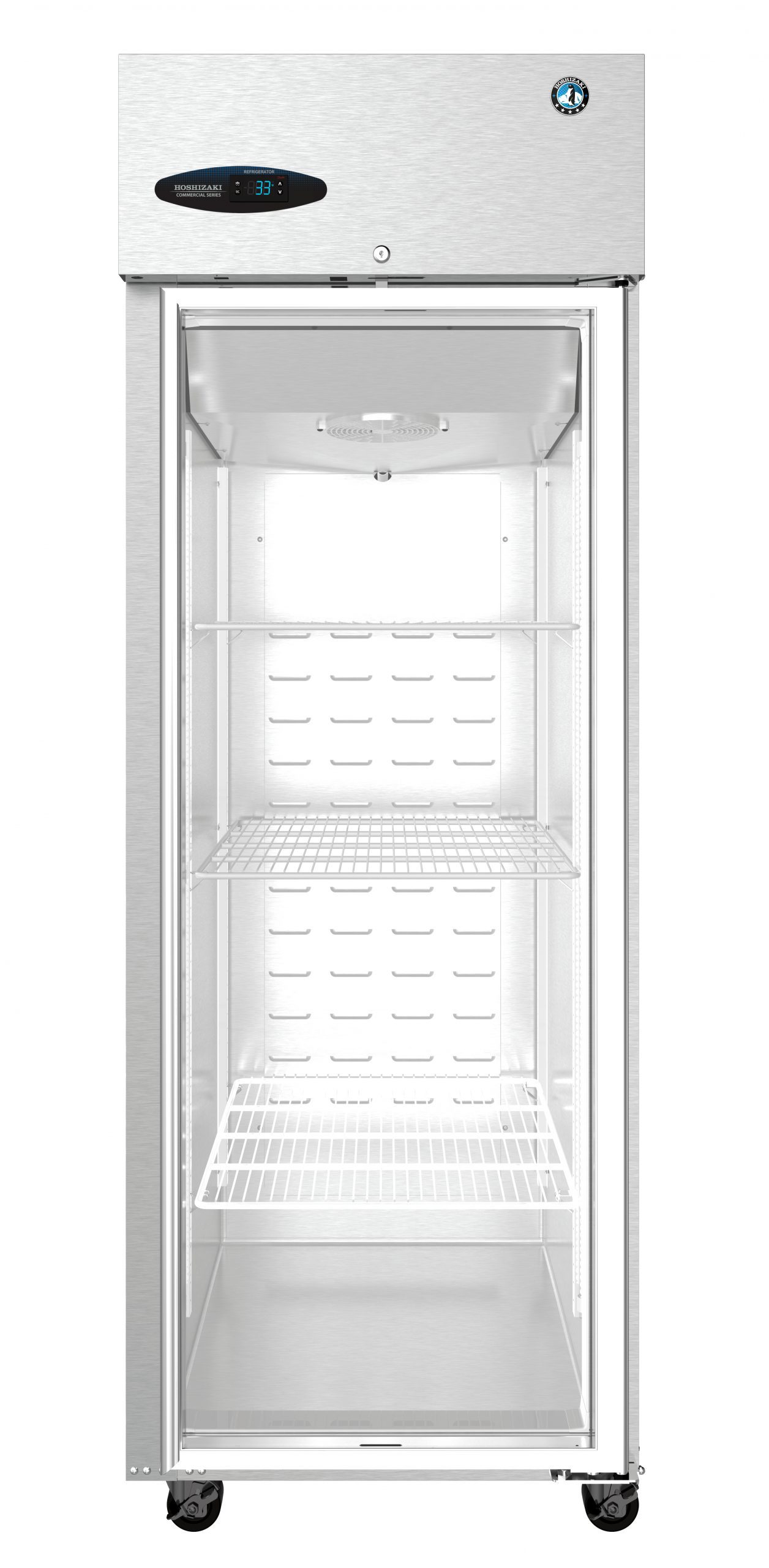

Hoshizaki CF1SFGE Freezer, Single Section Upright, Full Glass Door with Lock Stainless Steel

Freezer, Single Section Upright, Full Glass Door with Lock
Freezer, Single Section Upright, Full Glass Door with Lock
Freezer, Single Section Upright, Full Glass Door with Lock
Freezer, Single Section Upright, Full Glass Door with Lock
Freezer, Single Section Upright, Full Glass Door with Lock
Freezer, Single Section Upright, Full Glass Door with Lock
Freezer, Single Section Upright, Full Glass Door with Lock
Freezer, Single Section Upright, Full Glass Door with Lock

Quick Specification More details

  • Width:
    27.5"
  • Depth:
    34"
  • Height:
    79.5"
  • Type:
    Upright Freezers

About this product

  • Discontinued – Replaced by F1A-FG
  • Dimensions: 27.5″ W x 34″ D x 79.5″ H
  • Net capacity of 20.9 cubic feet
  • Nominal Compres. of 2466 BTU/hr at 1/2 HP

SKU: CF1SFGE

Hoshizaki CF1SFGE Freezer, Single Section Upright, Full Glass Door with Lock Stainless Steel

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    27.5"
  • Depth:
    34"
  • Height:
    79.5"
  • Type:
    Upright Freezers

About this product

  • Discontinued – Replaced by F1A-FG
  • Dimensions: 27.5″ W x 34″ D x 79.5″ H
  • Net capacity of 20.9 cubic feet
  • Nominal Compres. of 2466 BTU/hr at 1/2 HP
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Hoshizaki CF1SFGE

Technical Details

Product details
Electrical Specs Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 8.53 kwh/day, Amperage: 9, Max Fuse/HACR Breaker: 15 A
Operating Limits Ambient Temp Range: 45 – 80°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +12°F, Refrigerant: R-404A
Refrigeration Data Nominal Compres. of 2466 BTU/hr at 1/2 HP, Heat Rejection: 1458 BTU/hr
Shipping Weight 360
Storage Specs Nominal Storage Capacity: 23.3ft3, Interior Storage Capacity: 20.9ft3, Door Opening: 22″ W x 59.5″ H , Depth with Door fully extended: 57.25″ D, Shelves Included: 3

Dimensions & weight
Width 27.5 in.
Depth 34 in.
Height 79.5 in.

Warranty
Parts 3 Years
Labor 3 Years

Description

The CF1S-FGE Commercial Series Upright Single Section Freezer with a Full Glass Door and One piece, full door length, chrome handle is an attractive workhorse for any business. The Electrical consumption of 8.53 kWh/day at 9 Amps, 10 ft long cord with a 5 – 15P NEMA plug. The durable 1/2 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature – even when fully loaded!


Product Features

  • Discontinued – Replaced by F1A-FG
  • Dimensions: 27.5″ W x 34″ D x 79.5″ H
  • Net capacity of 20.9 cubic feet
  • Nominal Compres. of 2466 BTU/hr at 1/2 HP
  • Electrical consumption of 8.53 kWh/day at 9 Amps, 10 ft long cord with a 5 – 15P NEMA plug
  • Sturdy 8 gauge stainless steel hinge plate with welded hinge pin
  • Spring assisted self closing lockable doors with stay open feature (field reversible with optional kit)
  • One piece, full door length, chrome handle
  • Unique “ducted” air distribution system
  • Full glass doors are energy efficient multi pane, argon filled, and come standard with locks
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Stainless steel interior with stainless steel exterior front and sides
  • Solid state digital controller with temperature alarms and LED display (°F or °C)
  • R-404a refrigerant
  • Refrigerant flow is controlled with a thermostatic expansion valve (TXV)
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Includes 3 epoxy coated wire coated wire shelves
  • Epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Standard with (4) 4″ Stem Casters (2 with brakes)
  • Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, door reversal kit, air filter
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 37.5″ L x 31.5″ D x 83″ H at 360 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty
