SKU: CC80S

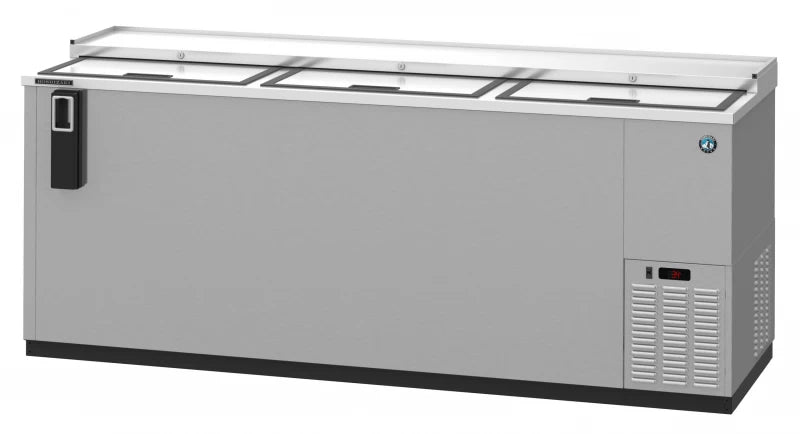

Hoshizaki CC80S Refrigerator, Three Section, Stainless Steel Back Bar Bottle Cooler, Slide Top Doors

Quick Specification More details

Width:
80"
Depth:
29"
Height:
36.88"
Type:
Other Specialty Refrigerators

About this product

Net capacity of 24.67 cubic feet, approx. (1150) 12oz. cans or (547) 20oz. bottles
Nominal Compres. of N/A BTU/hr at 1/3 HP
Three slide top lids with flush inset handles
Includes (6) gray epoxy bin dividers

Summer Sale

Clearance

SKU: CC80S

Hoshizaki CC80S Refrigerator, Three Section, Stainless Steel Back Bar Bottle Cooler, Slide Top Doors

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
80"
Depth:
29"
Height:
36.88"
Type:
Other Specialty Refrigerators

About this product

Net capacity of 24.67 cubic feet, approx. (1150) 12oz. cans or (547) 20oz. bottles
Nominal Compres. of N/A BTU/hr at 1/3 HP
Three slide top lids with flush inset handles
Includes (6) gray epoxy bin dividers

Product Details for Hoshizaki CC80S

Technical Details

Dimensions & weight

Weight	315 lbs.
Width	80 in.
Depth	29 in.
Height	36.88 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	355 lbs.
Total of Shipping Weight	355 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: N/A Watts, Amperage: 6.2, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 38°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of N/A BTU/hr at 1/3 HP, Heat Rejection: 2345 BTU/hr
Shipping Weight	315
Storage Specs	Nominal storage capacity: 24.67 ft3, 12 oz. bottle capacity: 1150 or 20 oz. bottle capacity: 547

Warranty

Parts	3 Years
Labor	3 Years

Description

The CC80-S Back Bar is a Three Section Refrigerator with Slide Top Doors has all the right features. It boasts an impressive net capacity of 24.67 cubic feet, approx. (1150) 12oz. cans or (547) 20oz. bottles. The dependable 1/3 HP motor that powers the compressor at the left side of this unit that distributes air from left to right rather than from back to front. Side to side circular airflow ensures ice-cold products even when doors are opened regularly. Engineered to maintain food safe temperatures in +100°F kitchens. Plus the durable stainless steel slide top lids include locks, can be easily removed for loading or unloading product.

Product Features

Net capacity of 24.67 cubic feet, approx. (1150) 12oz. cans or (547) 20oz. bottles
Nominal Compres. of N/A BTU/hr at 1/3 HP
Three slide top lids with flush inset handles
Includes (6) gray epoxy bin dividers
Durable stainless steel slide top lids include locks, can be easily removed for loading or unloading product
Includes bottle opener with cap catcher
Front breathing, side mount refrigeration that distributes air from left to right rather than from back to front
Stainless Steel exterior front, sides and rear, plus a 18 gauge stainless steel top
Stainless steel interior
R290 refrigerant
Interior floor drain for easy cleaning
Includes 6 gray epoxy bin dividers
Made to Order
115v/60/1, 8 ft. cord and plug
Cabinet fits: (1150) 12oz. cans or (547) 20oz. bottles
Five Years compressor warranty, Three Years parts and labor warranty
Automatic “off cycle” defrost cycle
