SKU: C80BAK

Hoshizaki C80BAK Cubelet Ice Machine, Air-cooled, Built-in Storage Bin Stainless Steel

Quick Specification More details

Width:
14.875"
Depth:
22.625"
Height:
33.5"
Type:
Ice Machines

About this product

Dimensions: 14-7/8″ W x 22-5/8″ D x 33-1/2″ H
Up to 92 lbs of ice produced per 24 hours
Up to 27 lbs of built-in storage capacity (ft3)

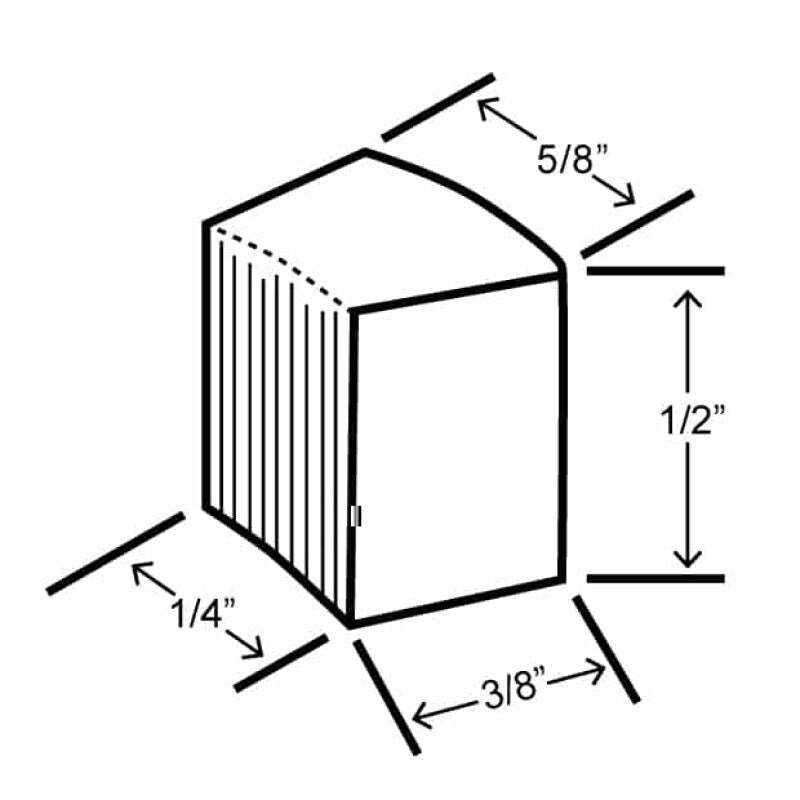

Produces mini cubelet nugget-style ice

Summer Sale

Clearance

SKU: C80BAK

Hoshizaki C80BAK Cubelet Ice Machine, Air-cooled, Built-in Storage Bin Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
14.875"
Depth:
22.625"
Height:
33.5"
Type:
Ice Machines

About this product

Dimensions: 14-7/8″ W x 22-5/8″ D x 33-1/2″ H
Up to 92 lbs of ice produced per 24 hours
Up to 27 lbs of built-in storage capacity (ft3)
Produces mini cubelet nugget-style ice

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for Hoshizaki C80BAK

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 Plug, Amperage: 2.8, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1400 BTU/hr, Refrigerant Charge: R290 (1.9 oz. / 53.86 g)
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 1/2″ FPT Outlet, Minimum 1/2″ Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption	8.5 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Shipping Weight	134 lbs.

Dimensions & weight

Width	14.875 in.
Depth	22.625 in.
Height	33.5 in.

Warranty

Parts	2 Years
Labor	2 Years

Description

This compact undercounter Cubelet ice machine is the perfect addition to any hotel suite, office breakroom, or kitchen. The C-80BAK is capable of producing approximately 92 lbs. of Cubelet style ice cubes per day, and the built-in storage bin will hold up to 27 lbs. of ice at a time. The undercounter design is less than 34″ tall. The air-cooled design also features a front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included.
