SKU: C80BAJDS

Hoshizaki C80BAJDS Cubelet Icemaker, Air-cooled, Custom Cabinet Ready Panel Ready

Quick Specification More details

Width:
15"
Depth:
22.625"
Height:
33.5"
Type:
Ice Makers

About this product

Up to 80 lbs of ice produced per 24 hours
Up to 22 lbs of built-in storage capacity (ft3)
Produces mini cubelet nugget-style ice
Undercounter design is less than 34″ tall

Summer Sale

Clearance

SKU: C80BAJDS

Hoshizaki C80BAJDS Cubelet Icemaker, Air-cooled, Custom Cabinet Ready Panel Ready

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
15"
Depth:
22.625"
Height:
33.5"
Type:
Ice Makers

About this product

Up to 80 lbs of ice produced per 24 hours
Up to 22 lbs of built-in storage capacity (ft3)
Produces mini cubelet nugget-style ice
Undercounter design is less than 34″ tall

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI C80BAJDS

Technical Details

Product details

Utility Consumption	17.3 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs	Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 Plug, Amperage: 4, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 7 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1850 BTU/hr, Refrigerant Charge: R-134a, (3.92 oz. / 111 g
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 1/2″ FPT Outlet, Minimum 1/2″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight	135

Dimensions & weight

Weight	135 lbs.
Width	15 in.
Depth	22.625 in.
Height	33.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	175 lbs.
Total of Shipping Weight	175 lbs.
Source	Calculation

Warranty

Parts	2 Years
Labor	2 Years

Description

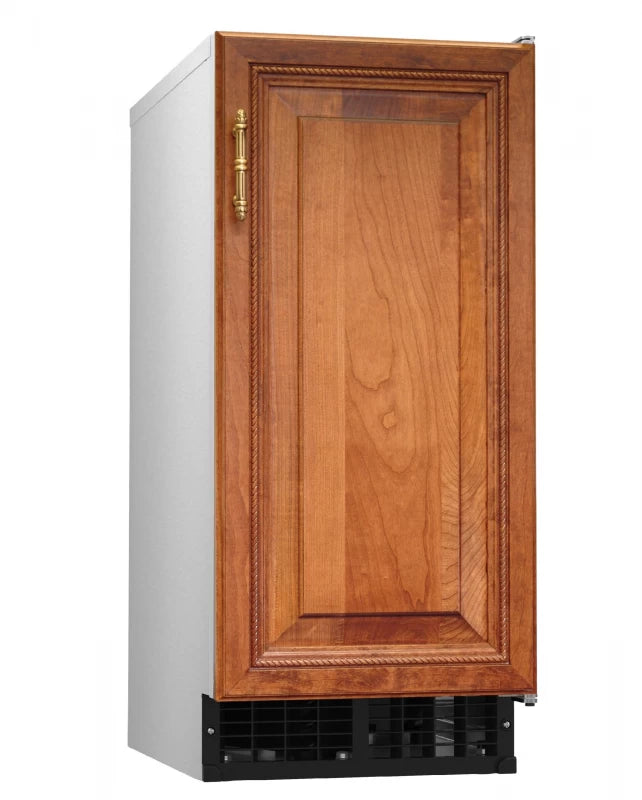

This compact undercounter Cubelet Icemaker is the perfect addition to any hotel suite, office breakroom, or kitchen. The C-80BAJ-DS is capable of producing approximately 80 lbs of Cubelet style ice cubes per day, and the built-in storage bin will hold up to 22 lbs* of ice at a time. The Undercounter design is less than 34″ tall. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included.

Product Features

Up to 80 lbs of ice produced per 24 hours
Up to 22 lbs of built-in storage capacity (ft3)
Produces mini cubelet nugget-style ice
Undercounter design is less than 34″ tall
Front in, front out airflow
UL approved for outdoor use
Swing style field reversable door
(-DS) Accommodates custom cabinet door (not included), DS door reversal kit (HS-0229)
R-134a refrigerant (3.92 oz. / 111 g)
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 7 – 113psig
Voltage range: 104 – 127V
4 amps (15 Amp Max fuse)
17.3 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.
Dimensions: 15″ W x 22-5/8″ D x 33-1/2″ H
Discontinued – Replaced by C-80BAK-DS
Heat Rejection:1850 BTU/hr
Two Years: Parts & Labor warranty on entire machine.
