SKU: AM50BAJ

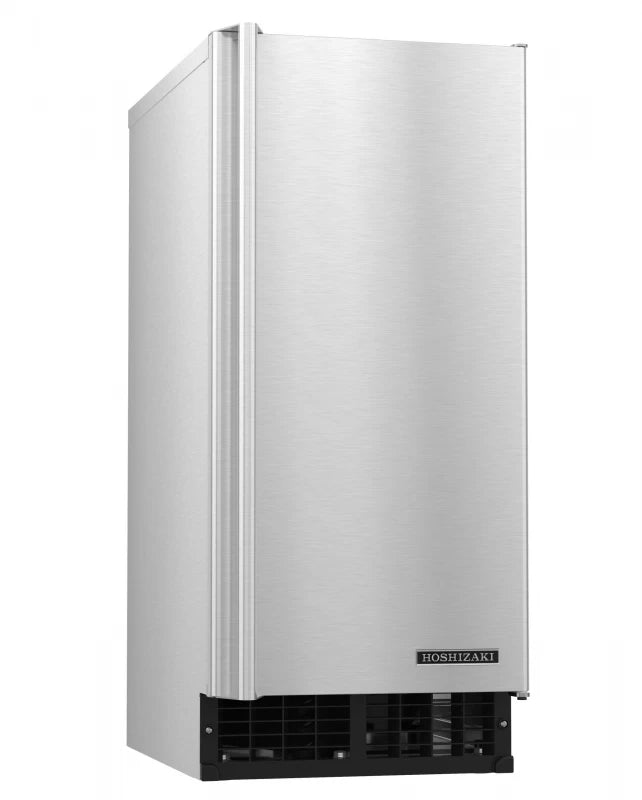

Hoshizaki AM50BAJ Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin Stainless Steel

Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin
Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin
Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin
Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin
Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin
Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin
Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin
Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin
Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin
Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin
Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin
Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin
Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin
Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin

Quick Specification More details

  • Width:
    15"
  • Depth:
    22.625"
  • Height:
    33.5"
  • Type:
    Ice Machines

About this product

  • Up to 22 lbs of built-in storage capacity (ft3)
  • Up to 51 lbs of ice produced per 24 hours
  • Undercounter design is less than 34″ tall
  • Front in, front out airflow
Summer Sale
Clearance

SKU: AM50BAJ

Hoshizaki AM50BAJ Top Hat Cuber Icemaker, Air-cooled, Built in Storage Bin Stainless Steel

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    15"
  • Depth:
    22.625"
  • Height:
    33.5"
  • Type:
    Ice Machines

About this product

  • Up to 22 lbs of built-in storage capacity (ft3)
  • Up to 51 lbs of ice produced per 24 hours
  • Undercounter design is less than 34″ tall
  • Front in, front out airflow

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Hoshizaki AM50BAJ

Technical Details

Product details
Electrical Specs Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug, Amperage: 3.8, Max Fuse/HACR Breaker: 15 A
Utility Consumption 17 kWh per 100 lbs @ 90/70, 71 gal of Potable Water per 100 lbs @ 90/70
Operating Limits Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 95°F, Water Pressure: 7 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1900 BTU/hr, Refrigerant Charge: R-134a, (4.2 oz. / 120 g)
Plumbing Specs 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 1/2″ FPT Outlet, Minimum 1/2″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight 115

Dimensions & weight
Weight 115 lbs.
Width 15 in.
Depth 22.625 in.
Height 33.5 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Weight 155 lbs.
Total of Shipping Weight 155 lbs.
Source Calculation

Warranty
Parts 2 Years
Labor 2 Years

Description

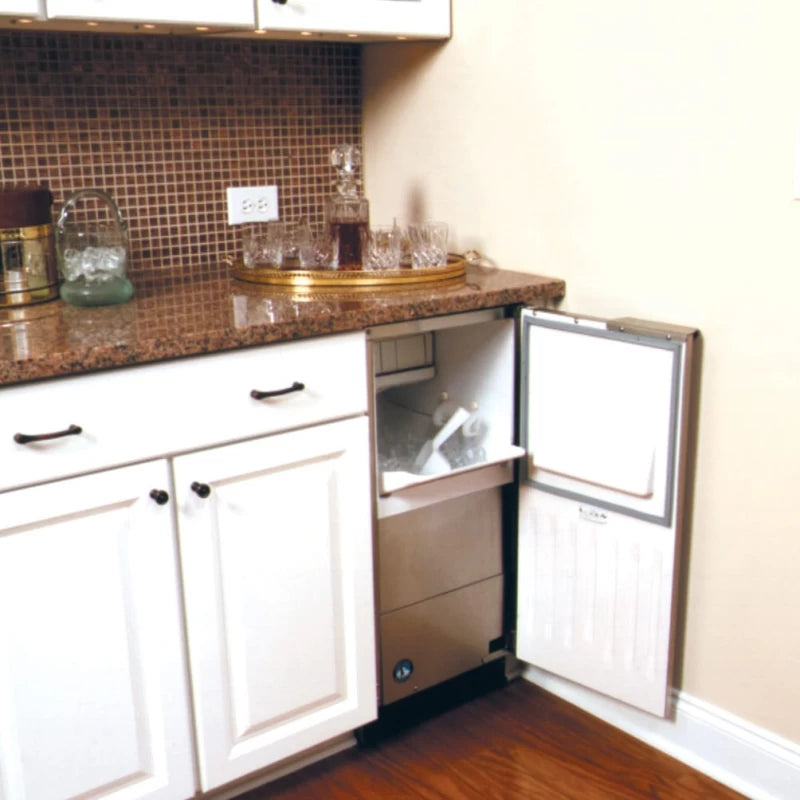

This compact undercounter Top Hat Icemaker is the perfect addition to any hotel suite, office breakroom, or kitchen. The AM-50BAJ is capable of producing approximately 51 lbs of Top Hat style ice cubes per day, and the built-in storage bin will hold up to 22 lbs* of ice at a time. The Undercounter design is less than 34″ tall. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included.


Product Features

  • Up to 22 lbs of built-in storage capacity (ft3)
  • Up to 51 lbs of ice produced per 24 hours
  • Undercounter design is less than 34″ tall
  • Front in, front out airflow
  • UL approved for outdoor use
  • Easily disassembled water circuit for easy cleaning
  • Produces top hat ice cubes
  • Accessory – HS-5061 drain pump assembly
  • R-134a refrigerant (4.2 oz. / 120 g)
  • Ambient temperature range: 45 – 100°F
  • Water pressure: 7 – 113psig
  • Voltage range: 104 – 127V
  • 3.8 amps (15 Amp Max fuse)
  • 17 kwh/100 lbs.@ 90/70
  • Water temperature range: 45 – 95°F
  • Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span
  • One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.
  • Dimensions: 15″ W x 22-5/8″ D x 33-1/2″ H
  • Discontinued – Replaced by AM-50BAK
  • Heat Rejection:1900 BTU/hr
  • Two Years: Parts & Labor warranty on entire machine.
