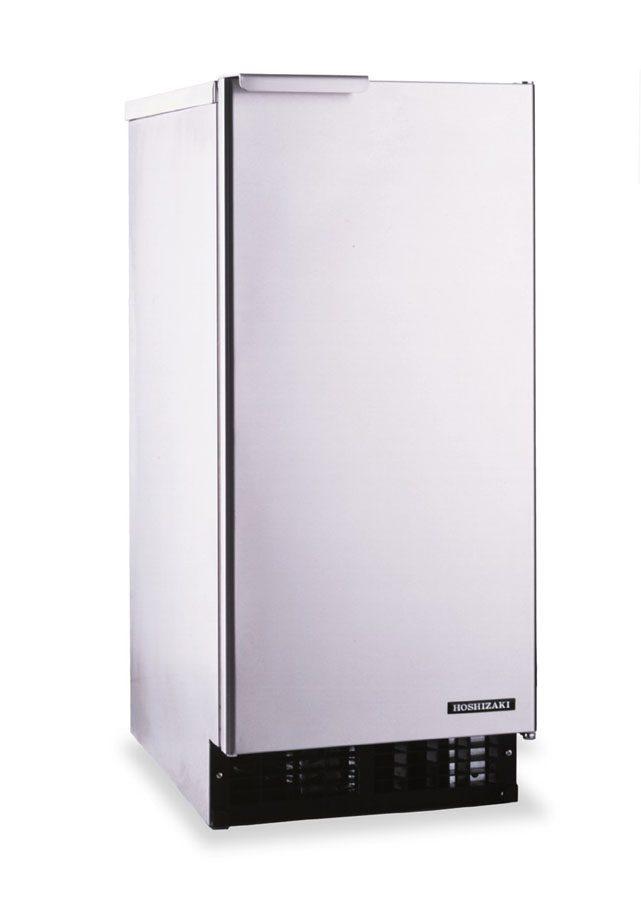

HOSHIZAKI AM50BAEAD AM-50BAE-AD Top Hat Cuber Ice Machine, Air-cooled, ADA Compliant Height

Name: HOSHIZAKI AM50BAEAD AM-50BAE-AD Top Hat Cuber Ice Machine, Air-cooled, ADA Compliant Height
Brand: HOSHIZAKI
SKU: AM50BAEAD
Availability: OutOfStock

Quick Specification More details

Width:
14.88 Inch
Depth:
22.63 Inch
Height:
31.5 Inch
Type:
Ice Makers

About this product

Dimensions: 14-7/8" W x 22-5/8" D x 31-1/2" H
Up to 55 lbs of ice produced per 24 hours
Up to 22 lbs of built-in storage capacity (ft3)
Produces top hat ice cubes

SKU: AM50BAEAD

HOSHIZAKI AM50BAEAD AM-50BAE-AD Top Hat Cuber Ice Machine, Air-cooled, ADA Compliant Height

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
14.88 Inch
Depth:
22.63 Inch
Height:
31.5 Inch
Type:
Ice Makers

About this product

Dimensions: 14-7/8" W x 22-5/8" D x 31-1/2" H
Up to 55 lbs of ice produced per 24 hours
Up to 22 lbs of built-in storage capacity (ft3)
Produces top hat ice cubes

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

Product Details for HOSHIZAKI AM50BAEAD

Technical Details

Features

Dimensions: 14-7/8" W x 22-5/8" D x 31-1/2" H	Yes
Up to 55 lbs of ice produced per 24 hours	Yes
Up to 22 lbs of built-in storage capacity (ft3)	Yes
Produces top hat ice cubes	Yes
Undercounter design is less than 34" Tall	Yes
Front in, front out airflow	Yes
UL approved for outdoor use	Yes
Easily disassembled water circuit for easy cleaning	Yes
Accessory - HS-5061 drain pump assembly	Yes
R-134a refrigerant (4.2 oz. / 120 g)	Yes
Heat Rejection: BTU/hr	Yes
Ambient temperature range: 45 - 100(degree)F	Yes
Water temperature range: 45 - 95(degree)F	Yes
Water pressure: 7 - 113psig	Yes
Voltage range: 104 - 127V	Yes
3.8 amps (15 Amp Max fuse)	Yes
16.8 kwh/100 lbs.@ 90/70	Yes
Single phase, 115v/60/1 6 ft cord with NEMA 5-15 plug	Yes
Clean ice and easy maintenance lead to longer unit life span	Yes
Two Years: Parts & Labor warranty on entire machine.	Yes
One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.	Yes

Product details

Category	Ice Makers
Product Type	Appliances
Energy Star Certified	Yes
ADA Compliant	No
Smart Device	No

Features

Dimensions: 14-7/8" W x 22-5/8" D x 31-1/2" H
Up to 55 lbs of ice produced per 24 hours
Up to 22 lbs of built-in storage capacity (ft3)
Produces top hat ice cubes
Undercounter design is less than 34" Tall
Front in, front out airflow
UL approved for outdoor use
Easily disassembled water circuit for easy cleaning
Accessory - HS-5061 drain pump assembly
R-134a refrigerant (4.2 oz. / 120 g)
Heat Rejection: BTU/hr
Ambient temperature range: 45 - 100(degree)F
Water temperature range: 45 - 95(degree)F
Water pressure: 7 - 113psig
Voltage range: 104 - 127V
3.8 amps (15 Amp Max fuse)
16.8 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1 6 ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Two Years: Parts & Labor warranty on entire machine.
One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.

Description

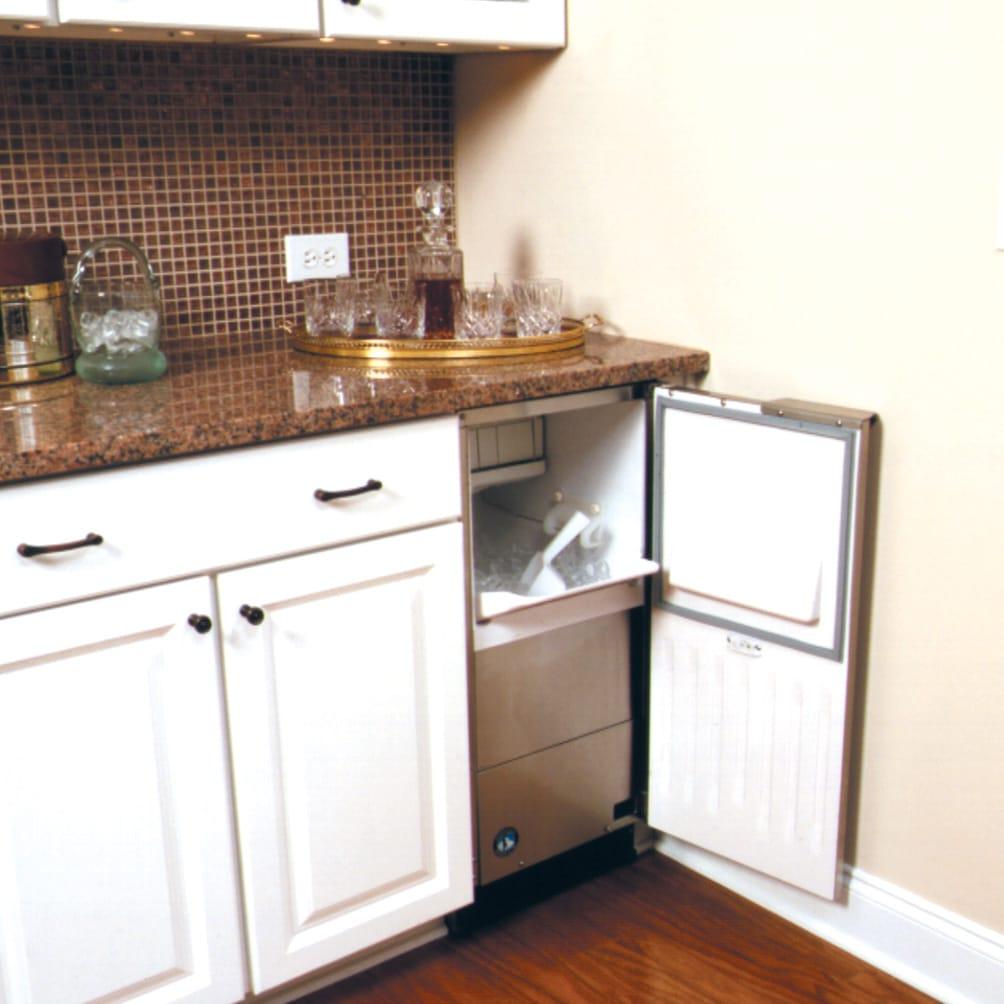

This compact undercounter Top Hat Ice Maker is the perfect addition to any hotel suite, office breakroom, or residential kitchen. The AM-50BAE-AD is capable of producing approximately 55 lbs of Top Hat style ice cubes per day, and the built-in storage bin will hold up to 22 lbs of ice at a time. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. The shorter height of the AM-50BAE-AD complies with the Americans with Disabilities Act, making this one of the most accessible undercounter ice makers on the market. Perfect for fitting into tight spaces. Drain pump not included.
