SKU: AM50BAE

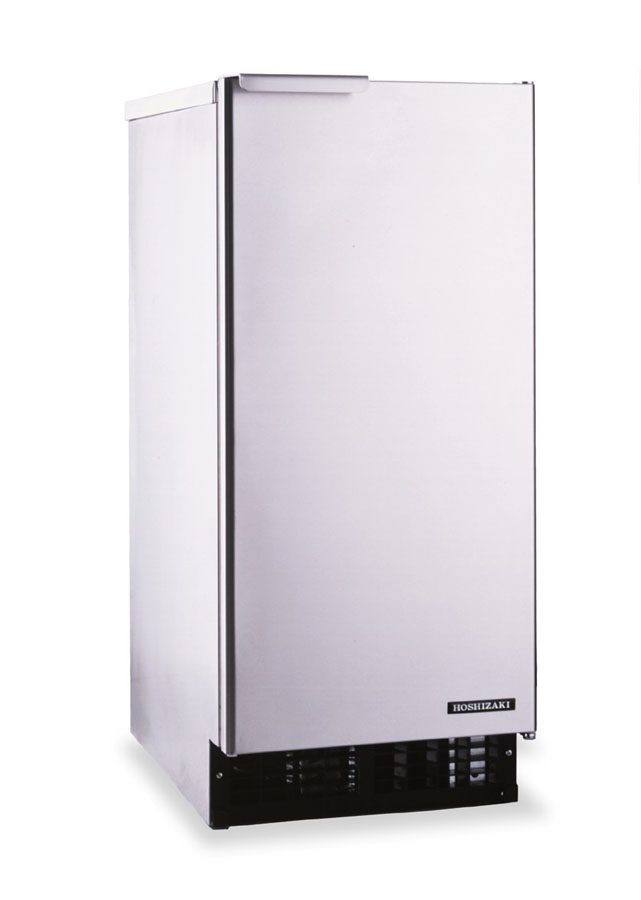

Hoshizaki AM50BAE Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin Stainless Steel

Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin
Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin

Quick Specification More details

  • Width:
    14.875"
  • Depth:
    22.625"
  • Height:
    33.5"
  • Type:
    Ice Machines

About this product

  • Discontinued – Replaced by AM-50BAJ
  • Dimensions: 14-7/8″ W x 22-5/8″ D x 33-1/2″ H
  • Up to 55 lbs of ice produced per 24 hours
  • Up to 22 lbs of built-in storage capacity (ft3)
Summer Sale
Clearance

SKU: AM50BAE

Hoshizaki AM50BAE Top Hat Cuber Ice Machine, Air-cooled, Built in Storage Bin Stainless Steel

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    14.875"
  • Depth:
    22.625"
  • Height:
    33.5"
  • Type:
    Ice Machines

About this product

  • Discontinued – Replaced by AM-50BAJ
  • Dimensions: 14-7/8″ W x 22-5/8″ D x 33-1/2″ H
  • Up to 55 lbs of ice produced per 24 hours
  • Up to 22 lbs of built-in storage capacity (ft3)
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Hoshizaki AM50BAE

Technical Details

Product details
Electrical Specs Single phase, 115v/60/1 6 ft cord with NEMA 5-15 Plug, Amperage: 3.8, Max Fuse/HACR Breaker: 15 A
Operating Limits Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 95°F, Water Pressure: 7 – 113psig, Voltage Range: 104 – 127V, Refrigerant Charge: R-134a, (4.2 oz. / 120 g)
Plumbing Specs 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 1/2″ FPT Outlet, Minimum 1/2″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight 115
Utility Consumption 17 kWh per 100 lbs @ 90/70, 71 gal of Potable Water per 100 lbs @ 90/70

Dimensions & weight
Width 14.875 in.
Depth 22.625 in.
Height 33.5 in.

Warranty
Parts 2 Years
Labor 2 Years

Description

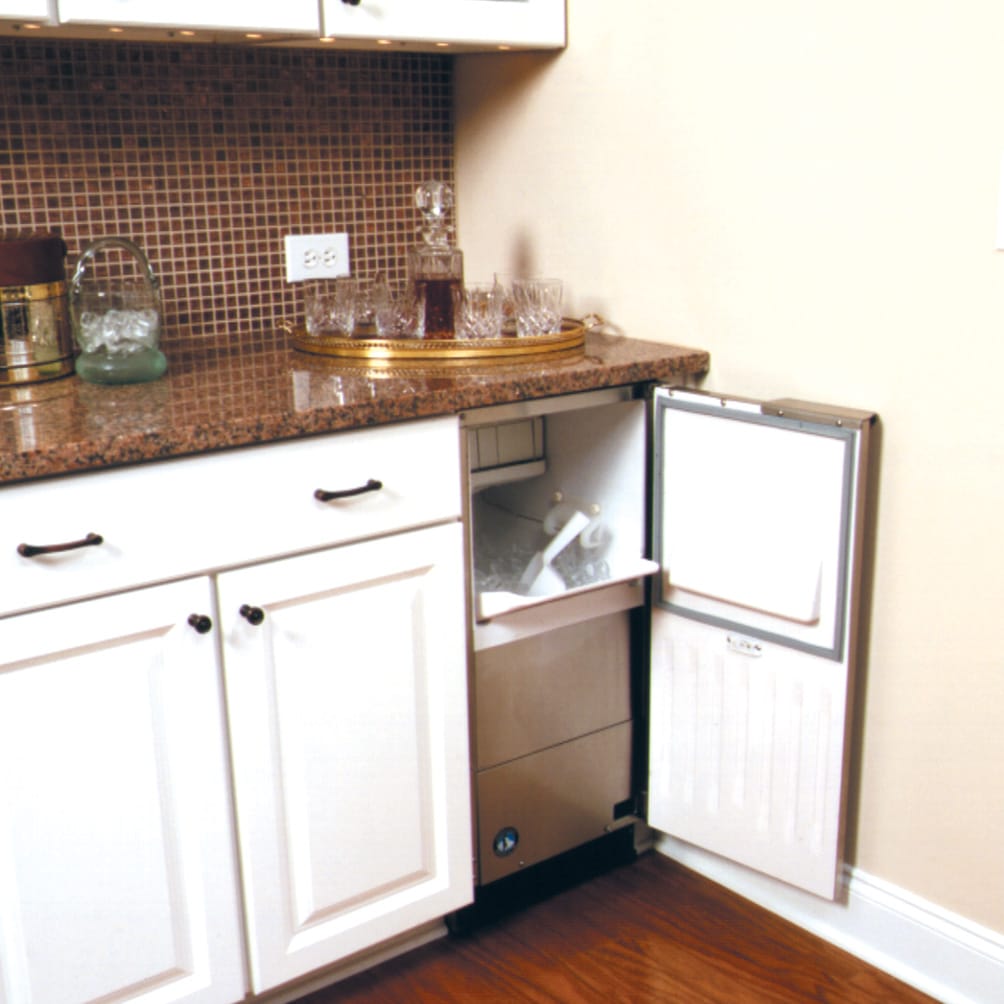

This compact undercounter Top Hat Icemaker is the perfect addition to any hotel suite, office breakroom, or high end kitchen. The AM-50BAE is capable of producing approximately 55 lbs of Top Hat style ice cubes per day, and the built-in storage bin will hold up to 22 lbs* of ice at a time. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. Drain pump not included.


Product Features

  • Discontinued – Replaced by AM-50BAJ
  • Dimensions: 14-7/8″ W x 22-5/8″ D x 33-1/2″ H
  • Up to 55 lbs of ice produced per 24 hours
  • Up to 22 lbs of built-in storage capacity (ft3)

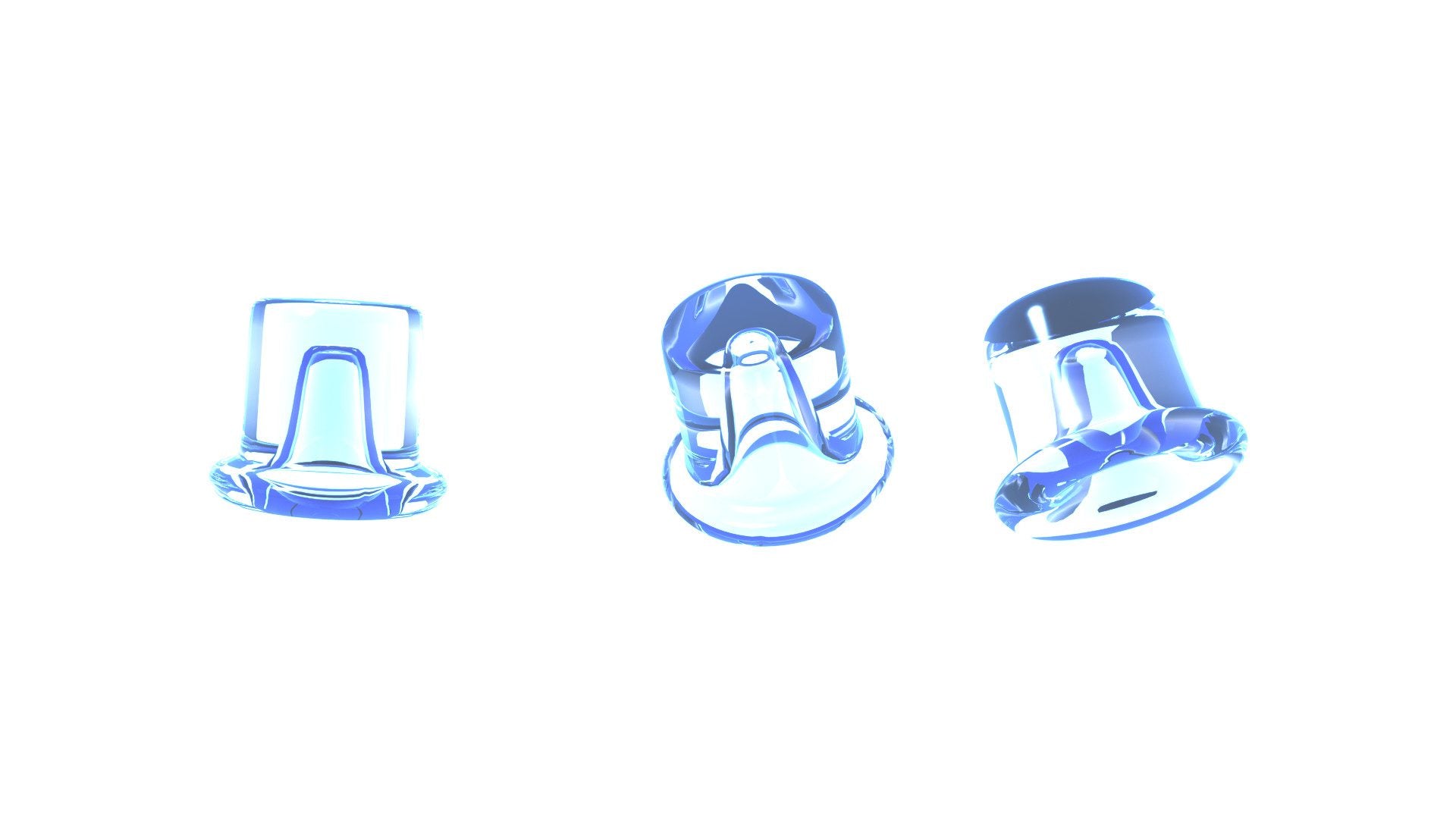

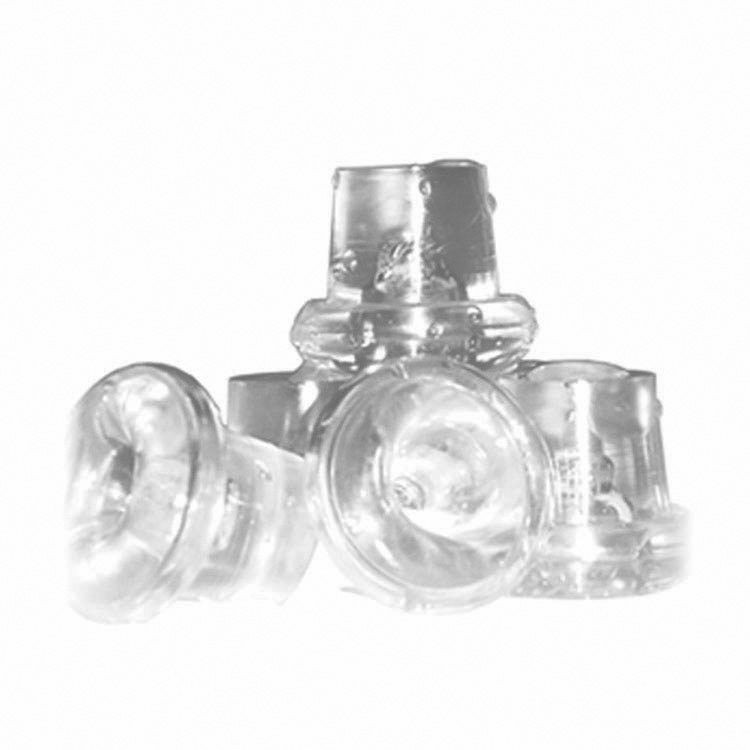

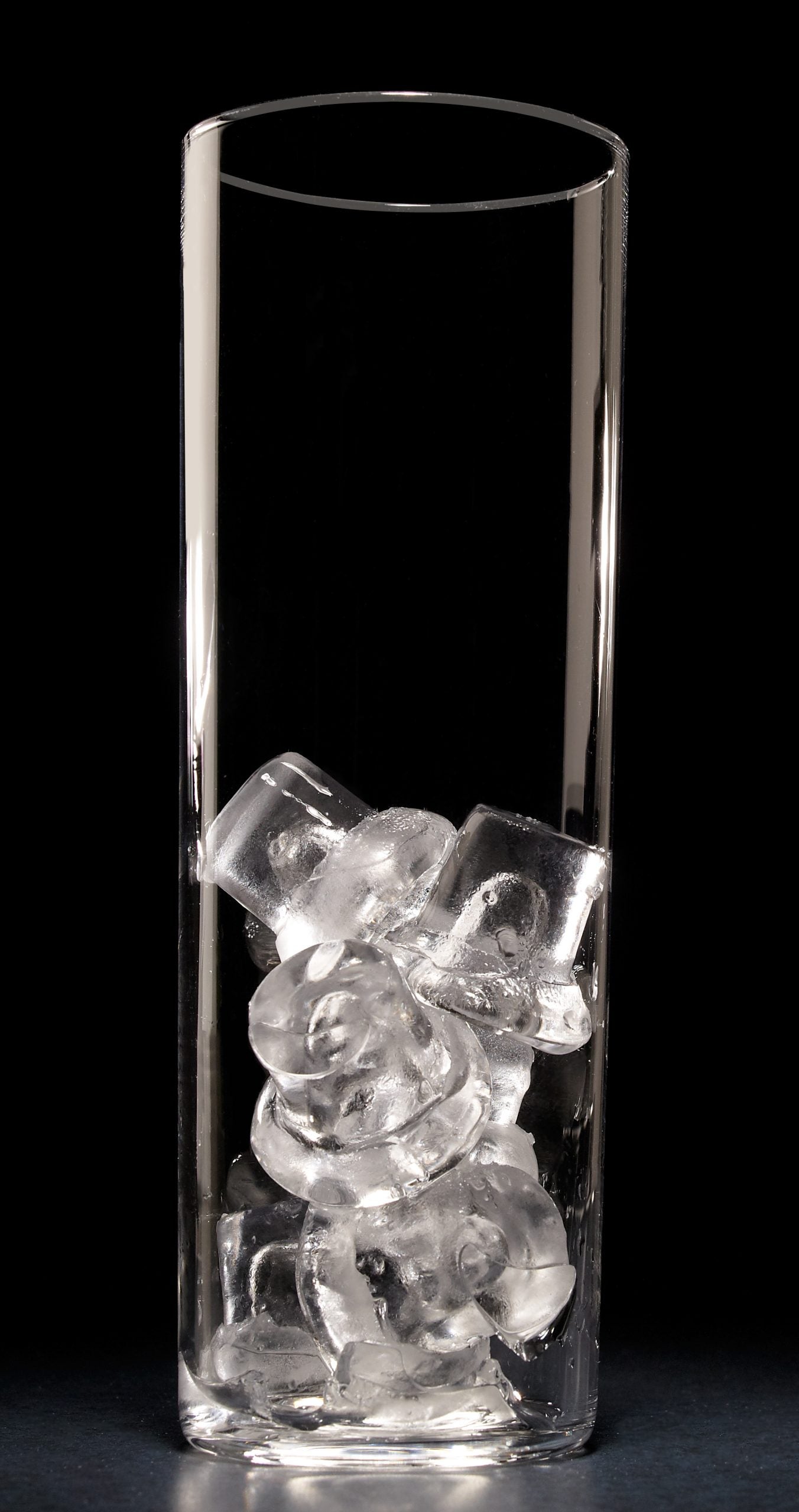

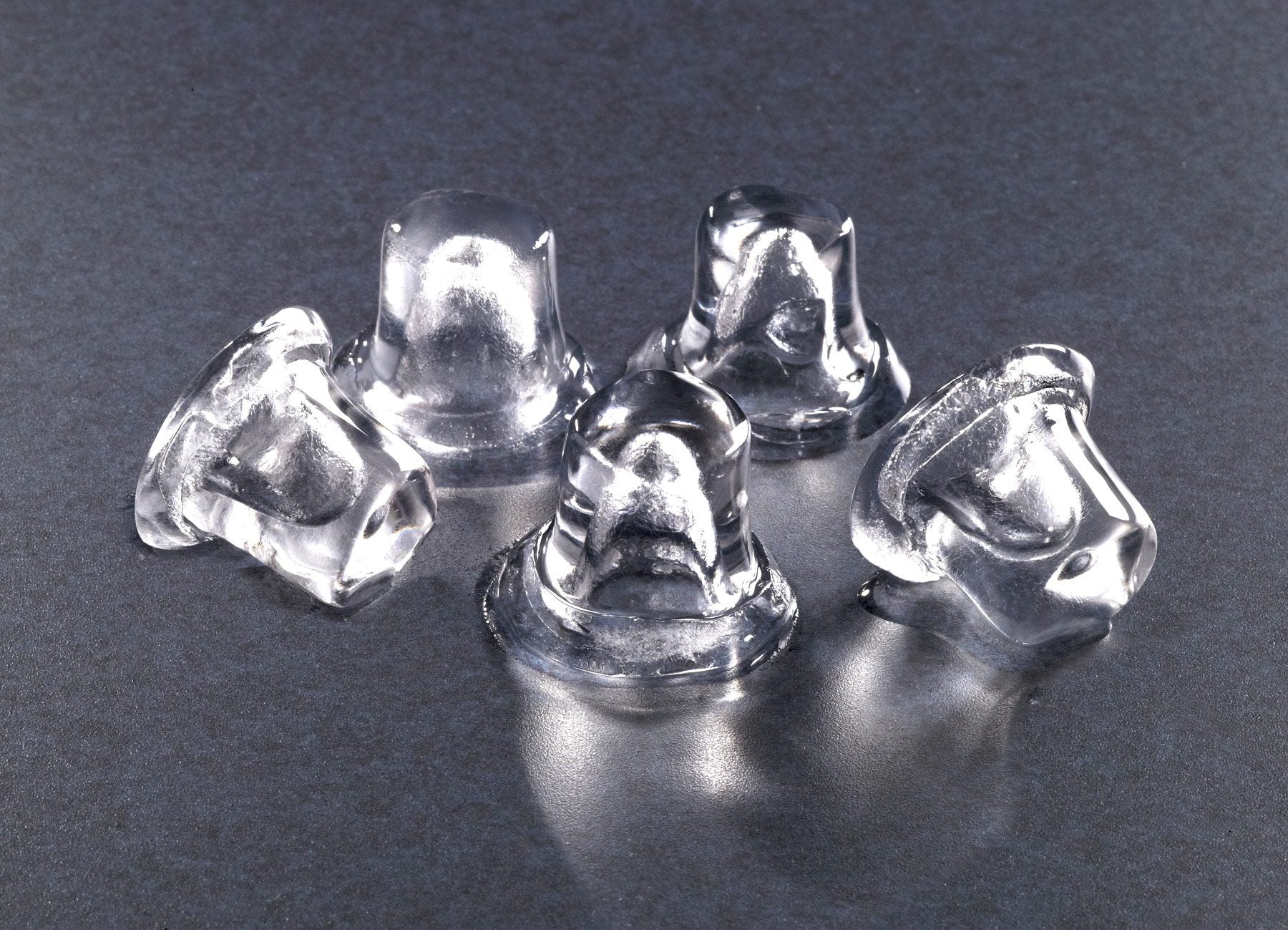

  • Produces top hat ice cubes
  • Undercounter design is less than 34″ Tall
  • Front in, front out airflow
  • UL approved for outdoor use
  • Easily disassembled water circuit for easy cleaning
  • Accessory – HS-5061 drain pump assembly
  • R-134a refrigerant (4.2 oz. / 120 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 95°F
  • Water pressure: 7 – 113psig
  • Voltage range: 104 – 127V
  • 3.8 amps (15 Amp Max fuse)
  • 17 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1 6 ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span
  • Two Years: Parts & Labor warranty on entire machine.
  • One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.
