| Parts | 1 Year |
| Labor | 1 Year |

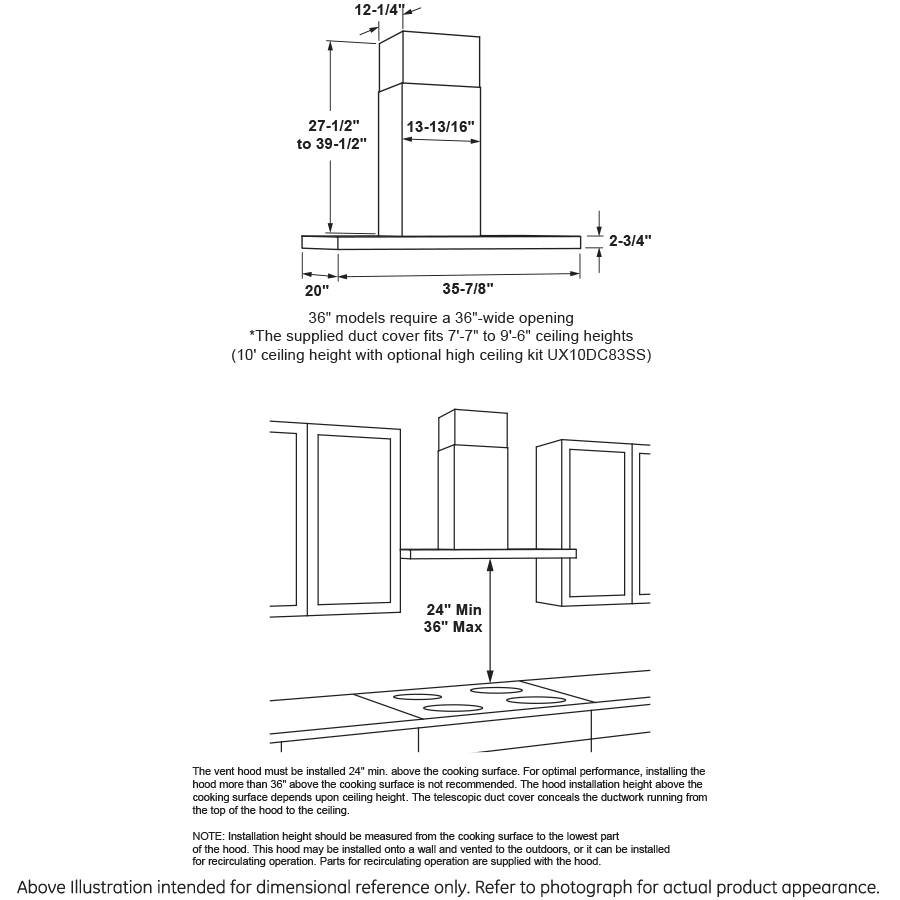

| Width | 36 in. |
| Height | 24 in. |
| Length | 20 in. |
| Weight | 70 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 29 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 110 lbs. |
| Total of Shipping Weight | 110 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 10 ft³ |
| Dimensional Weight | 124.32 lbs. |
| Total of Cubes | 10 ft³ |
| Total of Dimensional Weight | 124.32 lbs. |
| Watts | 185 |
| Hertz | 60 |
| Electrical Requirements | 120V ; 60Hz ; 5.3A |
| Amp Rating at 120V | 5.3 |

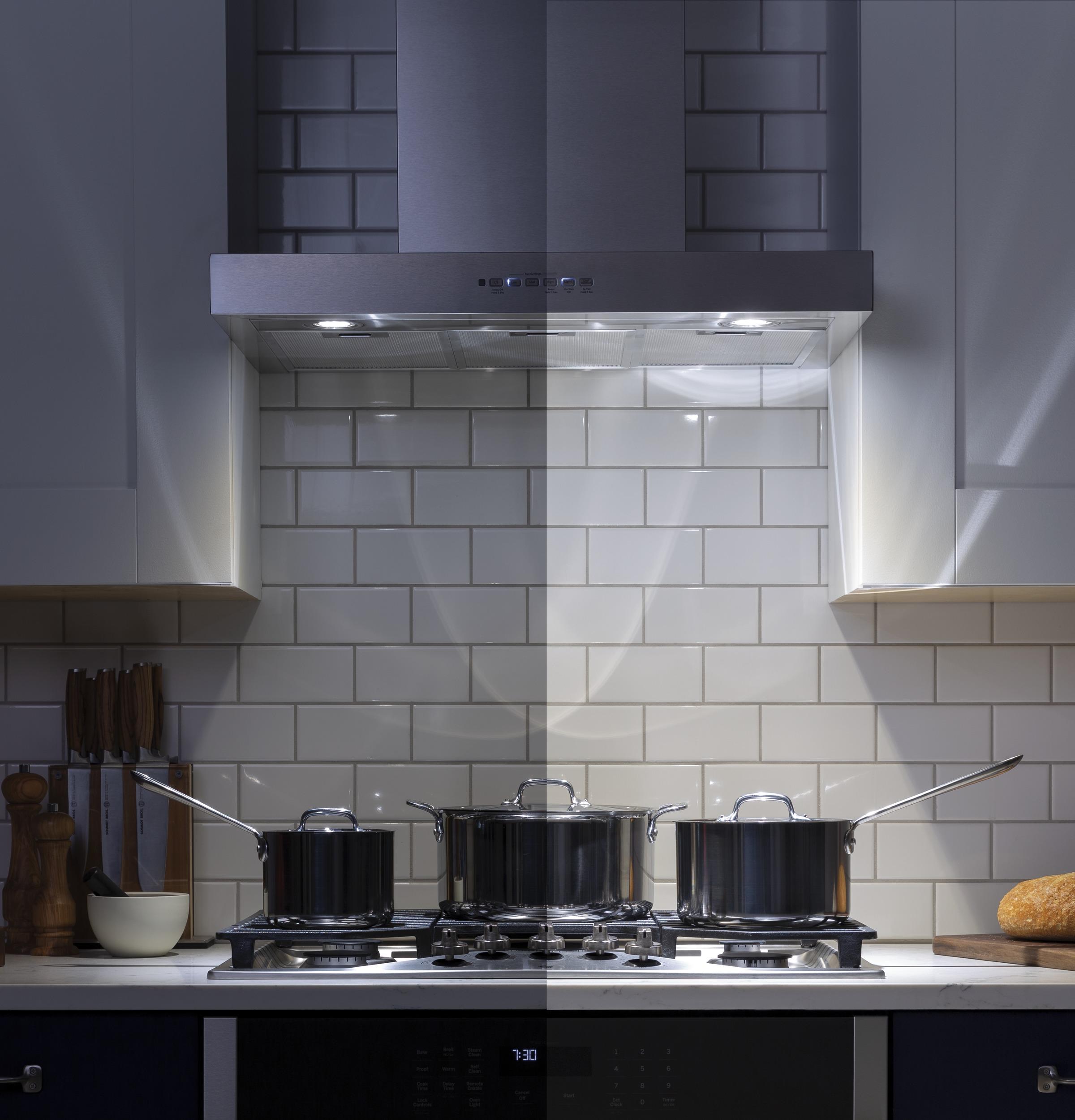

| Cooktop Lighting | LED |

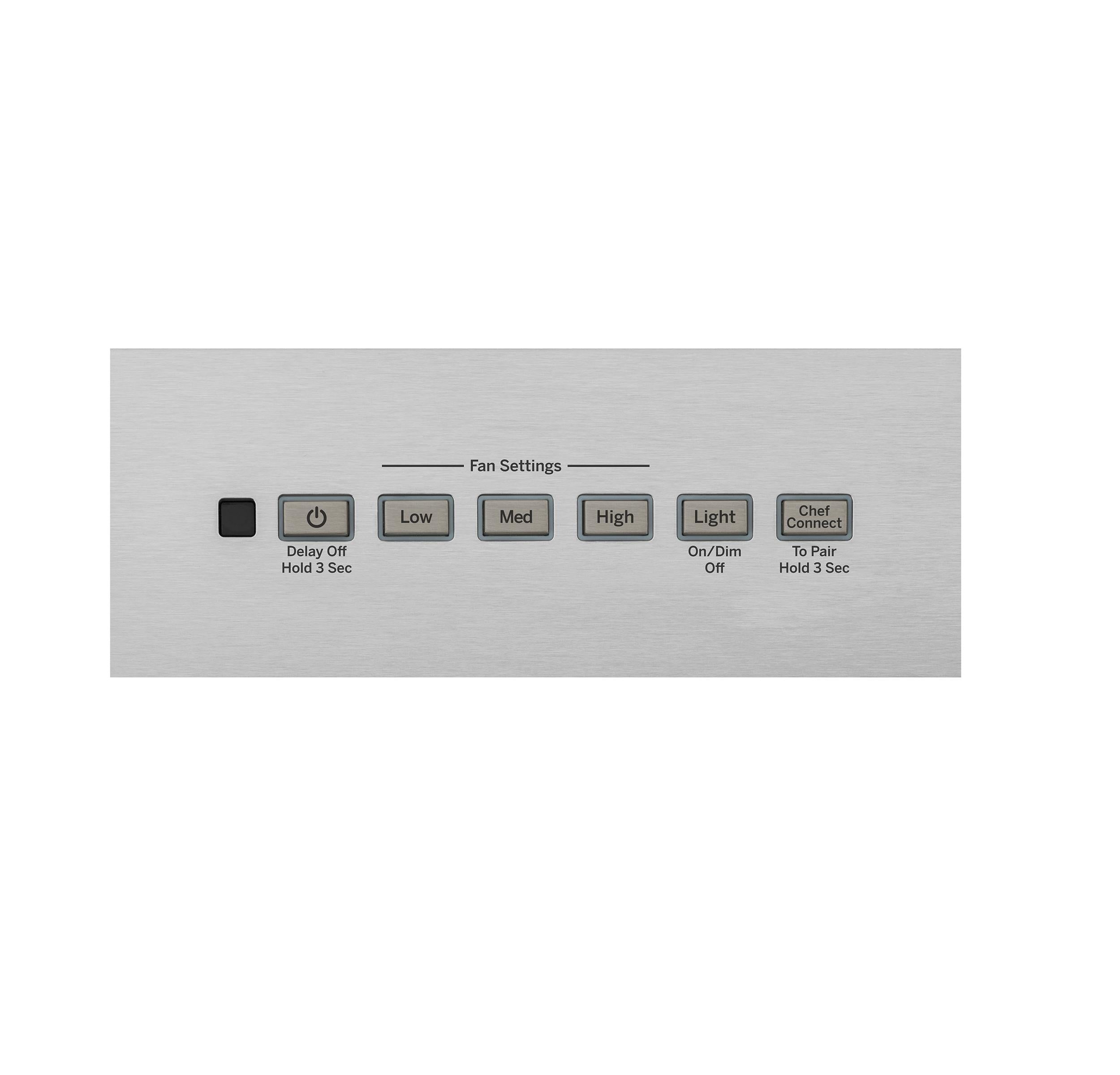

| Fan Speed Control | 4-Speed |
| Max CFM | 350 |
| Ducting | Vertical Only |
| Light Controls | On/Off/Night |

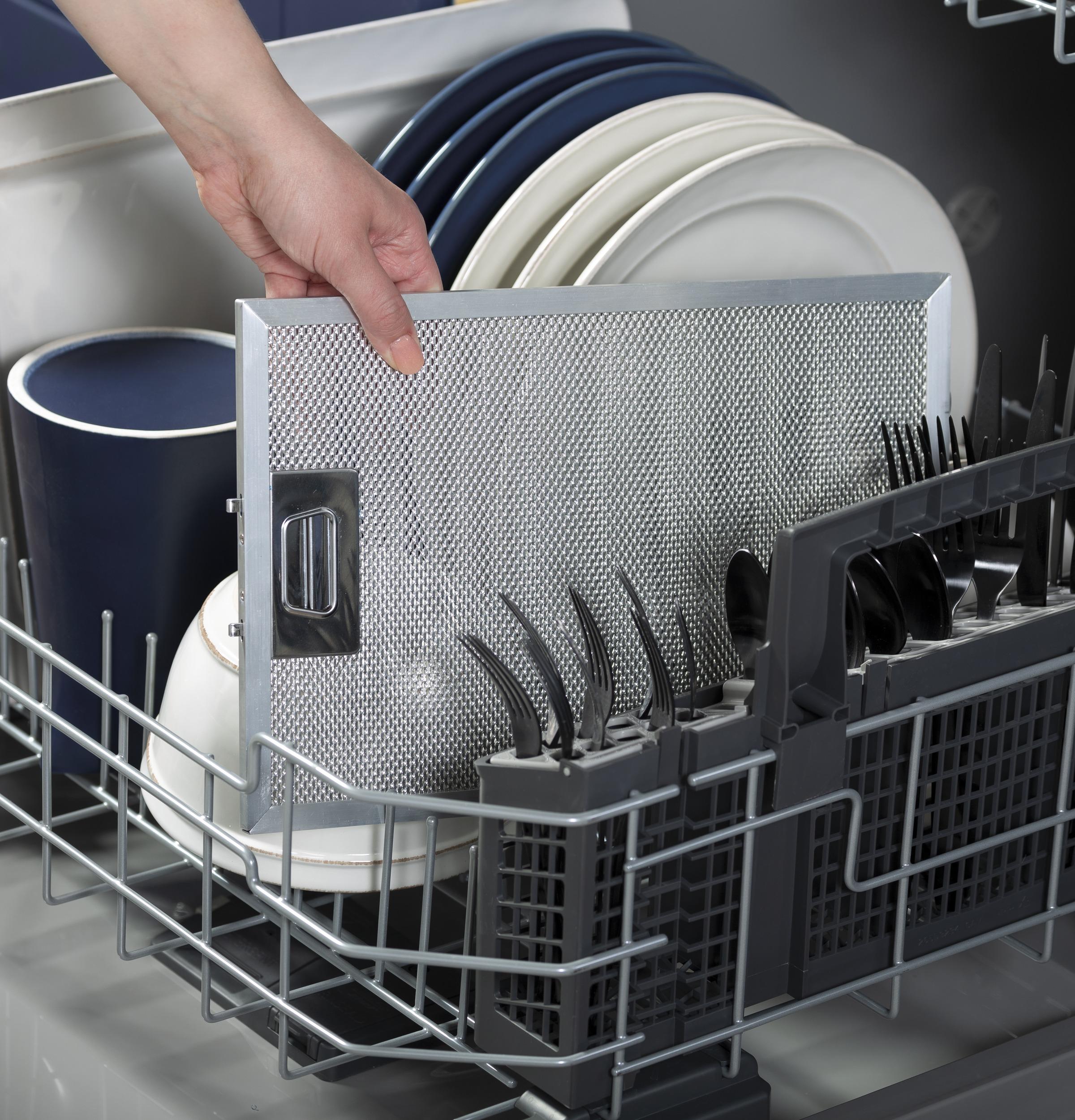

| Filter Cleaning | Dishwasher Safe |
| CFM/ Sones Rating | 350/3.0 (High Speed) - Vertical venting |
| Time Delay Shut-Off | Yes |
| Exhaust Options | Vented to Outside |
| 8" Round Duct | Yes |

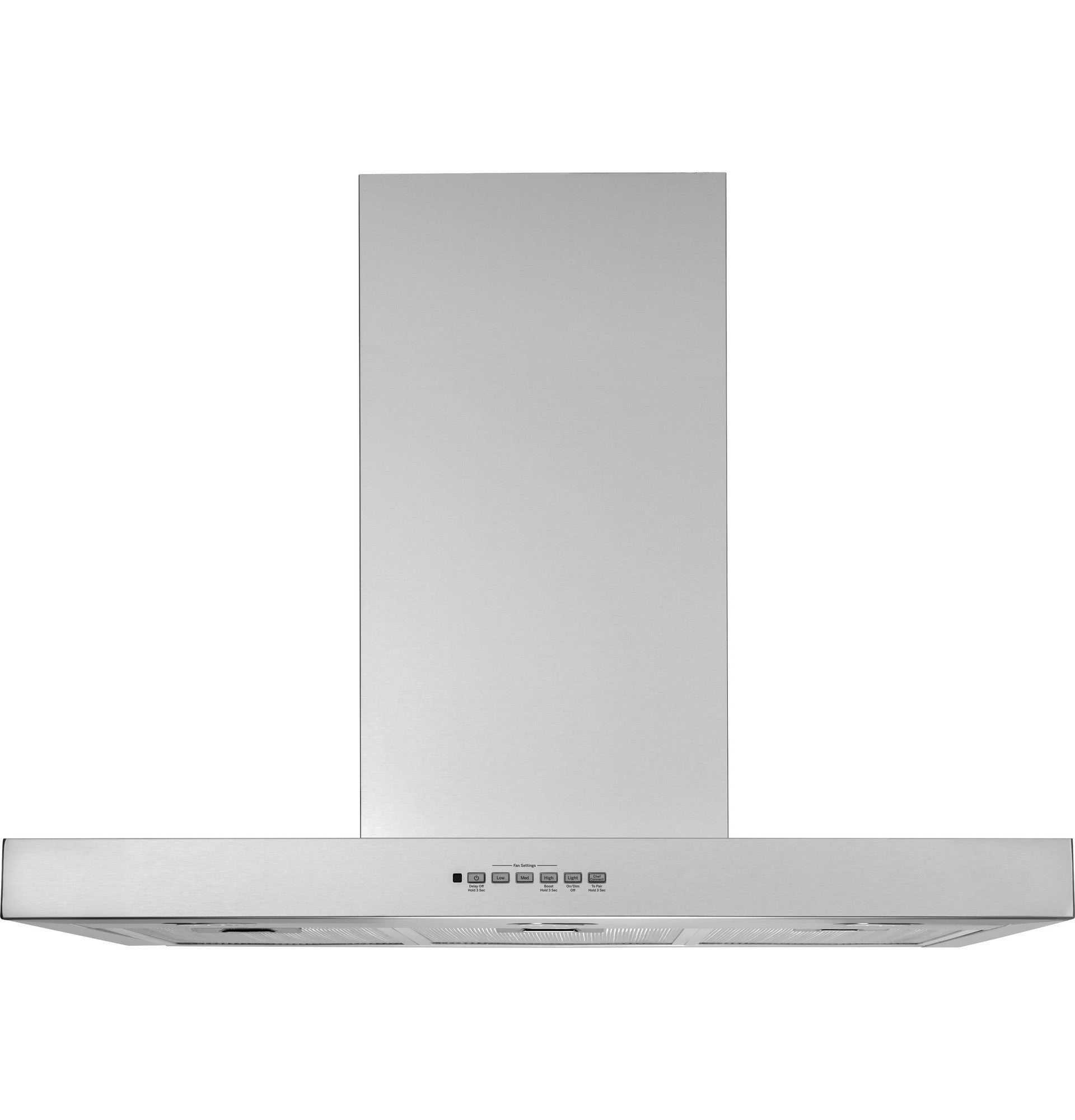

| Product Type | Designer Hood |

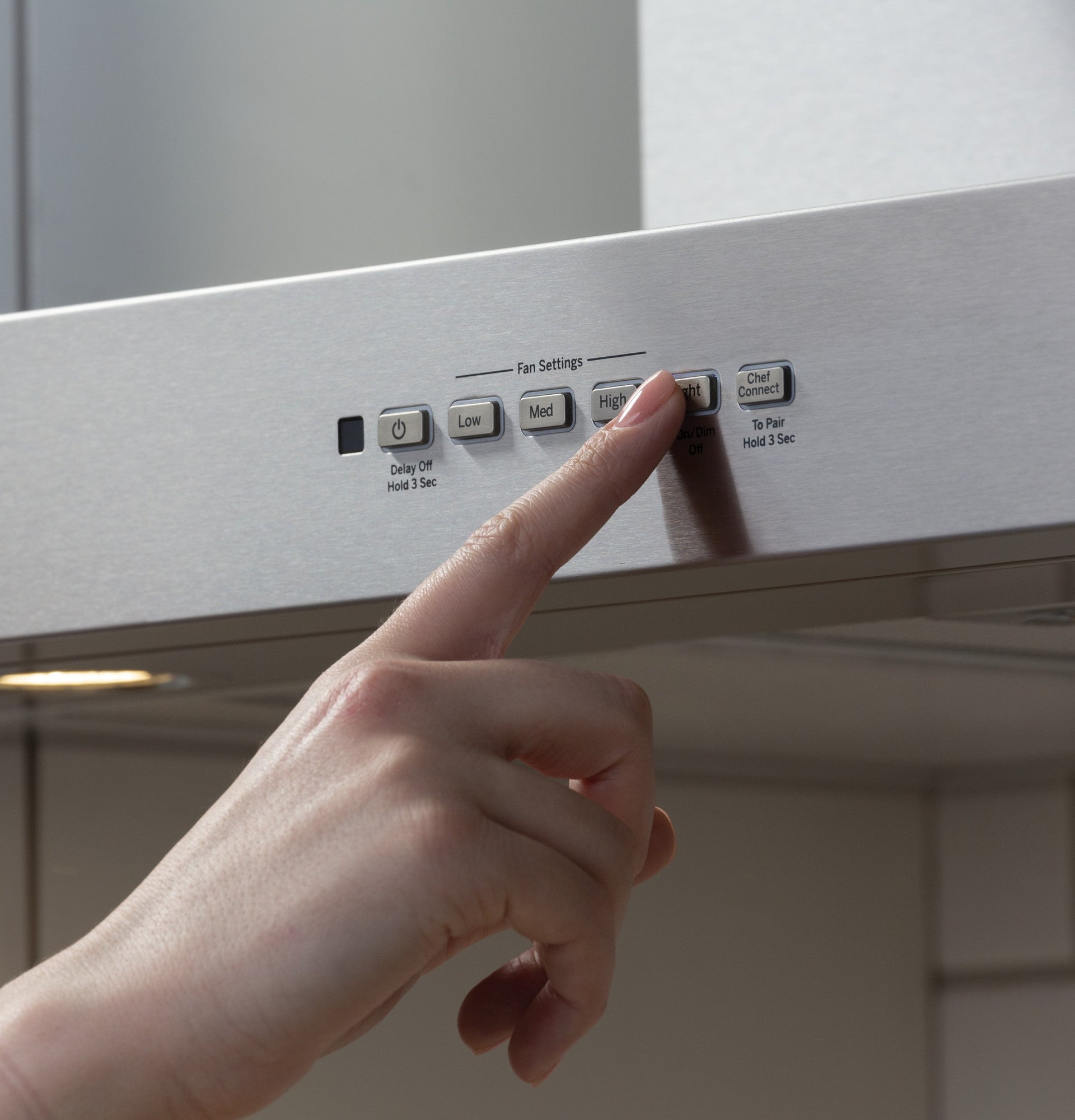

| Control Type | Electronic |
| Removable Filter | Grease & Charcoal included |
| Control Location | Front |
| Charcoal Filter | UXCF91 |
| Control Type | Backlit |
| Cooktop Lighting | 2 |
| Exhaust Options | Recirculating |
| Required Duct Size | 8 in. Round |
| Blower / Light Switch Color | Backlit |
| Material | Steel |
| Color Appearance | Stainless Steel |
| Net Weight | 70 lb |
| Approximate Shipping Weight | 80 lb |

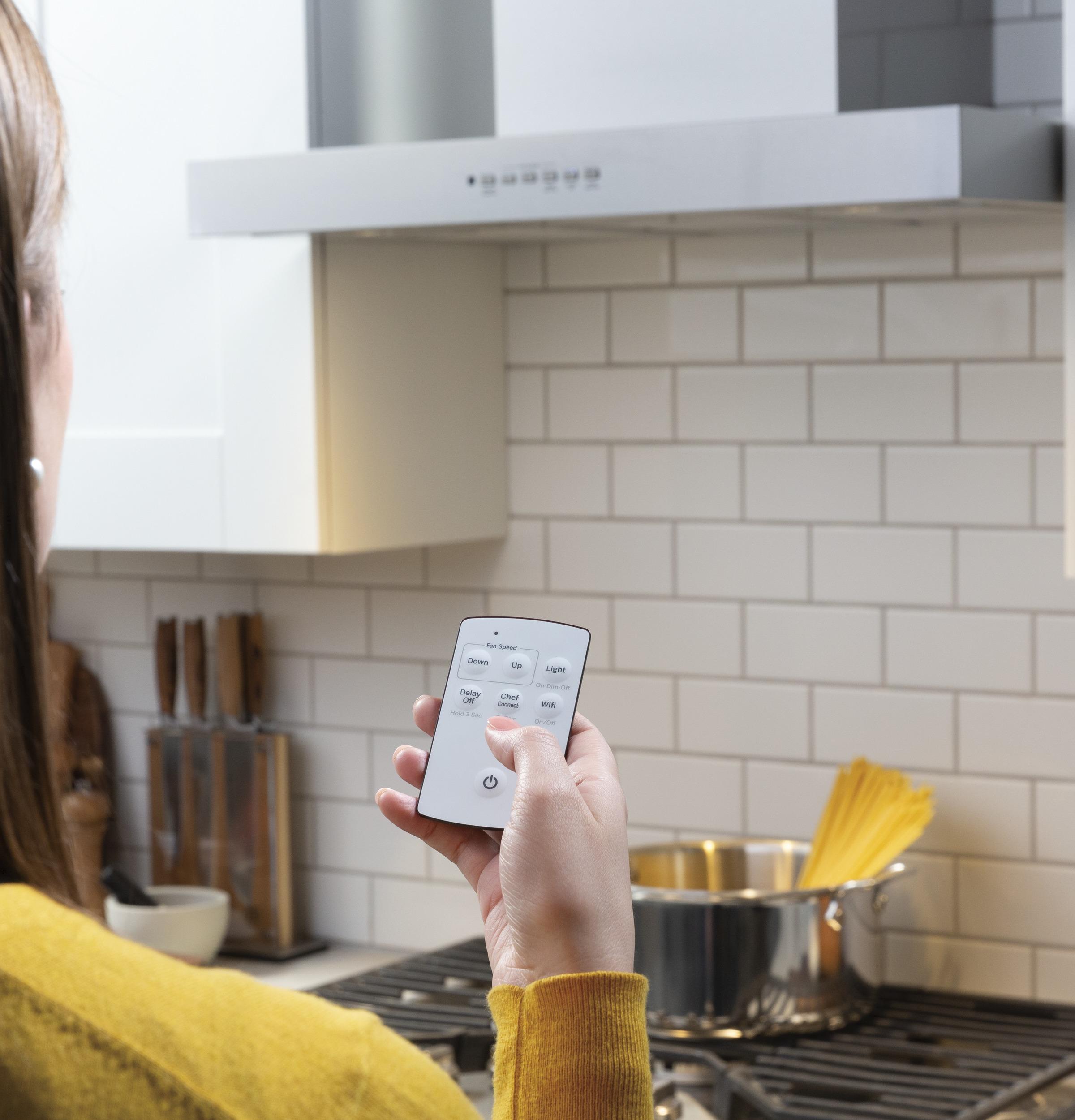

| Optional Accessories | UXRC70 - Remote Control |
| Optional Accessories | JXHC1 - Power Cord Kit |
| Optional Accessories | JXMUA8 - Makeup air accessory kit |
| Optional Accessories | UX10DC8SLSS - 10' High Ceiling Duct Cover Kit |
| Optional Accessories | UX12DC9SLSS - 12' High Ceiling Duct Cover Kit |
| Optional Accessories | UX14DC9SLSS - 14' High Ceiling Duct Cover Kit |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Venting Type | Convertible |
