SKU: UVD6361DPBB | UPC: 84691858751

GE UVD6361DPBB Universal 36" Telescopic Downdraft System Black

Quick Specification More details

Width:
36"
Depth:
7"
Height:
7"
Type:
Downdraft Hoods

About this product

SKU: UVD6361DPBB | UPC: 84691858751

GE UVD6361DPBB Universal 36" Telescopic Downdraft System Black

Discontinued

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
36"
Depth:
7"
Height:
7"
Type:
Downdraft Hoods

About this product

Product Details
Manuals & Guides
From The Manufacturer
Rebates
Reviews

$1,061.00 ~~$1,665.97~~ Save $604.97 / 36% OFF

Product Details for GE UVD6361DPBB

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Filter

App Filter-Multi Brand	Monogram
App Filter - Hood Type	Telescopic downdraft
App Filter - Venting Type	External
App Filter - Cabinet Width	Vent 36 in.

Features

Fan Speed Control	Variable
Max CFM	500
Optional Blower Mount Capabilities	Yes
Downdraft Exhaust (CFM)	500
Exhaust Options	Vented to Outside
Product Type	Telescopic Downdraft
Control Type	Rotary-Mechanical
Telescopic Assembly	Stainless Steel
Cover Plate	Black
Removable Grease Filter(s)	Yes
CFM/ Sones Rating	500/11.0
Blower Type	Internal

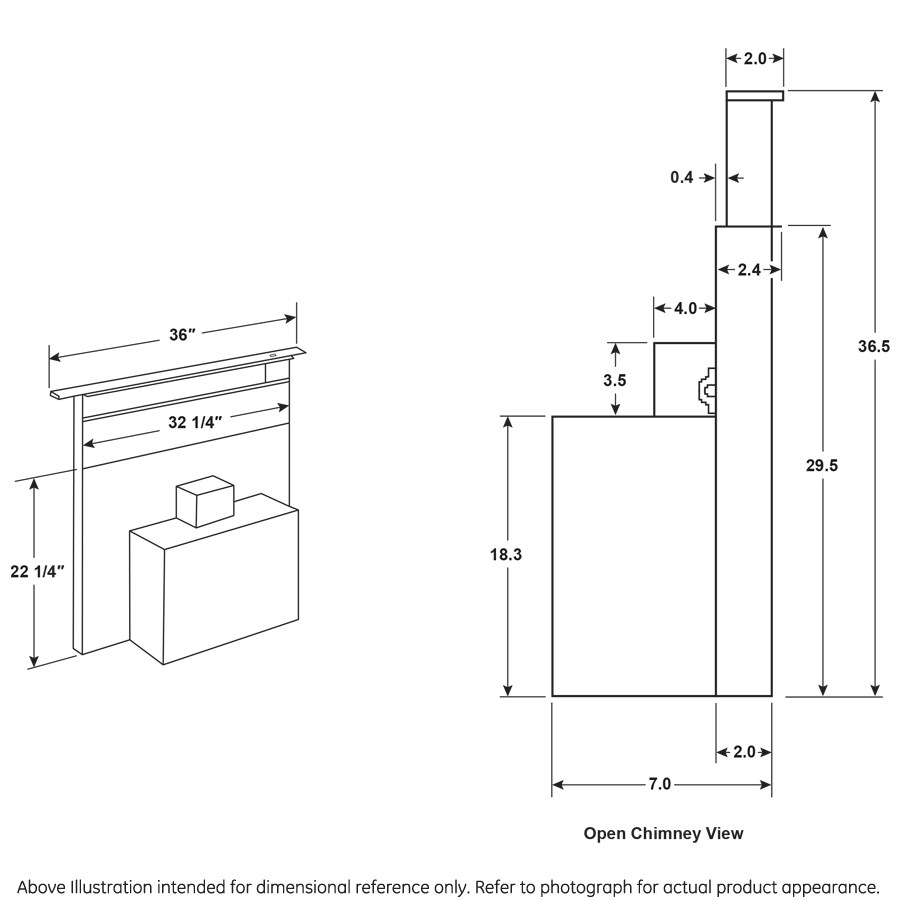

Weights & dimensions

Cabinet Width	36 in
Net Weight	69 lb
Approximate Shipping Weight	73 lb
Telescoping Height	7 in

Power / ratings

Electrical Requirements	120V ; 60Hz ; 4.0A
Amp Rating at 120V	4.0
Watts	375
Hertz	60

Accessories

Duct Extension

100 ft.

Warranty

Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance

Appearance

Color Appearance

Black

Dimensions & weight

Width	36 in.
Height	7 in.
Length	7 in.
Weight	69 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	41 in.
Shipping Height	12 in.
Shipping Length	12 in.
Shipping Weight	109 lbs.
Total of Shipping Weight	109 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.02 ft³
Dimensional Weight	12.69 lbs.
Total of Cubes	1.02 ft³
Total of Dimensional Weight	12.69 lbs.

Economical / quiet

Venting Type

Externally Vented

Description

500 CFM Exhaust Fan
Efficiently remove smoke, grease, odors and moisture from the air thanks to a downdraft kitchen exhaust vent with a 500-CFM venting system

Adjustable Fan Speed
Adjust your ventilation with the turn of a knob thanks to a kitchen exhaust fan that can be set to any speed between 0-500 CFM, depending on what you're cooking

Kitchen Exhaust Fan Filters
Minimize clean-up and prevent unpleasant kitchen odor with a removable grease filter that helps cut down on scrubbing

Aluminum Mesh Filters
Cut down on clean up thanks to mesh filters that are quick and easy to remove and are completely dishwasher safe

Hidden Design
Streamline the look of your kitchen with a downdraft range vent that raises over the cooktop surface when needed and then retracts when not in use
