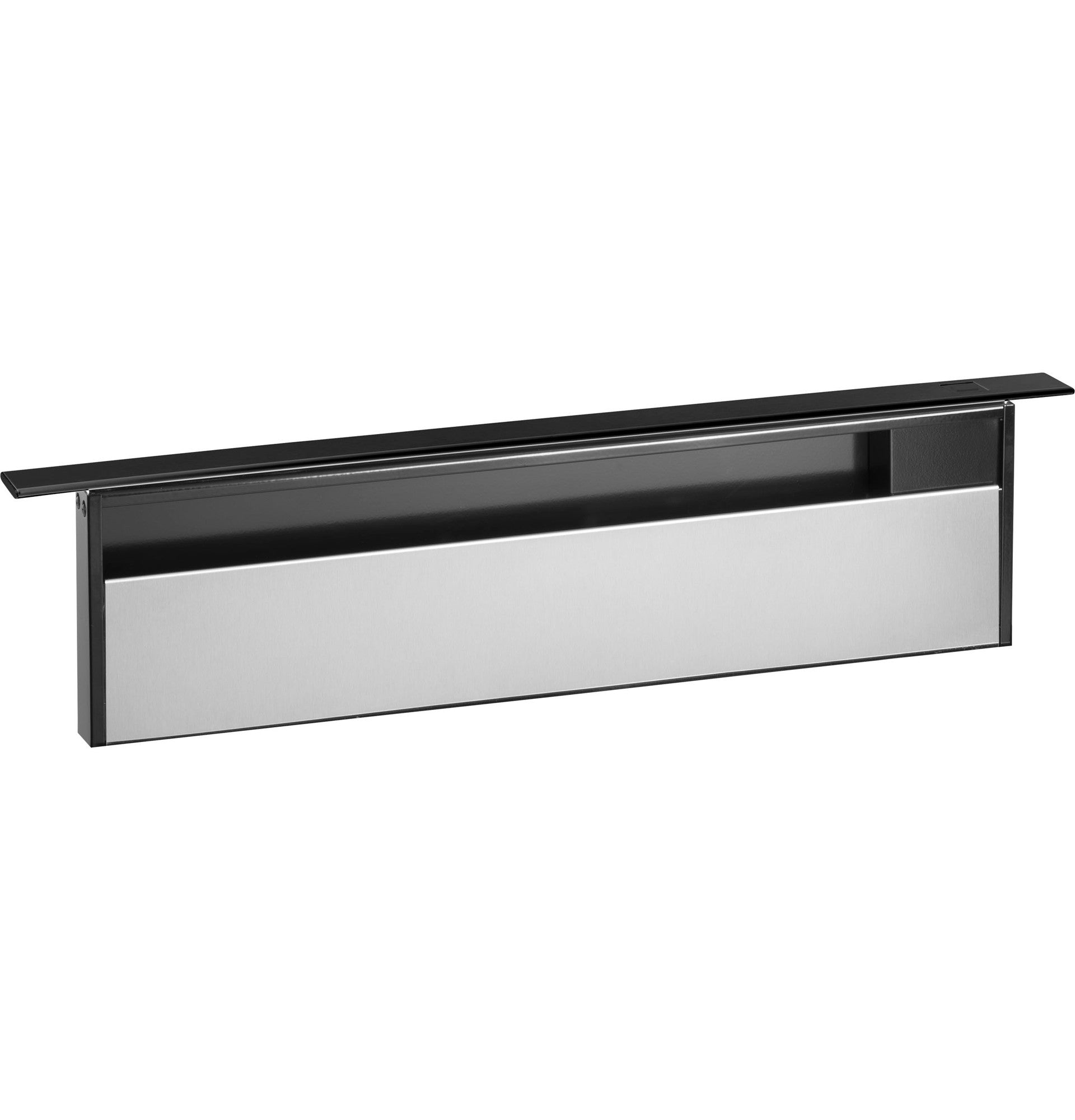

Cafe UVD6301DPBB Universal 30" Telescopic Downdraft System Black

Quick Specification More details

Width:
30"
Depth:
7"
Height:
7"
Type:
Downdraft Hoods

About this product

500 CFM Exhaust Fan
Adjustable Fan Speed
Kitchen Exhaust Fan Filters
Aluminum Mesh Filters

Cafe UVD6301DPBB Universal 30" Telescopic Downdraft System Black

$1,061.00 ~~$1,548.97~~ Save $487.97 / 31% OFF

Quantity:

More on the way

Active Rebates

Extended Protection

1-Year Extended Protection
$43.49
2-Year Extended Protection
$75.99
3-Year Extended Protection
$115.99
5-Year Extended Protection
$163.99
Manufacturer Warranty Only

Range Hood install
$180.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
7"
Height:
7"
Type:
Downdraft Hoods

About this product

500 CFM Exhaust Fan
Adjustable Fan Speed
Kitchen Exhaust Fan Filters
Aluminum Mesh Filters

Product Details
Manuals & Guides
From The Manufacturer
Rebates
Reviews

$1,061.00 ~~$1,548.97~~ Save $487.97 / 31% OFF

Product Details for GE UVD6301DPBB

Technical Details

Features

Control Type	Rotary-Mechanical
Cover Plate	Black
Downdraft Exhaust (CFM)	500
Exhaust Options	Downdraft
Exhaust Options	3-1/4" x 10" Rectangular Duct
Exhaust Options	Vented to Outside
Fan Speed Control	Variable
Optional Blower Mount Capabilities	Yes
Product Type	Telescopic Downdraft
Removable Grease Filter(s)	Yes
Removable Grease Filter(s)	Mesh
Telescopic Assembly	Stainless Steel
Max CFM	500
CFM/ Sones Rating	500/11.0
Blower Type	Internal

Appearance

Color Appearance

Black

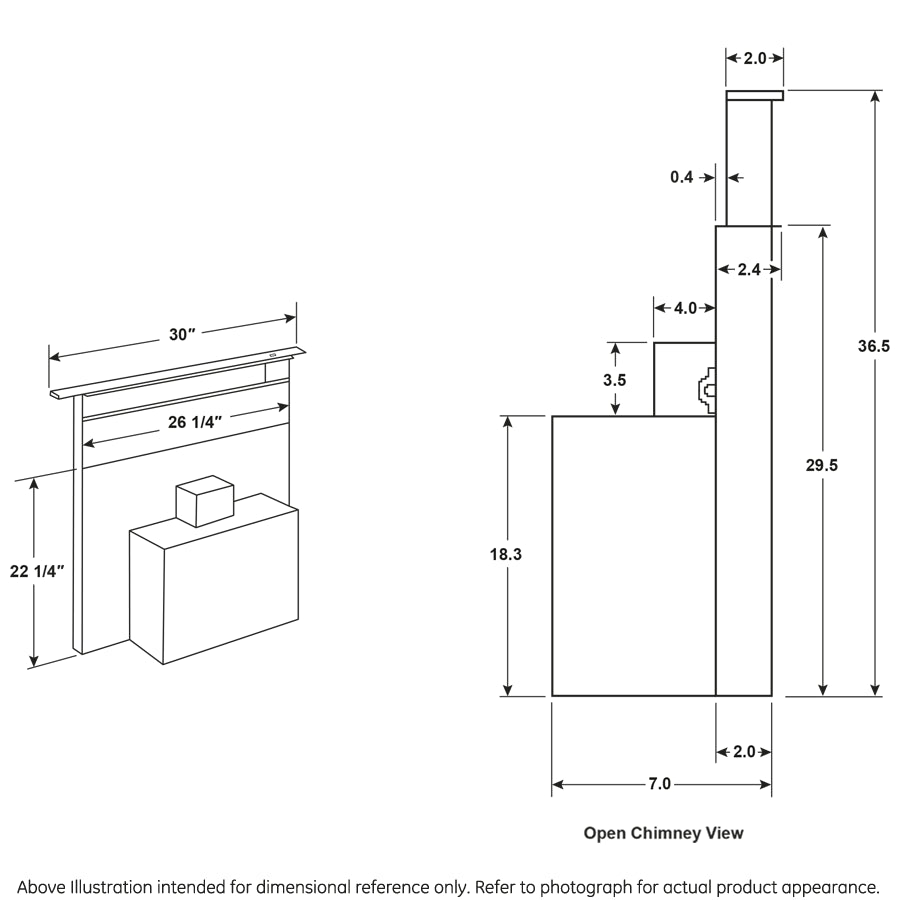

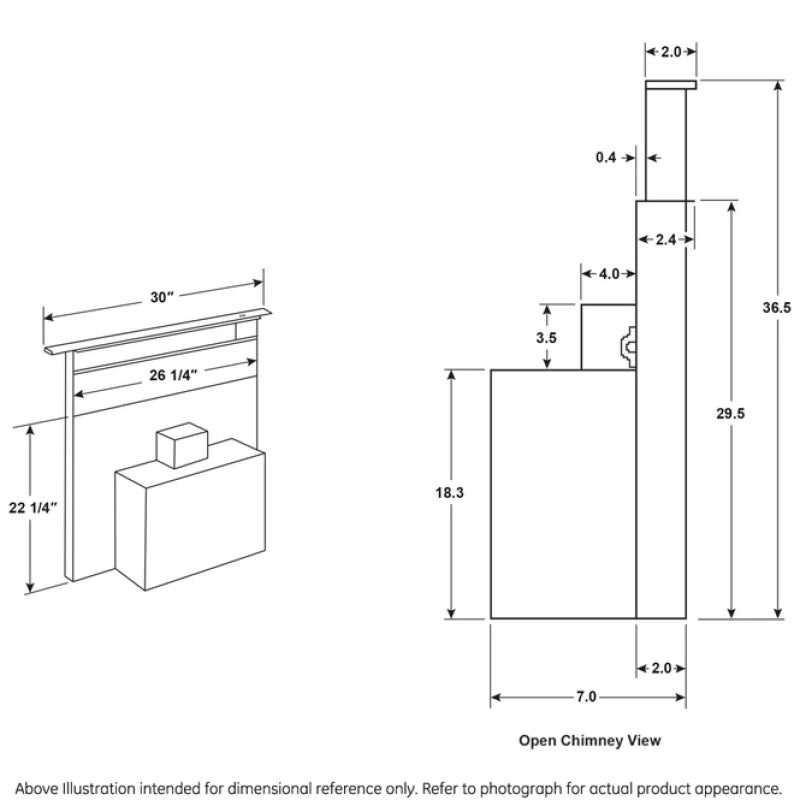

Weights & dimensions

Approximate Shipping Weight	67 lb
Cabinet Width	30 in
Net Weight	63 lb
Overall Depth	7 in
Overall Height	7 in
Overall Width	30 in
Telescoping Height	7 in

Power / ratings

Amp Rating at 120V	4.0
Electrical Requirements	120V ; 60Hz ; 4.0A
Hertz	60
Watts	375

Accessories

Duct Extension

100 ft.

Warranty

Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

Economical / quiet

Venting Type

Externally Vented

Description

The brand GE UVD6301DPBB is a 30" universal telescopic downdraft system featuring a high-performance 500 CFM exhaust fan that efficiently removes smoke, grease, odors, and moisture. It offers variable fan speed control for precise ventilation and includes aluminum mesh grease filters that are dishwasher-safe for easy maintenance. The hood’s hidden, retractable design raises discreetly when in use and tucks away completely when not needed, preserving your cooktop’s aesthetic. Built with stainless steel telescopic assembly and powered by an internal blower, this professional-style downdraft model requires standard 120 V/4 A connection and fits a 3‑1/4" × 10" duct for external venting.

Product Features

500 CFM Exhaust Fan
Efficiently remove smoke, grease, odors and moisture from the air thanks to a downdraft kitchen exhaust vent with a 500-CFM venting system
Adjustable Fan Speed
Adjust your ventilation with the turn of a knob thanks to a kitchen exhaust fan that can be set to any speed between 0-500 CFM, depending on what you're cooking
Kitchen Exhaust Fan Filters
Minimize clean-up and prevent unpleasant kitchen odor with a removable grease filter that helps cut down on scrubbing
Aluminum Mesh Filters
Cut down on clean up thanks to mesh filters that are quick and easy to remove and are completely dishwasher safe
Hidden Design
Streamline the look of your kitchen with a downdraft range vent that raises over the cooktop surface when needed and then retracts when not in use
