GE UDT165SIVII 18" Panel-Ready Dishwasher Custom Panel and Handle Requ

Product Details for GE UDT165SIVII

Technical Details

Features

Wash System	Standard
Sensor	Clean Sensor
Lower Rack	Nylon
Leveling System	Leveling Legs
OU Certified	No
Number of Place Settings	8
Custom Panel Ready	Integrated Panels
Rack Features	Fold-Down Tines - Lower
Water Filtration System	3-Stage Manual Clean Filtration
Upper Rack	Nylon
Dishwasher Options	TempBoost
Latch	Pull with Handle
Wash Arms	2 with Upper Nozzle
Number of Options	5
Style	Built-In Top Control

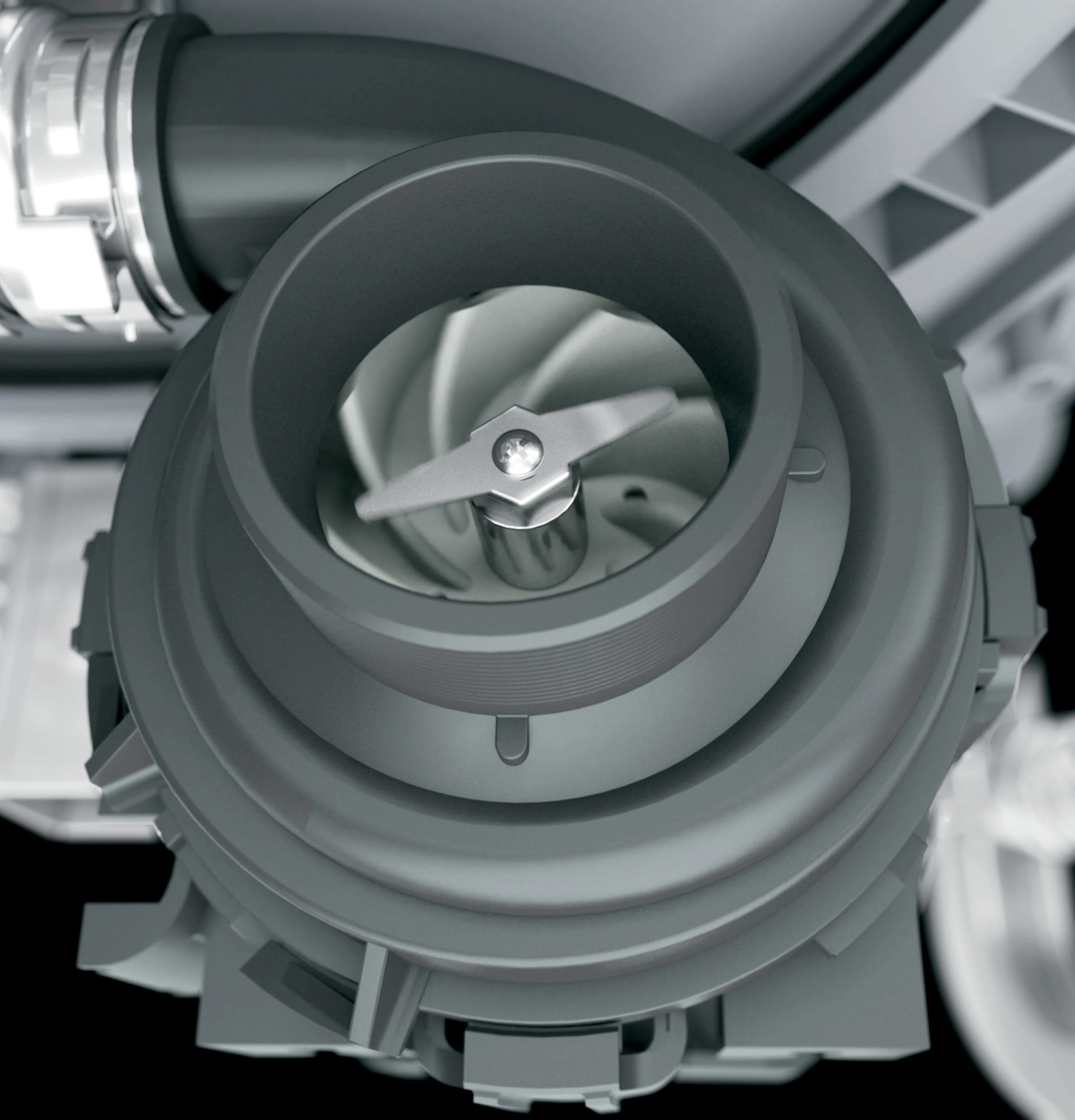

Wash System Features	Piranha™ Hard Food Disposer
Dishwasher Control Features	Start/Reset Pad
Floor Protection	Yes
Dishwasher Cycles	Light Wash
Racking Material	Nylon
Number of Cycles	3
Sabbath Mode	Yes
Tub and Door Liner	Stainless Steel
Dispenser	Rinse Aid with Indicator and Adjustment
Exterior Style	Custom Panel
Control Type	Top Controls
Dishwasher Drying Features	Condensate Dry
Control Type	Fully Integrated Electronic
Control Type	4 Pushbuttons
Dishwasher Control Features	3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators
Dishwasher Control Features	Cycle Countdown
Dishwasher Control Features	Audible End-of-Cycle Signal
Dishwasher Control Features	Last Cycle Memory
Dishwasher Cycles	AutoSense
Dishwasher Cycles	Heavy Wash
Dishwasher Options	Start/Reset
Dishwasher Options	Child Lock
Dishwasher Options	Delay Start 1-12 Hr.
Dishwasher Options	Sani (Certified to NSF Standard 184)
Dishwasher Options	Automatic Hot Start
Lower Rack	1 Rack handle
Rack Features	1 Piece Mid Silverware Basket w/ 1 Cell Cover
Rack Features	1 Plastic Utility Shelf - Upper
Rack Features	Ball-Tipped Tines
Upper Rack	Adjustable
Upper Rack	1 Rack handle
Wash System	3-Level
Wash System Features	Automatic Temperature Control
Wash System Features	Automatic HotStart
Wash System Features	Flood Control System
Wash System Features	Dual Pump
Product Type	Built-In
Collection	EcoBalance

Warranty

Warranty Notes	See written warranty for full details
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance

Appearance

Door Panel Color	Custom Panel Required
Design Style	European Stainless Steel
Door Appearance	Fully integrated door for custom panels
Panel Capability	Integrated
Color Appearance	Custom Panel and Handle Required
Handle Design	Handle required

Power / ratings

Power Connection	Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Calrod Heater Watts	1100
Electrical Requirements	120V ; 60Hz ; 10A
Energy Consumption (kWh/year)	240
Hertz	60
Watts	1200

Economical / quiet

Door Insulation	Mastic
Quiet Package	47 dBA
Outer Wrap	U-Blanket
Motor Type	Single Speed
Quiet Features	Tub Collar Trim
Door Insulation	Insulation
Quiet Features	Sealed Toe Kick

Weights & dimensions

Cabinet Depth	24 in
Approximate Shipping Weight	84 lb
Cabinet Width	18 in
Height w/ Legs Retracted - Minimum Height	32.375 in
Height w/Legs Extended - Maximum Height	34.625 in
Net Weight	71 lb
Overall Depth	23 in
Overall Width	18 in
Depth Without Handle	23 in
Overall Height	32.375 in
Depth with Door Open	23.125 in

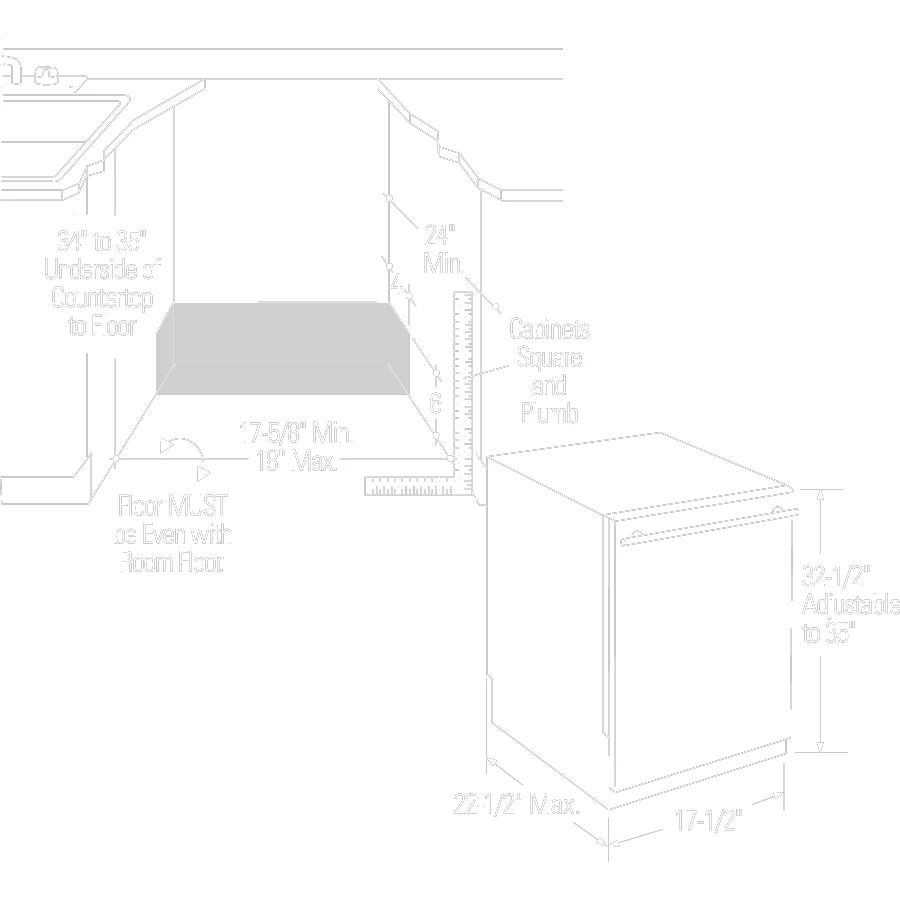

Cutout Height (in)	32.5
Cutout Width (in)	17.75
Cutout Depth (in)	23.625

Warranty

Parts	2 Year
Labor	2 Year

Dimensions & weight

Width	18 in.
Height	32.38 in.
Length	23 in.
Weight	71 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	23 in.
Shipping Height	37.38 in.
Shipping Length	28 in.
Shipping Weight	111 lbs.
Total of Shipping Weight	111 lbs.
Source	Calculation
