| Parts | 1 Year |
| Labor | 1 Year |

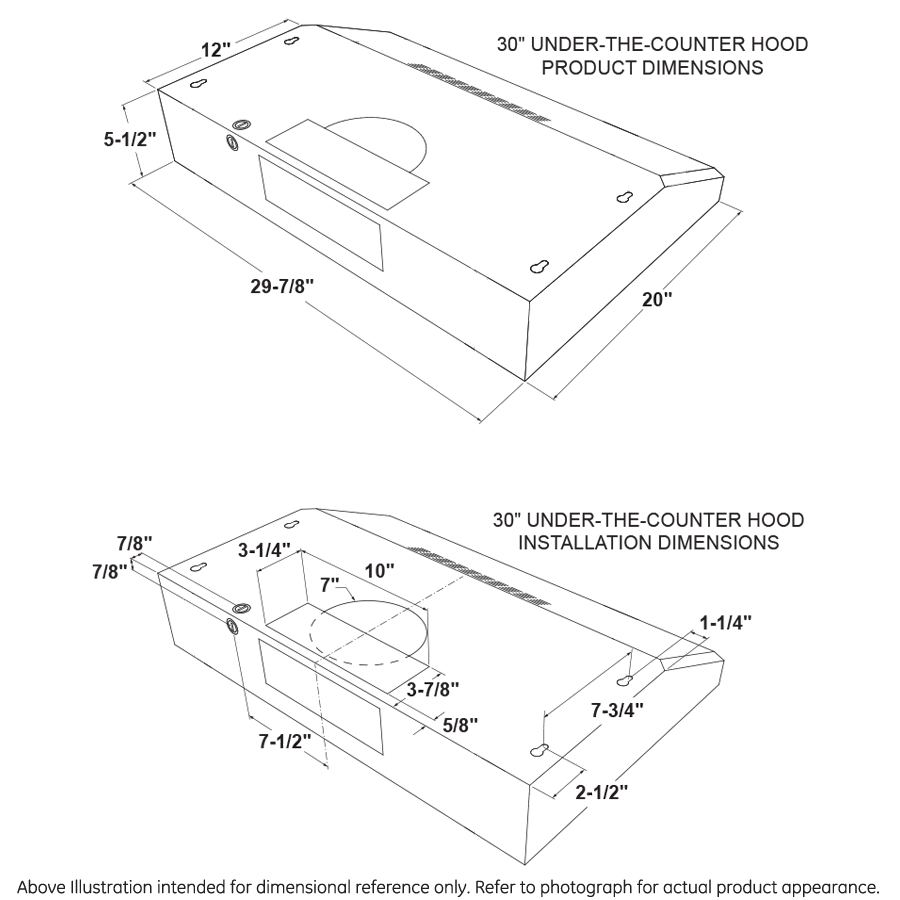

| Cabinet Width | 30 in |
| Overall Depth | 20 in |
| Overall Height | 5.5 in |
| Overall Width | 29.875 in |
| Net Weight | 21 lb |
| Approximate Shipping Weight | 28 lb |
| Fan Speed Control | 4-Speed |

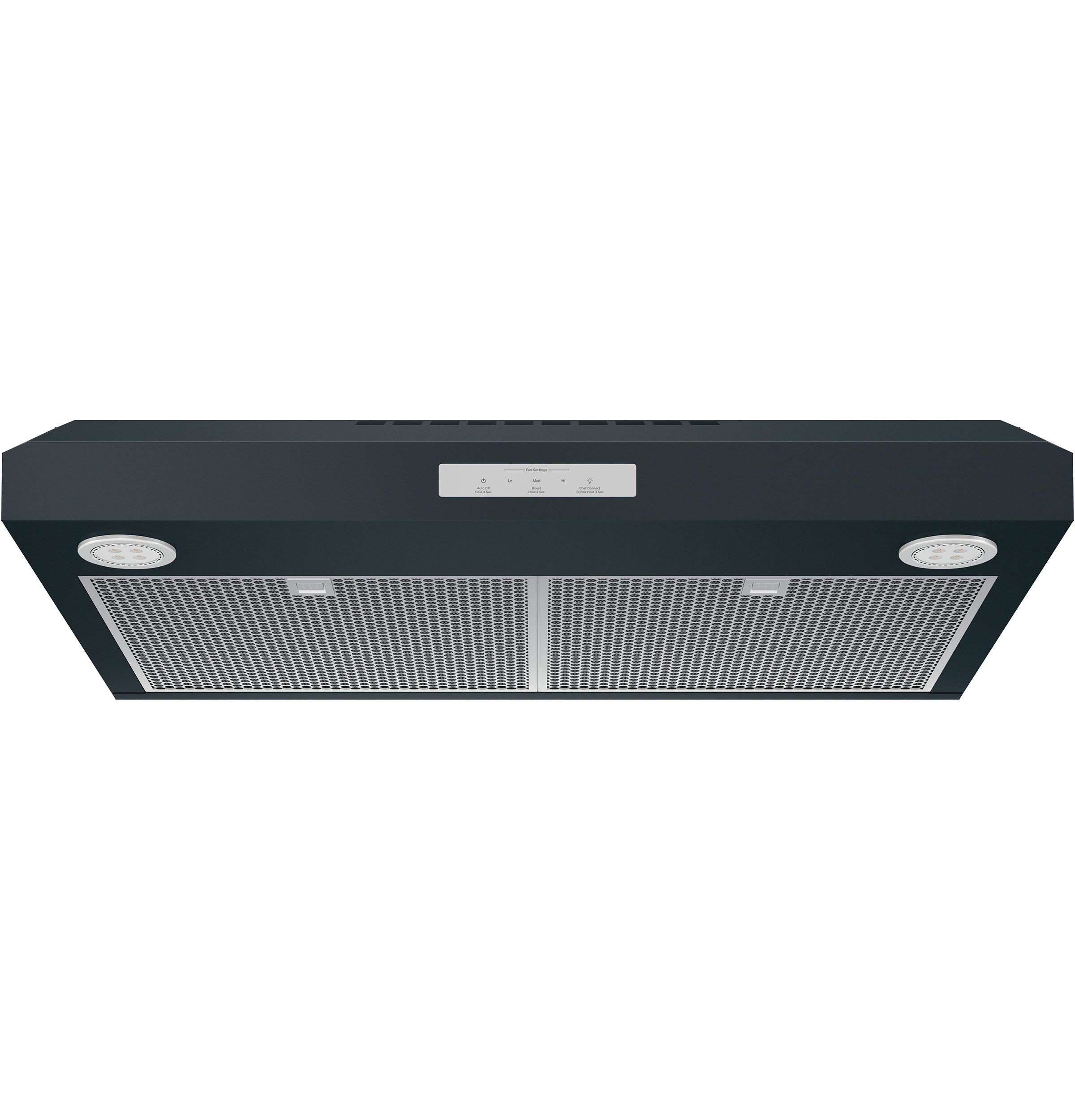

| Cooktop Lighting | Dual LED |
| Max CFM | 390 |
| Ducting | Vertical or Horizontal; 7" Round |
| Light Controls | On/Off/Night-Light |
| Filter Cleaning | Dishwasher Safe |
| CFM/ Sones Rating | 70/1.5 (Low Speed) |
| Exhaust Options | Vented to Outside |

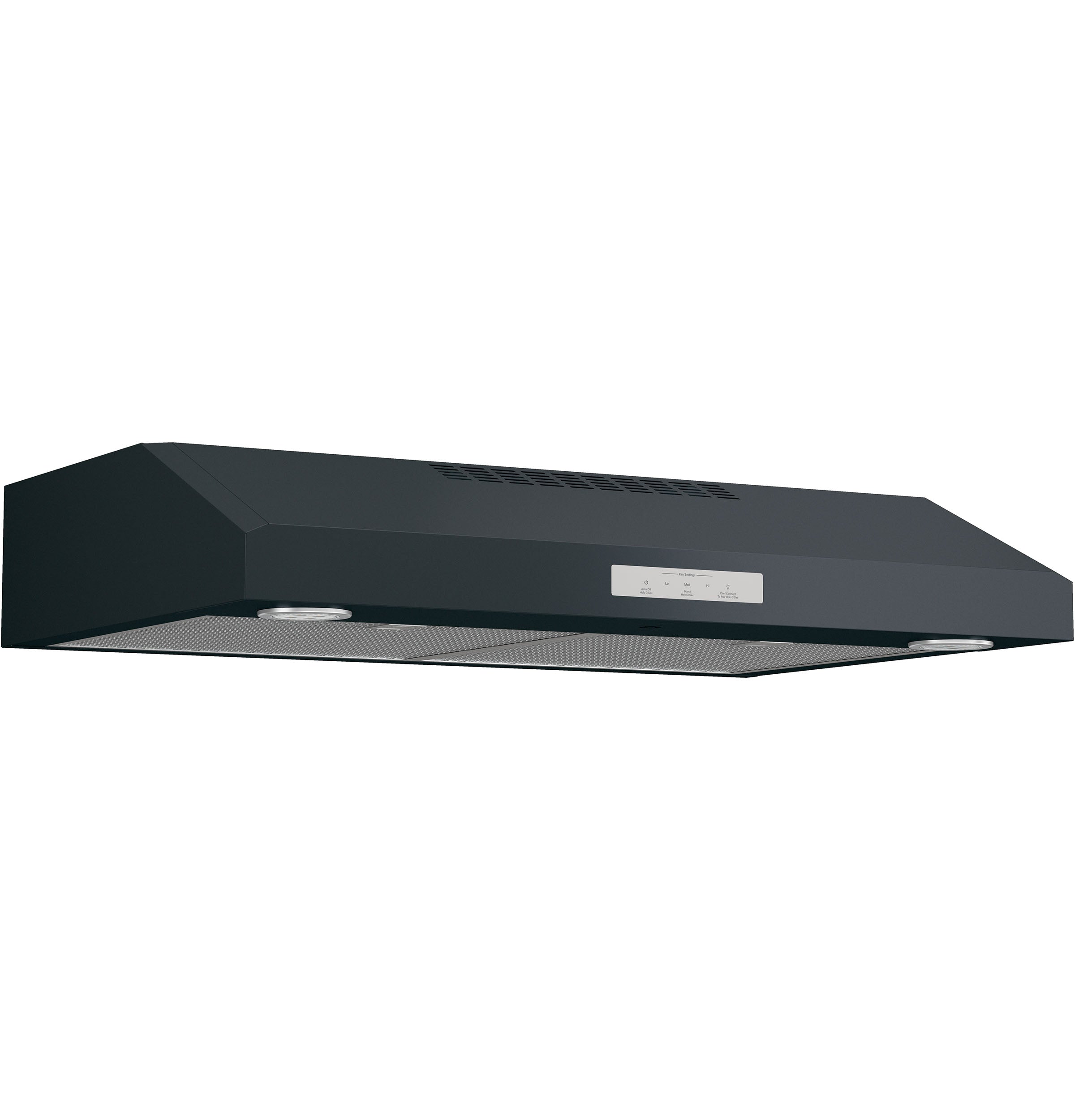

| Product Type | Under Cabinet Hood |
| Control Features | Chef Connect |

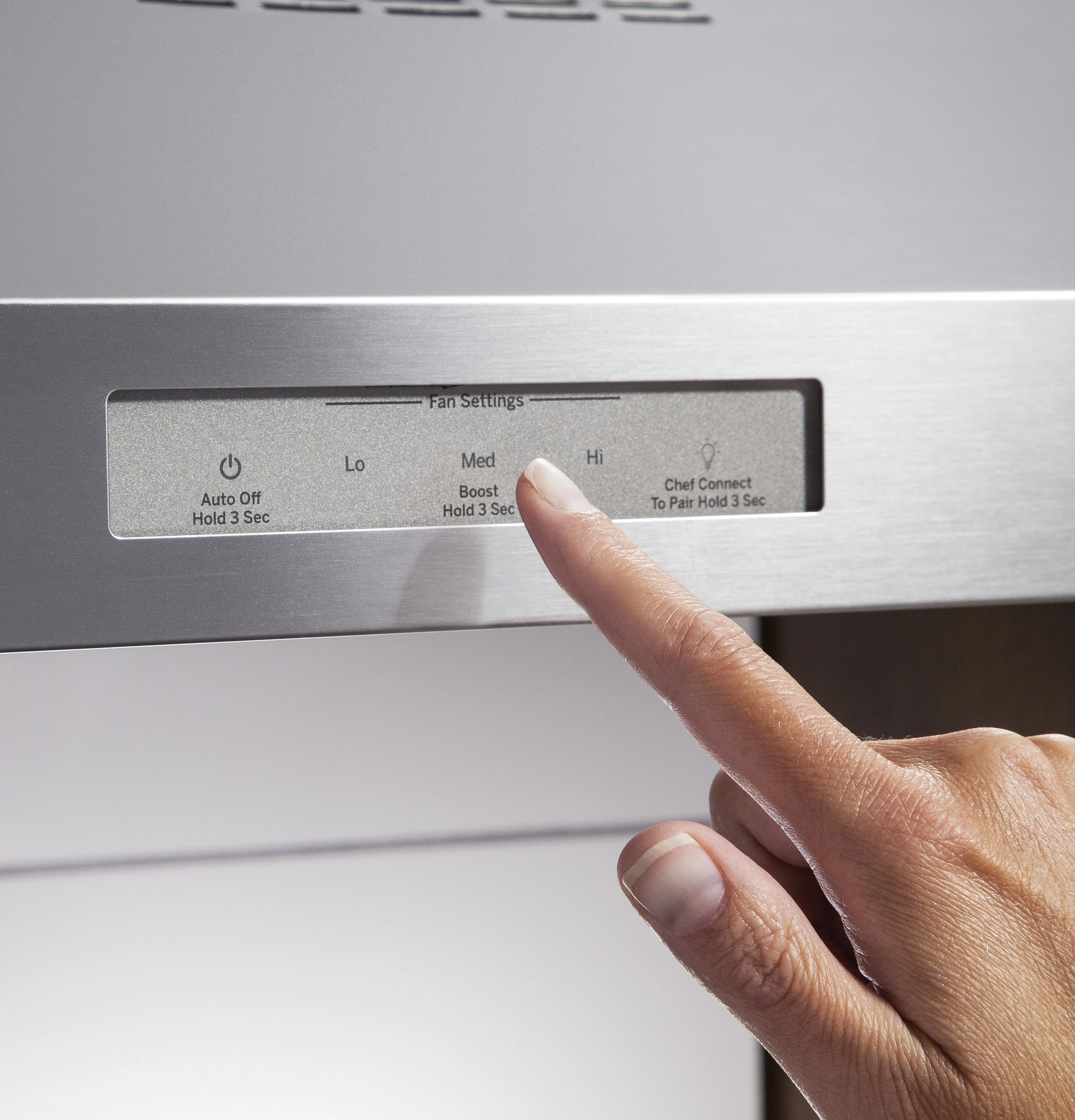

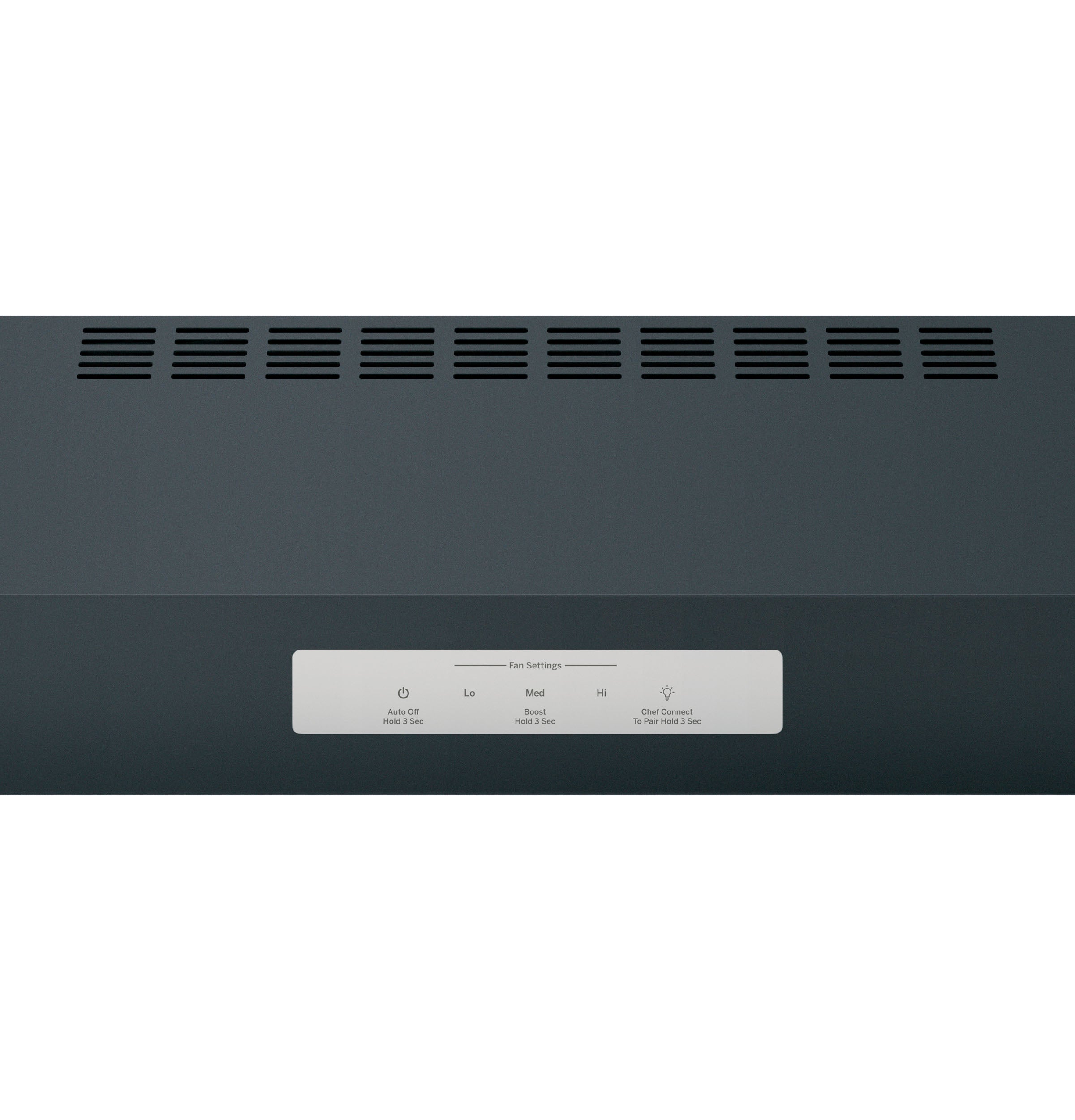

| Control Type | Glass Touch |
| Control Location | Front |
| Removable Grease Filter(s) | Yes |
| Blower Type | Internal |
| CFM/ Sones Rating | 310/6.0 (High Speed) |
| CFM/ Sones Rating | 390/8.0 (Boost Speed) |
| CFM/ Sones Rating | 210/4.0 (Medium Speed) |
| Exhaust Options | Recirculating |

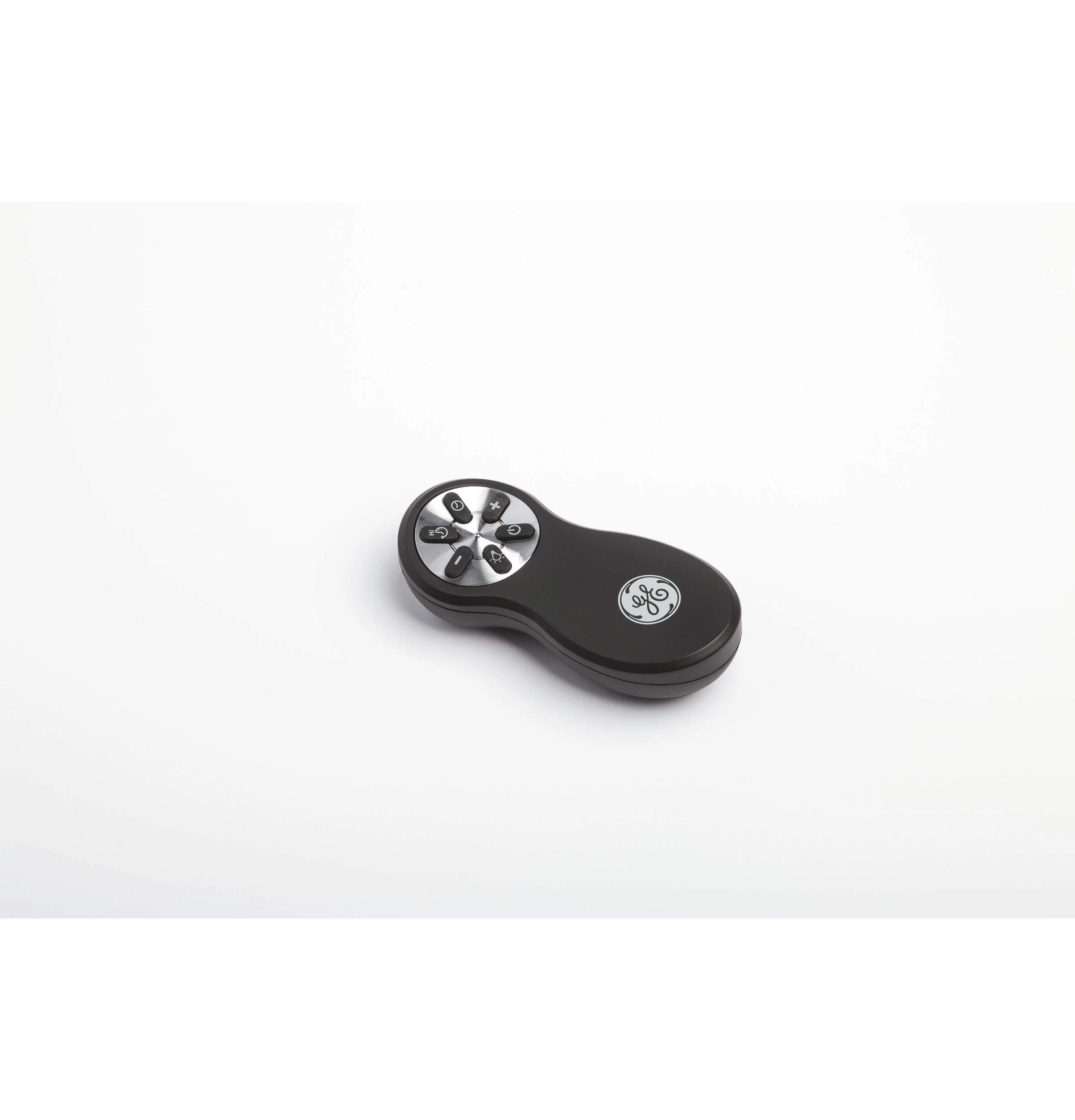

| Optional Accessories | UXRC70 - Remote Control |
| Optional Accessories | JXHC1 - Power Cord Kit |
| Optional Accessories | JXCF55 - Charcoal Filter |
| Optional Accessories | JXS50SS - 15" Cabinet Spacer for 30" Hoods |
| Amp Rating at 120V | 2.5 |
| Hertz | 60 |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |

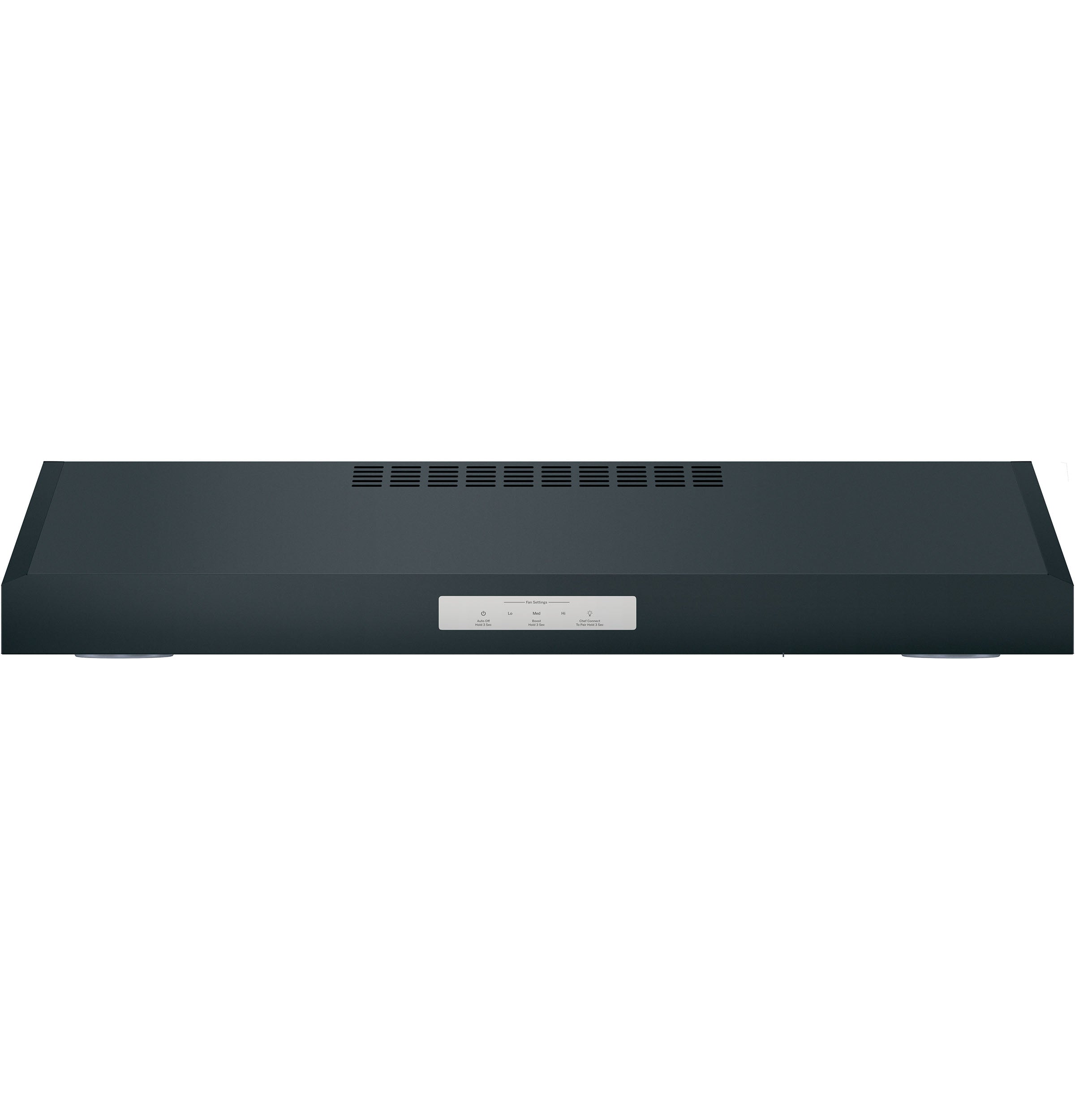

| Color Appearance | Fingerprint Resistant Black Slate |
| Venting Type | Convertible |
| Width | 29.88 in. |
| Height | 5.5 in. |
| Length | 20 in. |
| Weight | 21 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 10.5 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 61 lbs. |
| Total of Shipping Weight | 61 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 1.9 ft³ |
| Dimensional Weight | 23.64 lbs. |
| Total of Cubes | 1.9 ft³ |
| Total of Dimensional Weight | 23.64 lbs. |
Removes smoke, grease, odors and moisture
Set functions quickly and clean with little effort
Control your ventilation lighting and fan speed from anywhere in the kitchen
10 minutes or less by one person
