| Parts | 1 Year |
| Labor | 1 Year |
| Cabinet Width | 30 in |
| Overall Width | 29.875 in |
| Overall Depth | 17.25 in |
| Approximate Shipping Weight | 85 lb |
| Net Weight | 75 lb |
| Cavity (W x H x D) | 21-5/8 x 9-3/4 x 14-1/4 |
| Cutout Depth (in) | 13 |
| Cutout Height (in) | 16.5 |
| Cutout Width (in) | 30 |
| Exterior Height (Front) | 15.6875 in |
| Depth with Door Open | 42.3125 in |
| Overall Height | 16.5 in |
| Exterior Height (Rear) | 16.5 in |
| Door Swing | Hinges on Left |
| Handle Color | White |
| Oven Door Features | Oven Window |
| Smooth Steel Door | Yes, with Hidden Hinge |
| Door Color | White |
| Color Appearance | White |
| Display Type | LED |
| Microwave Sensor Cooking Controls | Reheat |
| Electronic Digital Display with Clock | Digital (1 line) |
| Display Screen Size (Diagonal Length) | 3.13 |
| Cooking Modes | Microwave |
| Control Location | Side Controls |
| Oven Interior | Stainless Steel |
| Rack Type | 2 Fixed Positions |
| Style | Over-The-Range |
| Microwave Watts (IEC-705) | 950 W |
| Turntable On / Off | Yes |
| Power Levels | 10 |

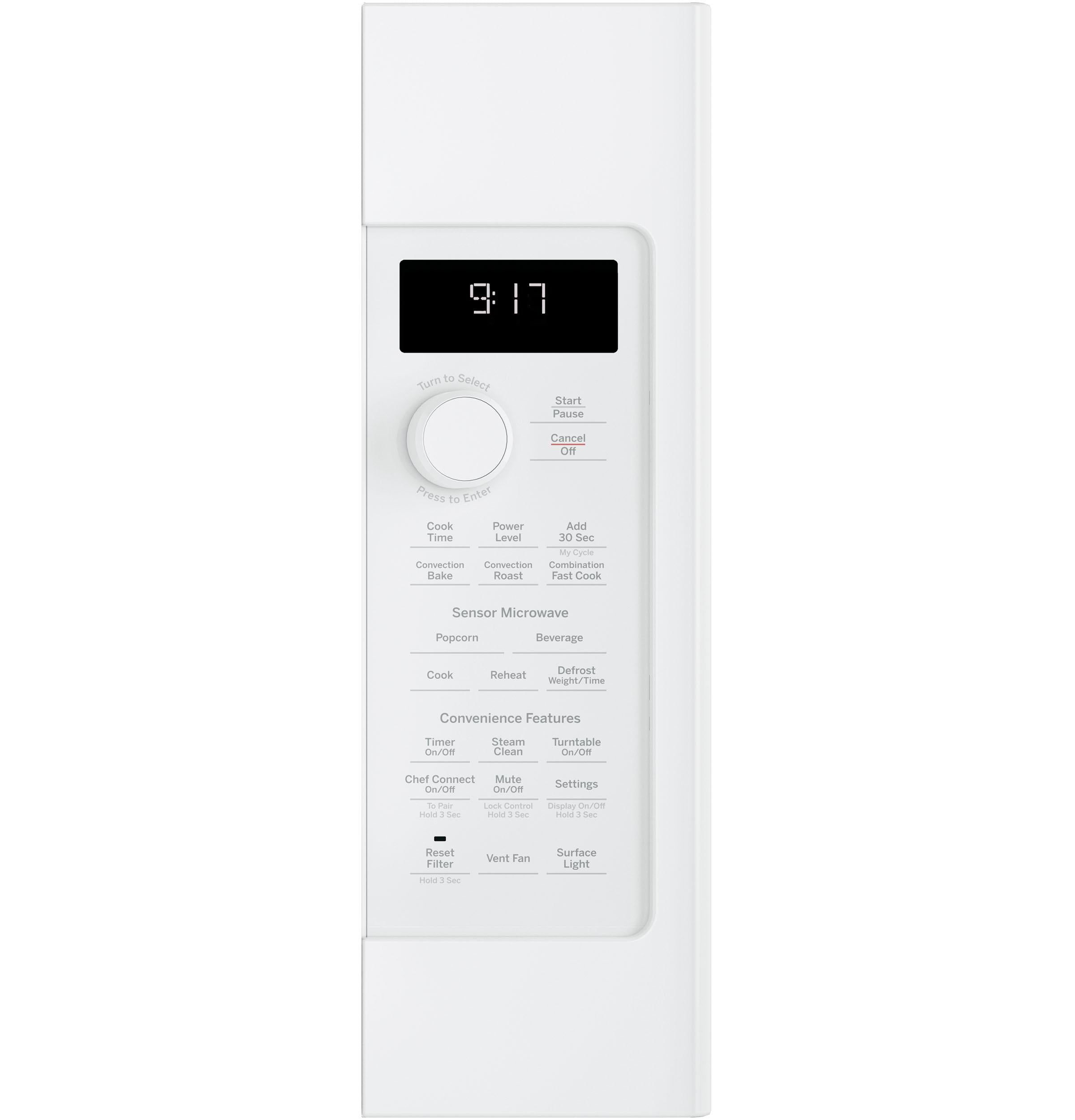

| Control Type | Electronic Touch |
| Cooktop Lighting | LED |
| Control Features | Vent Fan |

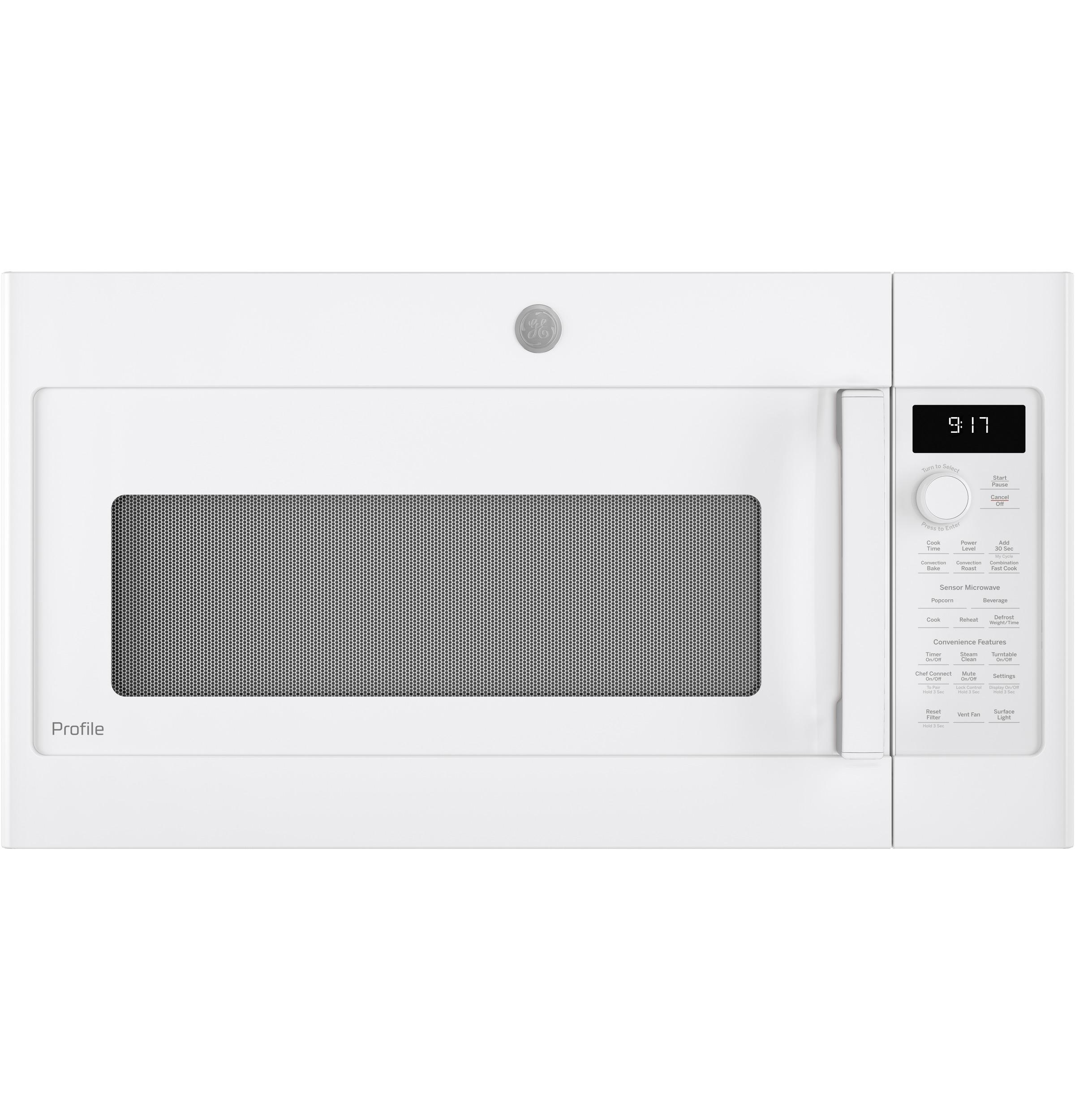

| Product Type | Over-the-range Microwave |
| Program Cooking | Yes (Option Pad) |

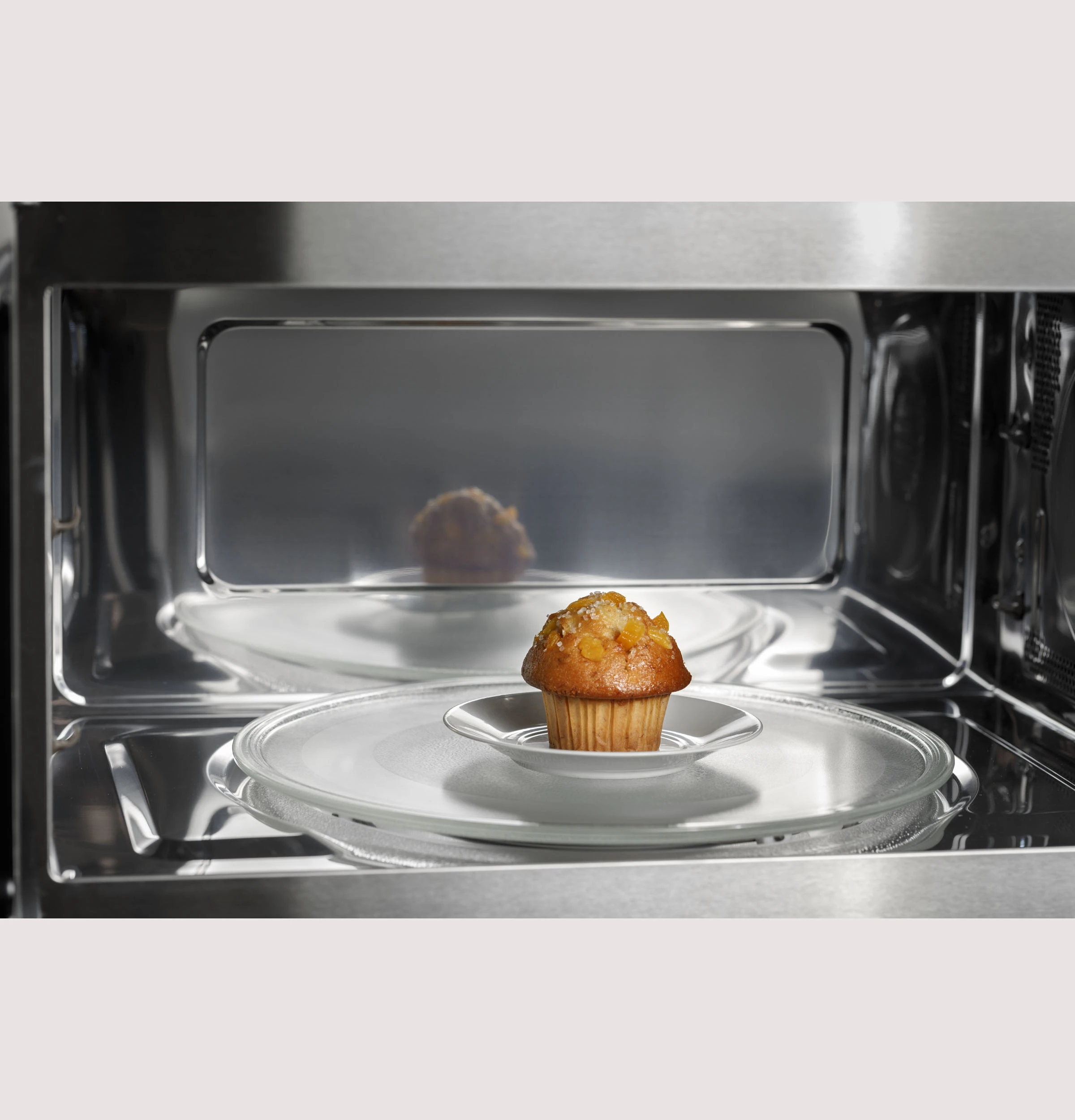

| Turntable | Glass |
| Cooking Technology | Microwave/Convection/Air Fry |
| Convection Cooking Controls | Roast |
| Microwave Oven Interior | Stainless Steel |
| Exhaust Fan | Hi/Med/Low/Off |
| Vent | Top |
| Interior Oven Light | Halogen |

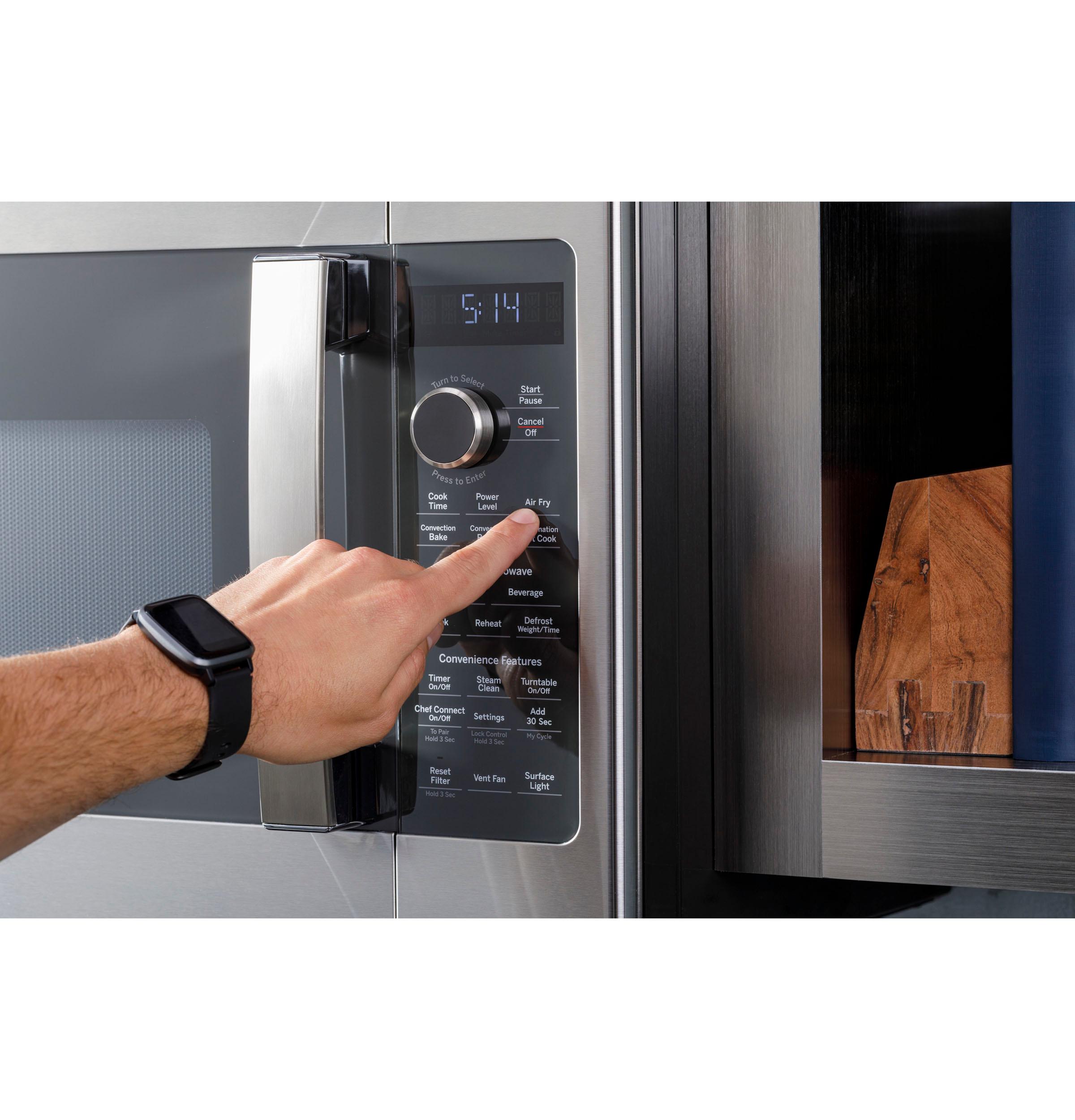

| Control Features | Air Fry |
| Control Features | Add 30 Seconds |
| Control Features | Power Level |
| Control Features | Convection Bake |
| Control Features | Combination Fast Cook |
| Control Features | Convection Roast |
| Control Features | Cancel/Off |
| Control Features | Start/Pause |
| Control Features | Timer On/Off |
| Control Features | Cook Time |
| Control Features | Turntable On/Off |
| Control Features | Surface Light |
| Control Features | Steam Clean |

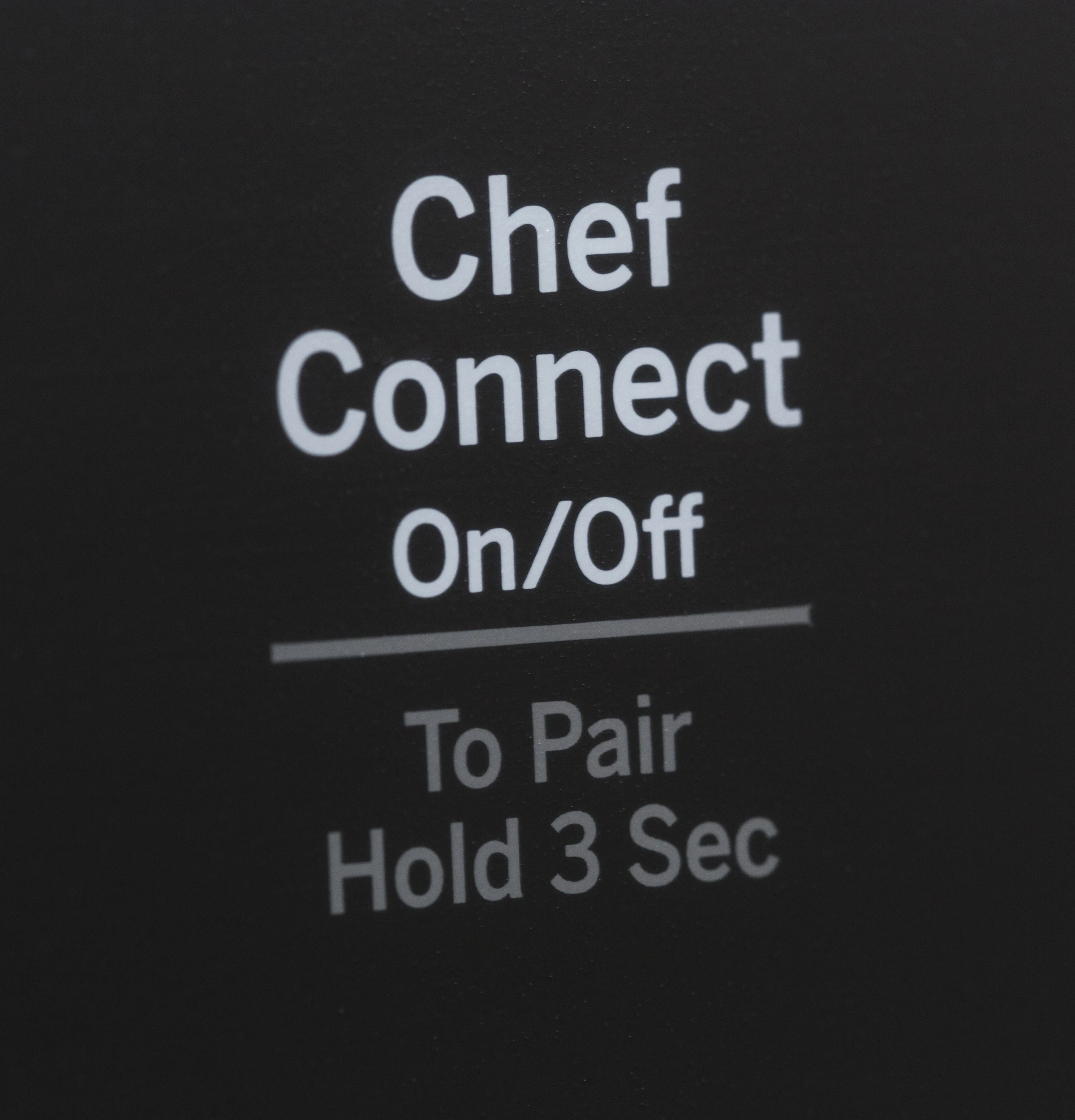

| Control Features | Chef Connect |
| Control Features | Replace Filter Notification |
| Control Features | Mute On/Off |
| Control Features | Display On/Off |
| Control Features | Defrost: Weight/Time |
| Control Features | My Cycle |
| Control Features | Sync Auto Off; Surface Light Sync; Vent Fan Sync |
| Control Type | Dial |
| Convection Cooking Controls | Bake |
| Convection Cooking Controls | Fast Cook |
| Cooking Modes | Convection Bake |
| Cooking Modes | Convection Roast |
| Cooking Modes | Fast Cook |
| Cooking Modes | Air Fry |
| Cooktop Lighting | High/Low/Off |
| Cooktop Lighting | Auto Night Light |
| Exhaust Fan | 3 Speed 300-CFM |
| Microwave Sensor Cooking Controls | Beverage |
| Microwave Sensor Cooking Controls | Popcorn |
| Microwave Sensor Cooking Controls | Cook |
| Rack Type | 1 Square Rack |
| Rack Type | 1 Round Rack |
| Turntable Size | 13.6 |
| Vent | Back |
| Vent | Front |
| Non-Vented | Convertible to Recirculating (Filter Included) |
| Venting Type | Externally Vented (Factory Set) |
| Optional Side Filler Panel Kit | JX36BWW |
| Optional Kits | 15" Bump Out Kit - JXBUMPWW |
| Recirculating Charcoal Filter Kit | WB02X35607 |
| Recirculating Charcoal Filter Kit | Included |
| Input Volts/Hertz | 120/60 |
| Electrical Input - 120V Amperage | 14.5 |
| Electrical Input - 120V Watts | 1700 |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 5-year magnetron tube |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Vent CFM | 300 |
| Total Capacity (cubic feet) | 1.70 cu ft |
| Cavity (W x H x D) | 21-5/8 x 9-3/4 x 14-1/4 |

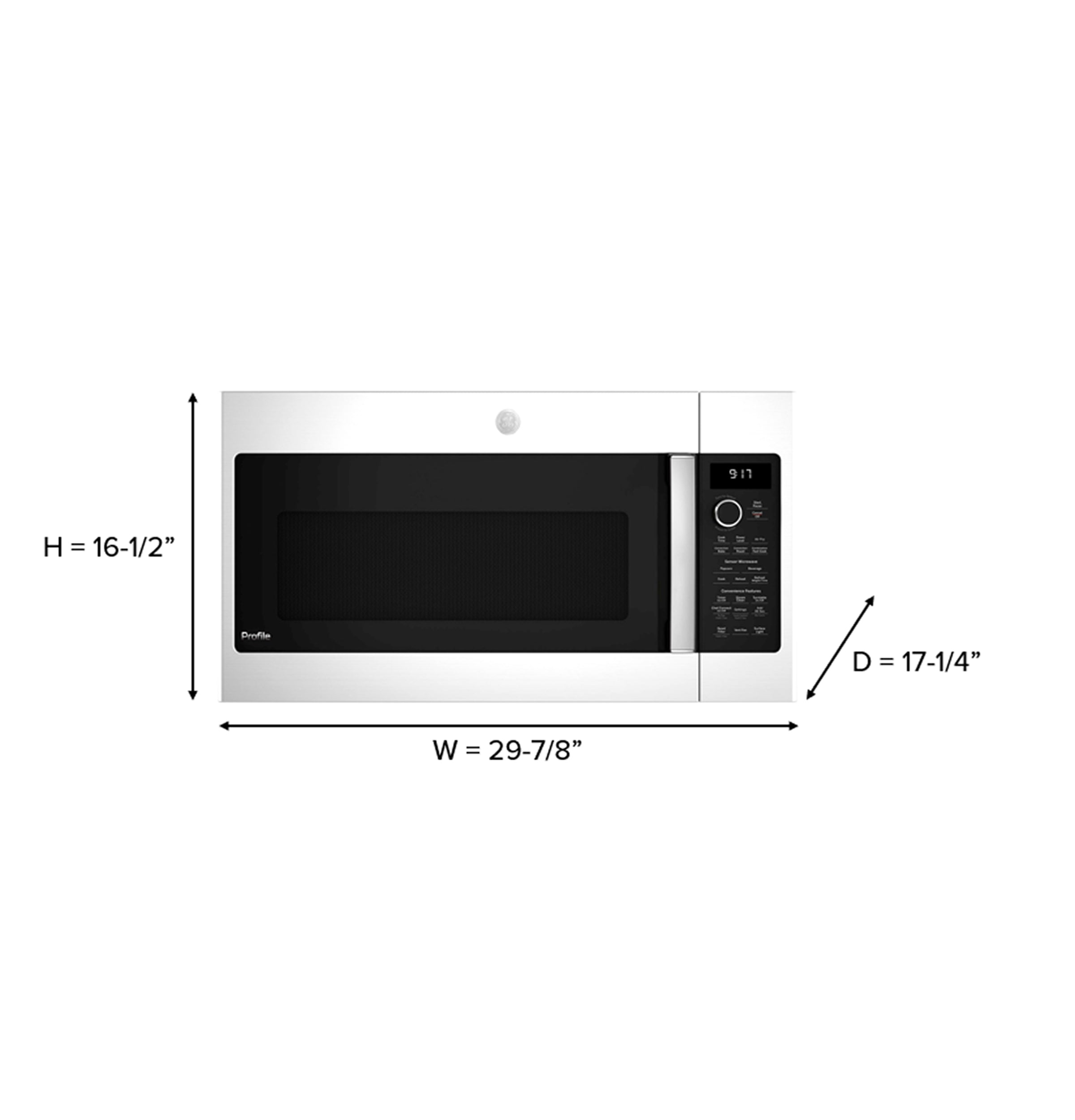

| Width | 29.88 in. |
| Height | 16.31 in. |
| Length | 17.25 in. |
| Weight | 75 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 21.31 in. |
| Shipping Length | 22.25 in. |
| Shipping Weight | 115 lbs. |
| Total of Shipping Weight | 115 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 4.86 ft³ |
| Dimensional Weight | 60.48 lbs. |
| Total of Cubes | 4.86 ft³ |
| Total of Dimensional Weight | 60.48 lbs. |
Automatically adjusts time and power for delicious cooking results

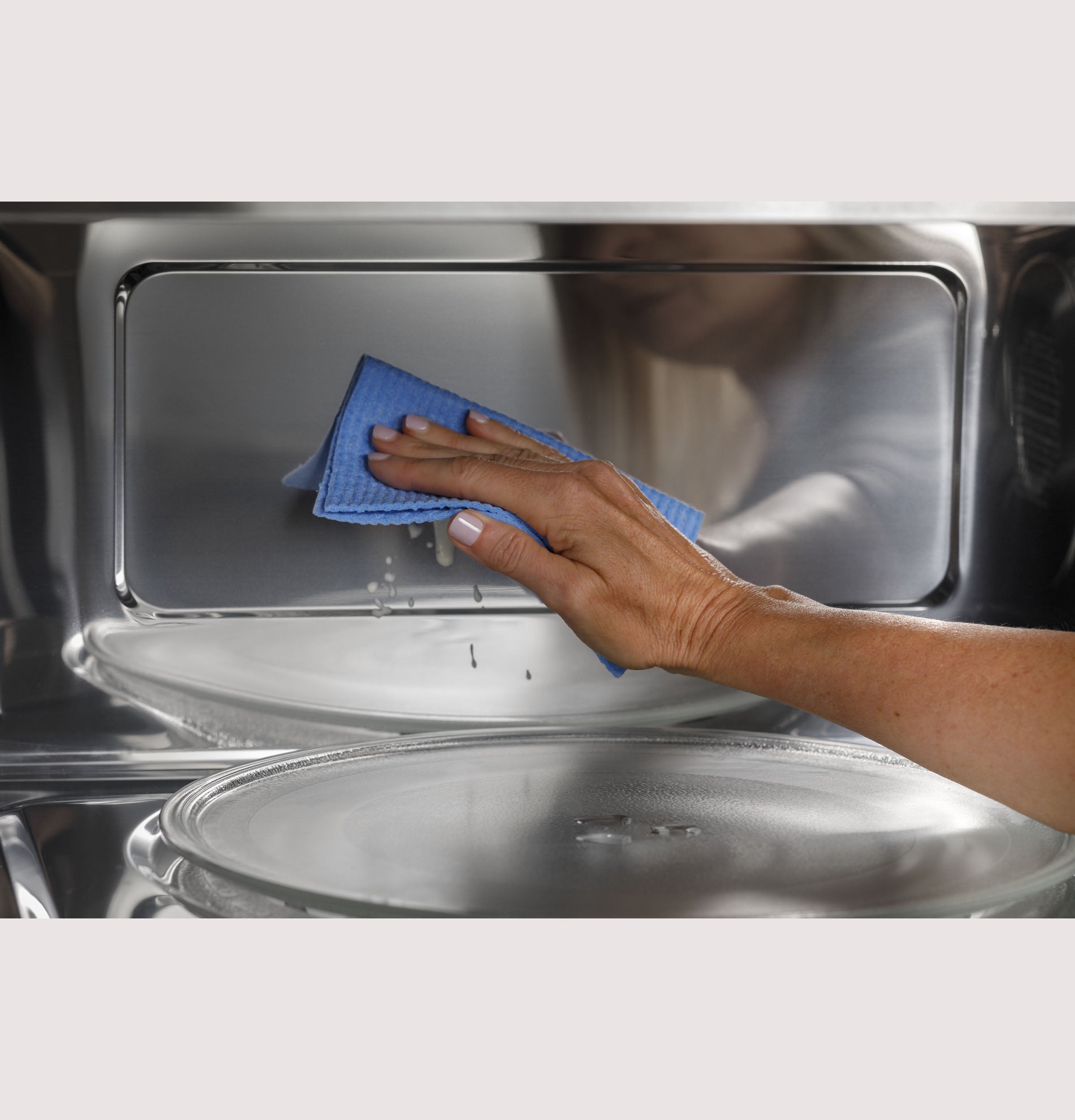

Make cleaning spills and splatters a snap

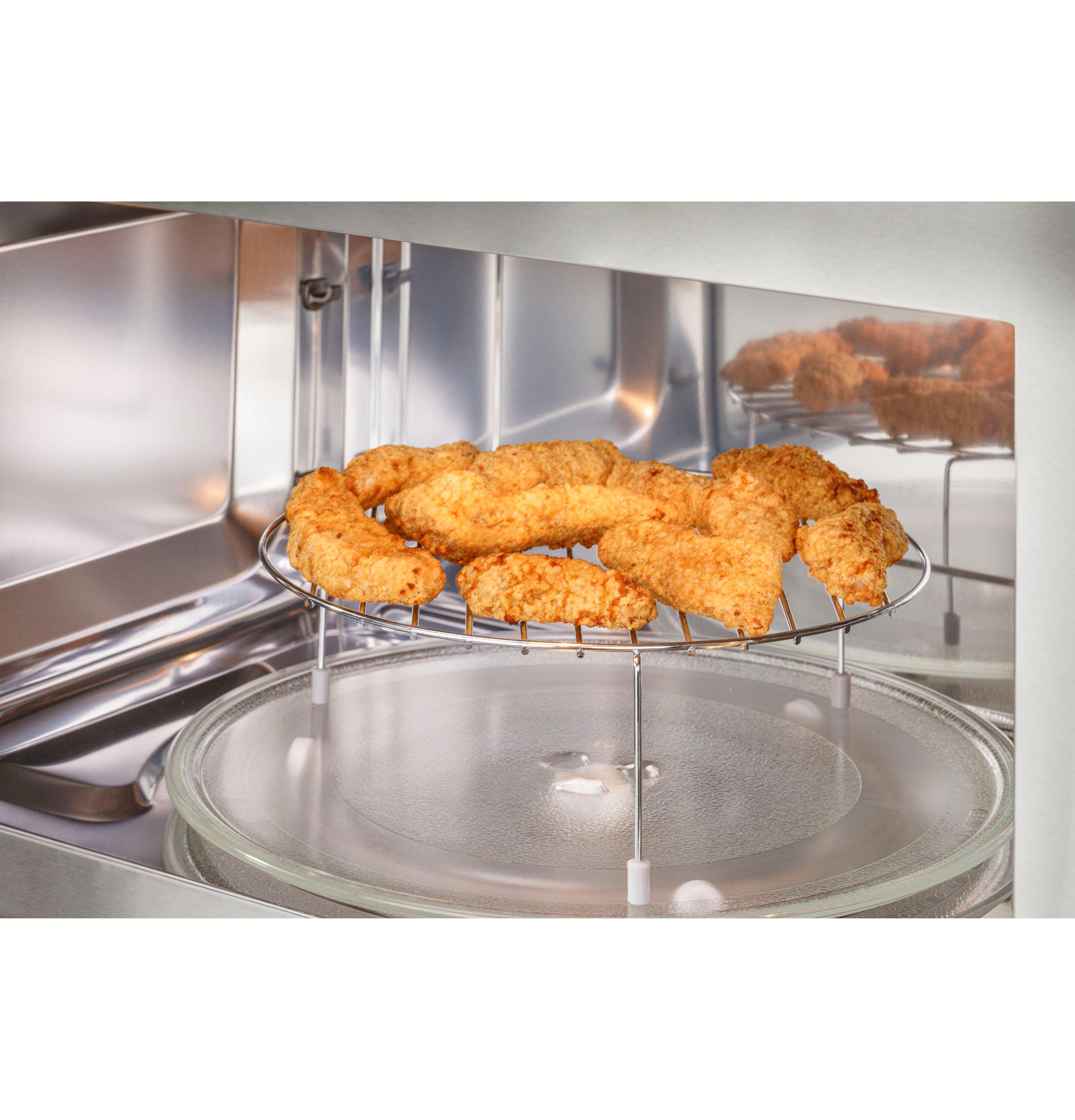

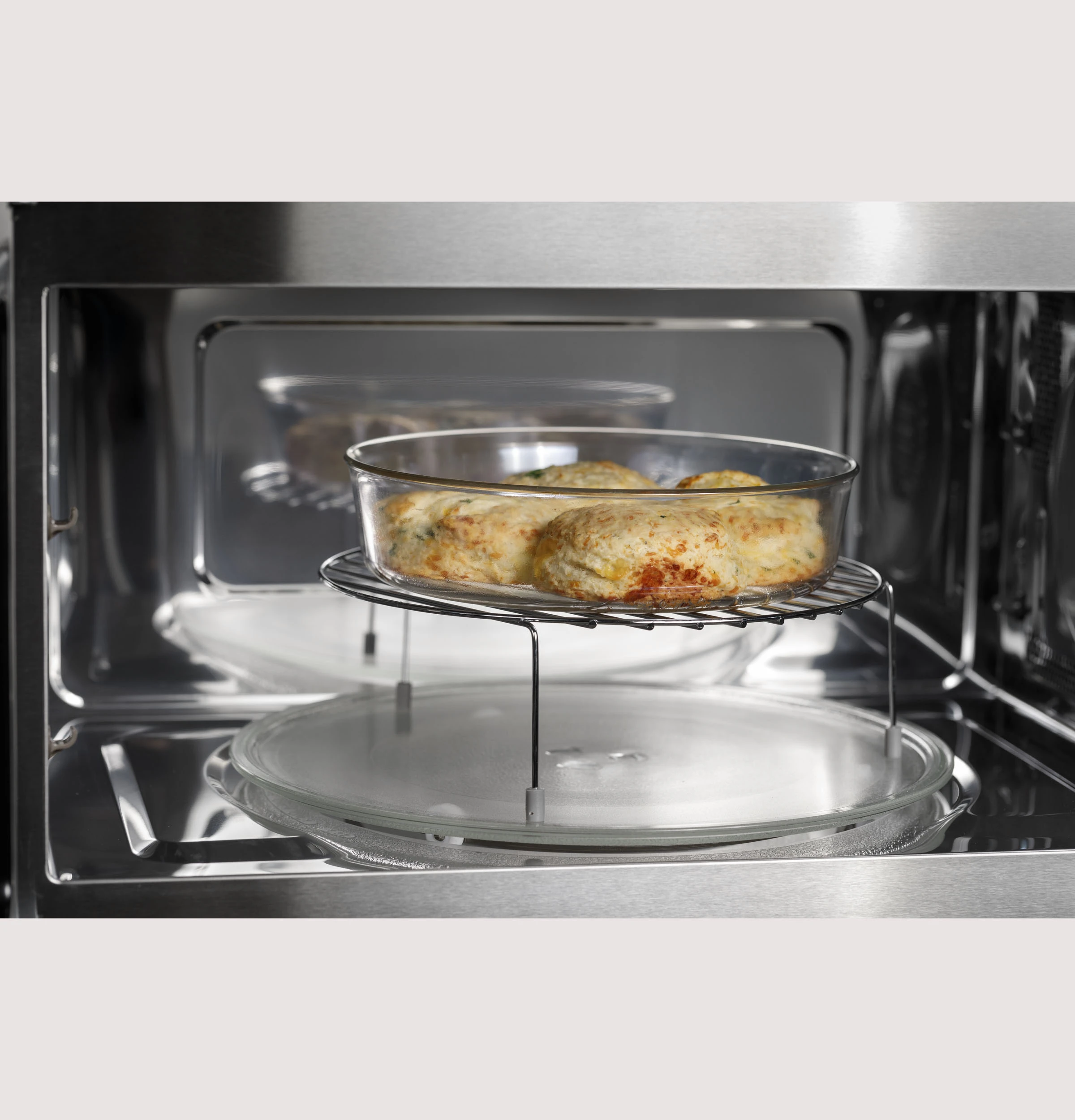

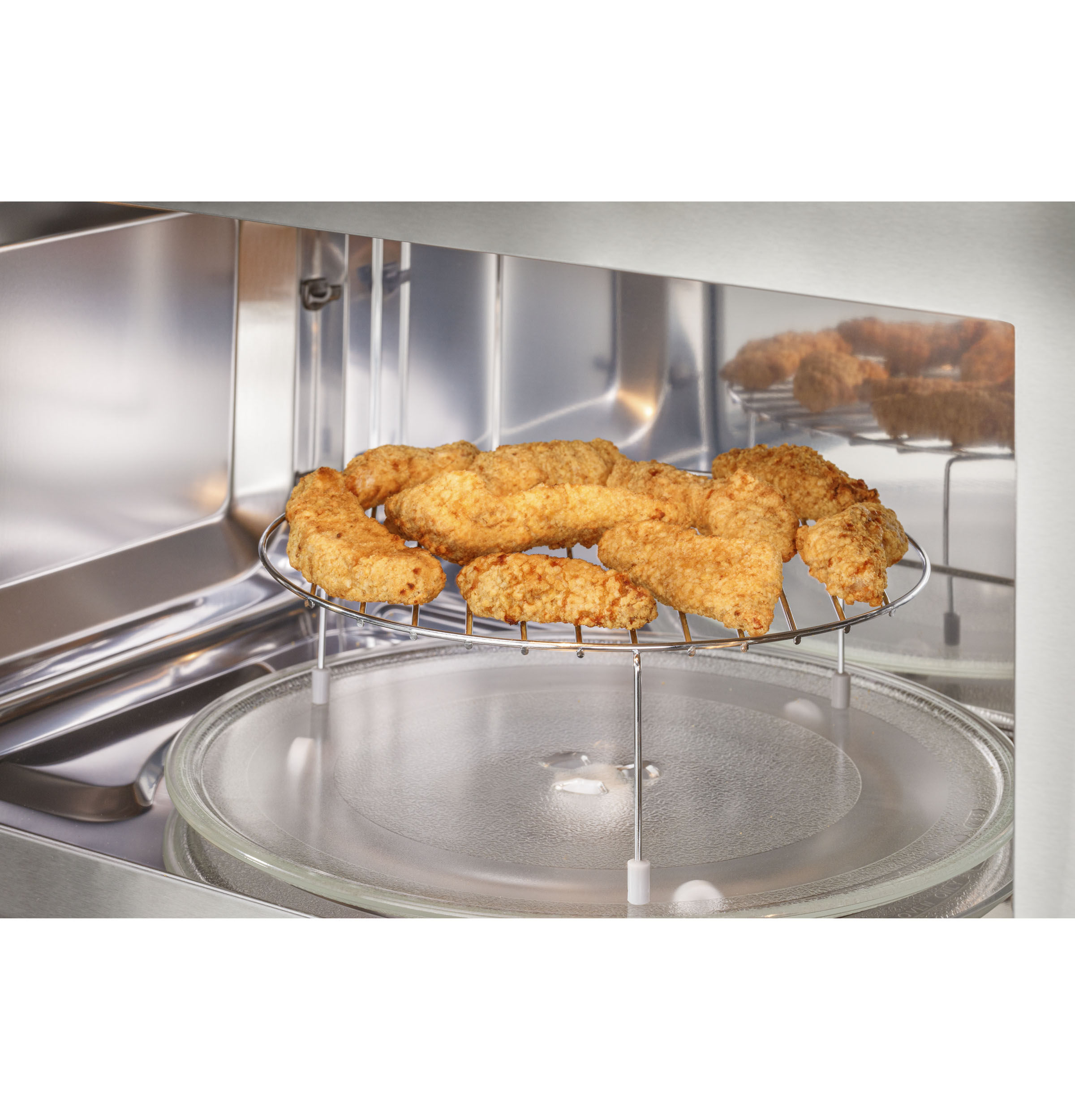

Achieve golden-brown results with a specially designed rack that allows air to circulate around foods for even heat distribution during convection cooking

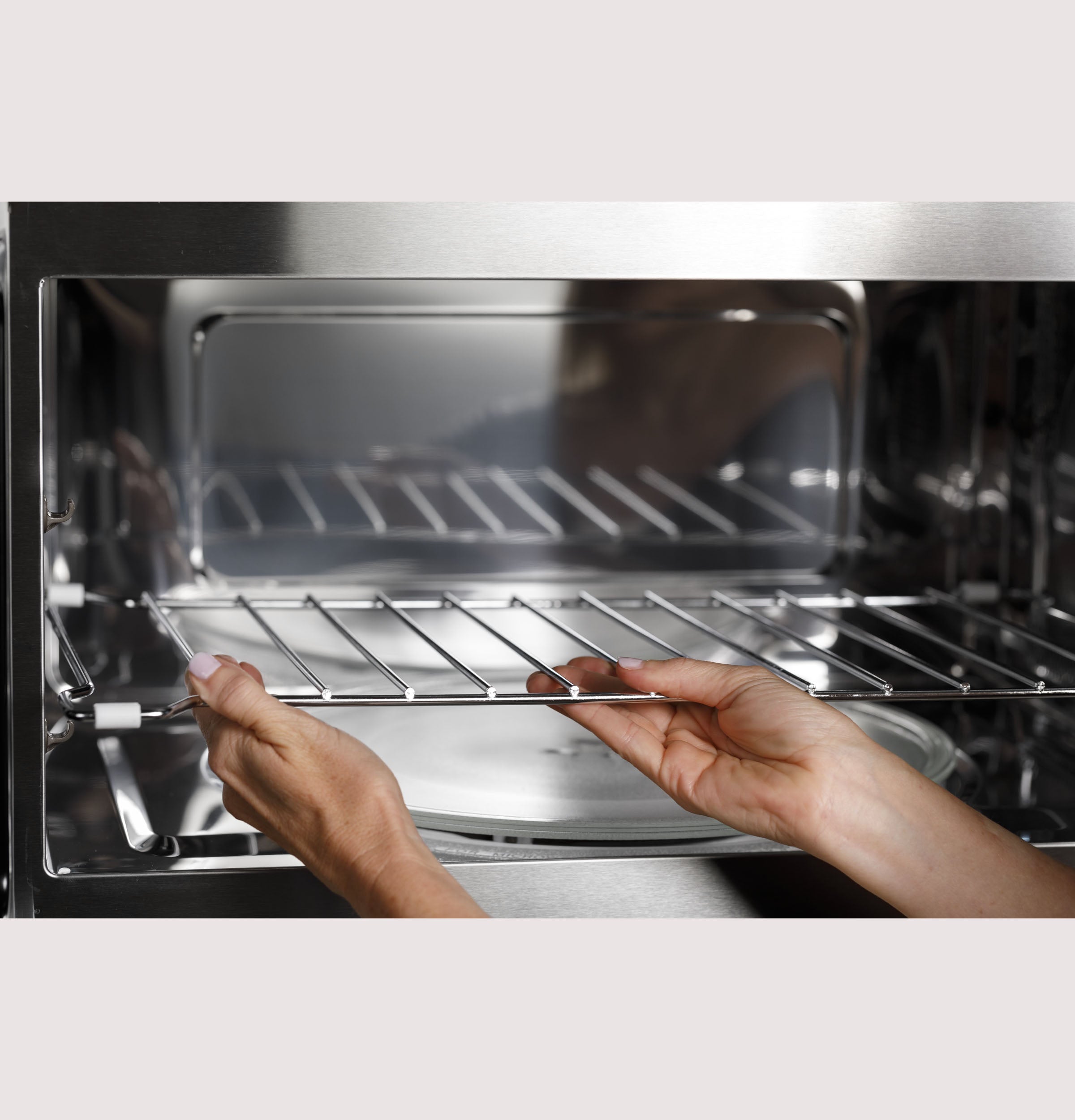

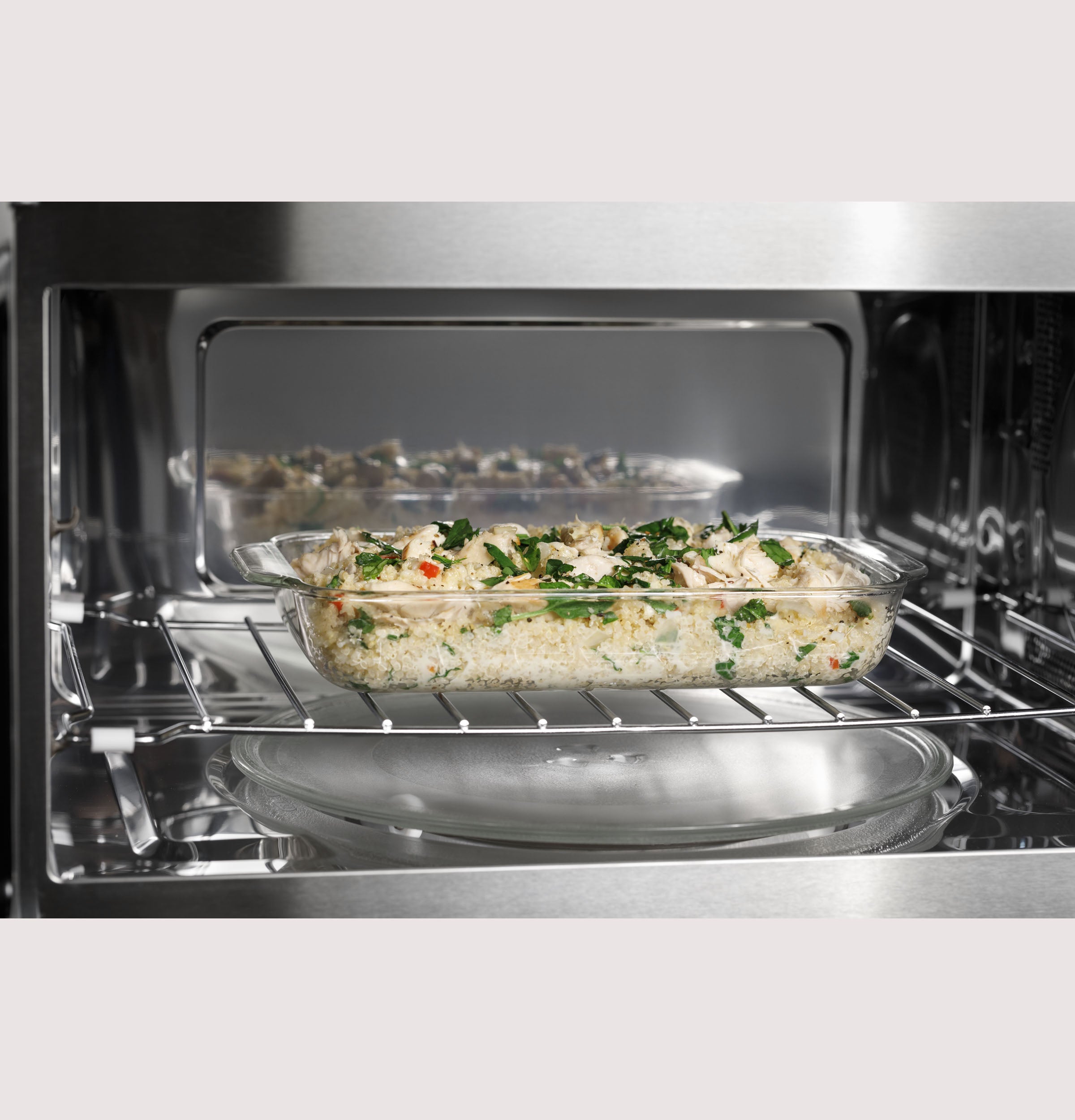

Full-width cooking rack allows for multi-level cooking simultaneously, allowing you to cook large quantities of your family’s favorites
Create a custom cook time setting, and with one touch, cook your favorite dish just the way you like
Choose this setting when baking or browning is desired

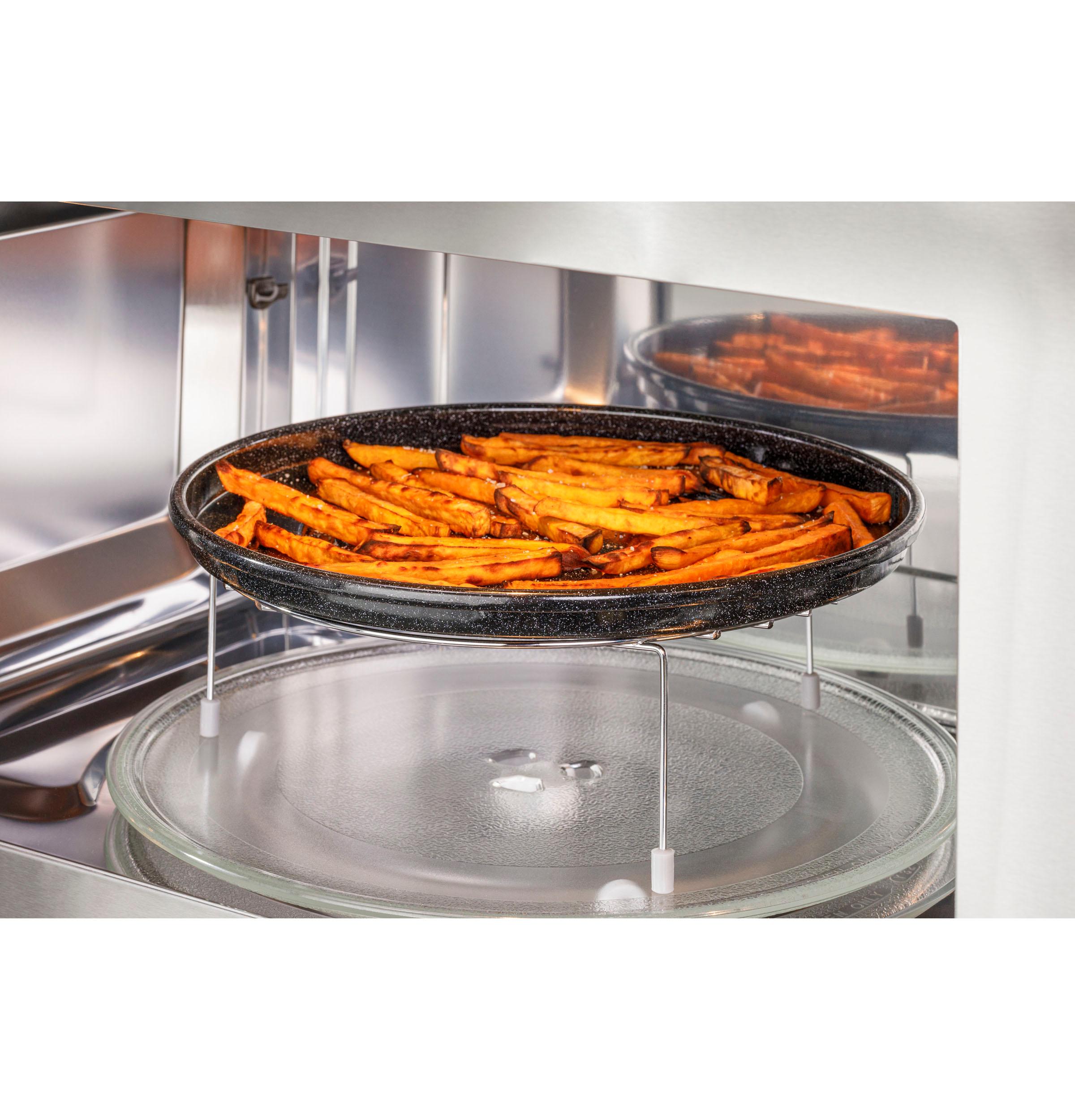

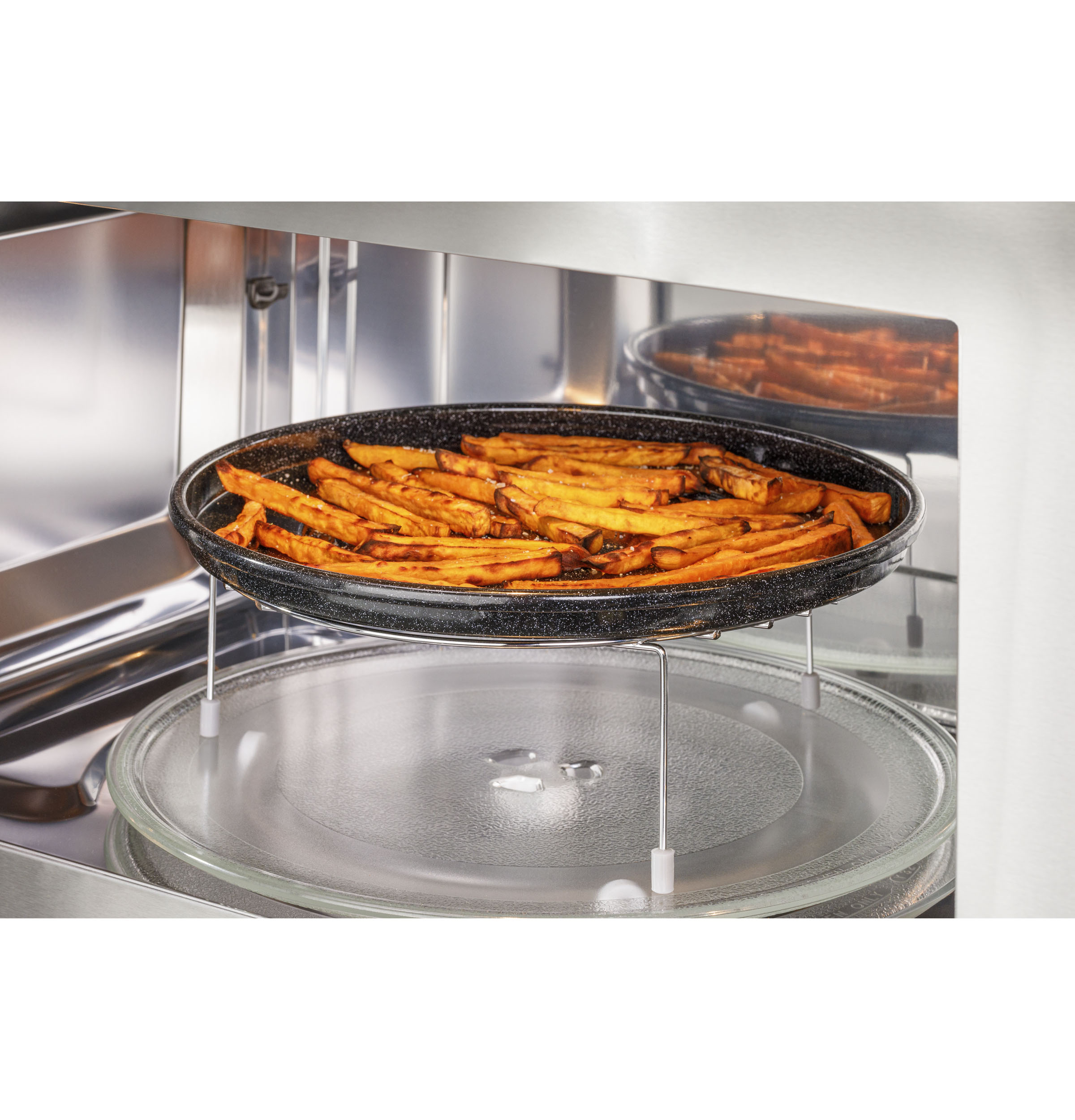

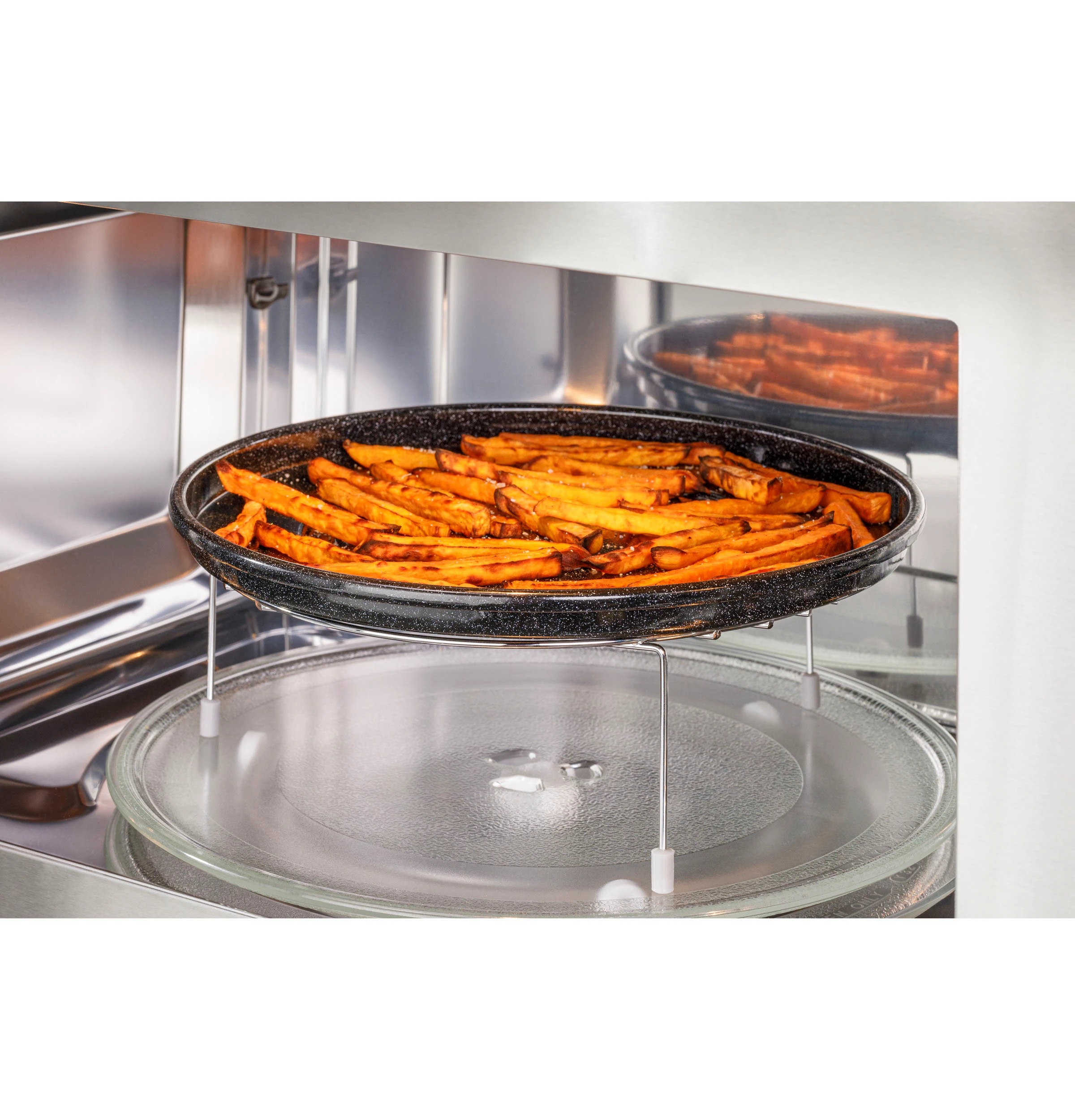

Achieve crispy, never greasy, fried food results in your oven without the oil
Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range elements with the microwave's surface light and vent
