Product Details for GE PTS9200SNSS

Technical Details

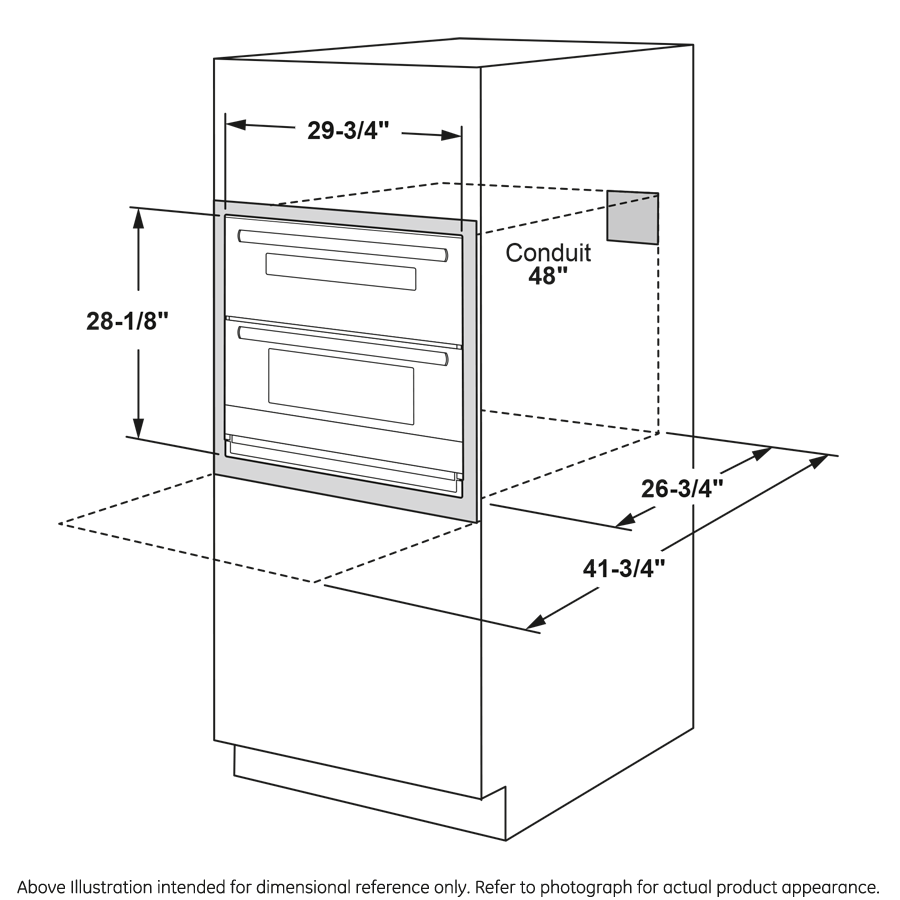

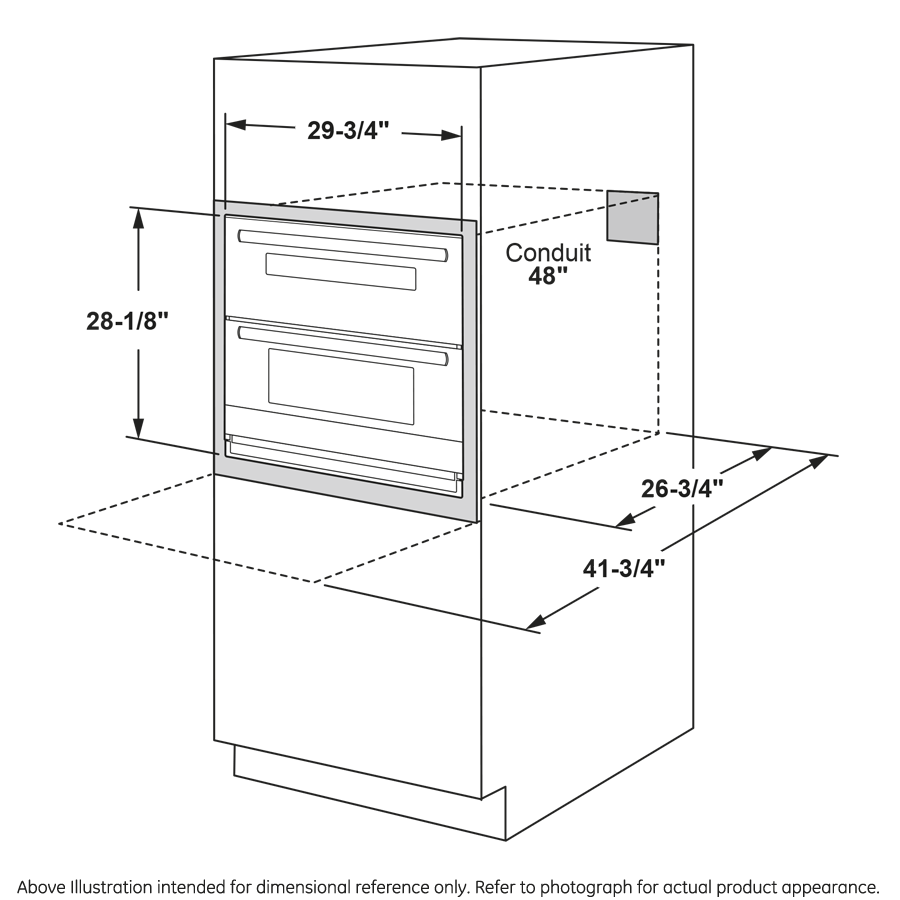

Weights & dimensions

Overall Depth 26.75 in
Cabinet Width 30 in
Overall Width 29.75 in
Overall Height 28.125 in
Oven Interior Dimensions (lower) 24 x 12 1/2 x 16
Oven Interior Dimensions (upper) 24 x 8 3/4 x 17 7/8
Net Weight 190 lb
Approximate Shipping Weight 212 lb
Cutout Depth (in) 23.5
Cutout Dimensions (w x h x d) (in.) 28-5/8 x 27-5/16 x 23-1/2
Depth with Door Open 41.75 in
Cutout Height (in) 27.3125
Cutout Width (in) 28.625

Power / ratings

Bake Wattage 1700W Upper / 2200W Lower
Electrical Requirements 208/240V ; 60Hz ; 20A
Amp Rating at 208V 20
Broiler Wattage 2750W Upper / 2950W Lower
Convection Wattage 1300W
KW Rating at 240V 3.9
Amp Rating at 240V 20
KW Rating at 208V 2.9
Hertz 60

Features

Fuel Type Electric
Oven Interior Hidden Bake
Oven Features Closed Door Broiling
Configuration Double Oven
Product Type Single Oven
Oven Rack Features Embossed Rack Positions (Both Ovens)
Cooking Technology Traditional Upper; Convection Lower
Self-Clean Oven Door Lock Automatic
Control Type Glass Touch
WiFi Enabled Features Voice Control
Connected Capabilities The Google Assistant
Sabbath Mode Yes
Cooking System True European Convection with Precise Air (Lower)
Oven Cooking Modes Thermal Broil Hi/Lo
OU Certified No
Oven Cleaning Type Self-Clean with Steam Clean Option
WiFi Connect Built-In
Cleaning Time Variable with Delay Clean Option
Oven Rack Positions (Single or Upper/Lower) 2/3
Oven Control Features Warm Mode
Connected Capabilities Amazon Alexa
Connected Capabilities IFTTT
Connected Capabilities Fresco
Connected Capabilities Innit
Connected Capabilities Sonos
Oven Control Features 12-Hour Shut-Off Capability
Oven Control Features Audible Preheat Signal
Oven Control Features Auto Recipe Conversion
Oven Control Features C° or F° Programmable
Oven Control Features Sabbath Mode
Oven Control Features Control Lock Capability
Oven Control Features Scan-to-cook
Oven Control Features Cook Time
Oven Control Features Delay Time
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Mis-Wire Detection
Oven Control Features Proof Mode
Oven Control Features Remote Enabled
Oven Control Features Temperature Probe
Oven Cooking Modes Convection Bake
Oven Cooking Modes Convection Bake Multi-Rack
Oven Cooking Modes Convection Roast
Oven Cooking Modes Precision Cooking Modes
Oven Cooking Modes Thermal Bake
Oven Cooking Modes No Preheat Air Fry
Oven Features 6-Pass Dual Broil Element (Upper)
Oven Features 8-Pass Bake Element (Both Ovens)
Oven Features 8-Pass Dual Broil Element (Lower)
Oven Interior 2 Halogen Interior Oven Lights (Both Ovens)
Oven Interior Black Gloss Finish
WiFi Enabled Features Convection Roast
WiFi Enabled Features Remote Oven Control
WiFi Enabled Features Remote Notifications
WiFi Enabled Features Clock Sync
Connected Capabilities Google Home

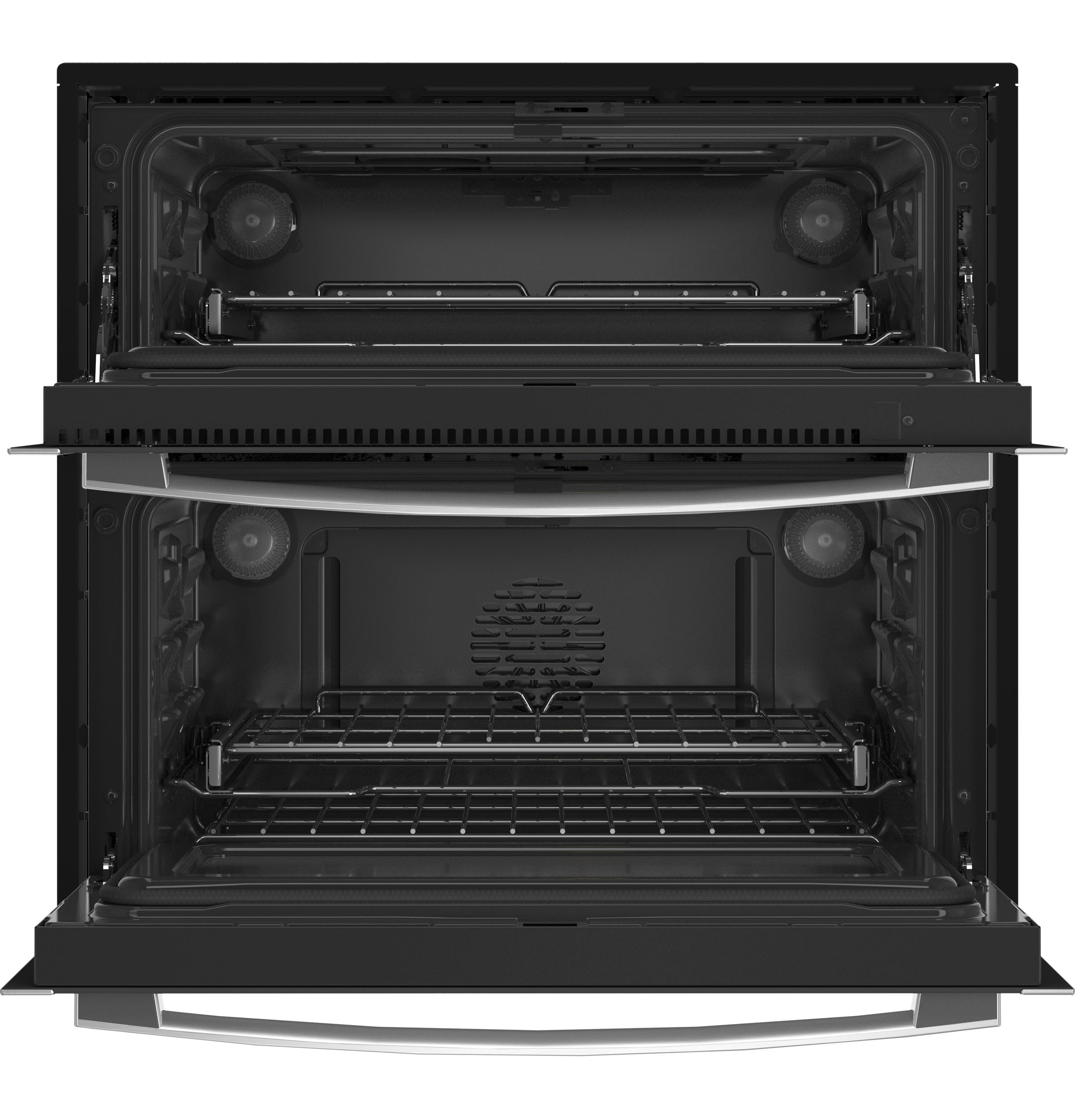

Oven Rack Features 2 Heavy-Duty Roller Racks
Oven Rack Features 1 Heavy-Duty Offset Oven Rack

Warranty

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Appearance

Handle Color Brushed Stainless
Frameless Oven Door(s) Stainless
Installation Undercounter
Handle Designer Style
Oven Door Features Profile™ XL
Color Appearance Stainless Steel
Installation Above Warming Drawer
Installation Side-by-Side
Installation Under Cooktop
Installation Under Built-In Advantium
Installation Under Built-In Microwave

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Accessories UXWORXR30 - 30" Never Scrub Roller Rack

Capacity

Capacity (Cu. Ft.) 2.2 Upper / 2.8 Lower
Total Capacity (cubic feet) 5.00 cu ft

Other

Oven Interior Dimensions (lower) 24 x 12 1/2 x 16
Oven Interior Dimensions (upper) 24 x 8 3/4 x 17 7/8
Cutout Dimensions (w x h x d) (in.) 28-5/8 x 27-5/16 x 23-1/2

Dimensions & weight

Width 29.75 in.
Height 28.13 in.
Length 26.75 in.
Weight 190 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 33.13 in.
Shipping Length 31.75 in.
Shipping Weight 230 lbs.
Total of Shipping Weight 230 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 12.95 ft³
Dimensional Weight 161.02 lbs.
Total of Cubes 12.95 ft³
Total of Dimensional Weight 161.02 lbs.

Description

Cook two things in the oven at once, at two different temperatures, so that your entire meal will be done on time.Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades.28 1/8 H x 29 3/4 W x 26 3/4 D


Product Features

  • Temperature Probe
    A precision temperature probe connects to the oven to ensure your food is properly cooked

Key Features

Fast Preheat

Preheat the oven quickly and cut down on preheat time with a speedy preheat feature

Large Capacity Oven

Cook an entire meal at once with a 5.0 cubic foot oven which provides enough room for multiple dishes

Fit Guarantee

This oven will fit your existing cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details

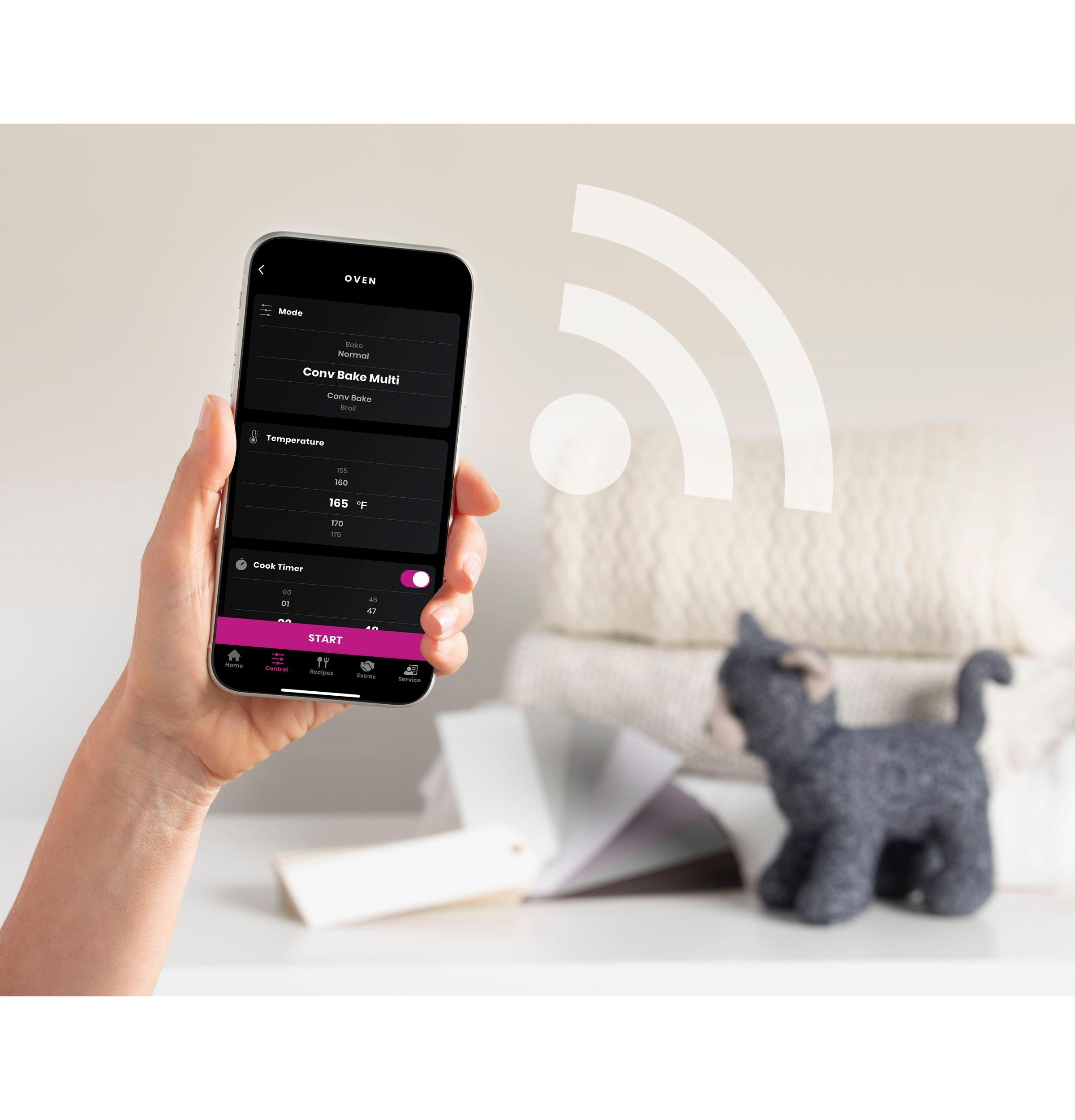

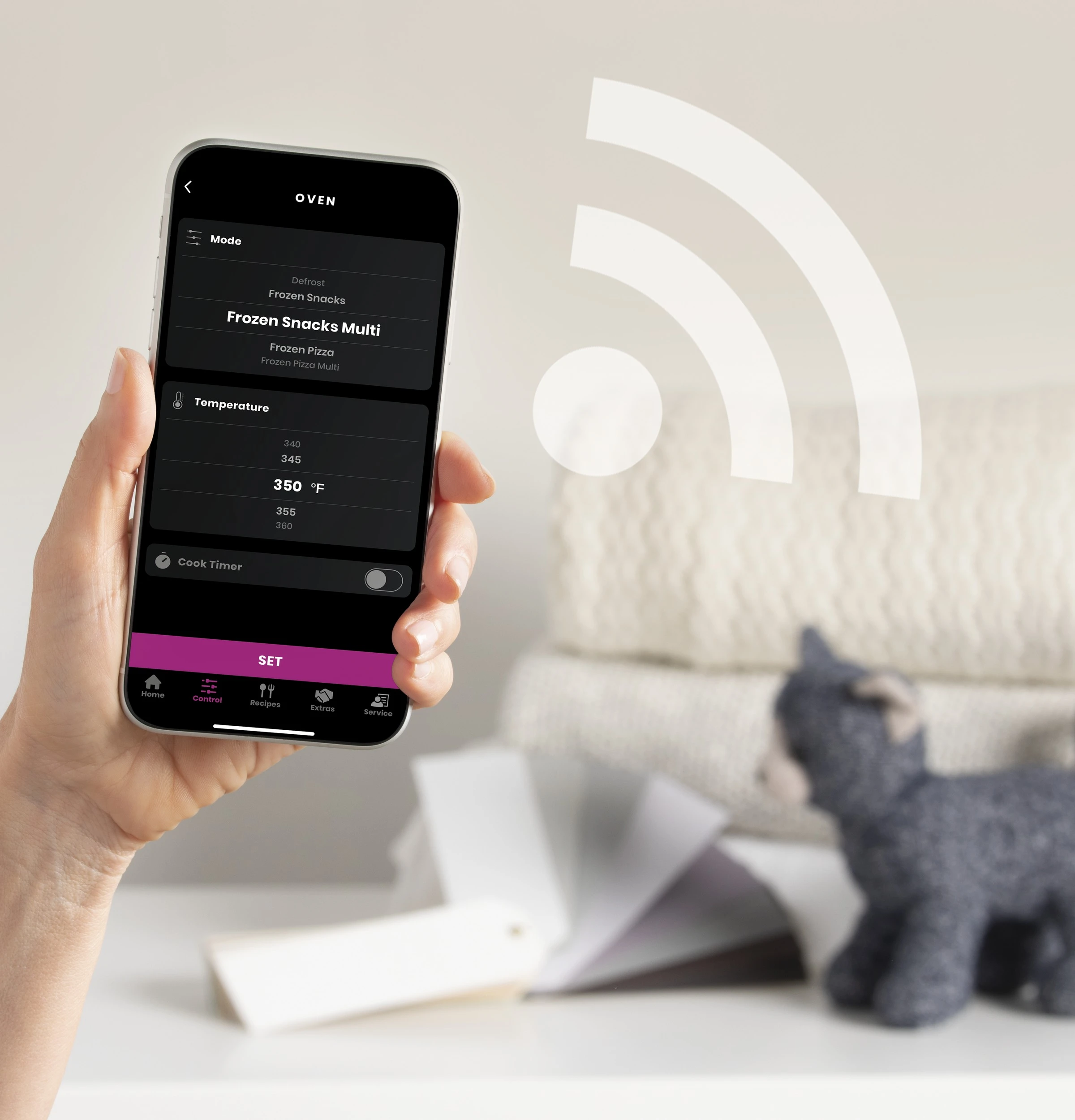

Built-In WiFi, Powered by SmartHQ App

Connect, control and manage your oven from anywhere with your smartphone or tablet (Select features require WiFi Connection) See details

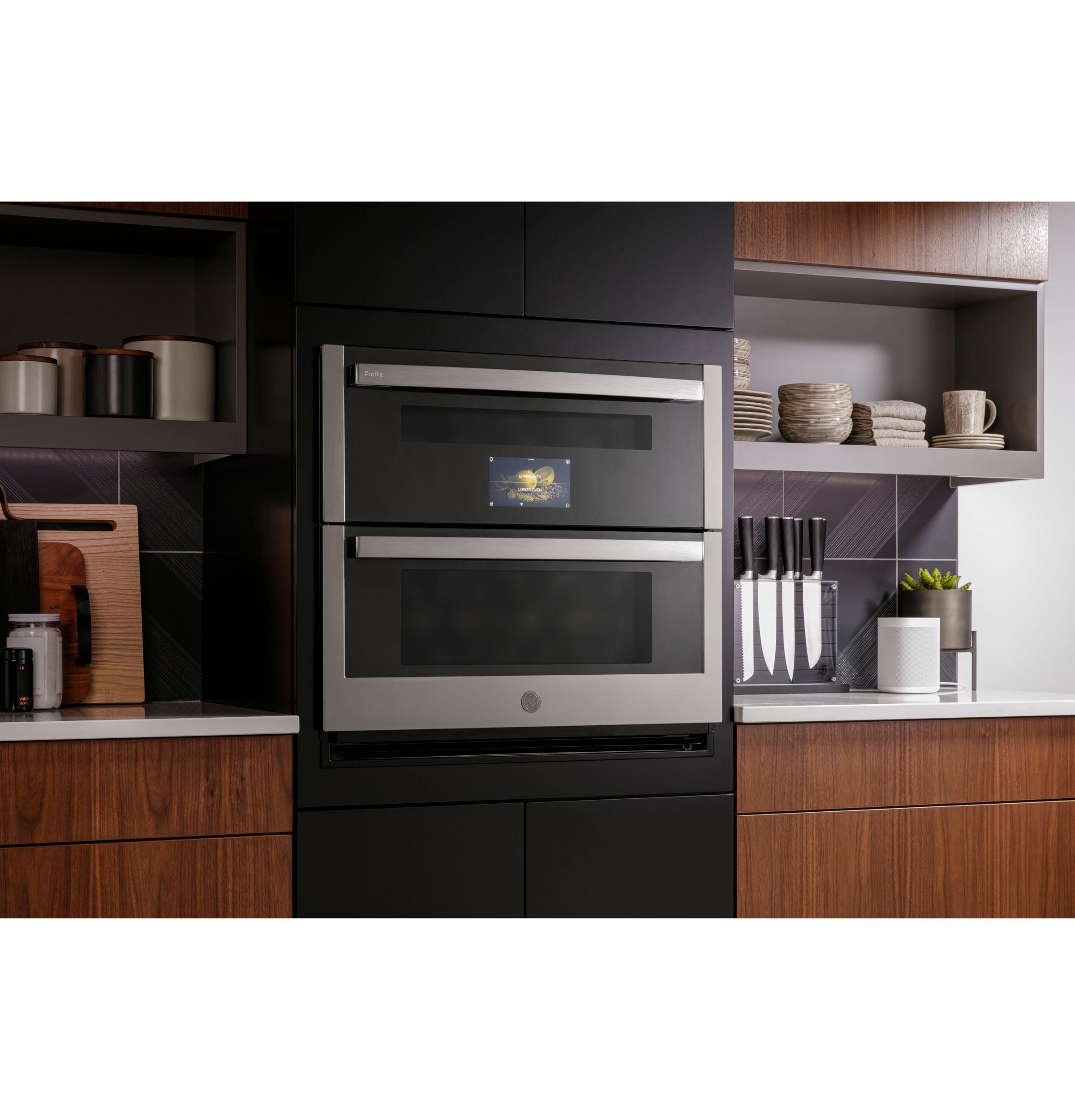

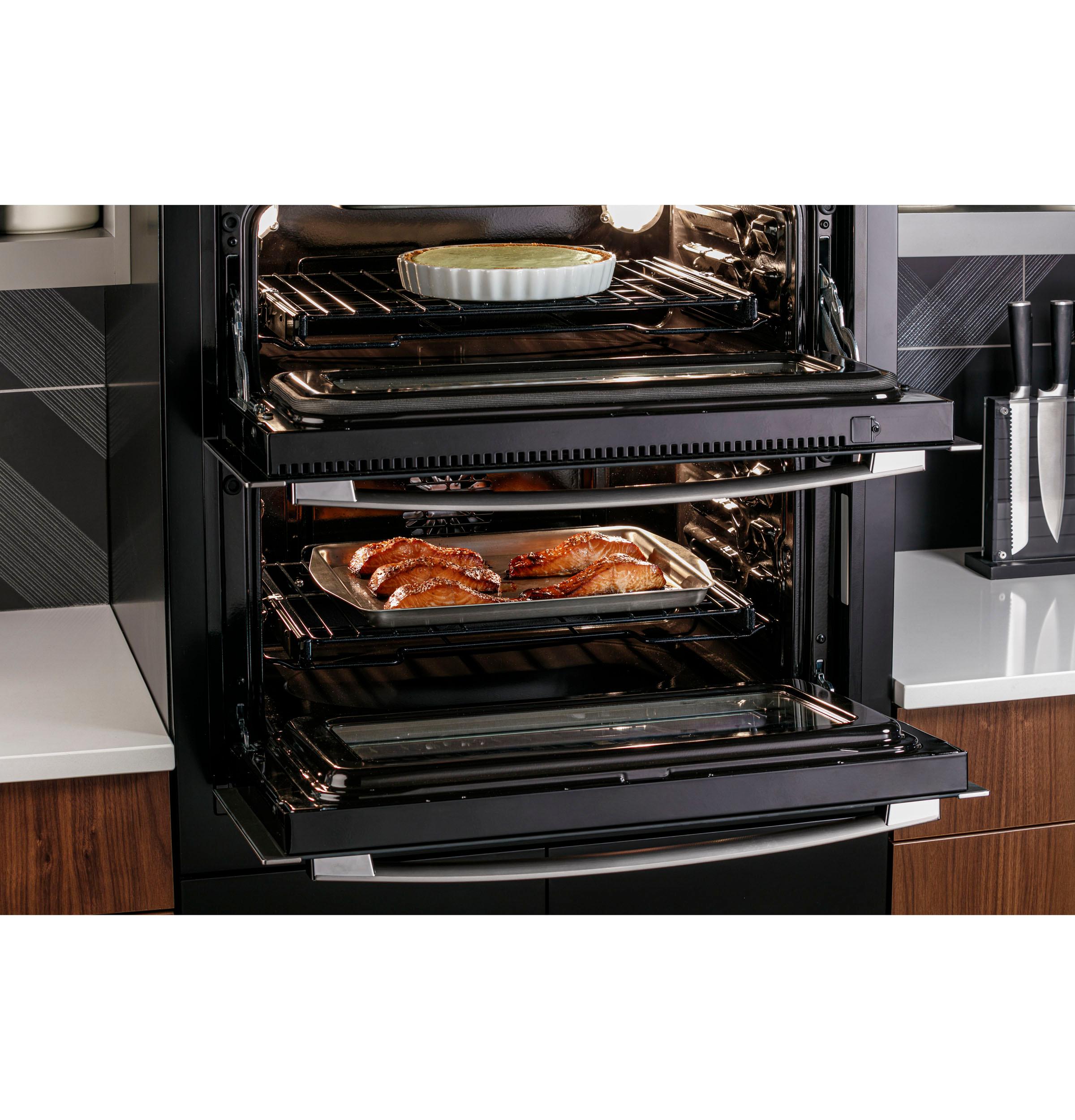

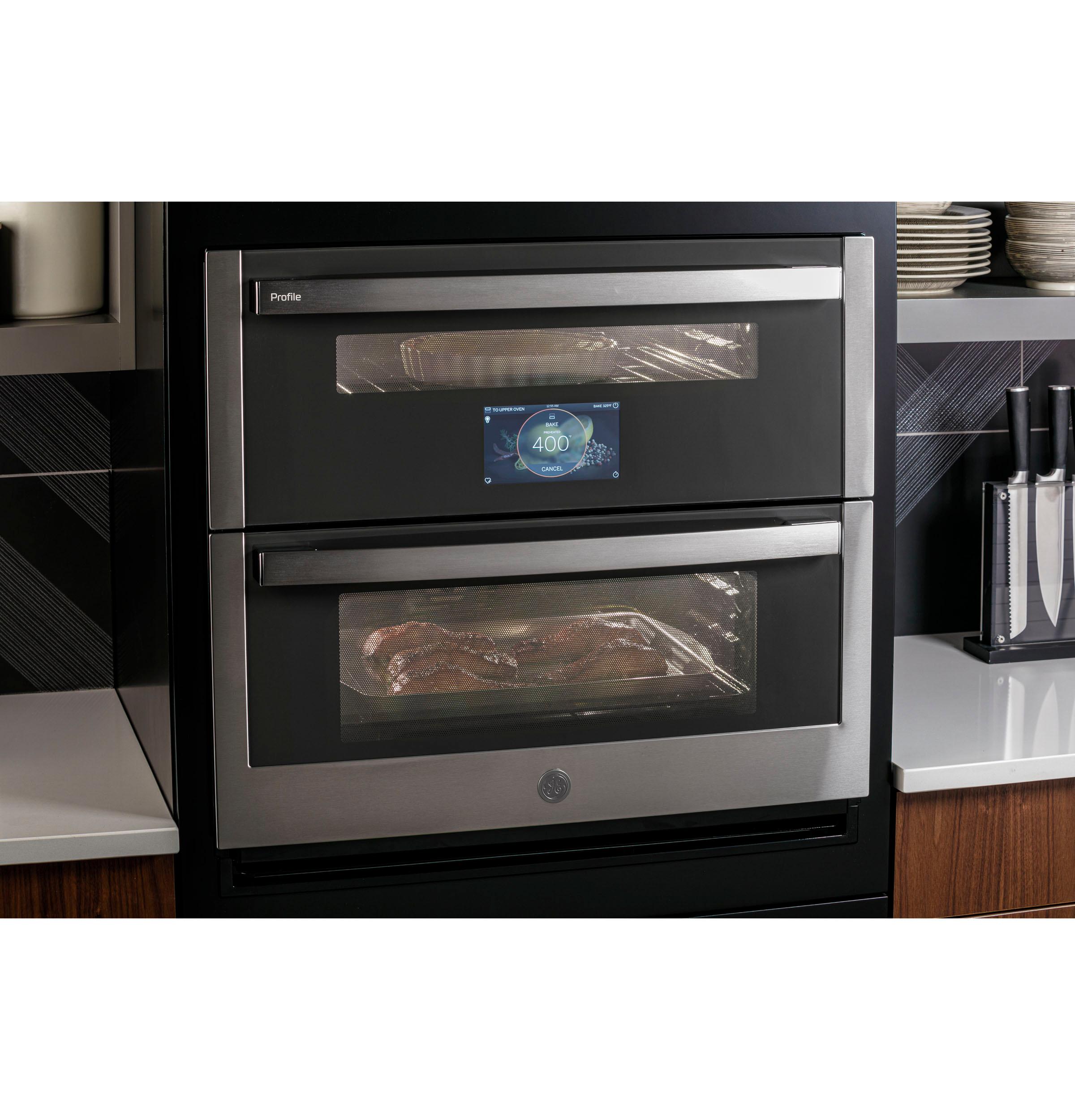

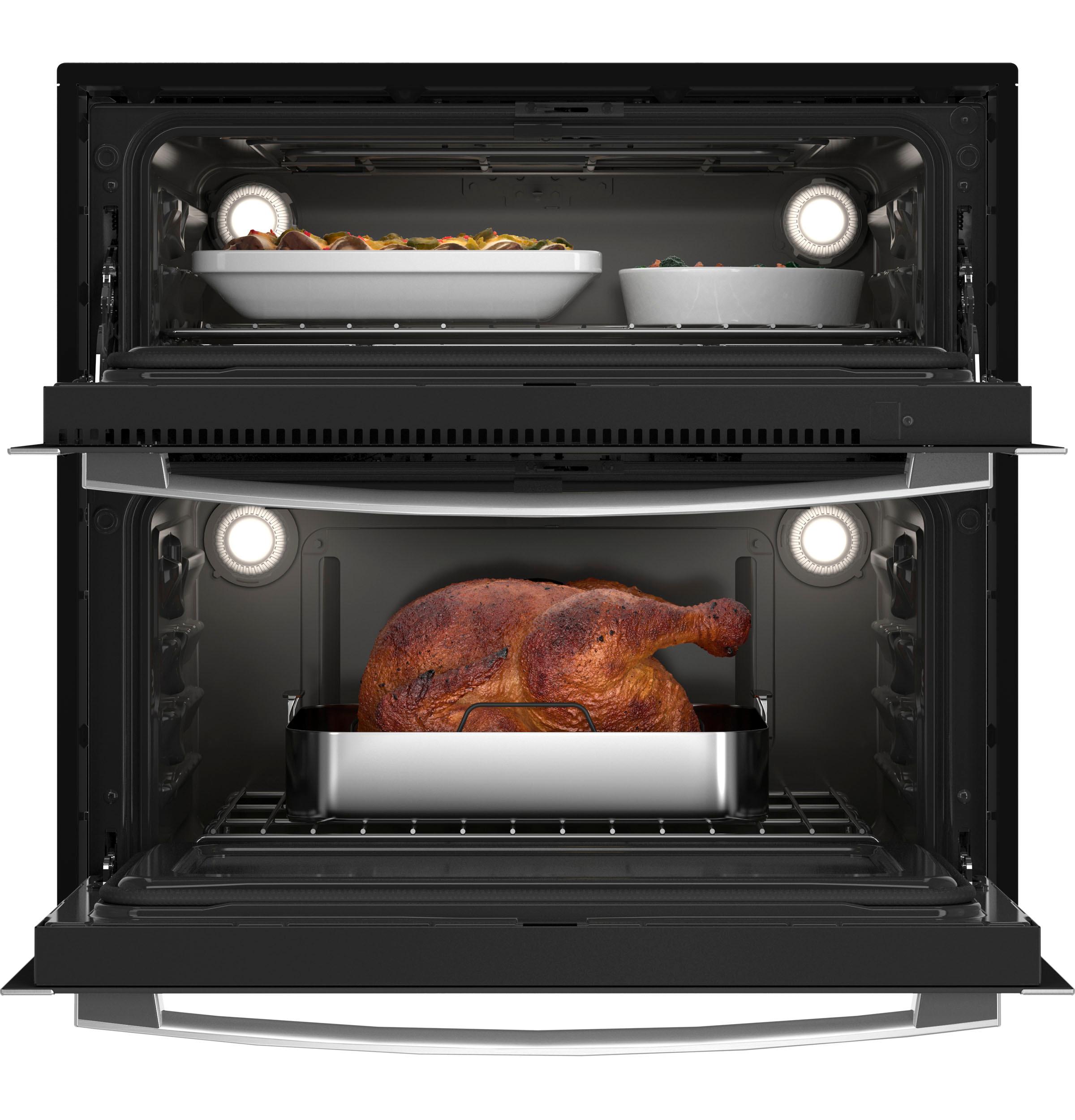

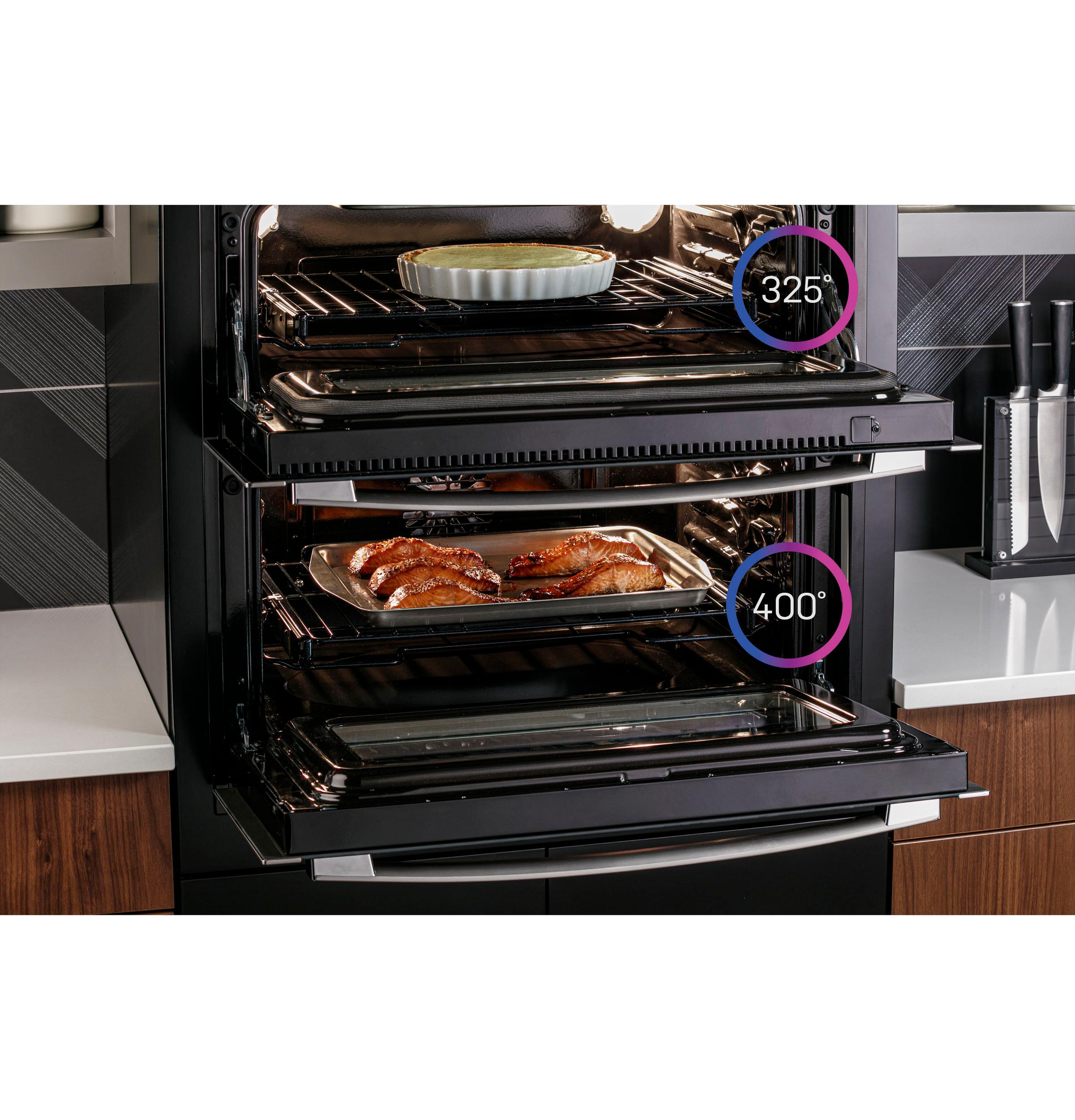

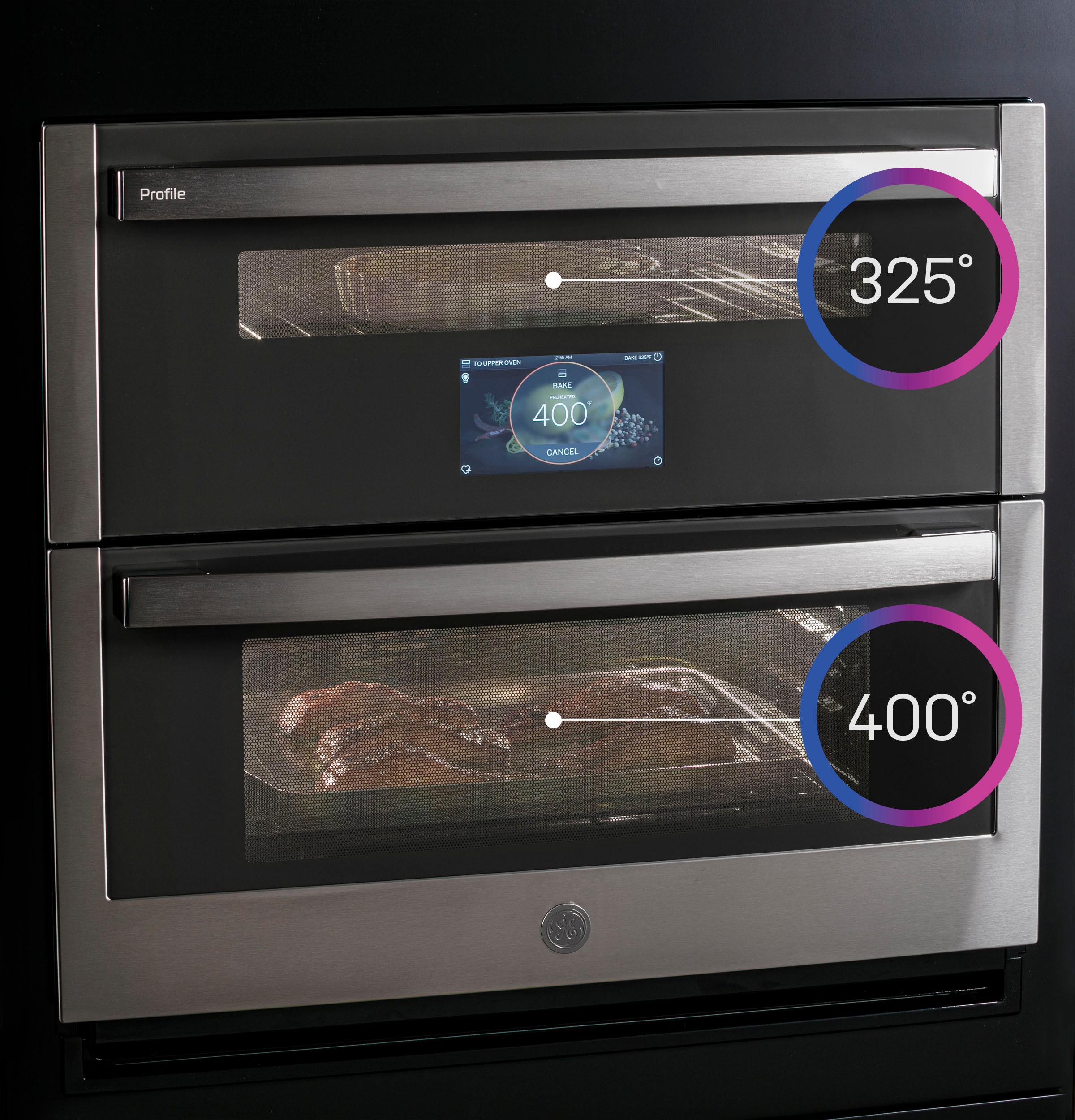

Two-In-One Oven

Cook two things in the oven at once, at two different temperatures, so that your entire meal will be done on time

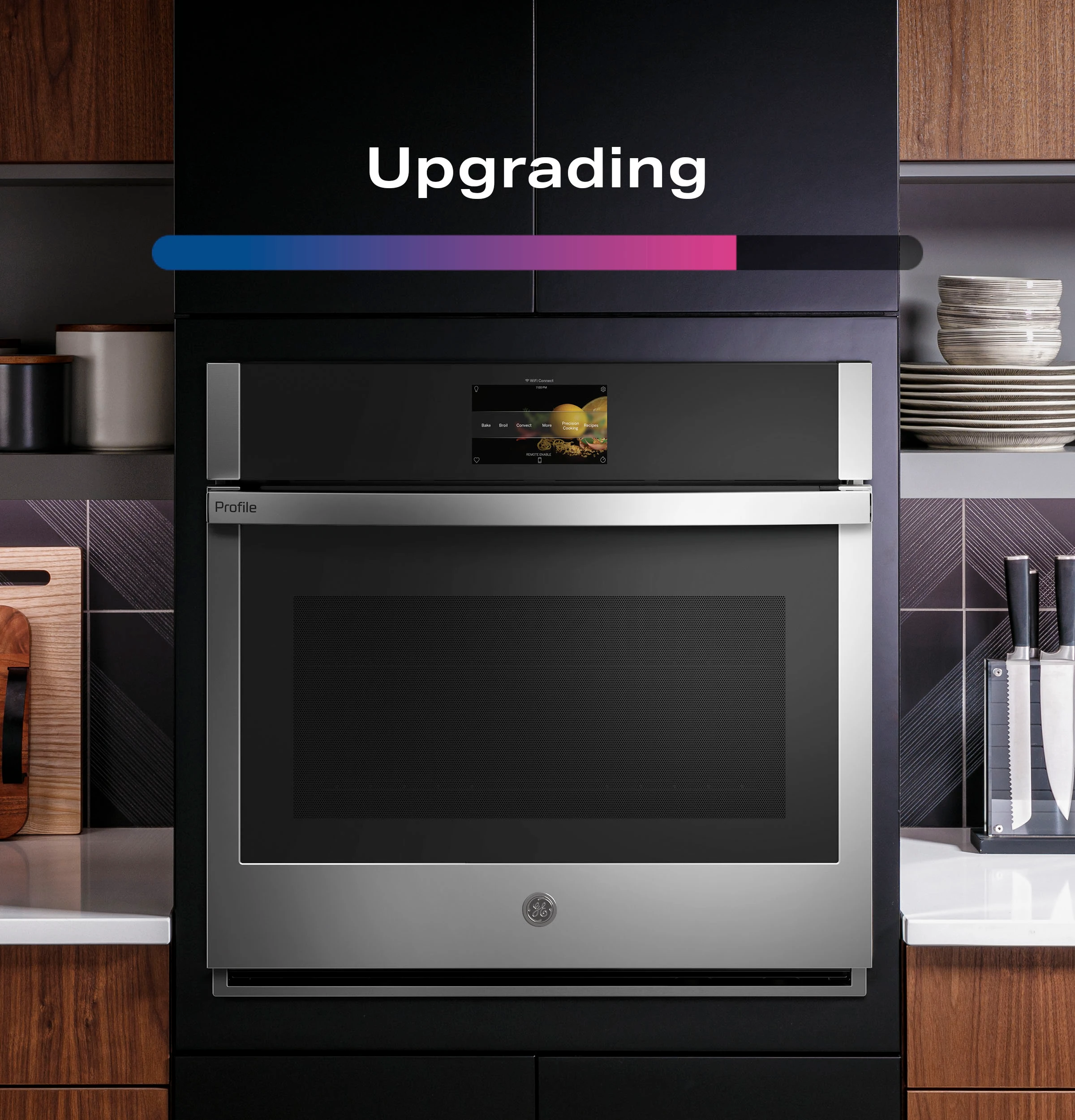

GE Profile Connect +

Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades

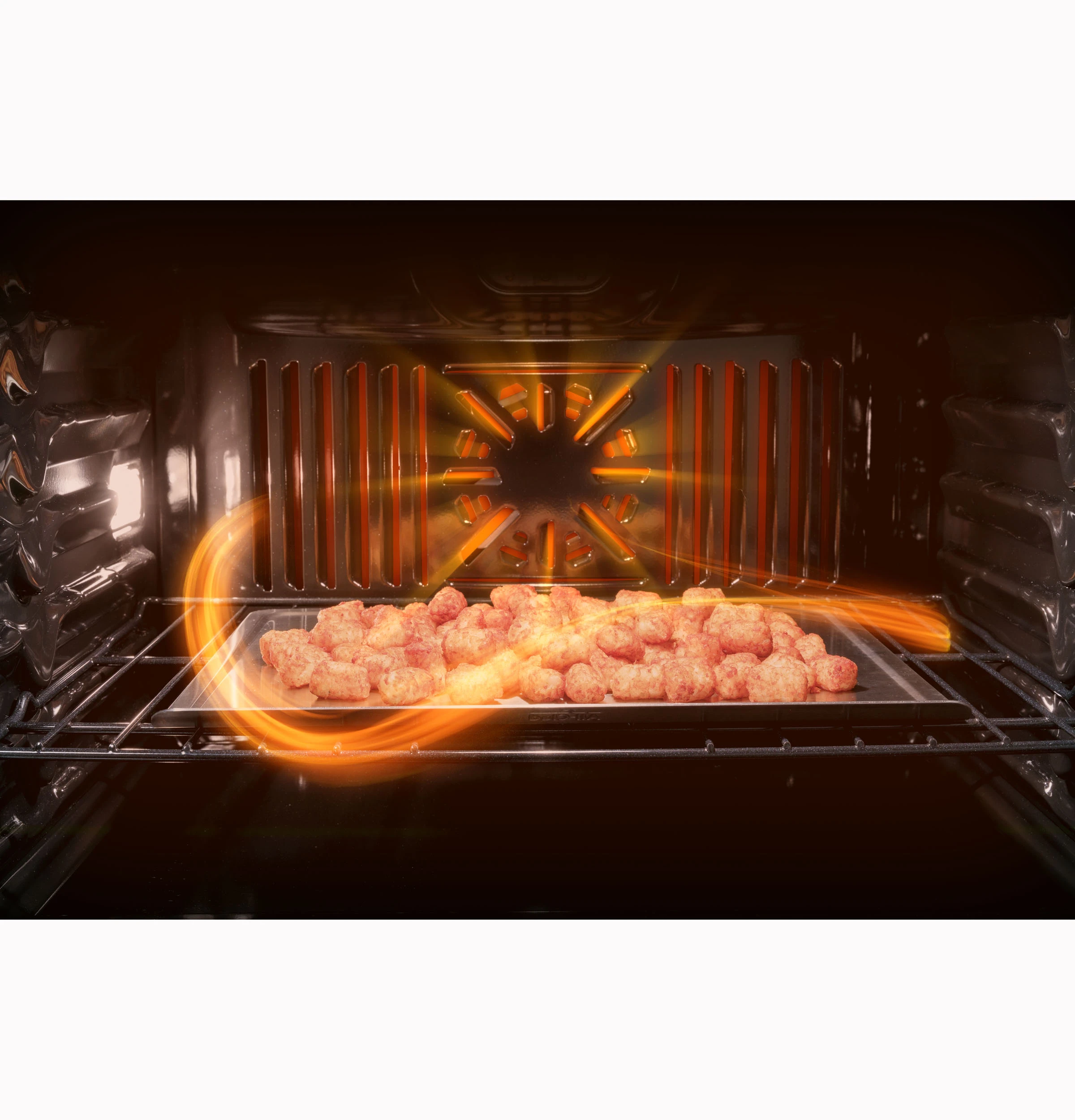

No Preheat Air Fry

Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray

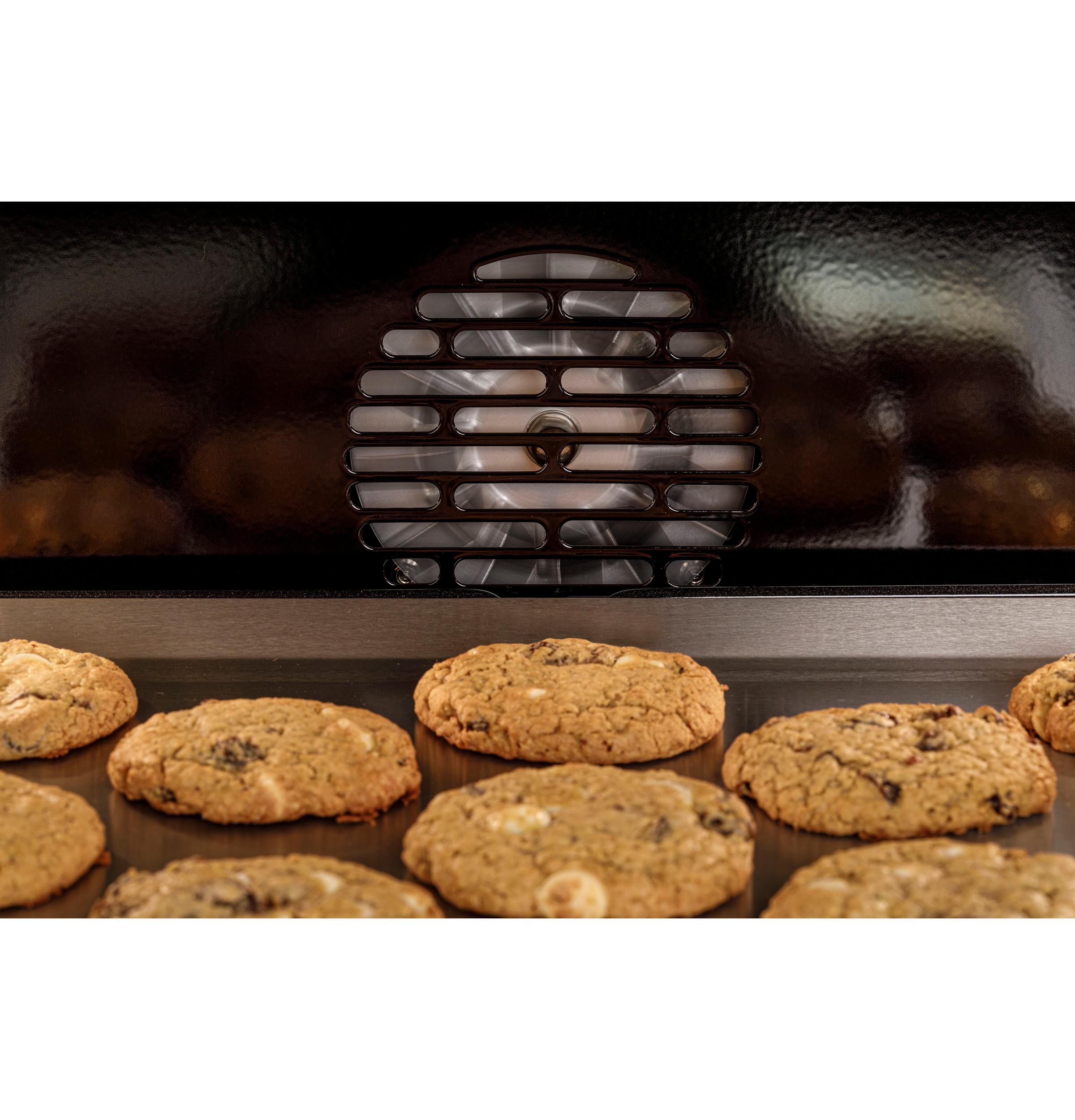

True European Convection with Precise Air

This oven features True European Convection, an advanced convection system that uses a third heating element and reversing fan for the highest level of heat and air circulation

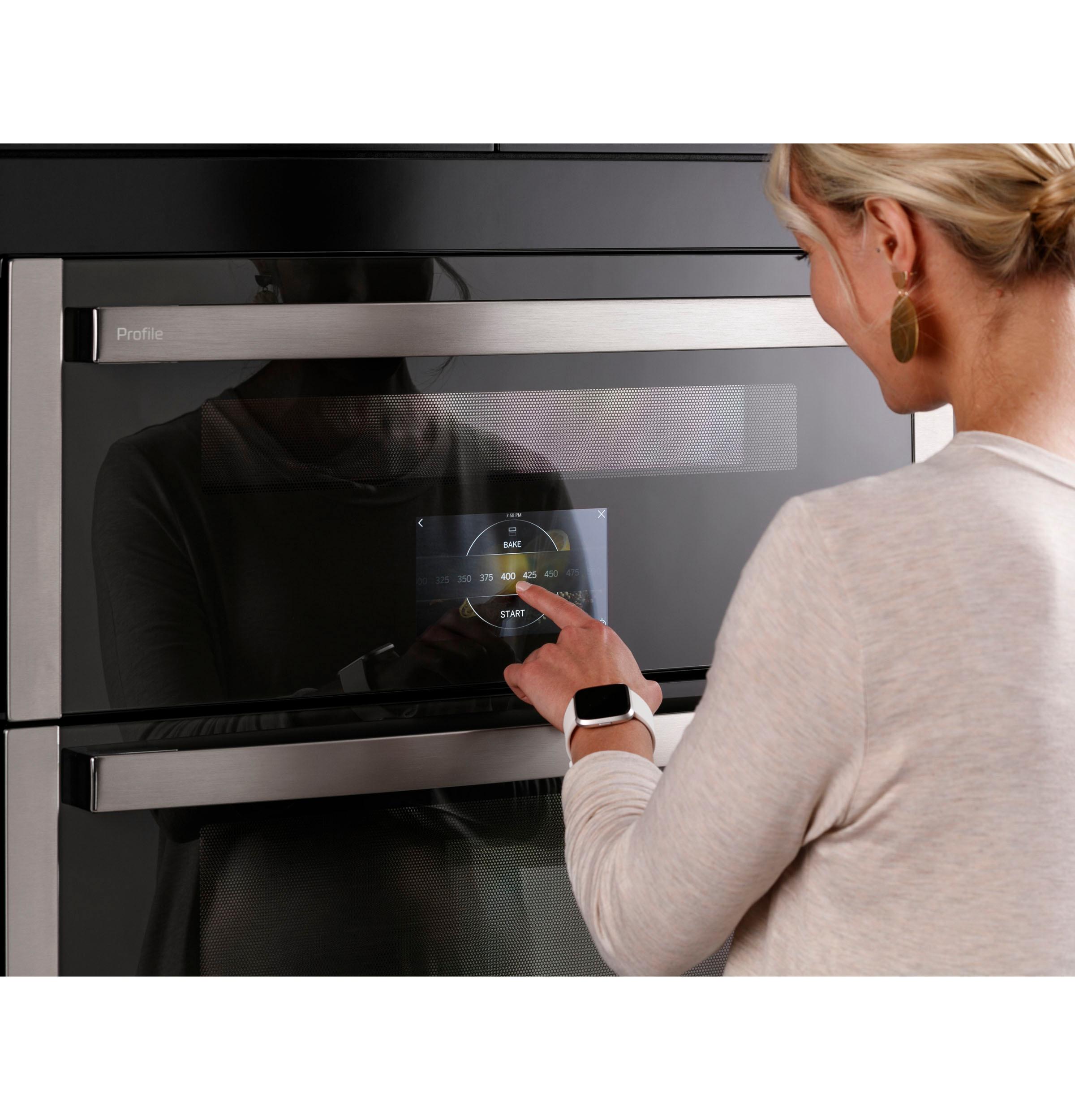

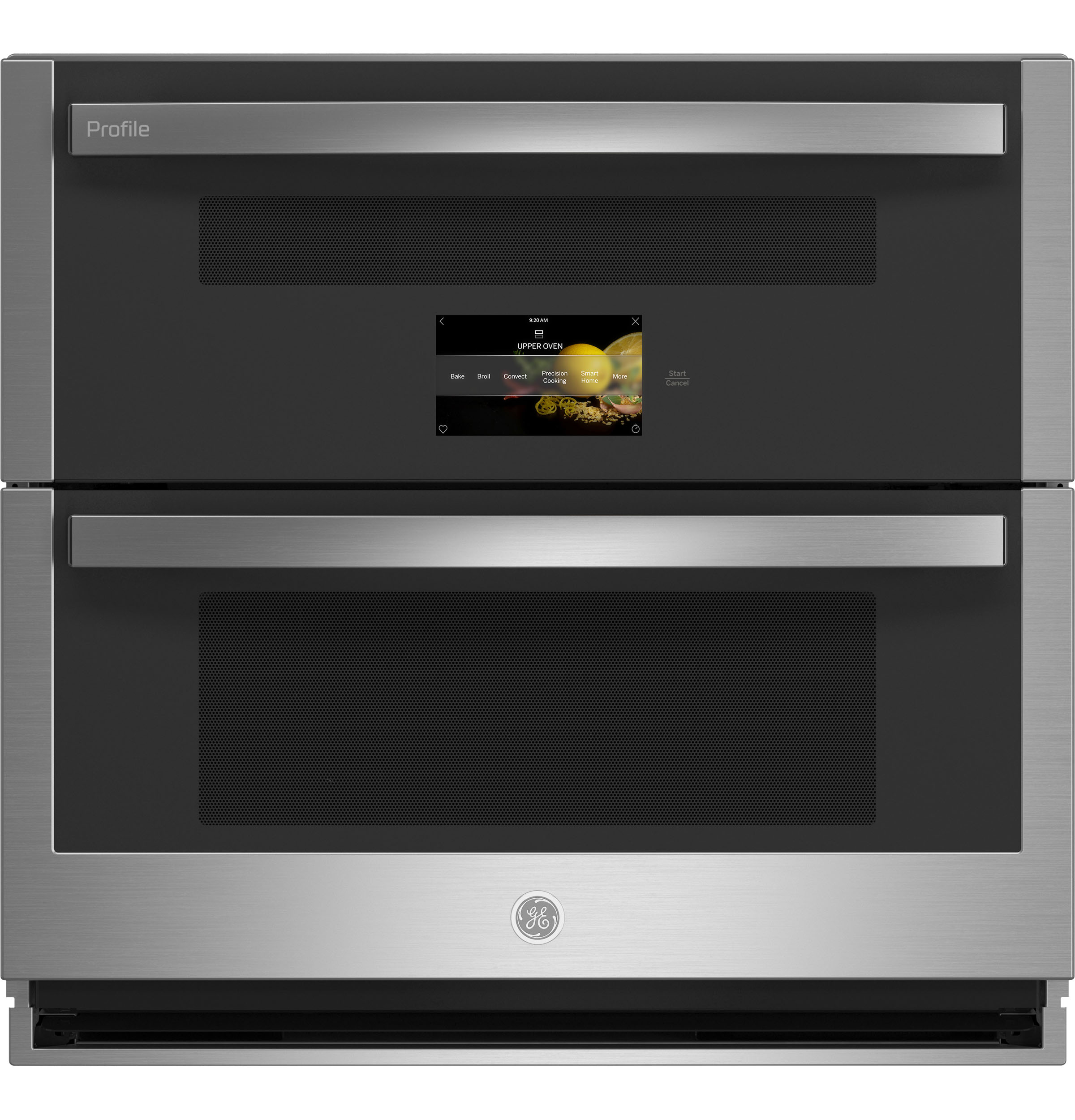

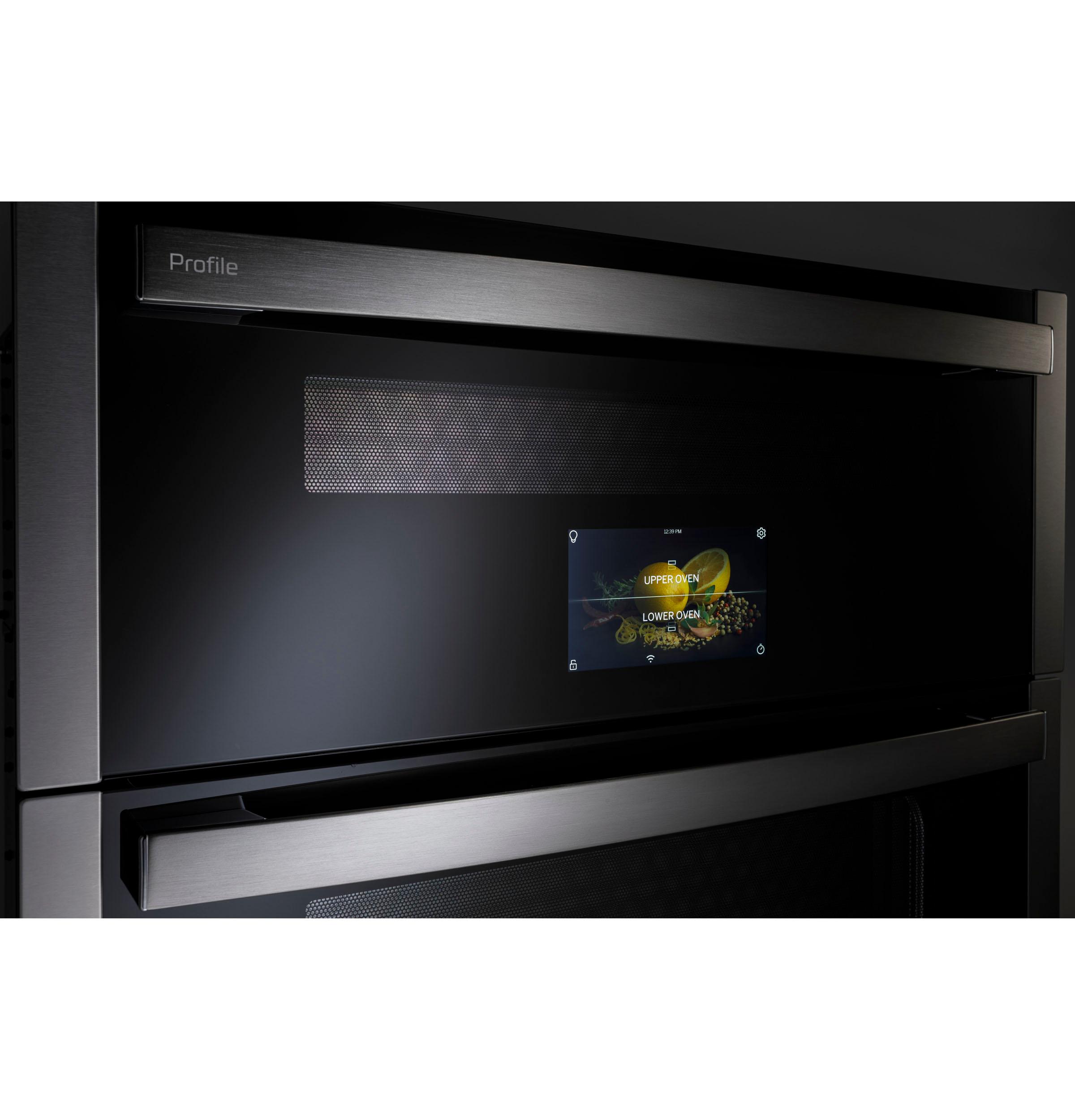

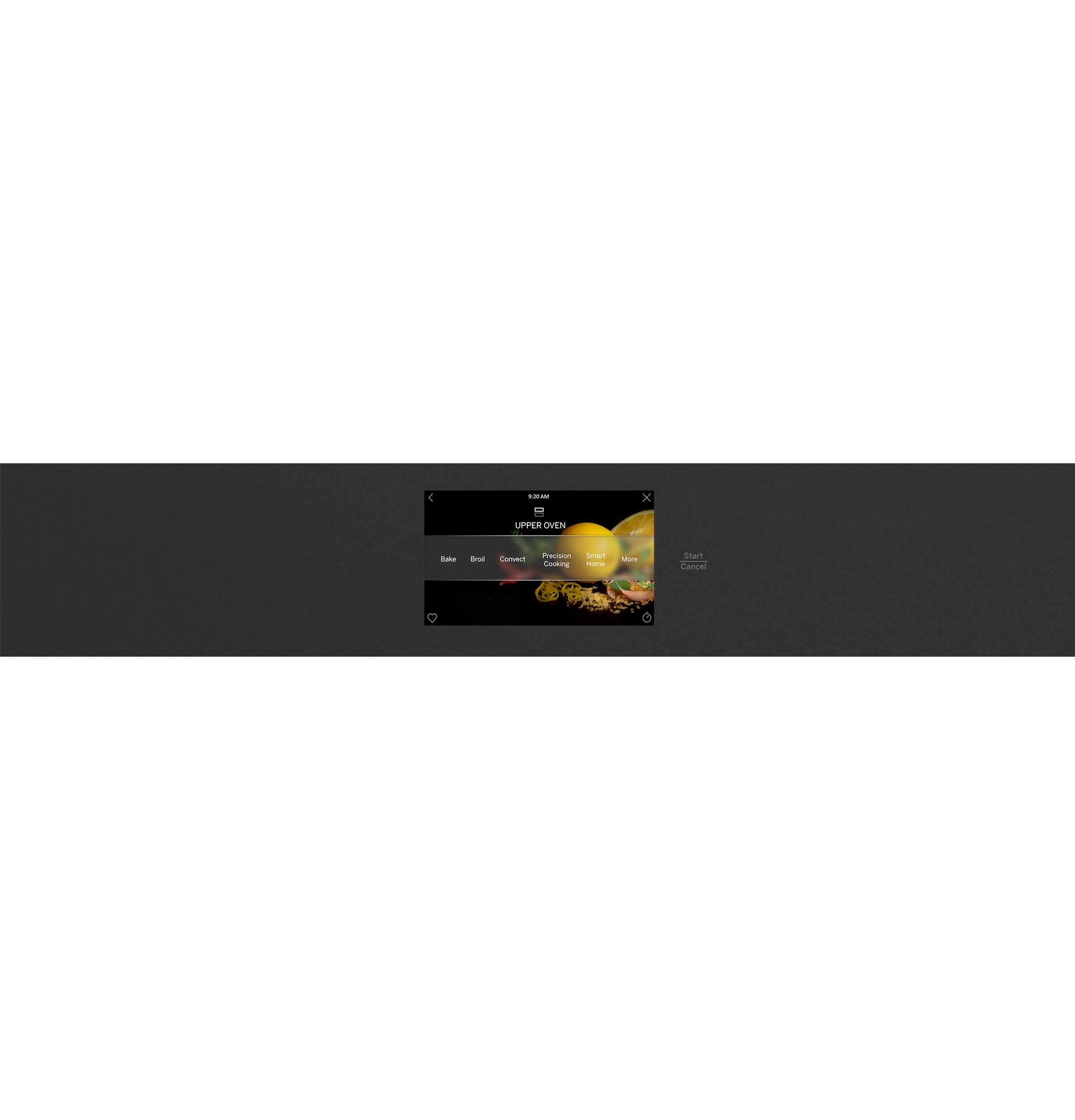

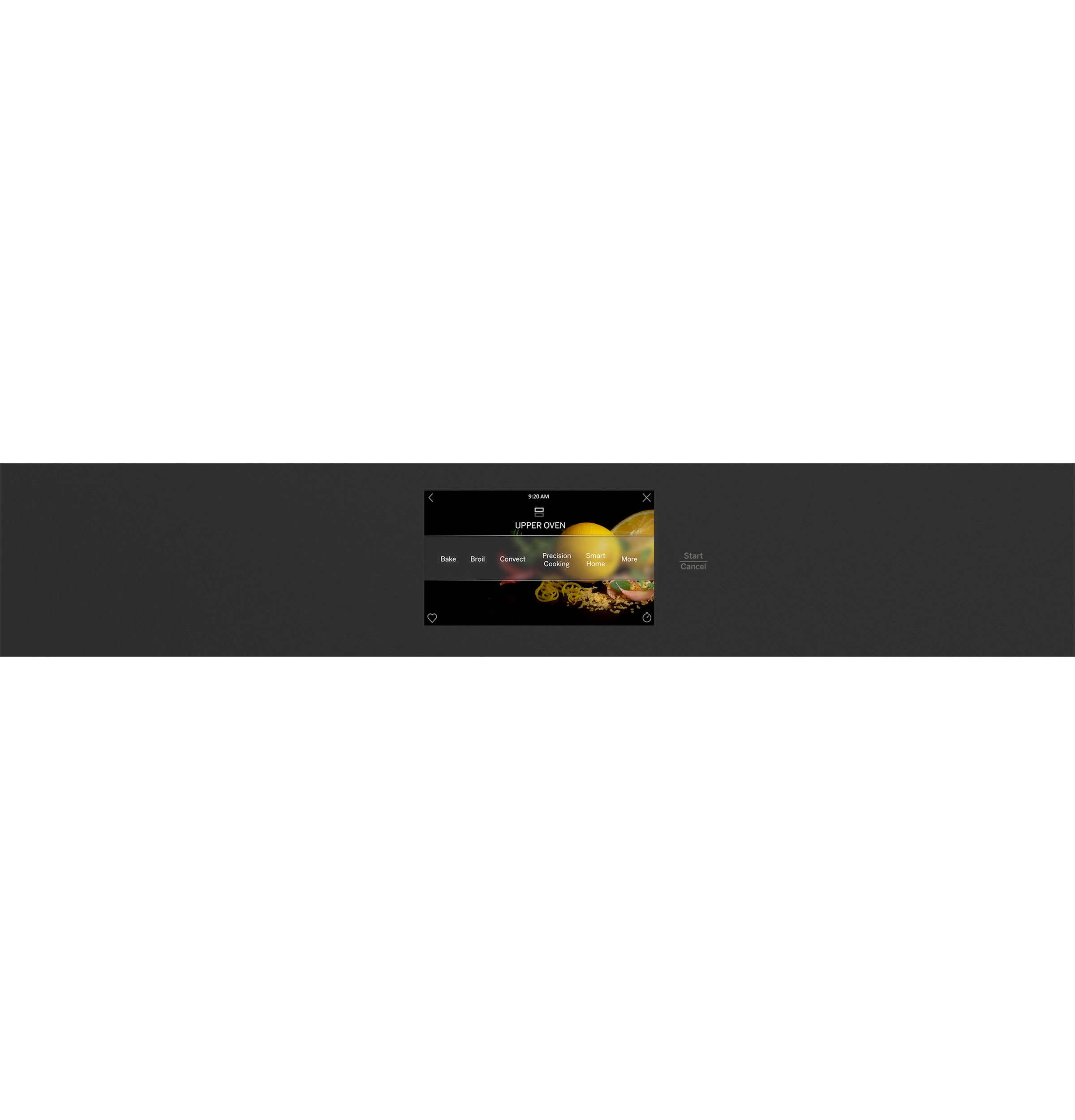

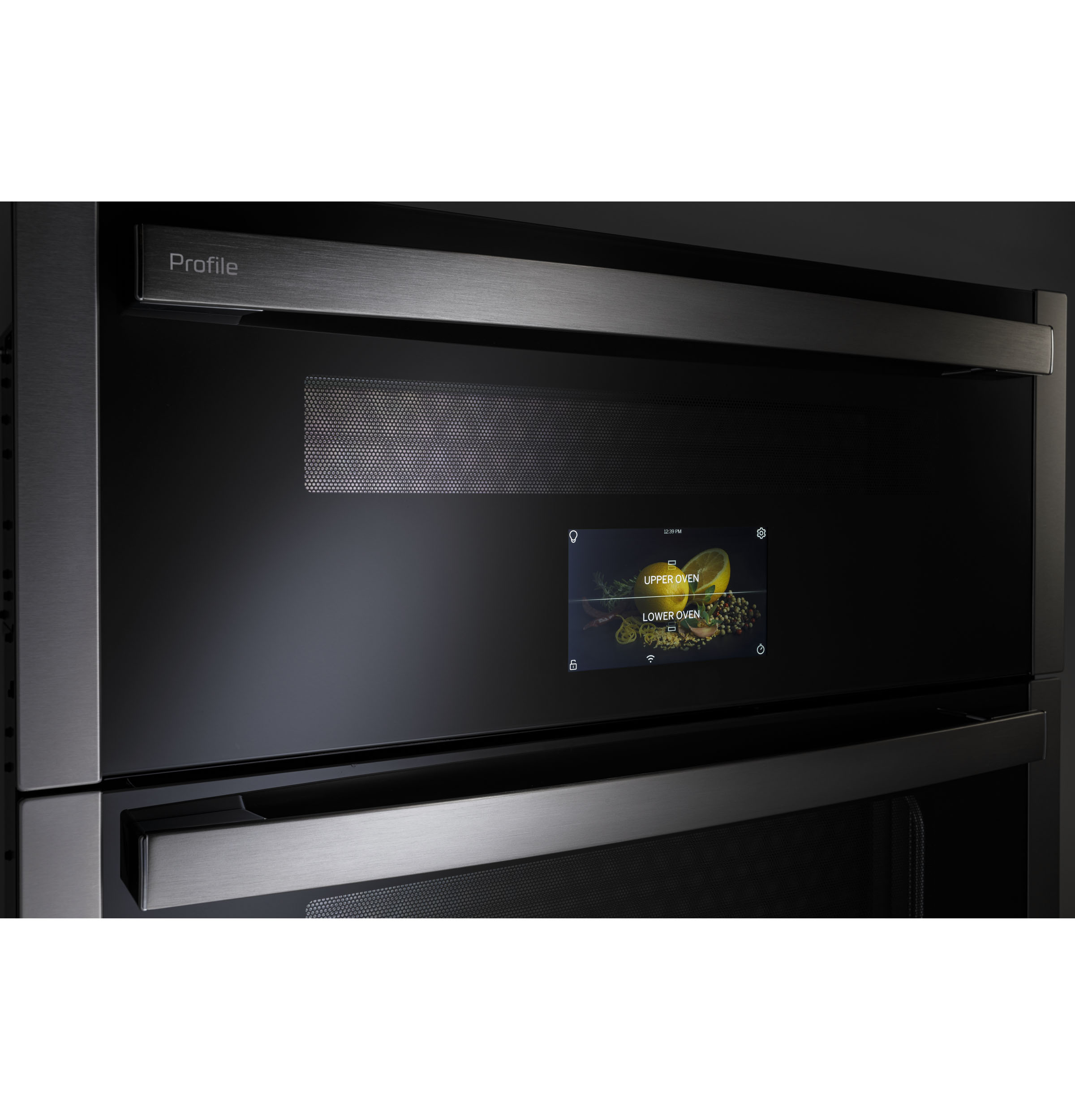

Brilliant Touch 7" Display

A bright, interactive touch screen is easy to use and includes custom screen backgrounds, weather updates and a pop of intrigue with fun food facts

Brilliant Touch 7” Display

A bright, interactive touch screen is easy to use and includes custom screen backgrounds, weather updates and a pop of intrigue with fun food facts

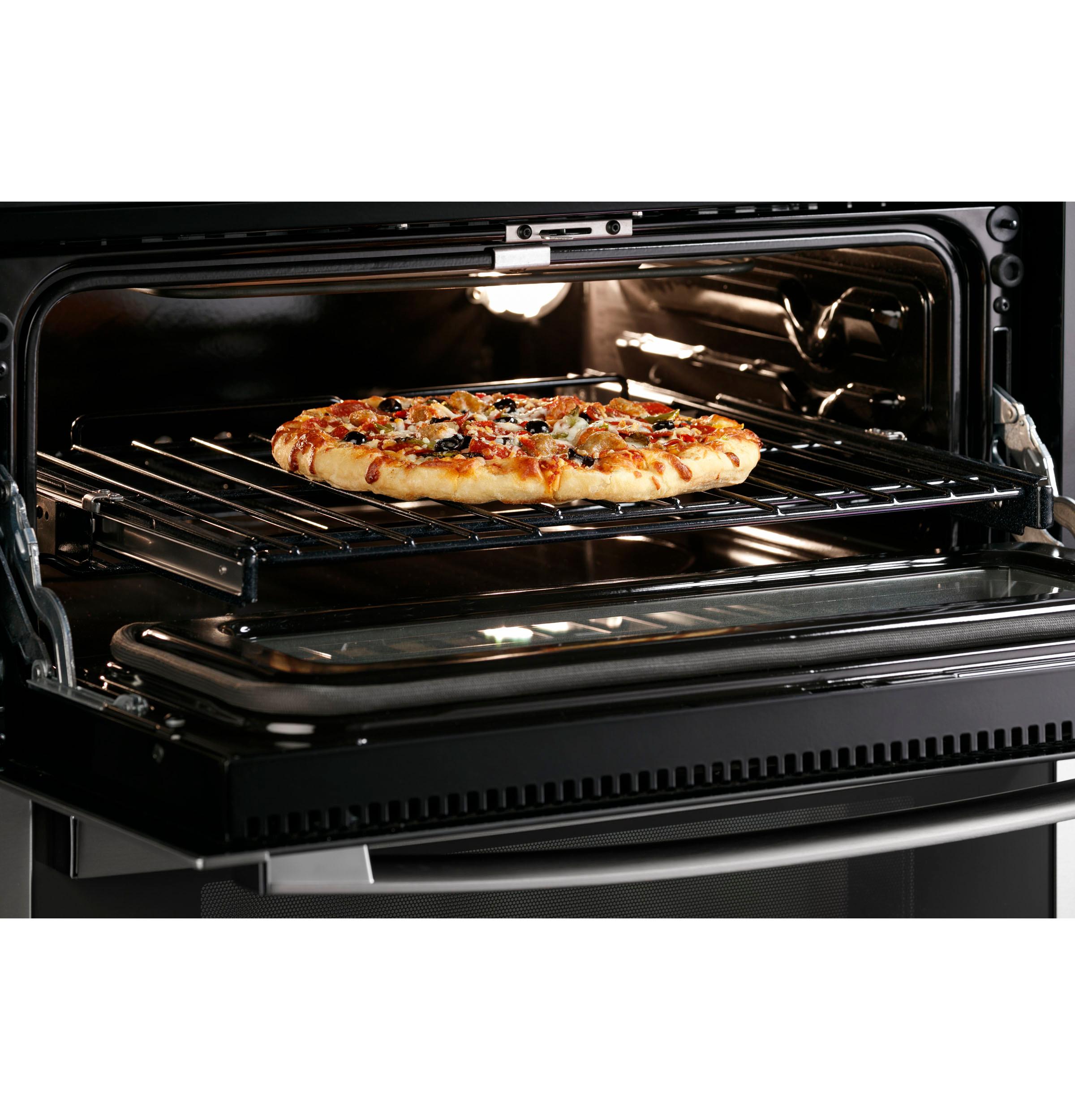

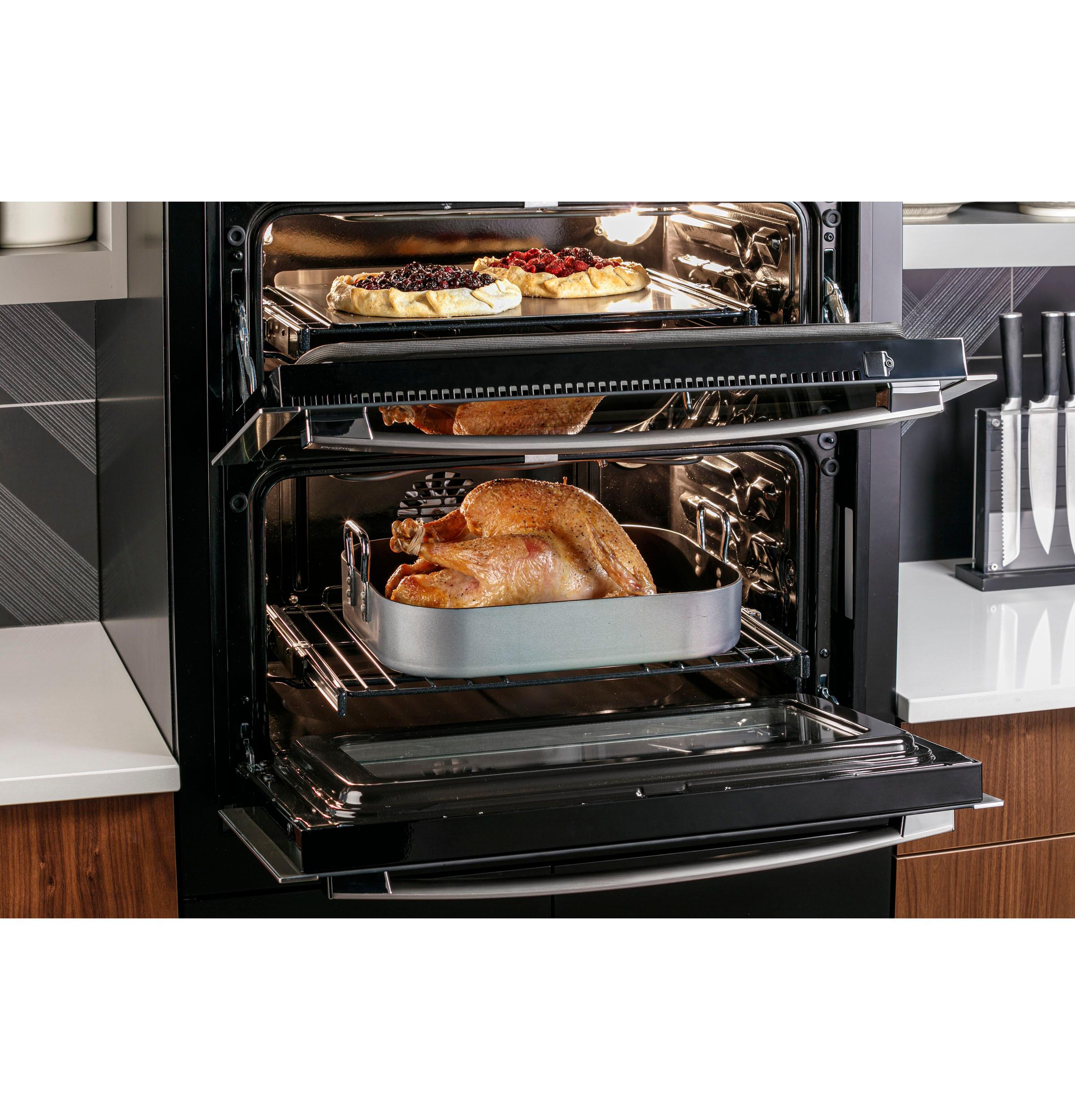

Heavy-Duty, Easy-Glide Rack

Easily access items with a rack that glides smoothly
