Sale price Contact us for Pricing

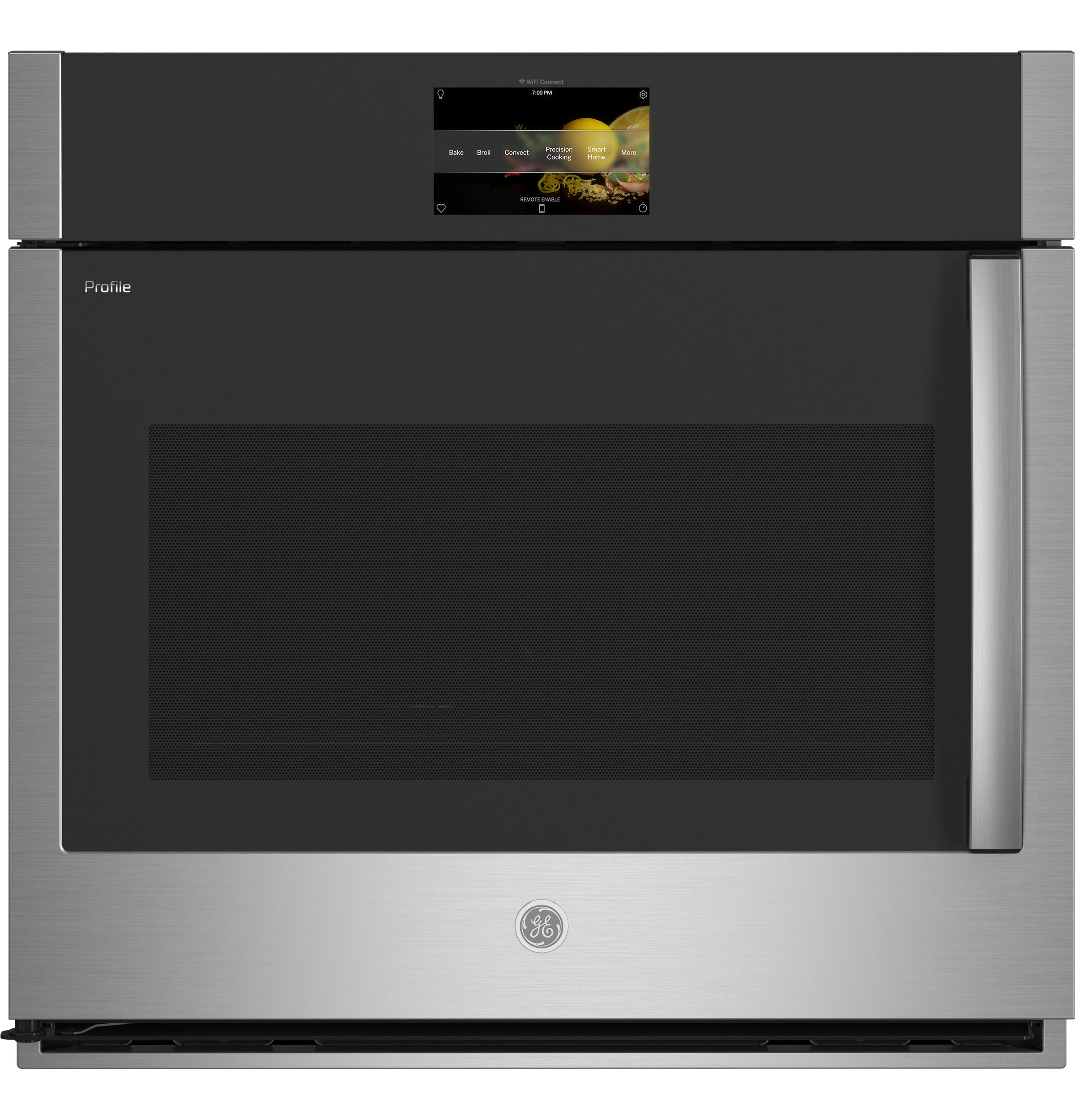

Product Details for GE PTS700LSNSS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 26.75 in
Cabinet Width 30 in
Overall Width 29.75 in
Overall Height 28.625 in
Oven Interior Dimensions (W x H x D) (in.) 25 x 17-3/8 x 20-1/4
Net Weight 161 lb

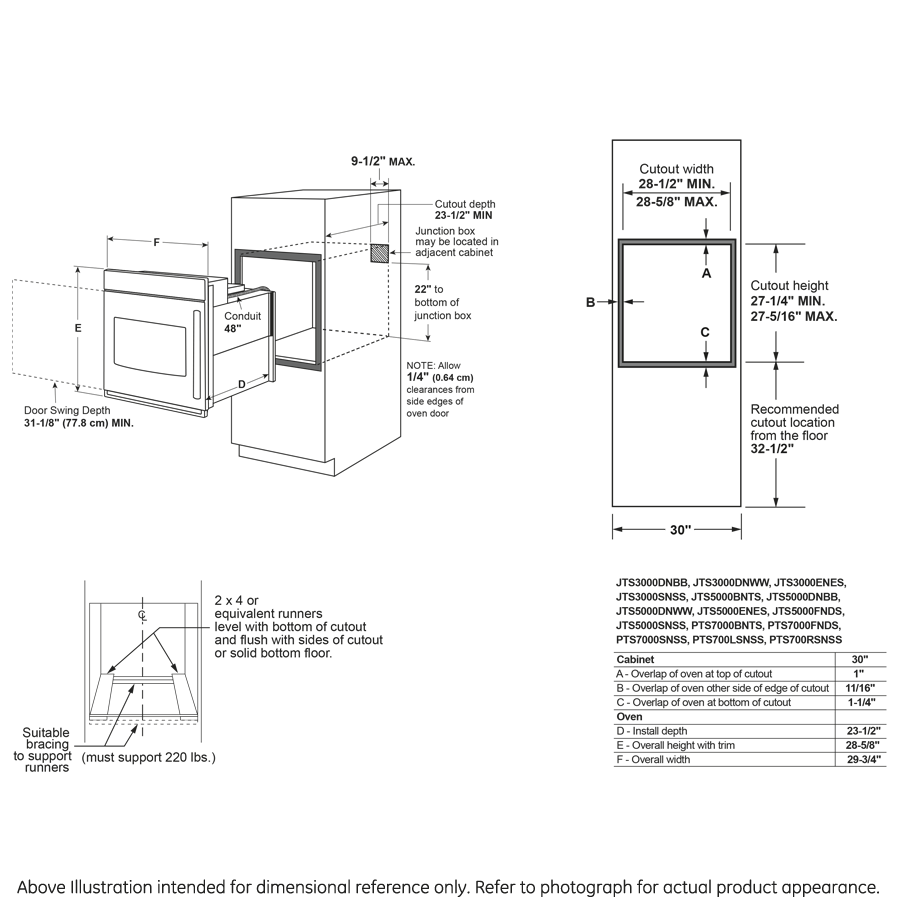

Cutout Dimensions (w x h x d) (in.) 28-5/8 x 27-5/16 x 23-1/2
Approximate Shipping Weight 177 lb
Cutout Depth (in) 23.5
Cutout Height (in) 27.3125
Cutout Width (in) 28.625

Features

WiFi Connect Built-In
Oven Cooking Modes Thermal Broil Hi/Lo
Product Type Single Oven
Fuel Type Electric
Oven Interior Hidden Bake
Cooking Technology Convection
Oven Features Closed Door Broiling
Cleaning Time Variable with Delay Clean Option
Configuration Single Oven
Oven Rack Positions (Single or Upper/Lower) 6
Oven Control Features Warm Mode
Sabbath Mode Yes
Oven Rack Features Embossed Rack Positions
Self-Clean Oven Door Lock Automatic
Cooking System True European Convection with Direct Air
Control Type 7" Full-Color Touch LCD Screen
Connected Capabilities The Google Assistant
OU Certified No
Oven Cleaning Type Self-Clean with Steam Clean Option
Connected Capabilities Amazon Alexa
Connected Capabilities IFTTT
Connected Capabilities Fresco
Connected Capabilities Innit
Connected Capabilities Sonos
Oven Control Features 12-Hour Shut-Off Capability
Oven Control Features Audible Preheat Signal
Oven Control Features Auto Recipe Conversion
Oven Control Features C° or F° Programmable
Oven Control Features Sabbath Mode
Oven Control Features Control Lock Capability
Oven Control Features Scan-to-cook
Oven Control Features Cook Time
Oven Control Features Delay Time
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Mis-Wire Detection
Oven Control Features Remote Enabled
Oven Control Features Temperature Probe
Oven Control Features Proof Mode
Oven Cooking Modes Convection Bake
Oven Cooking Modes Convection Bake Multi-Rack
Oven Cooking Modes Convection Roast
Oven Cooking Modes Convection Broil Hi/Lo
Oven Cooking Modes Precision Cooking Modes
Oven Cooking Modes Thermal Bake
Oven Cooking Modes No Preheat Air Fry
Oven Features 10-Pass Bake Element
Oven Features 10-Pass Dual Broil Element
Oven Interior 2 Halogen Interior Oven Lights
Oven Interior Black Gloss Finish
Connected Capabilities Google Home
Oven Rack Features 1 Heavy-Duty Roller Rack
Oven Rack Features 1 Heavy-Duty Flat Rack

Power / ratings

Bake Wattage 2850W
Convection Wattage 2400W
Electrical Requirements 208/240V ; 60Hz ; 20A
KW Rating at 240V 4.2
Amp Rating at 208V 20
Broiler Wattage 4300W
Amp Rating at 240V 20
KW Rating at 208V 3.2
Hertz 60

Appearance

Door Swing Left-Swing
Oven Door Features Big View Oven Window
Handle Color Brushed Stainless
Color Appearance Stainless Steel
Installation Under Built-In Microwave
Handle Designer Style
Installation Above Warming Drawer
Installation Side-by-Side
Installation Under Built-In Advantium

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Accessories UXWORXR30 - 30" Never Scrub Roller Rack

Other

Oven Interior Dimensions (W x H x D) (in.) 25 x 17-3/8 x 20-1/4
Cutout Dimensions (w x h x d) (in.) 28-5/8 x 27-5/16 x 23-1/2

Dimensions & weight

Width 29.75 in.
Height 28.63 in.
Length 26.75 in.
Weight 161 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 33.63 in.
Shipping Length 31.75 in.
Shipping Weight 201 lbs.
Total of Shipping Weight 201 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 13.18 ft³
Dimensional Weight 163.89 lbs.
Total of Cubes 13.18 ft³
Total of Dimensional Weight 163.89 lbs.

Capacity

Total Capacity (cubic feet) 5.00 cu ft

Description

Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades.An innovative door design that opens to the side instead of down, eliminating awkward reaching.28 5/8 H x 29 3/4 W x 26 3/4 D


Product Features

  • Temperature Probe
    A precision temperature probe connects to the oven to ensure your food is properly cooked

Key Features

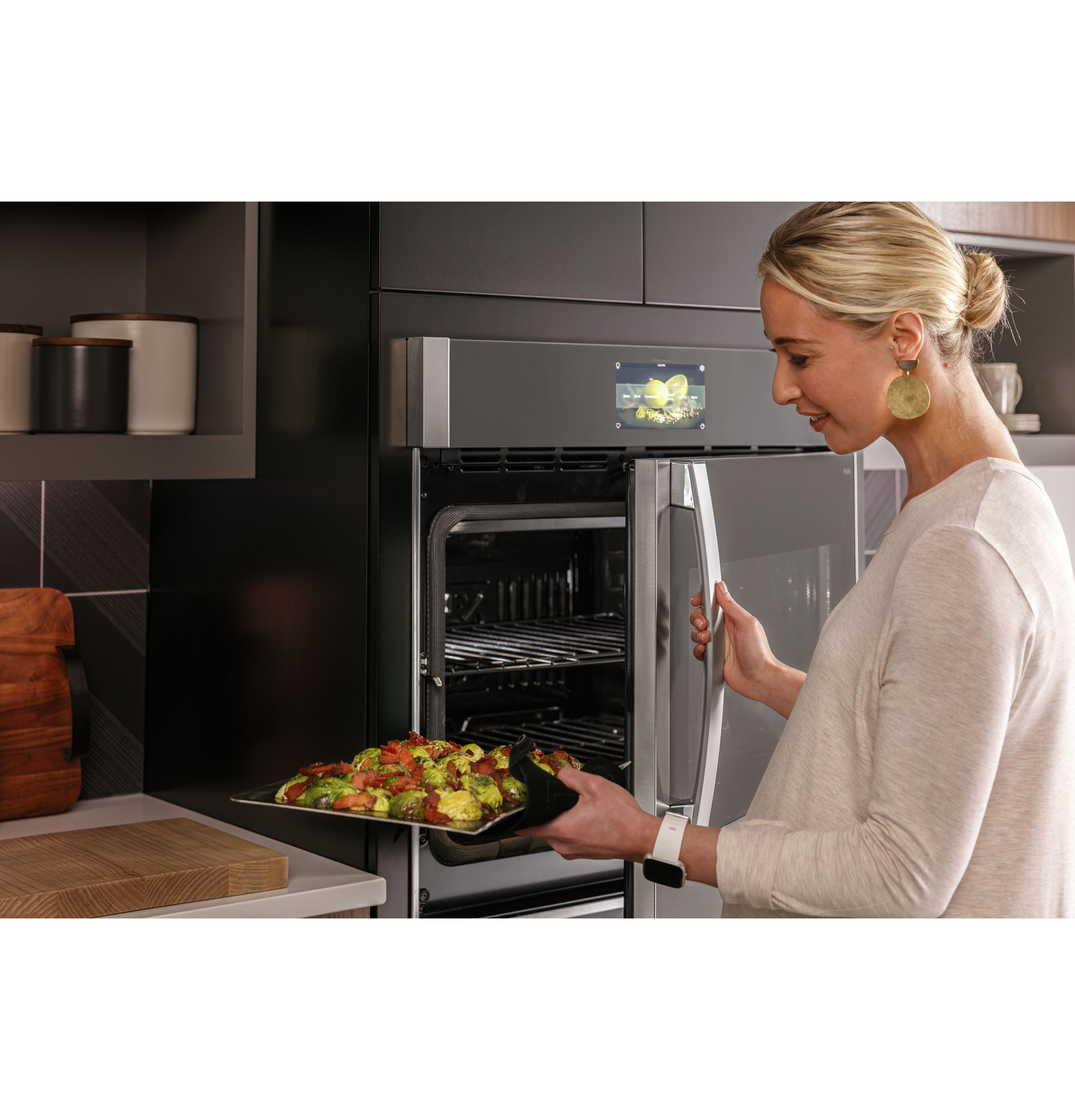

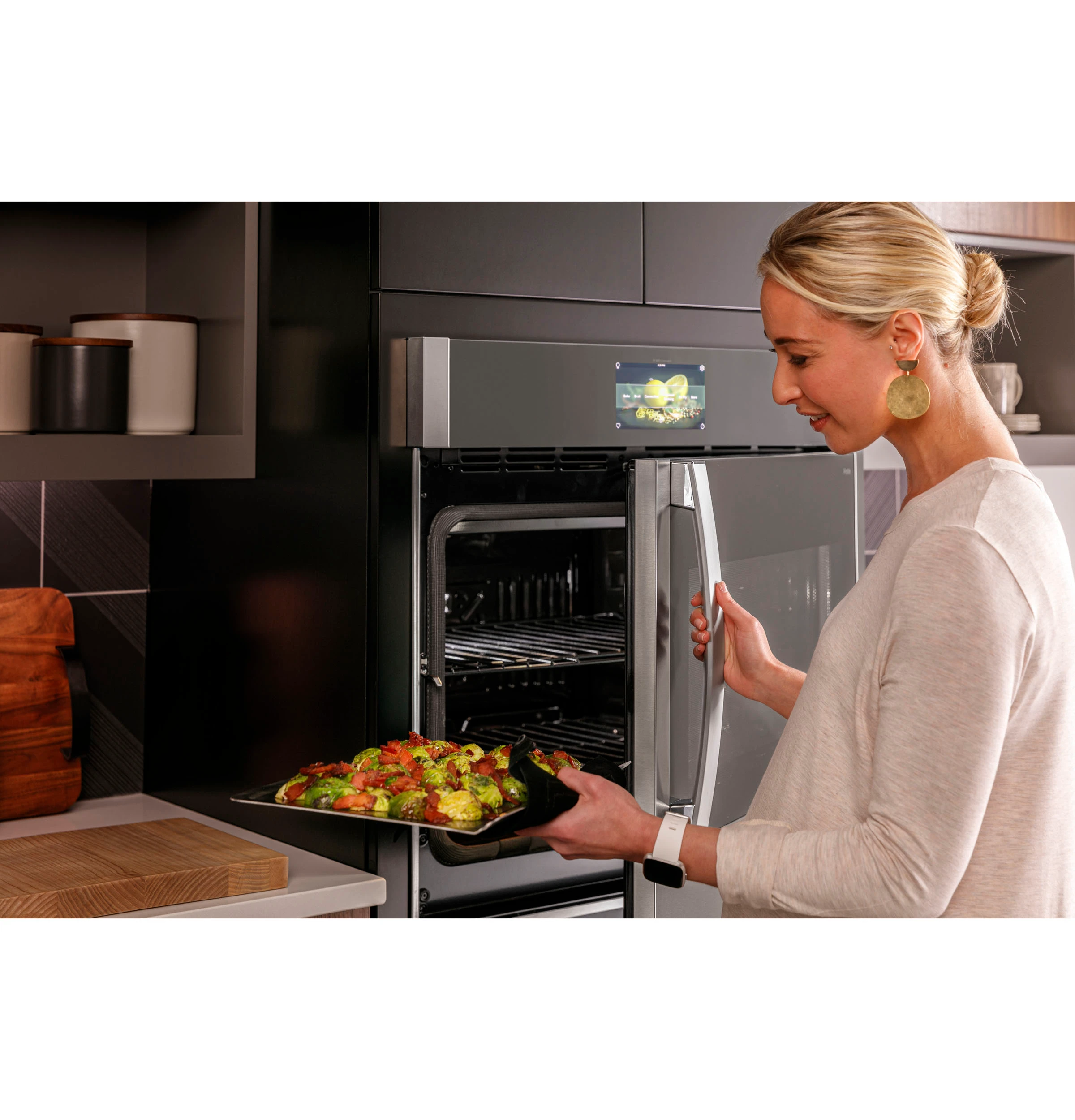

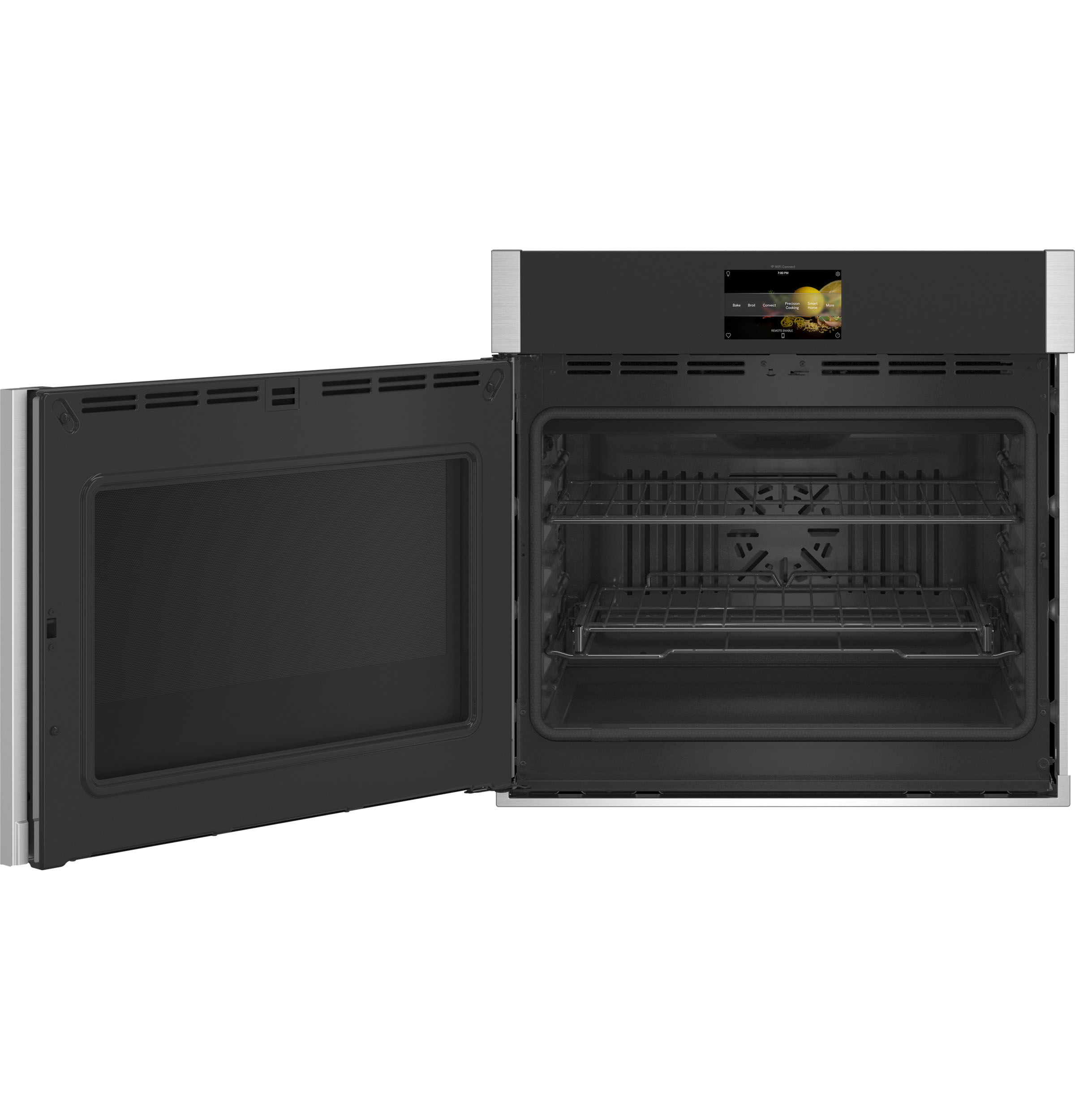

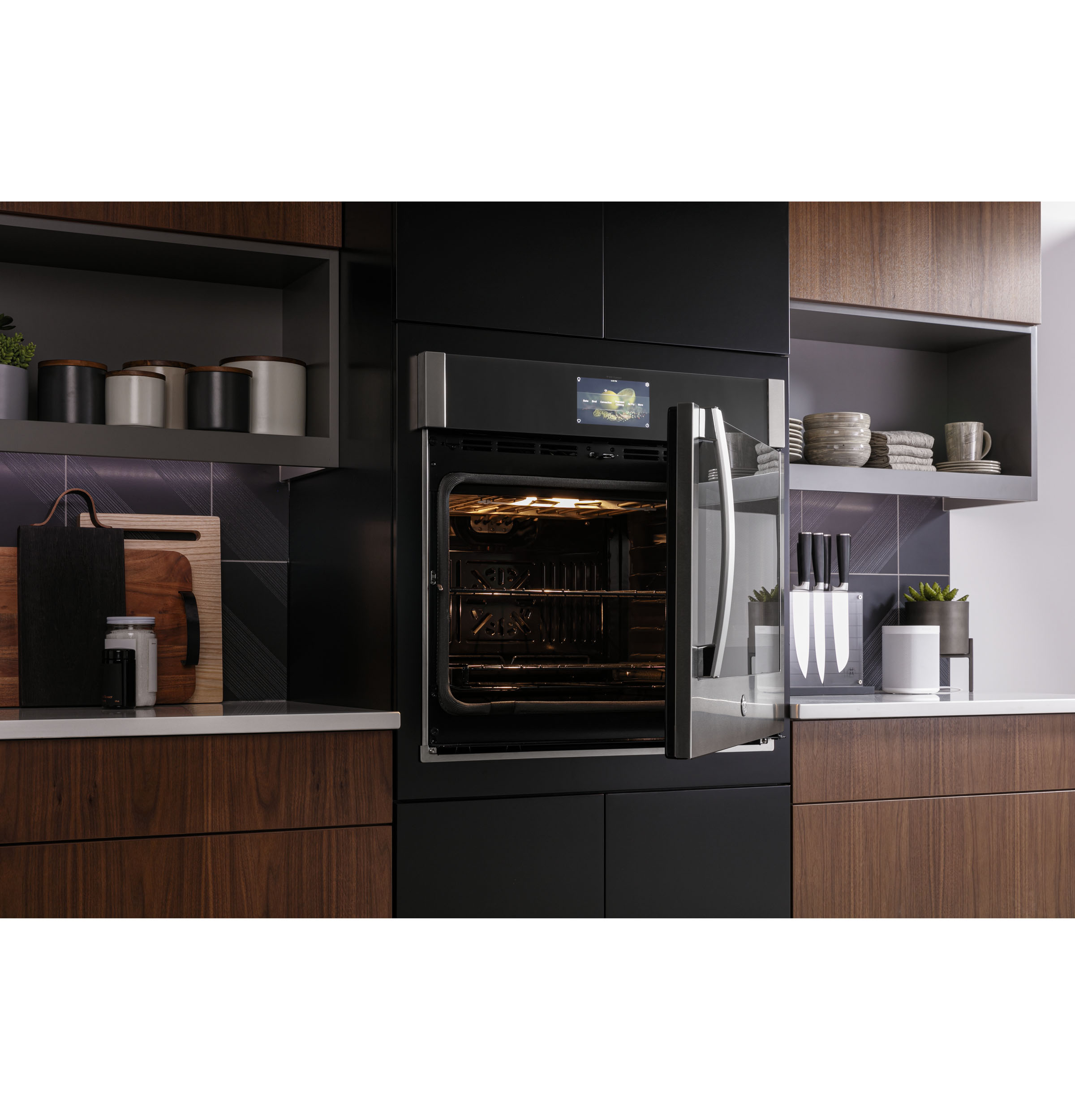

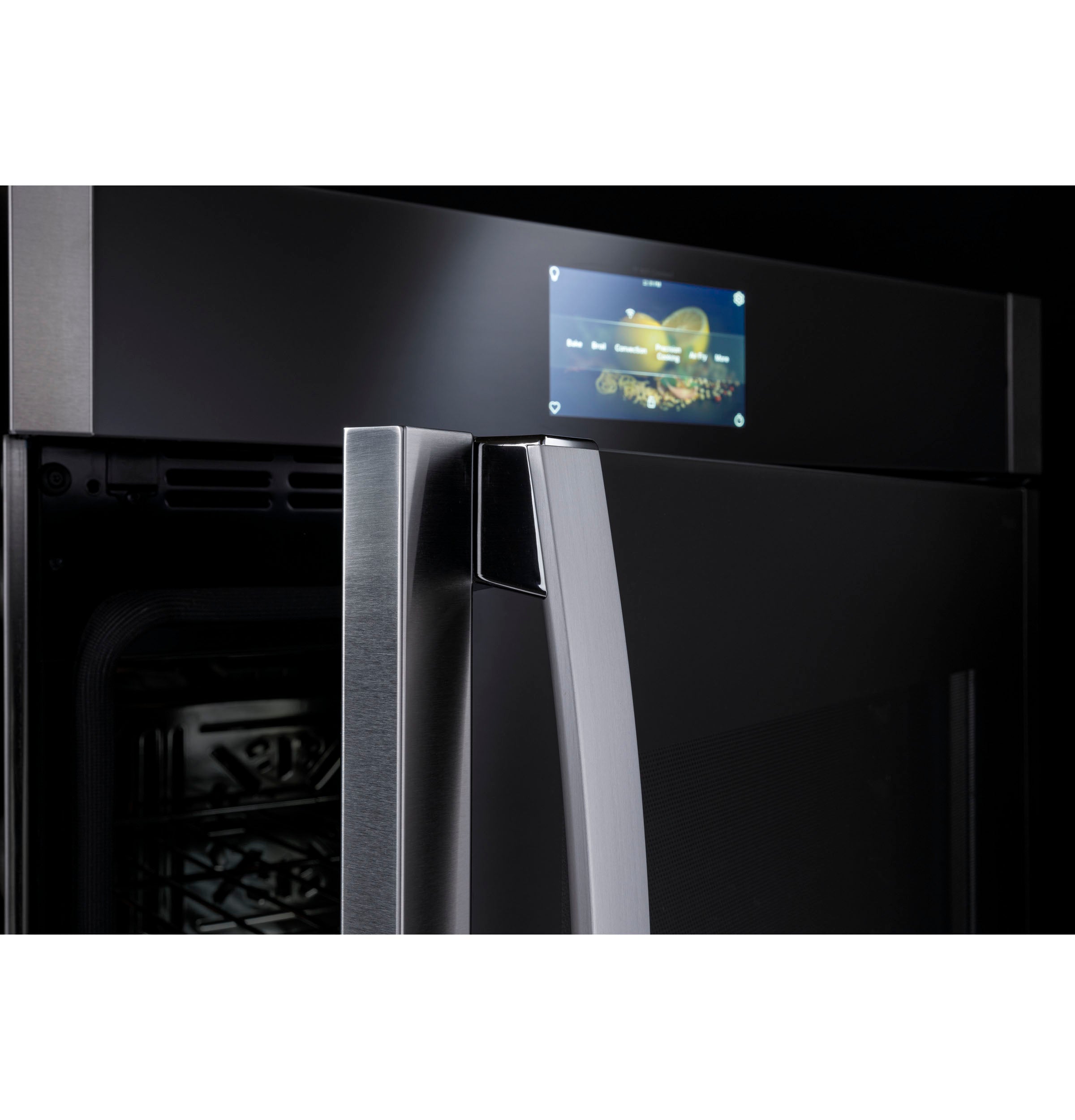

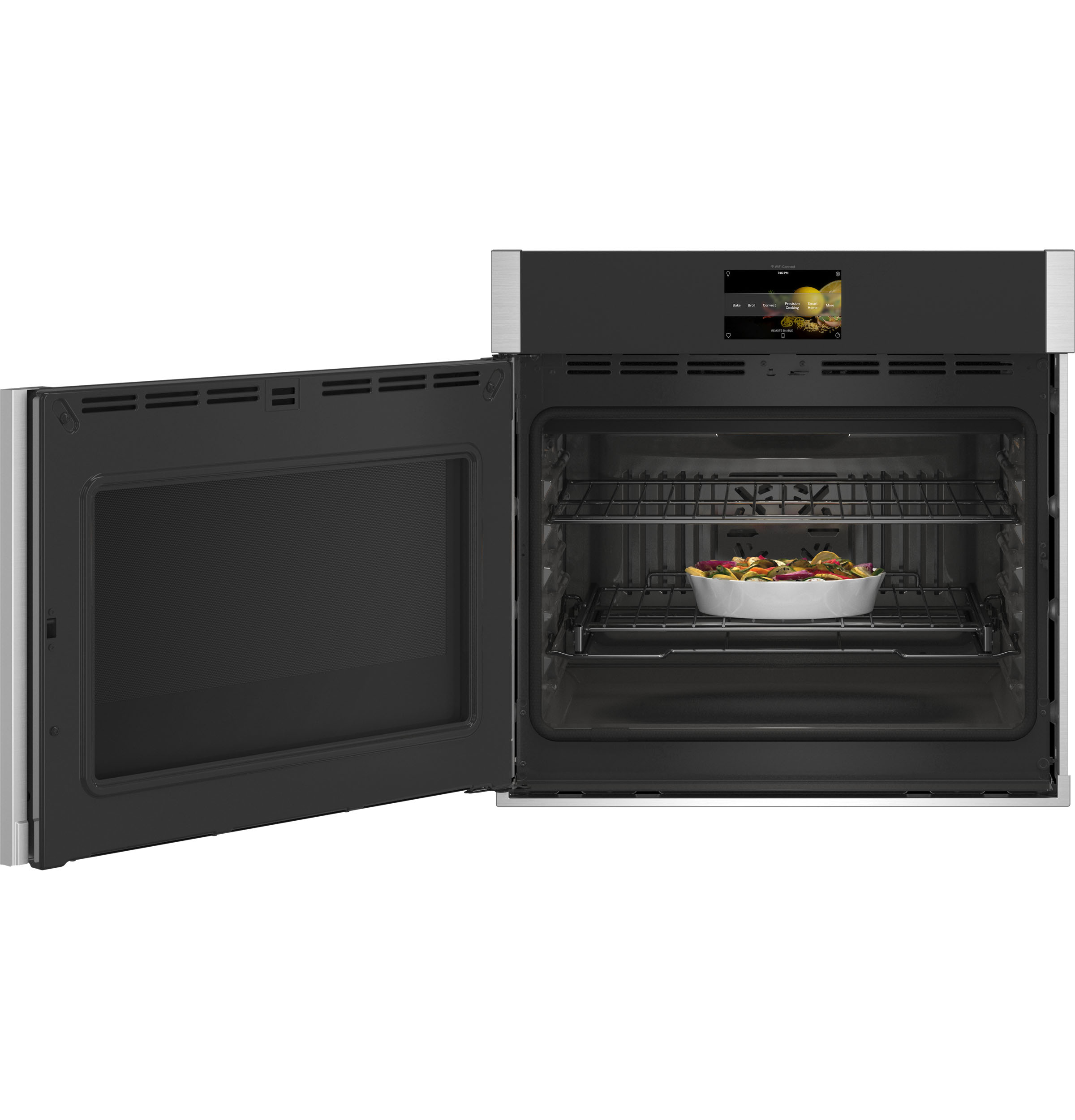

Swing Door

An innovative door design that opens to the side instead of down, eliminating awkward reaching

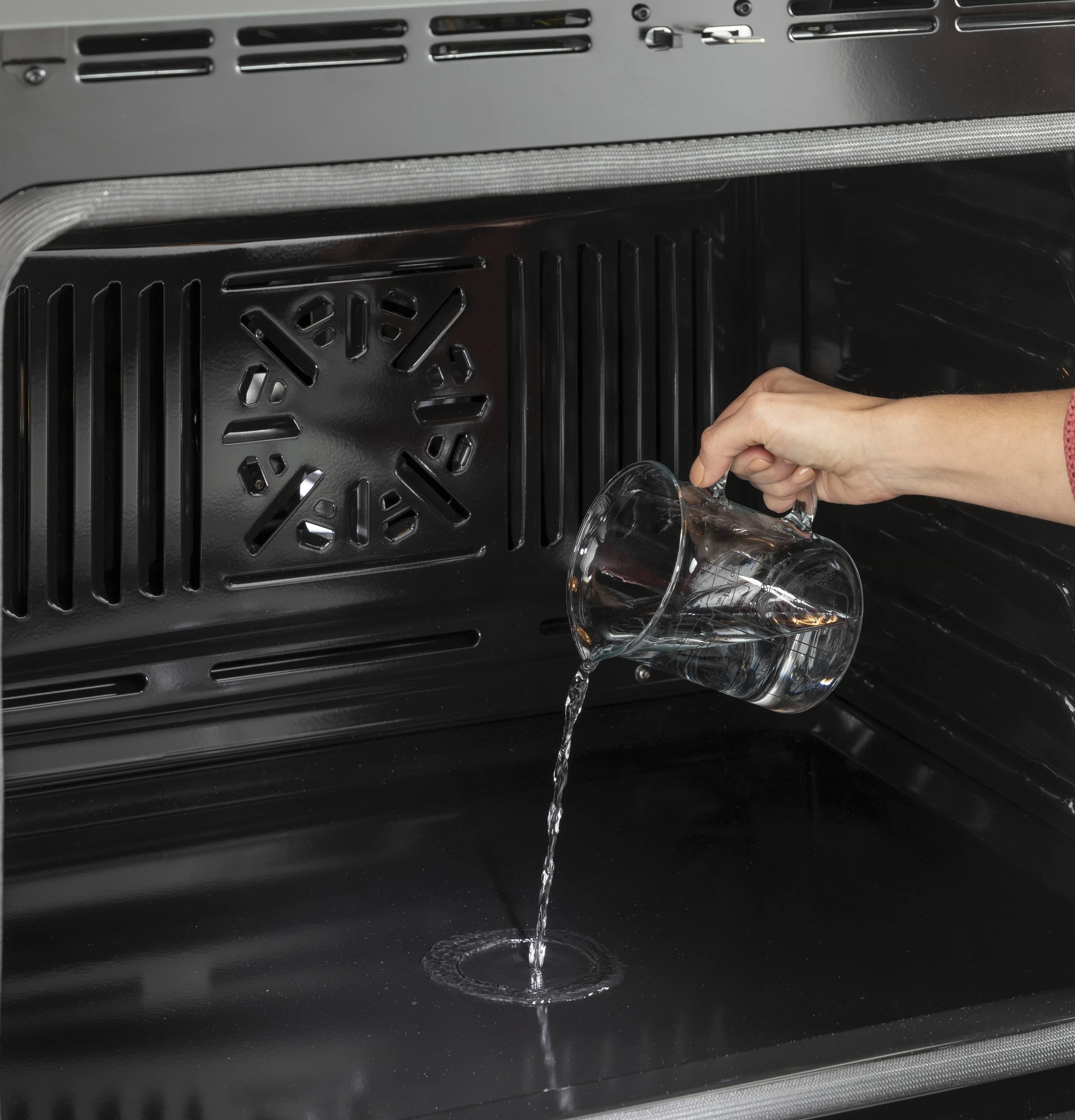

Self-Clean with Steam Clean

This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor

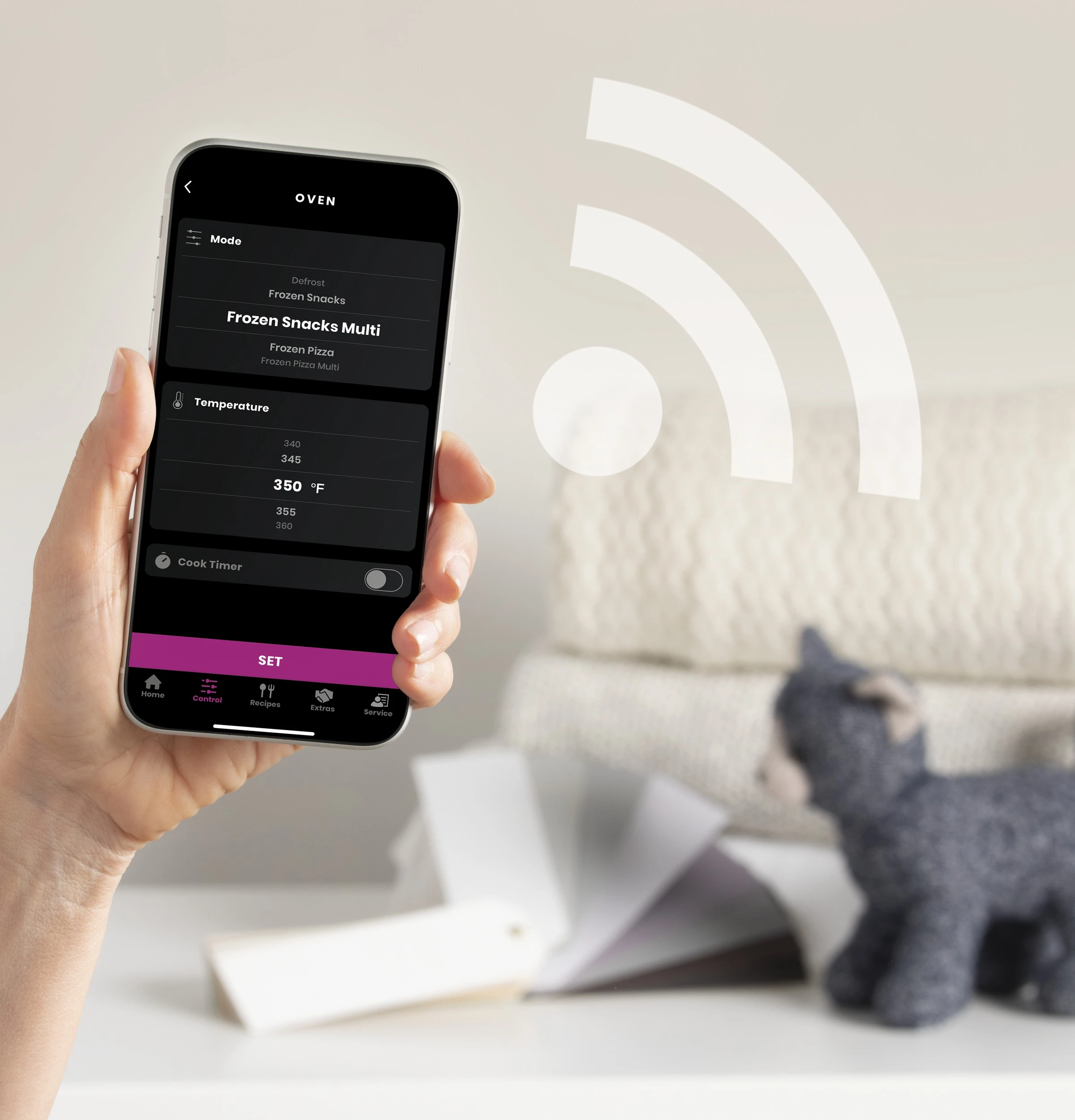

Built-In WiFi, Powered by SmartHQ App

Connect, control and manage your oven from anywhere with your smartphone or tablet (Select features require WiFi Connection) See details

GE Profile Connect +

Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades

Precision Cooking Modes

Simplify the cooking process with precision cooking modes that automatically track progress, and make time and temperature adjustments

No Preheat

Eliminate the need for preheating and save time with a variety of precision cooking modes

No Preheat Air Fry

Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray

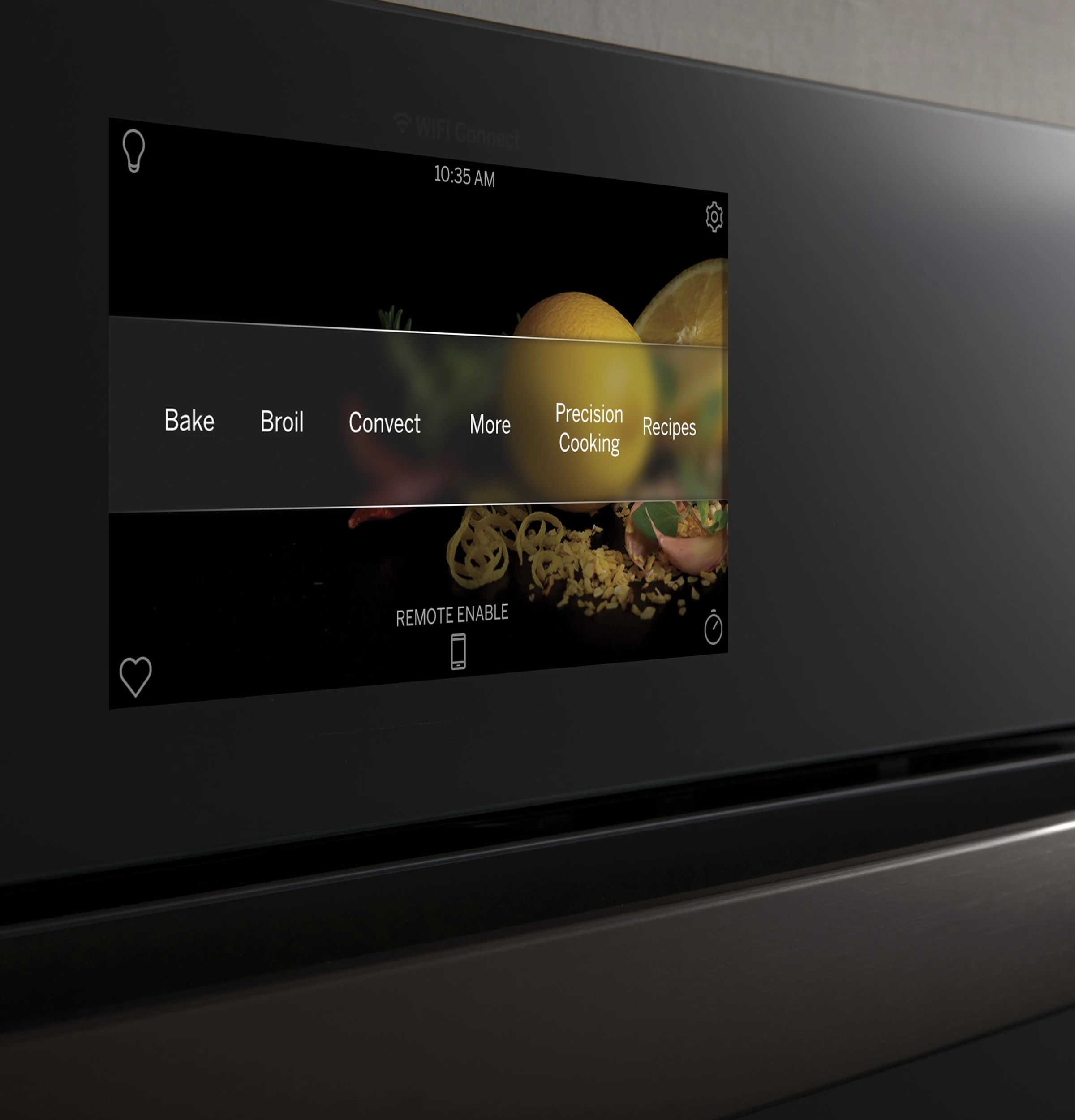

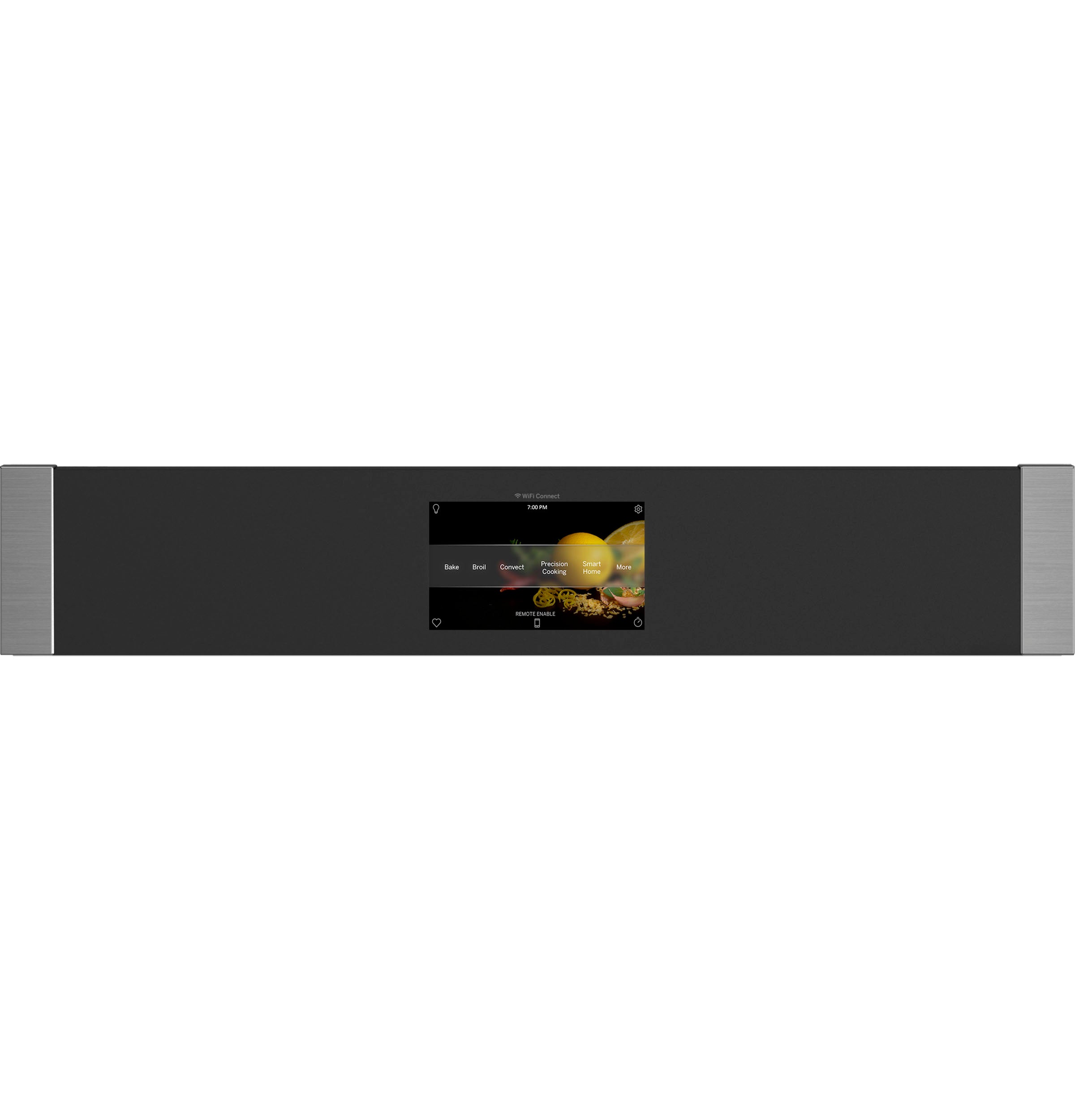

Brilliant Touch 7" Display

A bright, interactive touch screen is easy to use and includes custom screen backgrounds, weather updates and a pop of intrigue with fun food facts

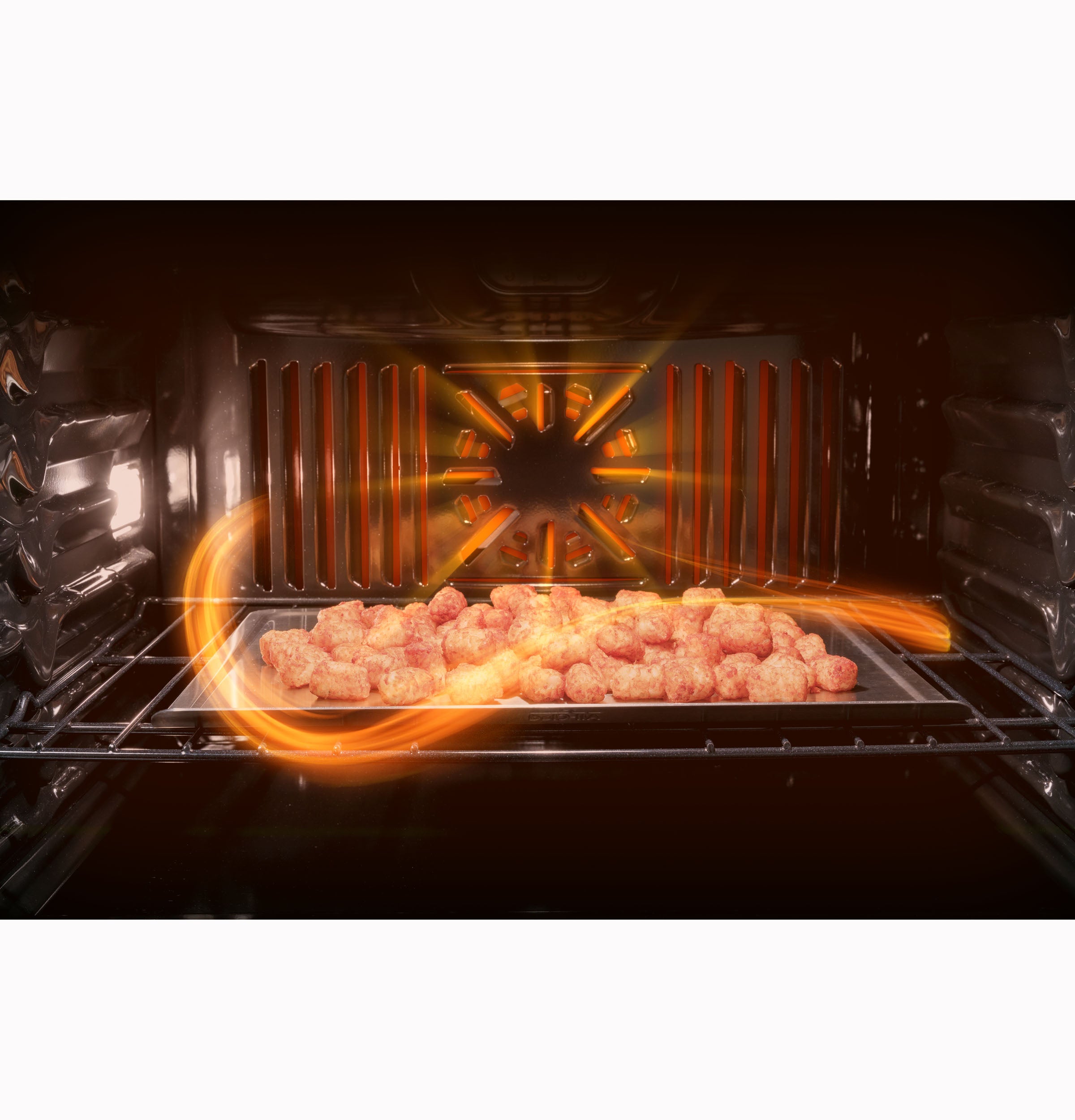

True European Convection with Direct Air

This oven features True European Convection, an advanced convection system that uses a third heating element and reversing fan for the highest level of heat and air circulation

Fit Guarantee

This oven will fit your existing cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details

Brilliant Touch 7” Display

A bright, interactive touch screen is easy to use and includes custom screen backgrounds, weather updates and a pop of intrigue with fun food facts

Easy-Glide, Heavy-duty rack

Easily access items with a rack that glides smoothly
