SKU: PHP9036STSS
In stock - Ships within 24 hours
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
FILTER | |
App Filter - SyncBurners | Yes |
App Filter - Control Type | Digital touch |
App Filter - Cooktop Type | Induction |
App Filter - Cabinet Width | Cooking 36 in. |
App Filter - Fuel Type | Electric |
APPEARANCE | |
Frame Color / Material | Stainless Steel |
Color Appearance | Stainless Steel on Black |
POWER / RATINGS | |
Max. Current Draw (Amps) at 208V | 48.6 |
KW Rating at 240V | 9.6 |
Max. Current Draw (Amps) at 240V | 48.3 |
Recommended Circuit Breaker (Amps) at 208V | 50 |
Max. Connected Load (kW) at 240V | 11.6 |
Max. Connected Load (kW) at 208V | 10.1 |
Recommended Circuit Breaker (Amps) at 240V | 50 |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES | |
Optional Accessories | JXPROBE1 - Precision cooking probe |
Griddle Accessory | JXGRIDL1 (optional) |
WEIGHTS & DIMENSIONS | |
Net Weight | 51.0 |
Cooktop Size | 36.0 |
Overall Depth | 21.125 |

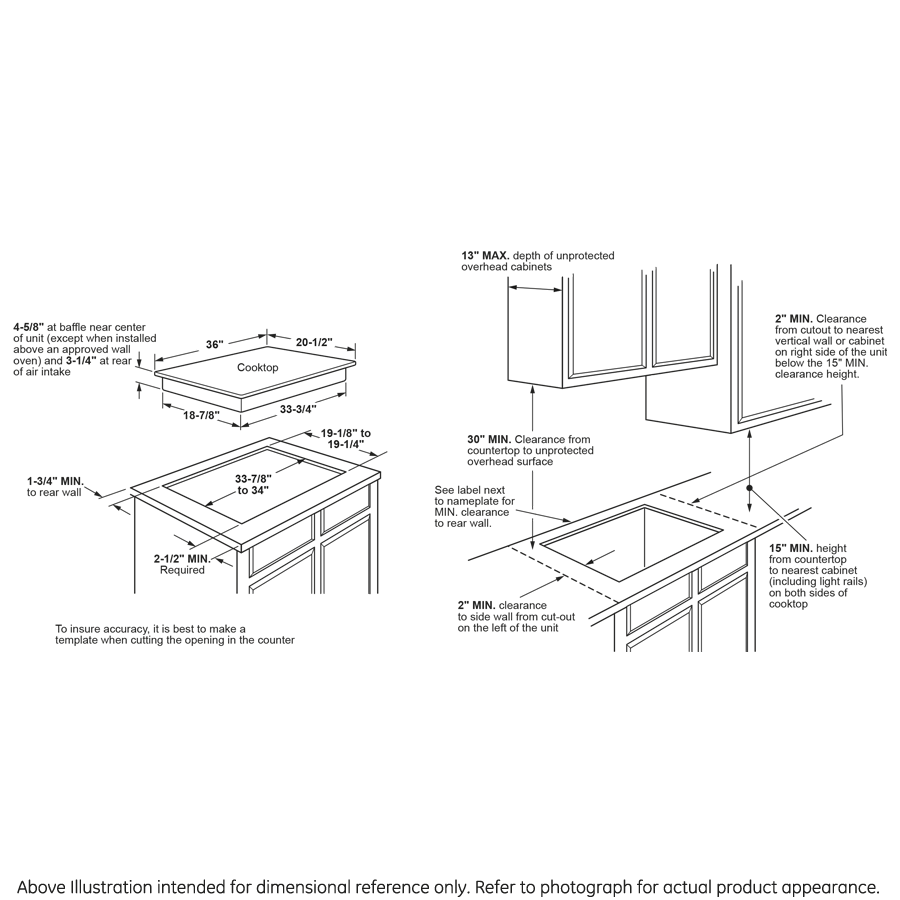

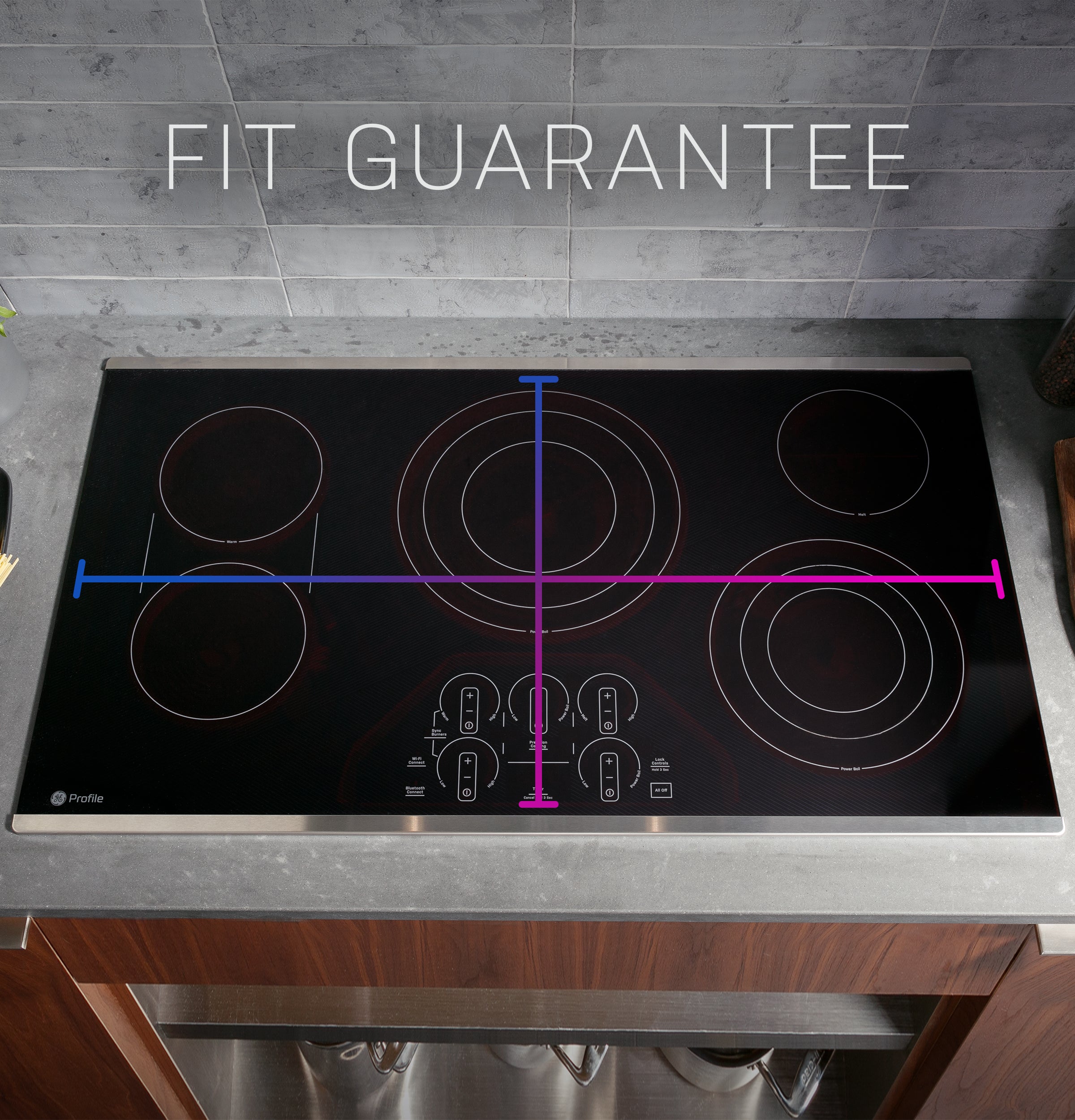

Cutout Dimensions (Width x Depth) (In.) | 33-7/8 x 19-1/8 |
Overall Width | 36.25 |
Overall Height | 3.25 |
Approximate Shipping Weight | 57.0 |
Cabinet Width | 36.0 |
FEATURES | |
Cooktop Burner Type | 5 Induction Elements |

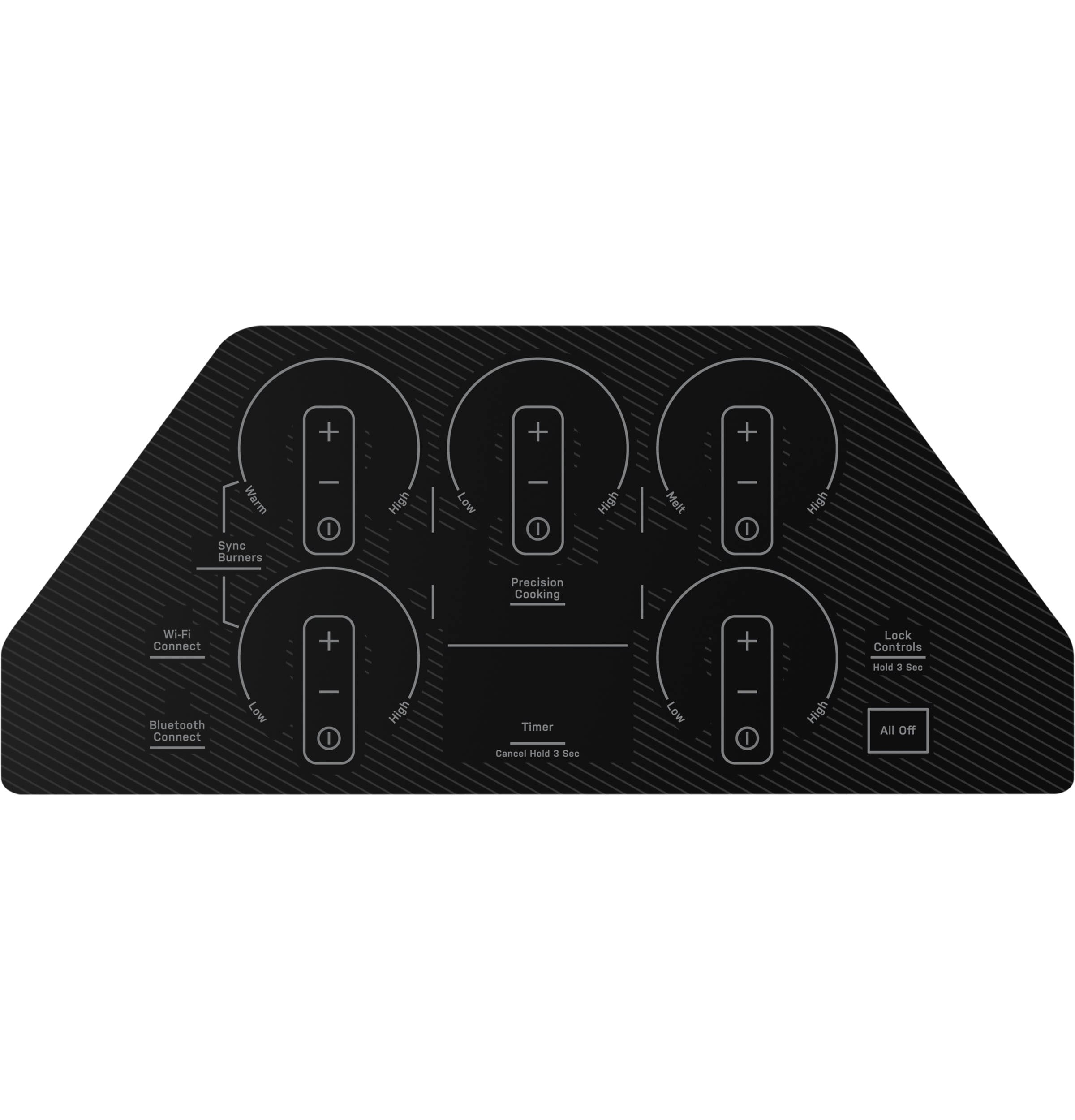

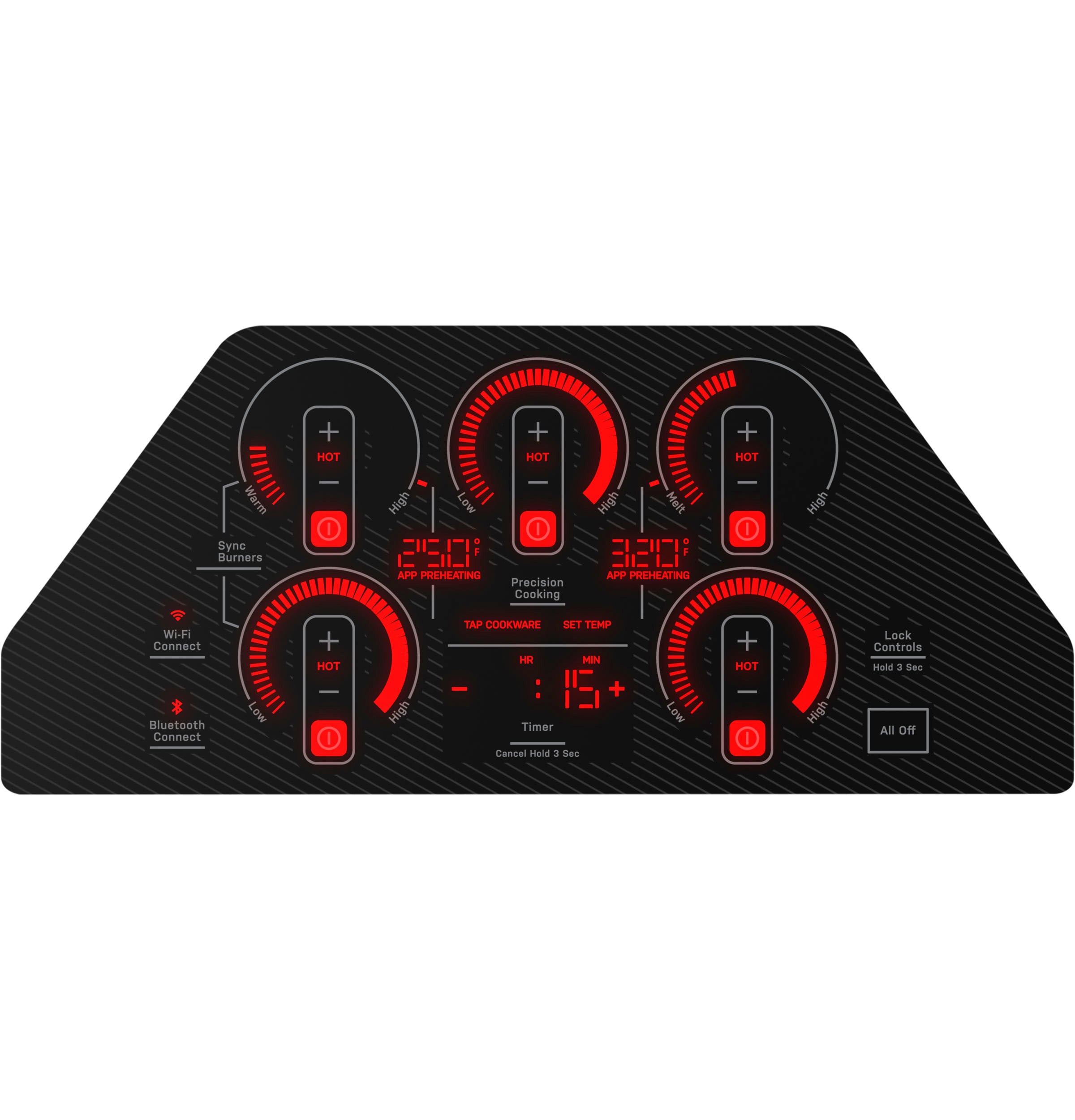

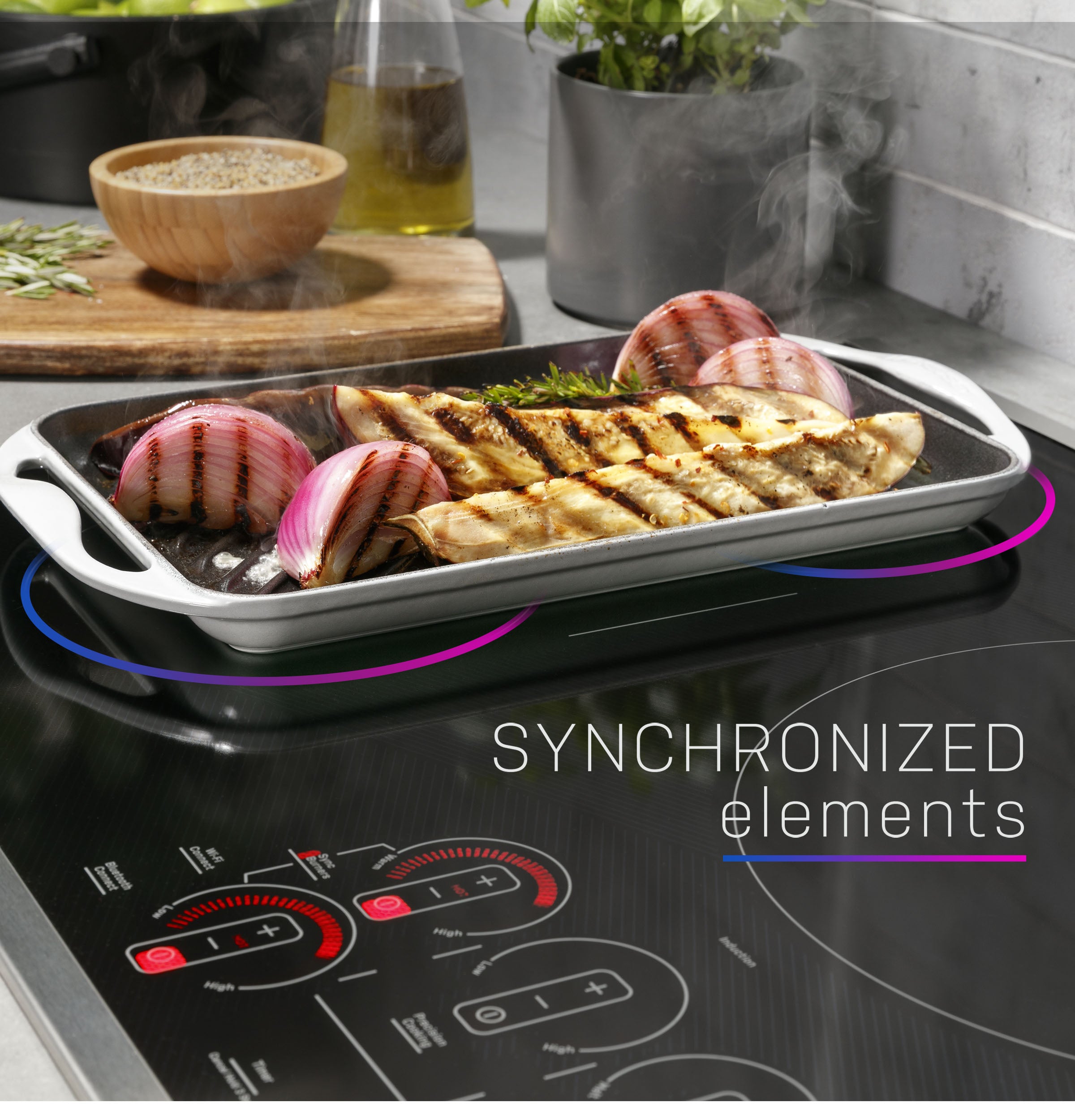

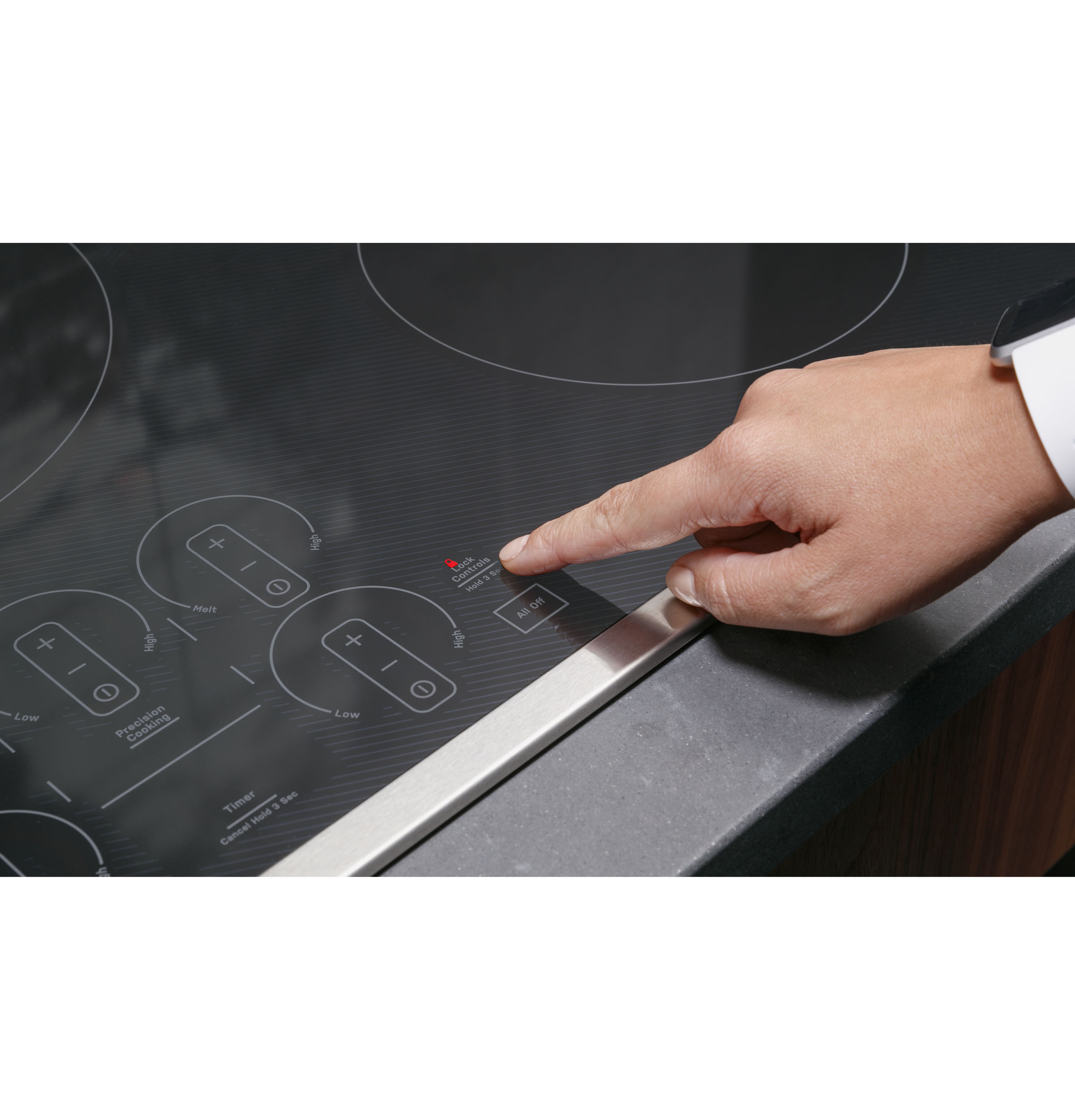

Cooktop Control Features | All-Off Control Boost (All Elements) Chef Connect Control Lock Capability Keep-Warm Setting LED Light level adjustment Melt Setting Multi-element timer Pan Presence Sensor Pan Size Sensor Sound adjustment Sync-Burners Capability |
Element - Center | 11" 3700W |
Element - Left Front | 7" 2500W |
Melt Setting | Yes |
Fuel Type | Electric |
WiFi Connect | Built-In |
Cooktop Surface | Black Ceramic Glass with Stainless Steel Trim |
Indicator Lights | 5 Hot Surface Red Setting Level Indicators Surface Element "ON" |

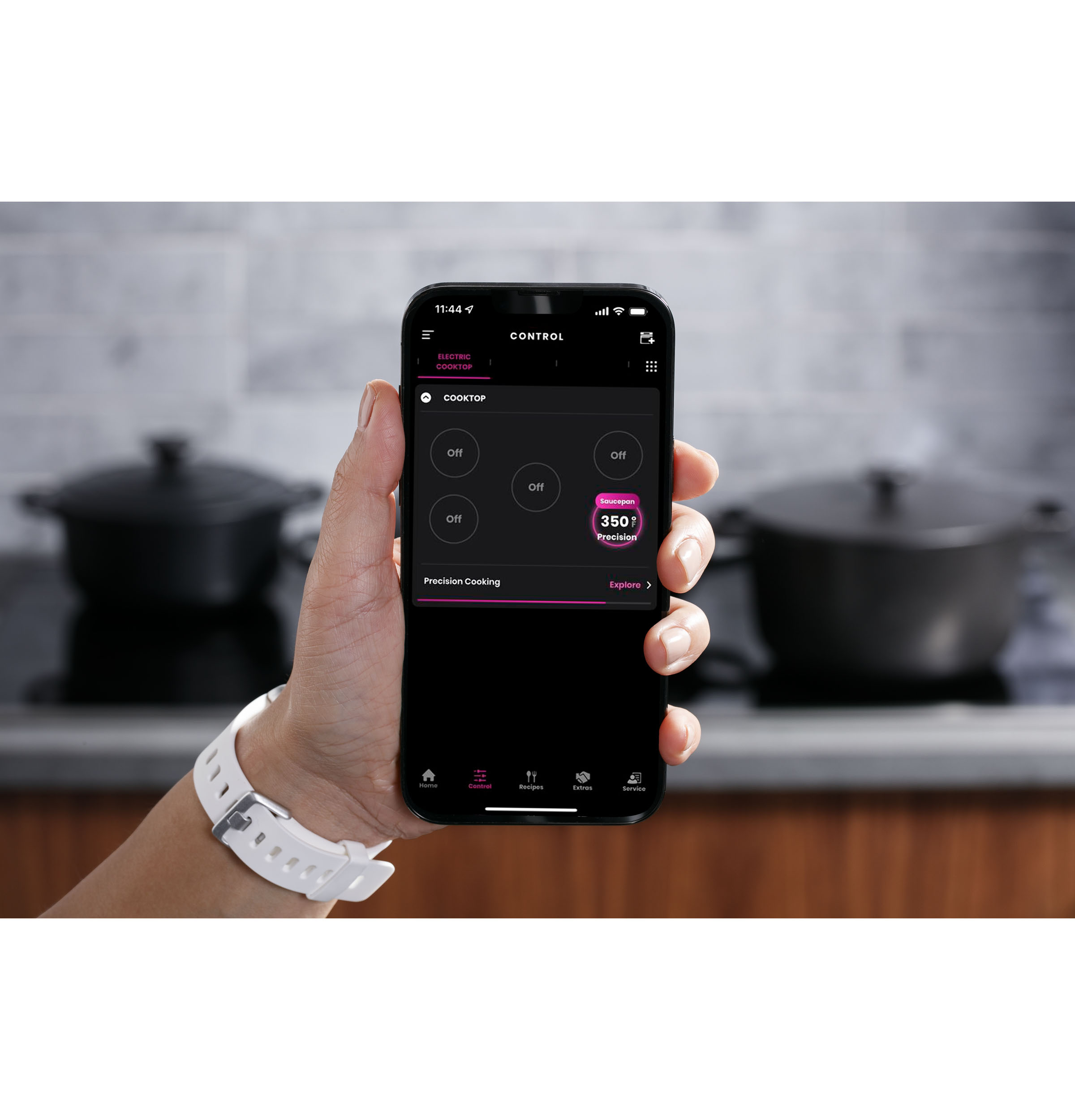

WiFi Enabled Features | Chef Connect with Hoods/OTRs Interfaces with SmartHQ App Works with HestanCue Pans Works with Precision Cooking Probe |
Control Type | Electronic Touch |
Element - Right Front | 8" 3200W |
Product Type | Cooktop |

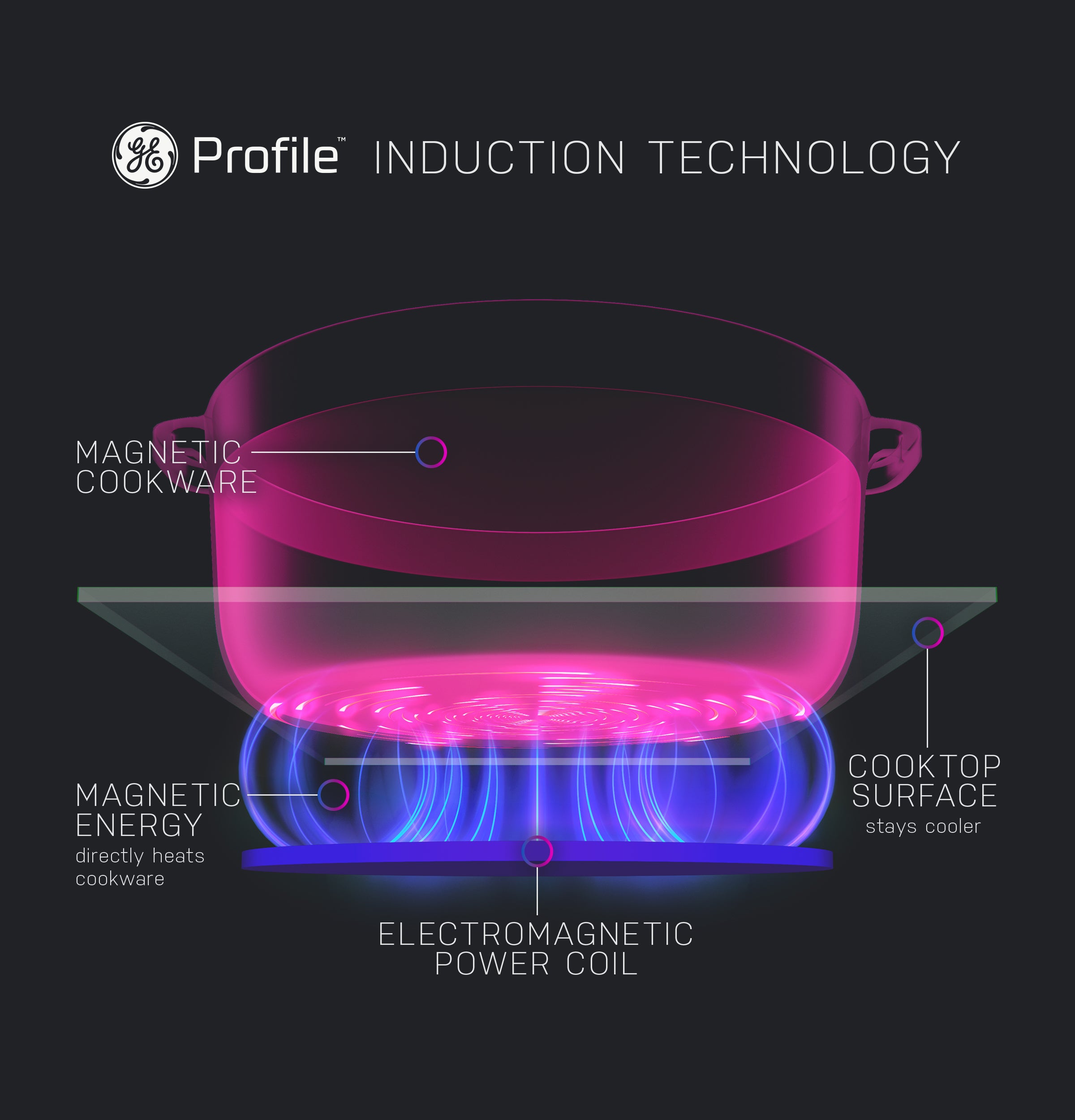

Cooktop Type | Induction |
Control Location | Front Center |
Element - Right Rear | 6" 1800W (Melt Setting) |

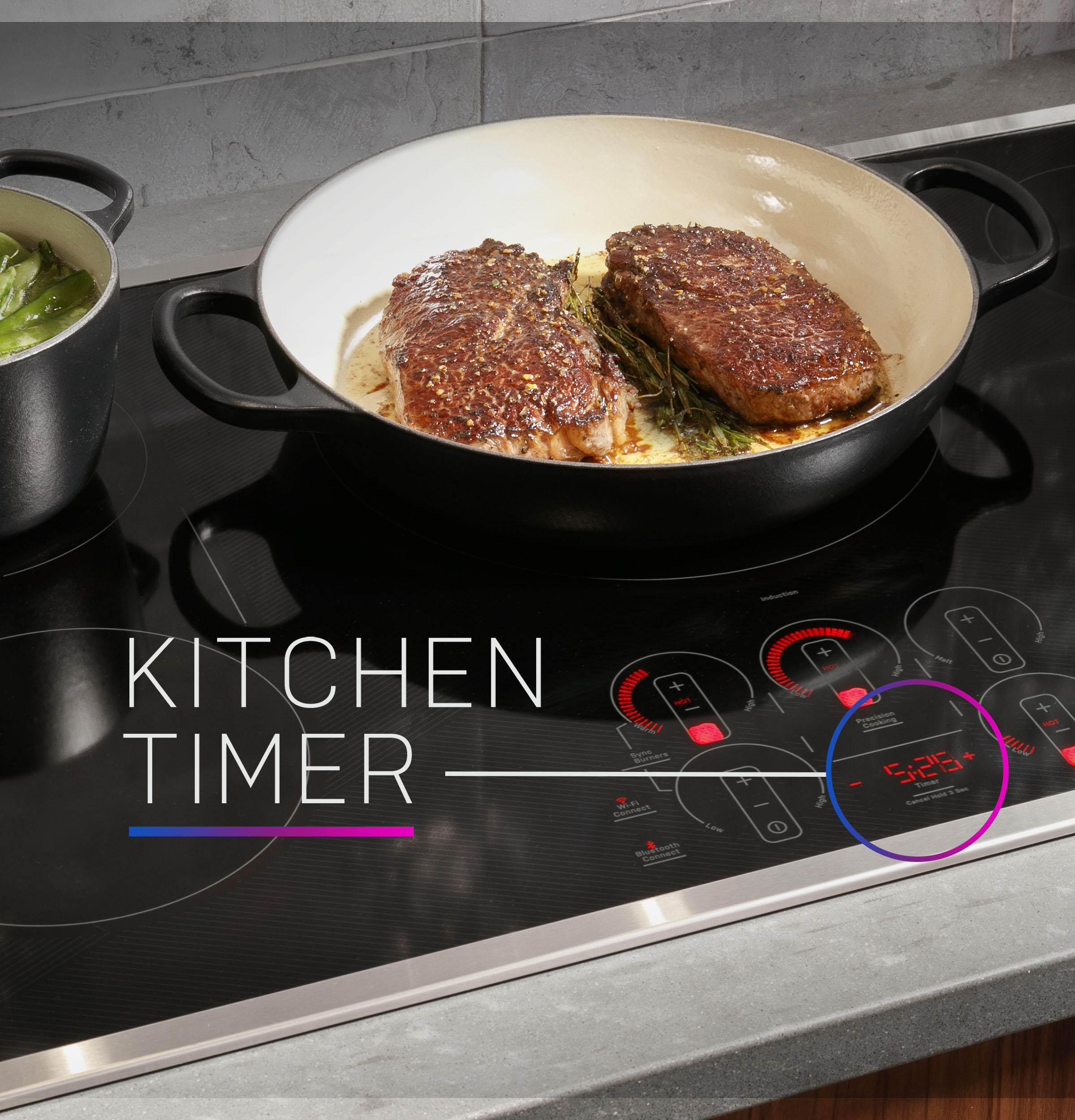

Timer | Yes |
Element - Left Rear | 7" 2500W (Keep Warm) |
