| App Filter - Cabinet Width | 30.0 |
| App Filter - Cooktop Type | Induction |
| App Filter - Fuel Type | Electric |

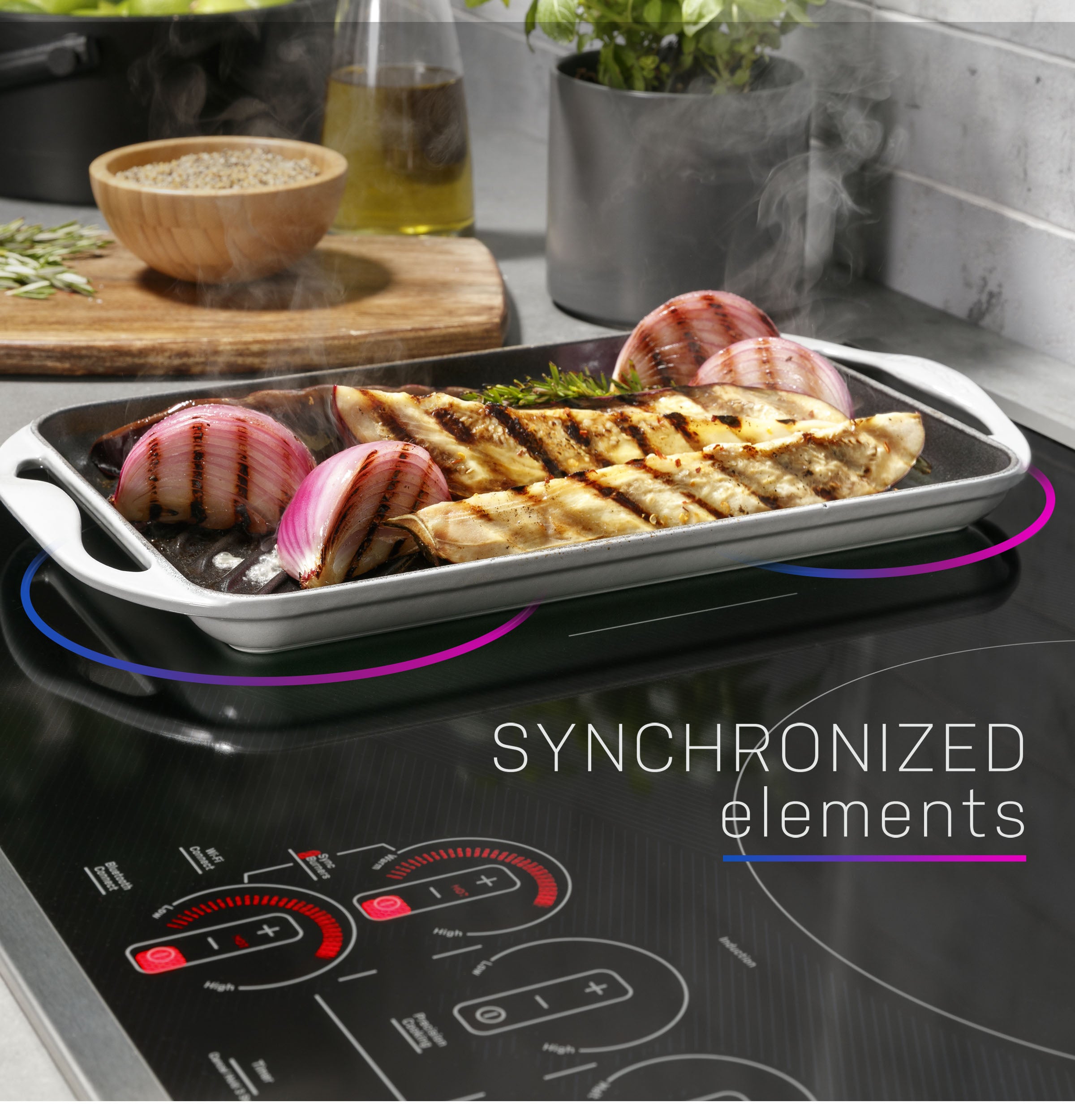

| App Filter - SyncBurners | Yes |
| App Filter - Control Type | Digital touch |
| Color Appearance | Black |
| Frameless | Yes |
| Max. Connected Load (kW) at 240V | 7.7 |
| Circuit Breaker (Amps) at 208V | 40 |
| Hertz | 60 |
| Amp Rating at 240V | 40 |
| Max. Current Draw (Amps) at 240V | 32.1 |
| Max. Connected Load (kW) at 208V | 6.9 |
| Electrical Requirements | 120 |
| Amp Rating at 208V | 40 |
| Max. Current Draw (Amps) at 208V | 33.2 |
| Circuit Breaker (Amps) at 240V | 40 |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |

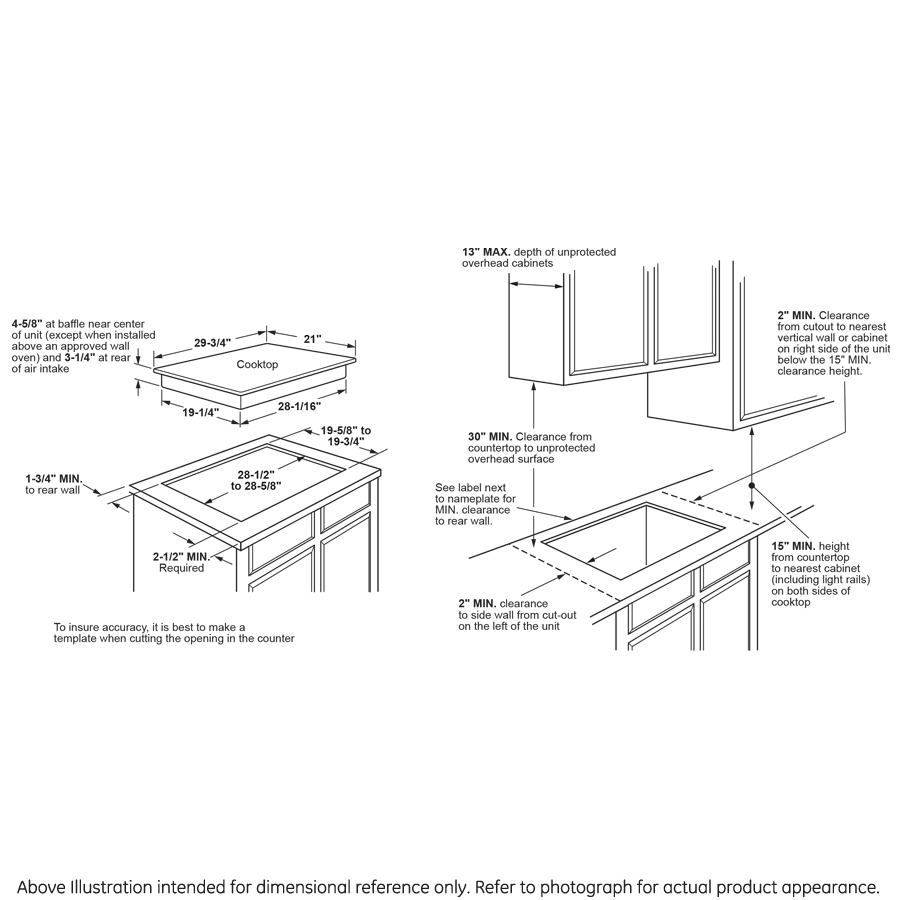

| Cutout Height (in) | 4.63 |
| Cooktop Size | 30.0 |
| Overall Height | 3.25 |
| Cutout Depth (in) | 19.63 |
| Cabinet Width | 30.0 |
| Approximate Shipping Weight | 40 |
| Overall Width | 29.75 |
| Net Weight | 35 |
| Cutout Width (in) | 28.5 |
| Overall Depth | 21.38 |
| WiFi Connect | Built-In |
| Filler trim kit | JXTR32B |
| Cooktop Burner Type | 4 |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Element - Left Front | 7.0 |
| Connected Capabilities | Amazon Alexa Google Home |
| Indicator Lights | 4.0 |
| Element - Right Front | 11.0 |
| Control Location | Front Center |
| Cooktop Type | Induction |
| Cooktop Surface | Black Ceramic Glass |
| Cooktop Control Features | All-Off Control Boost (All Elements) Chef Connect Control Lock Capability Keep-Warm Setting Kitchen timer Melt Setting Pan Presence Sensor Pan Size Sensor |

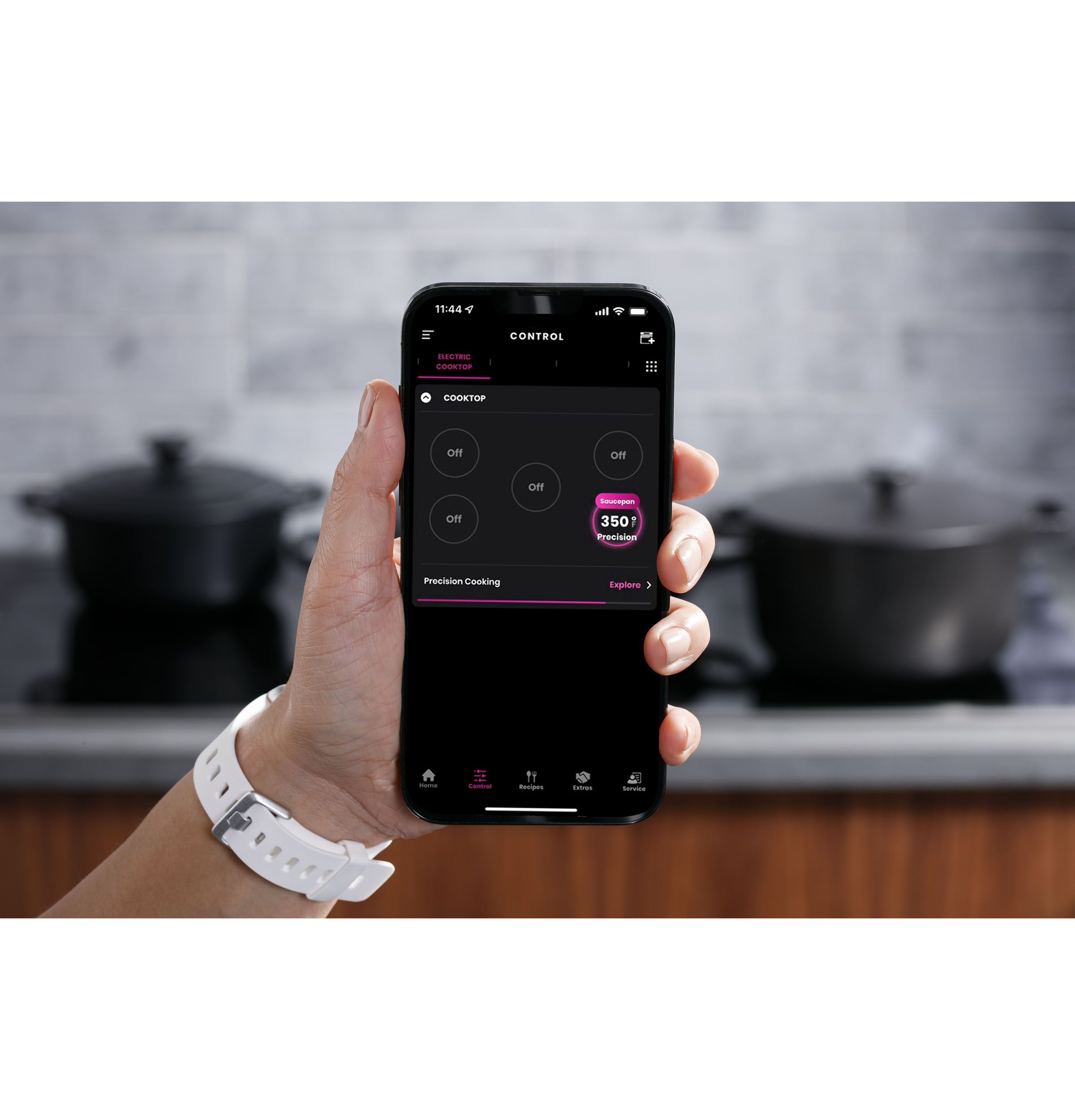

| WiFi Enabled Features | Chef Connect with Hoods/OTRs Interfaces with SmartHQ App Works with HestanCue Pans Works with Precision Cooking Probe |

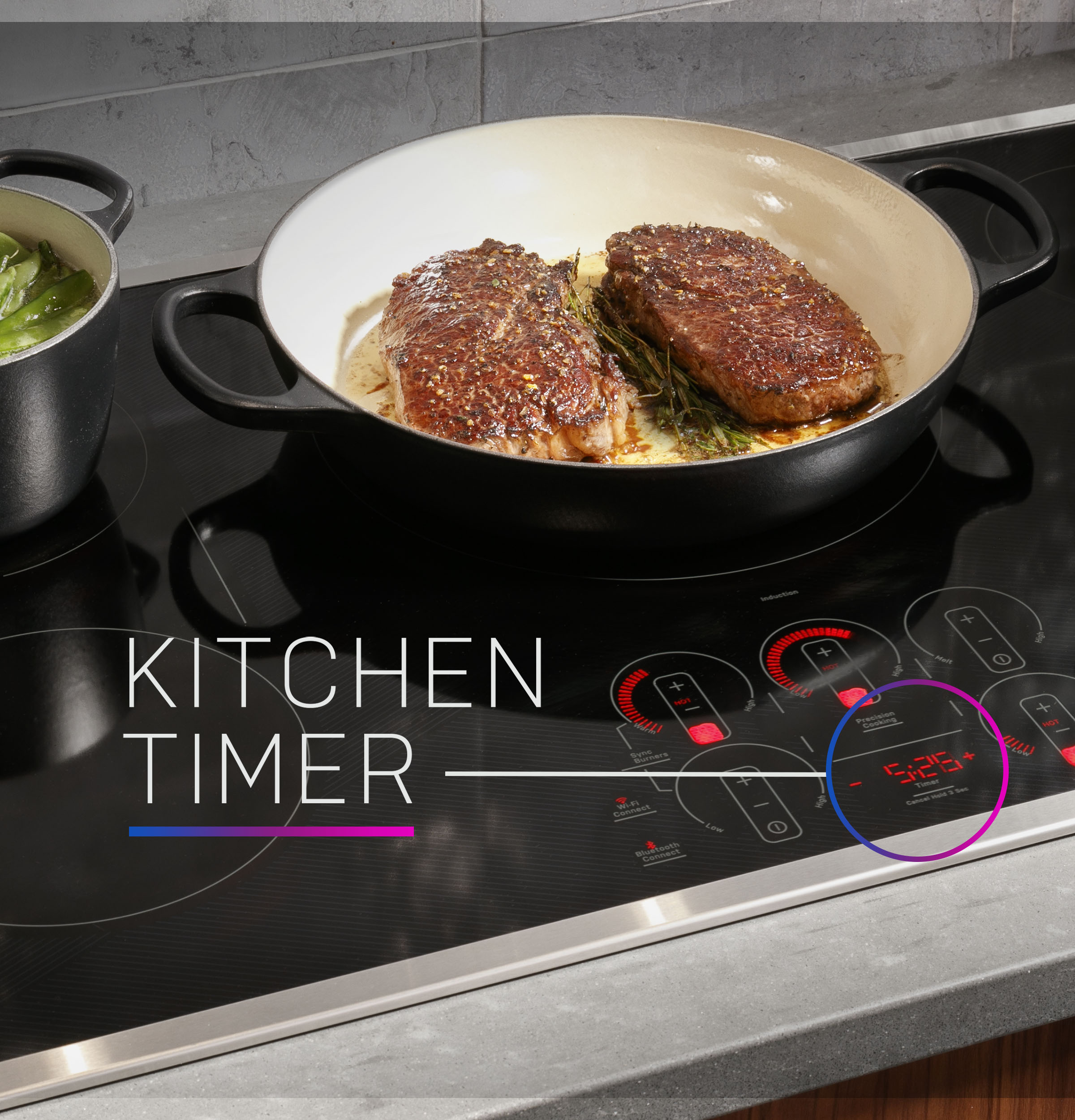

| Timer | Yes |
| Element - Left Rear | 6.0 |

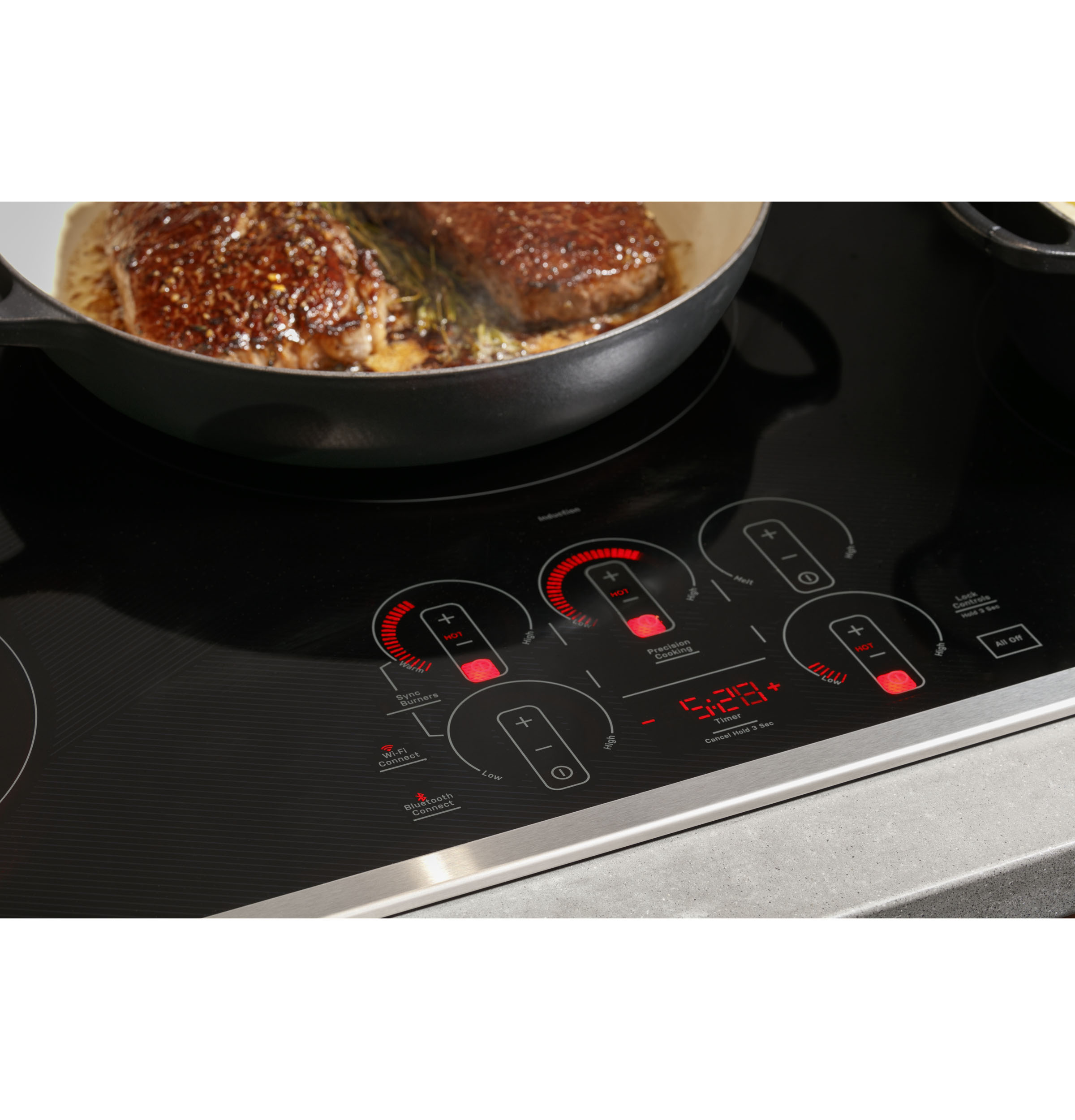

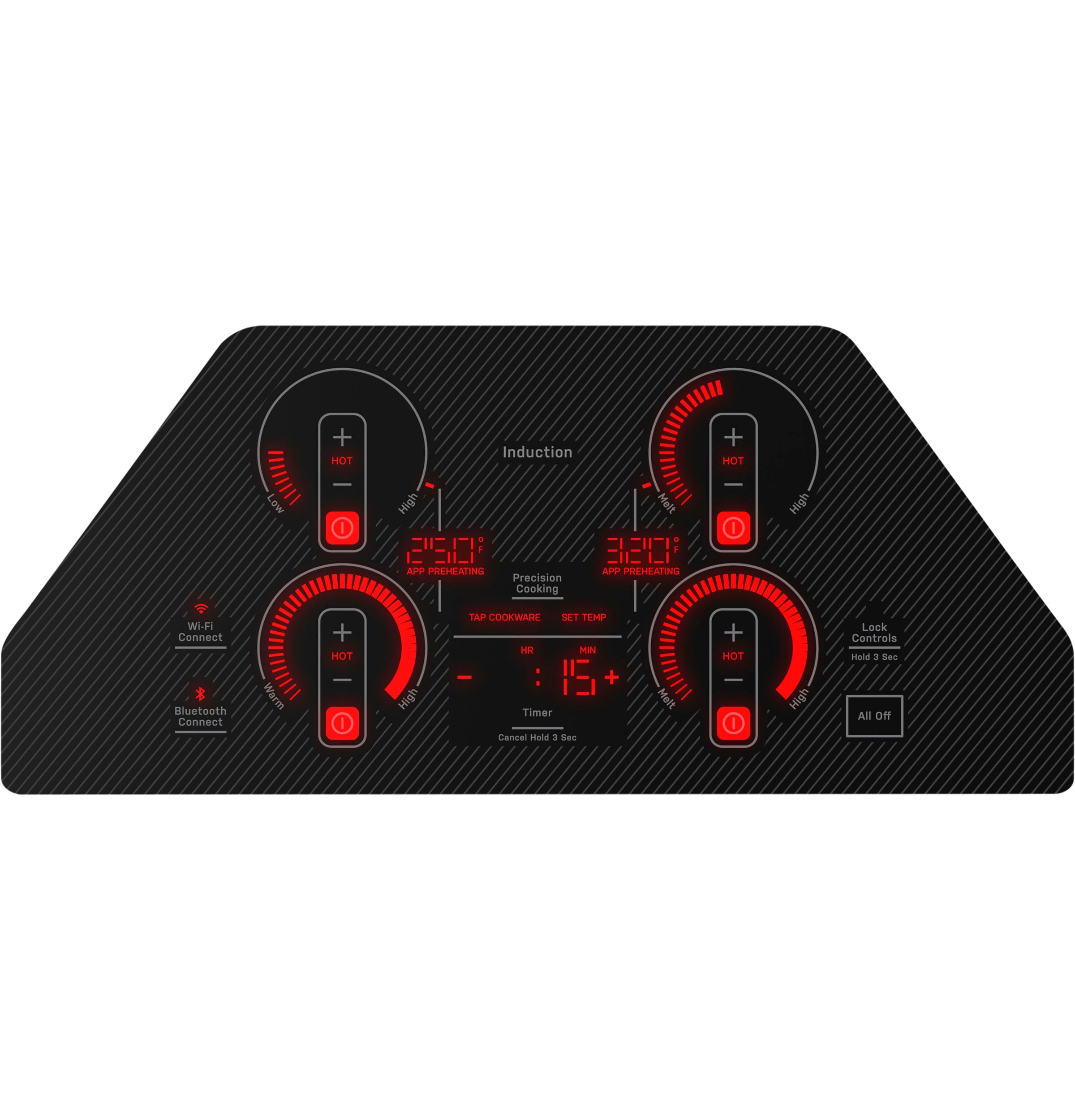

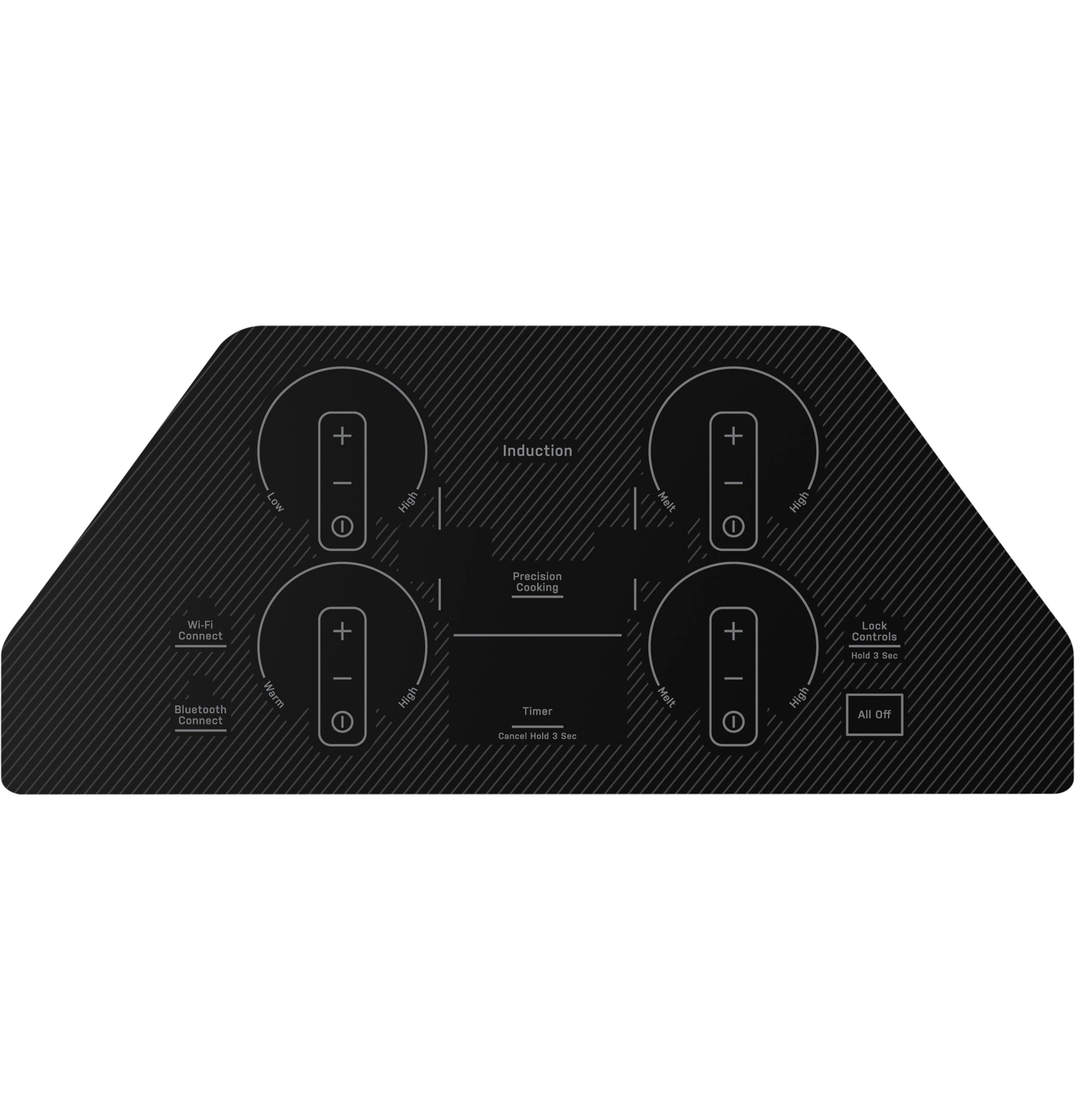

| Control Type | Electronic Glide Touch |
| Element - Right Rear | 6.0 |
| Product Type | Cooktop |

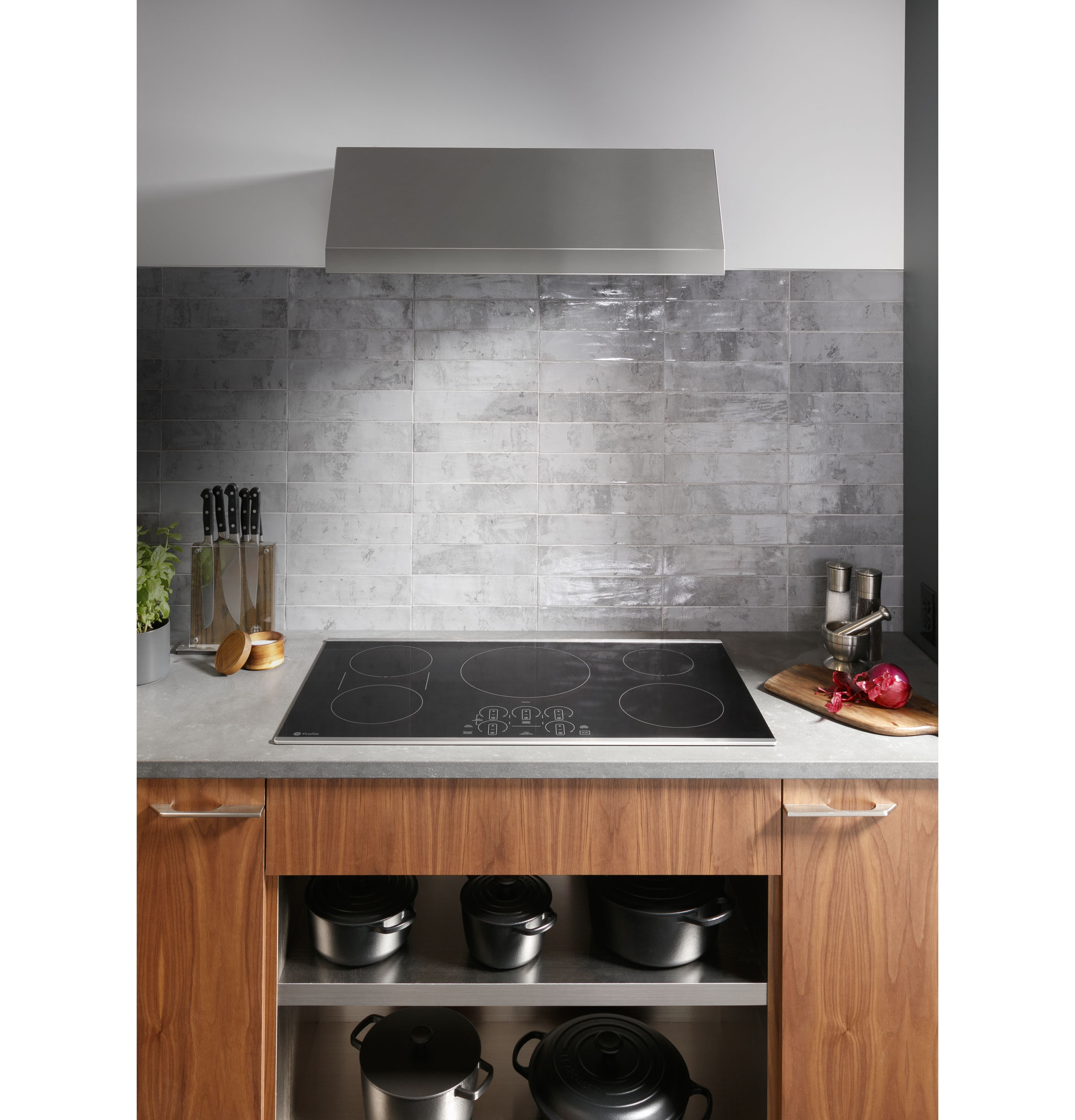

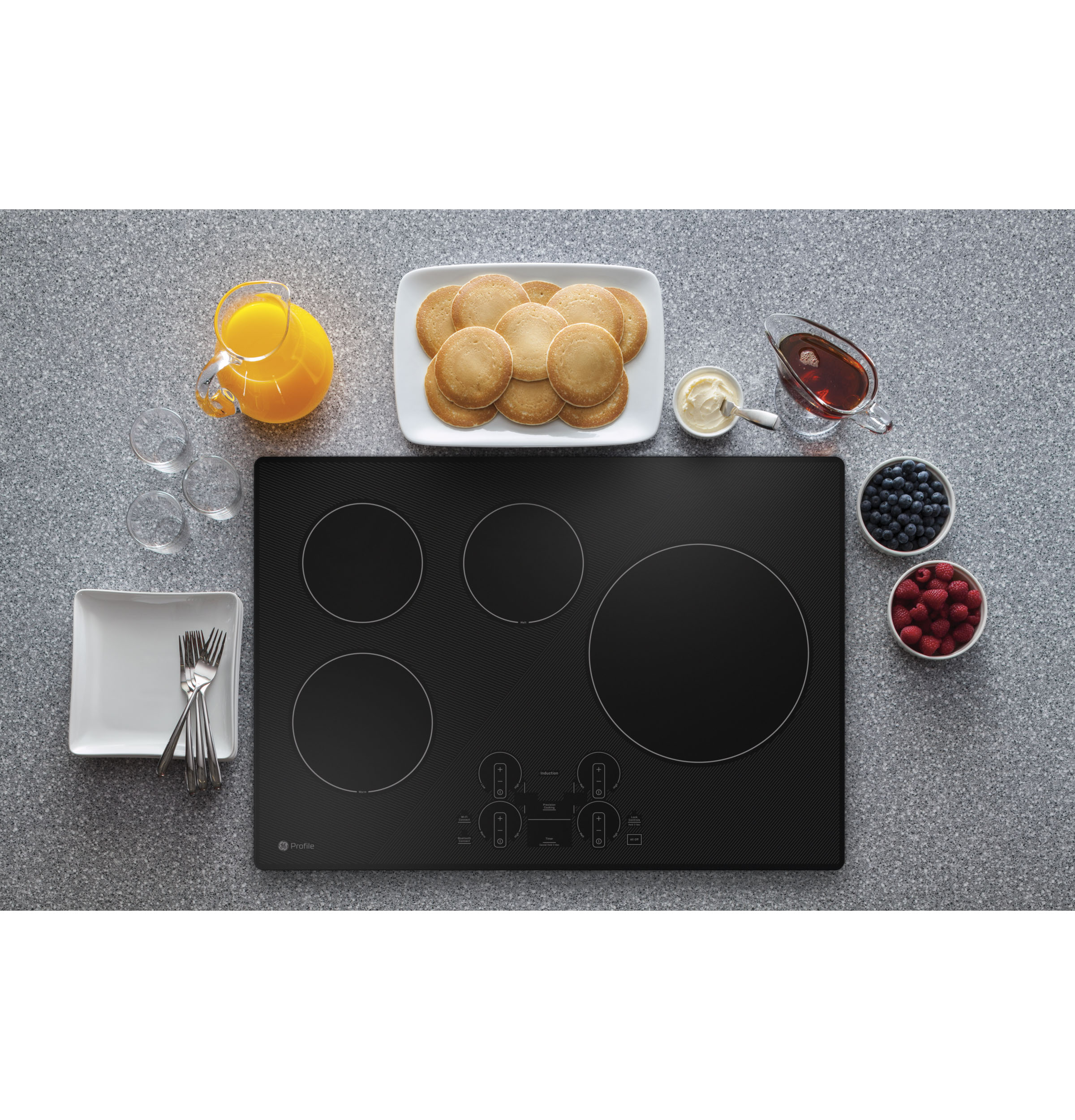

The brand GE Profile™ PHP7030DTBB delivers high-end cooking performance with its 30" built‑in electric cooktop. Equipped with four radiant heating elements, including a 12"/7" dual-element for versatile pan sizes, it provides flexible, responsive heat. The touch-sensitive control panel offers clean, modern operation and allows precise temperature adjustments. Finished with a black ceramic glass surface, this cooktop is both elegant and easy to clean. Featuring Hot Surface indicator lights for enhanced safety, as well as control lockout to prevent accidental activation, the cooktop complements any kitchen setting with its flush installation and sleek aesthetic.

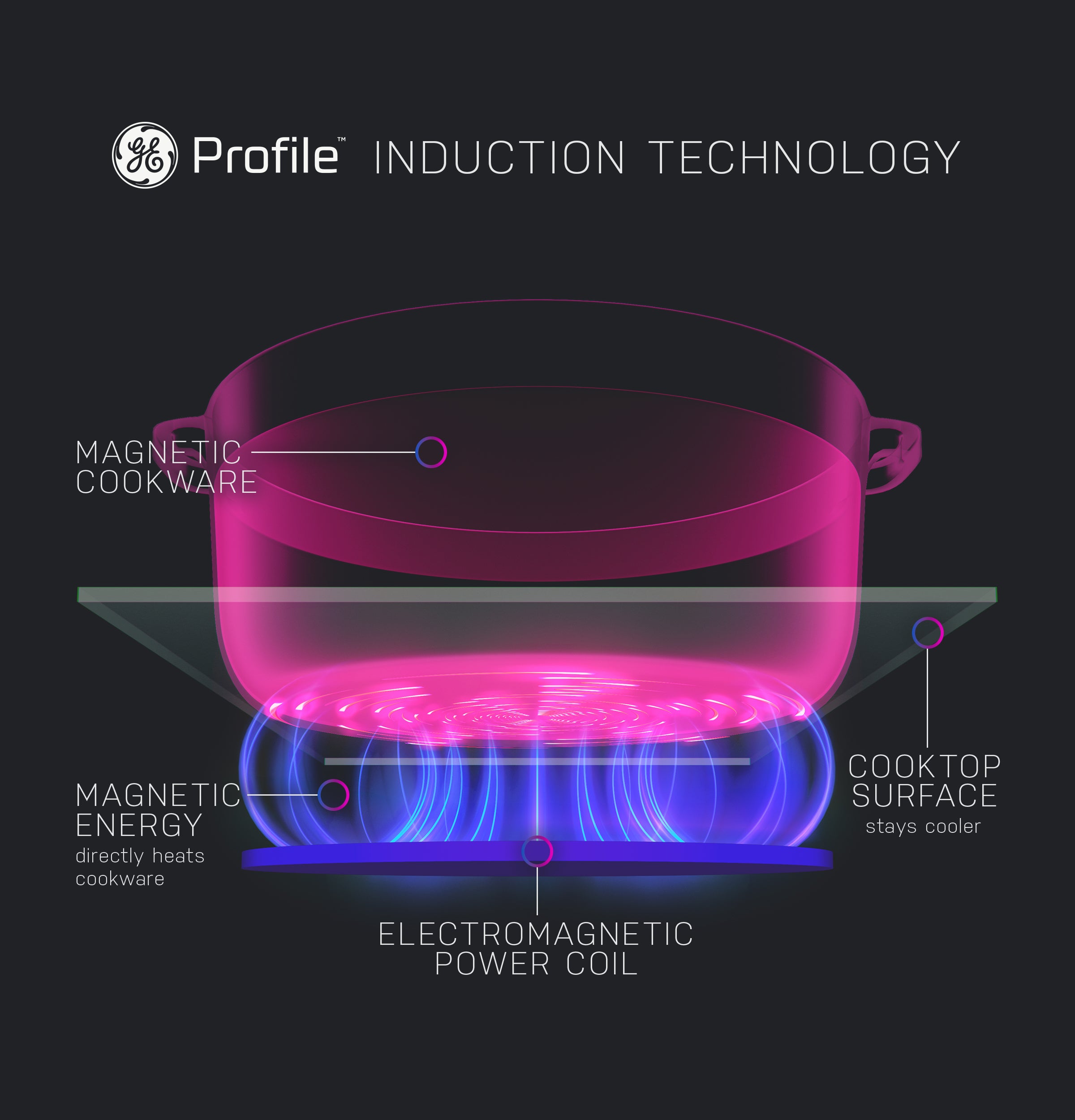

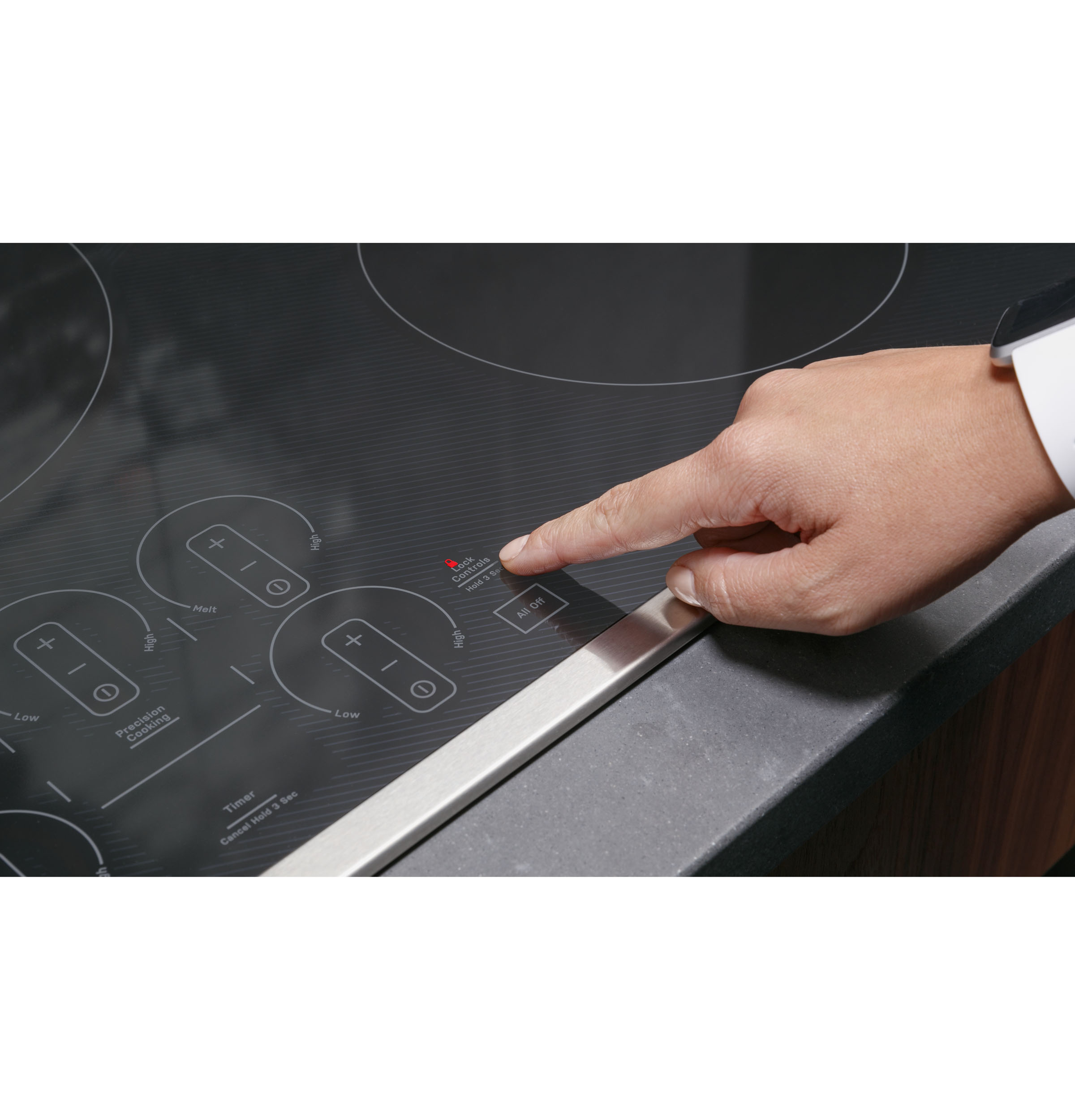

11 heat settings using induction technology and glide touch controls allows burners to quickly adjust and respond, giving you maximum control.
