| Cabinet Width | 30 in |
| Overall Width | 30 in |
| Net Weight | 271 lb |
| Approximate Shipping Weight | 291 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower |

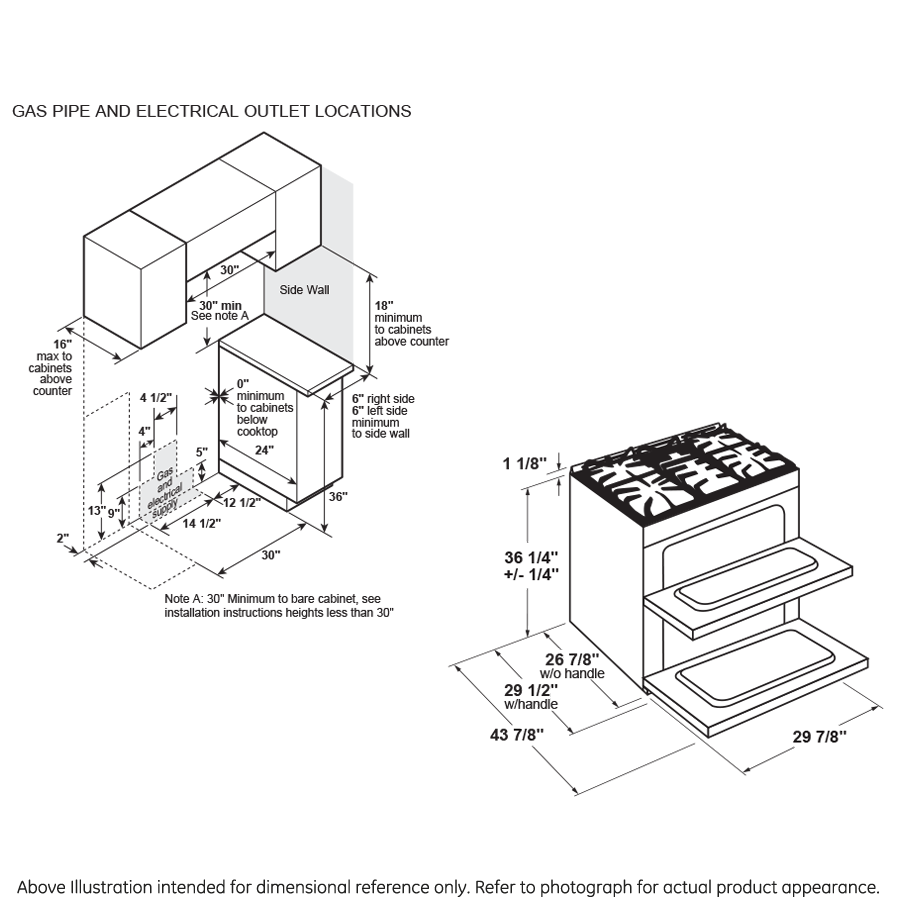

| Depth Without Handle | 26.875 in |
| Height to Top of Rear Vent Trim | 37.625 in |
| Depth with Door Open | 43.875 in |
| Height to Cooking Surface (in.) | 36.25 +/- .25 |
| Width | 30 in. |
| Height | 36.5 in. |
| Length | 29.88 in. |
| Weight | 271 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 41.5 in. |
| Shipping Length | 34.88 in. |
| Shipping Weight | 311 lbs. |
| Total of Shipping Weight | 311 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 18.93 ft³ |
| Dimensional Weight | 235.35 lbs. |
| Total of Cubes | 18.93 ft³ |
| Total of Dimensional Weight | 235.35 lbs. |
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Installation | Free-standing cut-out |
| Oven Door Features | Big View Oven Window |
| Handle Color | Stainless Steel |
| Control Knobs | Stainless Steel |
| Color Appearance | Fingerprint Resistant Stainless |
| Installation | Flush Appearance |
| Ignition System | Electronic |
| Burner - Right Rear | 9,500 BTU |
| Oven Interior | Black |
| Oven Control Features | Temperature Probe |
| Oven Rack Features | 2 Self-Clean Oven Racks (Lower) |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Griddle | Reversible Integrated Grill/Griddle (Included) |
| Connected Capabilities | The Google Assistant |
| WiFi Enabled Features | Scan To Cook (Oven) |
| Product Type | Slide-In Double Oven |
| Cooktop Type | Continuous Grates with Griddle |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 9,500 BTU Dual Oval |
| Dual Ring Burners | Yes |
| WiFi Connect | Built-In |
| Control Location | Front |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 21,000 BTU Tri-ring Burner |
| Sabbath Mode | Yes |
| Configuration | Double Oven Range |
| OU Certified | No |
| Oven Cooking Modes | Warming (Both Ovens) |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 15,000 BTU |
| Cooktop Surface | Stainless Steel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Self-Clean Oven Door Lock | Automatic |
| Connected Capabilities | Amazon Alexa |
| Connected Capabilities | DiGiorno |
| Connected Capabilities | Fresco |
| Connected Capabilities | IFTTT |
| Connected Capabilities | Innit |
| Connected Capabilities | Sonos |
| Cooktop Surface | Edge-to-Edge |
| Cooktop Surface | Deep Recessed |
| Oven Cooking Modes | Bake |
| Oven Cooking Modes | Broil (Lower Oven) |
| Oven Cooking Modes | Convection Bake (Lower Oven) |
| Oven Cooking Modes | Proof (Lower Oven) |
| Oven Interior | 1 Incandescent Light |
| Oven Rack Features | 1 Self-Clean Oven Rack (Upper) |
| WiFi Enabled Features | Convection Roast |
| WiFi Enabled Features | No Preheat Air Fry (Lower Oven) |
| WiFi Enabled Features | Frozen Pizza Multi Rack - Lower Oven |
| WiFi Enabled Features | Frozen Pizza Single Rack - Lower Oven (No Preheat) |
| WiFi Enabled Features | Frozen Snacks Multi Rack - Lower Oven |
| WiFi Enabled Features | Frozen Snacks Single Rack- Lower Oven (No Preheat) |
| WiFi Enabled Features | Baked Goods (Both Ovens) |
| WiFi Enabled Features | Remote Control |
| WiFi Enabled Features | Remote Notifications |
| WiFi Enabled Features | Enhanced Temp Probe |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Auto Recipe Conversion |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Bake Option |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Hi / Low Broil |
| Oven Control Features | In-Oven Broiling |
| Connected Capabilities | Google Home |
| Cooking System | True Convection |
| Cooking Technology | Traditional Upper; True Convection Lower |
| Air Fry Basket | Optional- JXAFTRAY1VSS |
| Optional Accessories | WB48X21543 Roller Rack |
| Center Grate | Included |
| LP Conversion Kit | Included |
| Trim Kit | Optional |
| Trim Kit | JXFILLR1SS |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 21.0 (1) 15.0; (2) 9.5; (1)5.0 |
| Electrical Requirements | 120V |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 15.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 7.0 / 120V Upper; 14.0 / 16.5 Lower |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 7.0 / 120V - Upper; 13.5 / 13.5 - Lower |
| Hertz | 60 |
| Capacity (Cu. Ft.) | 2.4 Upper / 4.3 Lower |
| Total Capacity (cubic feet) | 6.70 cu ft |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray (WiFi Enabled)

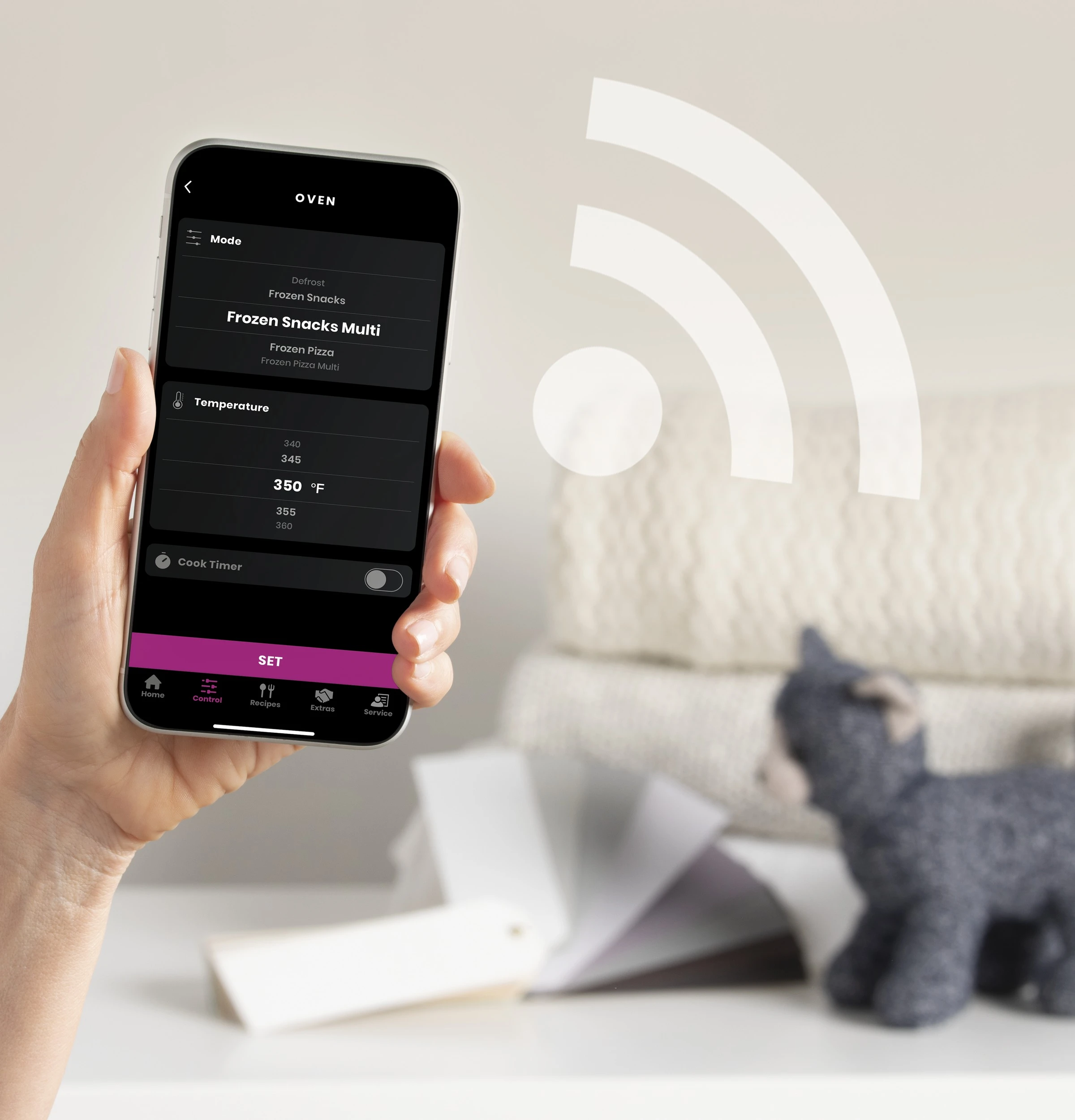

Connect, control and manage your oven from anywhere with your smartphone or tablet (Select features require WiFi Connection) See details

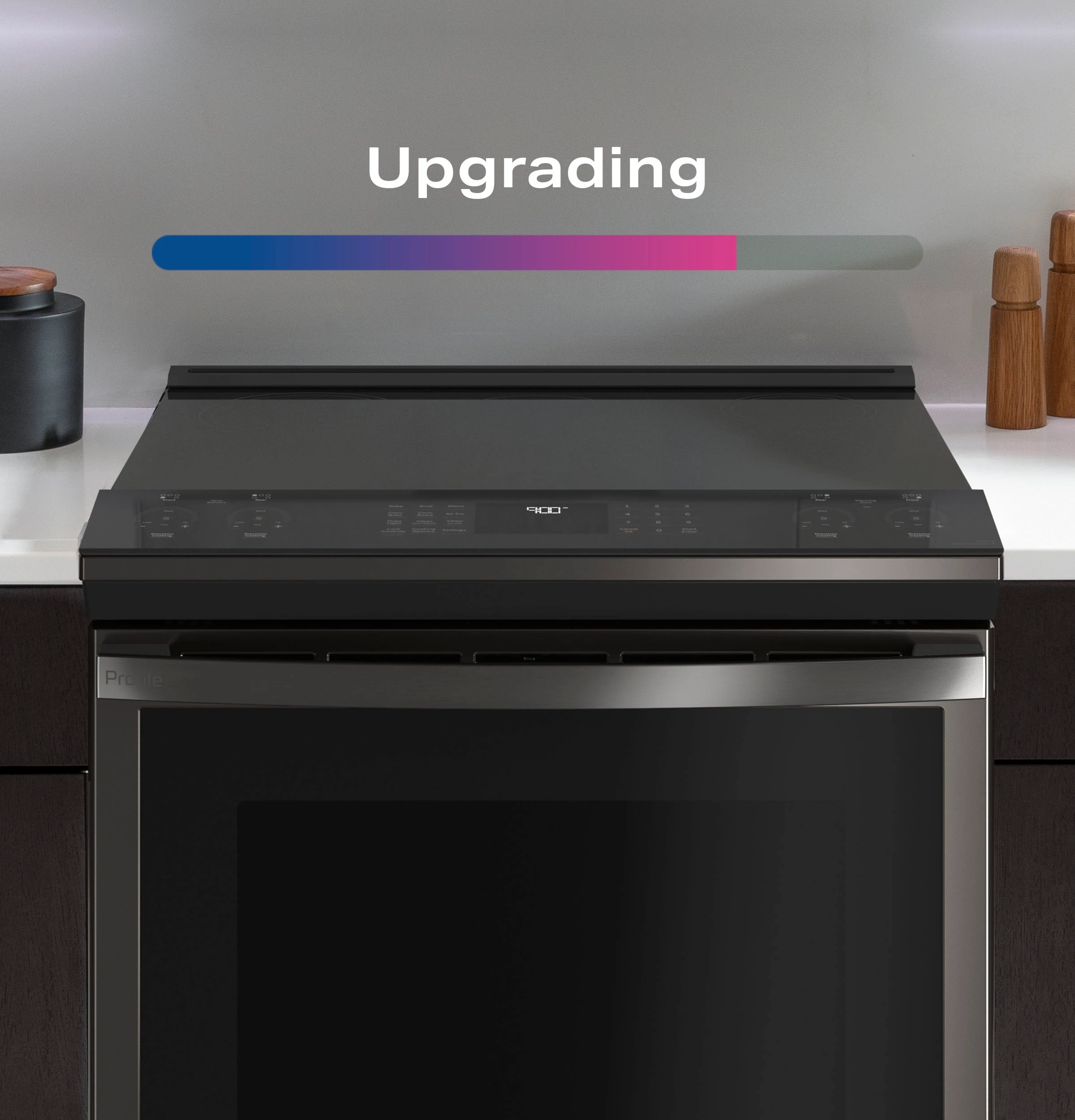

Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades
This gas range will fit your existing 30" cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details

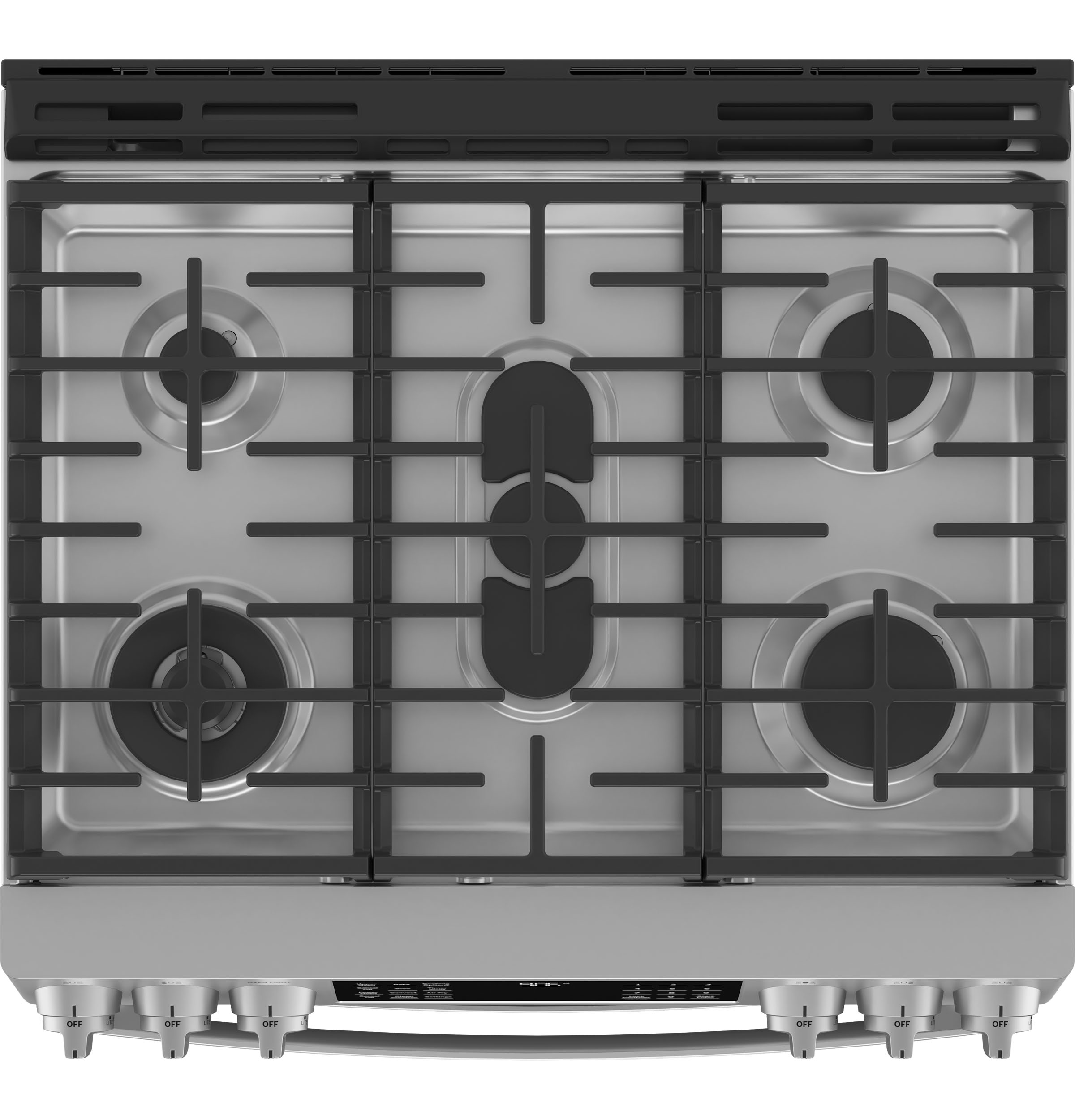

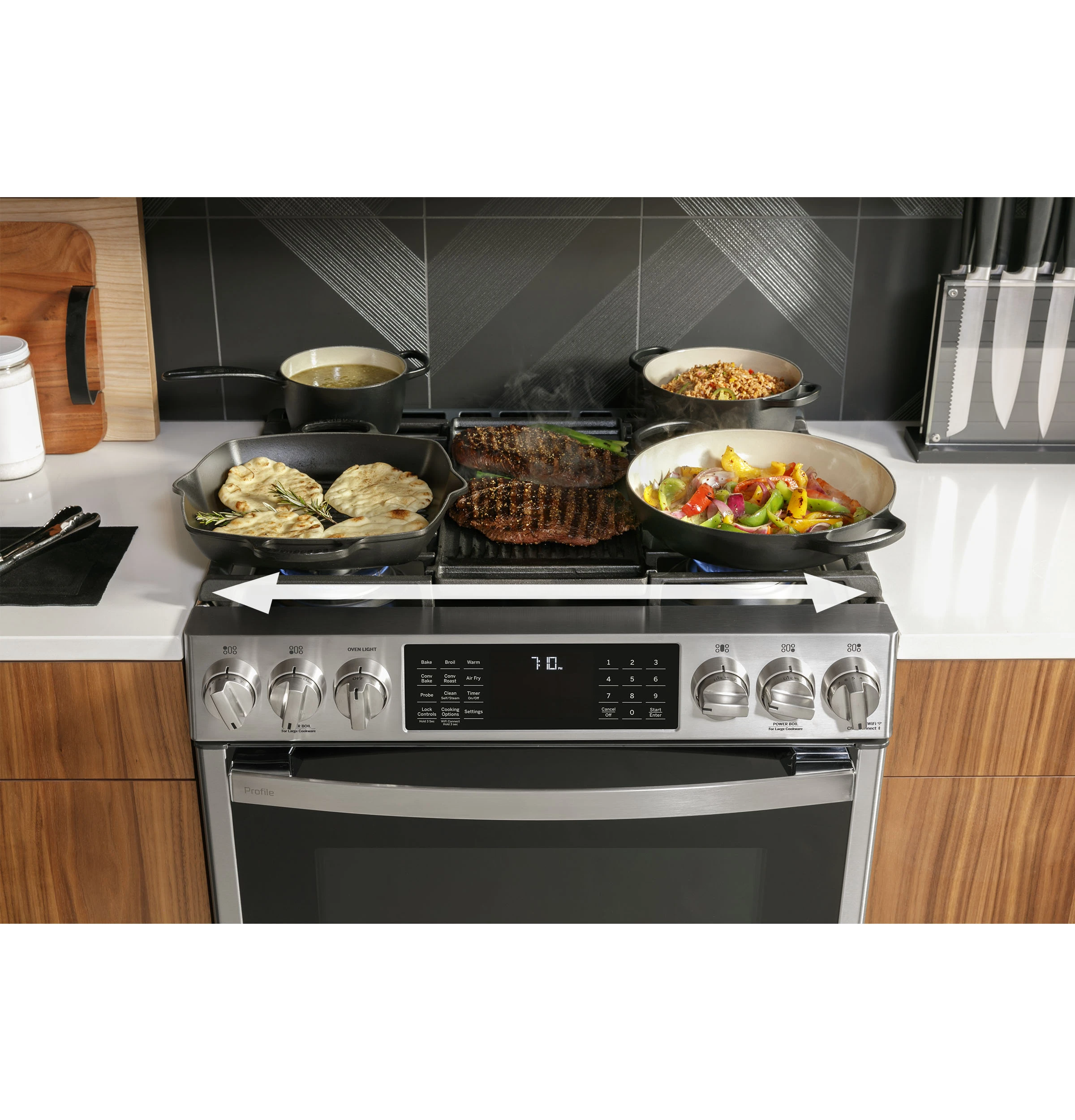

Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware

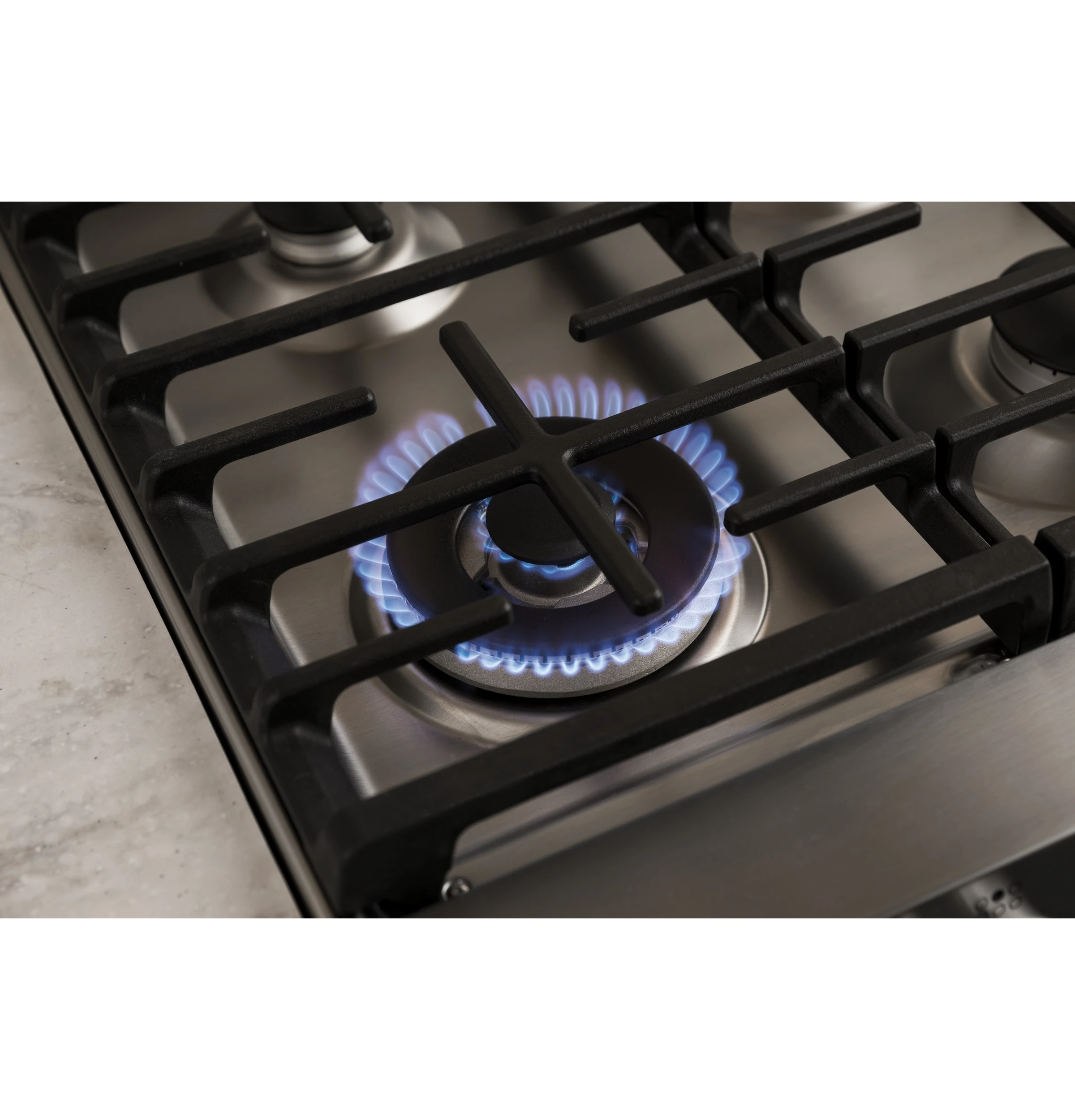

A versatile burner offers three different-sized flame rings on a single burner element, so it's like having three burners in one

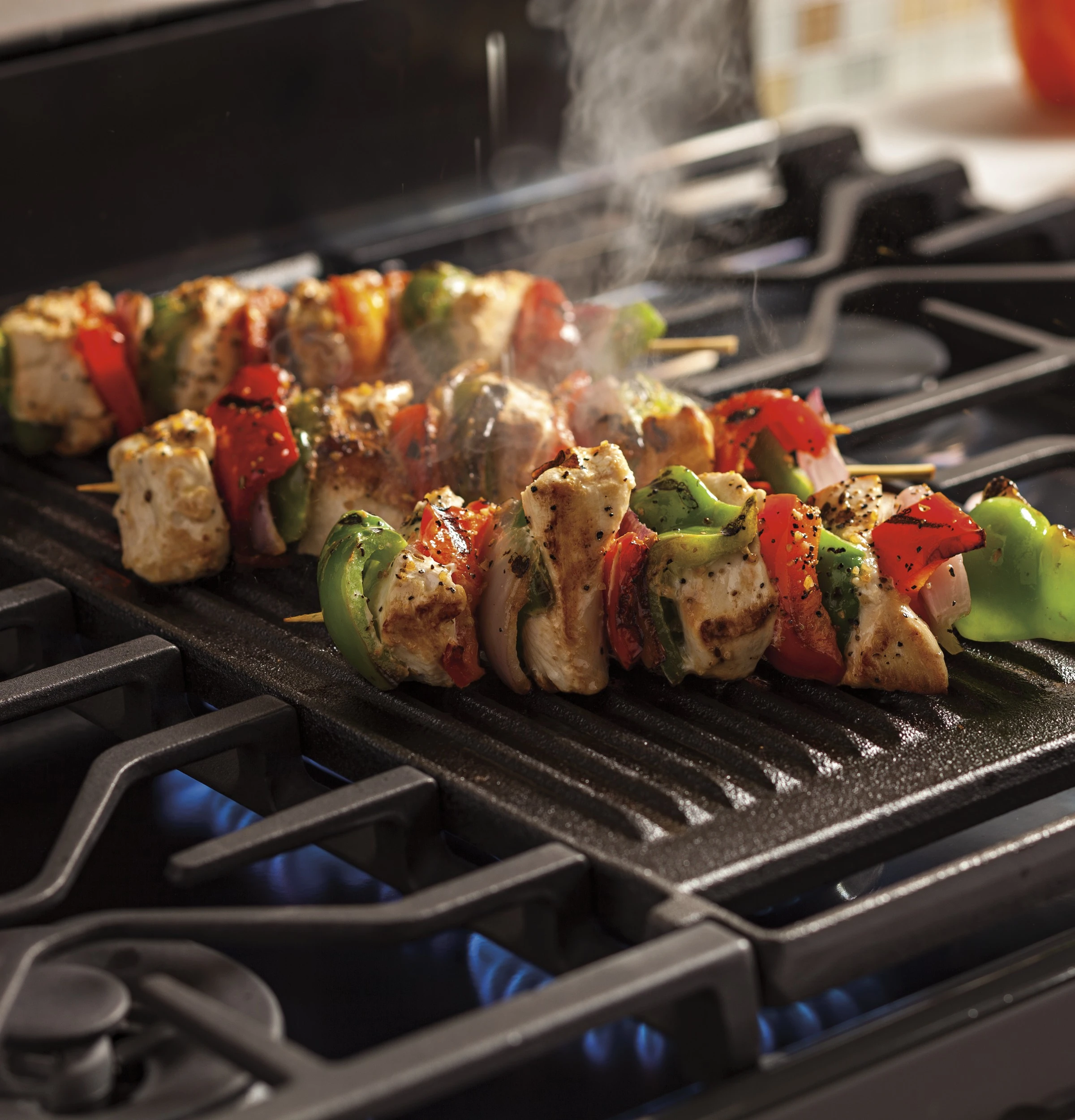

This extra-large, reversible griddle and grill combination lets you enjoy the best in cooking versatility

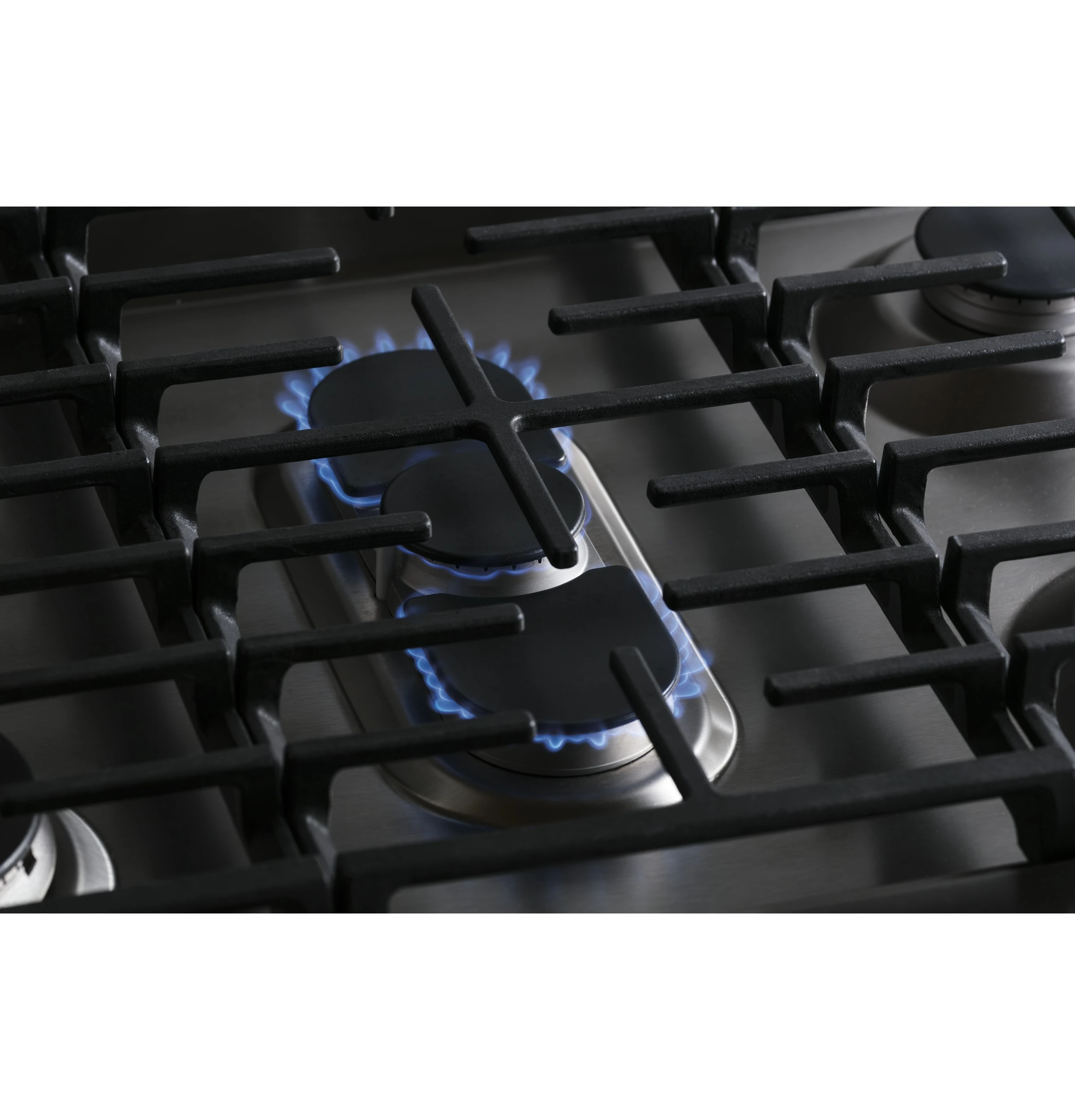

This flexible gas cooktop burner lets you choose between round and oval burner shapes

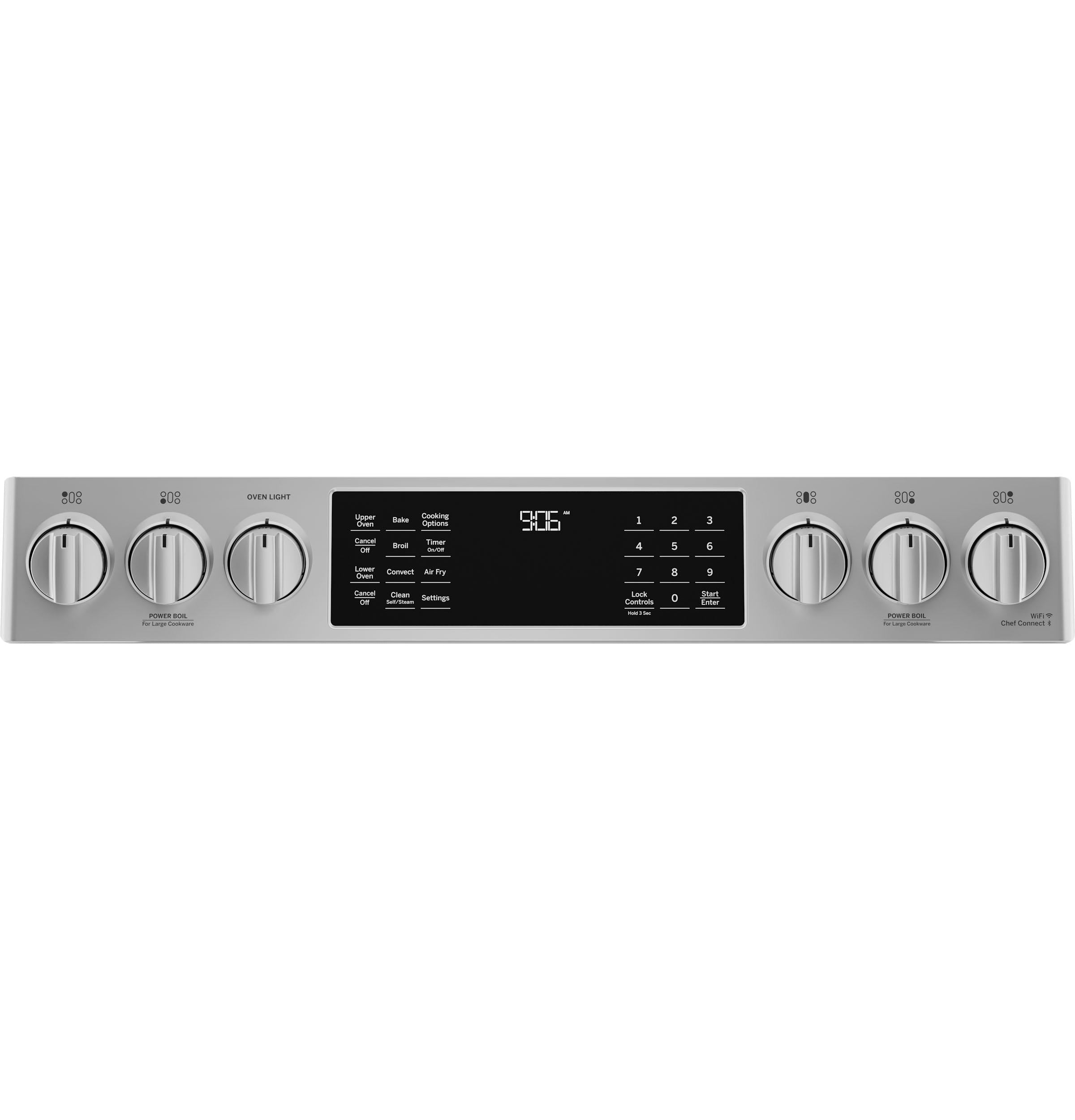

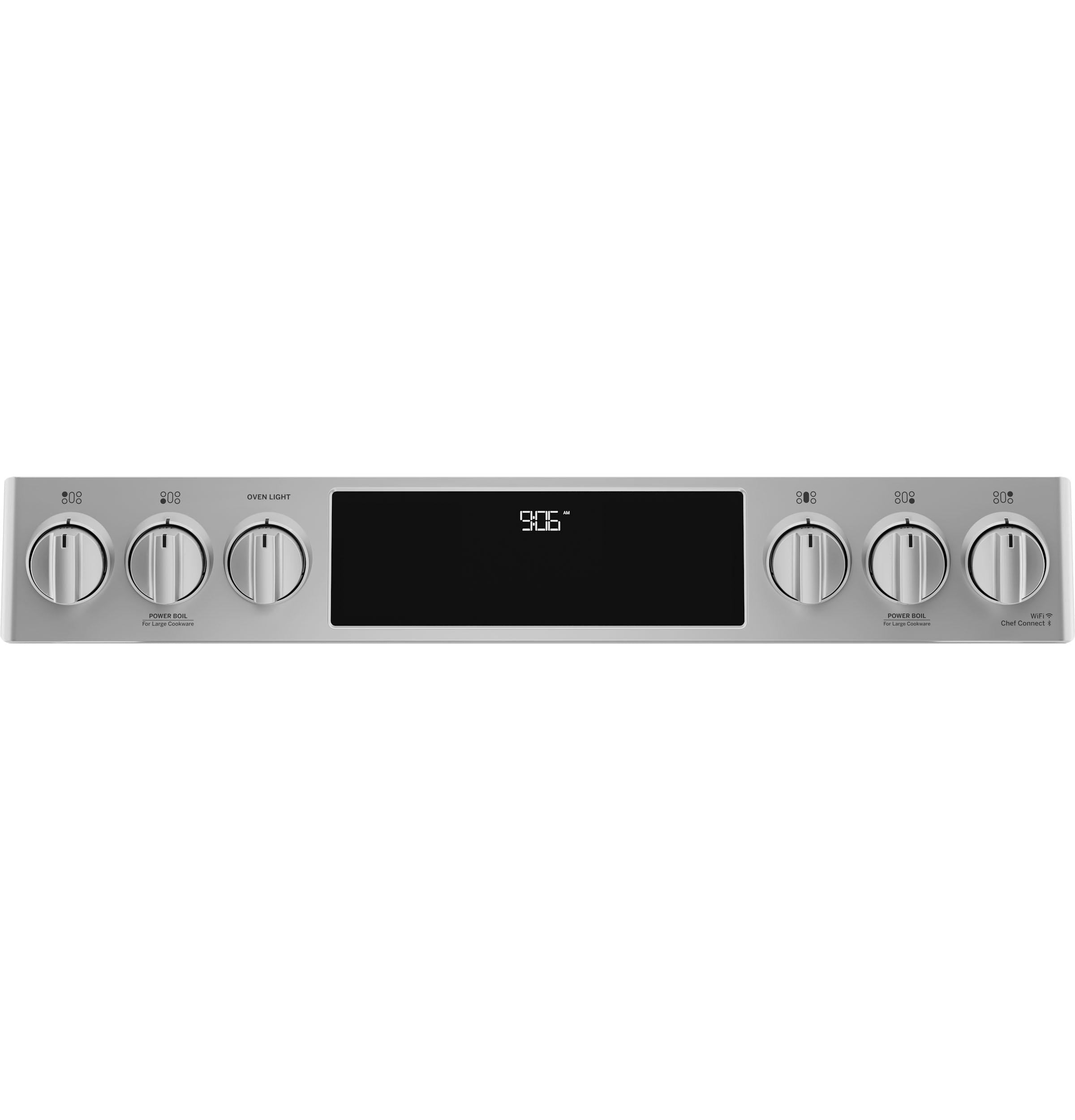

Backlit touch controls give this oven a high-tech look with a display that disappears when not in use and reappears when touched

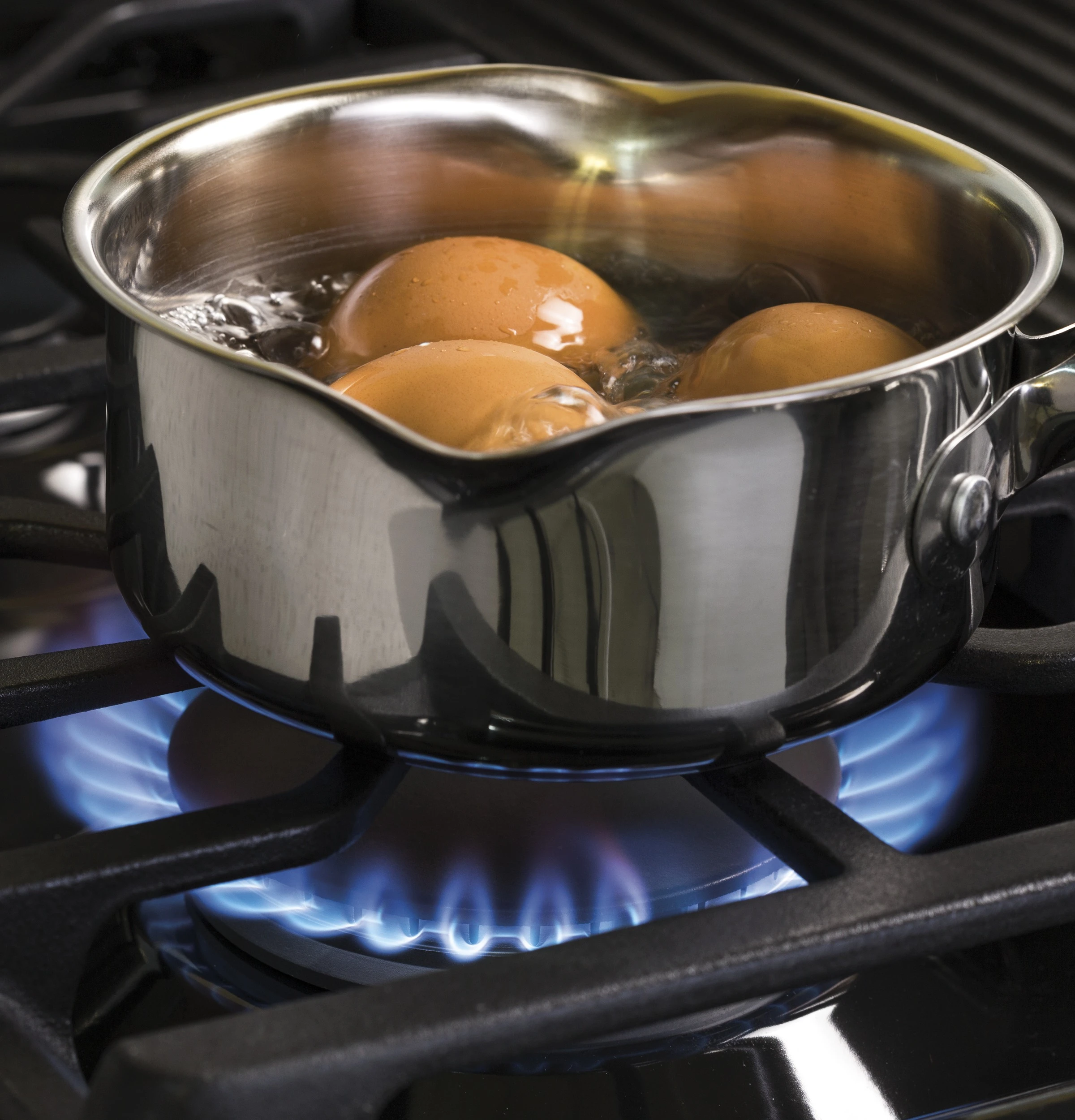

This 15,000-BTU power boil element produces intense heat to boil water fast

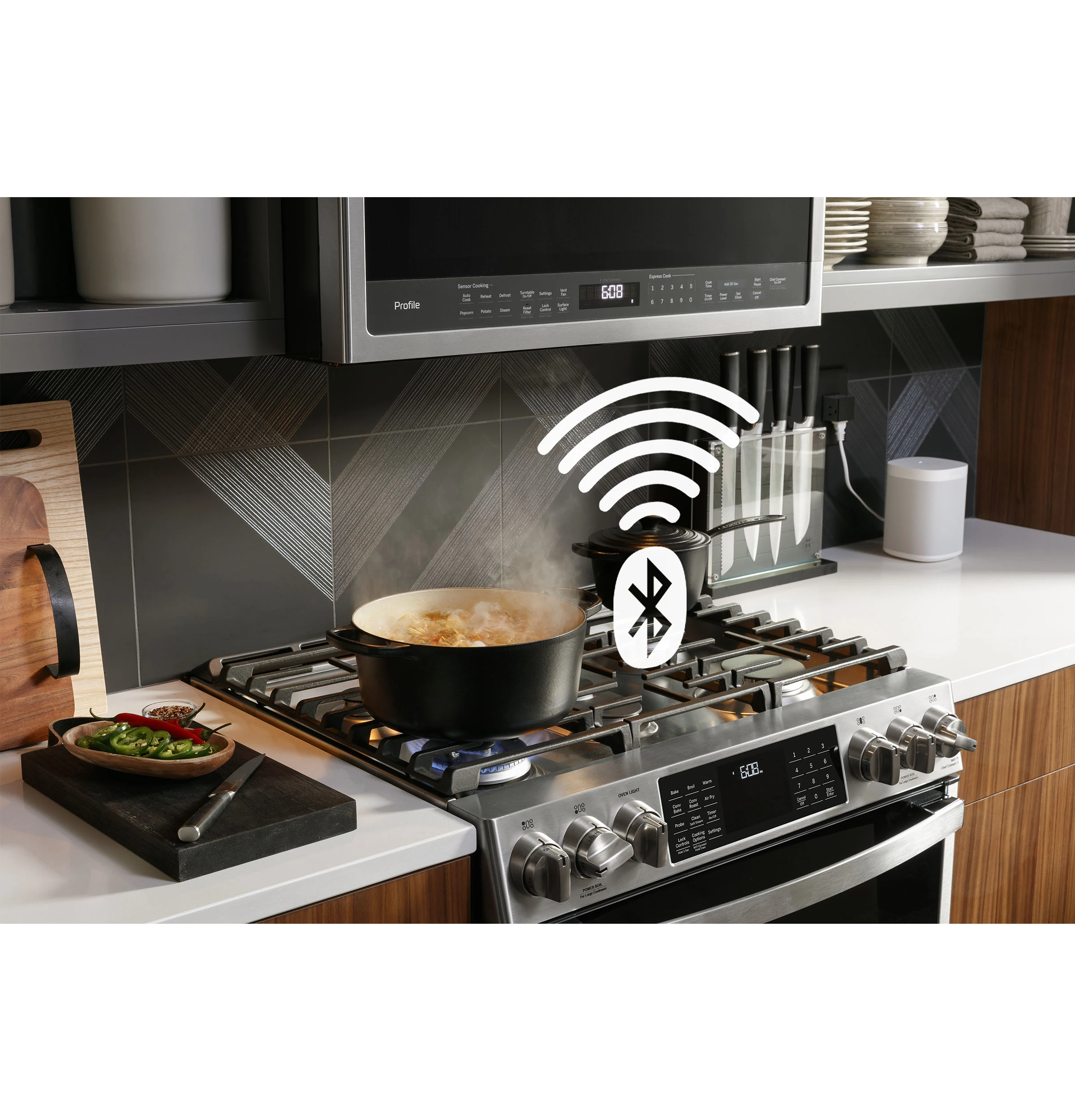

Synchronize your oven and GE Appliances over-the-range microwave so that clocks are always matching and lights automatically come on when a burner is activated with Chef Connect

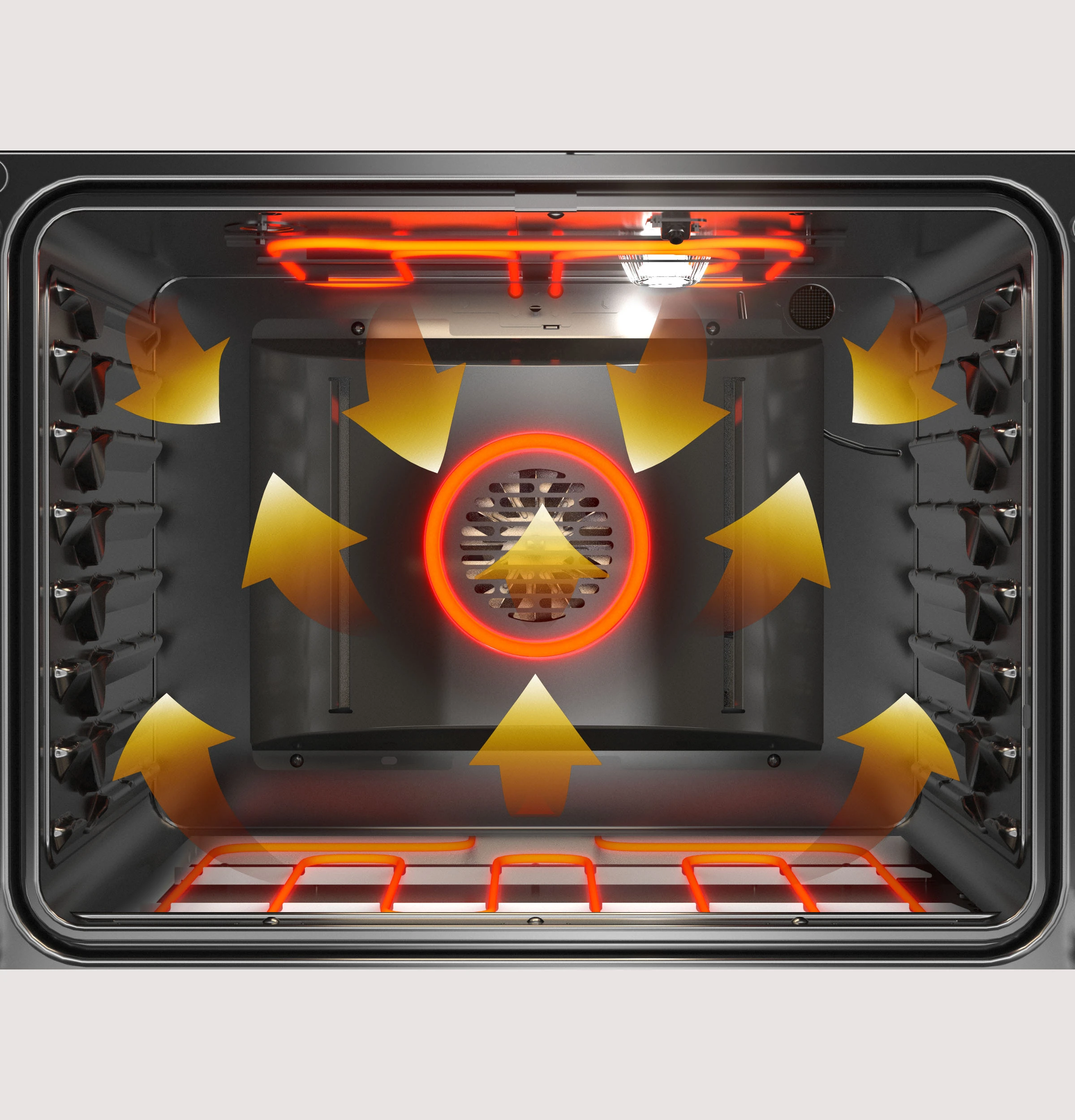

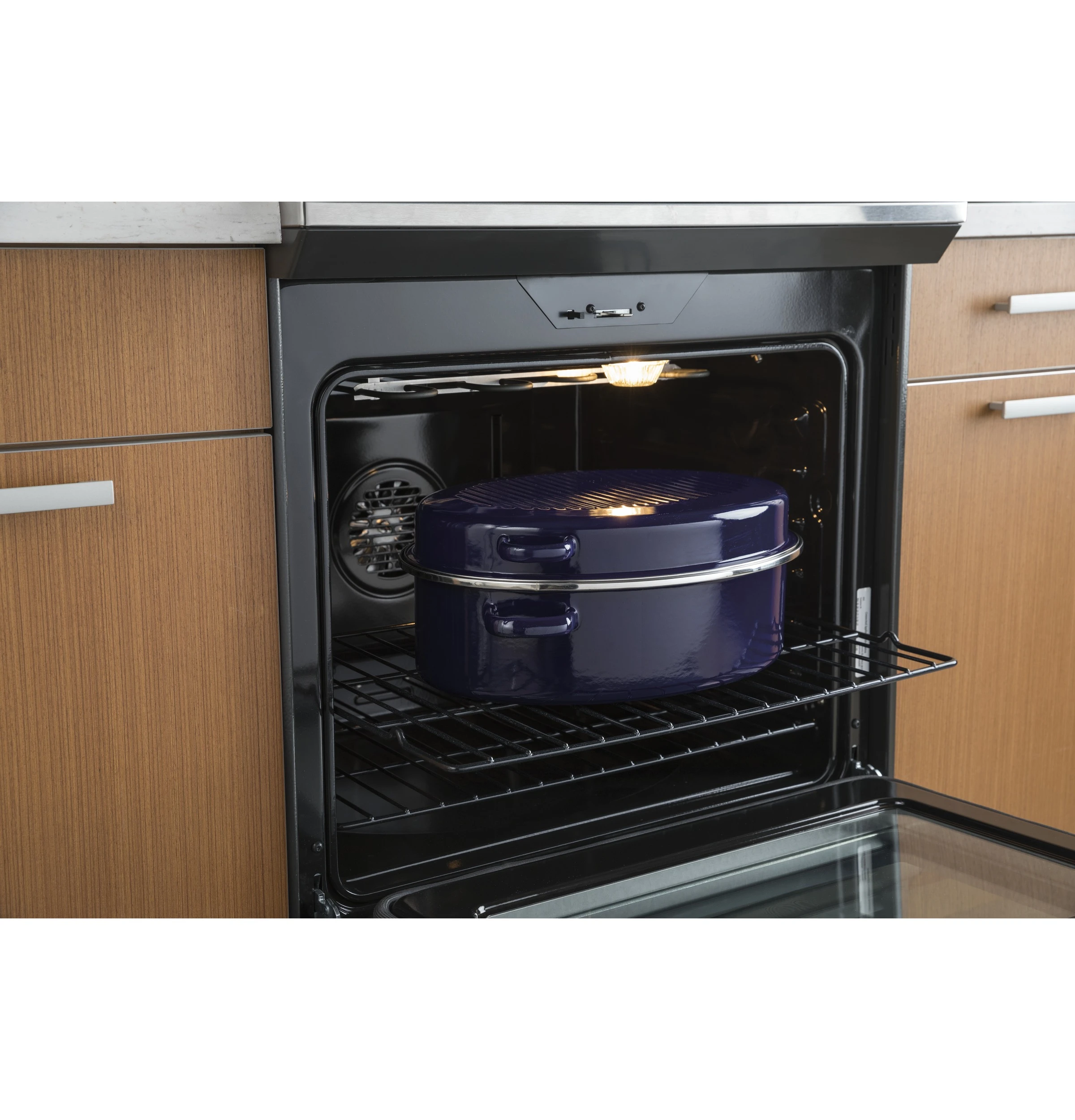

This oven features True Convection, an advanced convection system that uses a third heating element and fan for the highest level of heat and air circulation
These durable oven racks can be left in the oven during the self-clean cycle so you never have to scrub
