GE Profile PDT145SGLWW 18" ADA Compliant Stainless Steel Interior Dish

Product Details for GE Profile PDT145SGLWW

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

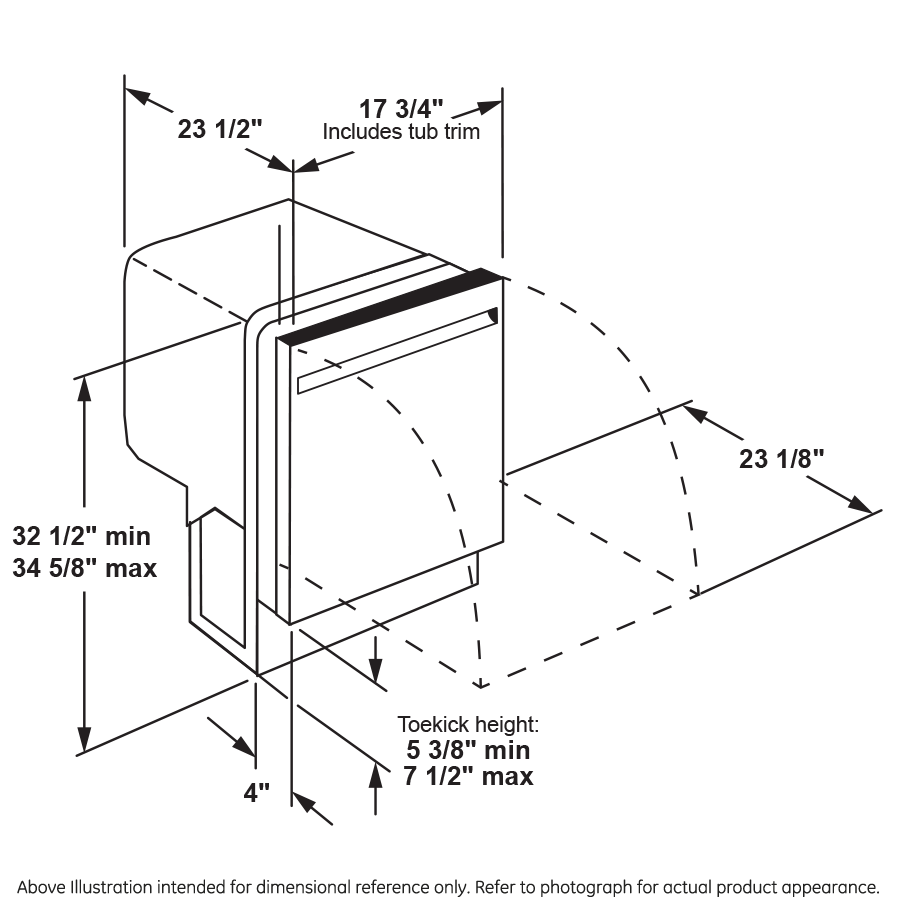

Weights & dimensions

Overall Depth	22.5 in
Cabinet Width	18 in
Overall Width	17.75 in
Overall Height	32.5 in
Height w/ Legs Retracted - Minimum Height	32.5 in
Net Weight	72 lb
Approximate Shipping Weight	85 lb
Depth with Door Open	23.125 in
Height w/Legs Extended - Maximum Height	34.625 in
Depth Without Handle	22.5 in
Overall Depth with Handle	22.5 in
Cutout Height (in)	32.5
Cutout Width (in)	18
Cutout Depth (in)	24

Features

Wash System	Standard
Sensor	Clean Sensor
Lower Rack	Nylon
Leveling System	Leveling Legs
Number of Place Settings	8
Dishwasher Options	TempBoost
Latch	Center Pull
Number of Options	5
Style	Built-In Top Control Spacemaker
Water Filtration System	3-Stage Manual Clean Filtration
Rack Features	Stem Safe
Dishwasher Cycles	Light Wash
RV Ready	Yes
Dispenser	Rinse Aid with Indicator and Adjustment
WiFi Connect	Optional (Requires part no. PBX23W00Y1)
Control Type	Top Controls
Racking System	Gray
Dishwasher Drying Features	Condensate Dry
Wash Arms	2 with Upper Nozzle
Wash System Features	Piranha™ Hard Food Disposer
Exterior Style	18" Wide
Product Type	Built-In
Connected Capabilities	The Google Assistant

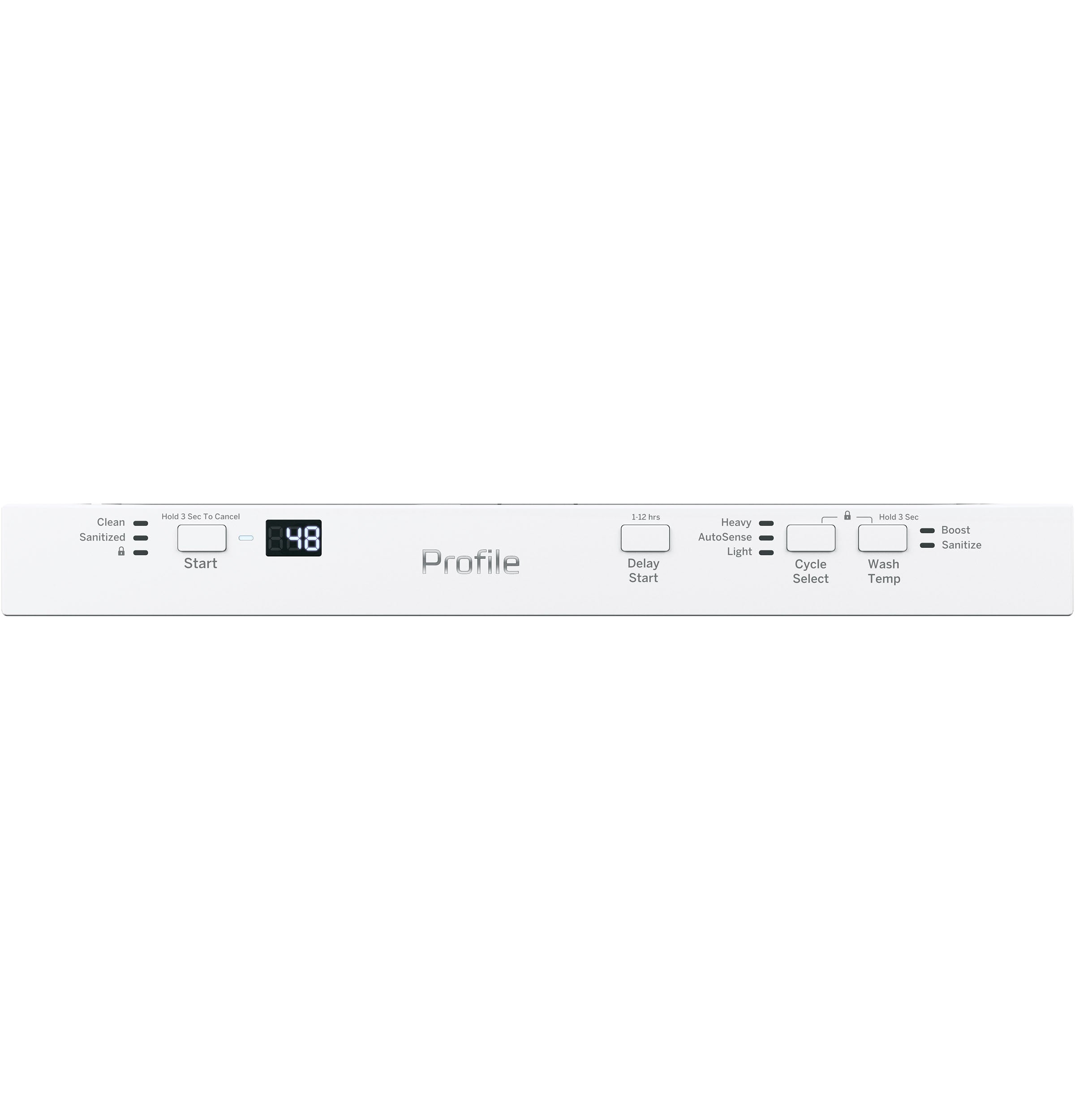

Dishwasher Control Features	Start/Reset Pad
Upper Rack	Nylon
Number of Cycles	3
Tub and Door Liner	Stainless Steel
Connected Capabilities	Amazon Alexa
Connected Capabilities	IFTTT
Connected Capabilities	Sonos
Control Type	Fully Integrated Electronic
Control Type	4 Pushbuttons
Dishwasher Control Features	3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators
Dishwasher Control Features	Cycle Countdown
Dishwasher Control Features	Audible End-of-Cycle Signal
Dishwasher Control Features	Last Cycle Memory
Dishwasher Cycles	AutoSense
Dishwasher Cycles	Heavy Wash
Dishwasher Options	Start/Reset
Dishwasher Options	Child Lock
Dishwasher Options	Delay Start 1-12 Hr.
Dishwasher Options	Sani (Certified to NSF Standard 184)
Lower Rack	1 Rack handle
Rack Features	1 Piece Mid Silverware Basket w/ 1 Cell Cover
Rack Features	1 Plastic Utility Shelf - Upper
Rack Features	Ball-Tipped Tines
Rack Features	Fold-Down Tines - Lower
Upper Rack	Adjustable
Upper Rack	1 Rack handle
Wash System	3-Level
Wash System Features	Automatic Temperature Control
Wash System Features	Automatic HotStart
Wash System Features	Flood Control System
Wash System Features	Dual Pump

Power / ratings

Power Connection	Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year)	240
Electrical Requirements	120V ; 60 Hz ; 8.9 A
Calrod Heater Watts	1100
Hertz	60
Watts	1068

Appearance

Handle	Pocket Handle
Handle Color	White
Door Style	Full-Length Flat Door
Color Appearance	White
Handle Design	Recessed

Economical / quiet

Door Insulation	Mastic
Quiet Package	47 dBA
Outer Wrap	U-Blanket
Motor Type	Single Speed
Quiet Features	Tub Collar Trim
Door Insulation	Insulation
Quiet Features	Sealed Toe Kick

Warranty

Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance

Dimensions & weight

Width	17.75 in.
Height	32.5 in.
Length	22.5 in.
Weight	72 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	22.75 in.
Shipping Height	37.5 in.
Shipping Length	27.5 in.
Shipping Weight	112 lbs.
Total of Shipping Weight	112 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	7.51 ft³
Dimensional Weight	93.38 lbs.
Total of Cubes	7.51 ft³
Total of Dimensional Weight	93.38 lbs.

Description

Expect exceptionally clean table-ready dishes with powerful wash arms.A beam of light measures soil levels and water temperature to adjust to the ideal cycle time.32 1/2 H x 17 3/4 W x 22 1/2 D

Key Features

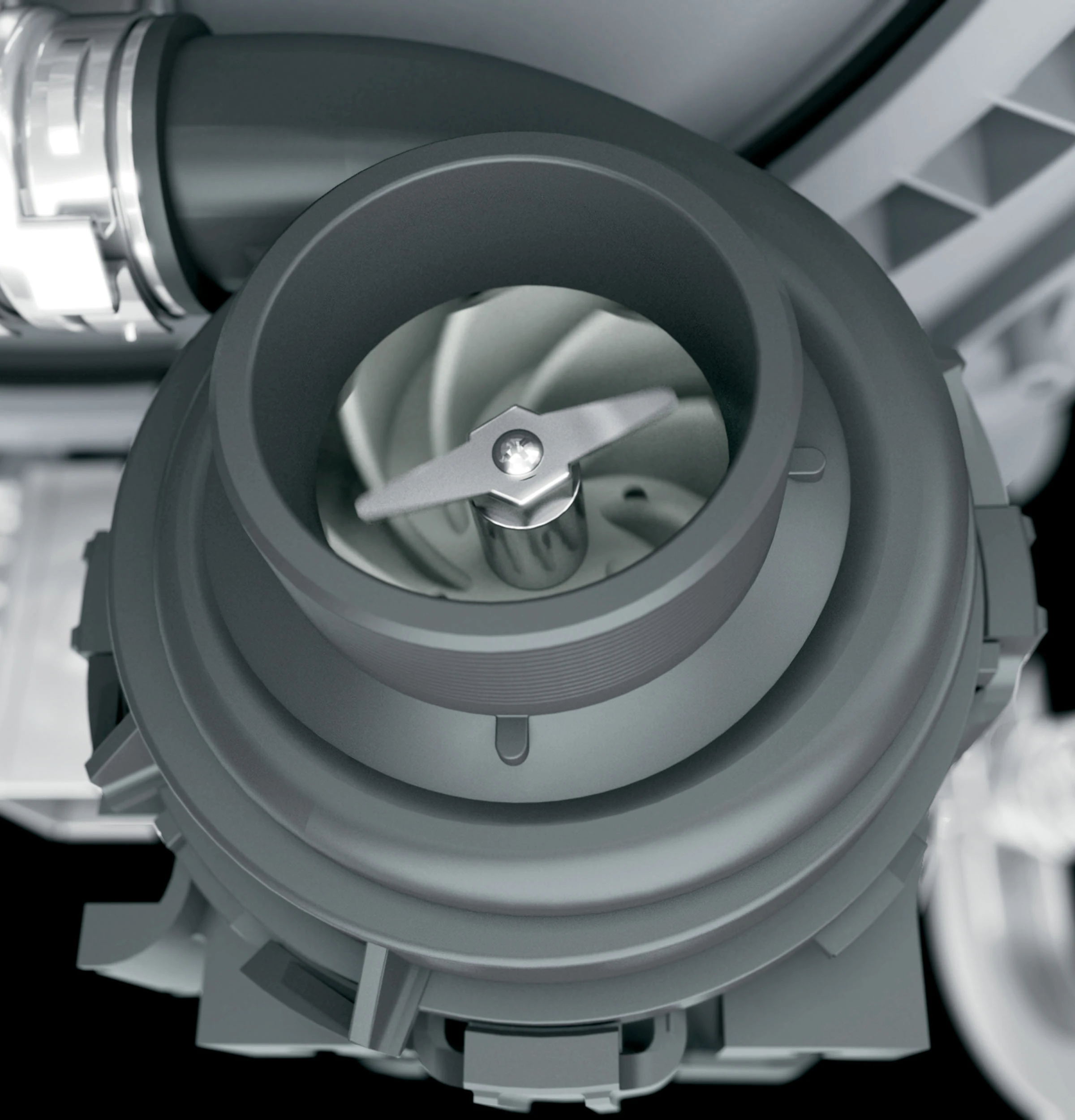

Piranha hard food disposer with removable filter

To ensure consistently clean items, this stainless steel blade rotates to pulverize food particles and helps to prevent large particles from clogging the wash arms

Sanitize option (NSF Certified)

High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes

Quiet Package

dBA 47, dramatically reduces the sound of washing the dishes

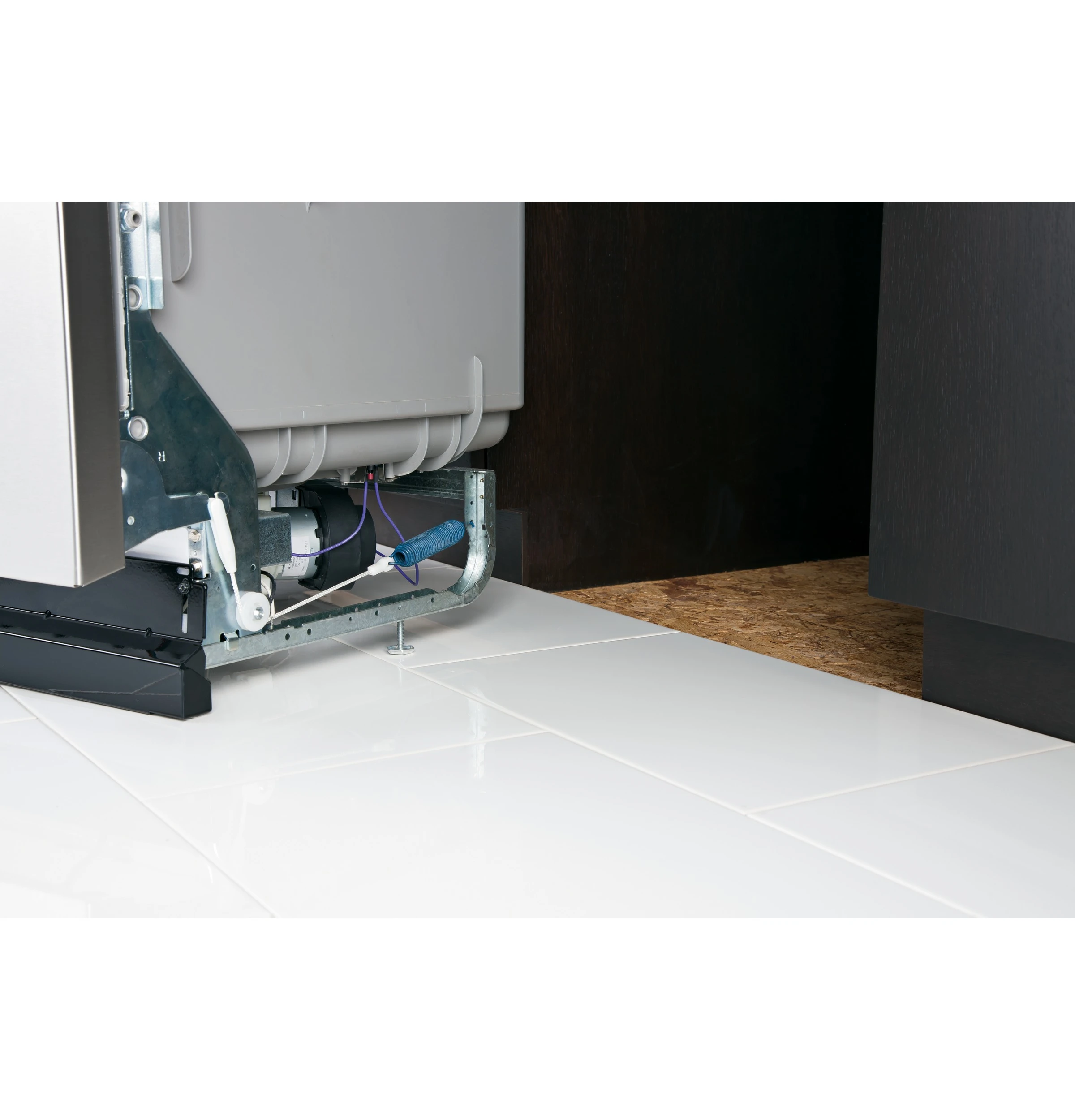

ADA Compliant with Low-Profile Installation

Great for 34” counter top heights and raised subfloors

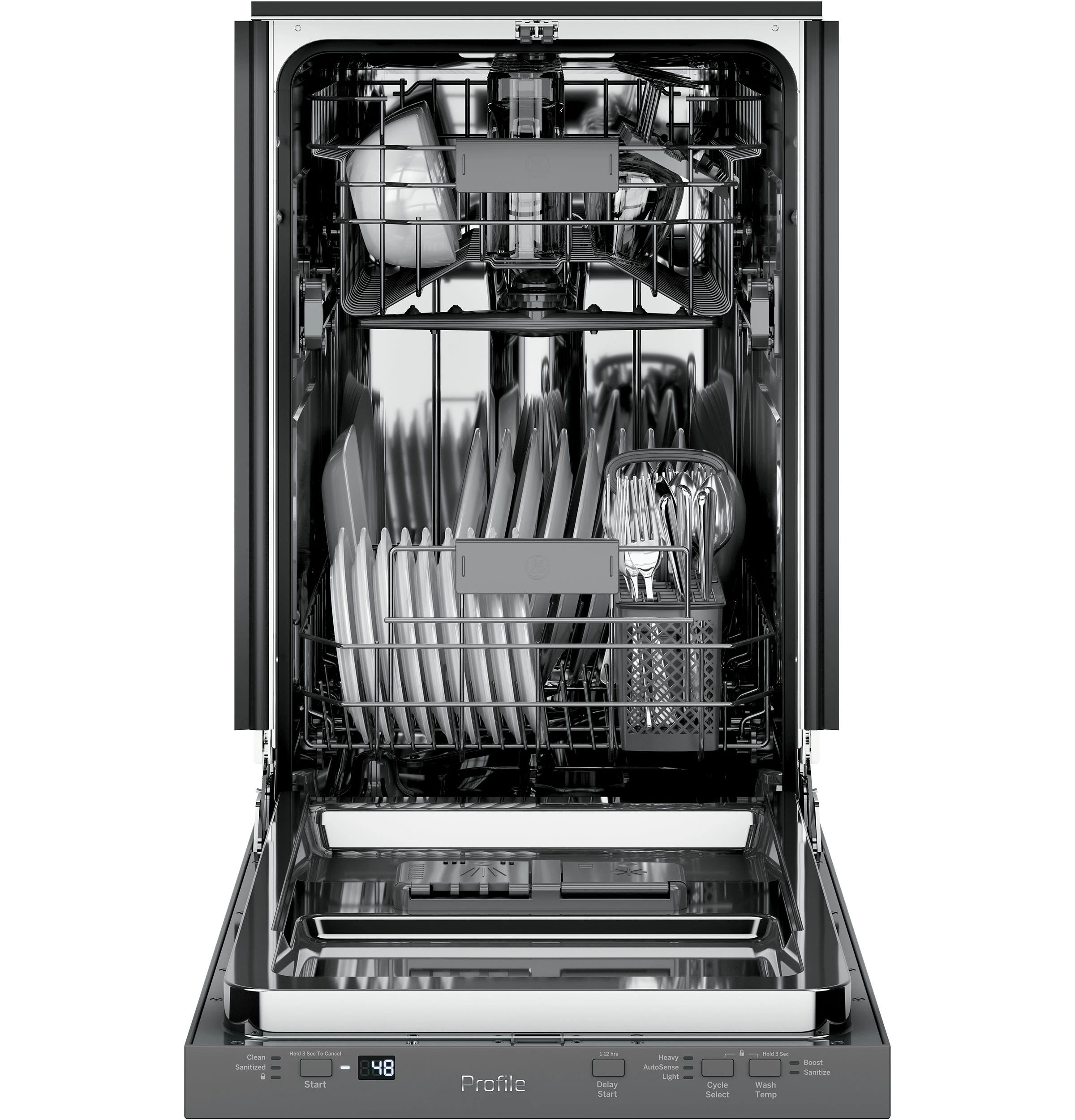

3-Level Wash

Expect exceptionally clean table-ready dishes with powerful wash arms

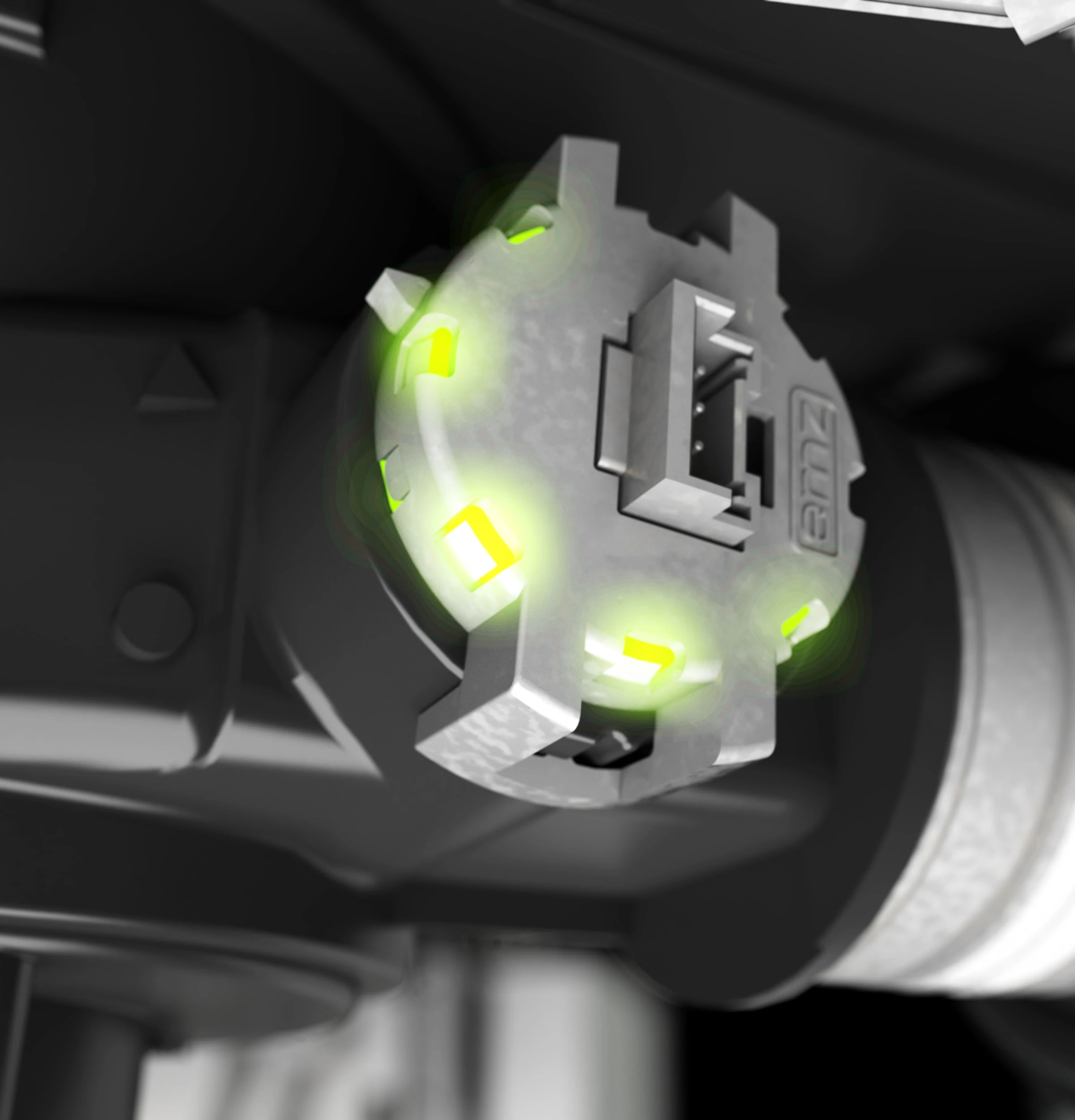

Autosense Cycle

A beam of light measures soil levels and water temperature to adjust to the ideal cycle time

Piranha™ hard food disposer with removable filter

To ensure consistently clean items, this stainless steel blade rotates to pulverize food particles and helps to prevent large particles from clogging the wash arms
