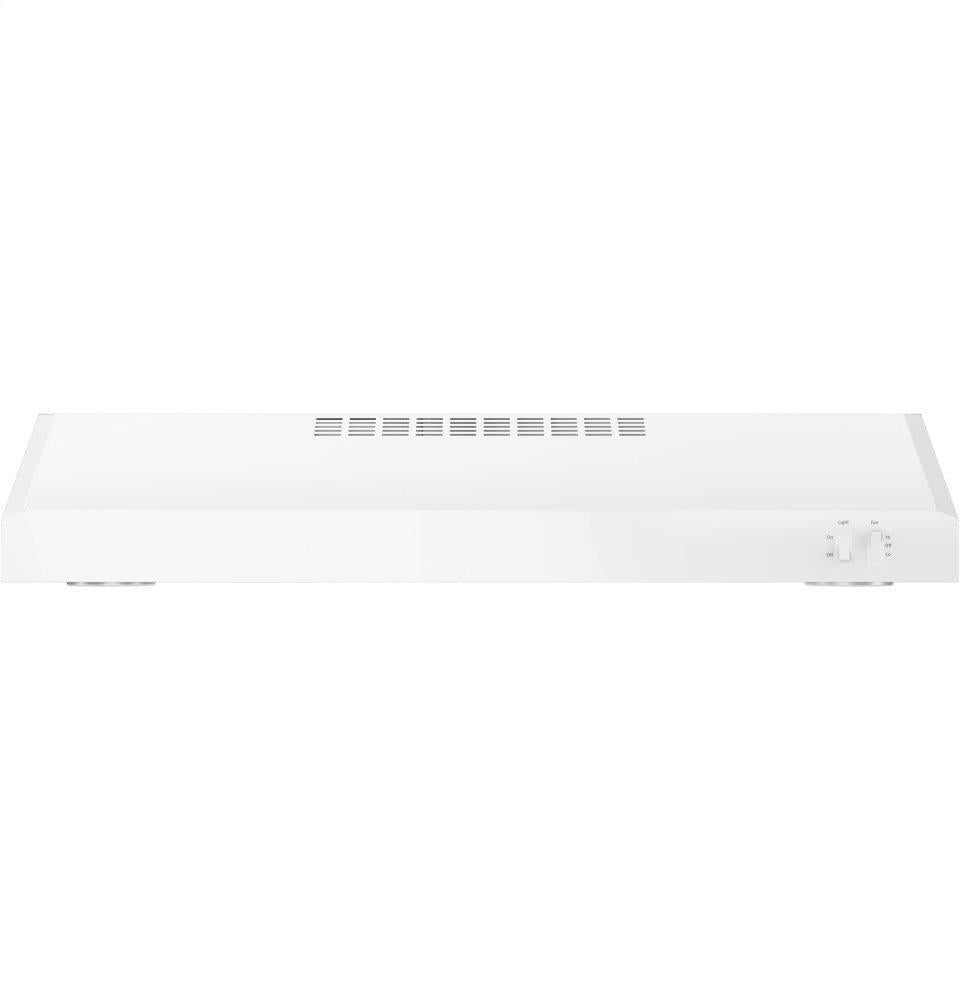

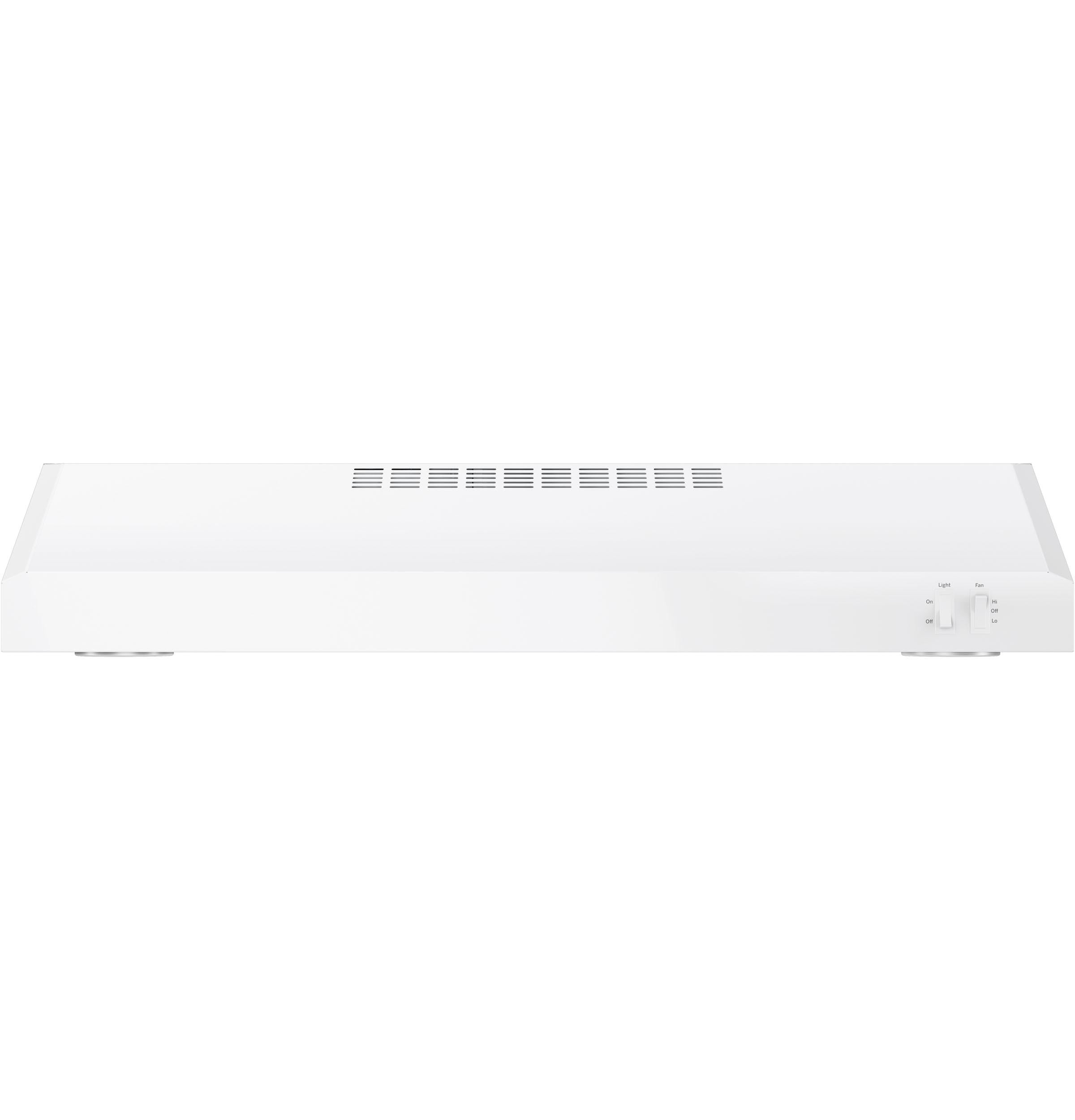

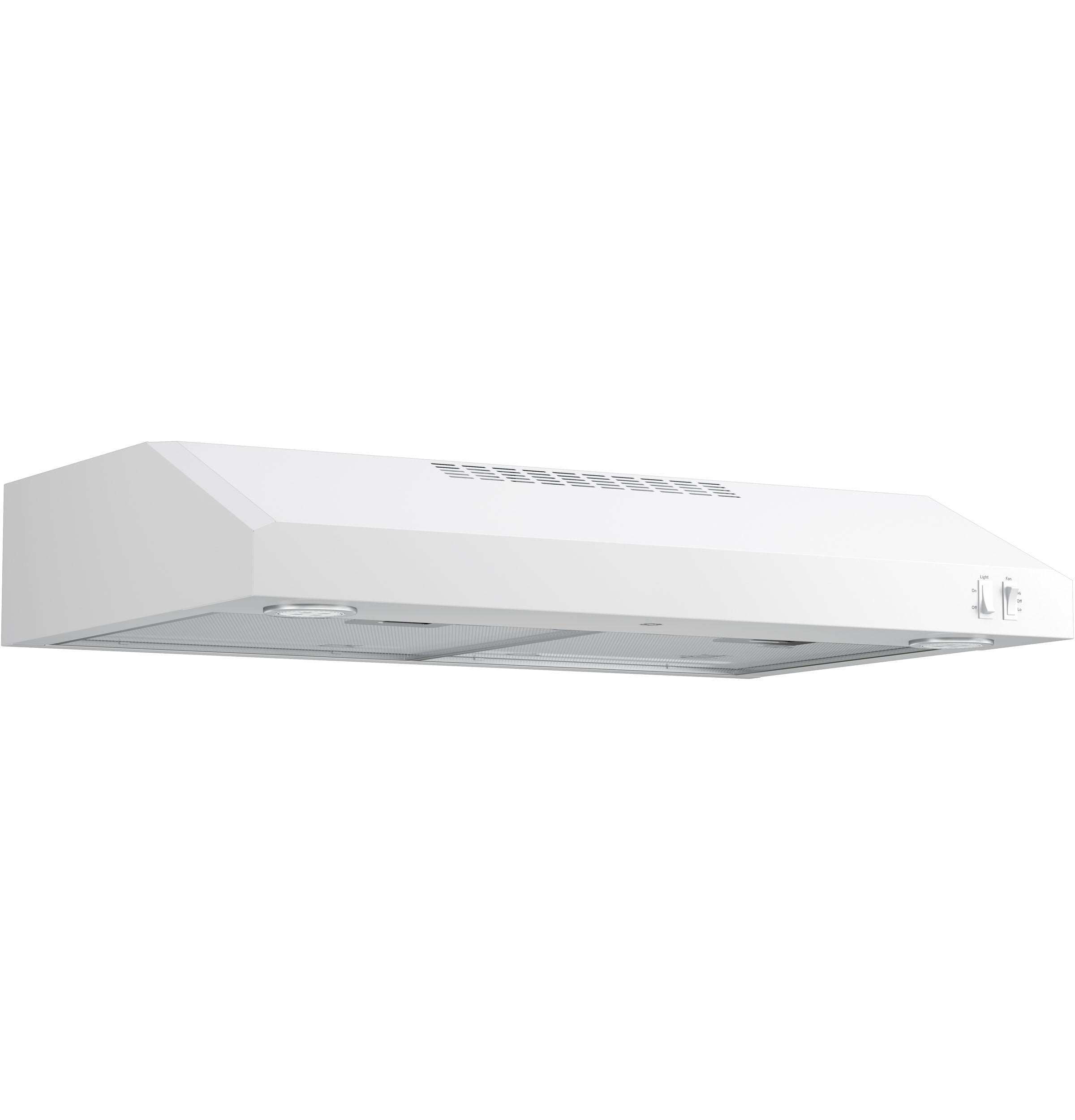

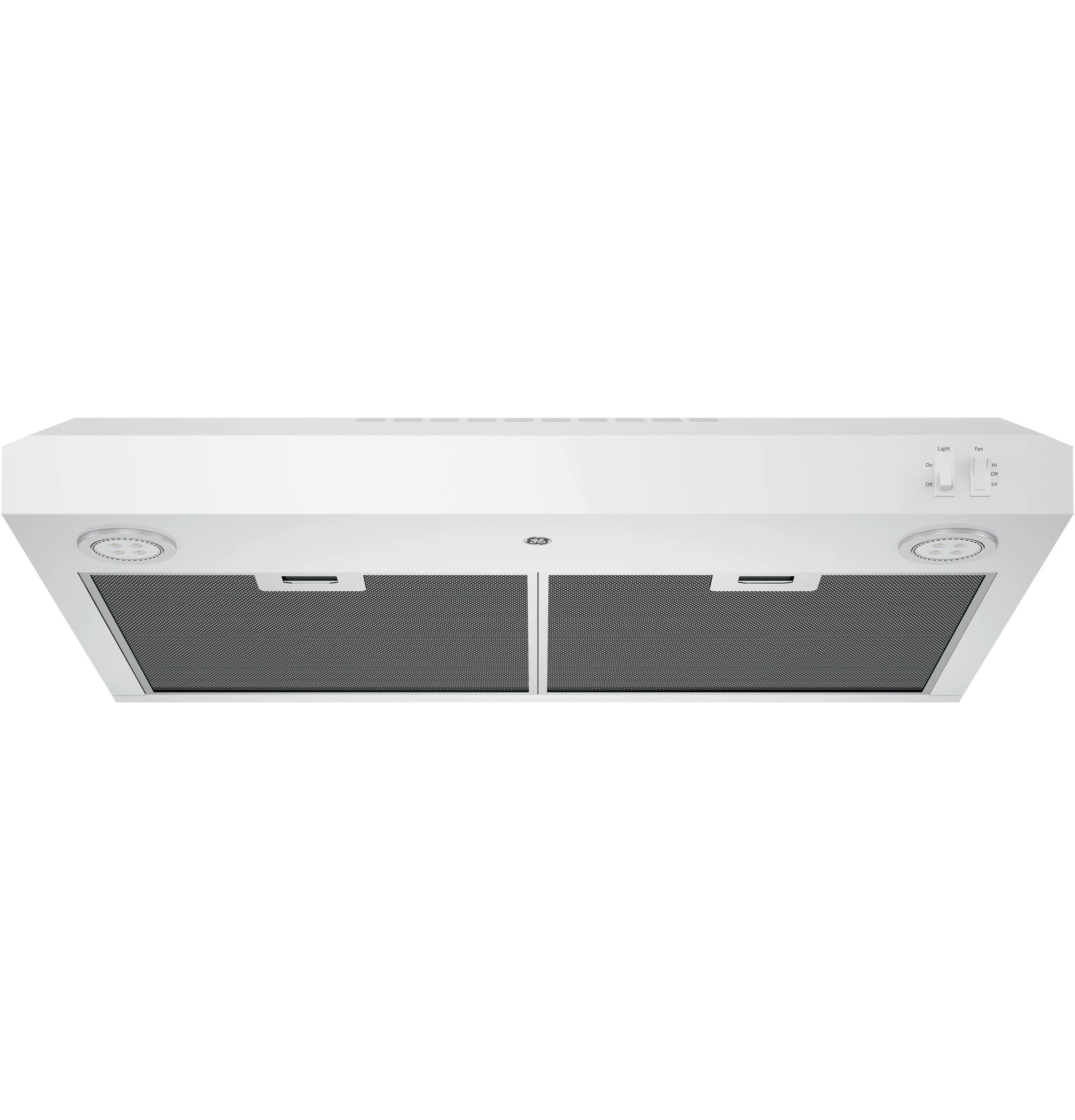

GE JVX5305DJWW 30" Certified Under The Cabinet Hood White
Sale price
$368.10
Regular price
$496.97
Save
$128.87
/ 25% OFF
Quickship
Active Rebates
Extended Protection
?
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
- Food loss protection
- 24/7 toll-free number for support
-
$30.99
-
$51.99
-
$75.99
-
$139.99
-
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Products
Sale price
$81.25
Regular price
$99.97
Save
$18.72
/ 18% OFF
Sale price
$57.78
Regular price
$80.97
Save
$23.19
/ 28% OFF
Sale price
$368.10
Regular price
$496.97
Save
$128.87
/ 25% OFF
Product Details for GE JVX5305DJWW
Technical Details
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Features
| Cooktop Lighting | LED |
| Fan Speed Control | 2-Speed |
| Max CFM | 270 |
| Ducting | Vertical or Horizontal; 7" Round |
| Light Controls | On/Off |
| Filter Cleaning | Dishwasher Safe |
| CFM/ Sones Rating | 270/4.5 (High Speed) |
| Exhaust Options | Vented to Outside |
| Product Type | Under Cabinet Hood |
| Control Type | Rocker Switch |
| Control Location | Front |
| Removable Grease Filter(s) | Yes |
| Blower Type | Internal |
| CFM/ Sones Rating | 100/1.5 (Low Speed) |
| Exhaust Options | Recirculating |
| Cooktop Lighting | 2 |
Appearance
| Blower / Light Switch Color | White |
| Material | Metal |
| Color Appearance | White |

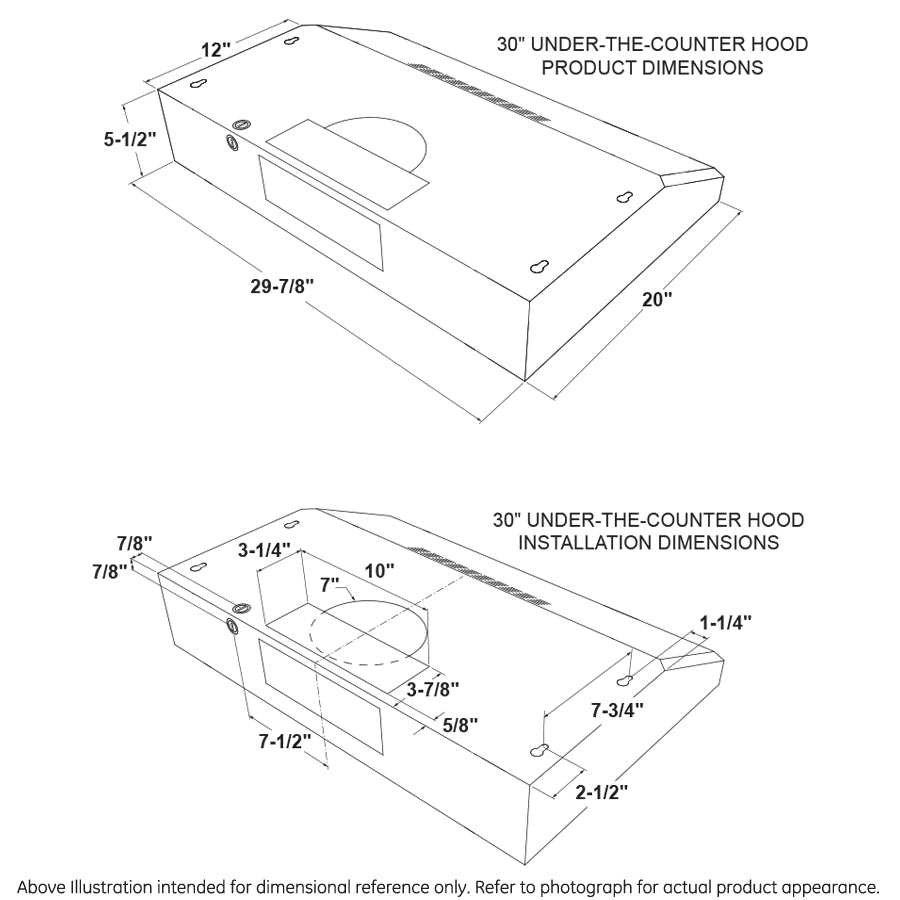

Weights & dimensions
| Cabinet Width | 30 in |
| Net Weight | 20 lb |
| Overall Depth | 20 in |
| Approximate Shipping Weight | 27 lb |
| Overall Height | 5.5 in |
| Overall Width | 29.875 in |
Power / ratings
| Electrical Requirements | 120V ; 60Hz ; 1.0A |
| Amp Rating at 120V | 1.0 |
| Watts | 87 |
| Hertz | 60 |
Accessories
| Optional Accessories | JXHC1 - Power Cord Kit |
| Optional Accessories | JXCF55 - Charcoal Filter |
| Optional Accessories | JXS50SS - 15" Cabinet Spacer for 30" Hoods |
| Optional Accessories | JXDA22 - GE Optional Damper Accessory |
Warranty
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
Economical / quiet
| Venting Type | Convertible |
Dimensions & weight
| Width | 29.88 in. |
| Height | 5.5 in. |
| Length | 20 in. |
| Weight | 20 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 10.5 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 60 lbs. |
| Total of Shipping Weight | 60 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 1.9 ft³ |
| Dimensional Weight | 23.64 lbs. |
| Total of Cubes | 1.9 ft³ |
| Total of Dimensional Weight | 23.64 lbs. |
Description
Easy installation
10 minutes or less by one person
Two-speed, 270-CFM venting system
Removes smoke, grease, odors and moisture
Front controls
Enjoy easy access and a subtle appearance

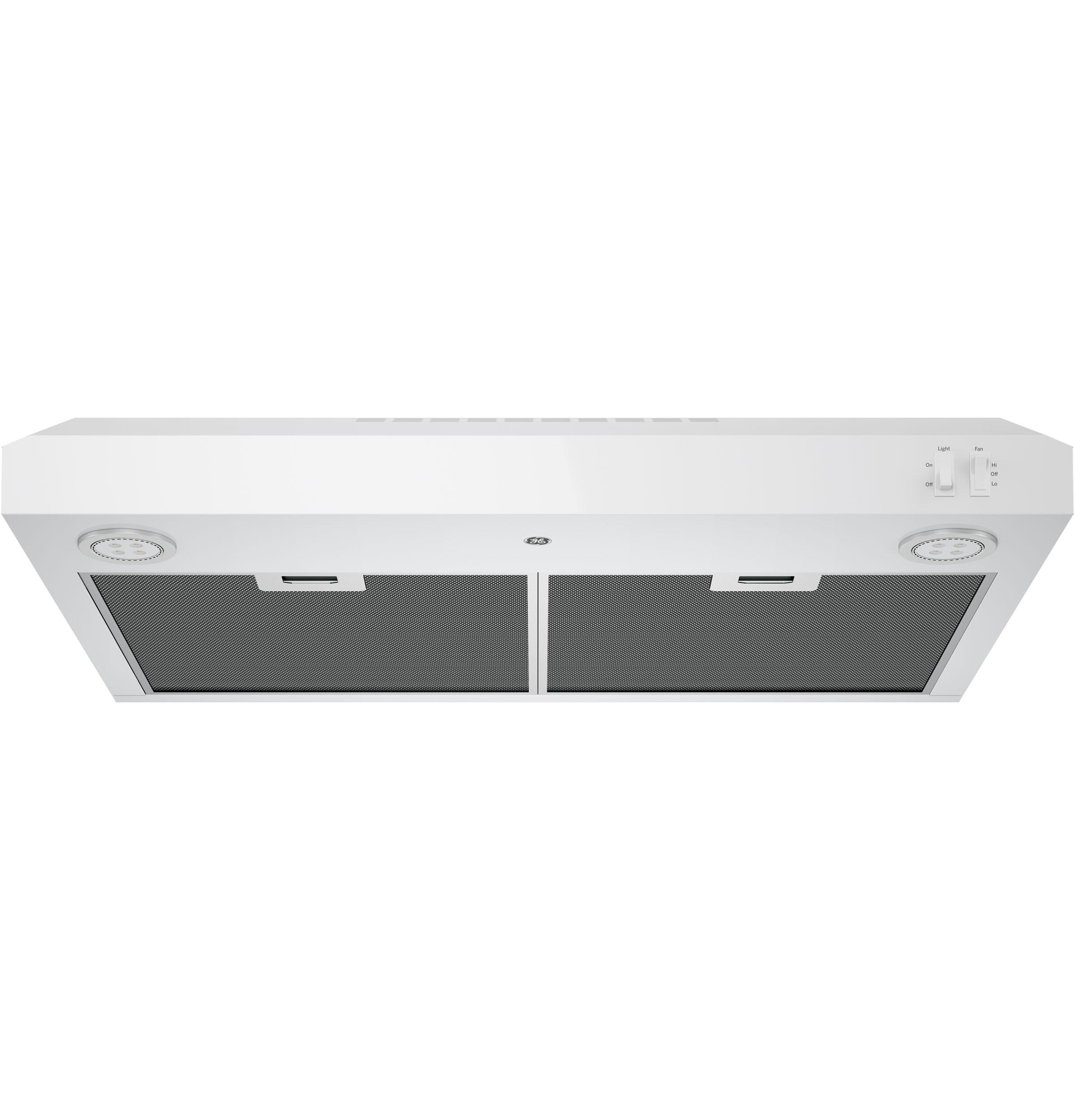

Dual LED lighting
Choose bright light while cooking - bulbs included
Convertible venting options
Select recirculating or external venting
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Appearance (Fully enclosed bottom)
Enjoy a sleek appearance from every angle
Dishwasher safe filter
Filters grease and is dishwasher-safe
10 minutes or less by one person
Two-speed, 270-CFM venting system
Removes smoke, grease, odors and moisture
Front controls
Enjoy easy access and a subtle appearance
Dual LED lighting
Choose bright light while cooking - bulbs included
Convertible venting options
Select recirculating or external venting
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Appearance (Fully enclosed bottom)
Enjoy a sleek appearance from every angle
Dishwasher safe filter
Filters grease and is dishwasher-safe
Product Features
-
Two-speed, 270-CFM venting system
Removes smoke, grease, odors and moisture -
Vertical and rear exhaust
Exhausts from the top or rear of the hood -
Wall Switch Option
Can be converted for operation with a wall switch, offering added flexibility and ADA-compliant convenience
Manuals & Guides
Key Features
Energy efficient
JVX5305 series ventilation hoods are Energy Star qualified, helping you save energy and money
Easy installation
10 minutes or less by one person

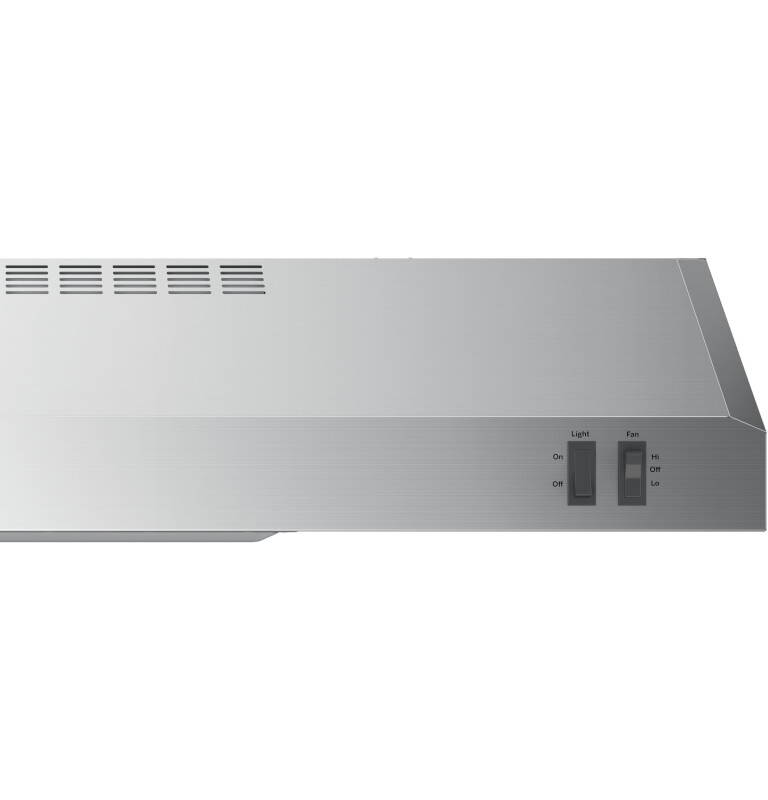

Front controls
Conveniently located on the front of the canopy, the simple switches let you adjust fan speed and lighting with ease
Dual LED lighting
Choose bright light while cooking - bulbs included
Convertible venting options
Choose recirculating or external venting to adapt airflow for your kitchen’s specific ventilation
Appearance (Fully enclosed bottom)
Enjoy a sleek appearance from every angle

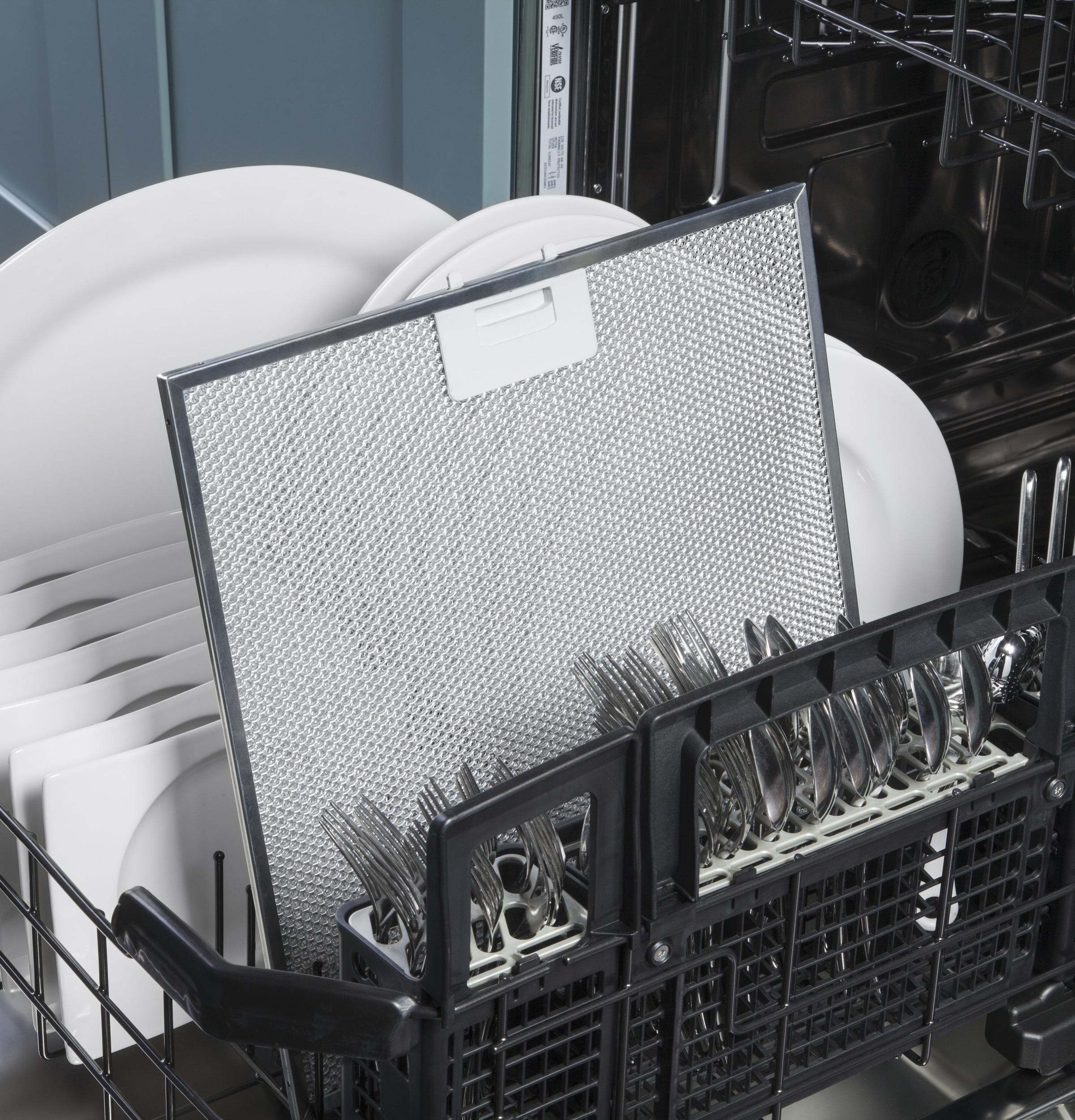

Dishwasher-safe filter
Durable, easy-to-remove filter captures grease and cleans up effortlessly in the dishwasher
