SKU: JVX5300BJTS

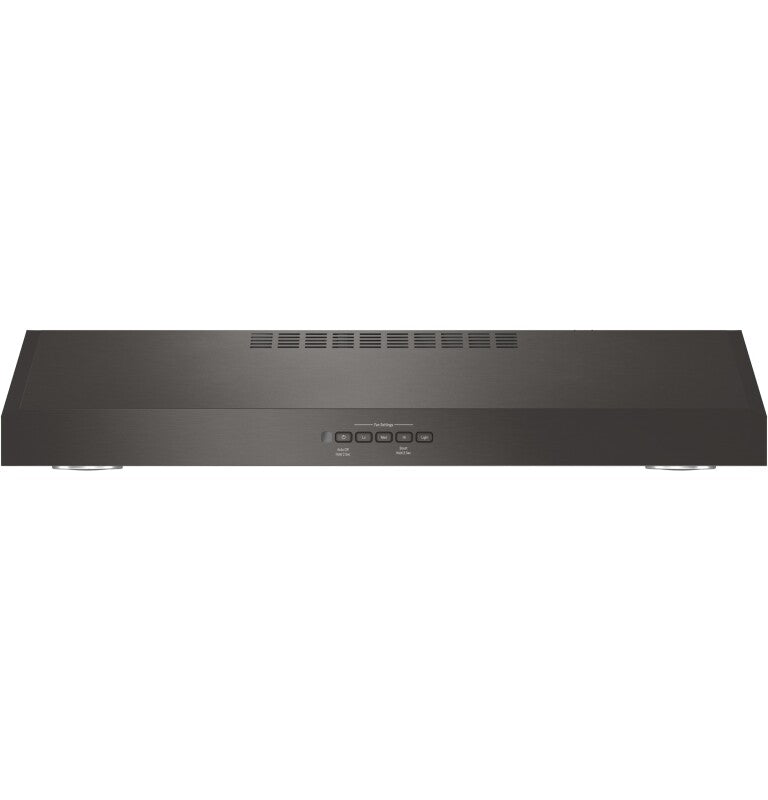

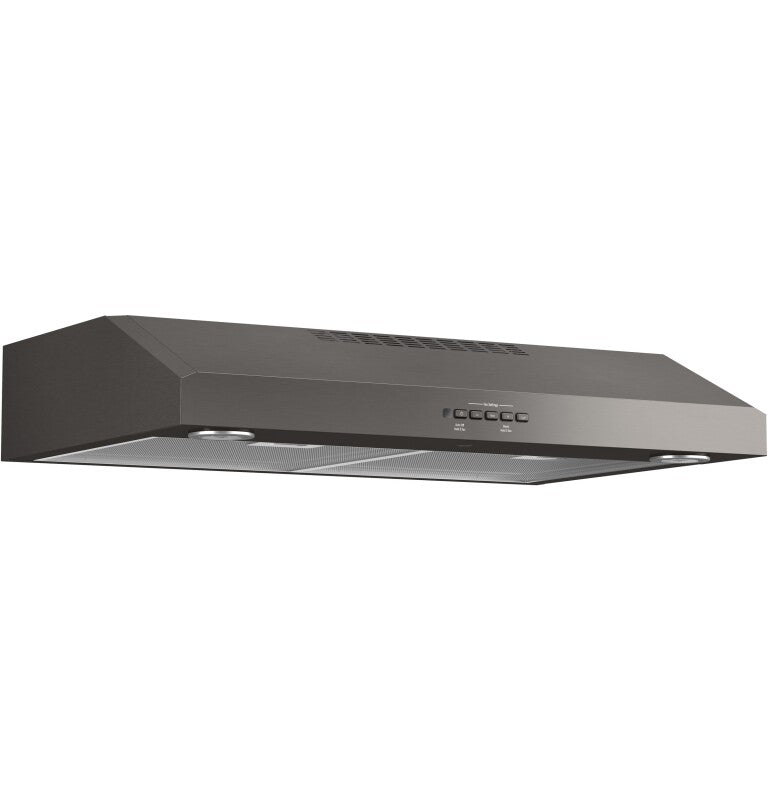

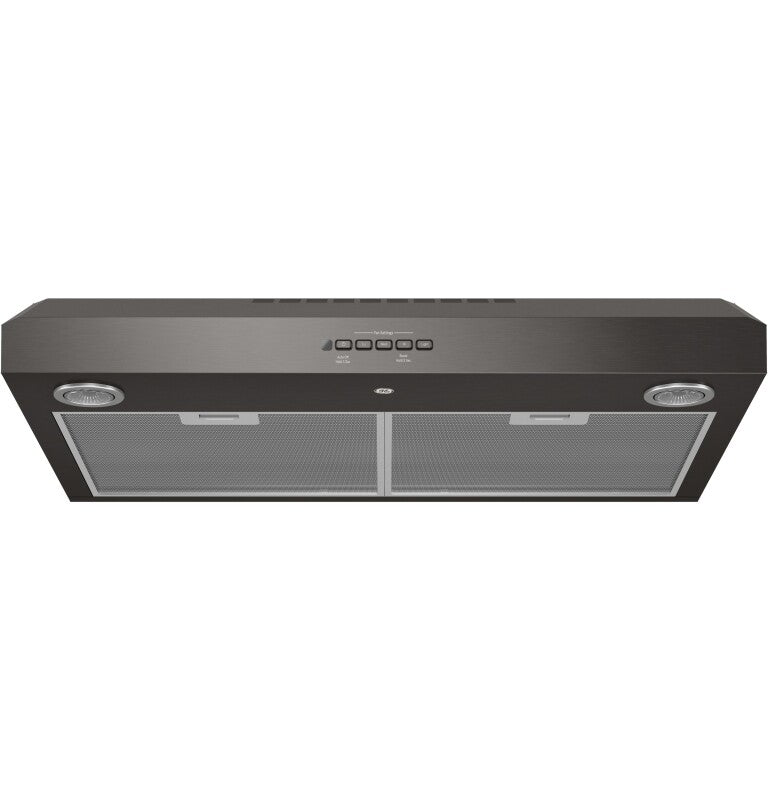

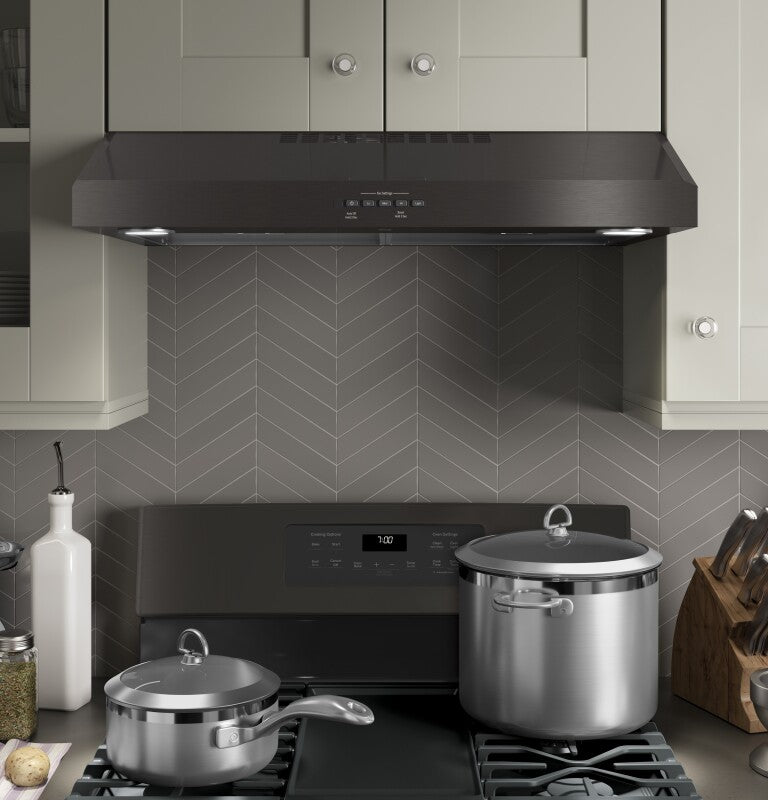

JVX5300BJTS Ge® 30" Under The Cabinet Hood Fingerprint Resistant Black Stainless

Quick Specification More details

Width:
29.875"
Depth:
20"
Height:
5.5"

About this product

Easy installation
Four-speed with boost, 310-CFM venting system
Electronic backlit controls
Dual halogen lighting with nightlight

Summer Sale

Clearance

Father's Day Sale

SKU: JVX5300BJTS

JVX5300BJTS Ge® 30" Under The Cabinet Hood Fingerprint Resistant Black Stainless

Active Rebates

Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

⚠️ Please note: This product is a part or accessory, not a complete appliance unit.

Quick Specification More details

Width:
29.875"
Depth:
20"
Height:
5.5"

About this product

Easy installation
Four-speed with boost, 310-CFM venting system
Electronic backlit controls
Dual halogen lighting with nightlight

Product Details for GE APPLIANCES JVX5300BJTS

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

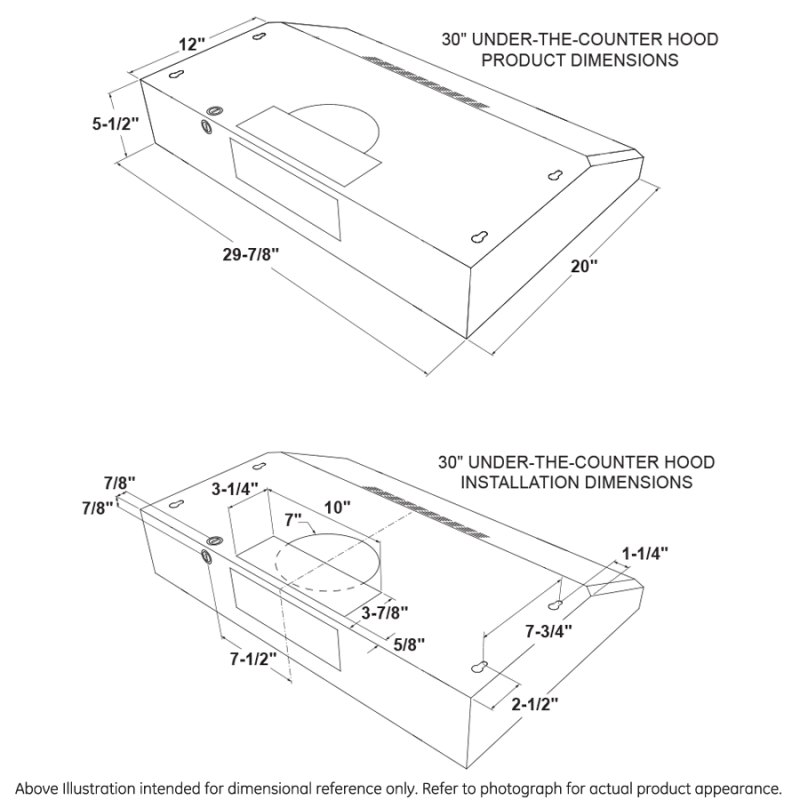

Weights & dimensions

Overall Depth	20 in
Overall Height	5.5 in
Overall Width	29.875 in
Cabinet Width	30 in
Net Weight	19 lb
Approximate Shipping Weight	27 lb

Dimensions & weight

Width	29.88 in.
Height	5.5 in.
Length	20 in.
Weight	19 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.88 in.
Shipping Height	10.5 in.
Shipping Length	25 in.
Shipping Weight	59 lbs.
Total of Shipping Weight	59 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.9 ft³
Dimensional Weight	23.64 lbs.
Total of Cubes	1.9 ft³
Total of Dimensional Weight	23.64 lbs.

Power / ratings

Watts	188
Hertz	60
Electrical Requirements	120V
Amp Rating at 120V	2.5

Features

Cooktop Lighting	Dual Halogen
Fan Speed Control	4-Speed
Max CFM	310
Ducting	Vertical or Horizontal; 7" Round
Light Controls	On/Off/Night-Light

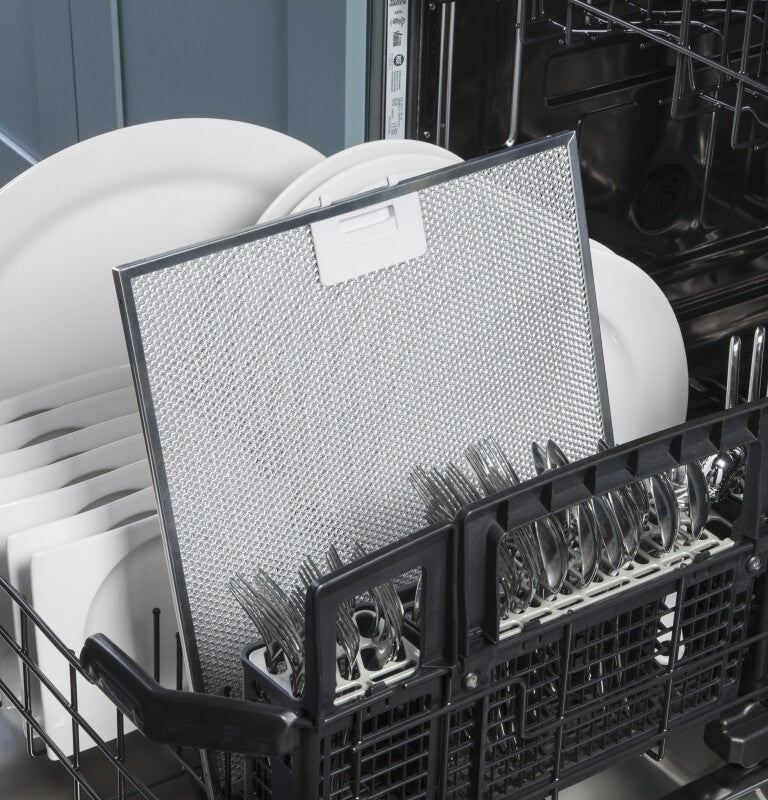

Filter Cleaning	Dishwasher Safe
Exhaust Options	Vented to Outside
Product Type	Under Cabinet Hood
Control Type	Backlit
Control Location	Front
Removable Grease Filter(s)	Yes
CFM/ Sones Rating	260/5.5 (High Speed)
CFM/ Sones Rating	60/1.0 (Low Speed)
CFM/ Sones Rating	310/7.0 (Boost Speed)
CFM/ Sones Rating	170/3.0 (Medium Speed)
Exhaust Options	Recirculating

Appearance

Blower / Light Switch Color	Backlit Gray
Color Appearance	Fingerprint Resistant Black Stainless

Warranty

Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance

Economical / quiet

Venting Type

Convertible

Accessories

Optional Accessories	JXHC1 - Power Cord Kit
Optional Accessories	UXRC70 - Remote Control
Optional Accessories	JXCF55 - Charcoal Filter

Description

Easy installation
10 minutes or less by one person

Four-speed with boost, 310-CFM venting system
Removes smoke, grease, odors and moisture

Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display

Dual halogen lighting with nightlight
Enjoy better visibility with a brightly lit cooktop and surrounding surface - bulbs included

Auto-off
Set the vent hood to automatically shut off after 15 minutes

Convertible venting options
Select recirculating or external venting

Vertical and rear exhaust
Exhausts from the top or rear of the hood

Appearance (Fully enclosed bottom)
Enjoy a sleek appearance from every angle

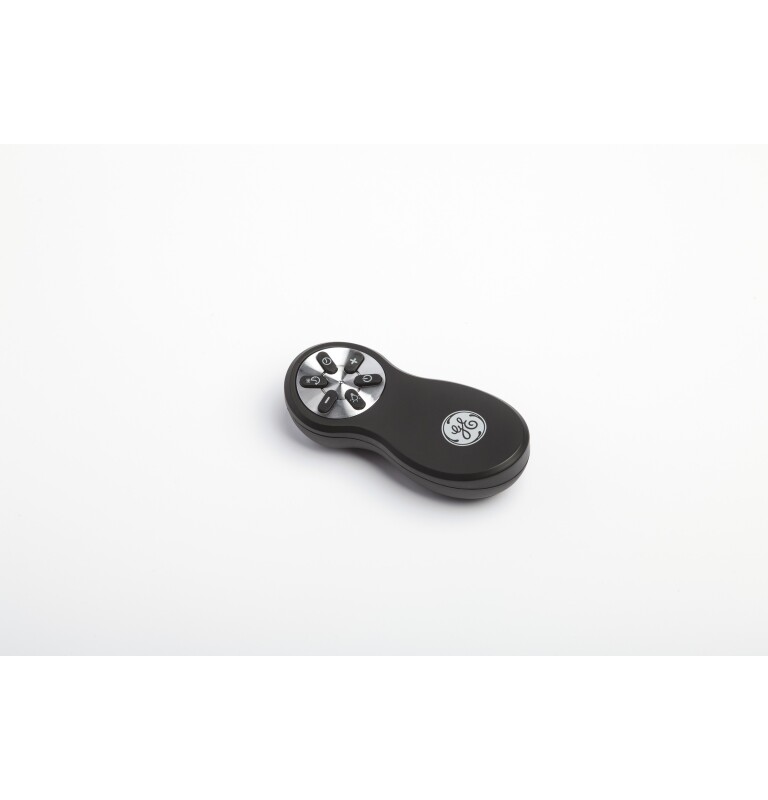

Optional remote control
Control your ventilation lighting and fan speed from anywhere in the kitchen

Product Features

Four-speed with boost, 310-CFM venting system
Removes smoke, grease, odors and moisture
Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display
Dual halogen lighting with nightlight
Enjoy better visibility with a brightly lit cooktop and surrounding surface - bulbs included
Auto-off
Set the vent hood to automatically shut off after 15 minutes
Convertible venting options
Select recirculating or external venting
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Appearance (Fully enclosed bottom)
Enjoy a sleek appearance from every angle
