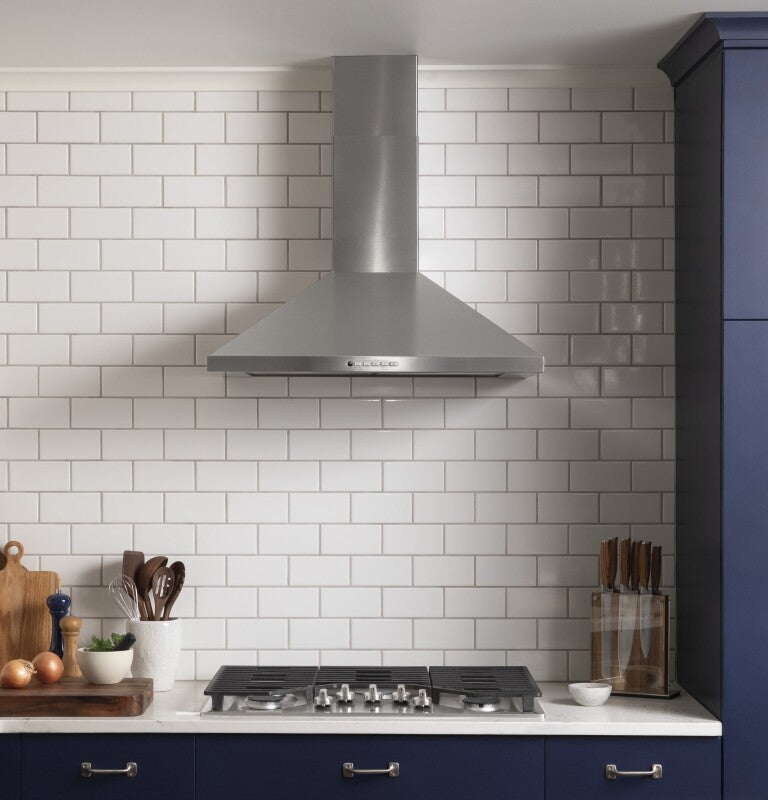

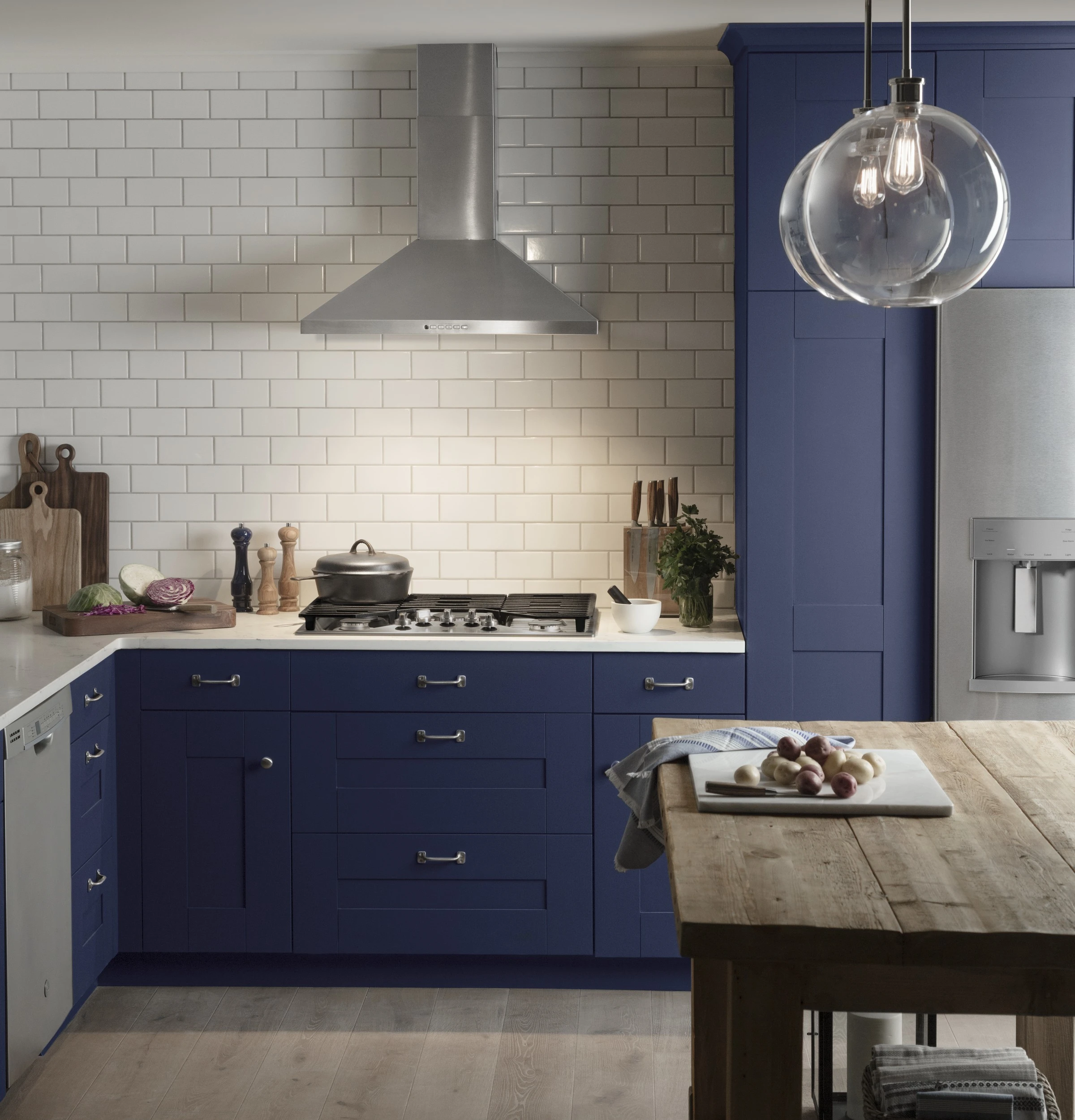

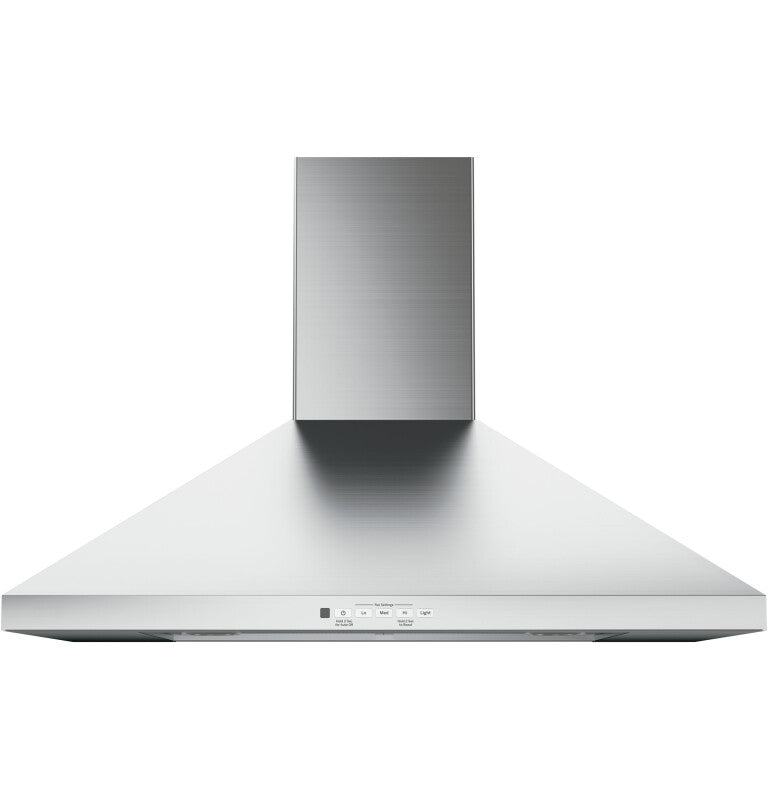

GE JVW5301SJSS 30" Wall-Mount Pyramid Chimney Hood Stainless Steel
Sale price
$549.00
Regular price
$728.97
Save
$179.97
/ 24% OFF
Quickship
Active Rebates
Extended Protection
?
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
- Food loss protection
- 24/7 toll-free number for support
-
$43.49
-
$75.99
-
$115.99
-
$163.99
-
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Products
Sale price
$213.37
Regular price
$286.97
Save
$73.60
/ 25% OFF
Sale price
$105.96
Regular price
$130.97
Save
$25.01
/ 19% OFF
Sale price
$549.00
Regular price
$728.97
Save
$179.97
/ 24% OFF
Product Details for GE JVW5301SJSS
Technical Details
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

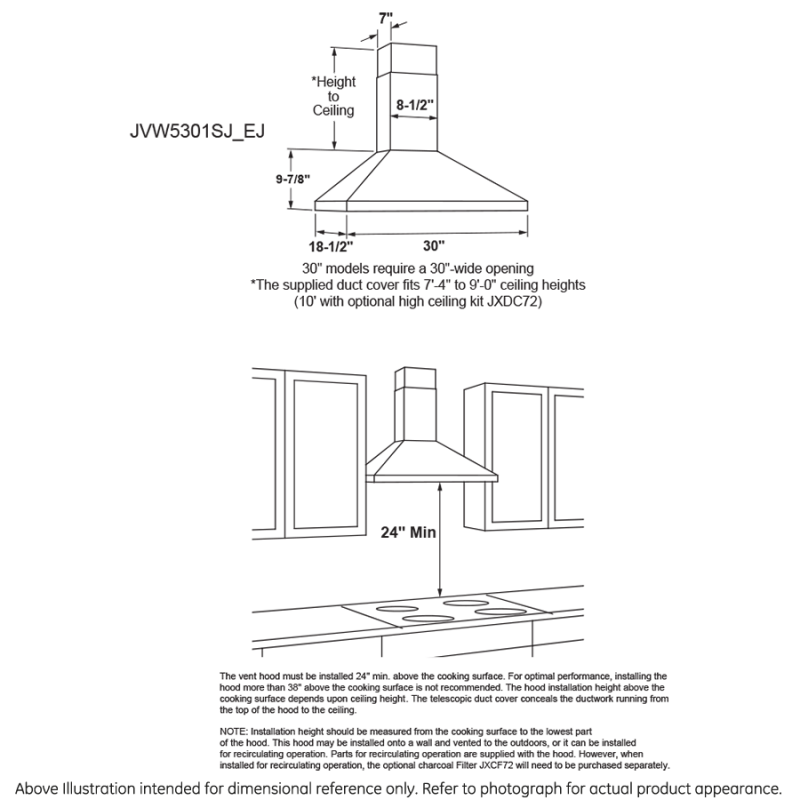

Weights & dimensions
| Overall Depth | 18.5 in |
| Overall Height | 9.875 in |
| Overall Width | 30 in |
| Cabinet Width | 30 in |
| Net Weight | 43 lb |
| Approximate Shipping Weight | 61 lb |
Dimensions & weight
| Width | 30 in. |
| Height | 9.88 in. |
| Length | 18.5 in. |
| Weight | 43 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 14.88 in. |
| Shipping Length | 23.5 in. |
| Shipping Weight | 83 lbs. |
| Total of Shipping Weight | 83 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 3.17 ft³ |
| Dimensional Weight | 39.43 lbs. |
| Total of Cubes | 3.17 ft³ |
| Total of Dimensional Weight | 39.43 lbs. |
Power / ratings
| Watts | 226 |
| Hertz | 60 |
| Electrical Requirements | 120V ; 60Hz ; 2.5A |
| Amp Rating at 120V | 2.5 |
Features
| Cooktop Lighting | Halogen |
| Fan Speed Control | 4-Speed |
| Max CFM | 350 |
| Ducting | Vertical Only |
| Light Controls | On/Off/Night |
| Filter Cleaning | Dishwasher Safe |
| Exhaust Options | Vented to Outside |
| Product Type | Designer Hood |
| Remote Control | Optional (UXRC70) |
| 6" Round Duct | Yes |
| Control Type | Electronic Touch |
| Control Location | Front |
| Blower Type | Internal |
| Removable Grease Filter(s) | Yes |
| CFM/ Sones Rating | 340/5.1 (High Speed) |
| CFM/ Sones Rating | 350/6.6 (Boost Speed) |
| CFM/ Sones Rating | 150/1.0 (Working Speed) |
| Exhaust Options | Recirculating |
| Cooktop Lighting | 1 |
| Control Type | Backlit |
Appearance
| Blower / Light Switch Color | Backlit |
| Material | Metal |
| Color Appearance | Stainless Steel |
Warranty
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
Economical / quiet
| Venting Type | Convertible |
Accessories
| Optional Accessories | UXDC53SJSS - 10 (ft.) Ceiling Duct Cover Kit |
| Optional Accessories | UXRC70 - Remote Control |
| Optional Accessories | UXDC72SJSS - 9 (ft.) Ceiling Duct Cover Kit |
| Optional Accessories | JXCF72 - Charcoal Filter |
Description
Easy do-it-yourself Installation
Can be installed either as a recirculating or external-venting hood
350-CFM venting system with boost
Effectively remove smoke, grease, odor and moisture

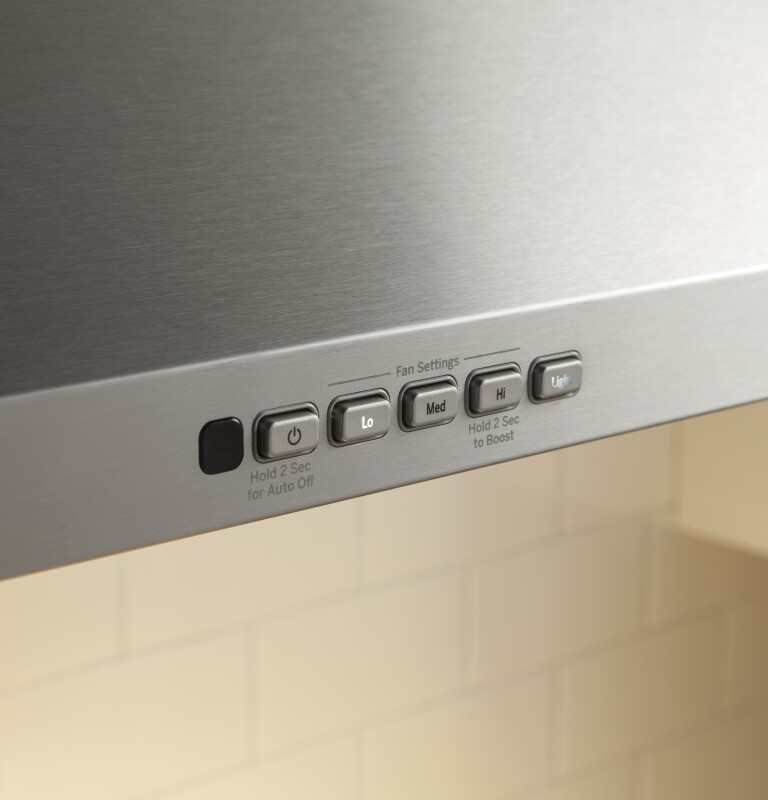

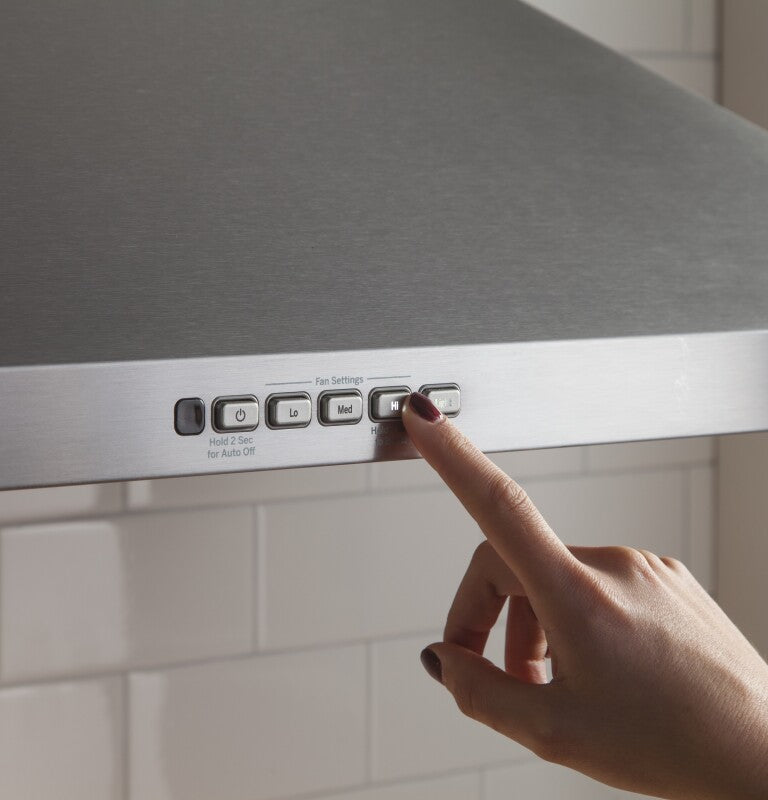

Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display

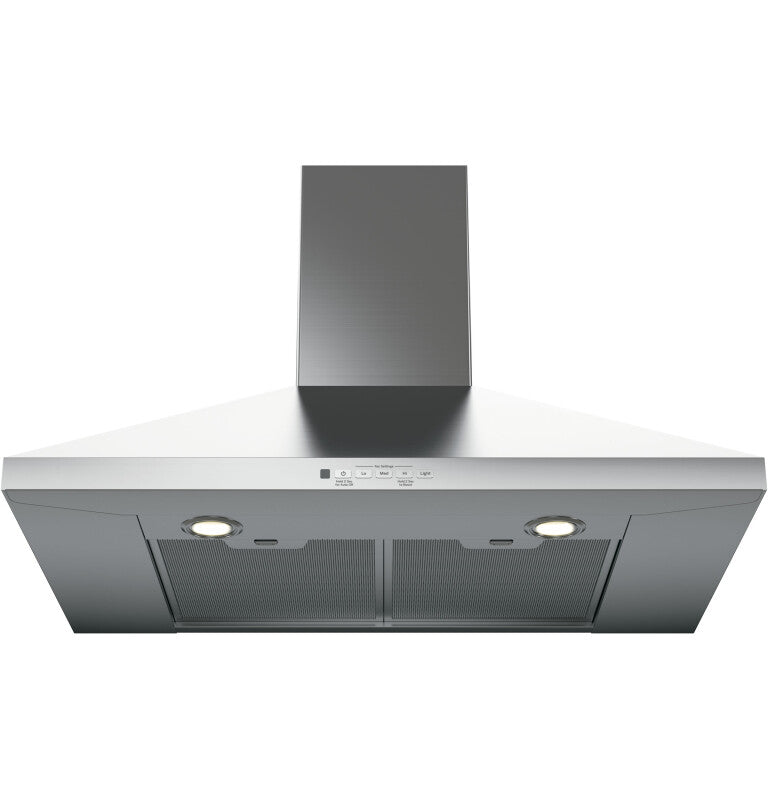

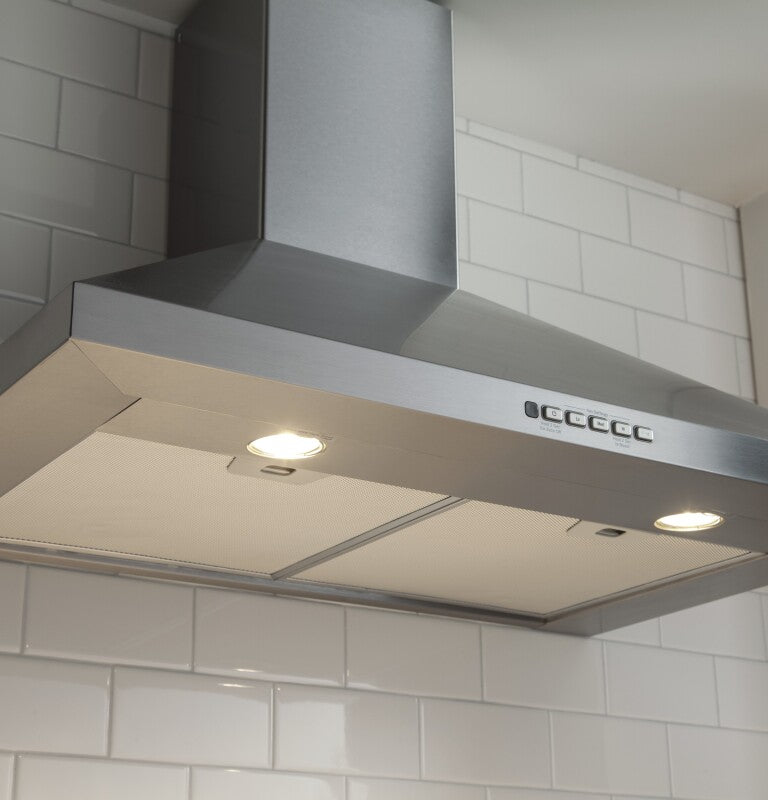

Dual halogen cooktop lighting
Enjoy better visibility with a brightly lit cooktop and surrounding surface
Night light
Keep a dim light on for visibility at all hours
Convertible venting options
Select recirculating or external venting

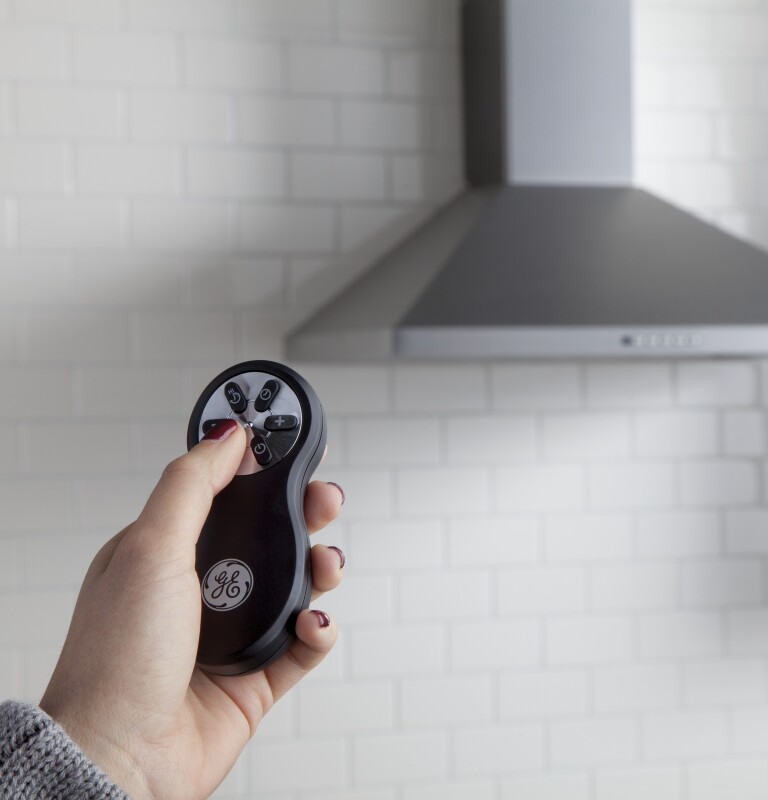

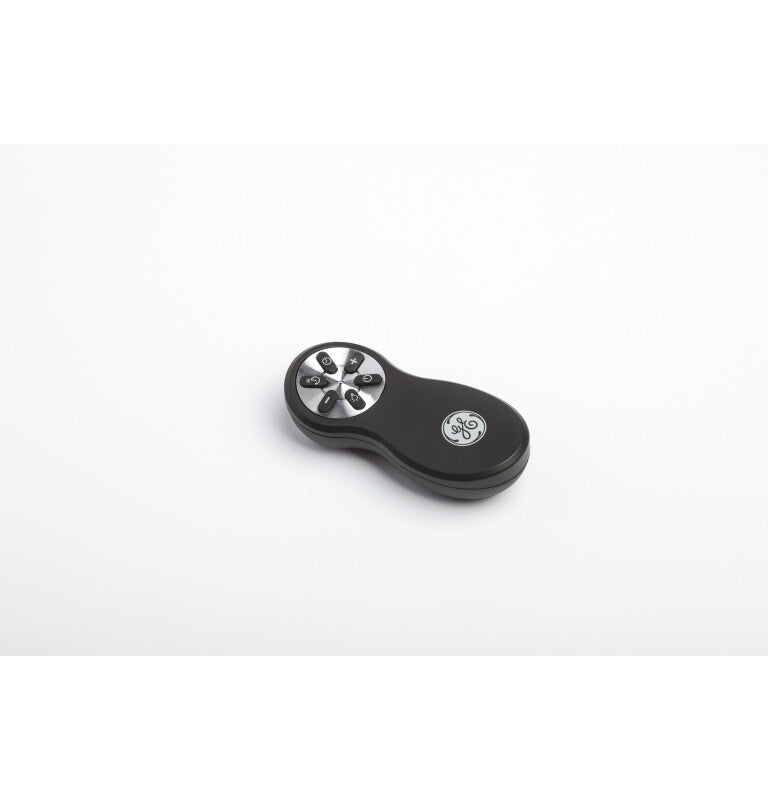

Optional remote control (UXRC70)
Control your ventilation lighting and fan speed from anywhere in the kitchen
Auto-off
Set the vent hood to automatically shut off after 15 minutes
Dishwasher safe filter
Filters grease and is dishwasher-safe
Can be installed either as a recirculating or external-venting hood
350-CFM venting system with boost
Effectively remove smoke, grease, odor and moisture
Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display
Dual halogen cooktop lighting
Enjoy better visibility with a brightly lit cooktop and surrounding surface
Night light
Keep a dim light on for visibility at all hours
Convertible venting options
Select recirculating or external venting
Optional remote control (UXRC70)
Control your ventilation lighting and fan speed from anywhere in the kitchen
Auto-off
Set the vent hood to automatically shut off after 15 minutes
Dishwasher safe filter
Filters grease and is dishwasher-safe
Product Features
-
Duct cover included
Included duct cover reaches up to 9' ceilings and works with optional accessories to reach up to 10' - 8" ceilings -
Auto-off
Set the vent hood to automatically shut off after 15 minutes -
Dishwasher-safe filter
Durable, easy-to-remove filter captures grease and cleans up effortlessly in the dishwasher
Manuals & Guides
Key Features
Easy do-it-yourself Installation
Can be installed either as a recirculating or external-venting hood
350-CFM venting system with boost
Effectively remove smoke, grease, odor and moisture
Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display
Dual halogen cooktop lighting
Enjoy better visibility with a brightly lit cooktop and surrounding surface
Night light
Provides a soft, dim light to enhance visibility and safety in the kitchen at any hour
Convertible venting options
Choose recirculating or external venting to adapt airflow for your kitchen’s specific ventilation setup
Optional remote control (UXRC70)
Control your ventilation lighting and fan speed from anywhere in the kitchen
