SKU: JNXR22SPSS | UPC: 084691912347

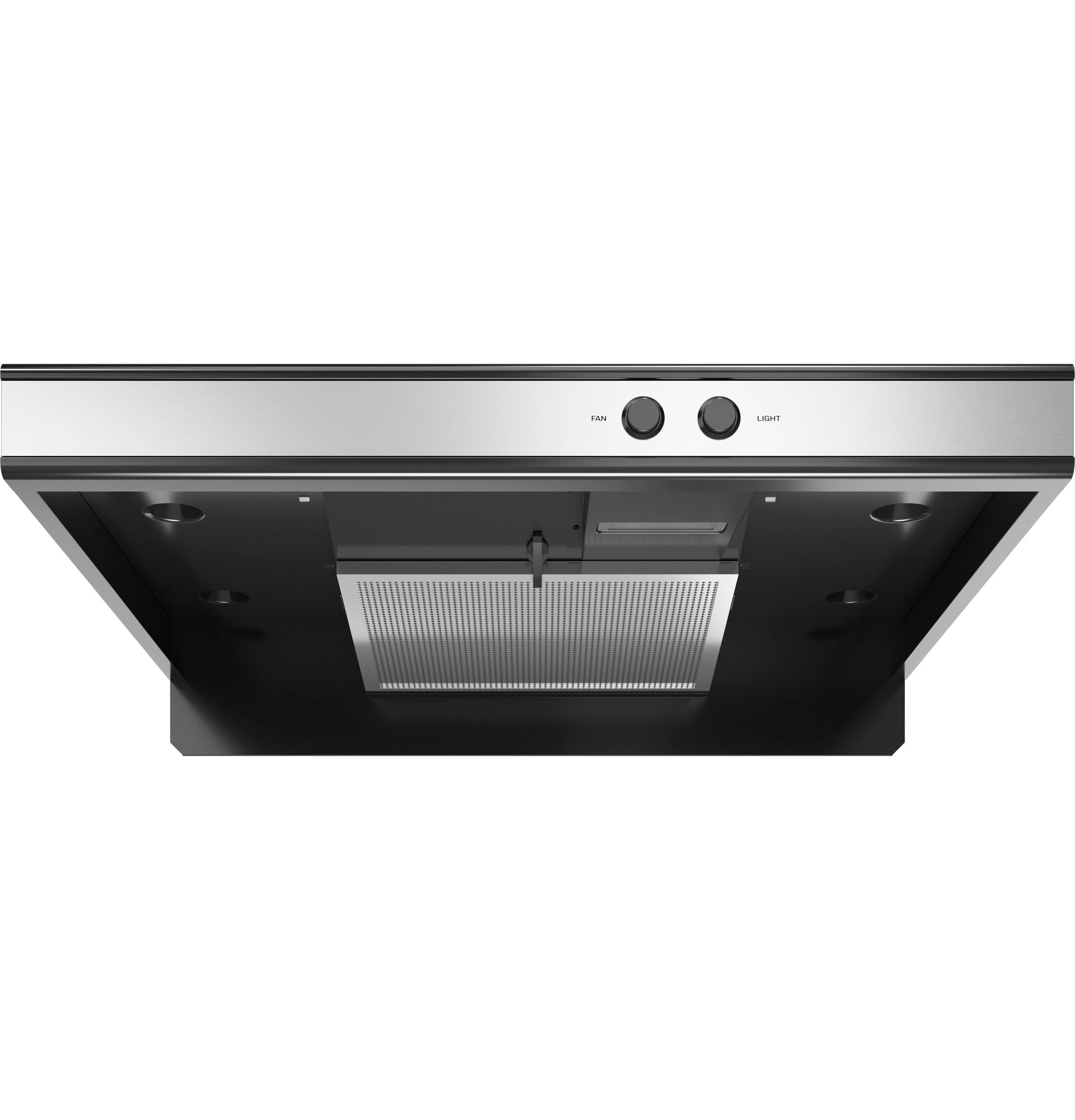

JNXR22SPSS Rv Under The Cabinet Range Hood Stainless Steel/Black

Quick Specification More details

Width:
22.05"
Depth:
17.76"
Height:
4.65"
Type:
Ducted Mount Hoods

About this product

Small RV Range Hood
12V DC Power Range Hood
Front Controls
LED Cooktop Lighting

Summer Sale

Clearance

SKU: JNXR22SPSS | UPC: 084691912347

JNXR22SPSS Rv Under The Cabinet Range Hood Stainless Steel/Black

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22.05"
Depth:
17.76"
Height:
4.65"
Type:
Ducted Mount Hoods

About this product

Small RV Range Hood
12V DC Power Range Hood
Front Controls
LED Cooktop Lighting

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for GE APPLIANCES JNXR22SPSS

Technical Details

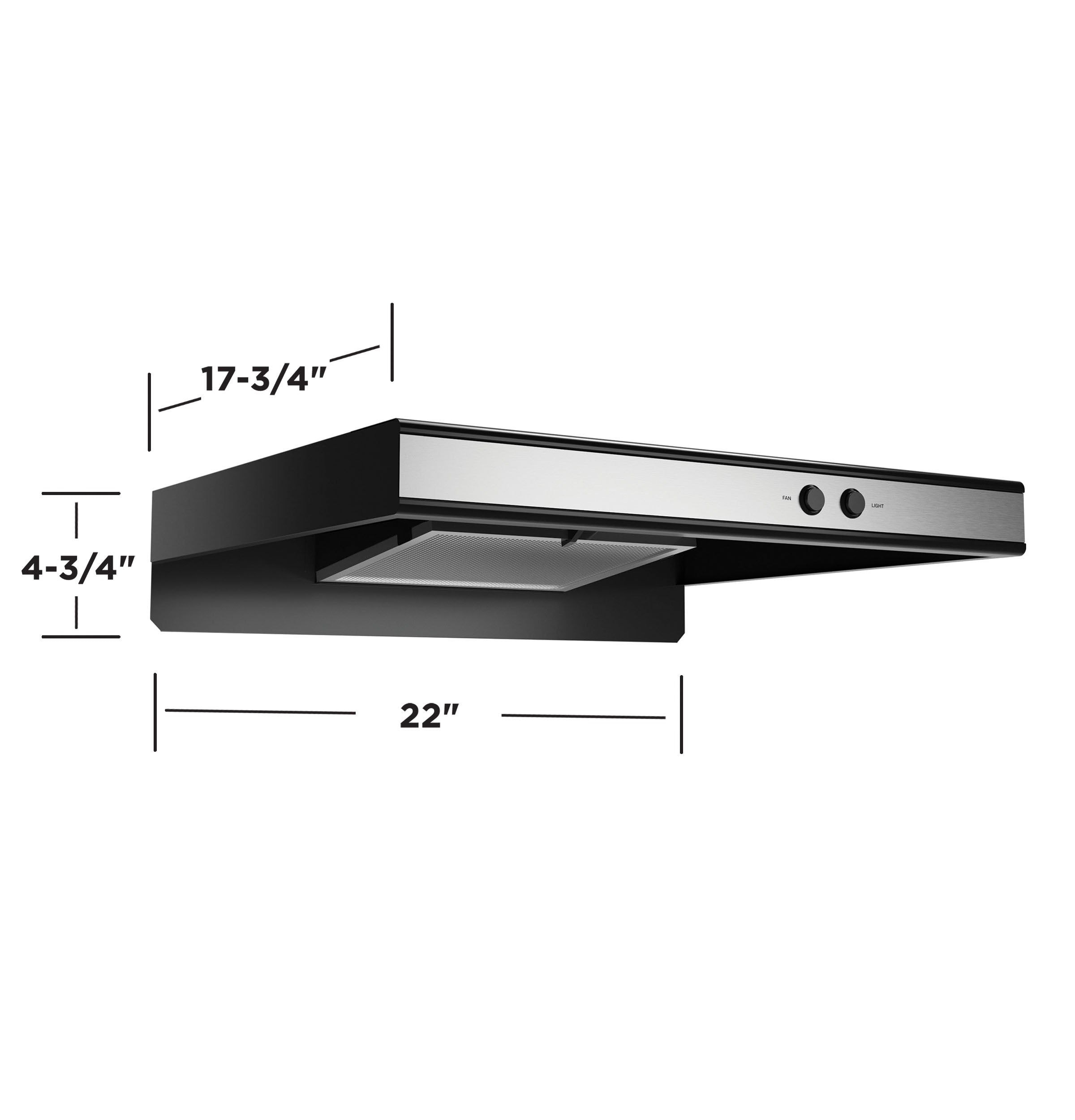

Weights & dimensions

Overall Depth	17.76 in
Overall Width	22.05 in
Overall Height	4.65 in
Net Weight	17 lb
Approximate Shipping Weight	20 lb
Cabinet Width	22 in

Appearance

Installation	RV Ready
Color Appearance	Stainless Steel/Black

Economical / quiet

Non-Vented	Yes
Venting Type	Recirculating

Features

RV Ready	Yes
Cooktop Lighting	LED
Power	8W Power
Control Type	Rocker Switch
Fan Speed Control	1-Speed
Charcoal Filter	Yes
Product Type	Under Cabinet Hood
Control Location	Front
Control Type	Mechanical

Power / ratings

Voltage (MAX)

12 V

Dimensions & weight

Width	22.05 in.
Height	4.65 in.
Length	17.76 in.
Weight	17 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	27.05 in.
Shipping Height	9.65 in.
Shipping Length	22.76 in.
Shipping Weight	57 lbs.
Total of Shipping Weight	57 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.05 ft³
Dimensional Weight	13.1 lbs.
Total of Cubes	1.05 ft³
Total of Dimensional Weight	13.1 lbs.

Warranty

Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance

Description

Small RV Range Hood
Easily install this RV range hood over the camper's cooktop for efficient ventilation and odor removal

12V DC Power Range Hood
This 12-volt range hood can easily be used with an RV's 12-volt power system for a user-friendly solution

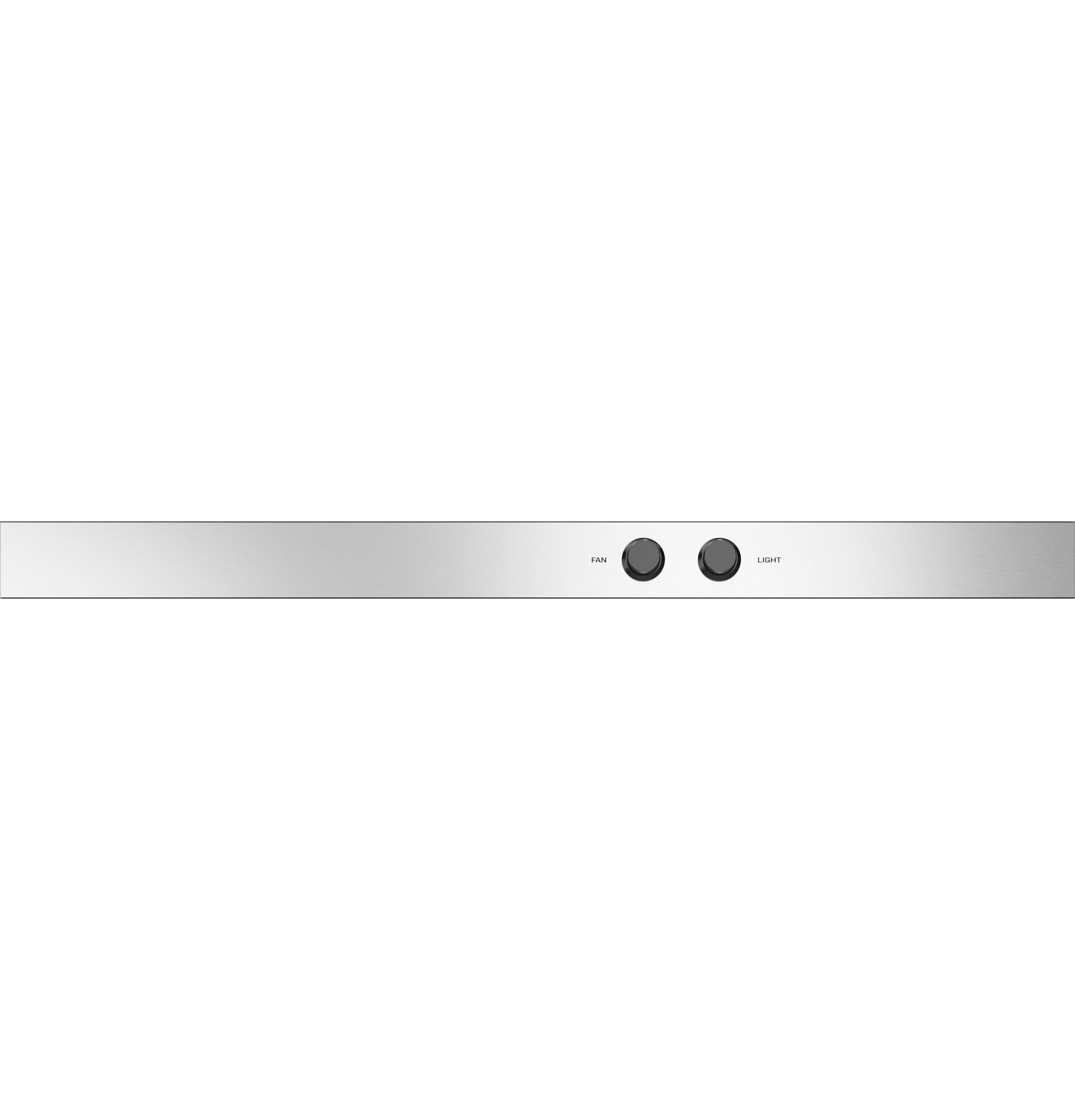

Front Controls
Enjoy convenient access to the fan and light switches with an easy access panel on the RV range hood

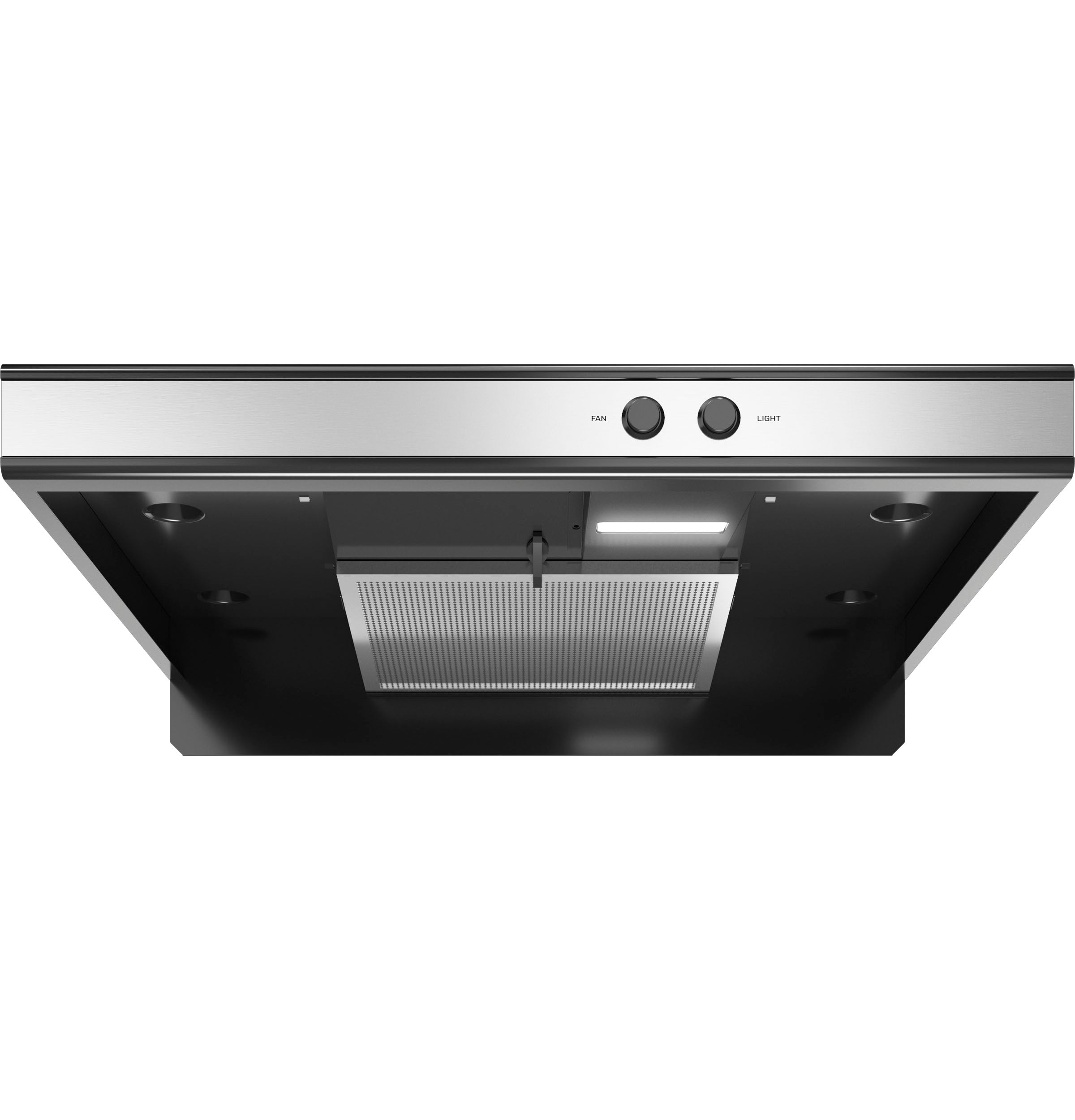

LED Cooktop Lighting
Cook on a well-lit RV range cooktop thanks to a range hood that illuminates the entire stove surface with powerful LED lights

Ductless RV Range Hood
The non-vented design of this ductless range hood cleans and returns air to the RV kitchen without the need for modifications

Filter Included
A reusable, washable RV range filter is included. Easily clean the aluminum mesh filter under running water for fresh air every use

Design Requirements - NFPA 1192
This NFPA 1192 compliant RV under cabinet hood is an ideal choice for cabinets approximately 15 inches to 16 inches deep

Product Features

Small RV Range Hood
Easily install this RV range hood over the camper's cooktop for efficient ventilation and odor removal
12V DC Power Range Hood
This 12-volt range hood can easily be used with an RV's 12-volt power system for a user-friendly solution
Front Controls
Enjoy convenient access to the fan and light switches with an easy access panel on the RV range hood
LED Cooktop Lighting
Cook on a well-lit RV range cooktop thanks to a range hood that illuminates the entire stove surface with powerful LED lights
Ductless RV Range Hood
The non-vented design of this ductless range hood cleans and returns air to the RV kitchen without the need for modifications
Filter Included
A reusable, washable RV range filter is included. Easily clean the aluminum mesh filter under running water for fresh air every use
Design Requirements - NFPA 1192
This NFPA 1192 compliant RV under cabinet hood is an ideal choice for cabinets approximately 15 inches to 16 inches deep
