SKU: JNM3184DPBB | UPC: 084691857068

JNM3184DPBB Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting Black

Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting
Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting
Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting
Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting
Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting
Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting
Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting
Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting
Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting
Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting
Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting
Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting
Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting
Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting

Quick Specification More details

  • Width:
    28.5 - 31"
  • Depth:
    15.125"
  • Height:
    15" And Above
  • Type:
    Over-the-Range Microwaves

About this product

  • Large Capacity
  • High Power
  • Add 30 Seconds Button
  • 12.8" Turntable
Summer Sale
Clearance

SKU: JNM3184DPBB | UPC: 084691857068

JNM3184DPBB Ge® 1.8 Cu. Ft. Over-the-range Microwave Oven With Recirculating Venting Black

Contact us for Pricing

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    28.5 - 31"
  • Depth:
    15.125"
  • Height:
    15" And Above
  • Type:
    Over-the-Range Microwaves

About this product

  • Large Capacity
  • High Power
  • Add 30 Seconds Button
  • 12.8" Turntable
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for GE APPLIANCES JNM3184DPBB

Technical Details

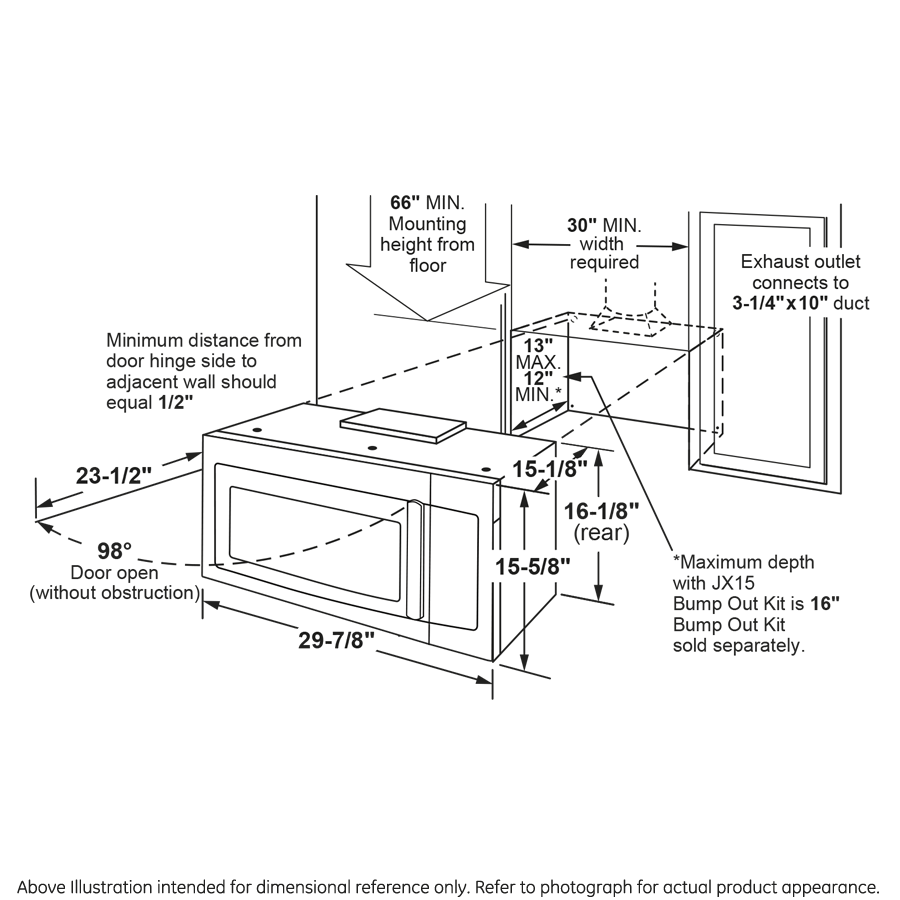

Weights & dimensions
Overall Width 29.875 in
Overall Depth 15.125 in
Overall Height 16.4375 in
Approximate Shipping Weight 63 lb
Cabinet Width 30 in
Net Weight 56 lb
Cavity (W x H x D) 21-9/16 x 8-7/8 x 14-1/8

Features
Display Type LED
Cooking Modes Microwave
RV Ready Yes
Electronic Digital Display with Clock Yes
Control Features Vent Fan
Display Screen Size (Diagonal Length) 2.01
Product Type Over-the-range Microwave
Express Cook 1-6 Minutes
Style Over-The-Range
Turntable On / Off Yes
Microwave Watts (IEC-705) 900 W
Power Levels 10

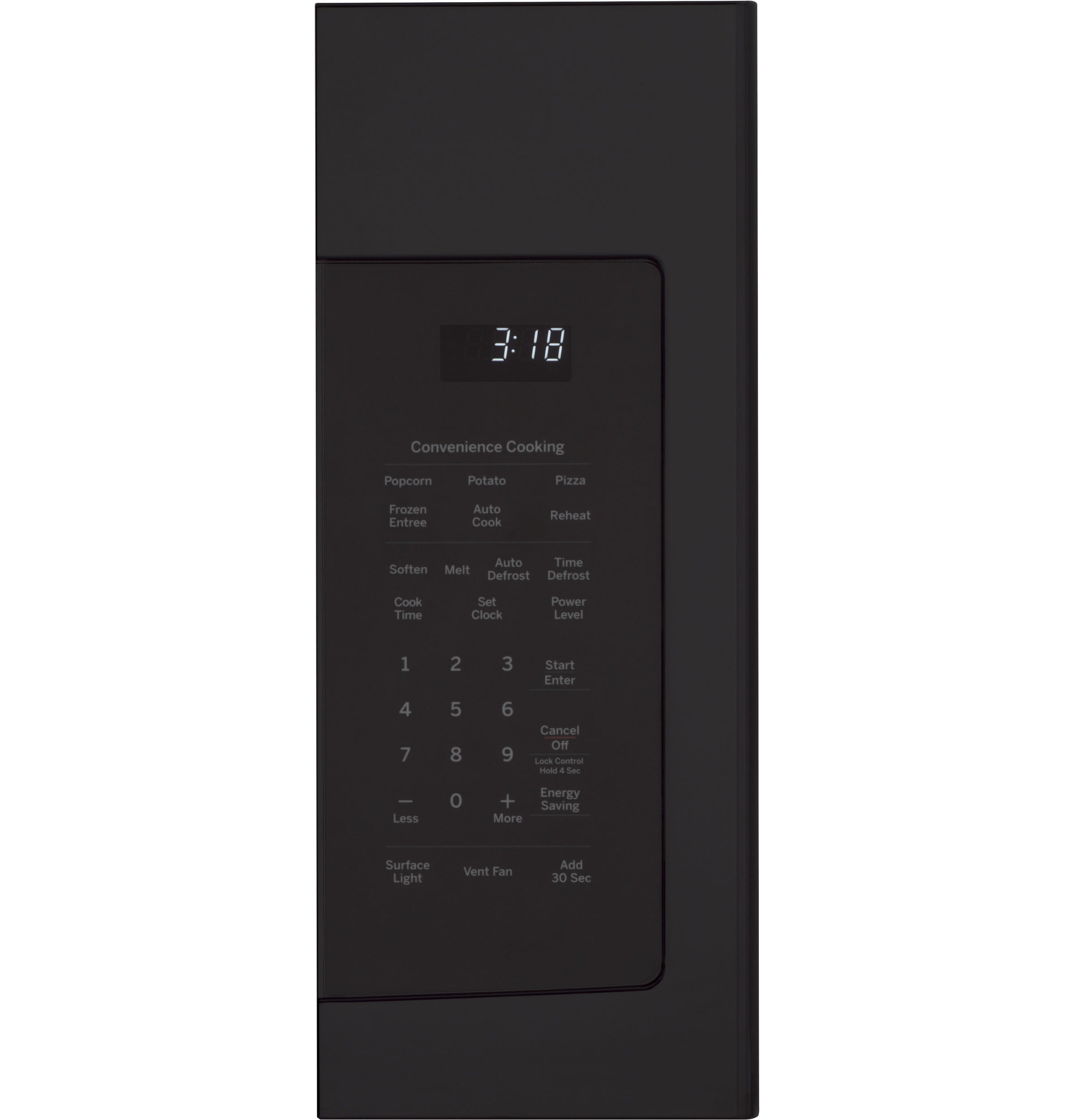

Control Type Electronic Touch
Cooktop Lighting Bright/Night/Off
Exhaust Fan 300-CFM
Turntable Glass
Microwave Convenience Cooking Controls Reheat
Cooking Technology Microwave
Interior Oven Light Incandescent
Interior Lighting 1 Incandescent Light
Microwave Oven Interior Painted Galvanized Steel
Control Features Timer On/Off
Control Features Add 30 Seconds
Control Features Turntable On/Off
Control Features Surface Light
Control Features Power Level
Control Features Set Clock
Control Features Cancel/Off
Control Features Start/Pause
Control Features Scroll Speed
Control Features Defrost: Auto/Time
Control Features Reminder
Control Features Clock Display
Exhaust Fan 2-Speed
Microwave Convenience Cooking Controls Popcorn
Microwave Convenience Cooking Controls Beverage
Microwave Convenience Cooking Controls Potato
Microwave Convenience Cooking Controls Defrost: Weight/Time
Microwave Convenience Cooking Controls Cook Time
Turntable Size 12.8

Economical / quiet
Non-Vented Recirculating (Factory Set - Filter Included)
Venting Type Convertible to External Venting

Accessories
Optional Side Filler Panel Kit JX36BBB
Recirculating Charcoal Filter Kit JX81C or WB02X33061 (Included)
Optional Kits 15" Bump Out Kit - JX15BUMPBB

Appearance
Case Color Black
Handle Color Black
Oven Door Features Oven Window
Installation RV Ready
Door Color Black
Color Appearance Black

Power / ratings
Input Volts/Hertz 120/60
Electrical Input - 120V Amperage 15.0
Electrical Input - 120V Watts 1600
Volts/Hertz 120V; 60Hz

Warranty
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Capacity
Vent CFM 300
Total Capacity (cubic feet) 1.80 cu ft

Other
Cavity (W x H x D) 21-9/16 x 8-7/8 x 14-1/8

Dimensions & weight
Width 29.88 in.
Height 16.44 in.
Length 15.13 in.
Weight 56 lbs.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 21.44 in.
Shipping Length 20.13 in.
Shipping Weight 96 lbs.
Total of Shipping Weight 96 lbs.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 4.3 ft³
Dimensional Weight 53.43 lbs.
Total of Cubes 4.3 ft³
Total of Dimensional Weight 53.43 lbs.

Description

Make everything from soups to snacks in a snap thanks to 900 watts of power, which cuts down on cook times so you can get back to what matters most.Keep small spaces clear of cooking odors, steam and smoke with a 300-CFM ventilation system and 2-speed fan.16 7/16 H x 29 7/8 W x 15 1/8 D


Product Features

  • Large Capacity
    Have enough space to make all your family's favorites thanks to the 1.8 cubic foot capacity, which easily handles dinner plates, soup bowls and microwave-safe containers
  • High Power
    Make everything from soups to snacks in a snap thanks to 900 watts of power, which cuts down on cook times so you can get back to what matters most
  • Add 30 Seconds Button
    Easily add cooking time with a single touch
  • 12.8" Turntable
    Enjoy an even microwave cook with a rotating turntable large enough for a full-sized dinner plate
  • Convenience Cooking Buttons
    Take the guesswork out of popular microwave foods like popcorn and hot beverages with easy-to-find buttons that adjust settings for you
  • 2-Speed Ventilation
    Keep small spaces clear of cooking odors, steam and smoke with a 300-CFM ventilation system and 2-speed fan
  • Removable Charcoal Filter
    Help keep your small space smelling fresh with a removable charcoal air filter that helps purify the air of stale odors
  • Tailored for RV Living
    Experience the perfect blend of compact efficiency and durable design with this microwave, crafted specifically for RV kitchens to deliver reliable cooking performance, energy efficiency, and user-friendly operation on the road.
  • Versatile microwave power levels for perfect cooking
    Experience customized cooking with adjustable power levels, from quick high-heat for veggies and beverages to gentle low-heat for defrosting and delicate sauces
  • Express Cook Simplicity
    Just press a number, 1-6, for equal minutes of cooking time. Enjoy the ease of efficient meal prep, perfect for family dinners or quick snacks
