Sale price $629.10 Regular price $998.97 Save $369.87 / 37% OFF

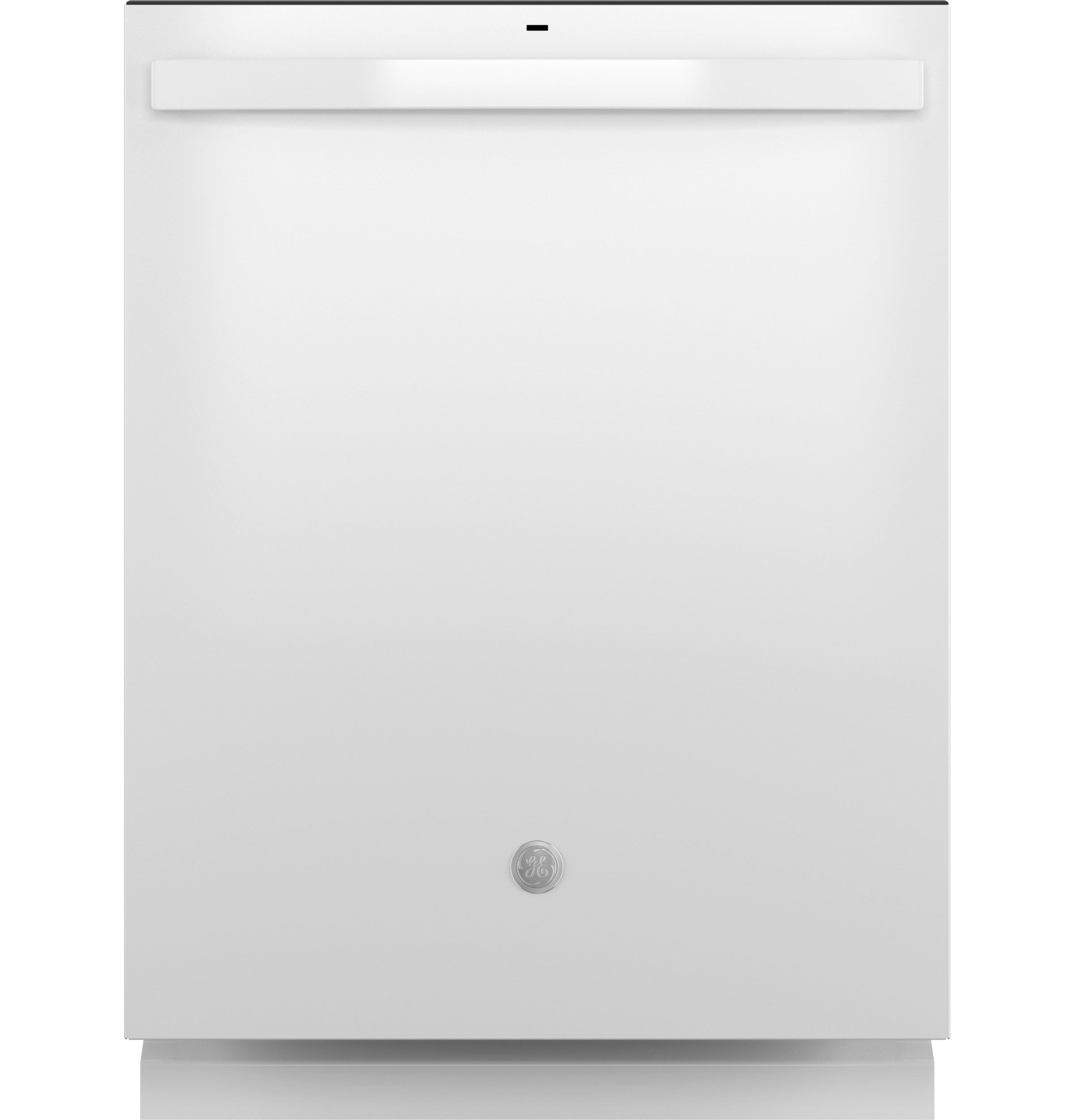

Product Details for GE APPLIANCES GDT670SGVWW

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 24 in
Overall Width 23.75 in
Overall Height 34 in
Height w/ Legs Retracted - Minimum Height 33.375 in
Cabinet Width 24 in
Net Weight 99 lb
Approximate Shipping Weight 112 lb
Overall Depth with Handle 25.6 in
Height w/Legs Extended - Maximum Height 34.625 in
Depth with Door Open 27.5 in
Depth Without Handle 24 in
Cutout Height (in) 33.5
Cutout Width (in) 24
Cutout Depth (in) 24

Features

Wash System 600 Series
Sensor Clean Sensor
Lower Rack Ball-Tip Tines
Tub Type Tall Tub
Leveling System 4 Leveling Legs
OU Certified No
Additional Protection Active Flood Protect
Number of Place Settings 16

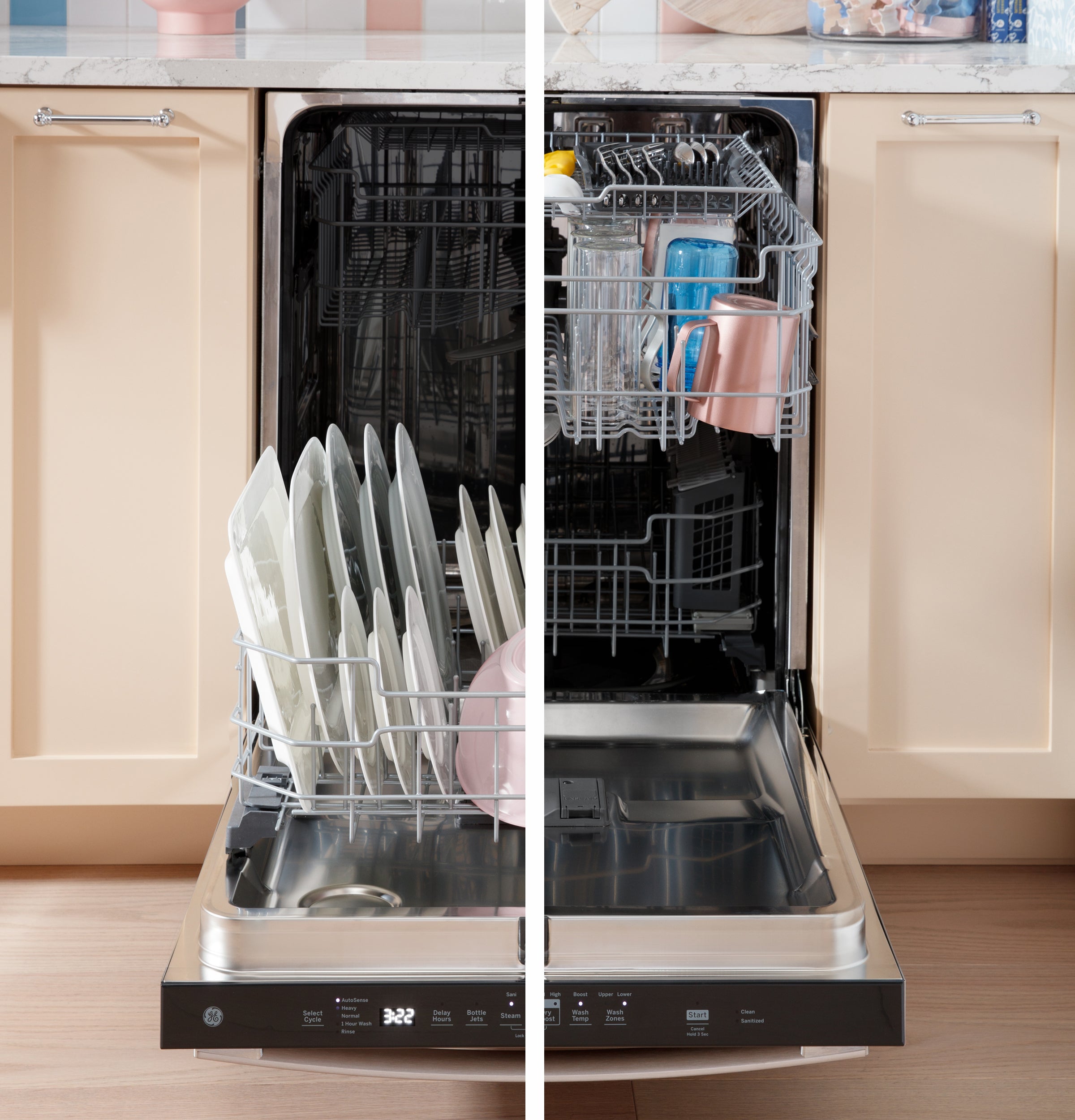

Dishwasher Options Wash Zone Upper Only
Latch Pull with Handle
Number of Options 11
Style Built-In Top Control
Water Filtration System 100% Filtration with Piranha Hard Food Disposer and Removable Filter
Cutlery Tray One piece removable 3rd rack
Rack Features Ball-Tipped Tines
Racking Material Nylon
Dishwasher Cycles Rinse
Rack Color Silver
Dispenser Rinse Aid with Indicator and Adjustment
WiFi Connect Optional (Requires part no. PBX23W00Y1)
Control Type Top Controls
Racking System Full 3rd rack + caddy
Dishwasher Drying Features Normal, High, Off
Wash Arms Upper
Wash System Features Variable Speed Dual Pumps and Motors
Top Rack/3rd Rack 3rd Rack + Caddy
Exterior Style Traditional
Product Type Built-In
Upper Rack Smooth Glide Upper Rack
Dishwasher Control Features Last Cycle Memory
Number of Cycles 5
Tub and Door Liner Stainless Steel
Sabbath Mode Yes
Showroom Power Mode Yes

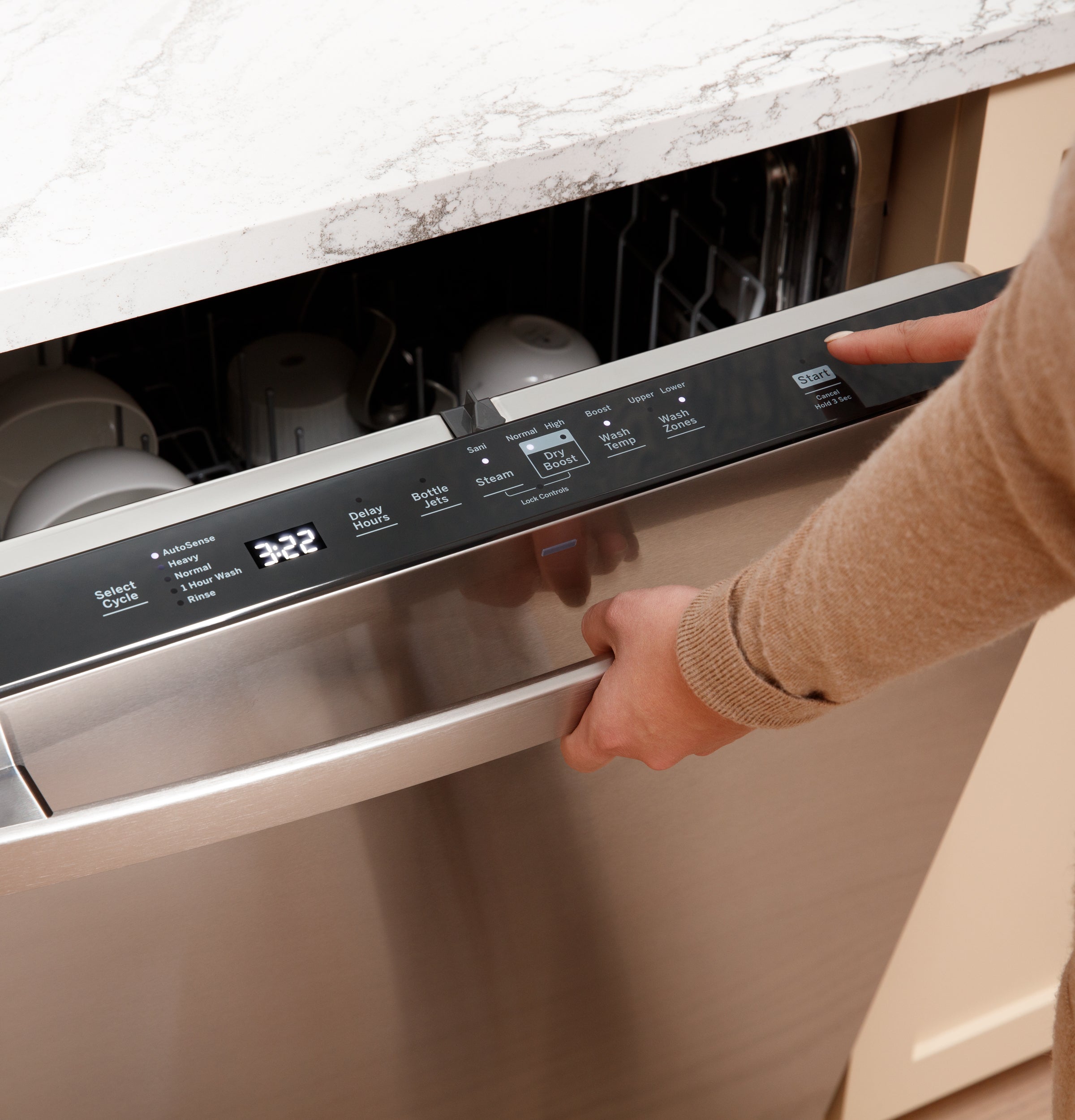

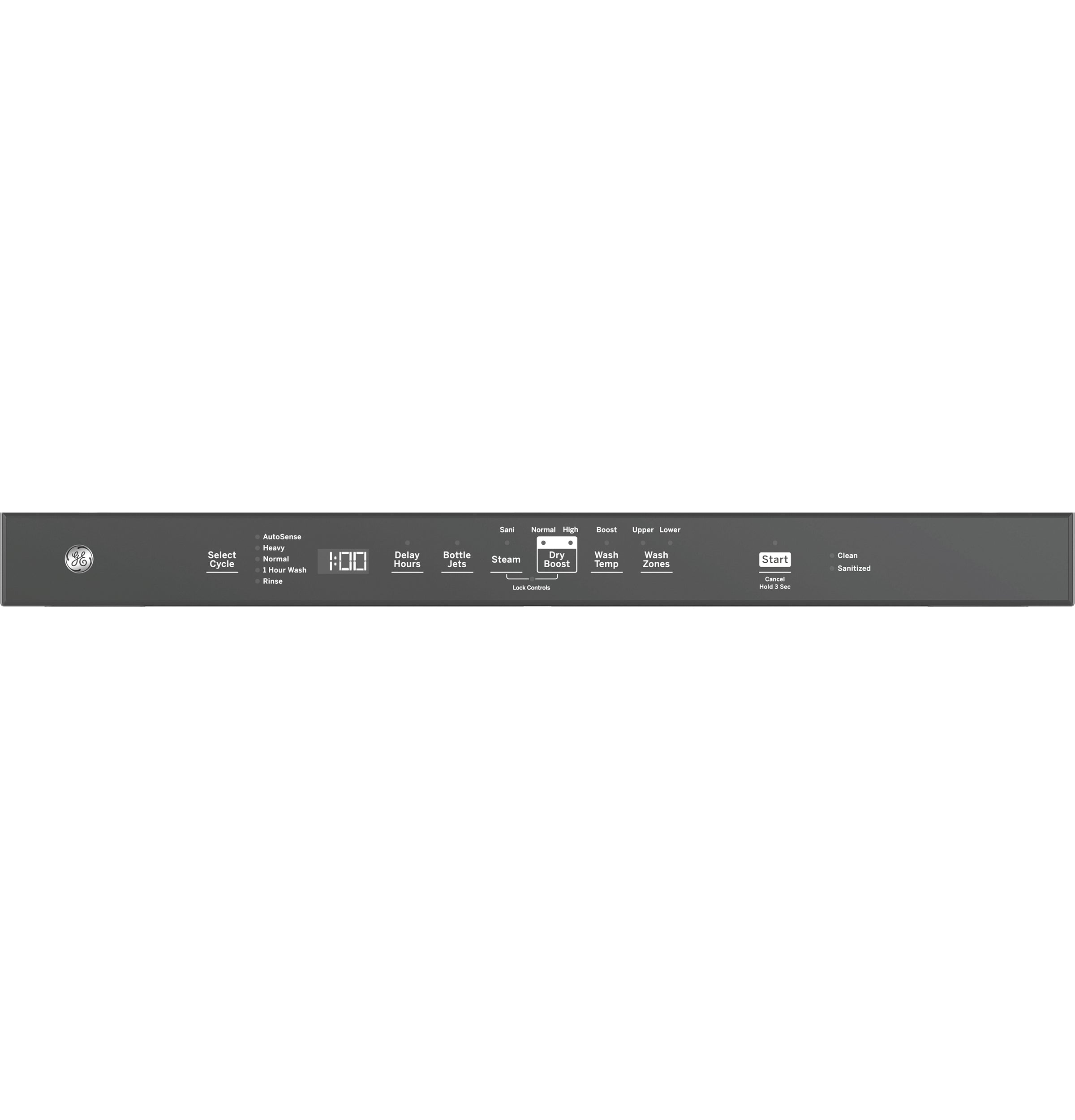

Control Type 8 Touchpads
Control Type Cap Touch Controls
Dishwasher Control Features 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door
Dishwasher Control Features 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
Dishwasher Control Features Audible End-of-Cycle Signal
Dishwasher Control Features Control Lock with 1 Light
Dishwasher Cycles AutoSense
Dishwasher Cycles Heavy Wash
Dishwasher Cycles Normal Wash
Dishwasher Cycles 1 Hour Wash
Dishwasher Drying Features Dry Boost™
Dishwasher Options Delay Start 1-12 Hr.
Dishwasher Options Bottle Jets
Dishwasher Options Steam + Sani (Certified to NSF Standard 184)
Dishwasher Options Dry Boost™ (High)
Dishwasher Options Dry Boost™ (Normal)
Dishwasher Options Wash TempBoost

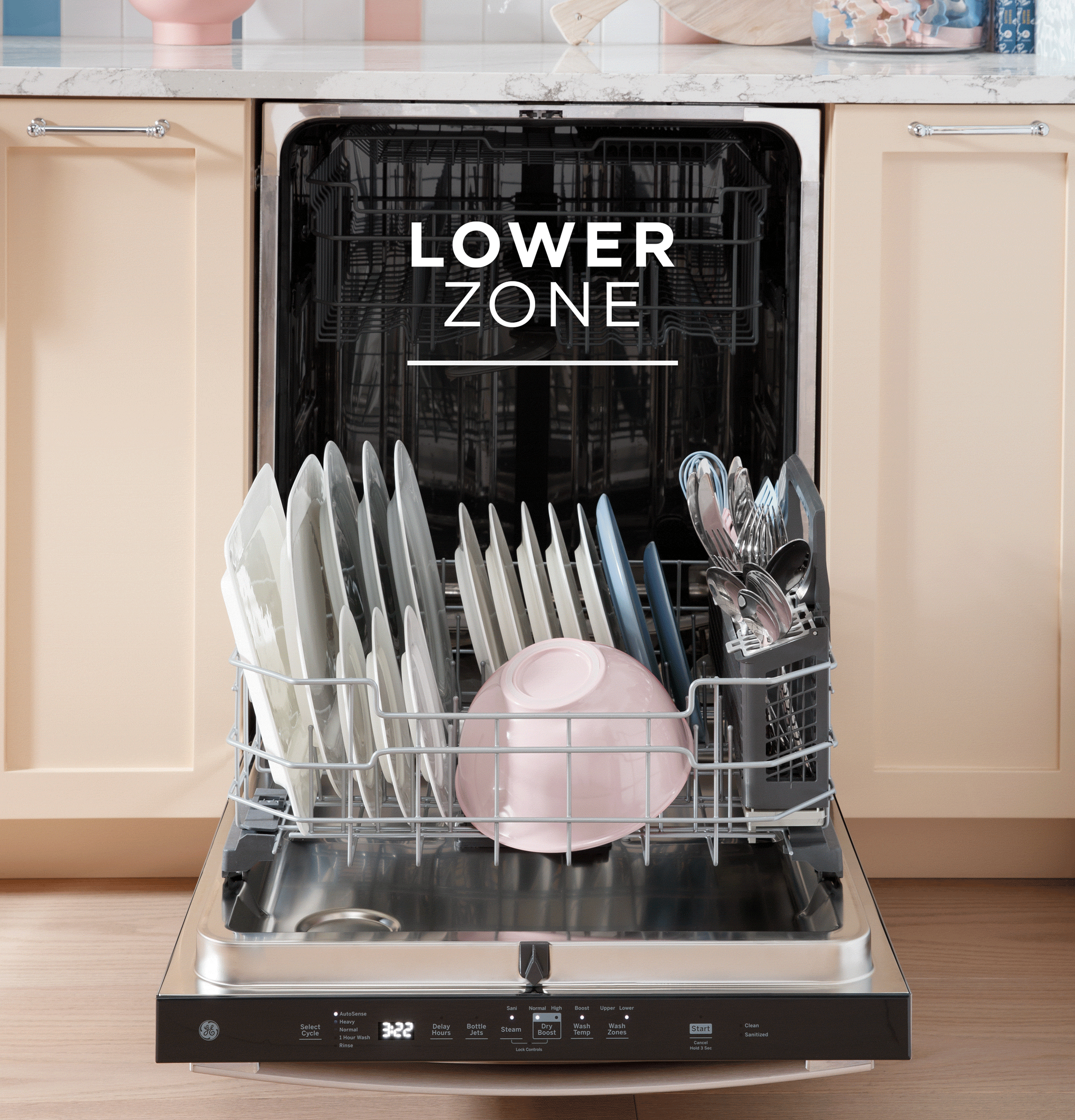

Dishwasher Options Wash Zone Lower Only
Dishwasher Options Sabbath Mode
Dishwasher Options Child Lock
Dishwasher Options Start/Cancel
Rack Features Adjustable Upper Rack
Rack Features 1 Piece Silverware Basket with 3 Cell Covers
Upper Rack Premium Height Adjustable
Upper Rack Ball-Tip Tines
Wash Arms 3 Wash Levels
Wash Arms Lower
Wash Arms Middle
Wash Arms Bottle Jets
Wash Arms Bottle Wash Jets
Wash Arms Deep Clean Silverware Jets
Wash System 3-Level
Wash System Features Automatic Temperature Control
Wash System Features Drain Pump
Wash System Features Piranha™ Hard Food Disposer with removable filter
Wash System Features Automatic HotStart
Wash System Features Bottle Jets (4)

Appearance

Handle Rounded Handle

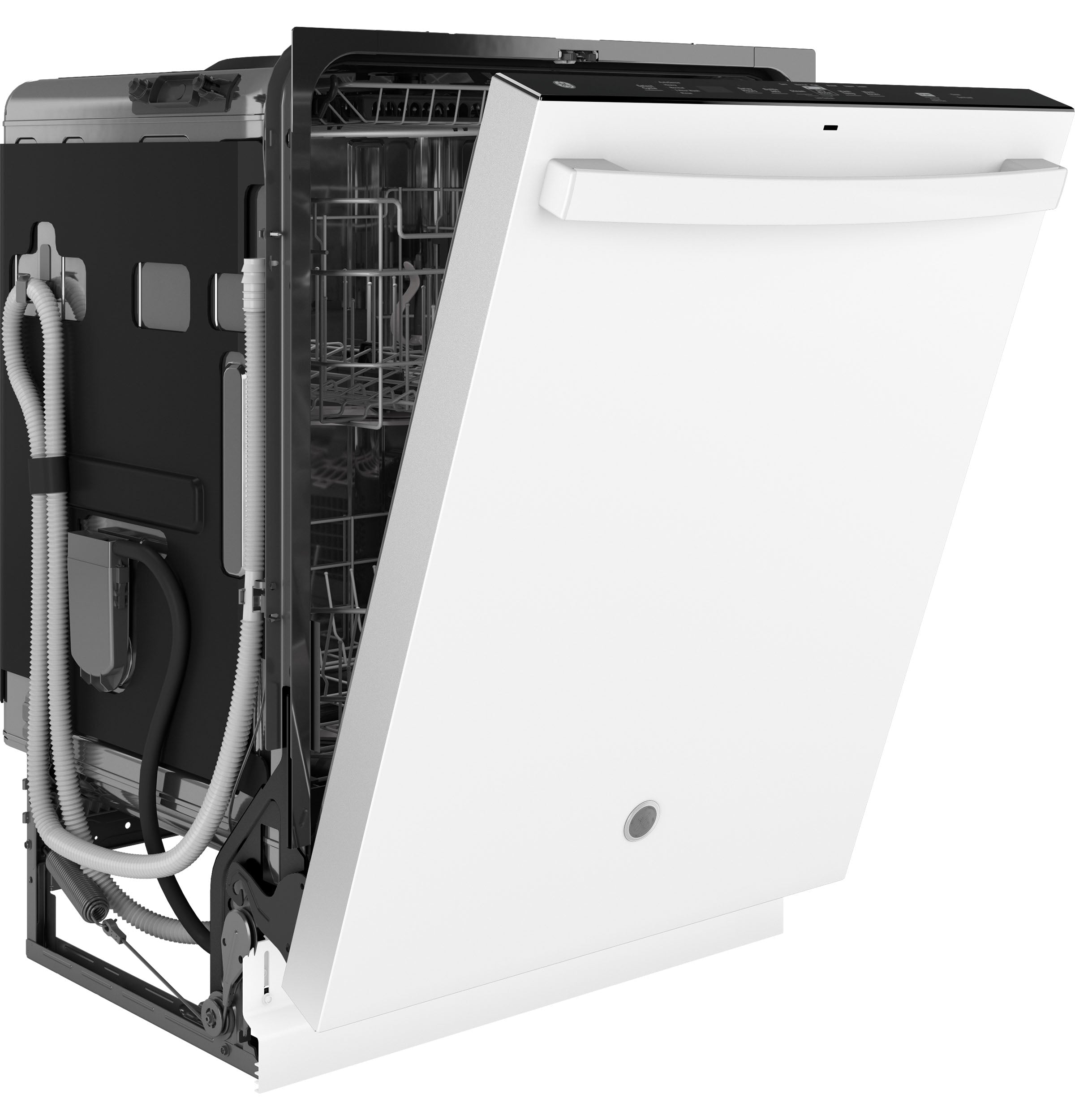

Installation Side or Top Mount Install Brackets Included
Handle Color White
Door Style Long Door with Top Controls
Door Appearance Full-length door
Color Appearance White
Control Panel Color Storm Gray
Installation Built-Up Floor Capable
Installation Flush Cabinet Installation

Power / ratings

Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year) 240
Electrical Requirements 120V ; 60Hz ; 6.6A
Calrod Heater Watts 800/500
Volts/Hertz/Amps 120V; 60Hz; 6.6A
Hertz 60
Watts 936

Economical / quiet

Door Insulation Mastic
Quiet Package 45 dBA
Outer Wrap Full-wrap Blanket
Motor Type Variable Speed
Quiet Features Tub Collar Trim
Door Insulation Insulation
Outer Wrap Bitumen
Quiet Features Quiet Water Valve
Quiet Features Sealed Toe Kick

Accessories

Optional 12' Drain Hose Optional hose kit (WD24X10065)

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Dimensions & weight

Width 23.75 in.
Height 34 in.
Length 24 in.
Weight 99 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.75 in.
Shipping Height 39 in.
Shipping Length 29 in.
Shipping Weight 139 lbs.
Total of Shipping Weight 139 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 11.22 ft³
Dimensional Weight 139.42 lbs.
Total of Cubes 11.22 ft³
Total of Dimensional Weight 139.42 lbs.

Description

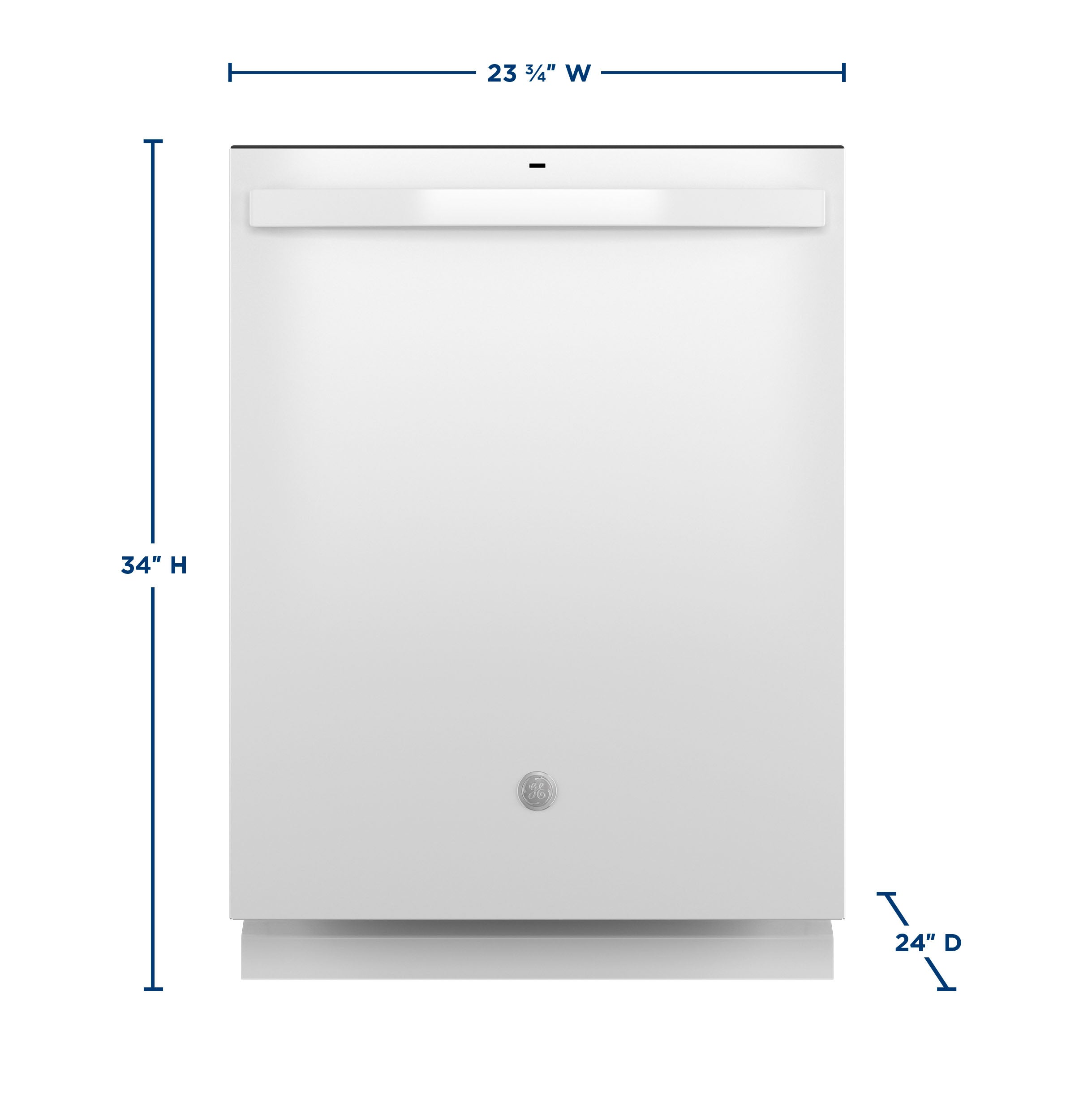

The versatile Third Rack was redesigned to load more than just silverware with additional space for unique items..A system of 40 deep-cleaning silverware jets blasts the silverware basket from the bottom up, removing all stuck-on food for sparkling results..34 H x 23 3/4 W x 24 D


Product Features

  • 45 dBA Dishwasher
    Enjoy a peaceful kitchen and a powerful wash with this super-silent, 45 dBA dishwasher.
  • Optional WiFi
    Monitor this dishwasher with a smartphone and a WiFi adapter (sold separately) to enjoy a smart dishwasher experience. Simply attach the adapter and start using the SmartHQ™ app to control and monitor your unit remotely. You can even reorder detergent.
  • 1-Hour Wash Cycle
    Unload spotless plates, glasses, pots and pans without waiting hours for the dishwasher to finish with this one-hour dishwasher cycle.
  • AutoSense Cycle
    This energy-saving dishwasher has an AutoSense Cycle that detects soil level and amount of dishes before automatically adjusting the wash setting for the ultimate clean.

Key Features

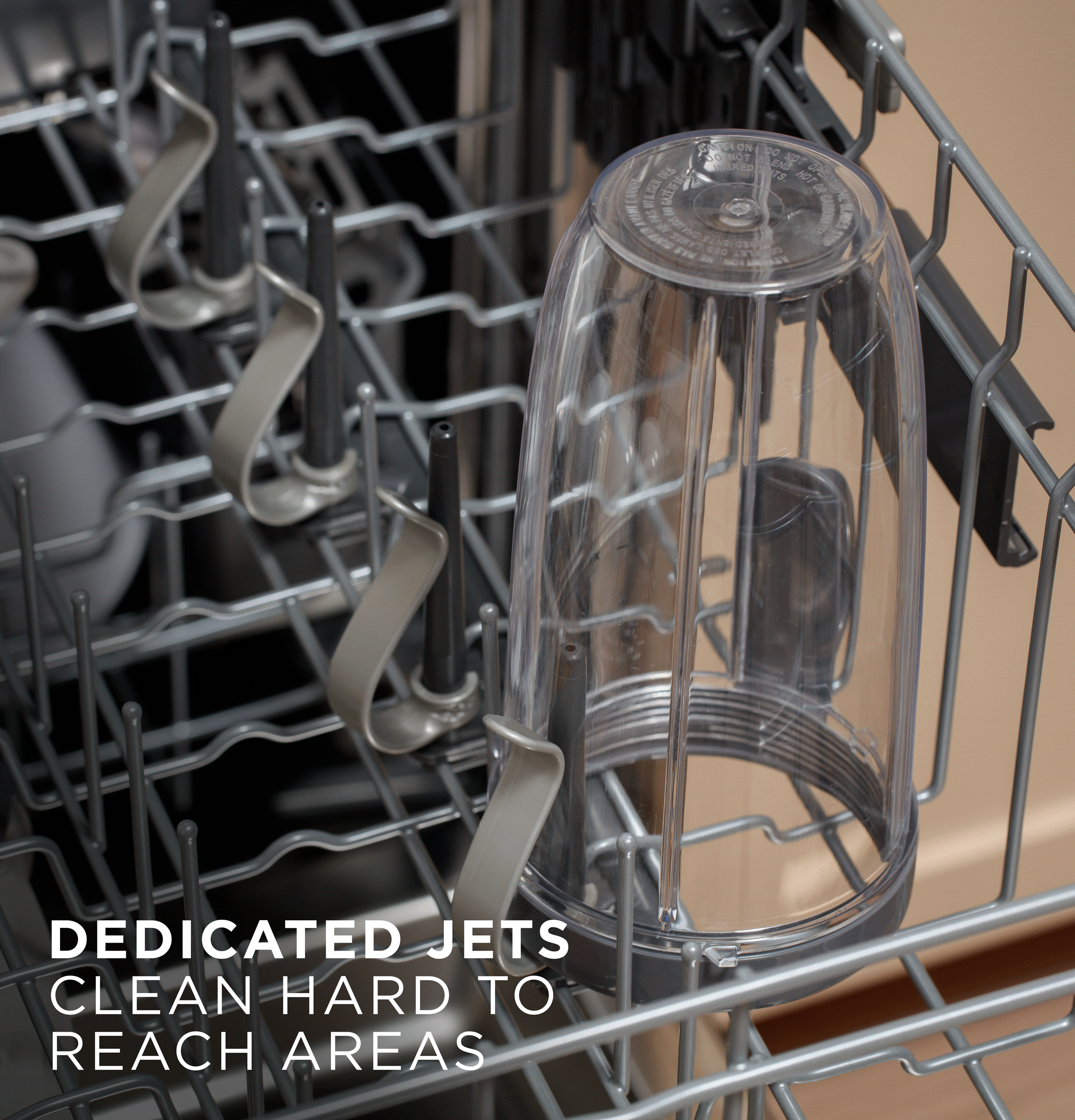

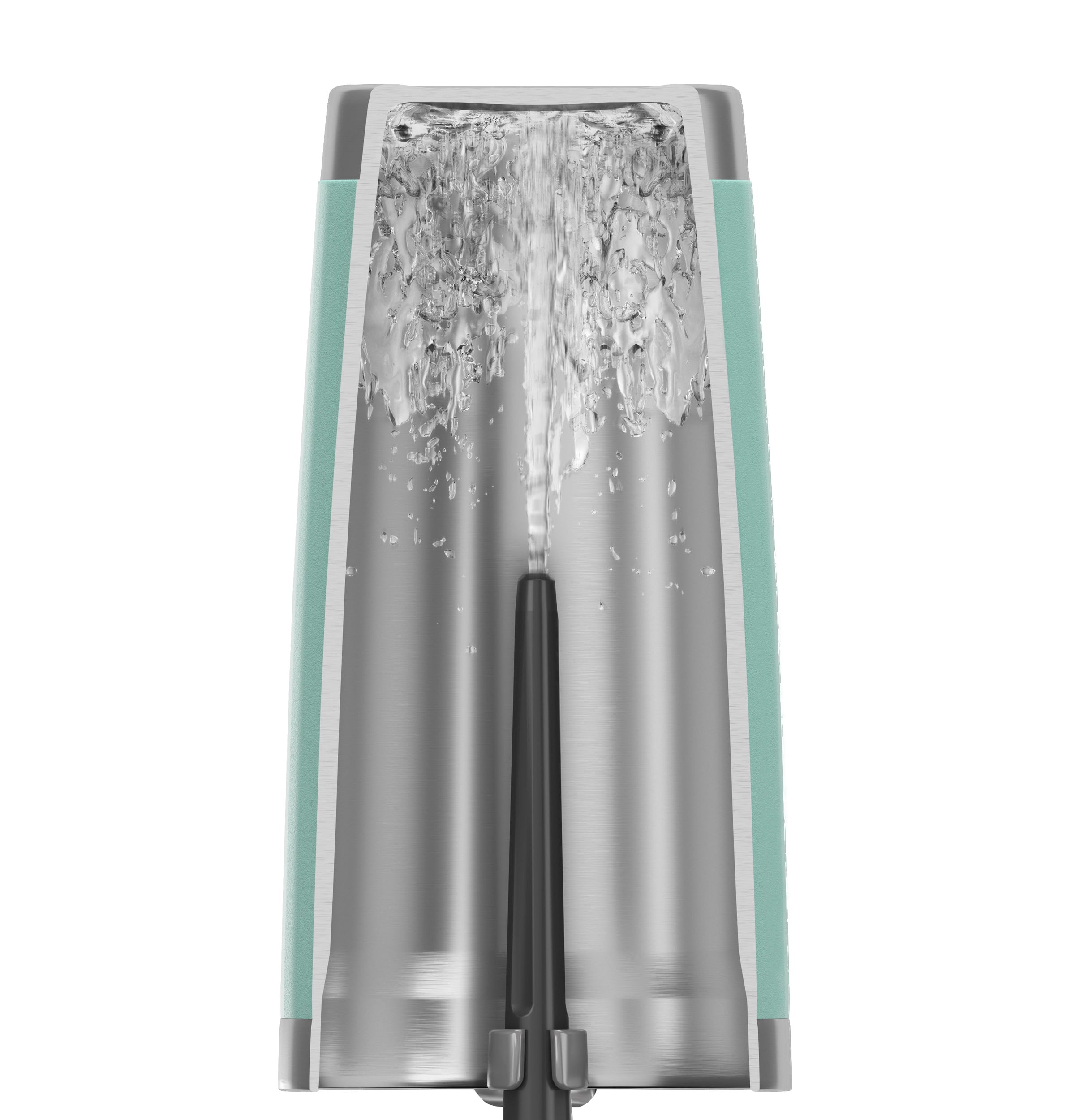

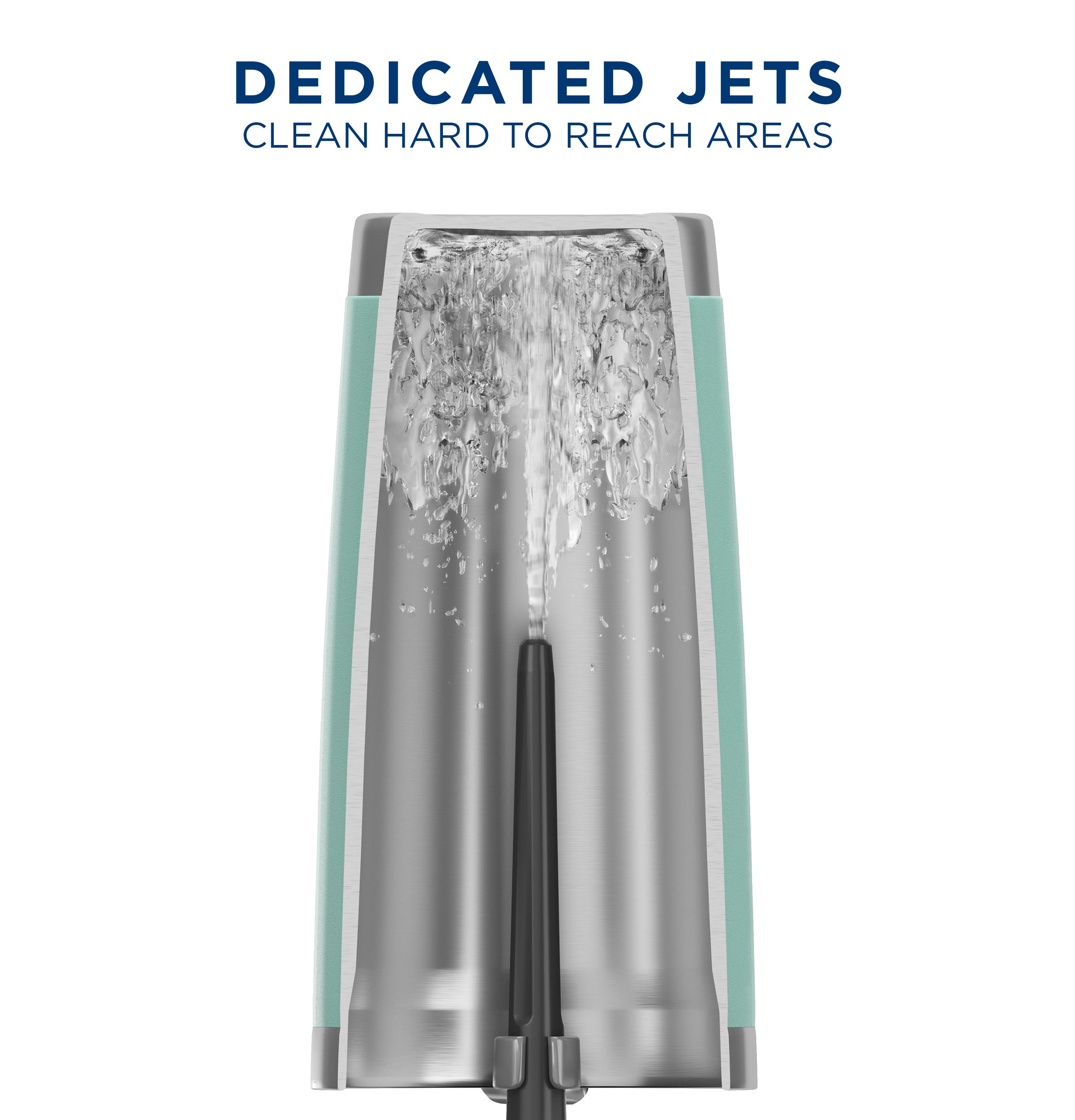

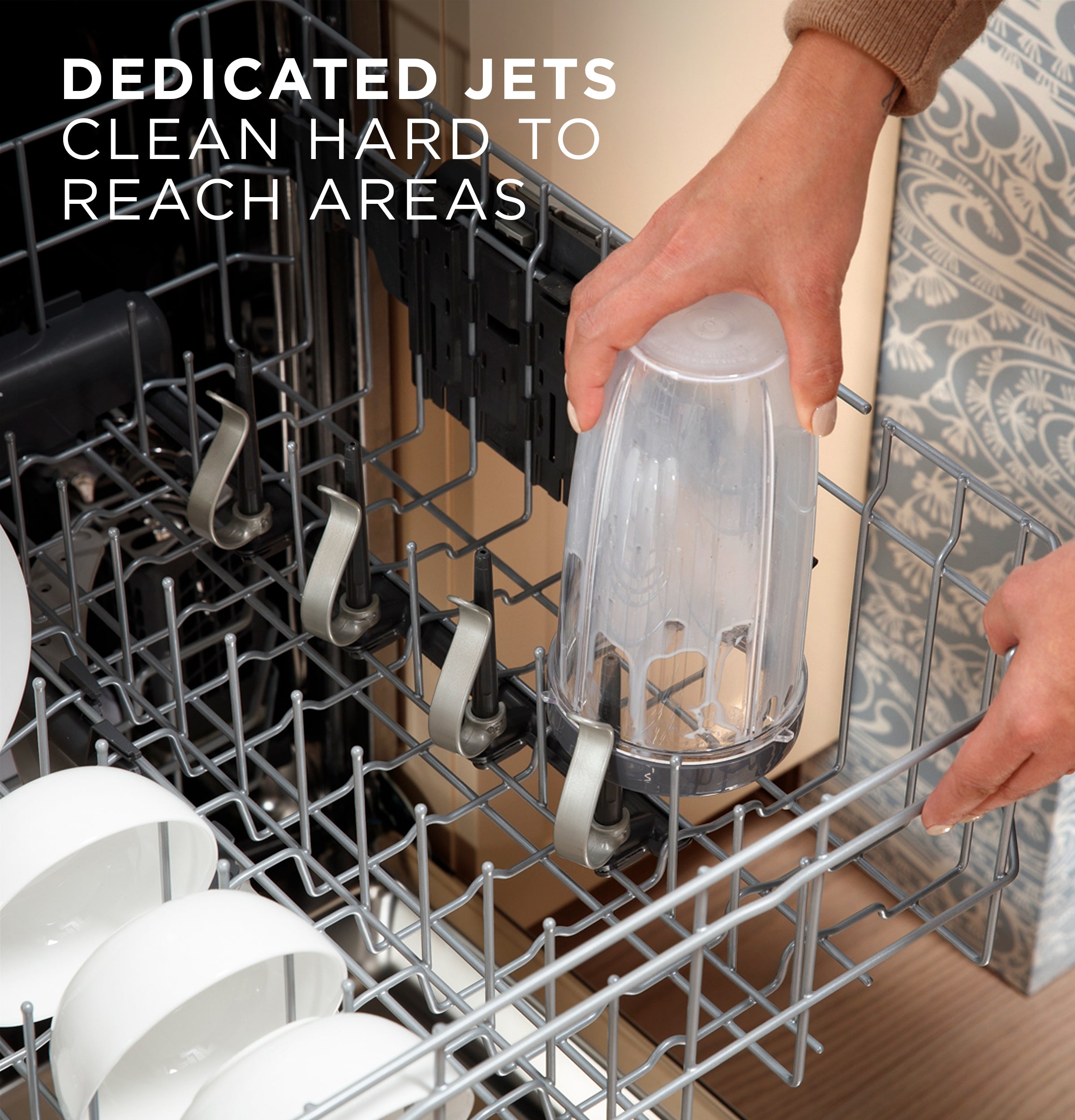

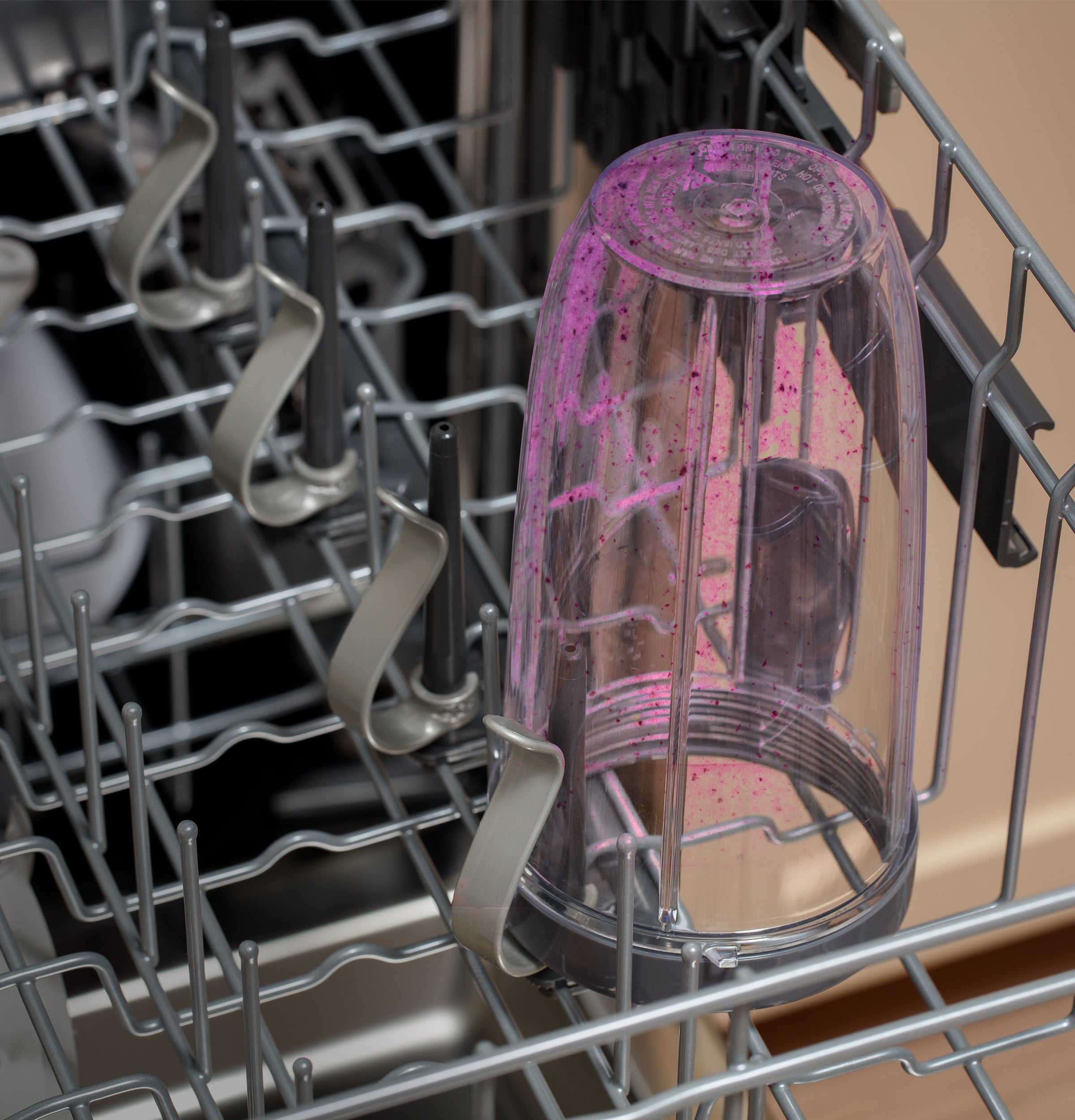

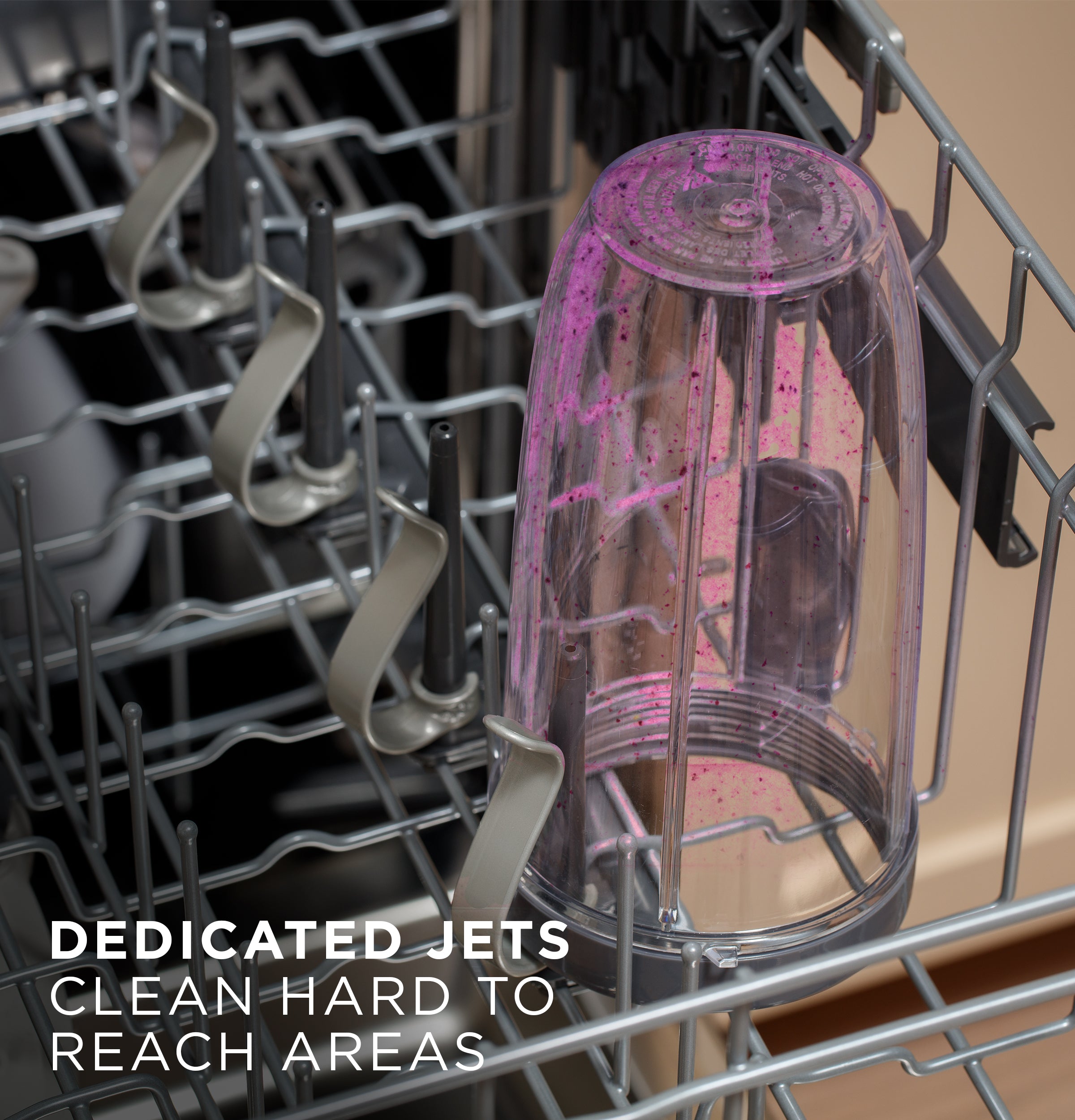

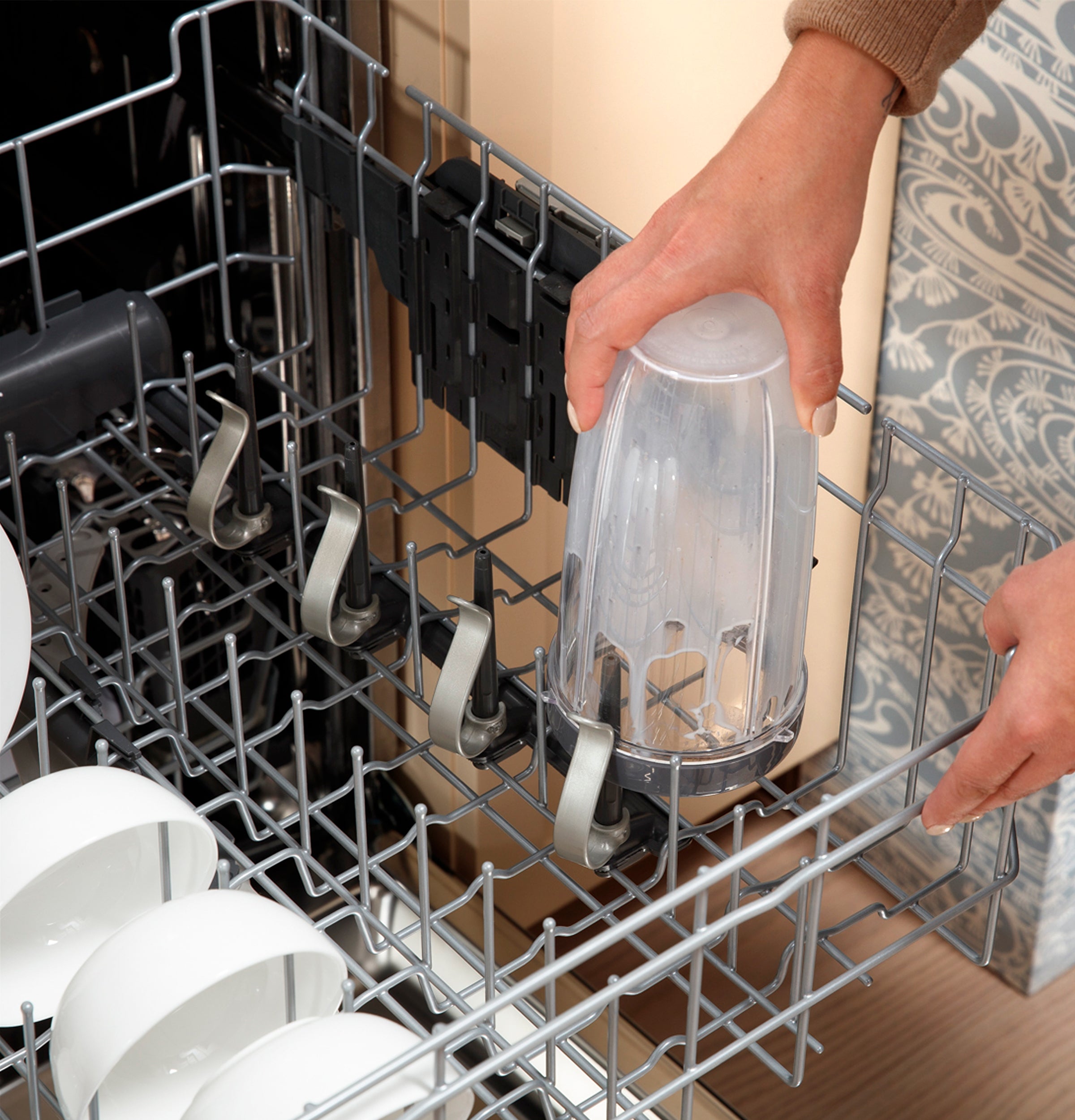

4 Bottle Wash Jets

Ensure a deep clean for tall items, narrow glasses, jars and more thanks to this dishwasher with bottle jets. 4 powerful jets direct water and detergent inside to effectively wash hard-to-reach areas.

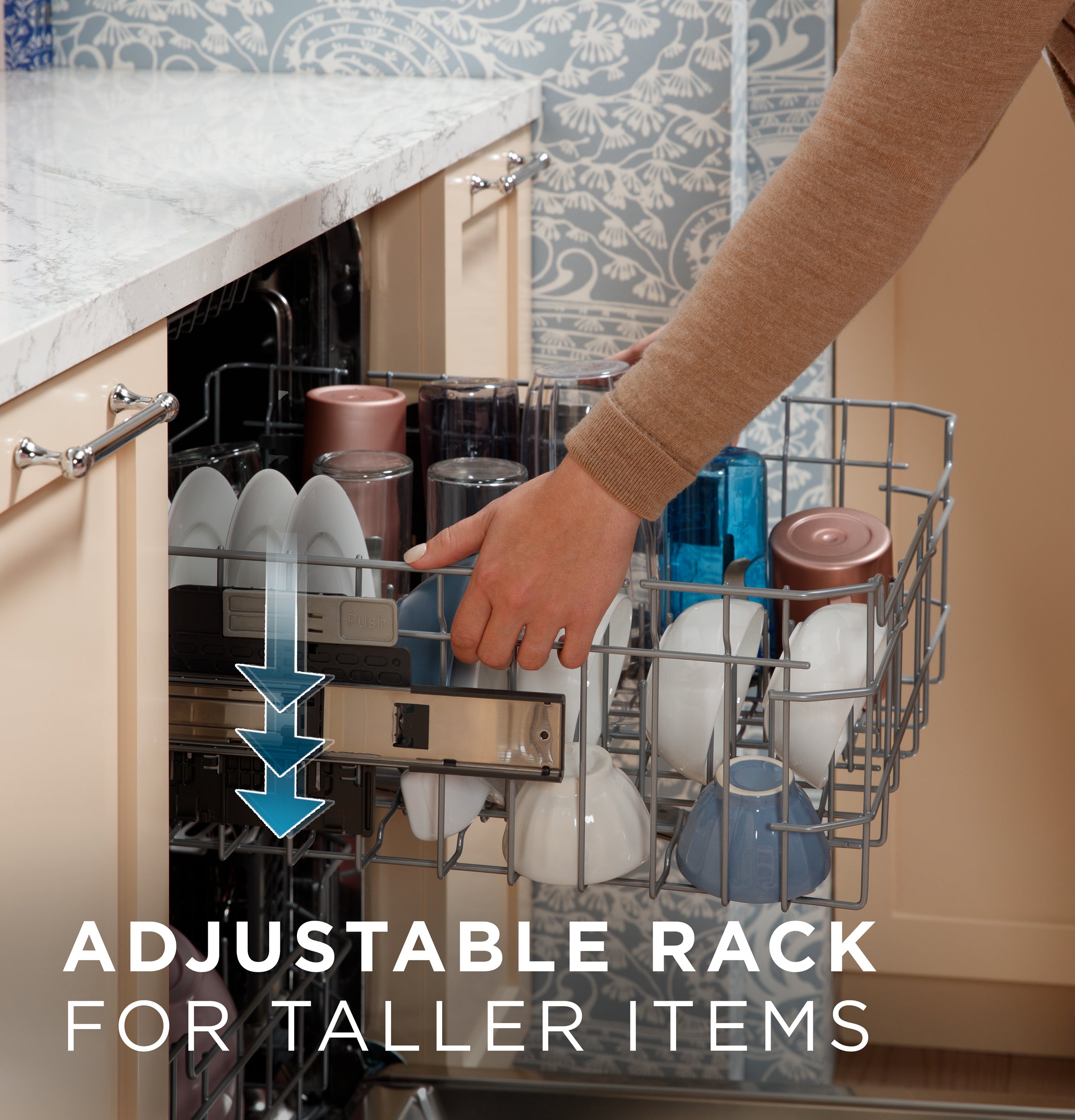

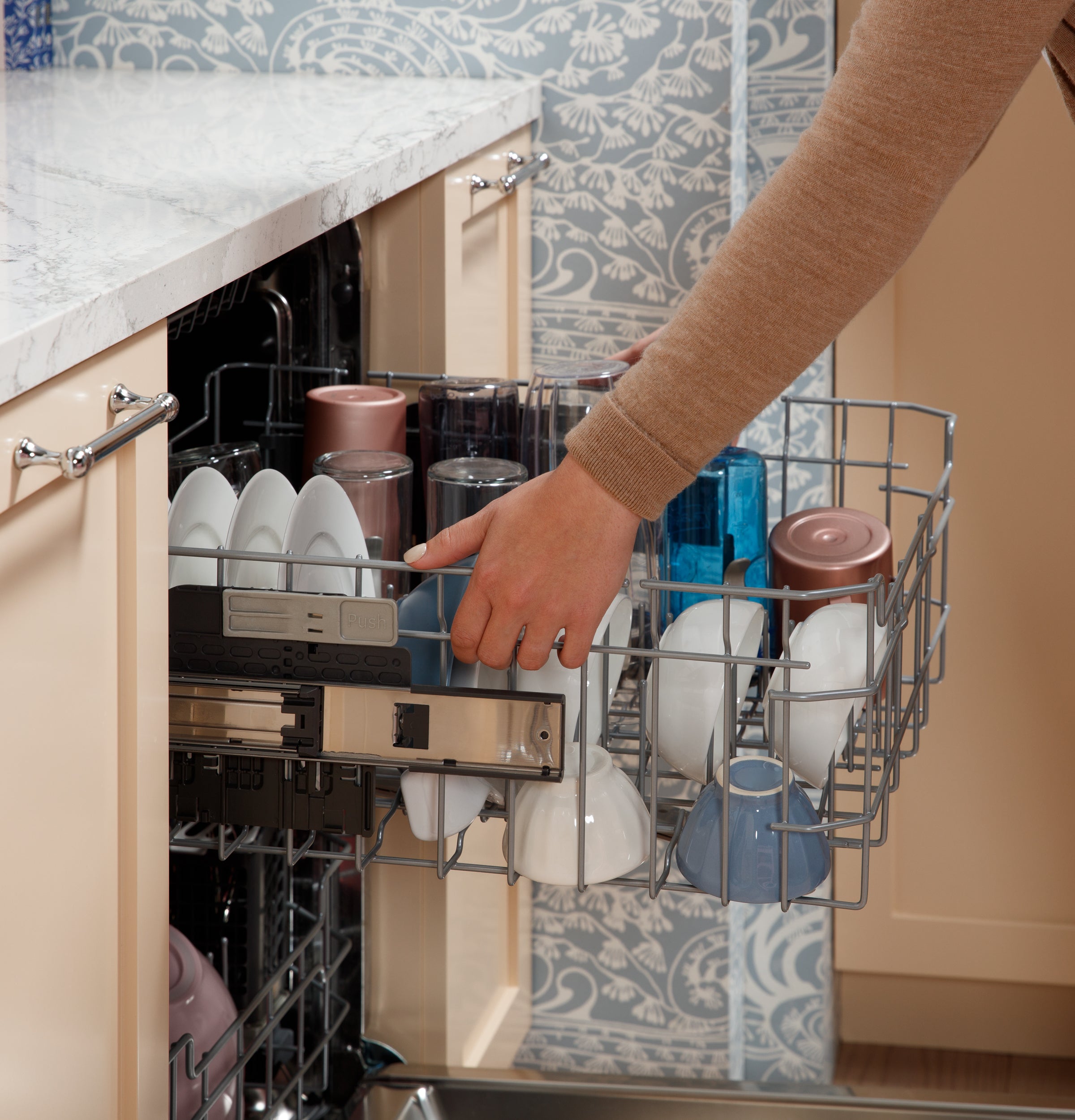

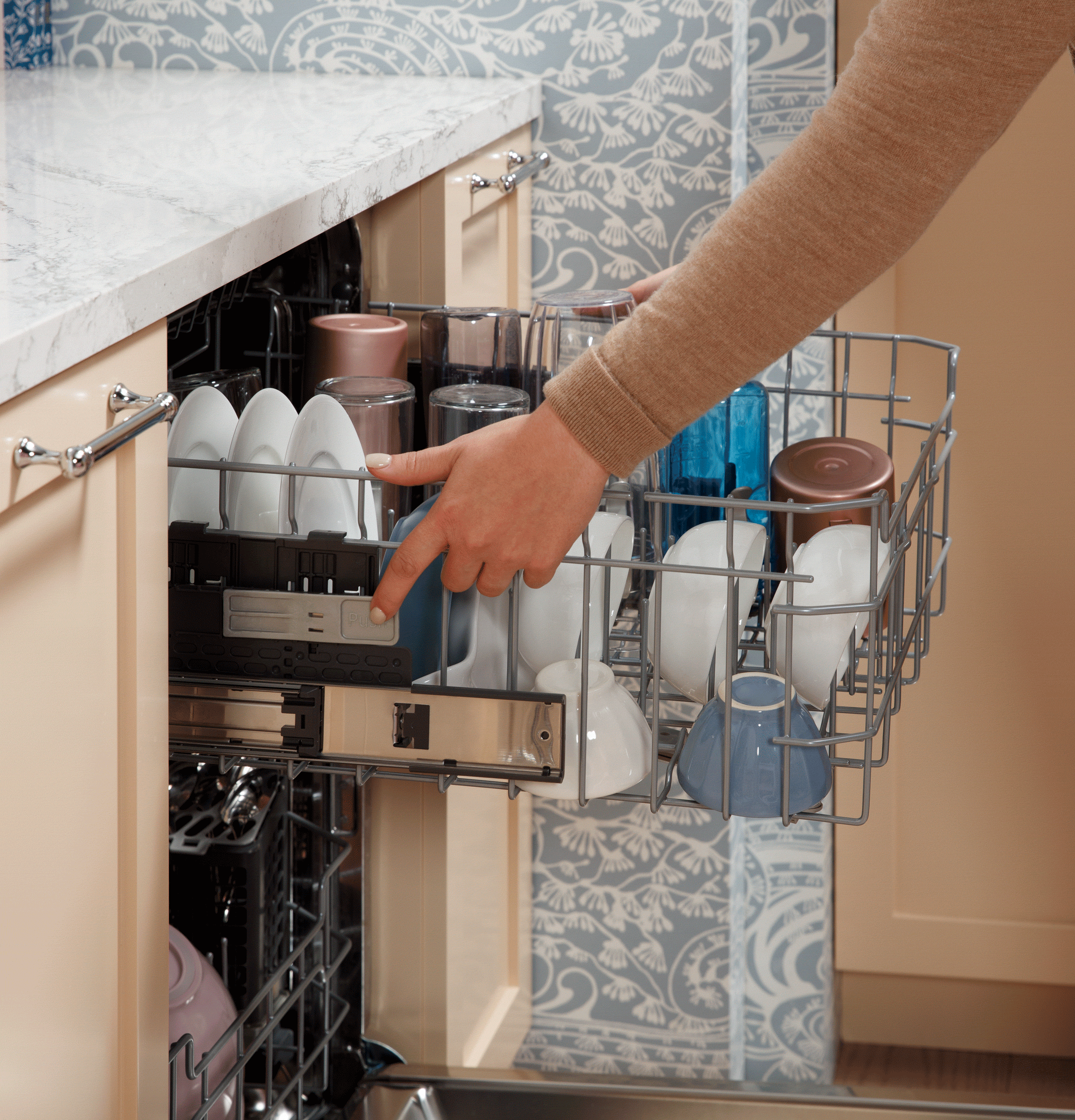

Smooth-Glide Upper Rack

This dishwasher with a smooth-glide rack makes loading and unloading smooth and simple. It easily extends on stainless steel ball bearings, so you can make light work of even the heaviest loads.

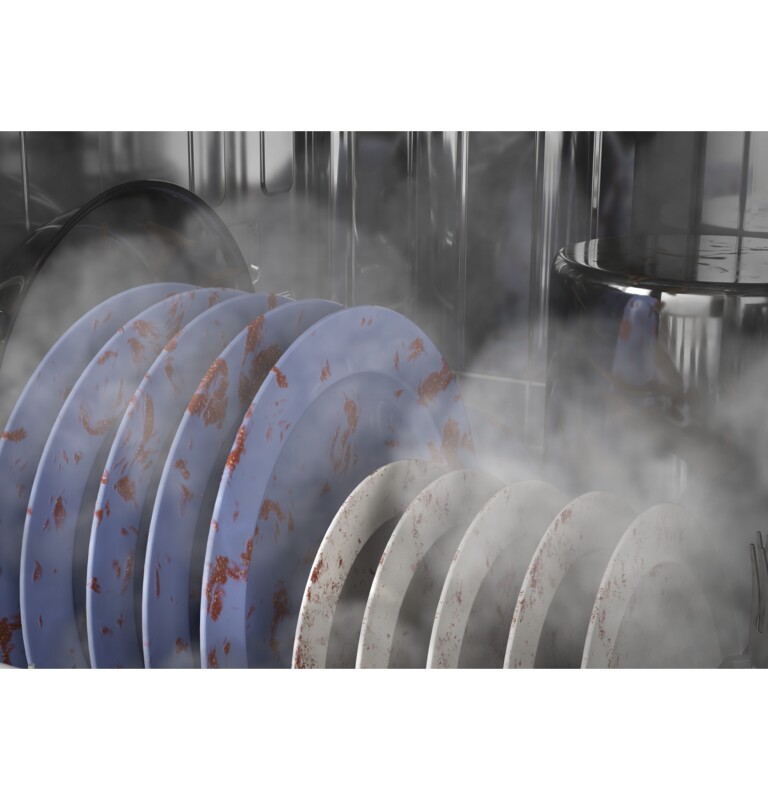

Steam + Sani

Save time with a high-temperature cycle that steams and sanitizes. Get a complete wash with no pre-rinsing or soaking necessary and reduce 99.999% of bacteria.

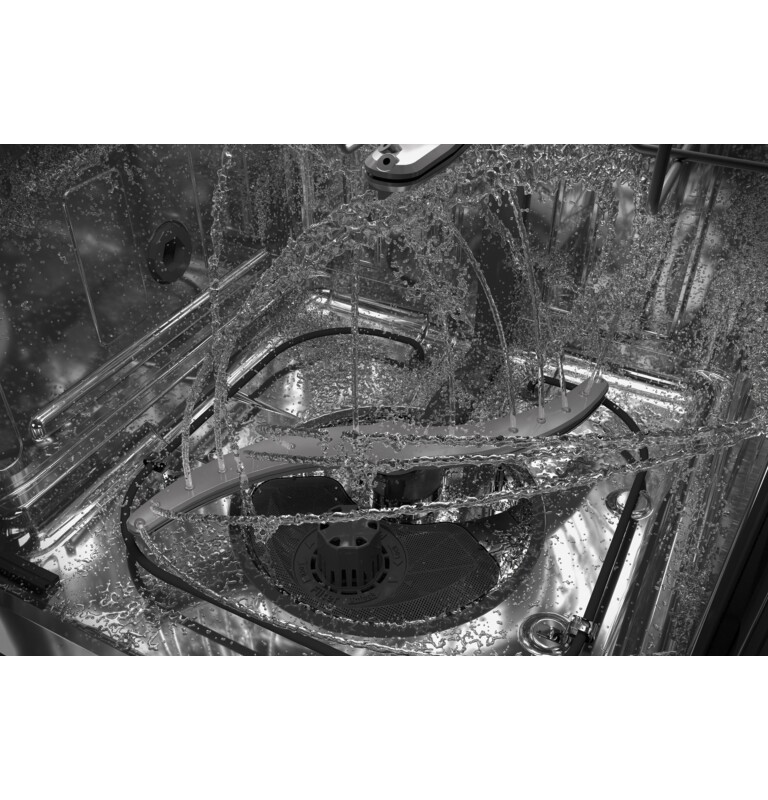

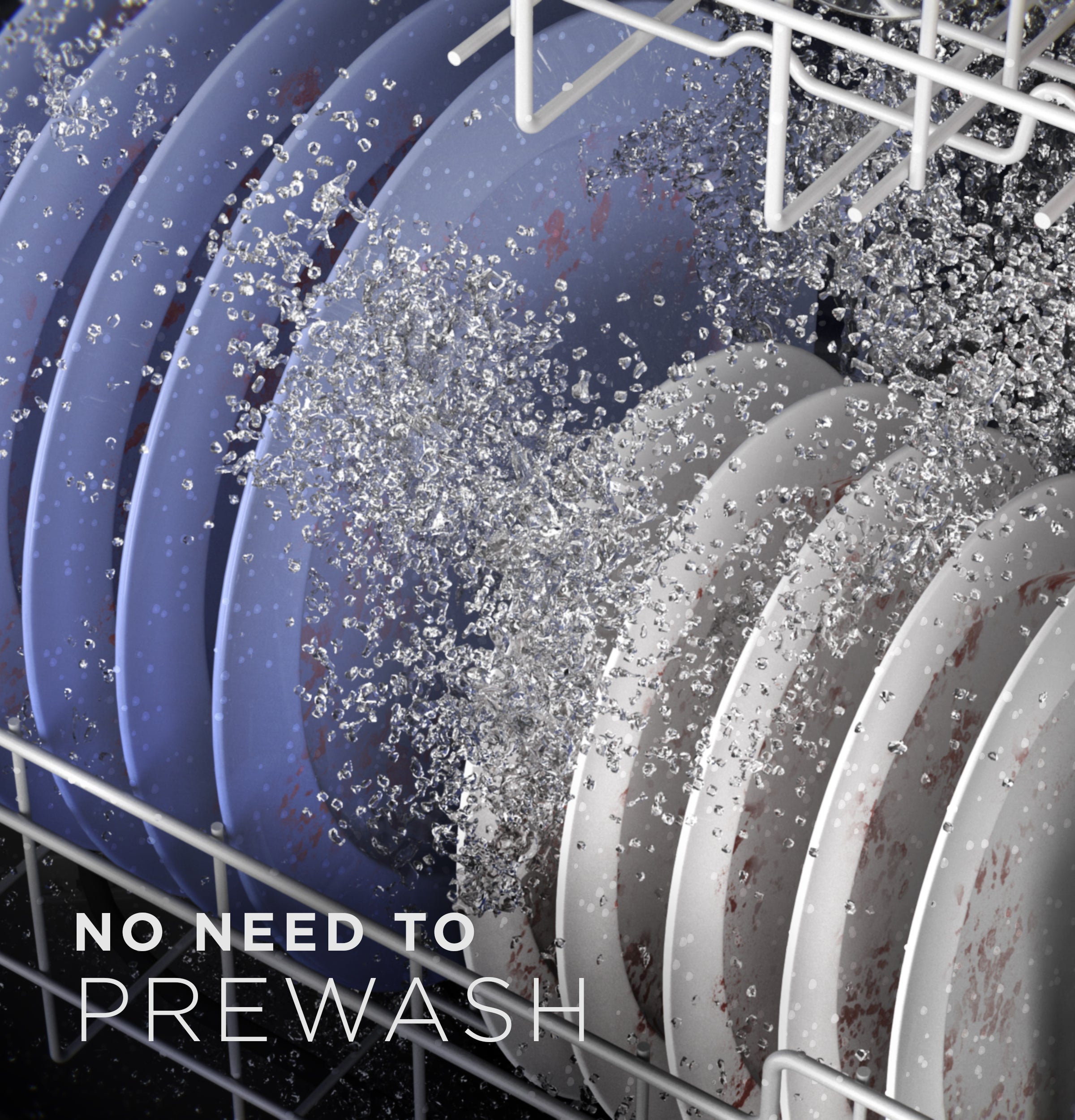

High Wash Performance

Get a complete wash with no pre-rinse thanks to a variety of wash cycles that provides a powerful clean. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time.

Active Flood Protect

This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

Reliable Performance

Enjoy trusted performance from a trusted brand with this American-made, dependable dishwasher that provides totally clean and dry dishes with every cycle.

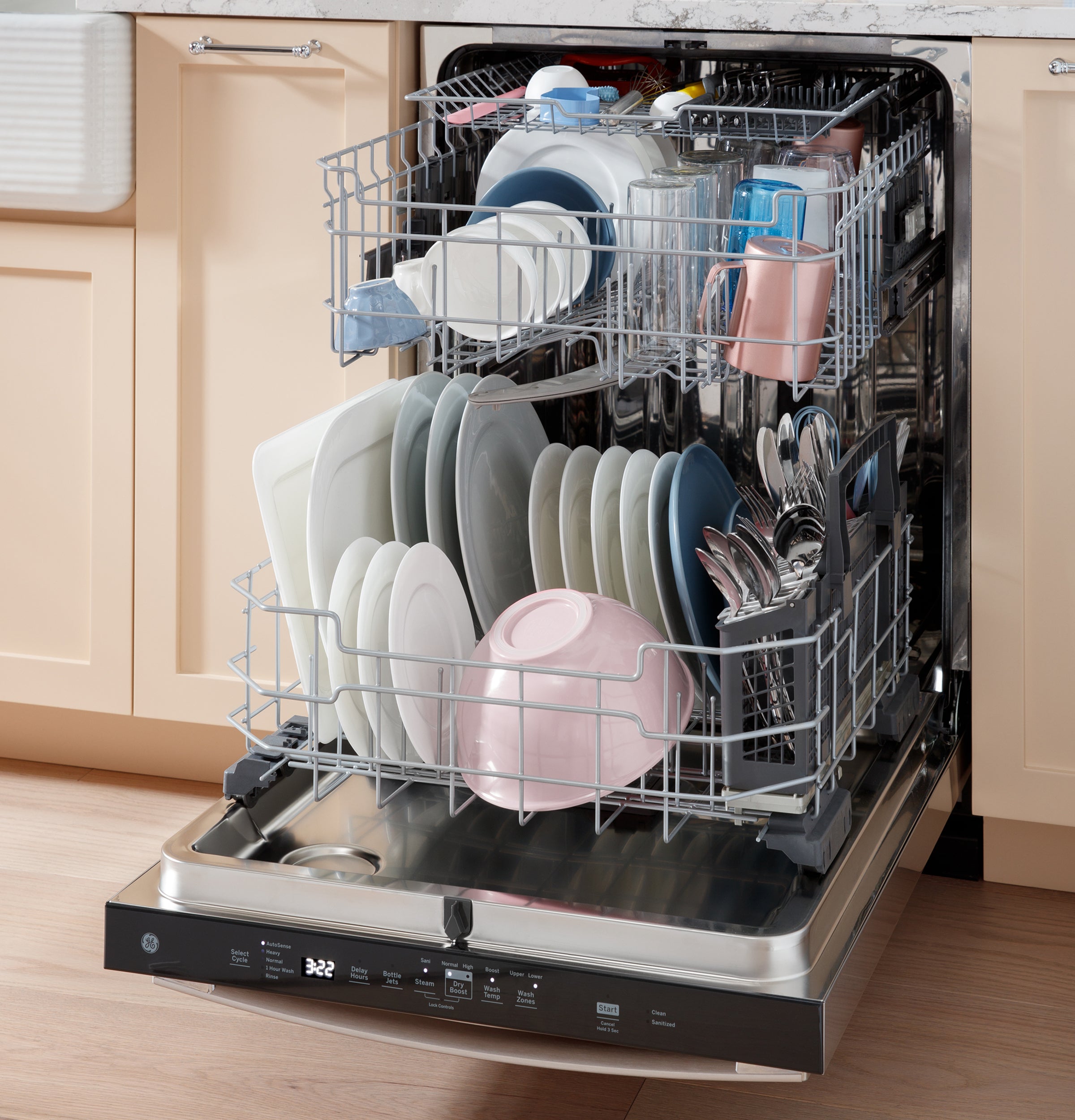

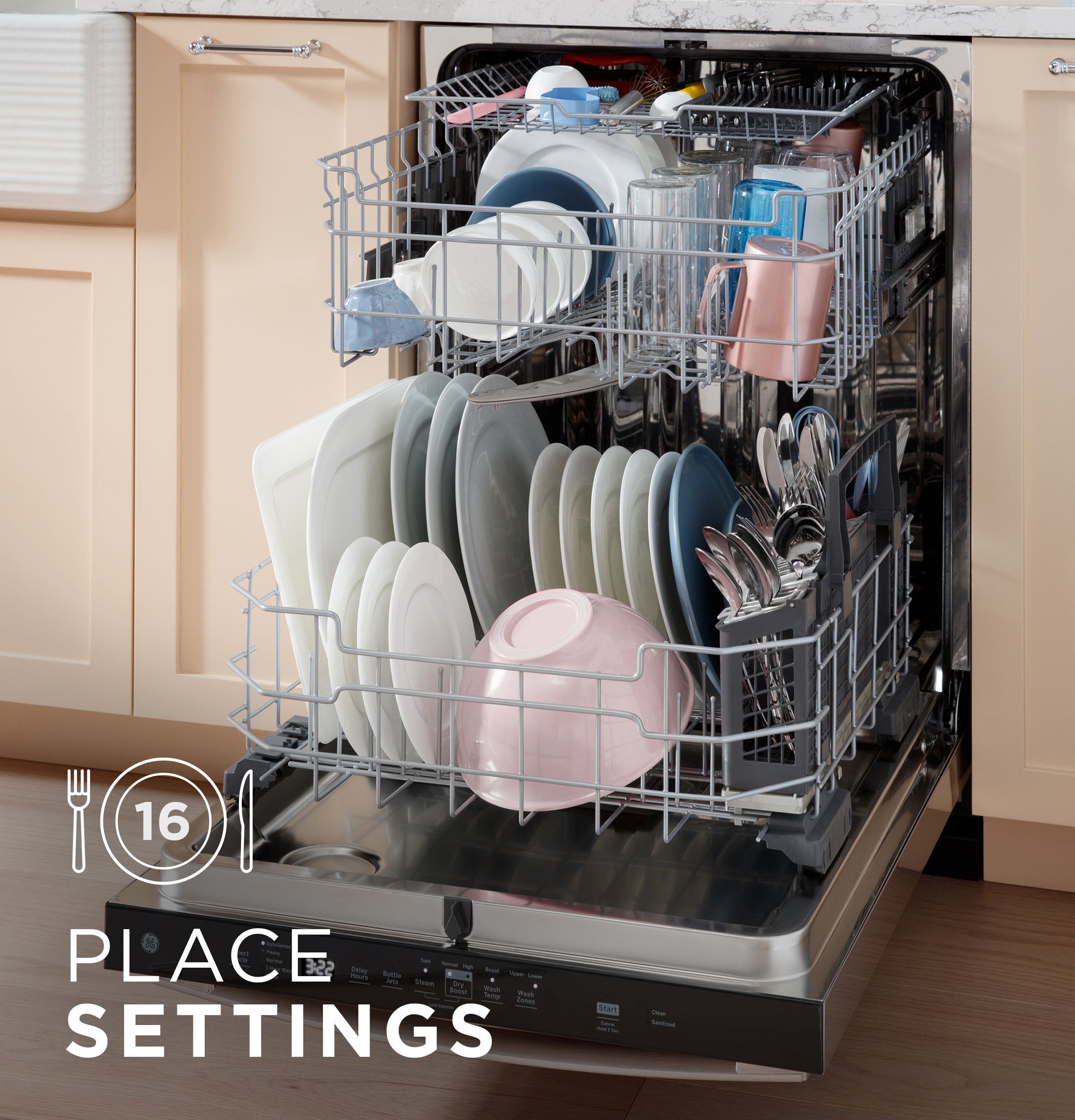

Extra Large Capacity

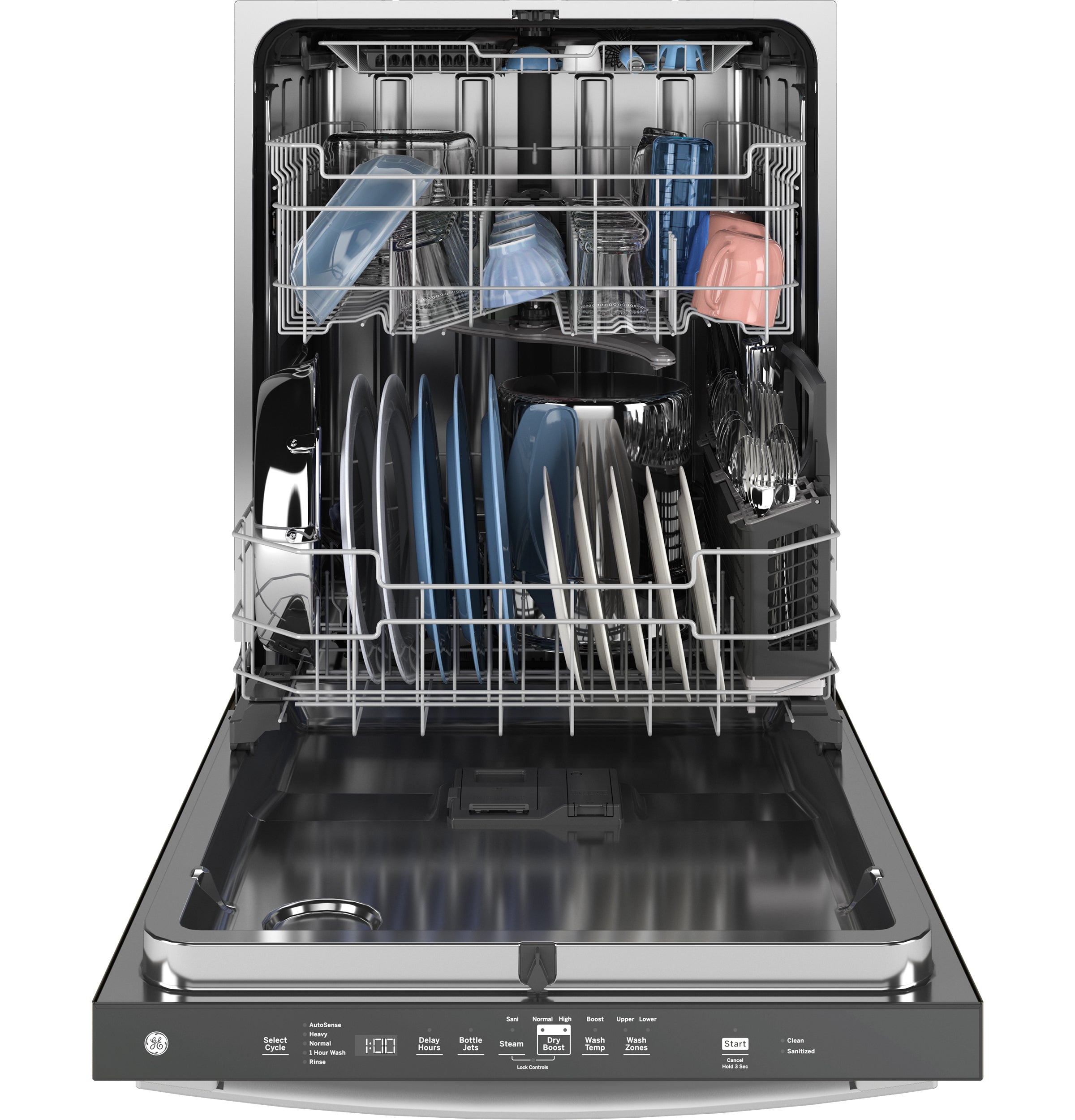

This extra-large capacity dishwasher has enough space for 16 place settings and large dishware, making cleanup easy after large gatherings.

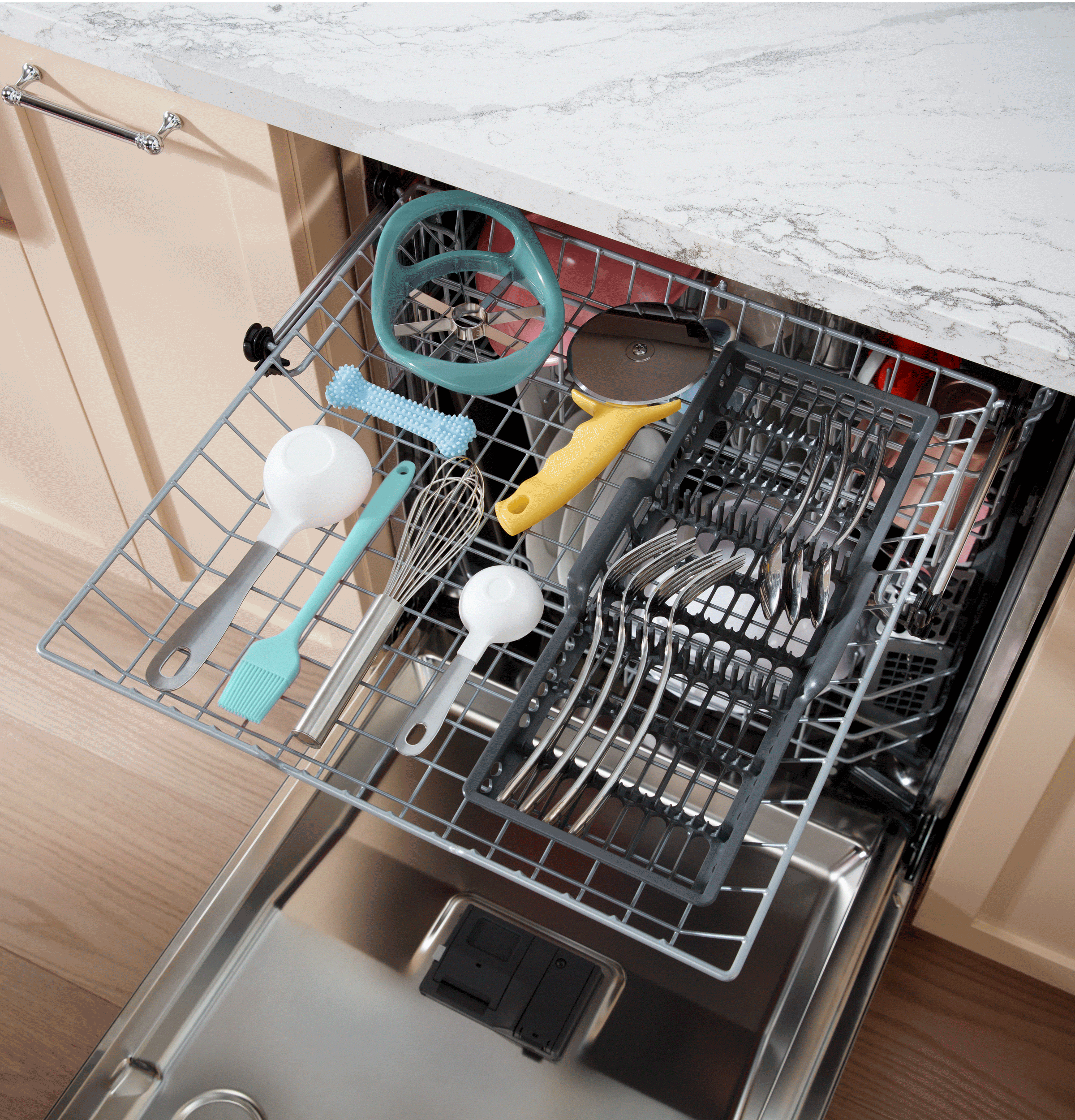

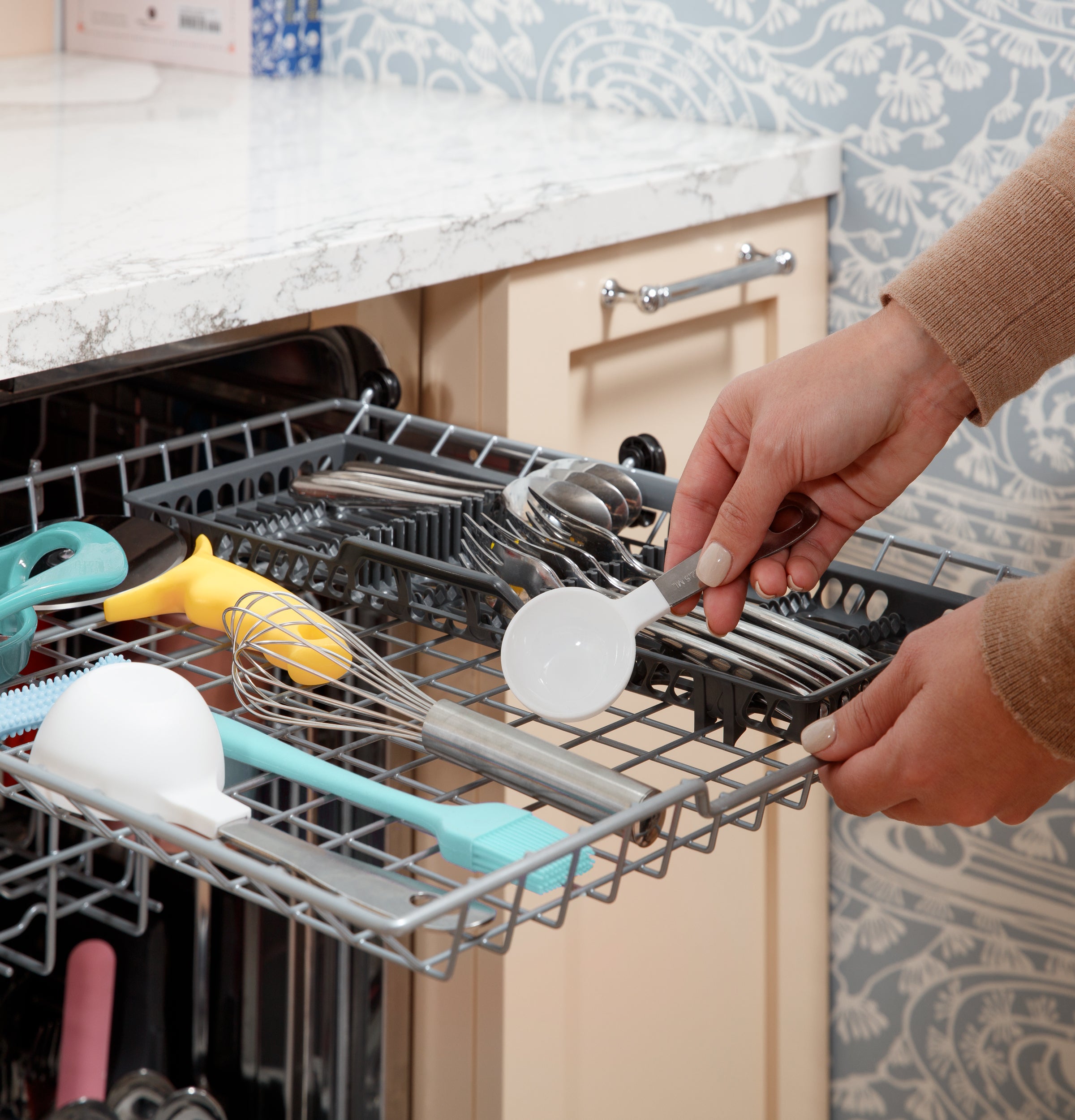

Third Rack with Removable Silverware Caddy

The versatile Third Rack was redesigned to load more than just silverware with additional space for unique items.

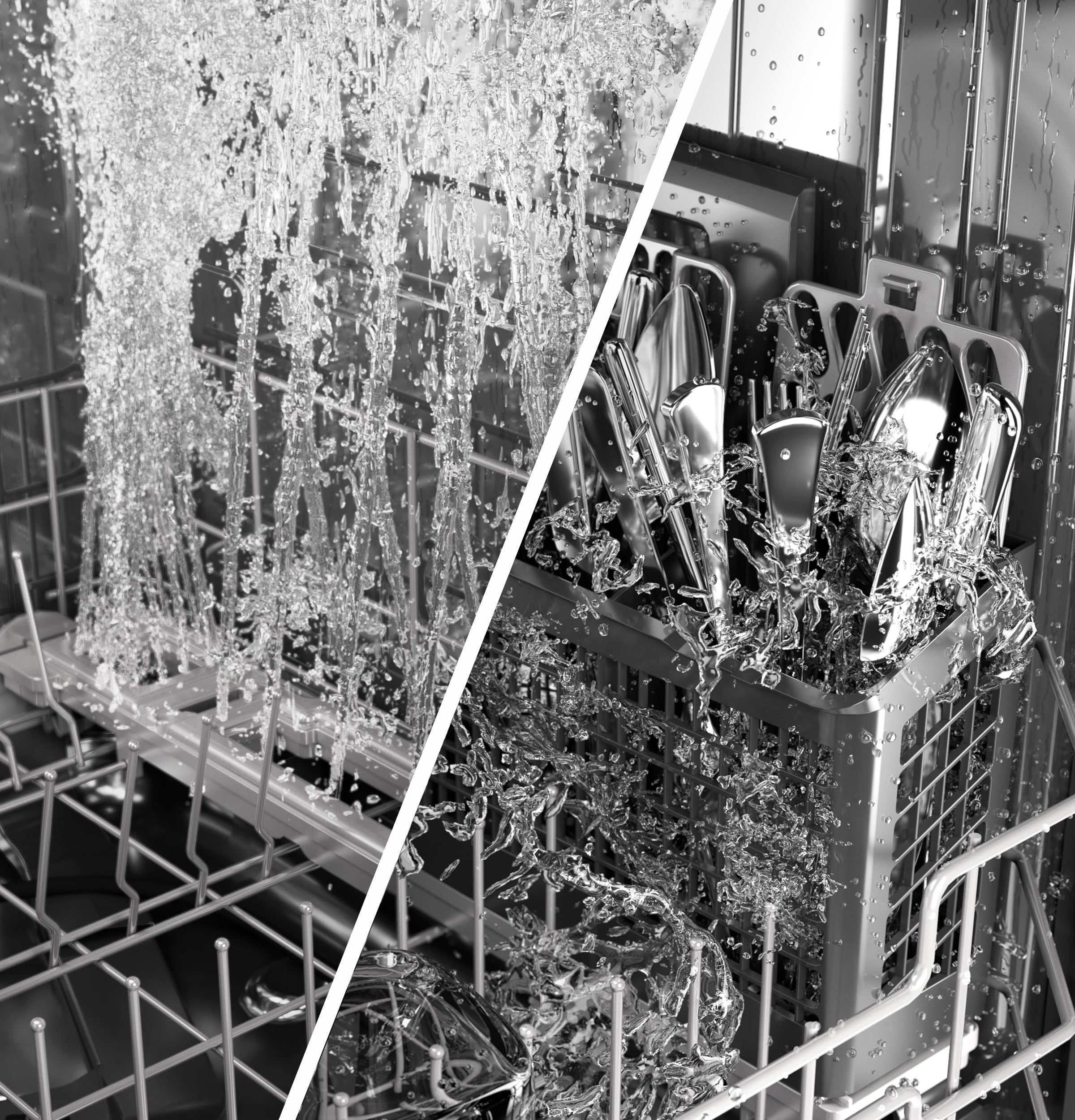

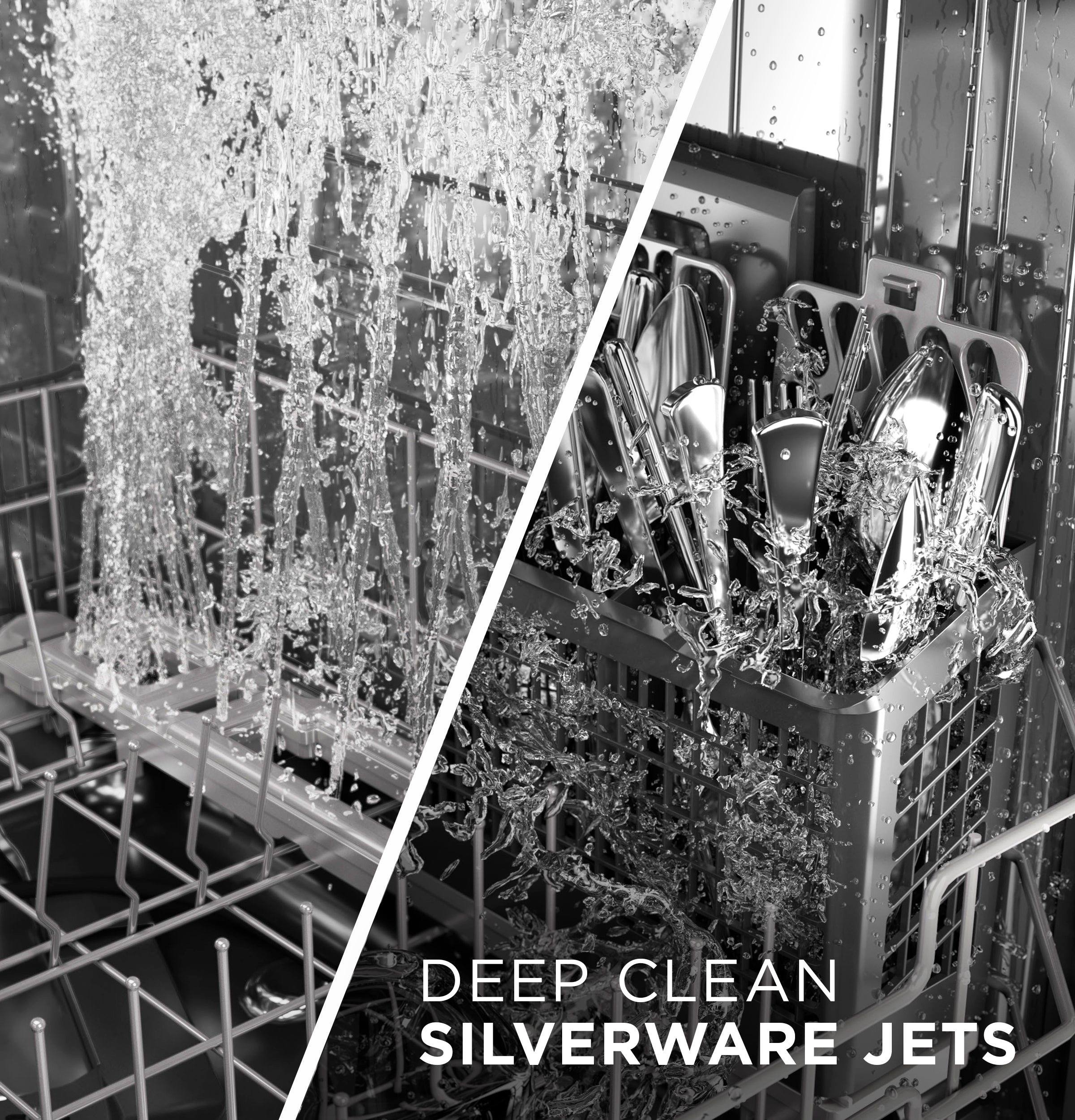

Deep Clean Silverware Jets

A system of 40 deep-cleaning silverware jets blasts the silverware basket from the bottom up, removing all stuck-on food for sparkling results.

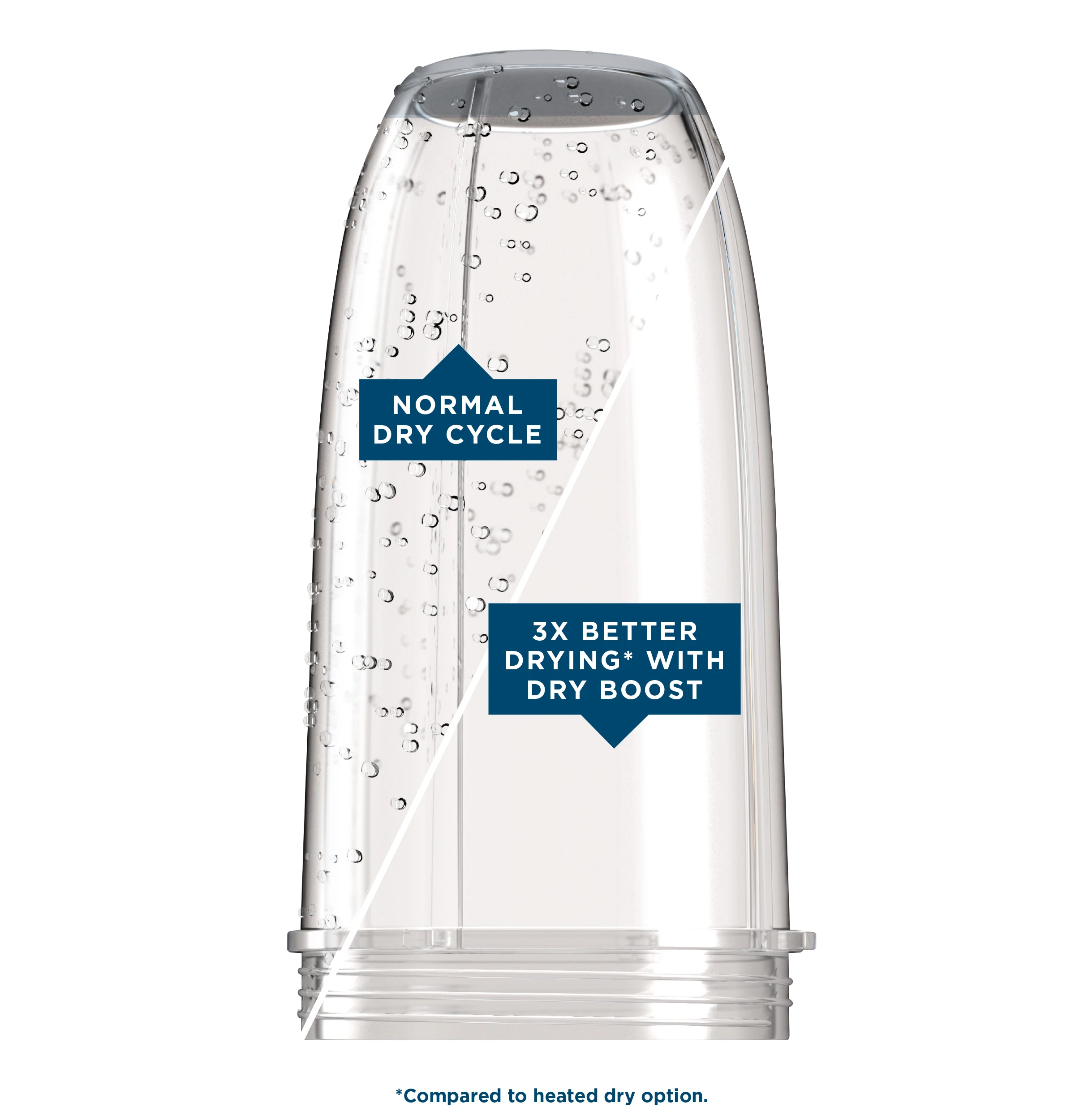

Dry Boost™ Technology

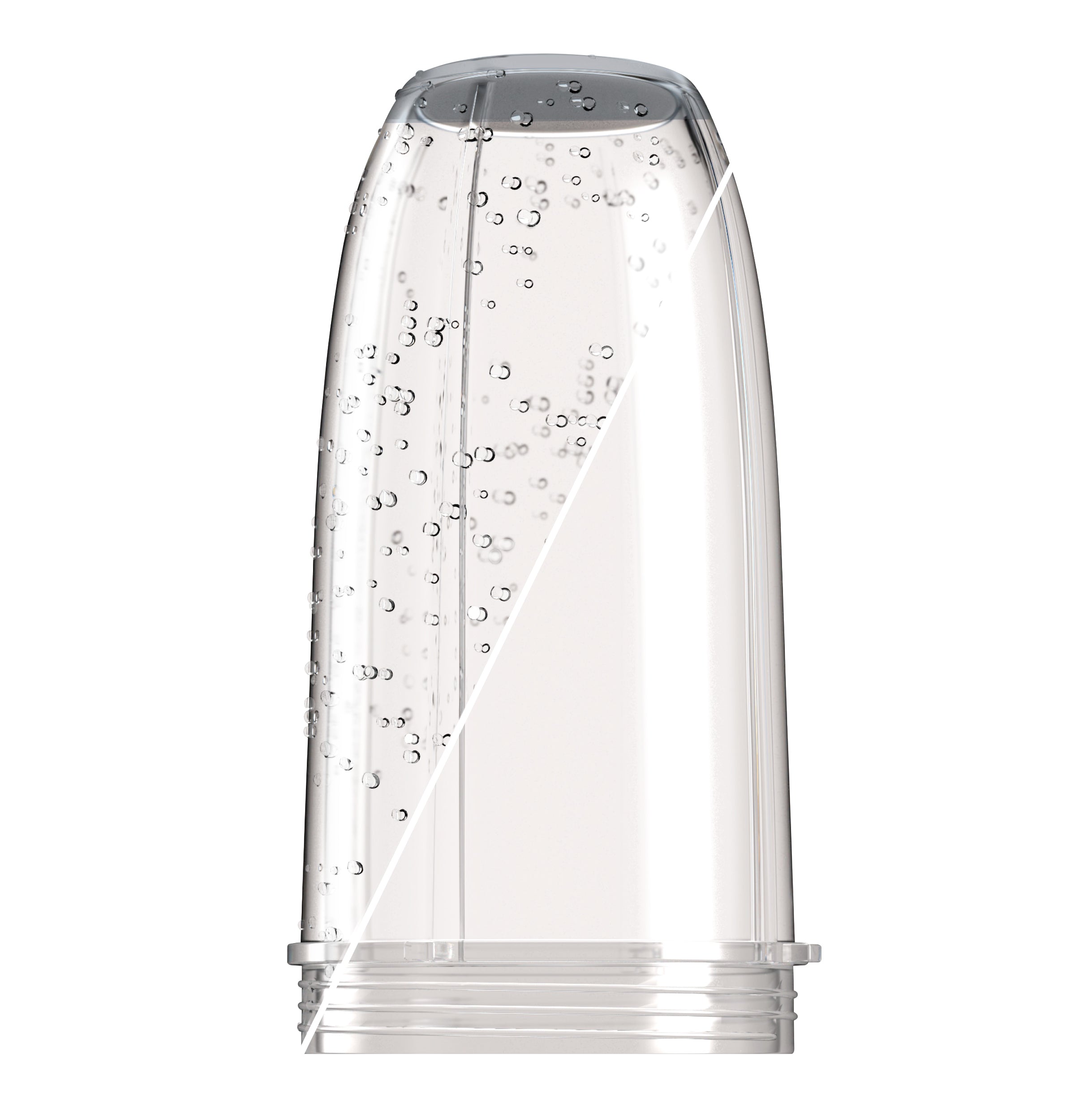

Dry Boost™ Technology outperforms standard heated-dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier when compared to heated dry.

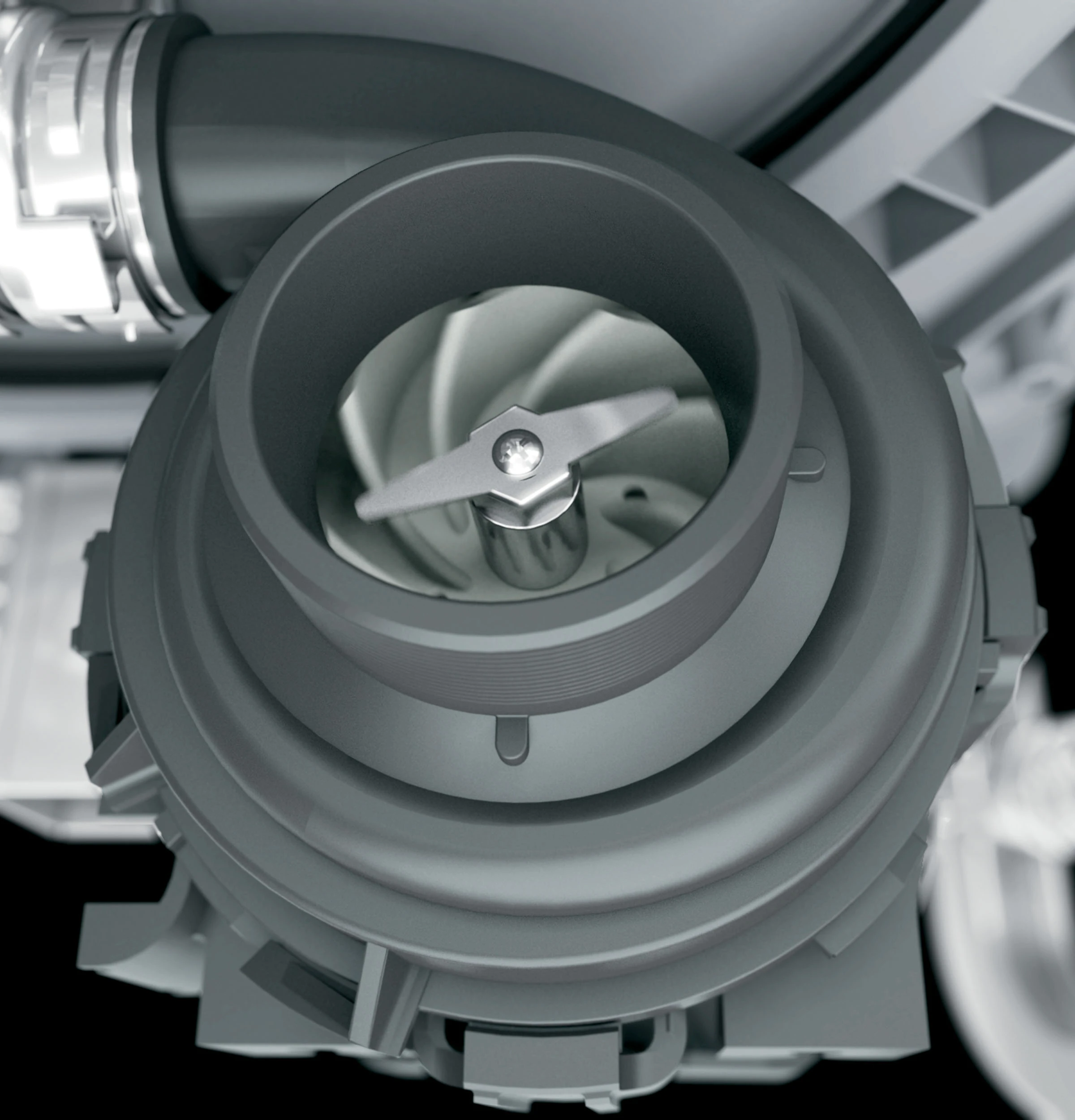

Piranha™ Hard Food Disposer

The Piranha™ Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design makes sure wash arms stay unclogged.
