| Parts | 1 Year |
| Labor | 1 Year |
| Overall Depth | 24 in |
| Overall Width | 23.75 in |
| Overall Height | 33.375 in |
| Height w/ Legs Retracted - Minimum Height | 33.375 in |
| Cabinet Width | 24 in |
| Net Weight | 58 lb |
| Approximate Shipping Weight | 72 lb |
| Height w/Legs Extended - Maximum Height | 34.625 in |
| Depth with Door Open | 27.5 in |
| Depth Without Handle | 24 in |
| Overall Depth with Handle | 26.25 in |
| Cutout Height (in) | 33.5 |
| Cutout Width (in) | 24 |
| Cutout Depth (in) | 24 |
| Wash System | 3-Level |
| Sensor | Clean Sensor |
| Tub Type | Tall Tub |
| Leveling System | 4 Leveling Legs |
| OU Certified | No |
| Number of Place Settings | 16 |
| Dishwasher Options | Wash TempBoost |
| Latch | Center Pull |
| Number of Options | 6 |
| Style | Built-In Top Control |
| Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |
| Cutlery Tray | Optional 3rd rack (GPF3RACK) |
| Rack Features | Chop stick slots |
| Dishwasher Cycles | Normal Wash |
| Rack Color | Silver |
| Dispenser | Rinse Aid |
| WiFi Connect | Optional (Requires part no. PBX23W00Y1) |
| Control Type | Top Controls |
| Dishwasher Drying Features | Dry Boost™ |
| Wash Arms | Upper |
| Wash System Features | Piranha™ Hard Food Disposer with removable filter |
| Exterior Style | Traditional |
| Active Flood Protection | Active Flood Protect |
| Product Type | Built-In |
| Upper Rack | Removable |
| Dishwasher Control Features | Last Cycle Memory |
| Number of Cycles | 4 |
| Tub and Door Liner | Gray Plastic |
| Sabbath Mode | Yes |
| Showroom Power Mode | Yes |

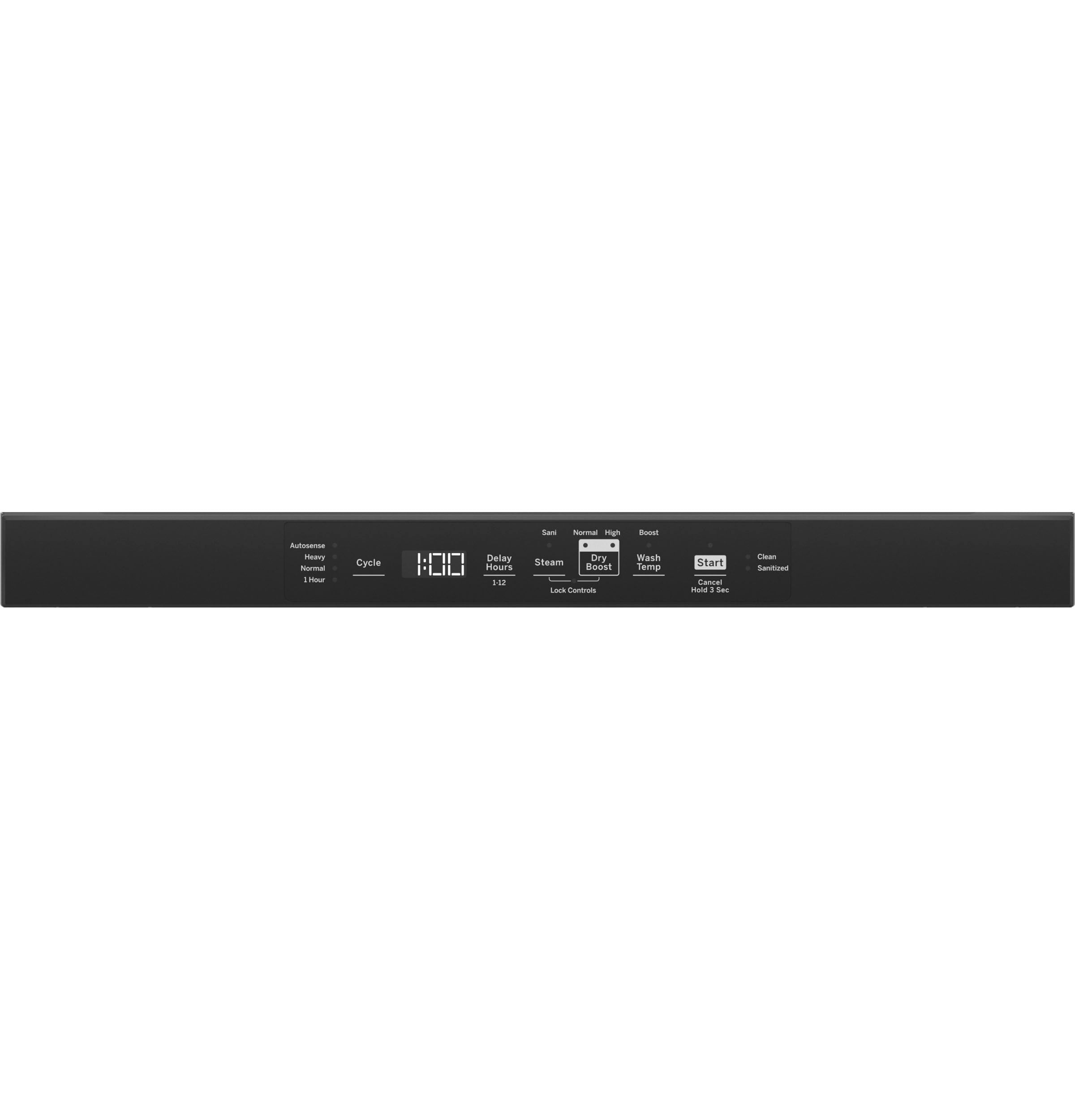

| Control Type | Fully Integrated Inlaid Electronic Buttons |
| Control Type | 6 Touchpads |
| Dishwasher Control Features | 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators |
| Dishwasher Control Features | Audible End-of-Cycle Signal |
| Dishwasher Cycles | AutoSense |
| Dishwasher Cycles | Heavy Wash |
| Dishwasher Cycles | 1 Hour Wash |
| Dishwasher Drying Features | Calrod Heater |
| Dishwasher Options | Dry Boost™ (High) |
| Dishwasher Options | Dry Boost™ (Normal) |
| Dishwasher Options | Steam + Sani (Certified to NSF Standard 184) |
| Dishwasher Options | Start/Reset |
| Dishwasher Options | Lock Controls |
| Dishwasher Options | Delay Start 1-12 Hr. with Countdown |
| Dishwasher Options | Steam PreWash |
| Dishwasher Options | Sabbath Mode |
| Dispenser | Detergent |
| Rack Features | 1 Piece Silverware Basket with 3 Cell Covers |
| Rack Features | 1 Utility Shelf with Stem Safe |
| Rack Features | Ball-Tipped Tines |
| Upper Rack | Adjustable |
| Upper Rack | 1 Stem Safe Shelf |
| Wash Arms | Middle |
| Wash Arms | Lower |
| Wash System Features | Automatic Temperature Control |
| Wash System Features | Automatic HotStart |
| Wash System Features | Fill Level Pressure Sensor |
| Wash System Features | Active Flood Protect |
| Handle | Towel Bar |
| Installation | Side Installation or Top Installation Included |
| Handle Color | Fingerprint Resistant Stainless |
| Door Style | Flat Door |
| Door Appearance | Full-length flat door |
| Color Appearance | Fingerprint Resistant Stainless |
| Installation | Built-Up Floor Capable |
| Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
| Energy Consumption (kWh/year) | 240 |
| Electrical Requirements | 120V ; 60Hz ; 7.1A |
| Calrod Heater Watts | 800/500 |
| Hertz | 60 |
| Watts | 792 |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Quiet Package | 52 dBA |
| Width | 23.75 in. |
| Height | 33.38 in. |
| Length | 24 in. |
| Weight | 58 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 28.75 in. |
| Shipping Height | 38.38 in. |
| Shipping Length | 29 in. |
| Shipping Weight | 98 lbs. |
| Total of Shipping Weight | 98 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 11.01 ft³ |
| Dimensional Weight | 136.86 lbs. |
| Total of Cubes | 11.01 ft³ |
| Total of Dimensional Weight | 136.86 lbs. |

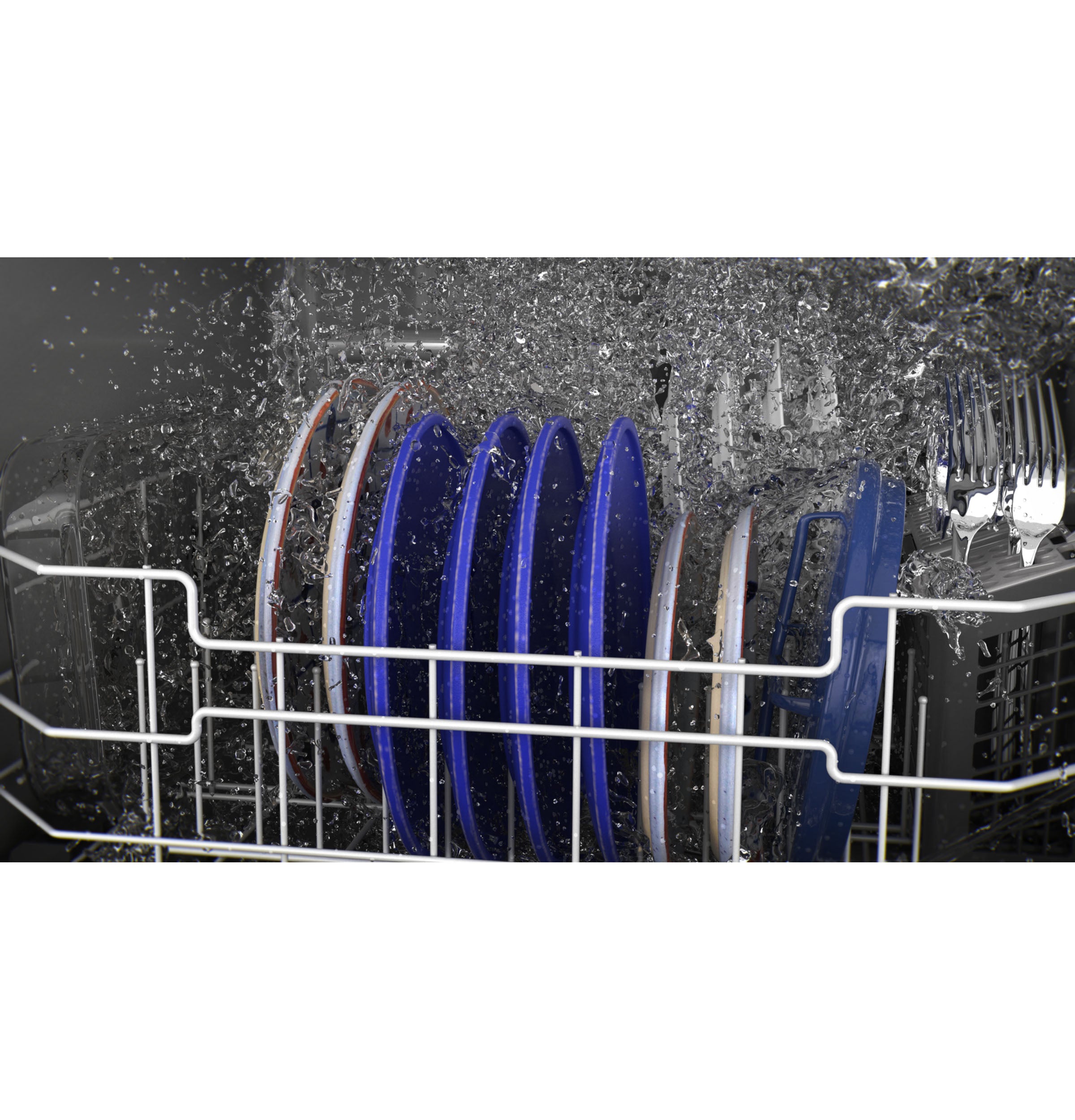

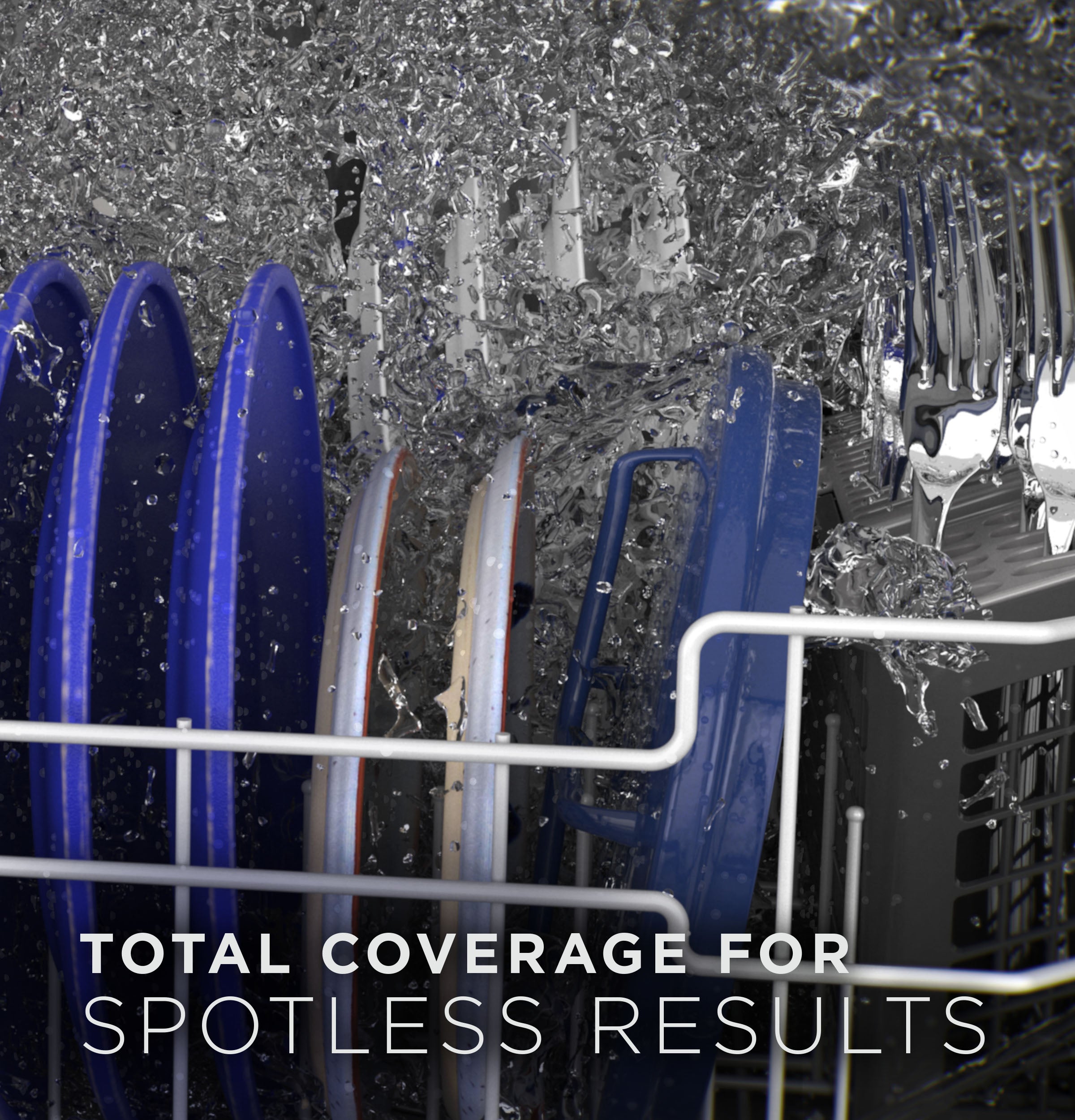

Get a complete wash with no pre-rinse, thanks to a variety of powerful wash cycles. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time

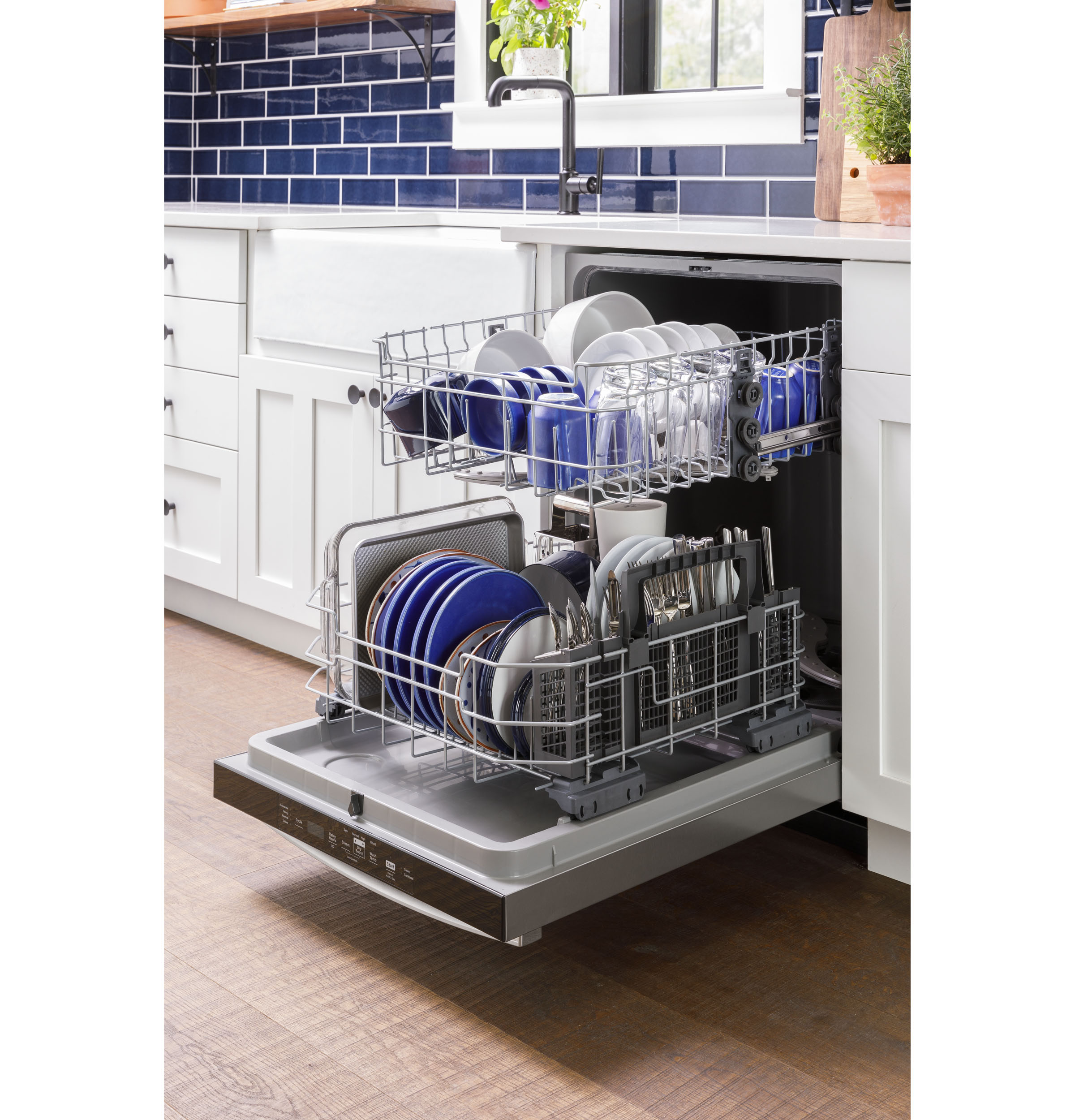

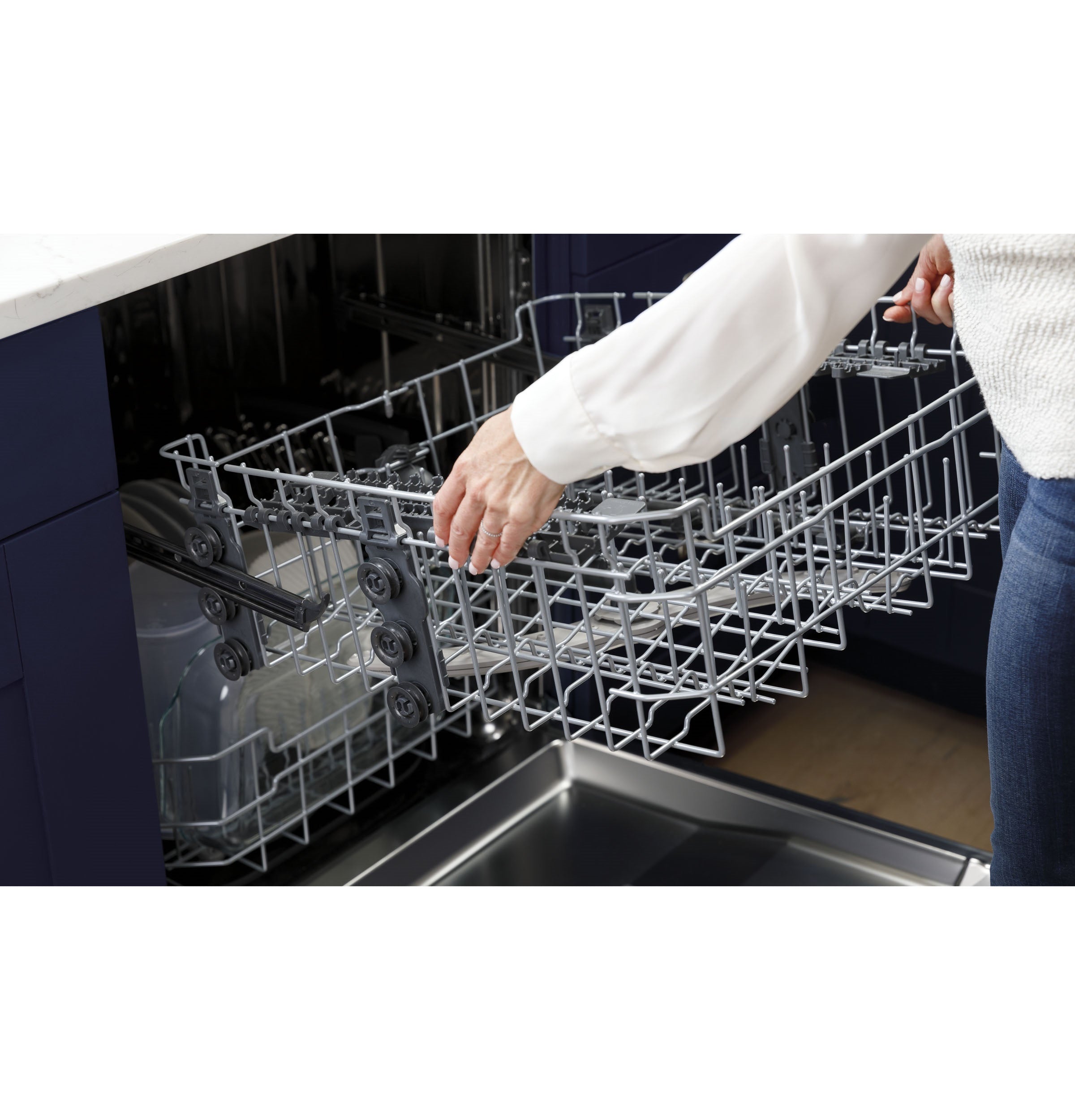

Enjoy flexible loading with an adjustable upper rack. Easily move it up or down to fit bottles, large platters and other items as tall as 10.5

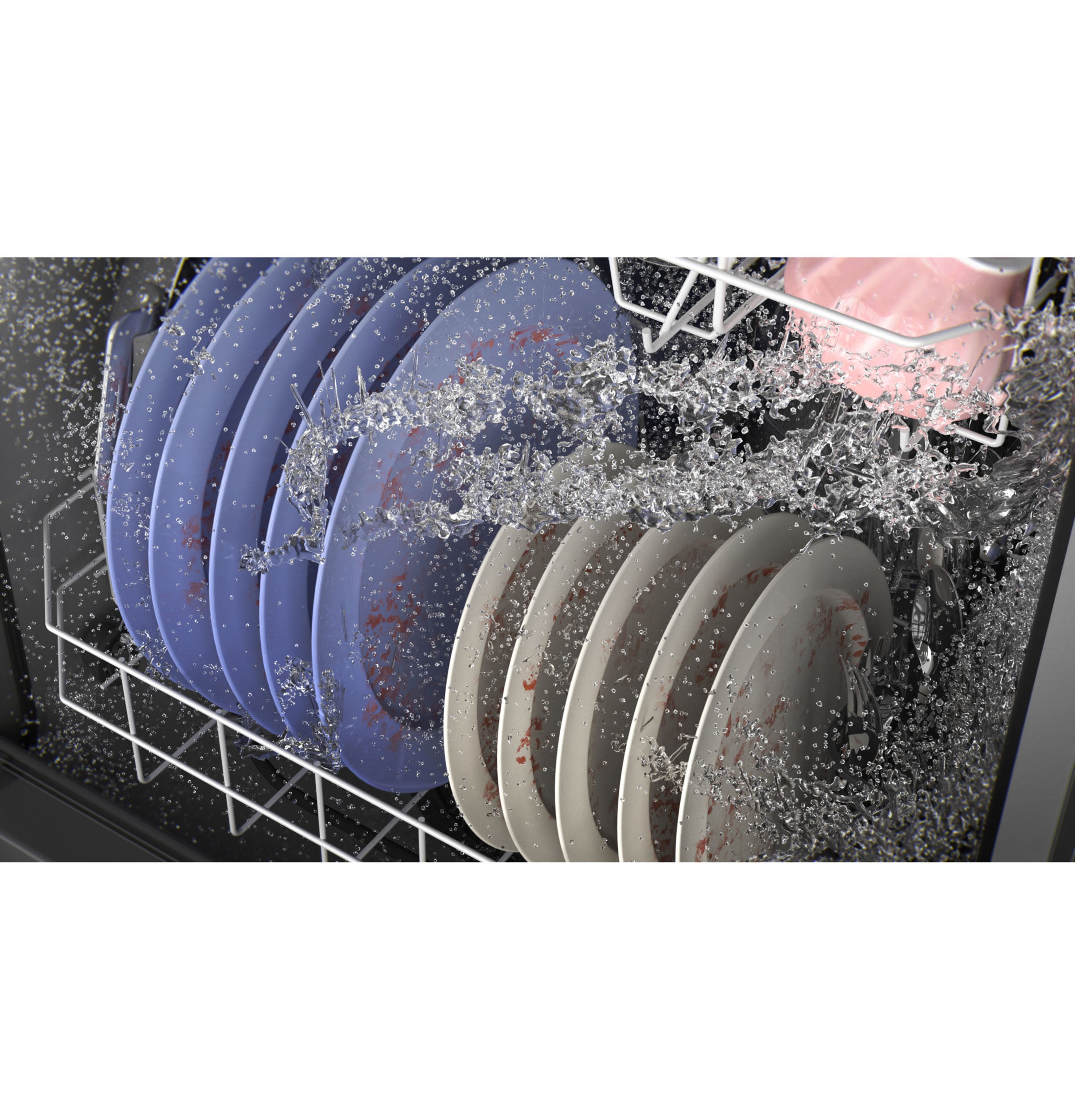

This dishwasher offers a heavy wash, normal wash, and a 1-hour wash cycle for outstanding wash performance and clean dishes every time, every load size

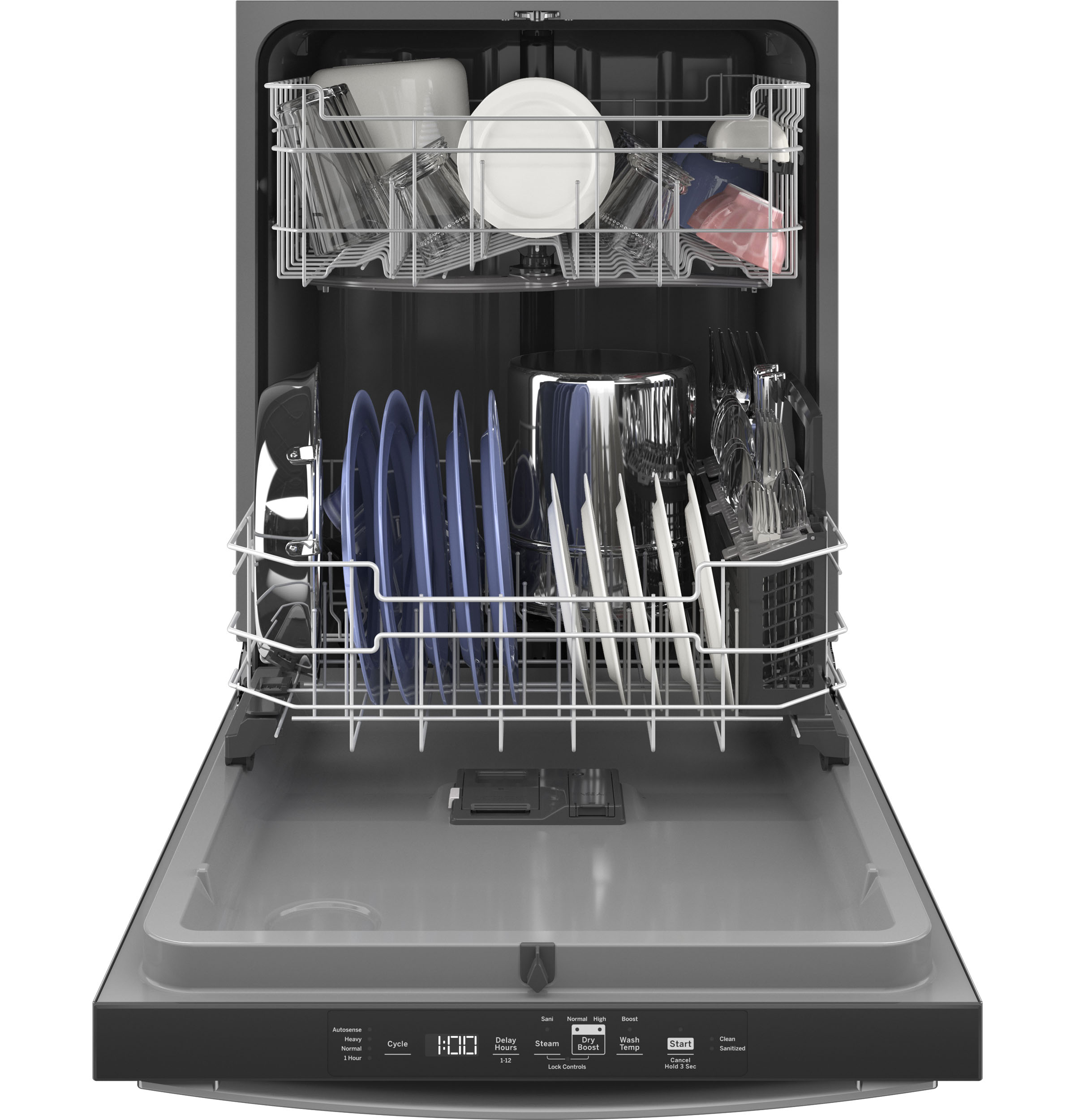

This extra large capacity dishwasher has enough space for 14 place settings and large dishware, making cleanup easy after gatherings

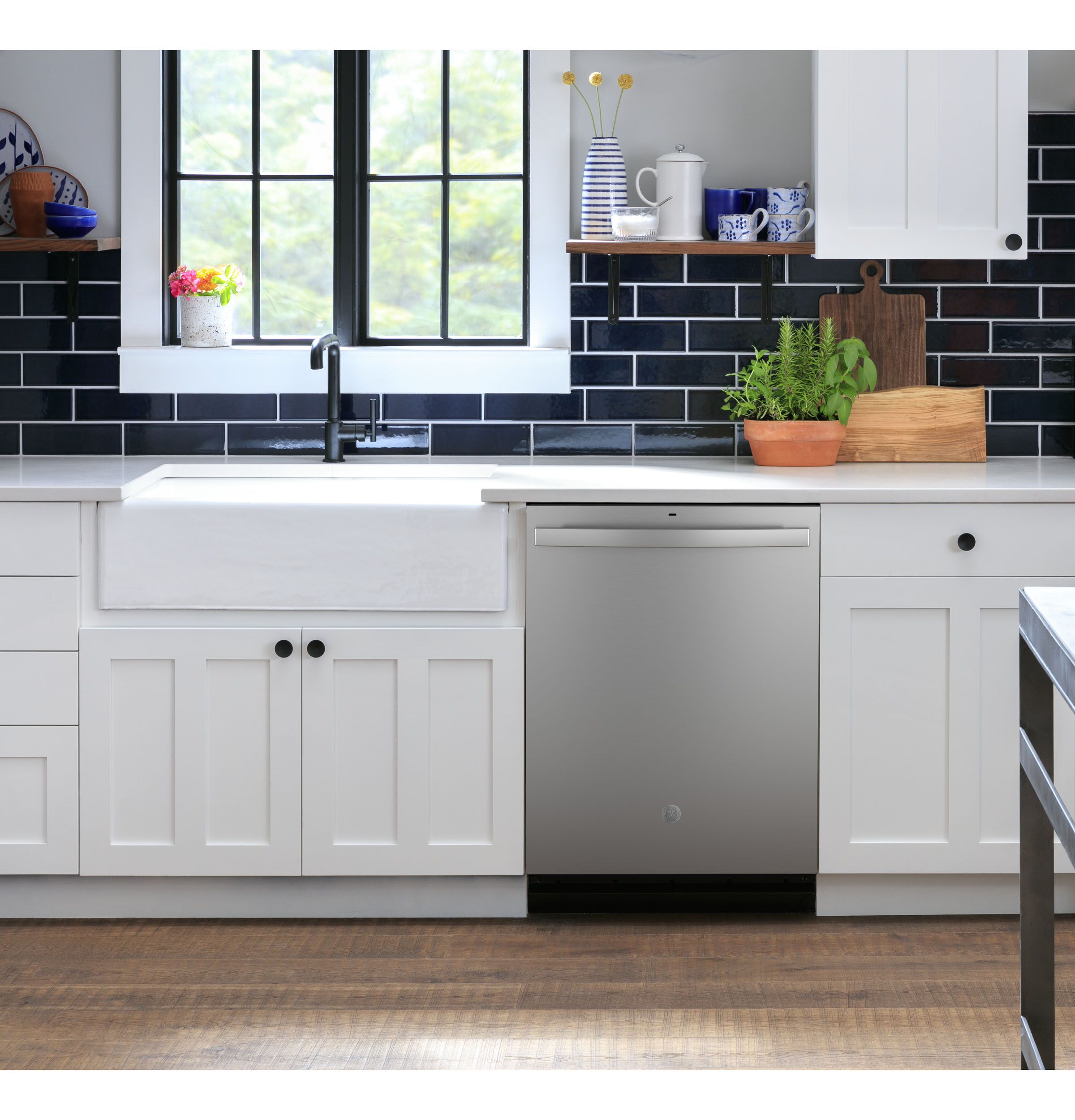

Easily mount the dishwasher under your countertop or to the side of your cabinets using installation brackets for any type of countertop

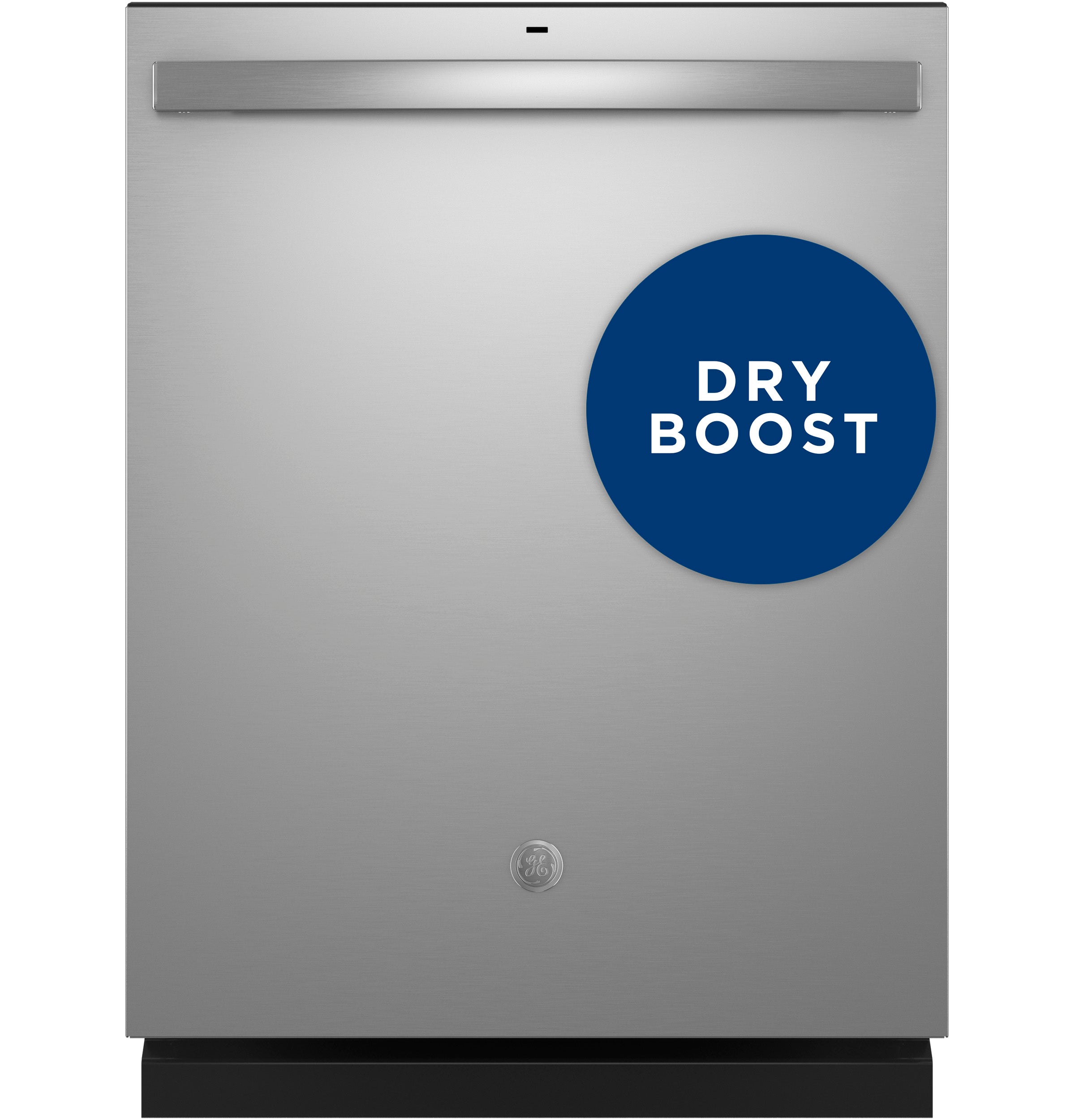

Dry Boost gets hard-to-dry items like plastics up to 3x drier compared to heated dry
Save time with a Steam option that loosens tough soils before the wash cycle begins, so you get a complete clean with no pre-rinsing or soaking necessary. Plus, a Sanitization cycle reduces 99.999% of bacteria on dishes
This energy efficient dishwasher has an AutoSense cycle that detects the soil level and amount of dishes, then automatically adjusts wash settings for the ultimate clean
This American made dishwasher is durable, long-lasting and dependable. Its consistent performance will give you totally clean and dry dishes with every cycle
This dishwasher features Active Flood Protect, preventing potential overflows for greater peace of mind. A water sensor cancels the wash cycle before a flood can occur and alerts you with blinking lights and a tone
The Piranha™ hard food disposer with a removable filter has a stainless steel blade that rotates at 3,600 RPM, preventing large particles from clogging the wash arms and ensuring consistently clean dishes
Dry Boost gets hard-to-dry items like plastics up to 3x drier compared to heated dry
