GE GDT535PGRBB Top Control with Plastic Interior Dishwasher with Sanitize Cycle & Dry Boost Black

Quick Specification More details

Width:
23.75"
Depth:
24"
Height:
33.375"
Type:
Built-In Dishwashers

About this product

High Wash Performance
Choose Your Cycle
Dishwasher with Upper & Lower Rack Capacity
Quiet 55 dBA Dishwasher

GE GDT535PGRBB Top Control with Plastic Interior Dishwasher with Sanitize Cycle & Dry Boost Black

$482.86 ~~$618.97~~ Save $136.11 / 21% OFF

Quantity:

More on the way

Active Rebates

Extended Protection

1-Year Extended Protection
$30.99
2-Year Extended Protection
$51.99
3-Year Extended Protection
$75.99
5-Year Extended Protection
$139.99
Manufacturer Warranty Only

Dishwasher Install — Hardwire; Existing Non-Copper Line Only (No Panel Installation)
$220.00
Dishwasher Installation Kit - Complete with Cord
$29.95
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.75"
Depth:
24"
Height:
33.375"
Type:
Built-In Dishwashers

About this product

High Wash Performance
Choose Your Cycle
Dishwasher with Upper & Lower Rack Capacity
Quiet 55 dBA Dishwasher

Product Details for GE GDT535PGRBB

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Weights & dimensions

Overall Depth	24 in
Overall Width	23.75 in
Overall Height	33.375 in
Height w/ Legs Retracted - Minimum Height	33.375 in
Cabinet Width	24 in
Net Weight	54 lb
Approximate Shipping Weight	68 lb
Overall Depth with Handle	25.875 in
Height w/Legs Extended - Maximum Height	34.625 in
Depth with Door Open	27.5 in
Depth Without Handle	24 in
Cutout Height (in)	33.5
Cutout Width (in)	24
Cutout Depth (in)	24

Features

Wash System	2-Level
Tub Type	Tall Tub
Leveling System	4 Leveling Legs
OU Certified	No
Number of Place Settings	14
Dishwasher Options	Wash TempBoost
Latch	Center Pull
Number of Options	4
Style	Built-In Top Control
Water Filtration System	100% Filtration with Piranha Hard Food Disposer and Removable Filter
Rack Features	Chop stick slots
Dishwasher Cycles	Rinse
Rack Color	Silver
Dispenser	Rinse Aid
WiFi Connect	Optional (Requires part no. PBX23W00Y1)
Control Type	Top Controls
Dishwasher Drying Features	Dry Boost™
Wash Arms	Middle
Wash System Features	Piranha™ Hard Food Disposer with removable filter
Exterior Style	Traditional
Active Flood Protection	Active Flood Protect
Product Type	Built-In
Upper Rack	Standard
Dishwasher Control Features	Last Cycle Memory
Number of Cycles	4
Tub and Door Liner	Gray Plastic
Sabbath Mode	Yes
Showroom Power Mode	Yes

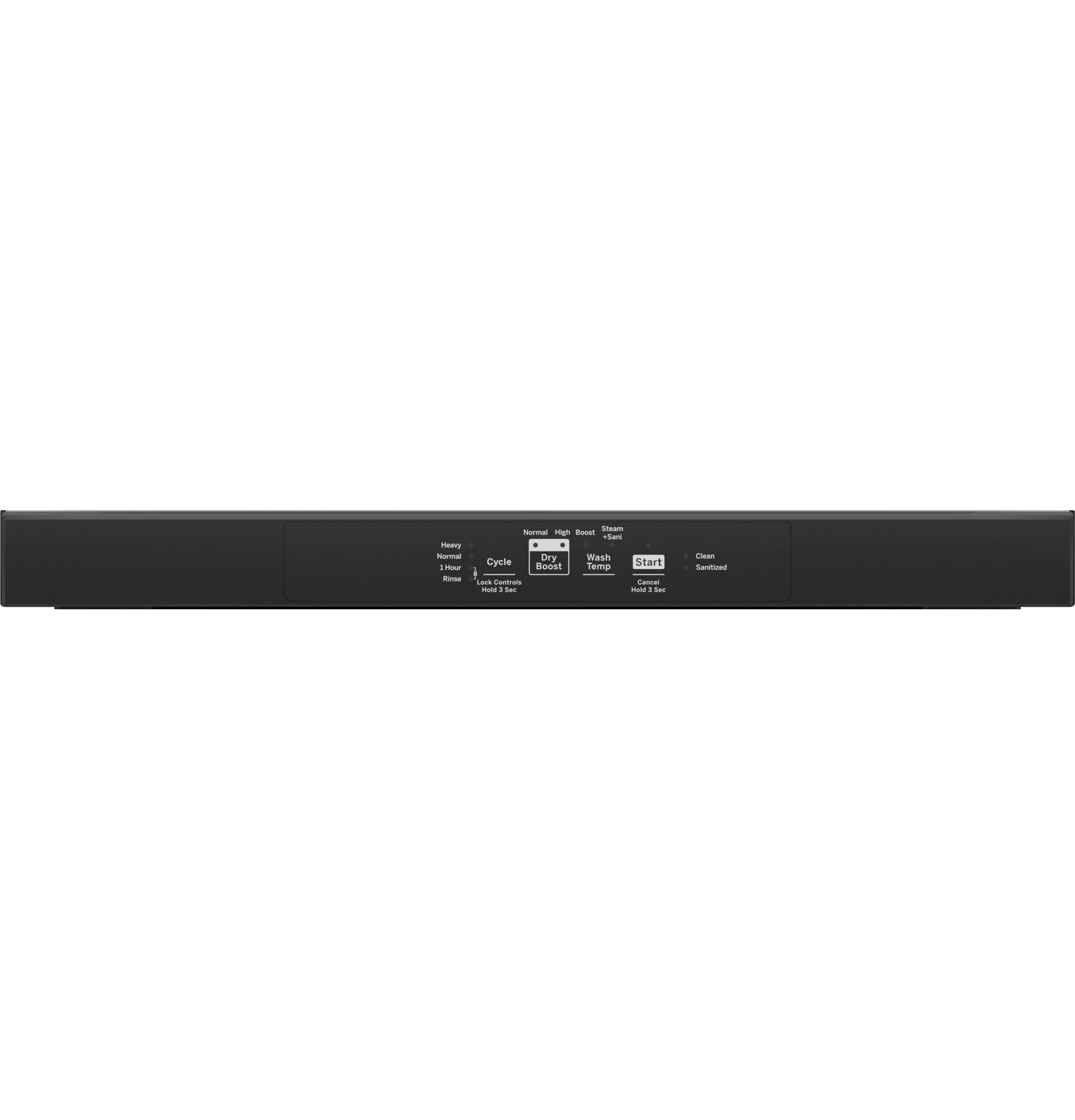

Control Type	Fully Integrated Inlaid Electronic Buttons
Control Type	4 Touchpads
Dishwasher Control Features	1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
Dishwasher Cycles	Heavy Wash
Dishwasher Cycles	Normal Wash
Dishwasher Cycles	1 Hour Wash
Dishwasher Drying Features	Calrod Heater
Dishwasher Options	Dry Boost™ (High)
Dishwasher Options	Dry Boost™ (Normal)
Dishwasher Options	Steam + Sani (Certified to NSF Standard 184)
Dishwasher Options	Start/Reset
Dishwasher Options	Lock Controls
Dishwasher Options	Sabbath Mode
Dispenser	Detergent
Rack Features	1 Piece Silverware Basket
Rack Features	1 Utility Shelf with Stem Safe
Upper Rack	PVC
Upper Rack	Removable
Wash Arms	Lower
Wash System Features	Automatic Temperature Control
Wash System Features	Automatic HotStart
Wash System Features	Fill Level Pressure Sensor
Wash System Features	Active Flood Protect

Appearance

Handle	Towel Bar
Installation	Side Installation or Top Installation Included
Handle Color	Black
Door Style	Flat Door
Door Appearance	Full-length flat door
Color Appearance	Black
Installation	Built-Up Floor Capable

Power / ratings

Power Connection	Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year)	240
Electrical Requirements	120V ; 60Hz ; 7.1A
Calrod Heater Watts	800/500
Hertz	60
Watts	792

Warranty

Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance

Economical / quiet

Quiet Package

55 dBA

Dimensions & weight

Width	23.75 in.
Height	33.38 in.
Length	24 in.
Weight	54 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	28.75 in.
Shipping Height	38.38 in.
Shipping Length	29 in.
Shipping Weight	94 lbs.
Total of Shipping Weight	94 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	11.01 ft³
Dimensional Weight	136.86 lbs.
Total of Cubes	11.01 ft³
Total of Dimensional Weight	136.86 lbs.

Description

Featuring Dry Boost, this dishwasher is the best drying dishwasher in its class and gets dishes 7x drier. *With use of Dry Boost tested against similar featured products: FFID2426TS3A, WDF520PADM, DW80R2031US.Save time with a Steam option that loosens tough soils before the wash cycle begins, so you get a complete clean with no pre-rinsing or soaking necessary. Plus, a Sanitization cycle reduces 99.999% of bacteria on dishes.33 3/8 H x 23 3/4 W x 24 D

Product Features

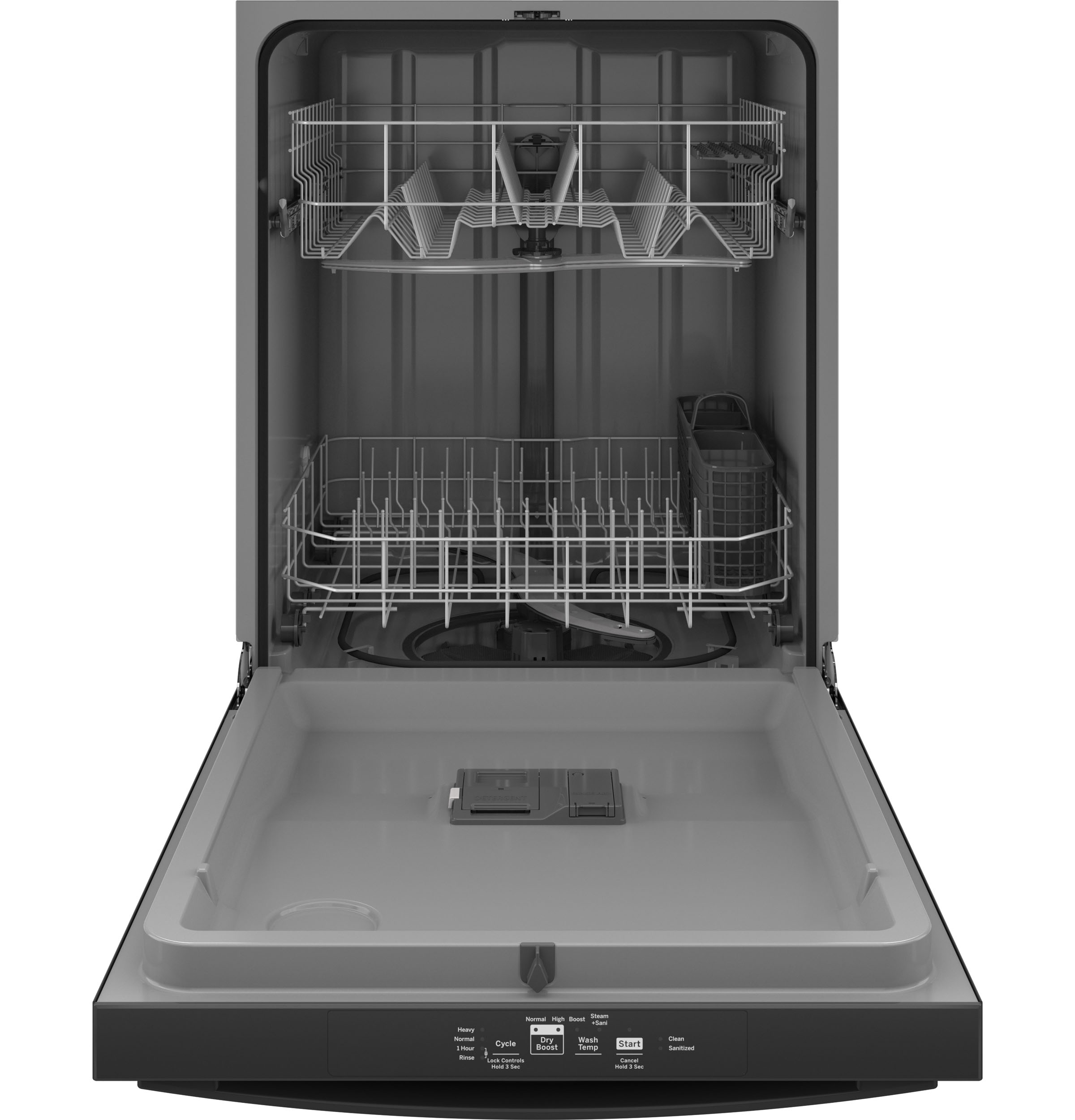

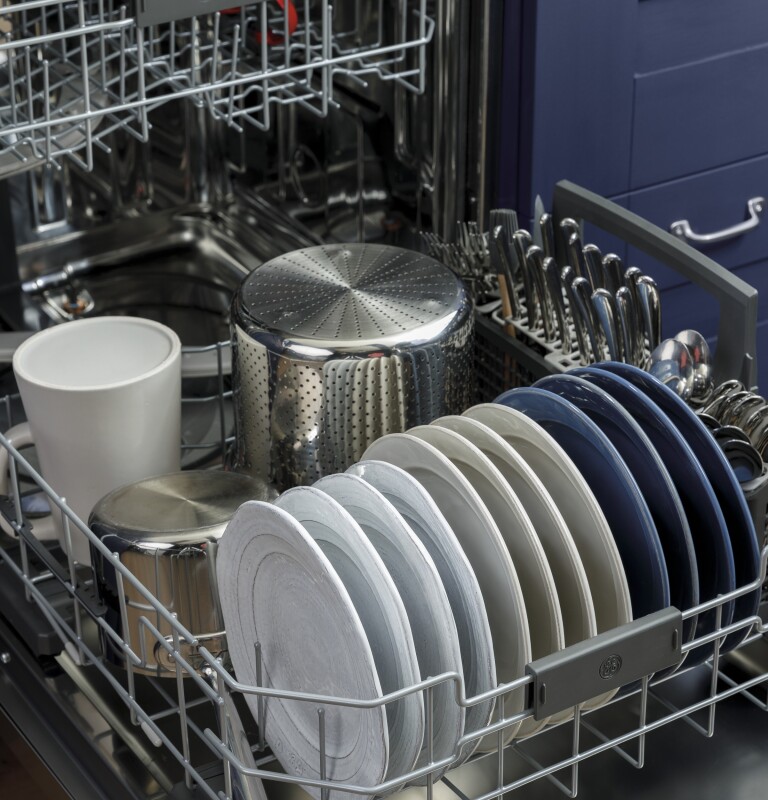

Dishwasher with Upper & Lower Rack Capacity
This well-designed dishwasher has an upper and lower rack, offering loading flexibility and total wash coverage on both racks
Quiet 55 dBA Dishwasher
This ultra-quiet dishwasher provides a powerful clean without unwanted noise or disturbances. A status light on the door lets you know when it's running
Heavy-Duty Plastic Interior Dishwasher
The heavy-duty plastic interior is extremely long-lasting and durable, with an attractive American Gray finish
ENERGY STAR Dishwasher
This efficient, ENERGY STAR dishwasher saves energy without sacrificing features or functionality
Flush Installation
ENERGY STAR® Dishwasher
This efficient, ENERGY STAR® dishwasher saves energy without sacrificing features or functionality

Manuals & Guides

Key Features

High Wash Performance

Get a complete wash with no pre-rinse, thanks to a variety of powerful wash cycles. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time

Choose Your Cycle

This dishwasher offers a heavy wash, normal wash, and a 1-hour wash cycle for outstanding wash performance and clean dishes every time, every load size

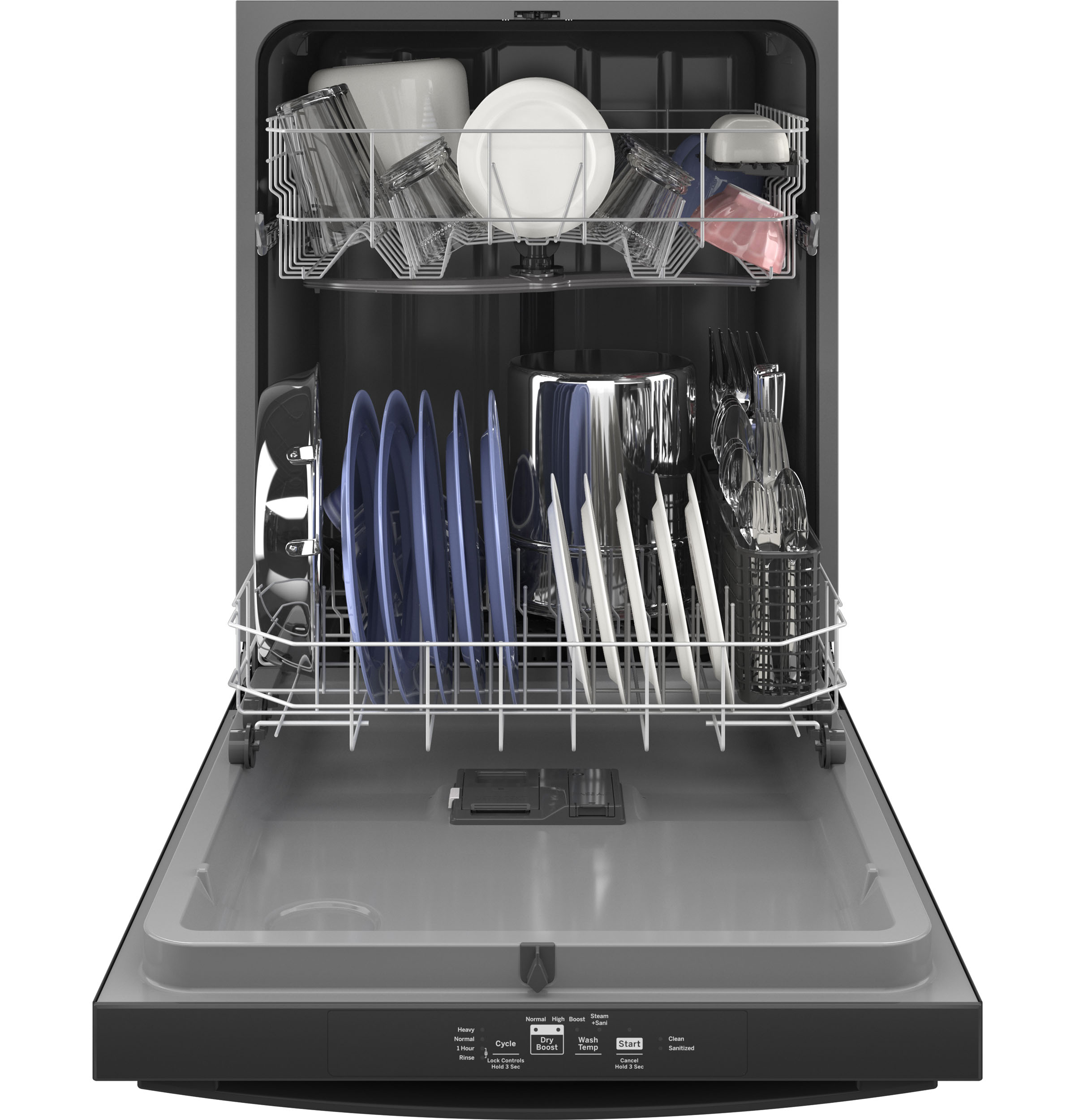

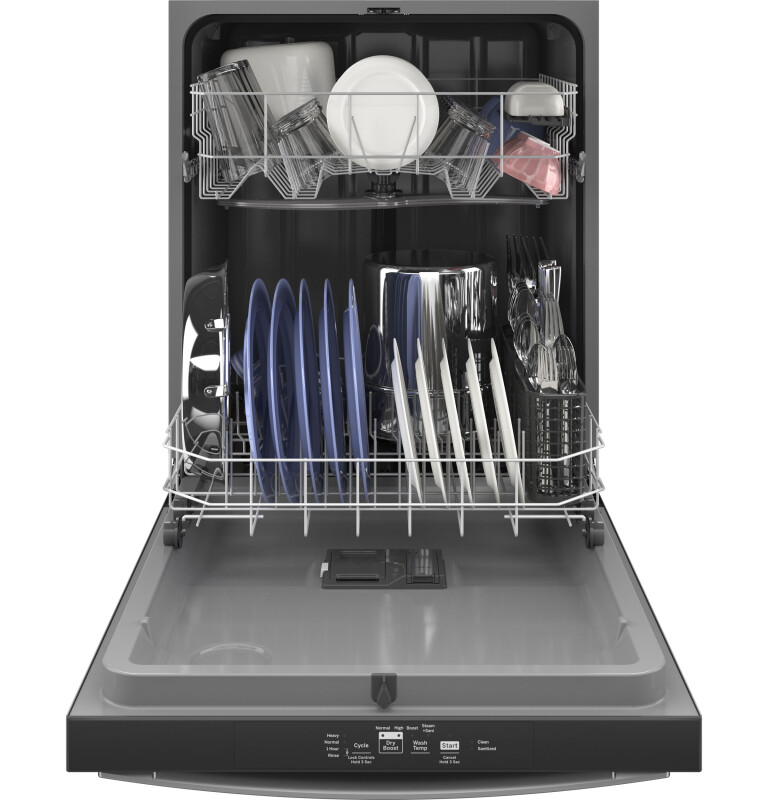

Extra Large Capacity

This extra large capacity dishwasher has enough space for 14 place settings and large dishware, making cleanup easy after large gatherings

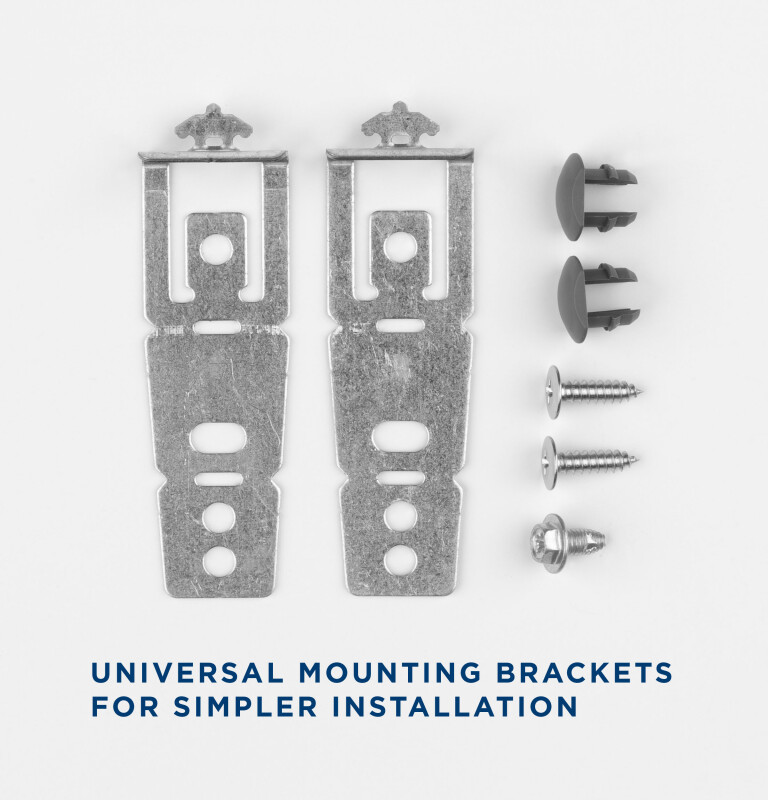

Top or Side Mount Installation Brackets

Easily mount the dishwasher under your countertop or to the side of your cabinets using installation brackets for any type of countertop

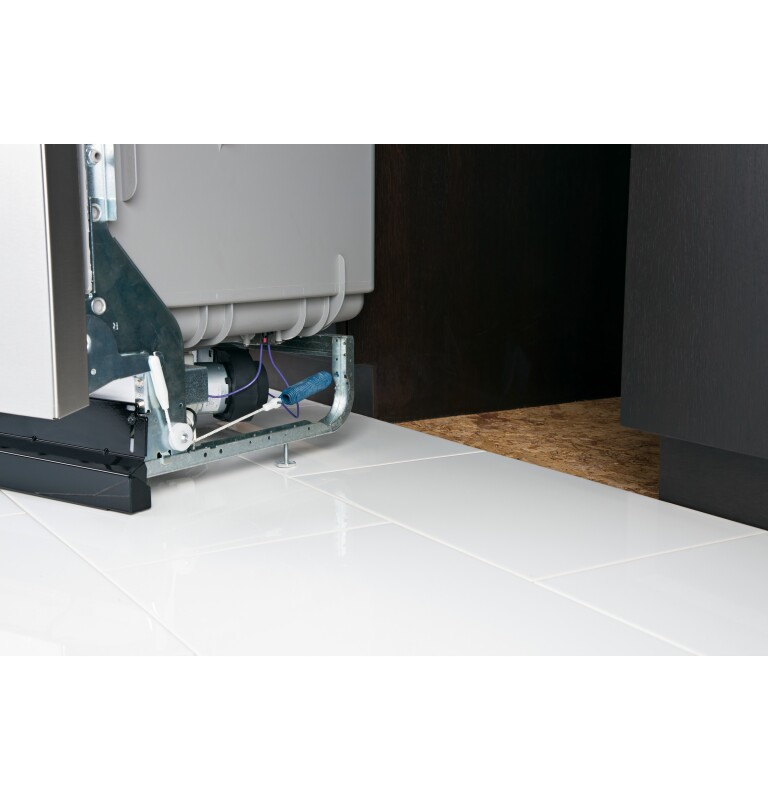

Built-Up Floor Capable

This dishwasher has adjustable heights, making it easy to install over built-up floors

Reliable Performance

This American made dishwasher is durable, long-lasting and dependable. Its consistent performance will give you totally clean and dry dishes with every cycle

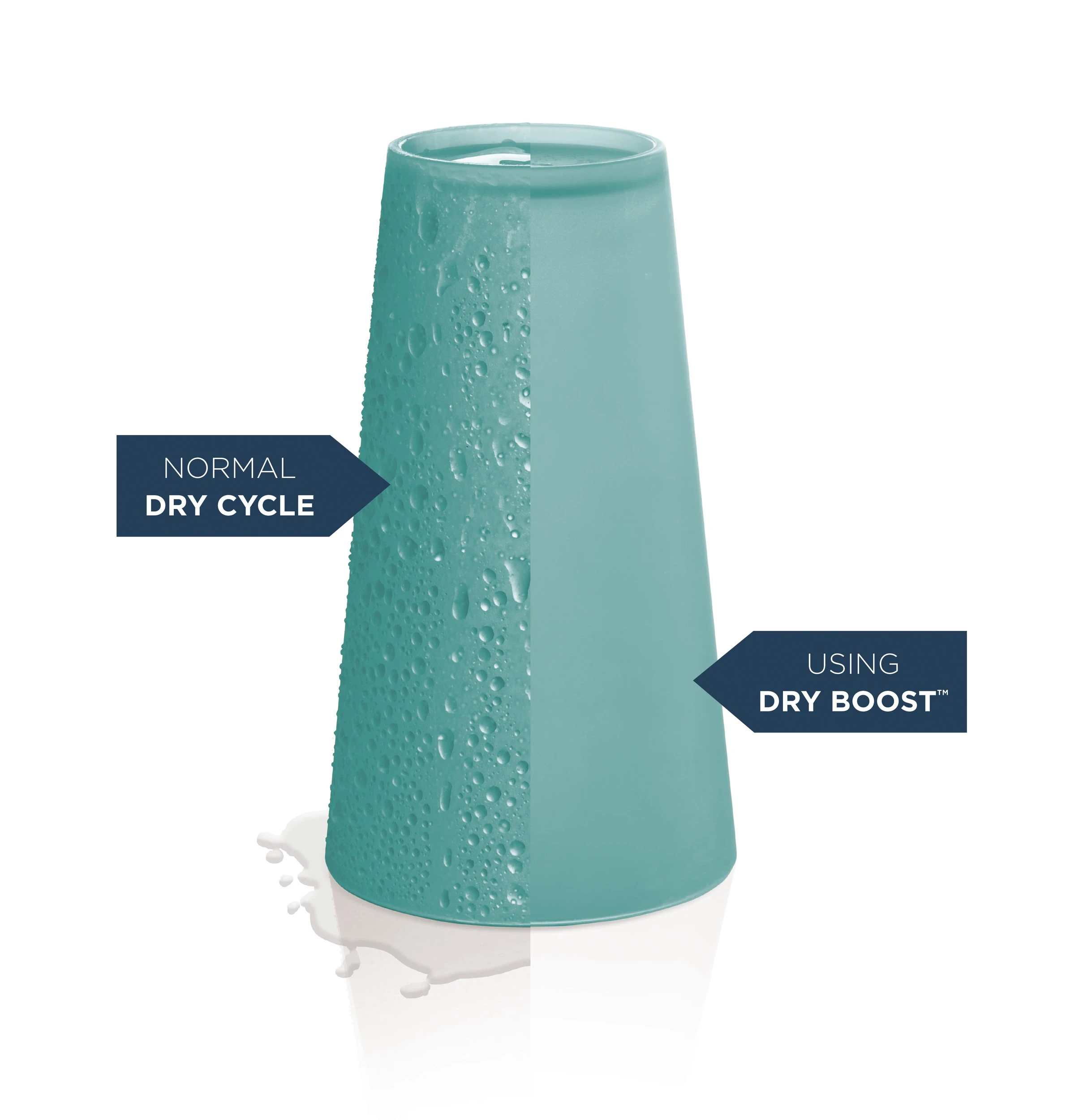

Dry Boost

Steam + Sani

Save time with a Steam option that loosens tough soils before the wash cycle begins, so you get a complete clean with no pre-rinsing or soaking necessary. Plus, a Sanitization cycle reduces 99.999% of bacteria on dishes

Water Leak Sensor

This dishwasher features Active Flood Protect, preventing potential overflows for greater peace of mind. A water sensor cancels the wash cycle before a flood can occur and alerts you with blinking lights and a tone

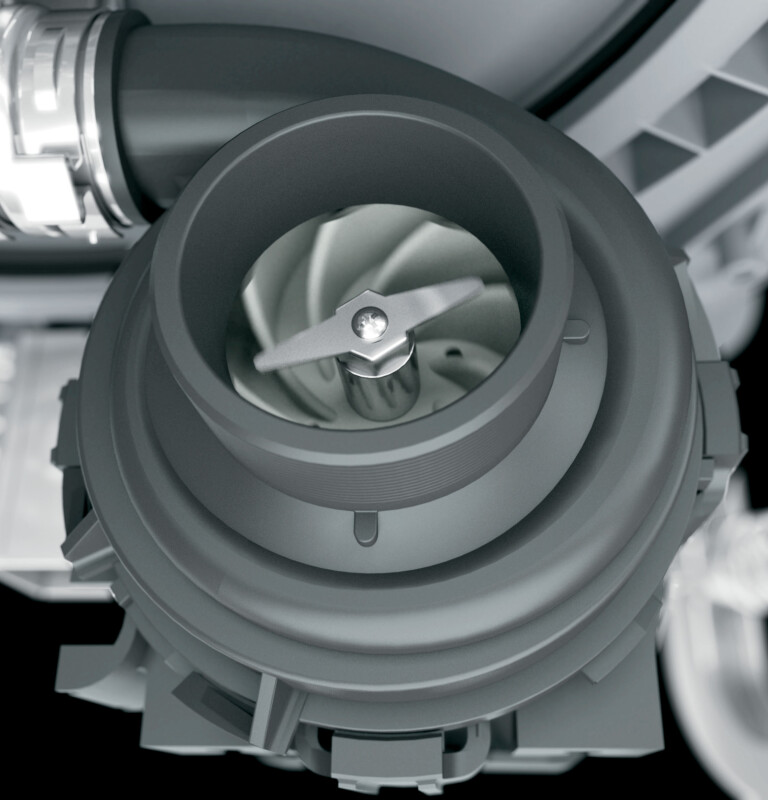

Hard Food Disposer

The Piranha™ hard food disposer with a removable filter has a stainless steel blade that rotates at 3,600 RPM, preventing large particles from clogging the wash arms and ensuring consistently clean dishes
