Sale price $501.38 Regular price $668.97 Save $167.59 / 25% OFF

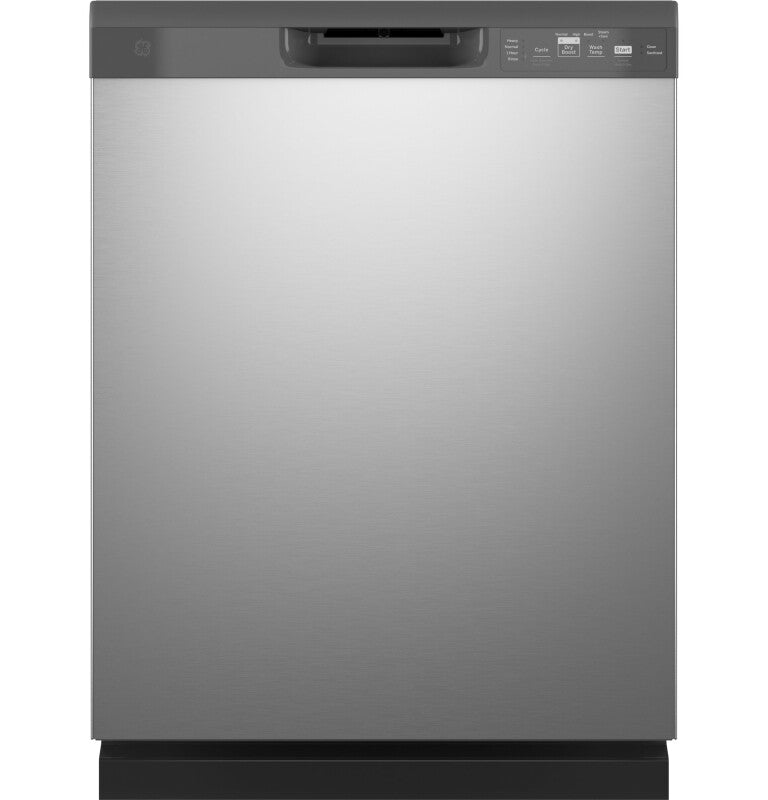

Product Details for GE GDF535PSRSS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

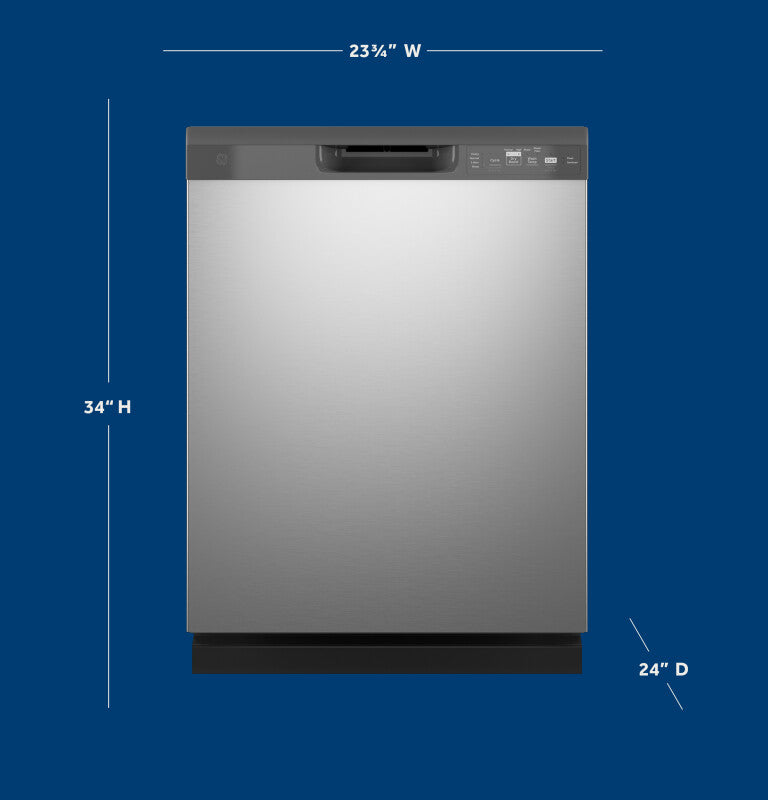

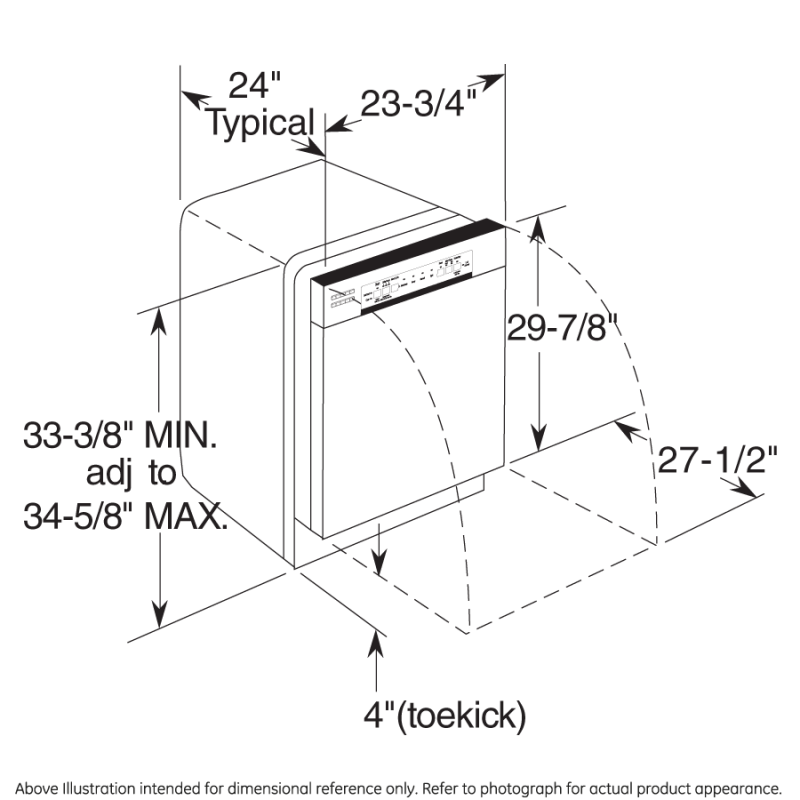

Weights & dimensions

Overall Depth 24 in
Overall Width 23.75 in
Overall Height 33.375 in
Height w/ Legs Retracted - Minimum Height 33.375 in
Cabinet Width 24 in
Net Weight 55 lb
Approximate Shipping Weight 65 lb
Depth with Door Open 27.5 in
Height w/Legs Extended - Maximum Height 34.625 in
Depth Without Handle 24 in
Overall Depth with Handle 24 in
Cutout Height (in) 33.5
Cutout Width (in) 24
Cutout Depth (in) 24

Features

Wash System 2-Level
Tub Type Tall Tub
Leveling System 4 Leveling Legs
OU Certified No
Number of Place Settings 14
Dishwasher Options Wash TempBoost
Latch Center Pull
Number of Options 4
Style Built-In Front Control
Water Filtration System 100% Filtration with Piranha Hard Food Disposer and Removable Filter
Rack Features Chop stick slots
Dishwasher Cycles Rinse
Dispenser Rinse Aid
Rack Color Silver
WiFi Connect Optional (Requires part no. PBX23W00Y1)

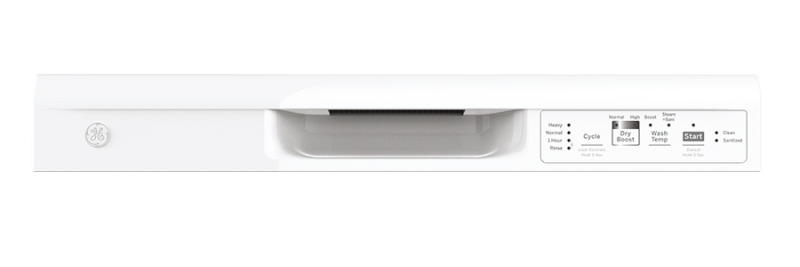

Control Type Fully Integrated Inlaid Electronic Buttons
Dishwasher Drying Features Dry Boost™
Wash Arms Middle
Wash System Features Piranha™ Hard Food Disposer with removable filter
Exterior Style Traditional
Active Flood Protection Active Flood Protect
Product Type Built-In
Upper Rack Standard
Dishwasher Control Features Last Cycle Memory
Number of Cycles 4
Tub and Door Liner Gray Plastic
Sabbath Mode Yes
Showroom Power Mode Yes

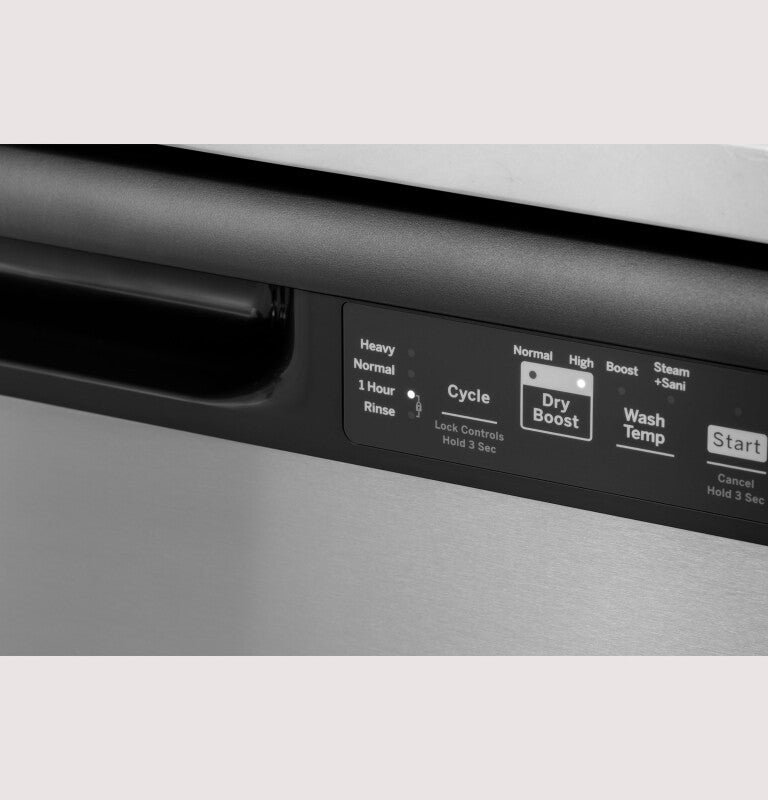

Control Type Front Controls

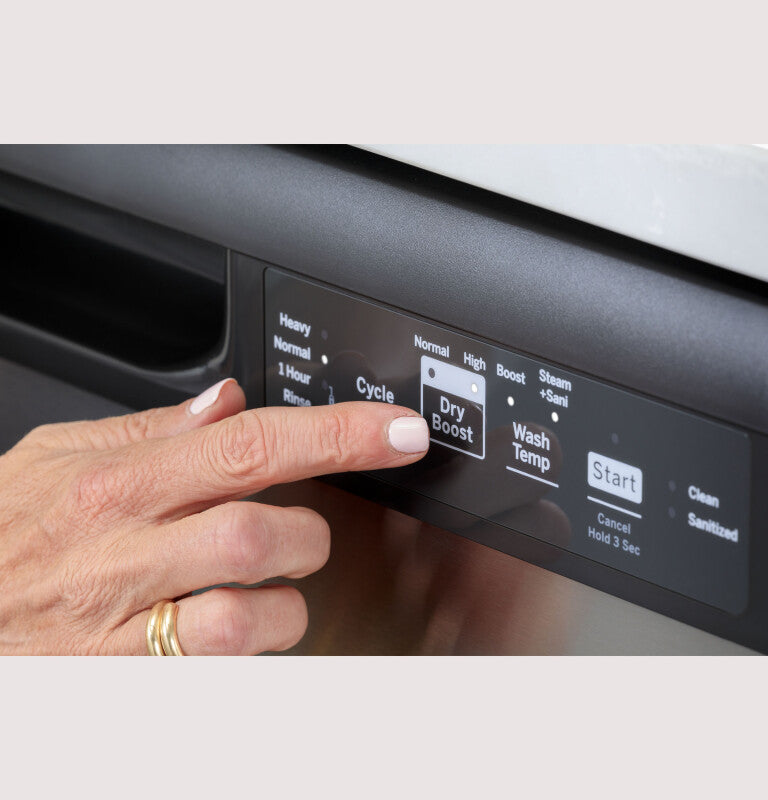

Control Type 4 Touchpads

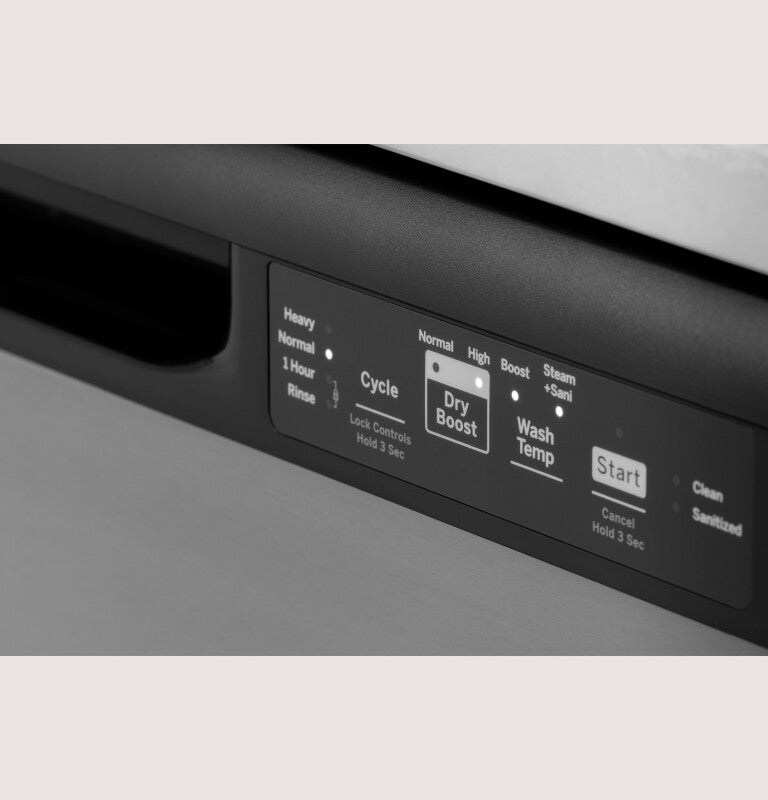

Dishwasher Control Features 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
Dishwasher Cycles Heavy Wash
Dishwasher Cycles Normal Wash
Dishwasher Cycles 1 Hour Wash
Dishwasher Drying Features Calrod Heater
Dishwasher Options Dry Boost™ (High)
Dishwasher Options Dry Boost™ (Normal)
Dishwasher Options Steam + Sani (Certified to NSF Standard 184)
Dishwasher Options Start/Reset
Dishwasher Options Lock Controls
Dishwasher Options Sabbath Mode
Dispenser Detergent

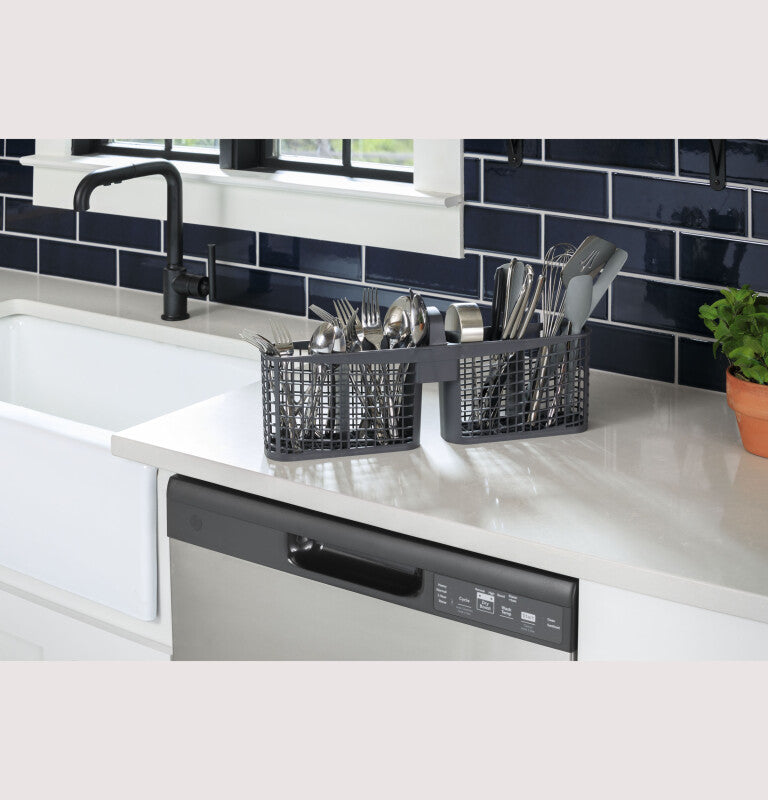

Rack Features 1 Piece Silverware Basket
Rack Features 1 Utility Shelf with Stem Safe
Rack Features Ball-Tipped Tines
Upper Rack PVC
Upper Rack Removable
Wash Arms Lower
Wash System Features Automatic Temperature Control
Wash System Features Automatic HotStart
Wash System Features Fill Level Pressure Sensor
Wash System Features Active Flood Protect

Appearance

Handle Integrated
Installation Side Installation or Top Installation Included
Handle Color Stainless Steel
Door Style Flat Door
Door Appearance Full-length flat door
Color Appearance Stainless Steel
Installation Built-Up Floor Capable

Power / ratings

Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year) 240
Electrical Requirements 120V ; 60Hz ; 7.1A
Calrod Heater Watts 800/500
Hertz 60
Watts 792

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Economical / quiet

Quiet Package 55 dBA

Dimensions & weight

Width 23.75 in.
Height 33.38 in.
Length 24 in.
Weight 55 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.75 in.
Shipping Height 38.38 in.
Shipping Length 29 in.
Shipping Weight 95 lbs.
Total of Shipping Weight 95 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 11.01 ft³
Dimensional Weight 136.86 lbs.
Total of Cubes 11.01 ft³
Total of Dimensional Weight 136.86 lbs.

Description

Featuring Dry Boost, this dishwasher is the best drying dishwasher in its class and gets dishes 7xs drier. *With use of Dry Boost tested against similar featured products: FFID2426TS3A, WDF520PADM, DW80R2031US.Save time with a steam and sanitize option that loosens tough soils before the wash cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization cycle reduces 99.999% of bacteria on dishes.33 3/8 H x 23 3/4 W x 24 D


Product Features

  • 55 dBA Dishwasher
    This quiet dishwasher provides a powerful clean without unwanted noise or disturbances. A status light on the door lets you know when it's running
  • ENERGY STAR Dishwasher
    This efficient, ENERGY STAR dishwasher saves energy without sacrificing features or functionality
  • Built-Up Floor Capable
    This dishwasher has adjustable heights, making it easy to install over built-up floors
  • ENERGY STAR® Dishwasher
    This efficient, ENERGY STAR® dishwasher saves energy without sacrificing features or functionality

Key Features

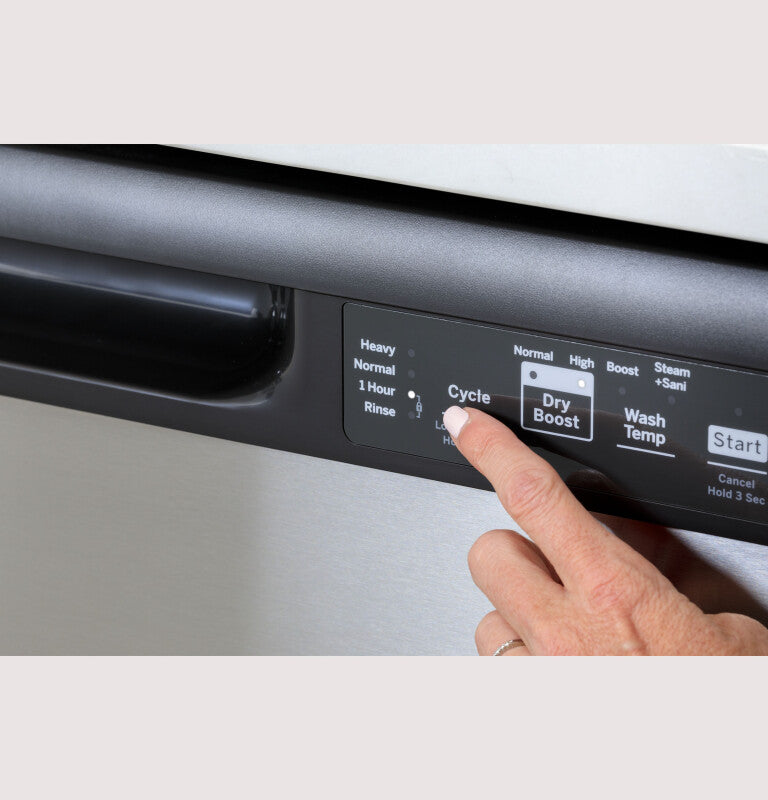

Choose Your Cycle

This dishwasher offers a heavy wash, normal wash, and a 1-hour wash cycle for outstanding wash performance and clean dishes every time, every load size

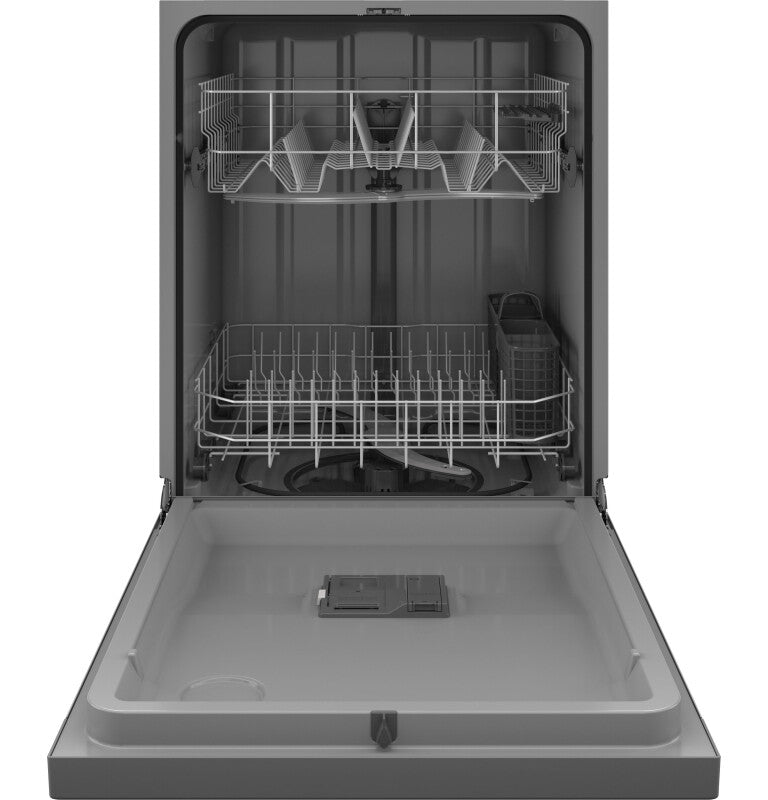

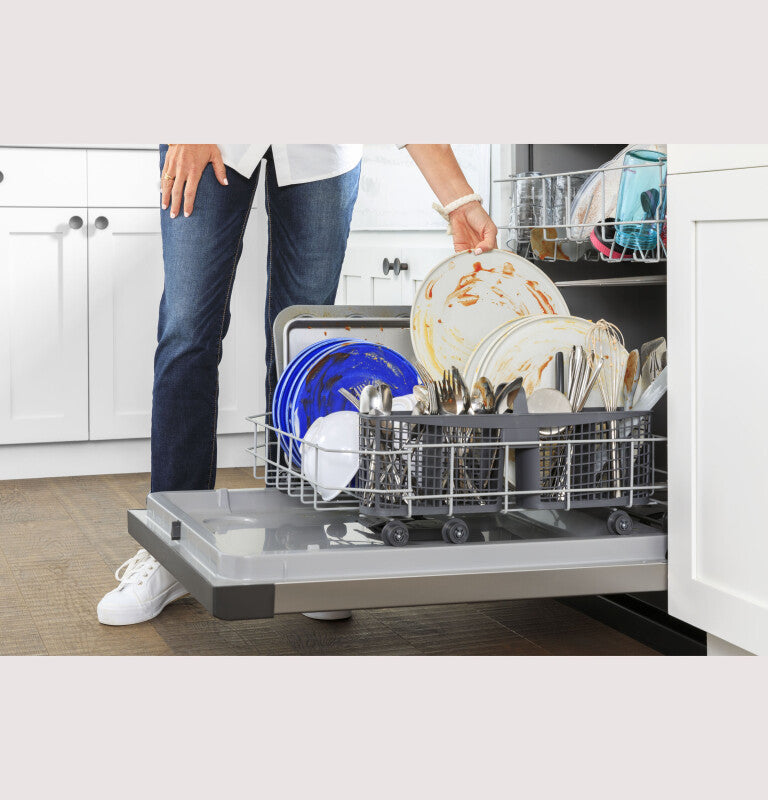

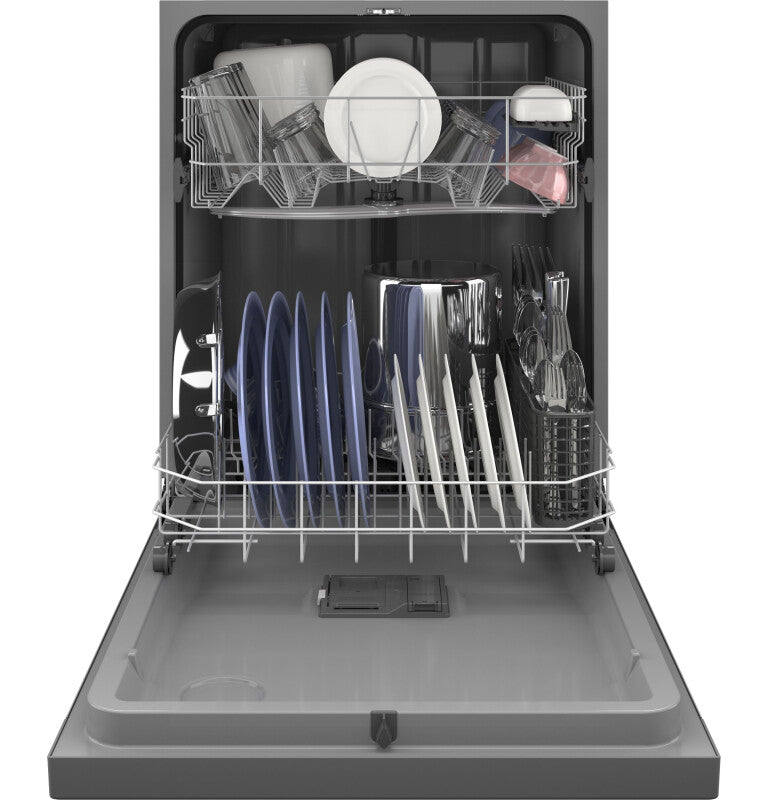

Dishwasher with Upper & Lower Rack Capacity

This well-designed dishwasher has an upper and lower rack, which offers loading flexibility and total wash coverage on both racks

Extra Large Capacity

This extra large capacity dishwasher has enough space for 14 place settings and large dishware, making cleanup easy after large gatherings

Heavy-Duty Plastic Interior Dishwasher

This heavy-duty plastic interior is extremely long-lasting, durable and has an attractive American Gray finish

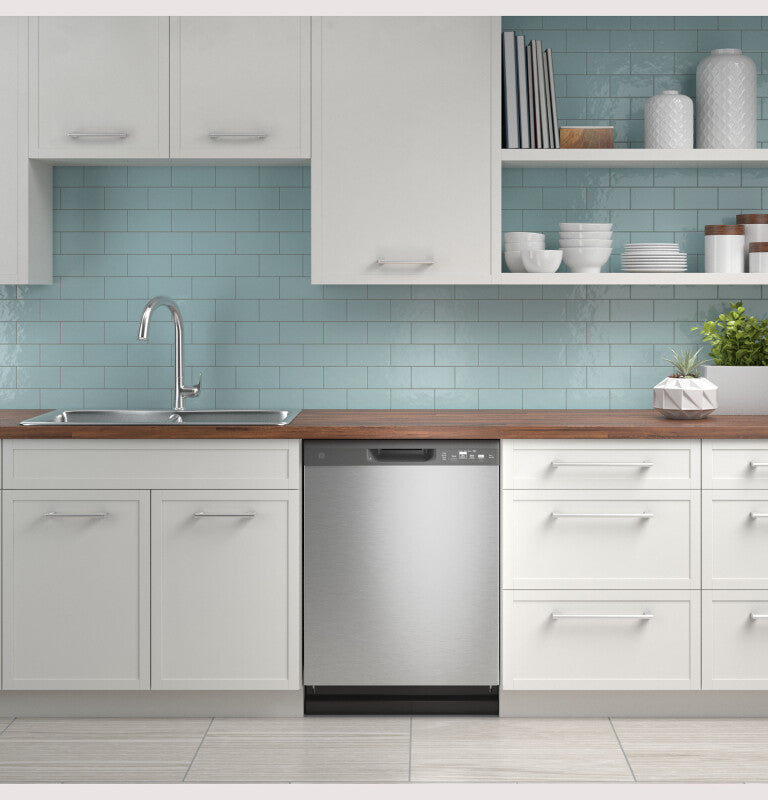

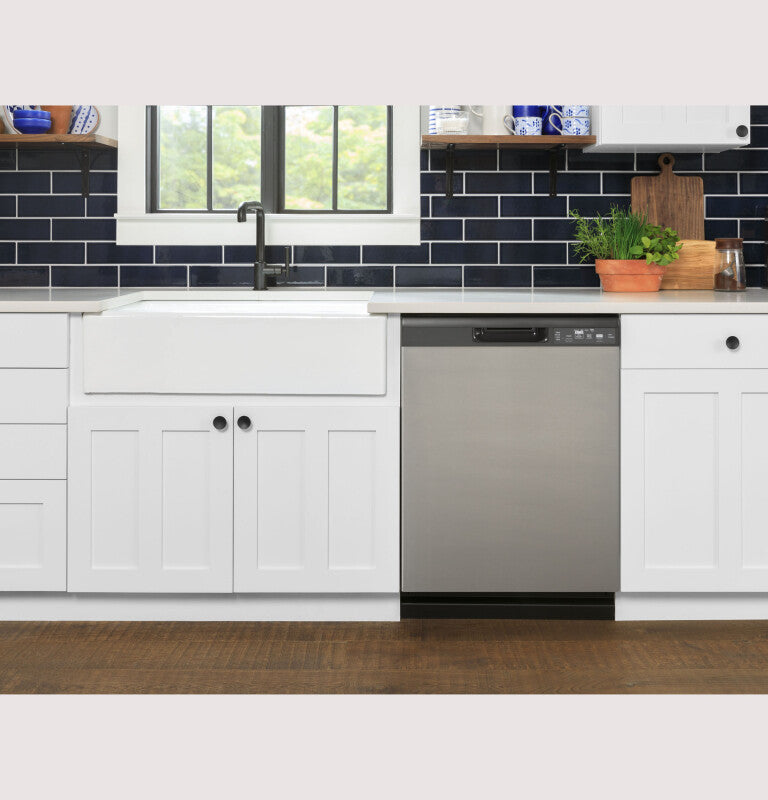

Flush Installation

Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen, and it doesn't reduce rack capacity

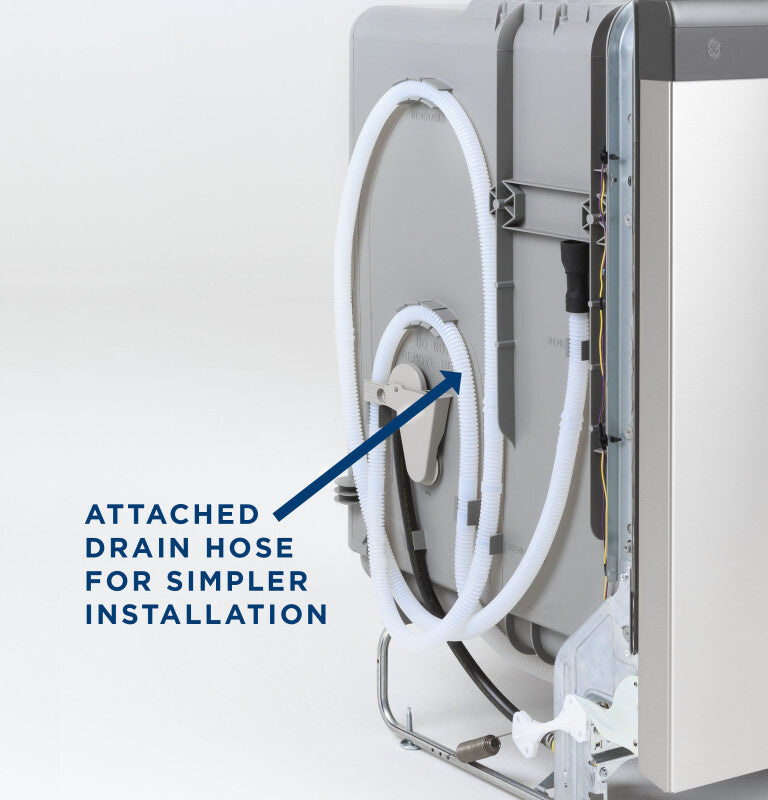

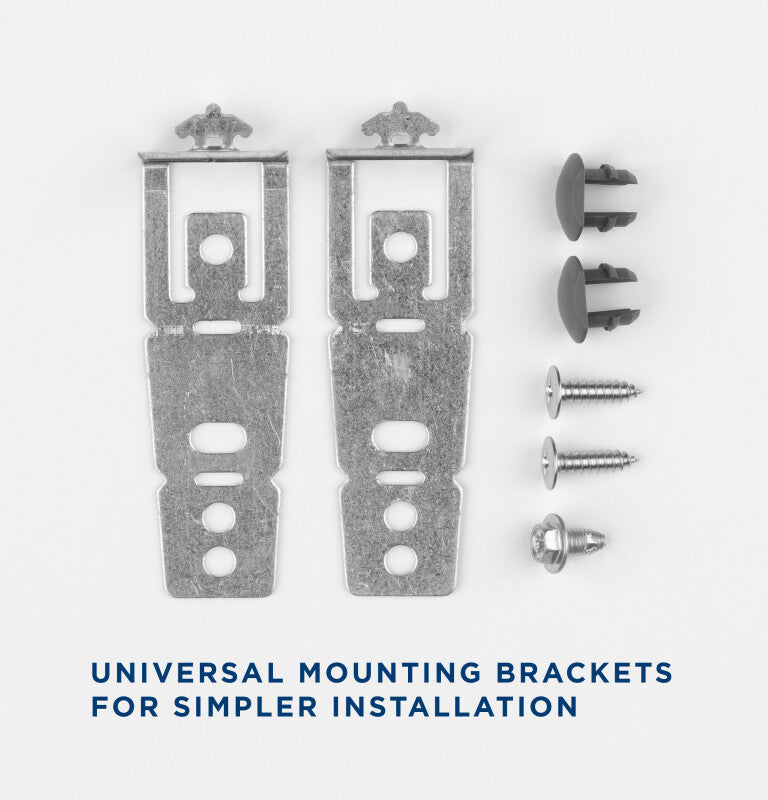

Top or Side Mount Installation Brackets

Easily mount the dishwasher under your countertop or to the side of your cabinets using installation brackets for any type of countertop

Reliable Performance

This American made dishwasher is durable, long-lasting and dependable. Its consistent performance will give you totally clean and dry dishes with every cycle

Steam + Sani

Save time with a steam and sanitize option that loosens tough soils before the wash cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization cycle reduces 99.999% of bacteria on dishes

Water Leak Sensor

This dishwasher features Active Flood Protect, to prevents potential overflows for greater peace of mind. A water sensor alarm cancels the wash cycle before a flood may occur and alerts you with blinking lights and an alert tone

Dry Boost

Featuring Dry Boost, this dishwasher is the best drying dishwasher in its class and gets dishes 7xs drier. *With use of Dry Boost tested against similar featured products: FFID2426TS3A, WDF520PADM, DW80R2031US

High Wash Performance

Get a complete wash with no pre-rinse, thanks to a variety of powerful wash cycles. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time

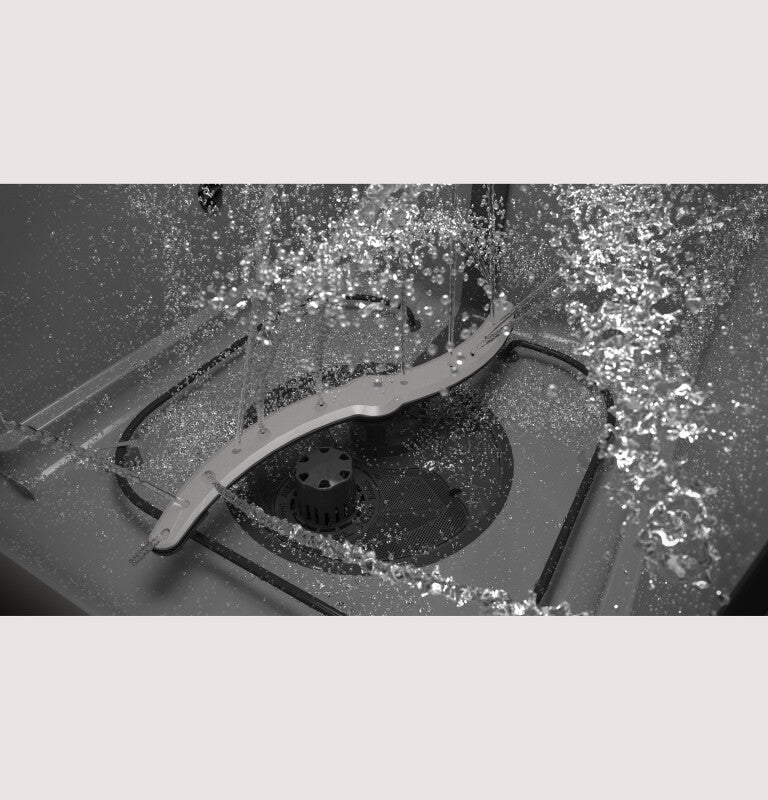

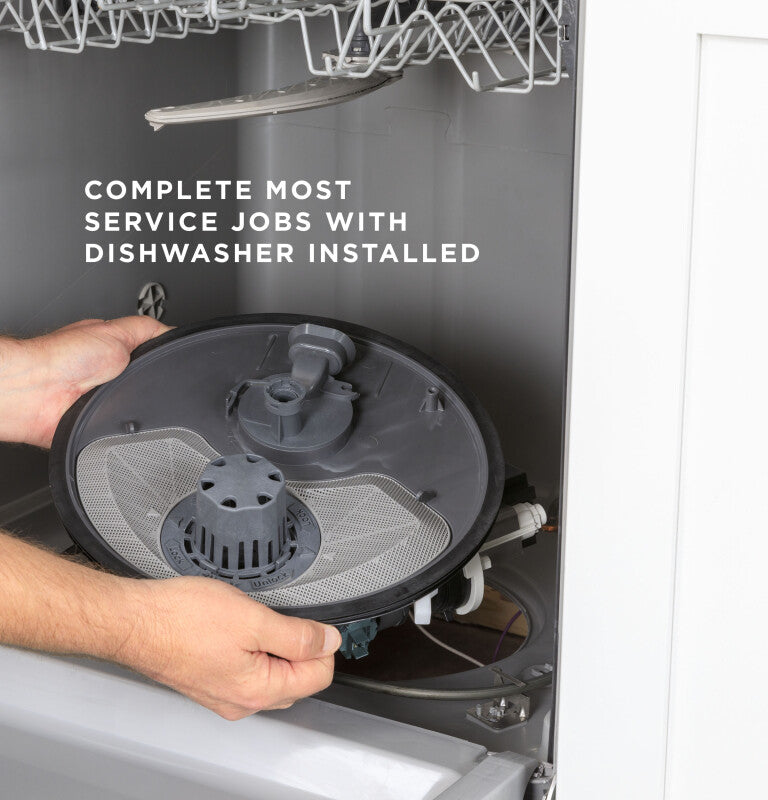

Hard Food Disposer

The Piranha™ hard food disposer with a removable filter has a stainless steel blade that rotates at 3,600 RPM, preventing large particles from clogging the wash arms and ensuring consistently clean dishes

Dry Boost™

Featuring Dry Boost, this dishwasher is the best drying dishwasher in its class and gets dishes 7xs drier. *With use of Dry Boost tested against similar featured products: FFID2426TS3A, WDF520PADM, DW80R2031US
