| Frigidaire Fit Promise | Yes |
| Warranty - Labor | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Microwave Capacity | 1.7 Cu. Ft. |
| Oven Capacity | 3.8 Cu. Ft. |
| Width | 27 in. |
| Height | 42 in. |
| Length | 24 in. |
| Weight | 250 lbs. |
| Depth With Door 90° Open | 45 3/4" |
| Depth With Handle | 27 7/16" |
| Cutout Depth | 24" |
| Oven Interior Height | 17" |
| Oven Interior Width | 20 1/2" |
| Oven Interior Depth | 18 3/4" |
| Microwave Interior Height | 17" |
| Microwave Interior Width | 20 1/2" |
| Minimum Cutout Height | 39 7/8" |
| Microwave Interior Depth | 18 3/4" |
| Minimum Cutout Width | 24 7/8" |
| Maximum Cutout Height | 41 1/2" |
| Maximum Cutout Width | 25 1/2" |
| Number of Boxes | 1 |
| Shipping Width | 32 in. |
| Shipping Height | 47 in. |
| Shipping Length | 29 in. |
| Shipping Weight | 290 lbs. |
| Total of Shipping Weight | 290 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 15.75 ft³ |
| Dimensional Weight | 195.8 lbs. |
| Total of Cubes | 15.75 ft³ |
| Total of Dimensional Weight | 195.8 lbs. |
| Sabbath Mode | Yes |

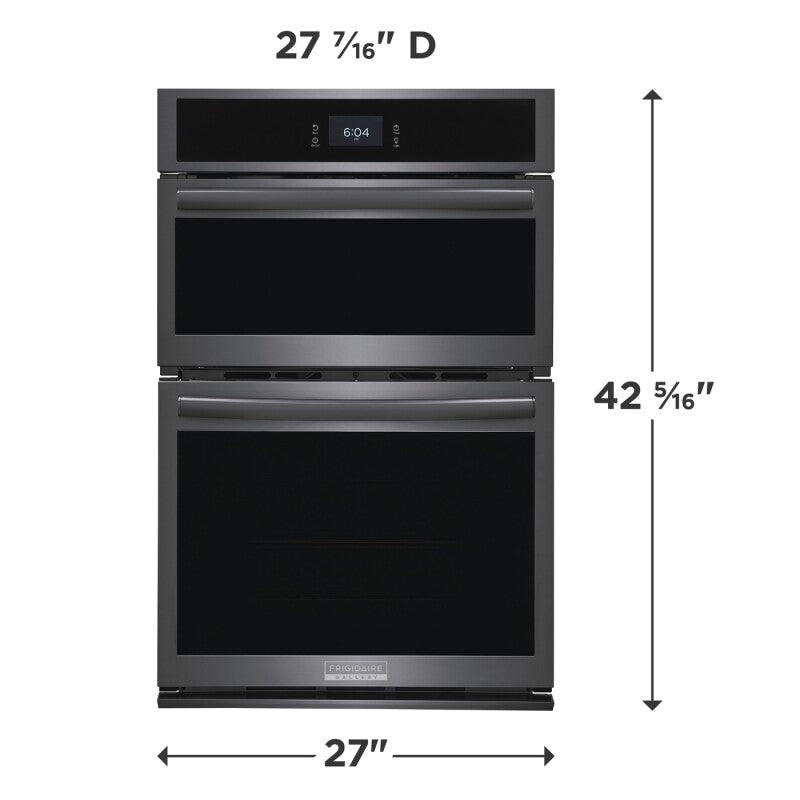

| Height | 42 5/16" |
| Width | 27" |
| Depth | 27 7/16" |
| Depth | 24 5/8" |
| Depth With Door 90° Open | 45 3/4" |
| Minimum Cutout Height | 39 7/8" |
| Minimum Cutout Width | 24 7/8" |
| Maximum Cutout Height | 41 1/2" |
| Maximum Cutout Width | 25 1/2" |
| Control Lock | Yes |
| Air Fry | Yes |
| Air Sous Vide | Yes |
| Bake | Yes |
| Bake Time | Yes |
| Bread Proof | Yes |
| Broil | Yes |
| Cancel | Yes |
| Clear Off | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Convection Roast | Yes |
| Cook Time | Yes |
| Defrost | Yes |
| Dehydrate | Yes |
| Delay Clean | Yes |
| Delay Start | Yes |
| Door Lock | Yes |
| Fast Preheat | No |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| My Favorite | Yes |
| No Preheat | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Probe | Yes |
| Self Clean | Yes |
| Set Clock | Yes |
| Slow Cook | Yes |
| Start | Yes |
| Start Time | Yes |
| Steam Bake | Yes |
| Steam Clean | Yes |
| Steam Roast | Yes |
| Stop | Yes |
| Temperature Display | Yes |
| Timed Bake | Yes |
| Timer On / Off | Yes |
| User Preferences | Yes |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
| CSA Listed | Yes |
| Star-K Certification | Yes |
| UL Listed | Yes |
| Standard Width | 27" |
| Depth With Handle | 27 7/16" |
| Cutout Depth | 24" |
| Oven Interior Height | 17" |
| Oven Interior Width | 20 1/2" |
| Oven Interior Depth | 18 3/4" |
| Microwave Interior Height | 17" |
| Microwave Interior Width | 20 1/2" |
| Microwave Interior Depth | 18 3/4" |
| Microwave Capacity | 1.7 Cu. Ft. |
| Oven Capacity | 3.8 Cu. Ft. |
| Amps @ 240 Volts | 40 Amps |
| Connected Load @ 240V | 7.4 kW |
| Minimum Circuit Required | 40 Amps |
| Door Swing | Drop-Down Door |
| Exterior Finish | Smudge-Proof® Black Stainless Steel |
| Frigidaire Fit Promise | Yes |
| Product Weight | 250 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Power Supply Connection Location | Top Left |
| Interior Color | Midnight Black |
| Interior Light Quantity | 1 |
| Interior Light Type | Halogen |
| Interior Light Wattage | 40 Watts |
| Rack | Yes |
| Ramp Up Lighting | No |
| Turntable Diameter | 14" |
| Turntable Material | Glass |
| Microwave Cooking Power | 1000 Watts |
| Bacon | Yes |
| Beverage | Yes |
| Melt / Soften | Yes |
| Popcorn | Yes |
| Potato | Yes |
| Reheat | Yes |
| Rice | Yes |
| Top Grill Mode | Yes |
| Veggies | Yes |
| Bake Element | 2500 Watts |
| Bake Element Pass | 8 |
| Bake Element Type | Hidden |
| Broil Element | 4000 Watts |
| Broil Element Pass | 6 |
| Cleaning System | Yes |
| Convection | Yes |
| Convection Element | 2500 Watts |
| Convection Type | Total |
| Number of Convection Fans | 1 |
| Number of Rack Positions | 5 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 2 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Handle |

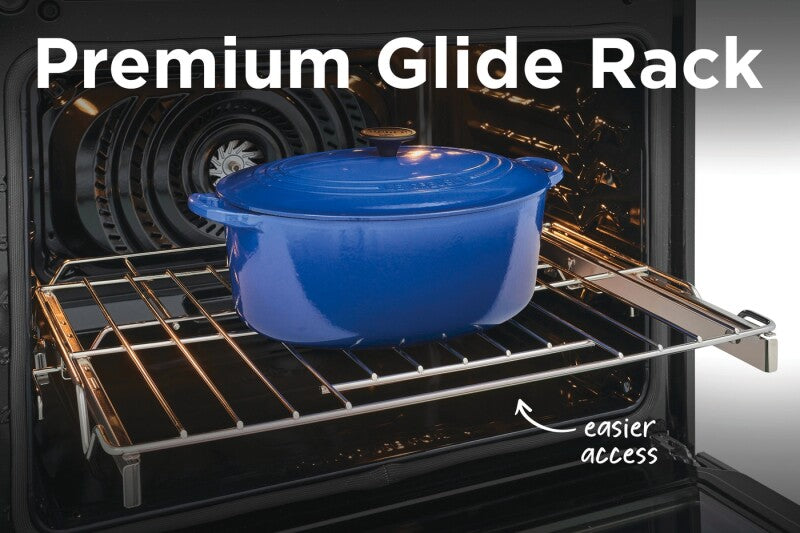

| Rack Type 2 | Glide |
| Rack Type 2 Quantity | 1 |
| + 30 Seconds | Yes - One Touch |
| Display Interface Color | White |
| Display Light Color | White |
| Display Type | Capacitive Touch |
| Convection Cooking - Bake | Yes |
| Convection Element | 1650 Watts |
| Included Steam Tray | Yes |
| Optional Air Fry Tray Part Number | AFT27FRIG |
| Optional Trim Kit Part Number | WO27TRM3SS (Stainless) , WO27TRM3DS (Black Stainless) |
| Rack Type 1 Quantity | 1 |

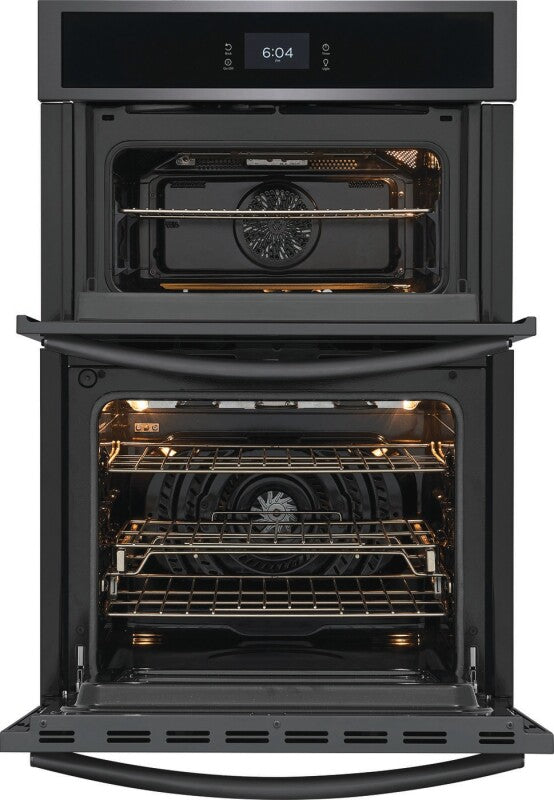

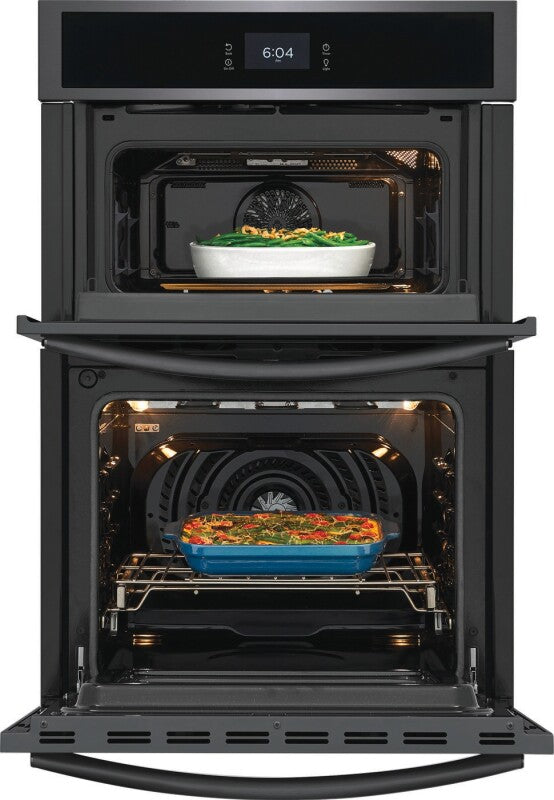

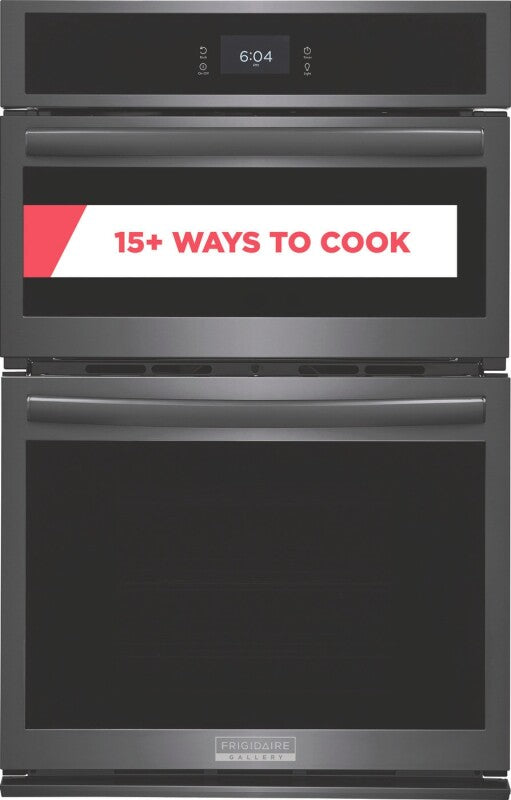

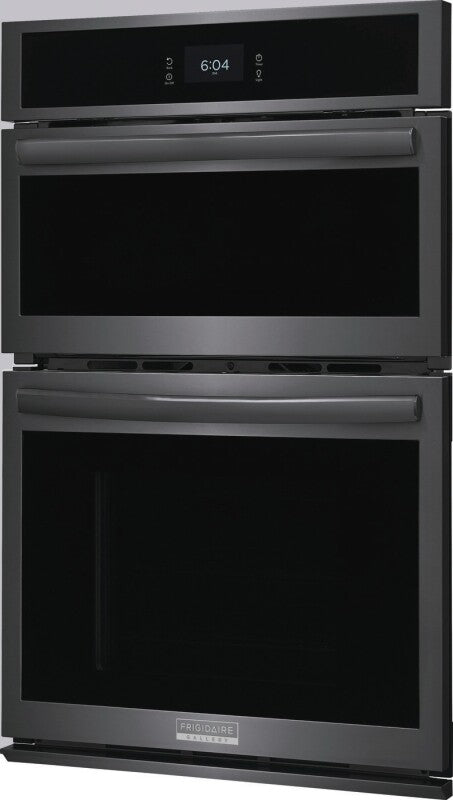

The Frigidaire Gallery 27" Microwave Combination Oven with Total Convection, features our most powerful and advanced convection system that enables cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake, Bread Proof and more! Plus enjoy the convenience of convection cooking right in your microwave.
Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide, Bread Proof, Dehydrate and more!
Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.

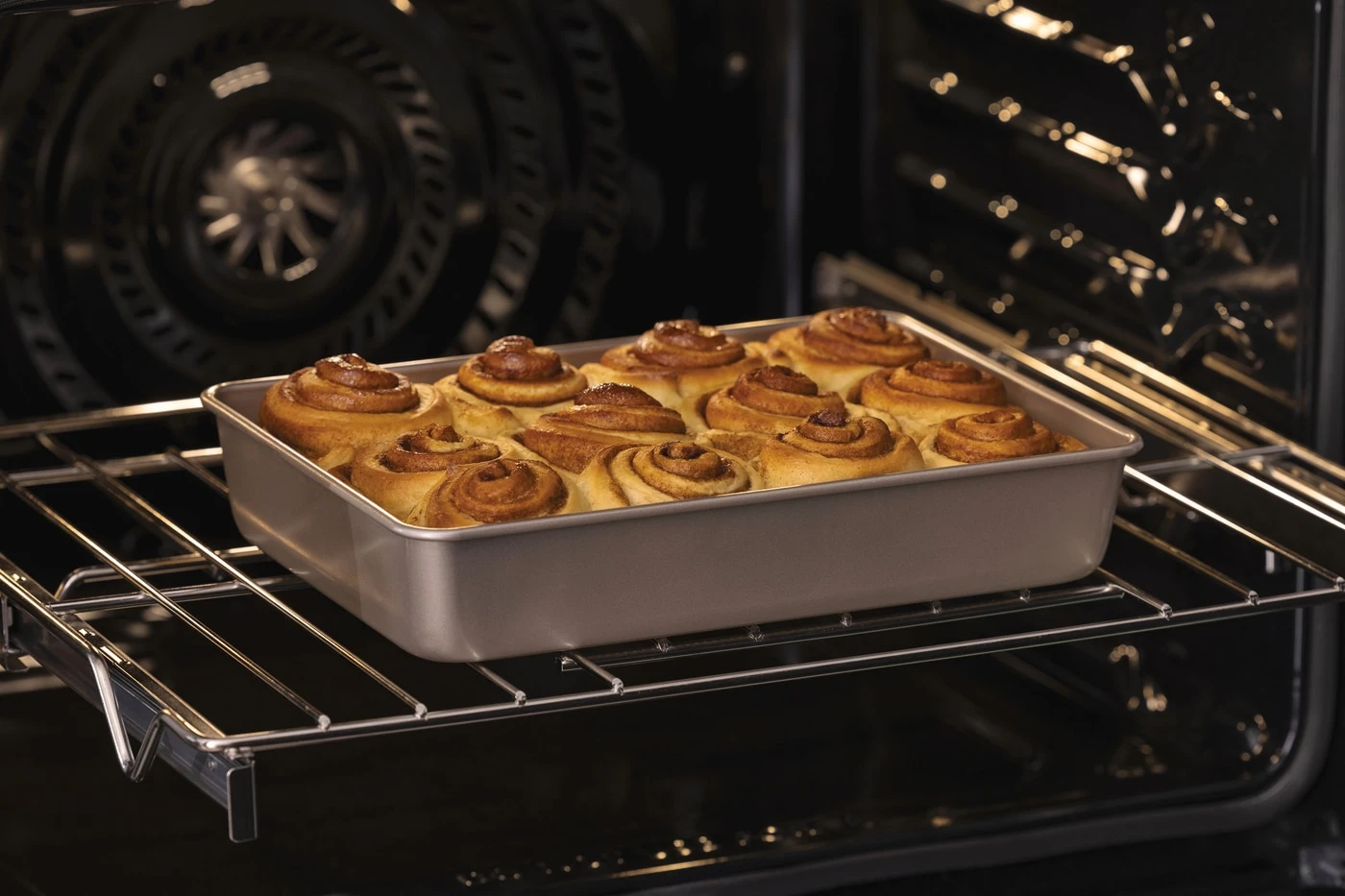

With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.

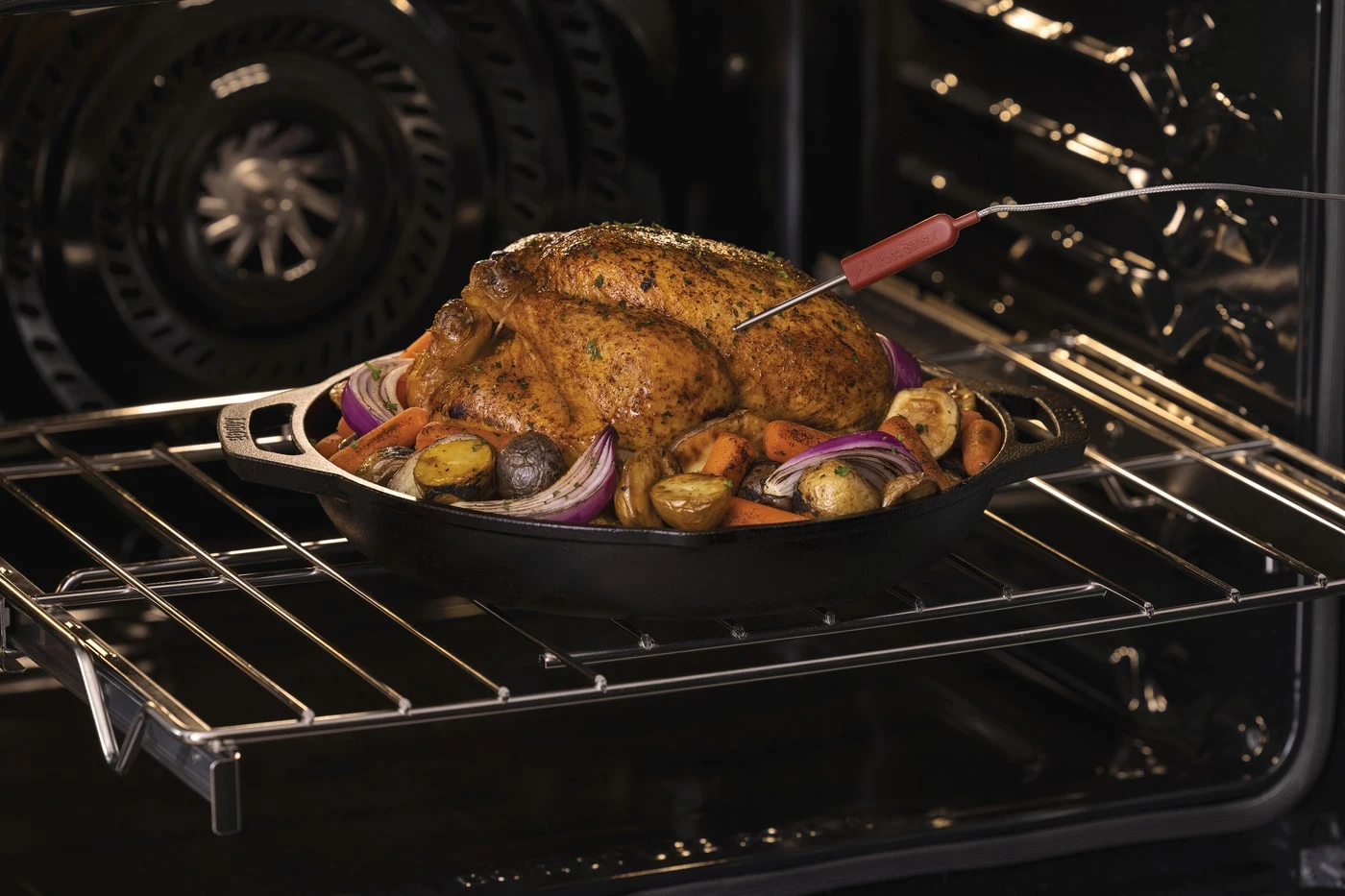

Monitors and alerts when the desired finished cooking temperature has been reached.
We promise that your new 27" Frigidaire® Gallery Microwave Combination Oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs.

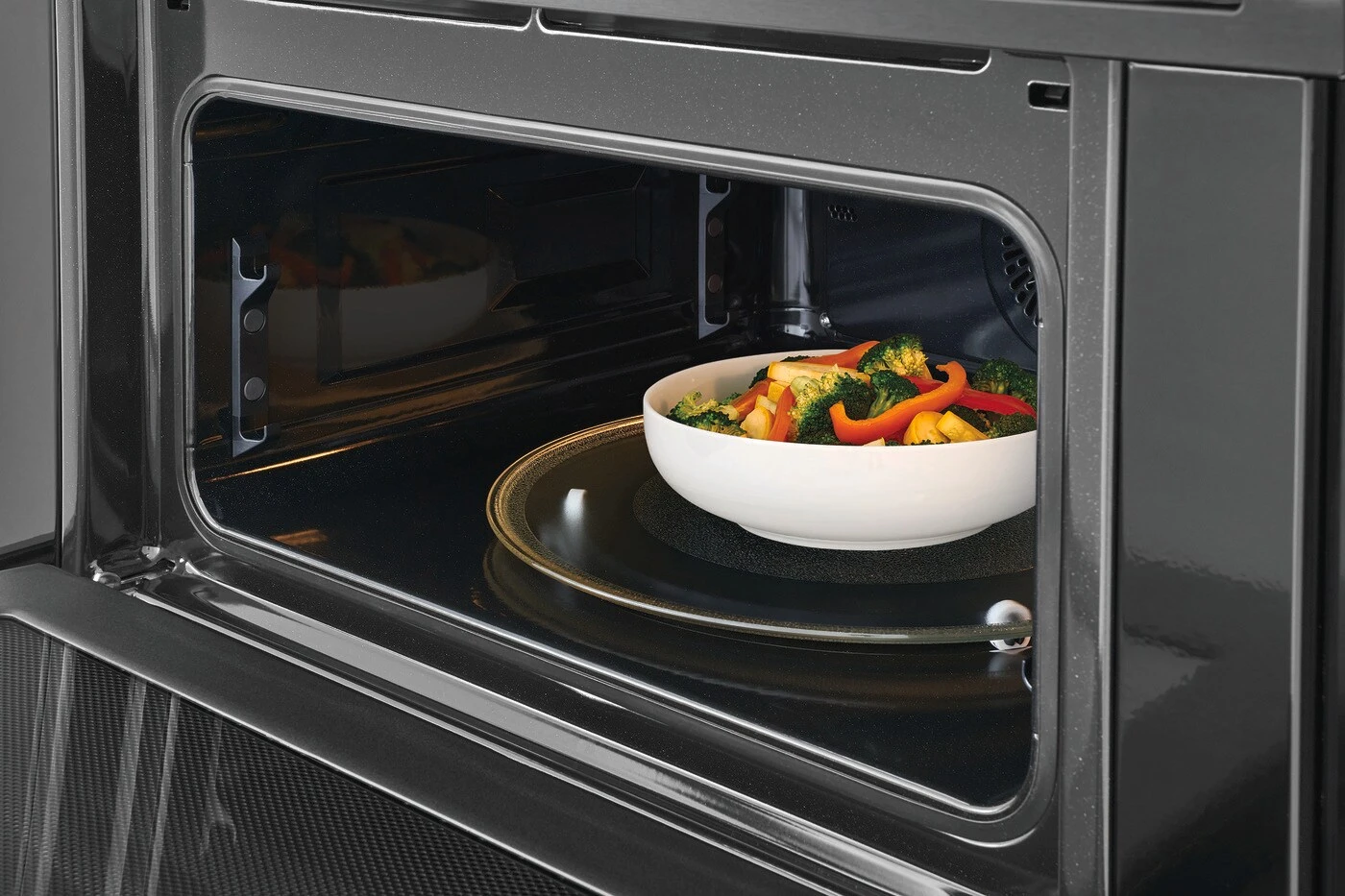

Get the great tasting results of the conventional convection oven, combined with the speed of microwave technology with our convection bake.

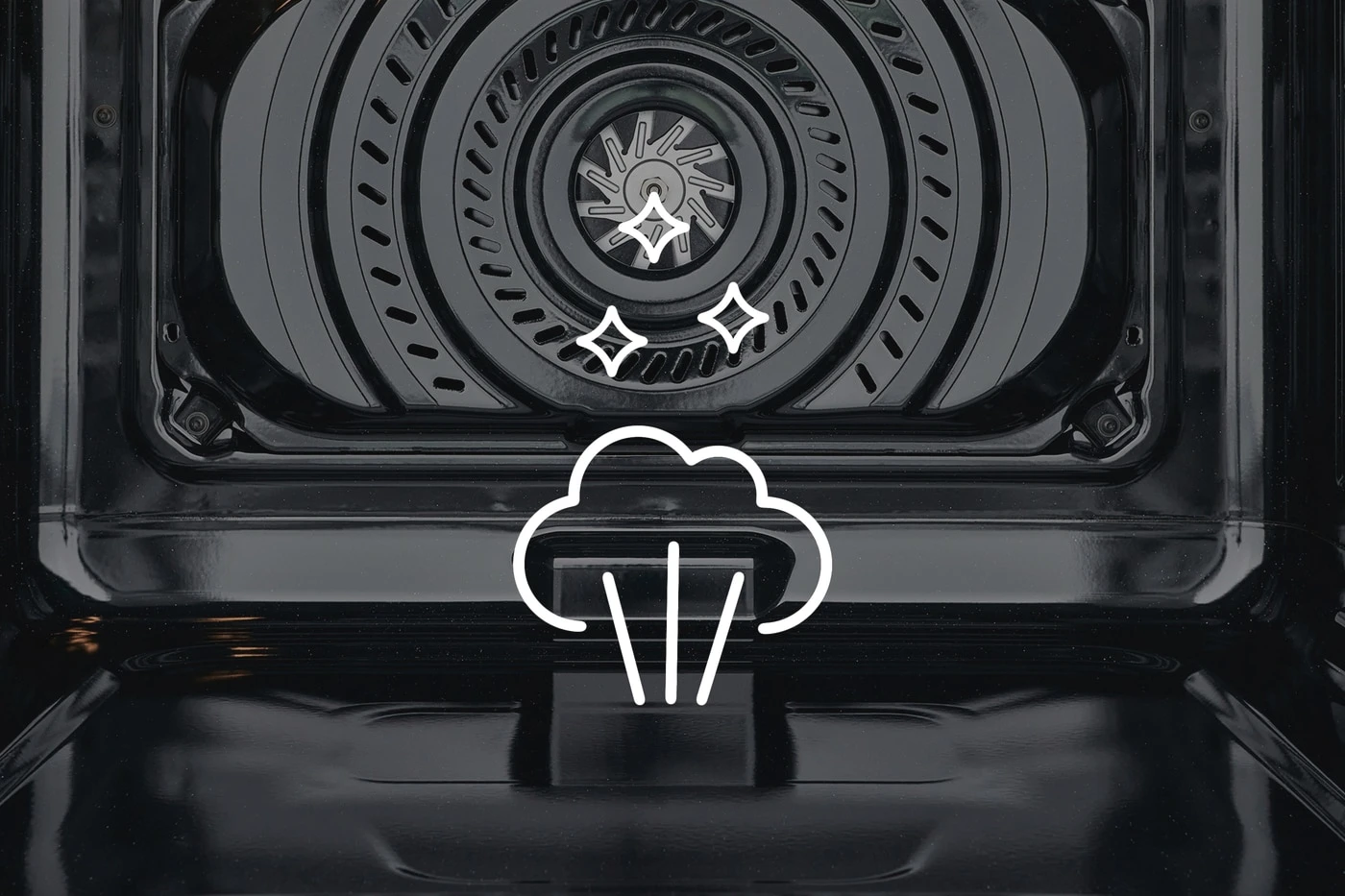

Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.

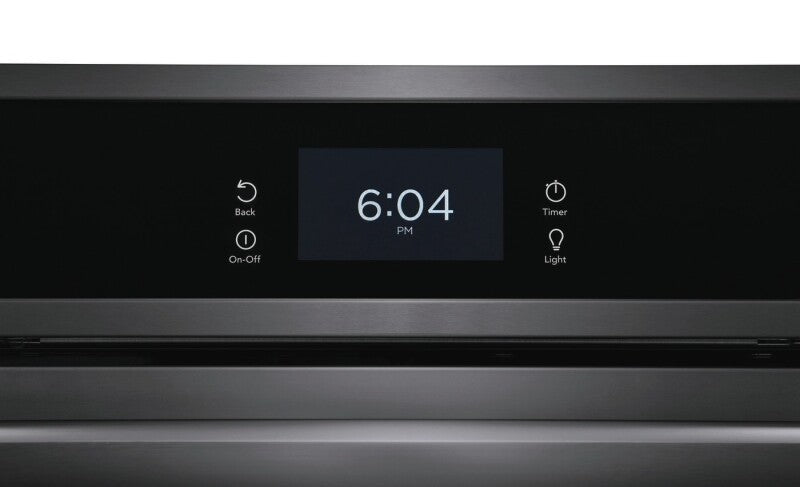

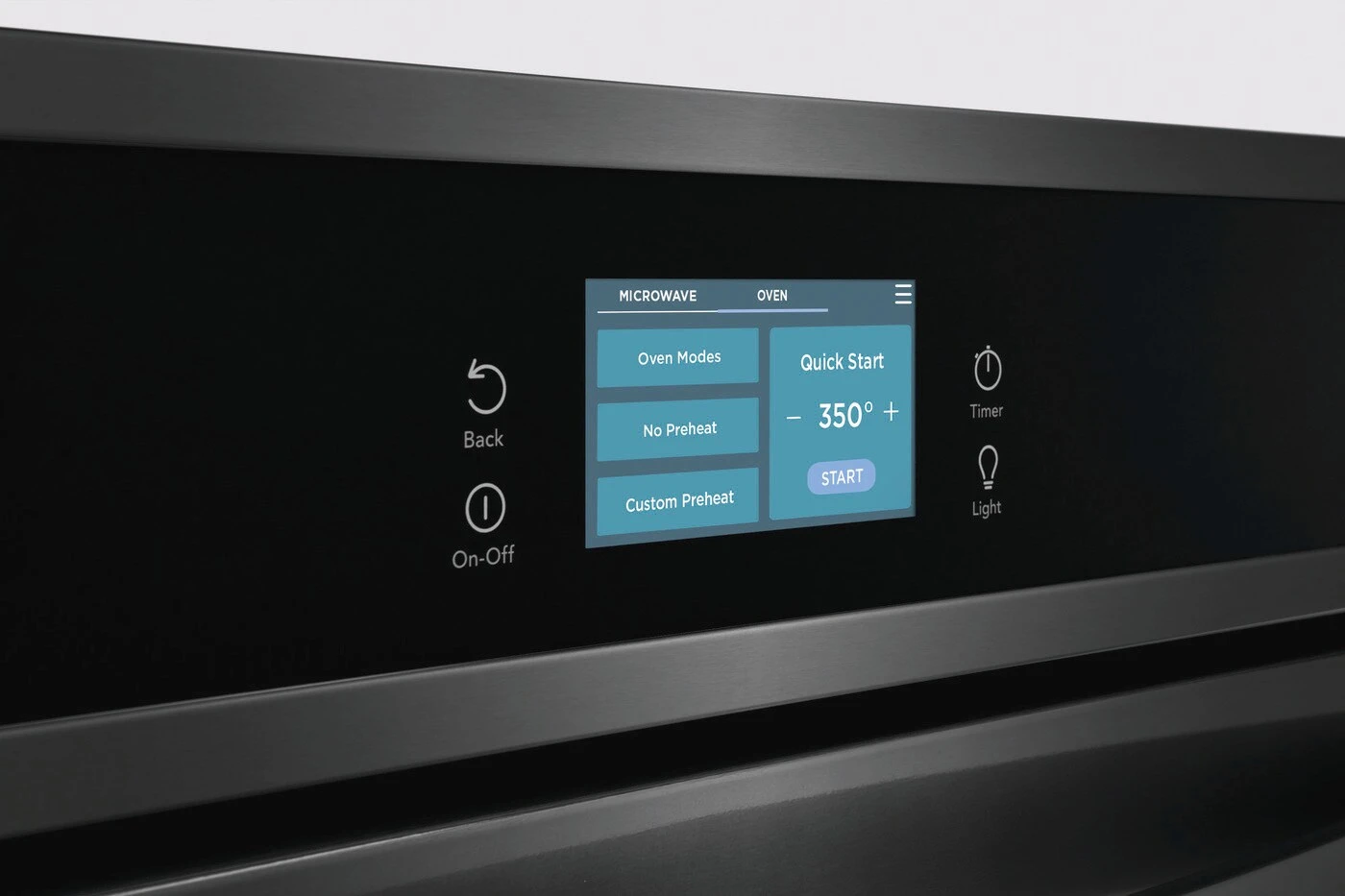

Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
