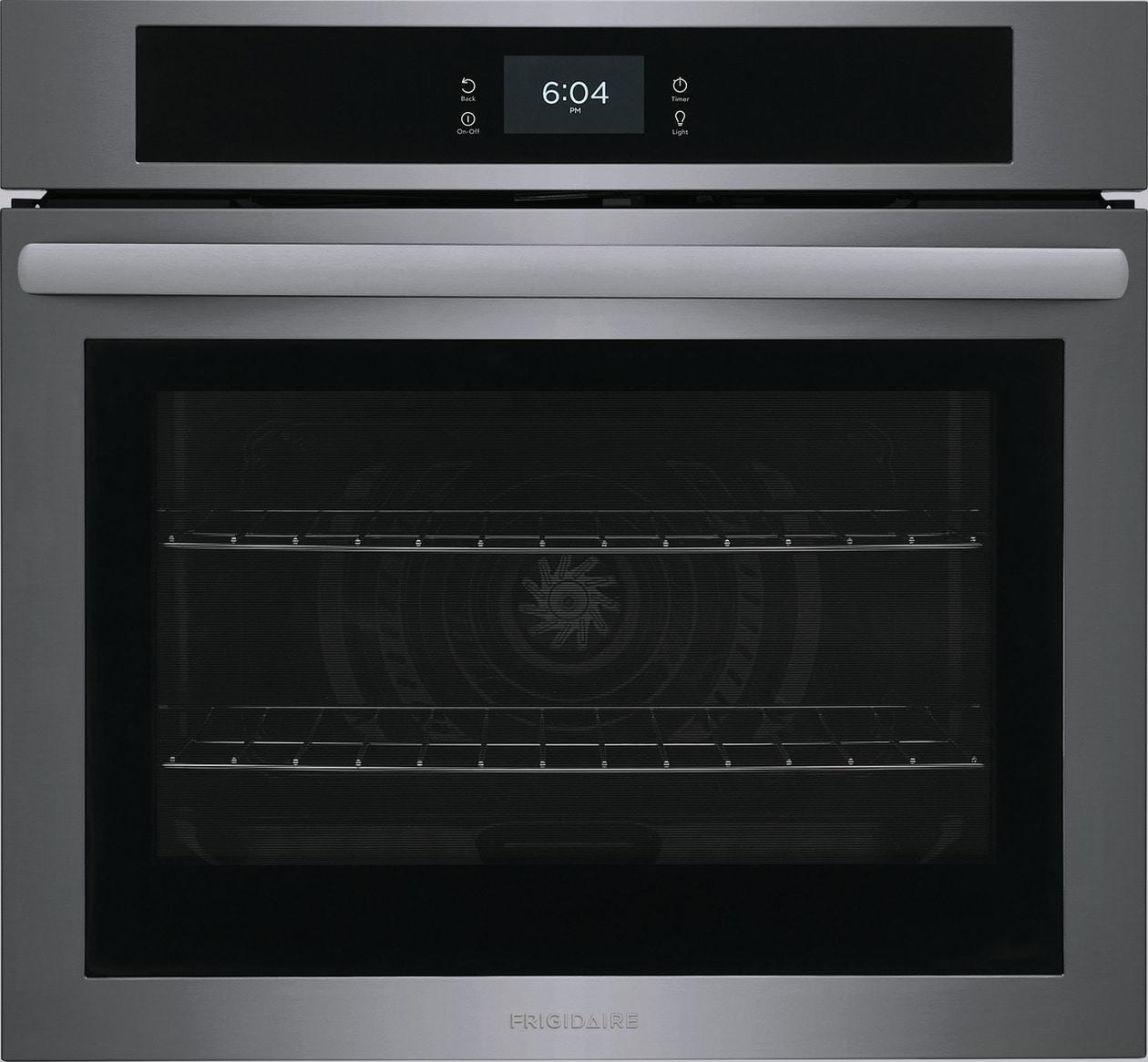

Product Details for Frigidaire FCWS3027AD

Technical Details

Cooking controls

Bake Yes
Bake Time Yes
Broil Yes
Cancel Yes
Clock Yes
Convection Bake Yes
Cook Time Yes
Delay Start Yes
Keep Warm Yes
Kitchen Timer Yes
Light Yes
Off Yes
Oven Light Yes
Preheat Yes
Self Clean Yes
Start Yes
Temperature Display Yes
Timer On / Off Yes

Cooking controls function

Change between Continuous Bake Setting or 12-Hour Energy Saving Feature Yes
Program Fahrenheit or Celsius Yes
Silent Control Panel Yes

Oven

Bake Element 2500
Bake Element Pass 8
Bake Element Type Hidden
Broil Element 4000
Broil Element Pass 6
Broil System Yes
Cleaning System Yes

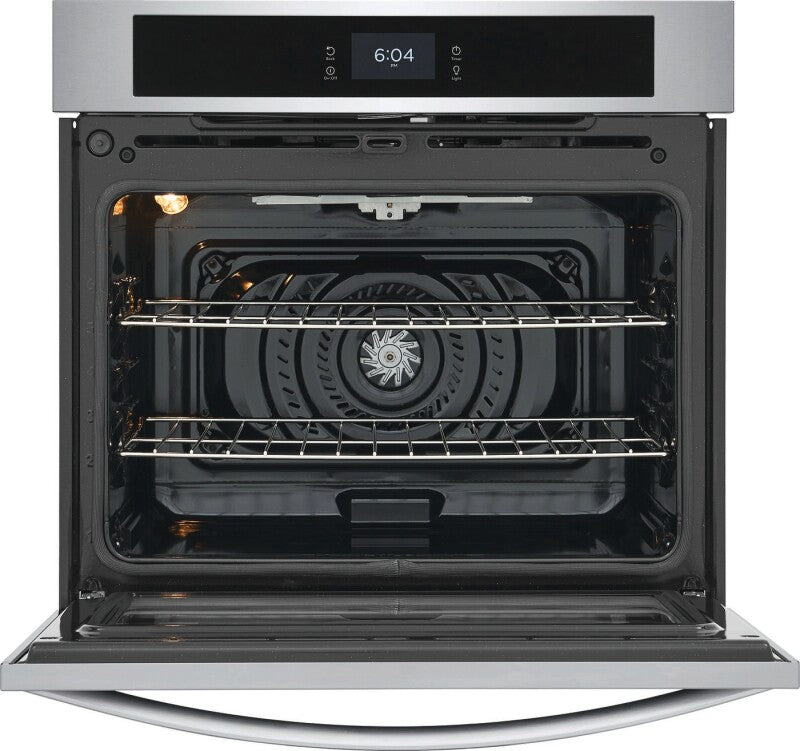

Convection Yes
Convection Type Fan
Number of Convection Fans 1
Number of Rack Positions 6
Oven Interior Color Midnight Black
Oven Light Quantity 1
Oven Light Type Halogen
Oven Light Watts 40
Rack Position Type Embossed
Rack Type 1 Flat
Rack Type 1 Quantity 2

Controls

Control Lock Yes
Sabbath Mode Yes

Display

Display Interface Color White
Display Light Color White
Display Type Capacitive Touch

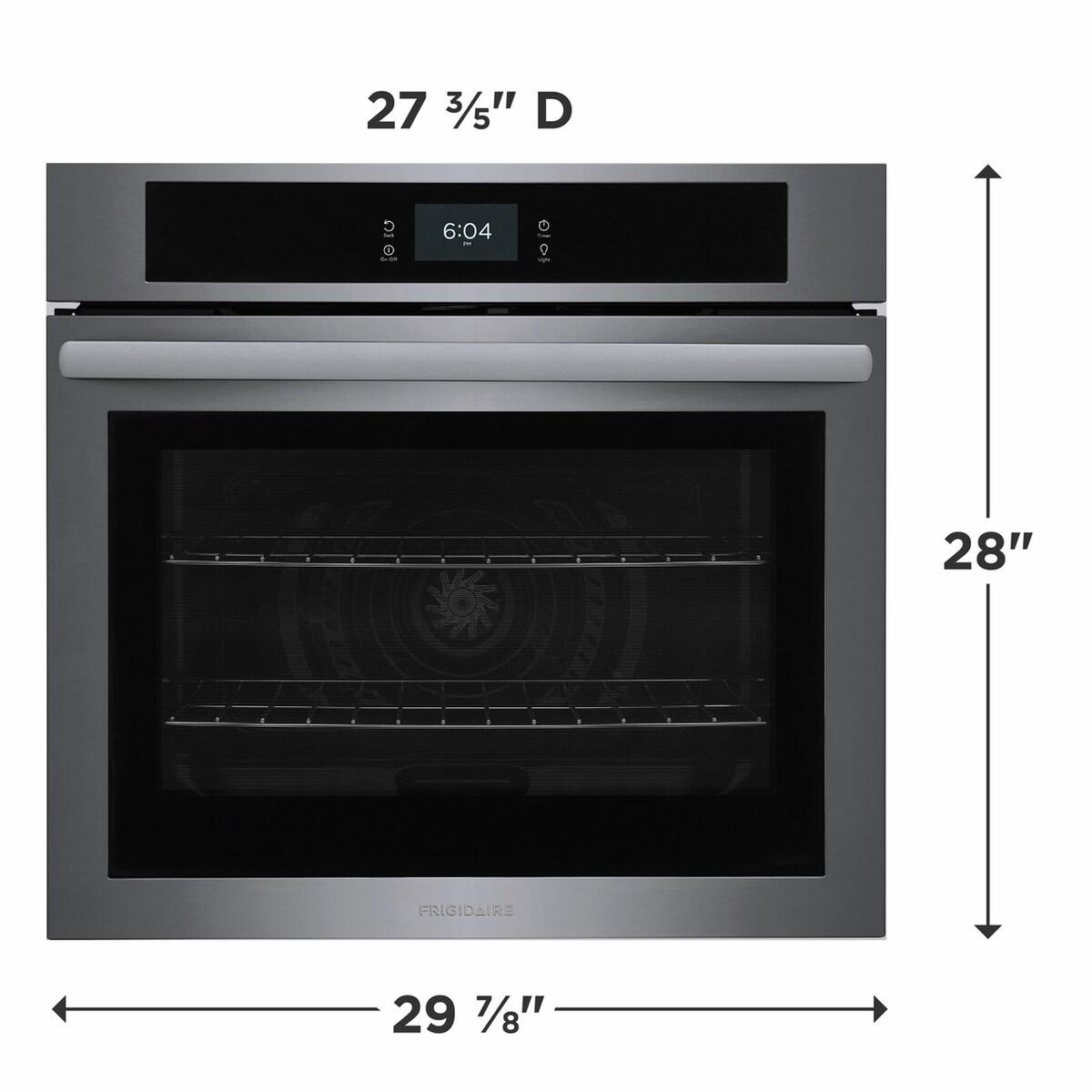

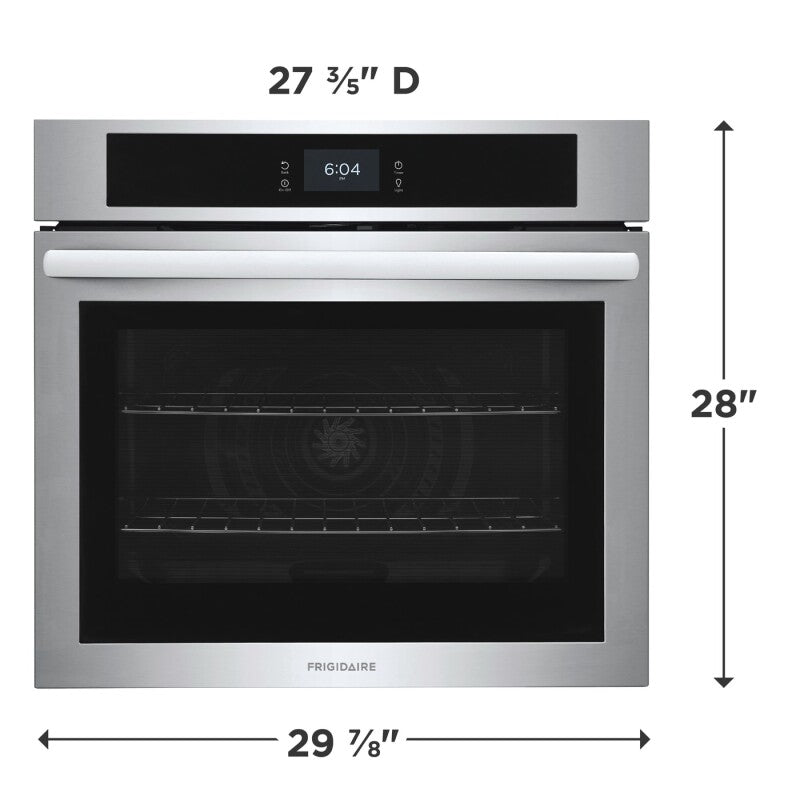

Dimensions and volume

Height 28.0
Width 29.88
Depth 25.19
Depth With Door 90(degree) Open 48.19
Depth With Handle 27.6
Oven Interior Height 18.13
Oven Interior Width 25.2
Oven Interior Depth 19.88
Minimum Cutout Height 26.75
Minimum Cutout Width 28.5
Maximum Cutout Height 28.0
Maximum Cutout Width 29.0
Oven Capacity 5.3

Electrical specifications

Amps @ 240 Volts 20
Connected Load @ 240V 3.7
Minimum Circuit Required 20
Voltage Rating 240

General specifications

Frigidaire Fit Promise Yes
Product Weight 130
Prop 65 Label Yes
Warranty - Labor 1
Warranty - Parts 1
AB-1200 Information available at frigidaire.com/en/ab1200

Certifications and approvals

ADA Compliant Yes
CSA Listed Yes
RoHS Yes
UL Listed Yes

Features

  • Get faster, more even multi-rack baking results with Fan Convection.
  • Self clean options available in convenient 2, 3 and 4-hour cycles.
  • We promise that your new 30" Frigidaire® single wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs.
  • Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
  • Cook more at once with our extra large, 5.3 cu. ft. capacity oven.
  • Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.
  • Allows you to program the amount of time you want your oven to cook and then turn off.
  • Meals stay warm and are ready to serve when you are, using the Keep Warm setting.



Description

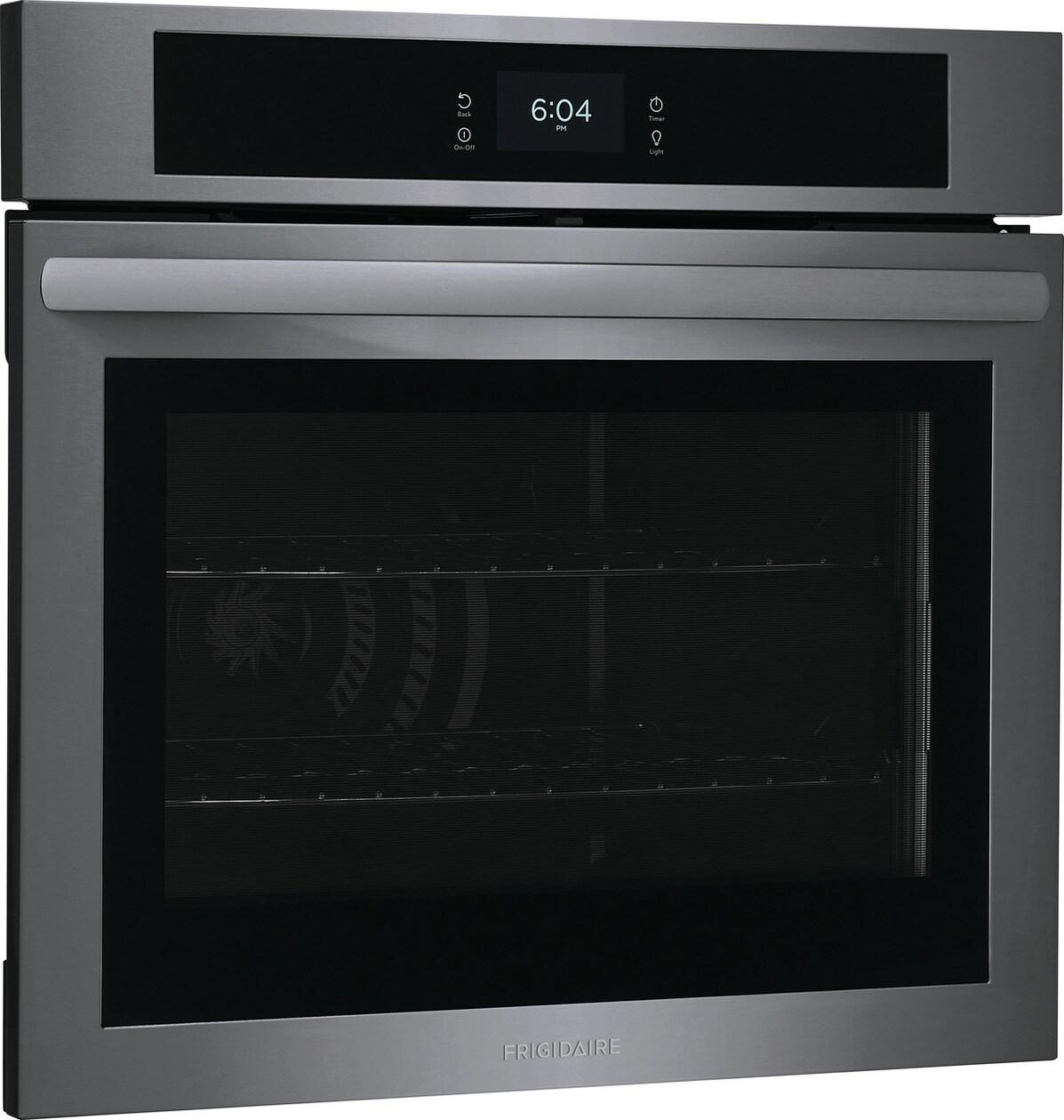

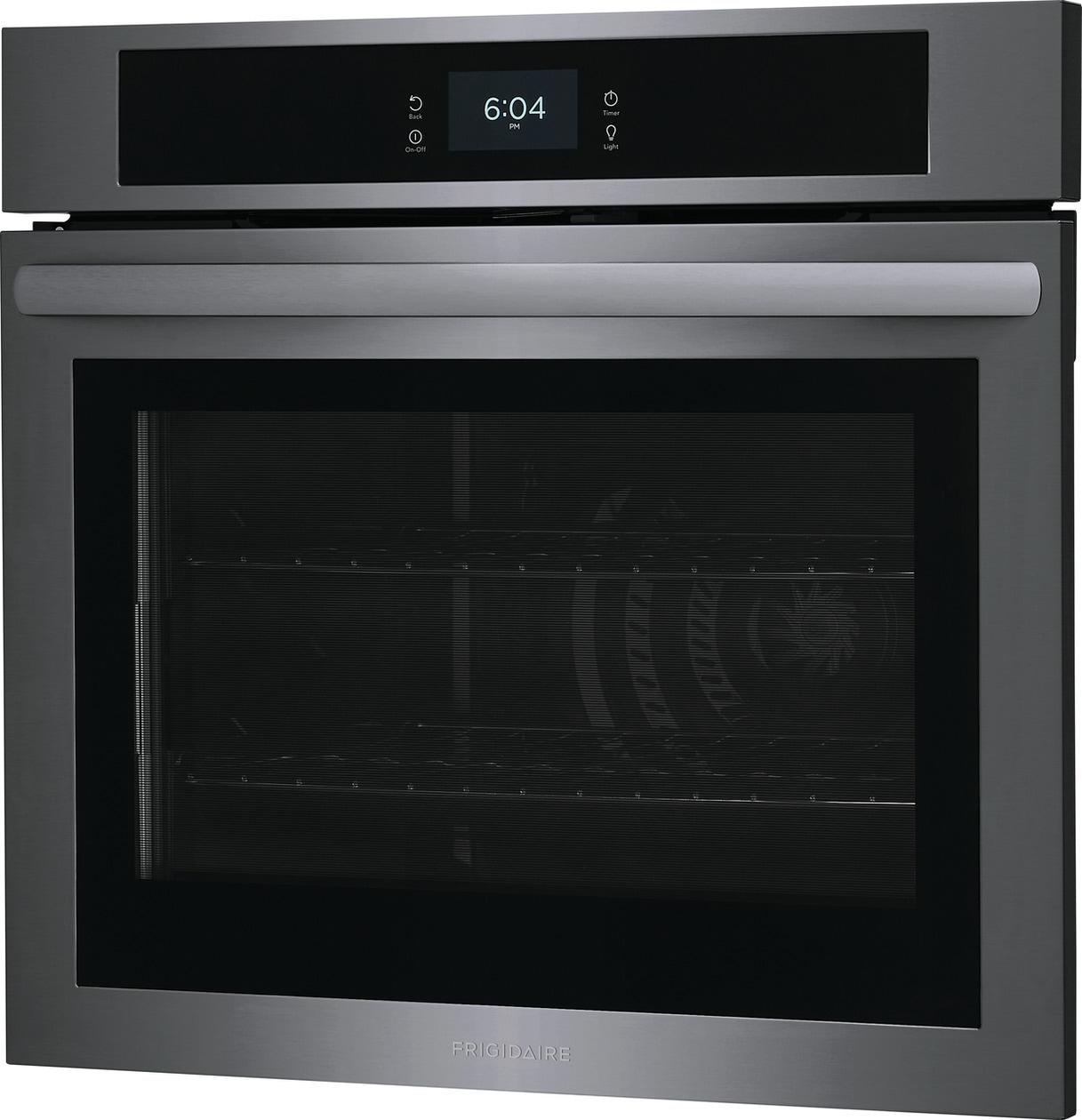

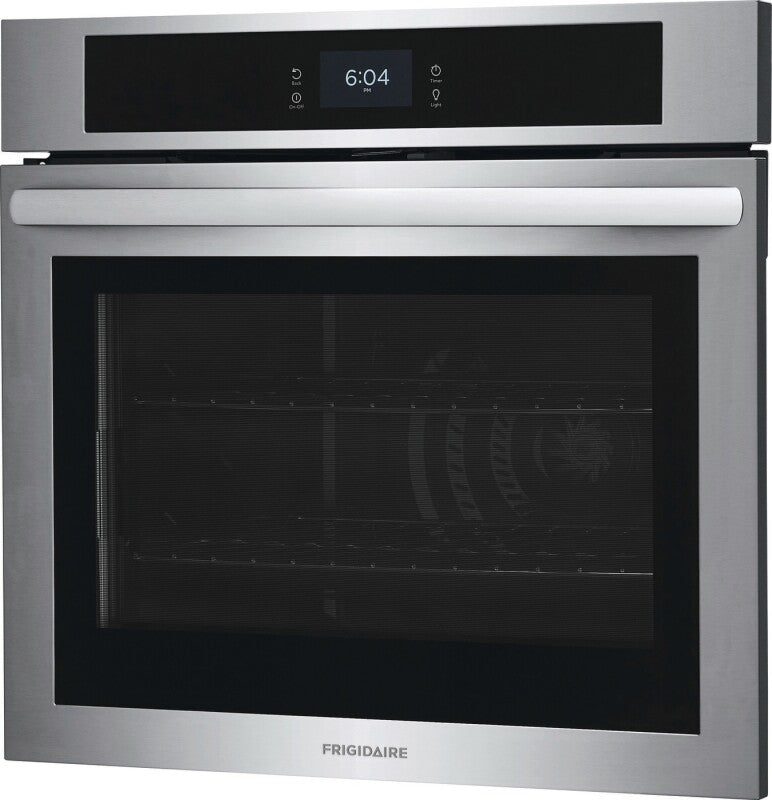

The Frigidaire 30" Single Wall Oven with Fan Convection allows you to achieve faster, more even multi-rack baking results, all in an extra large, 5.3 cu. ft. oven cavity! It also features a premium touch screen digital control panel and provides peace of mind that it will fit existing cutouts with our Frigidaire Fit Promise.

Manuals & Guides

Key Features

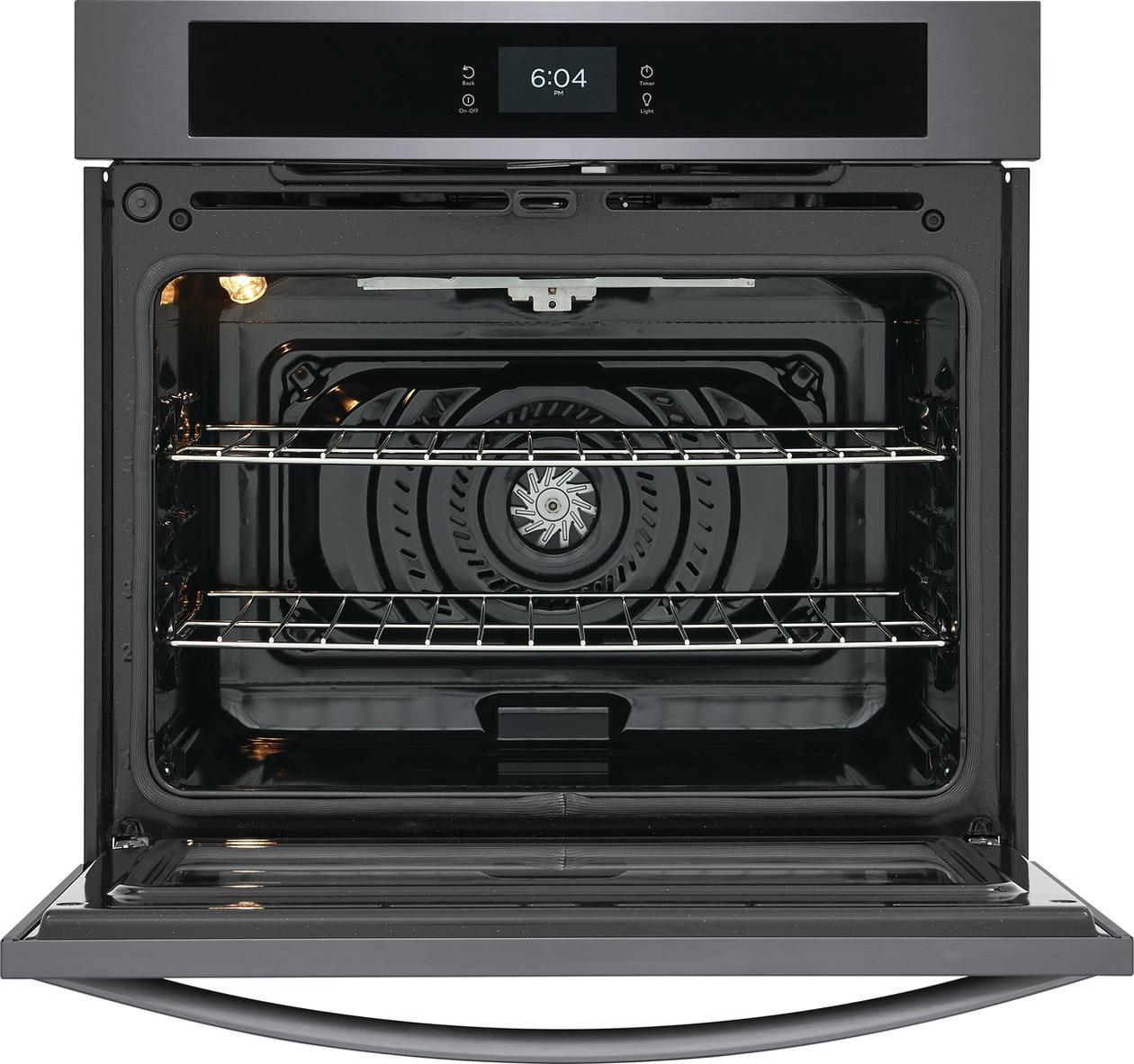

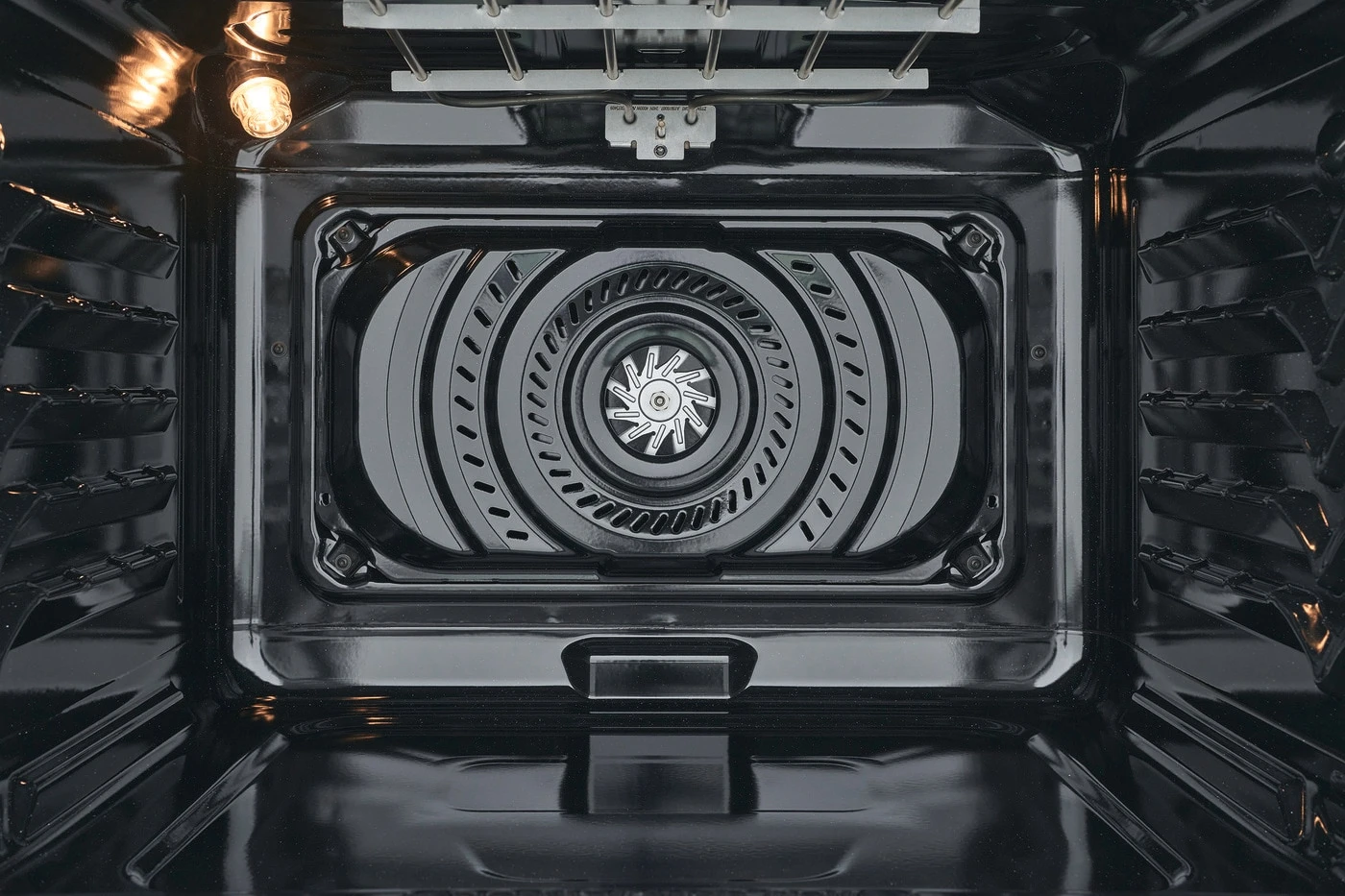

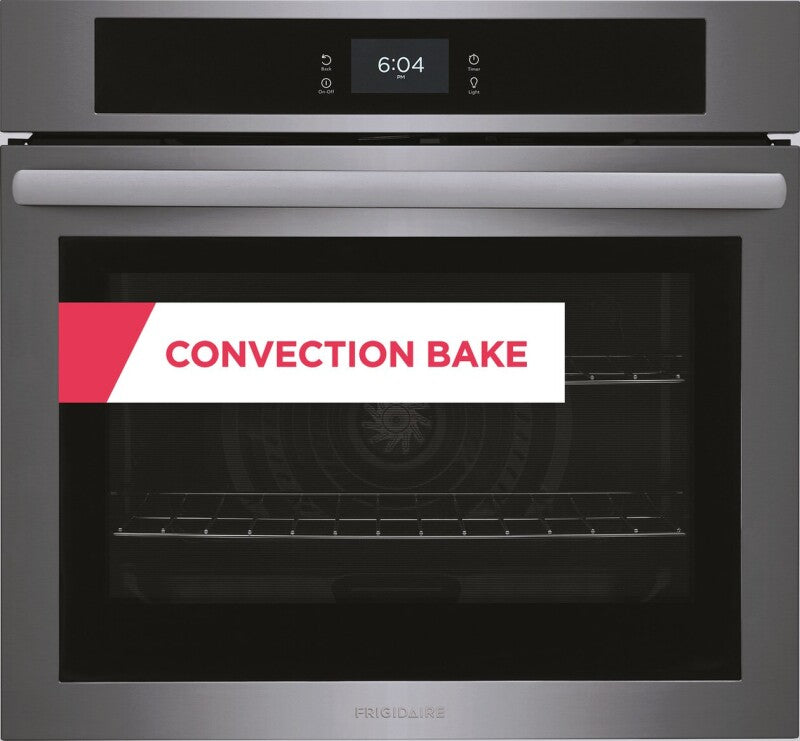

Fan Convection

Get faster, more even multi-rack baking results with Fan Convection.

Self Clean Oven

Self clean options available in convenient 2, 3 and 4-hour cycles.

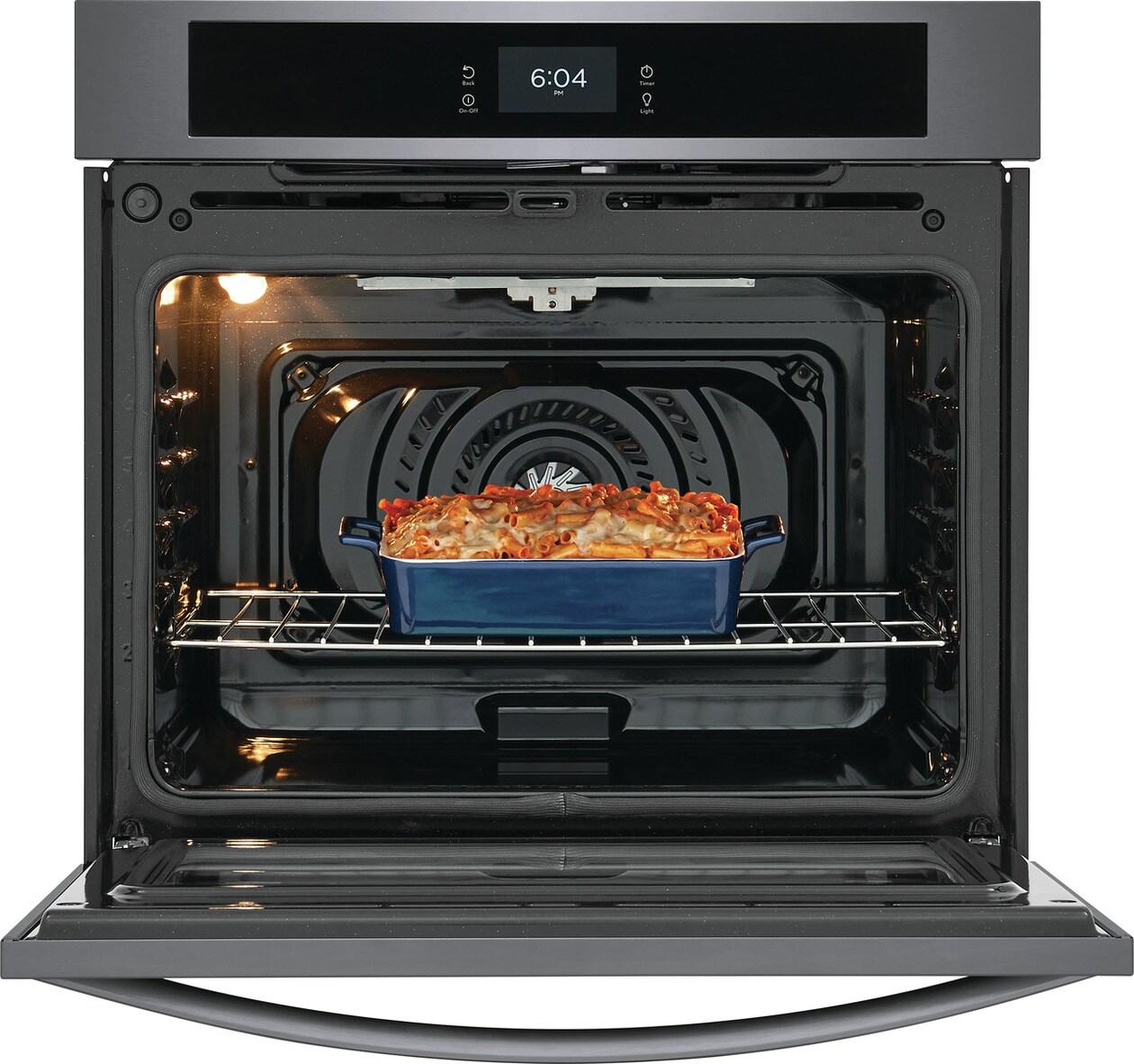

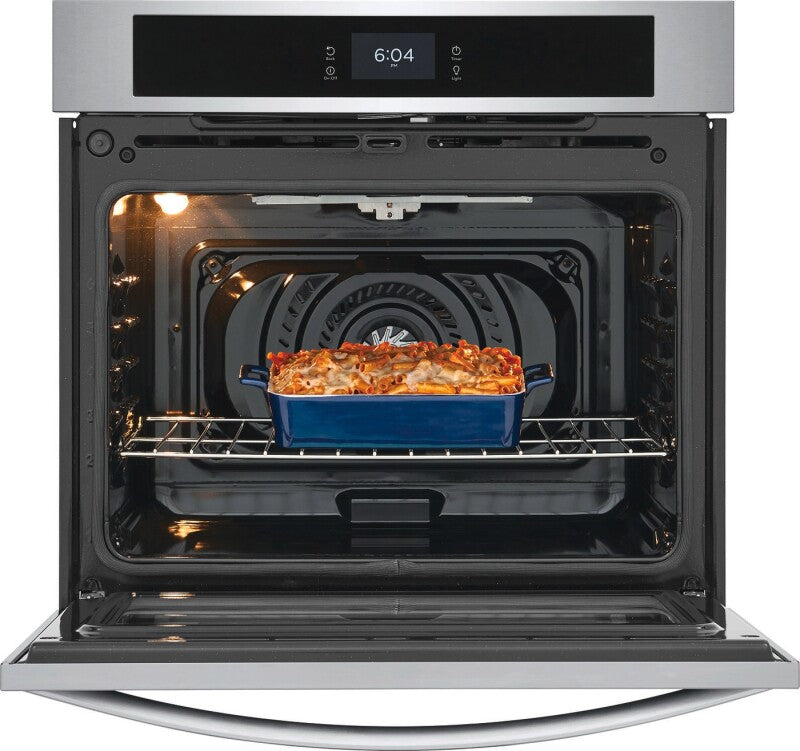

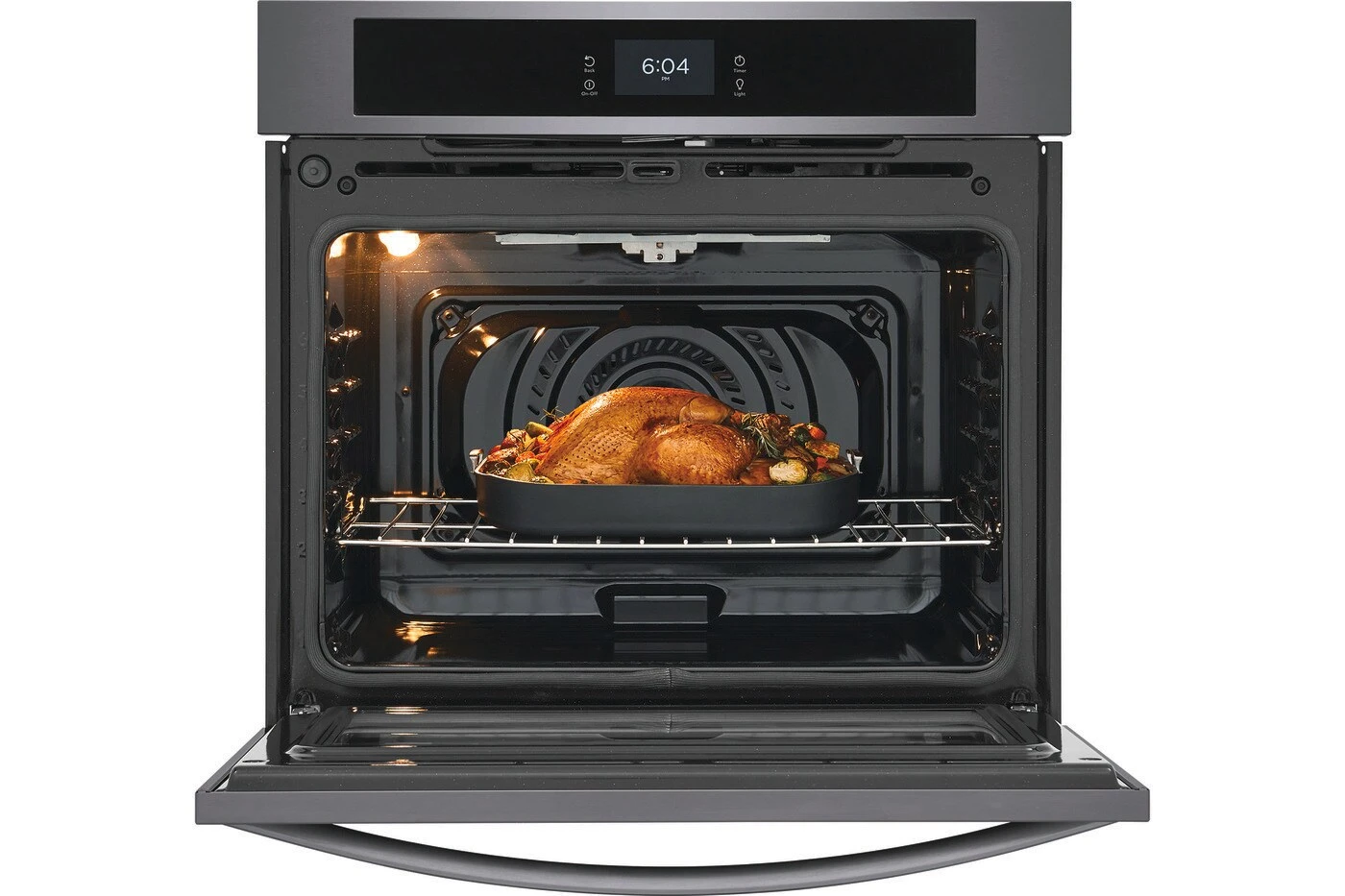

Extra Large Oven Capacity

Cook more at once with our extra large, 5.3 cu. ft. capacity oven.

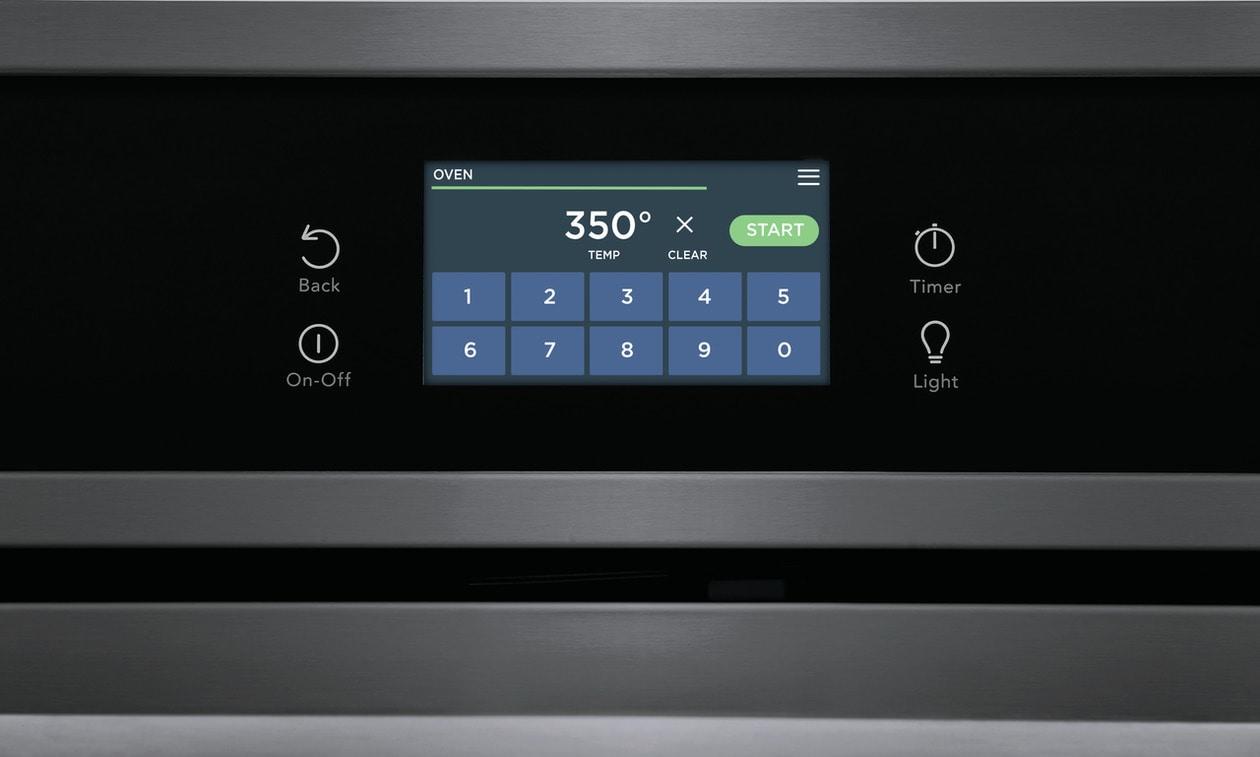

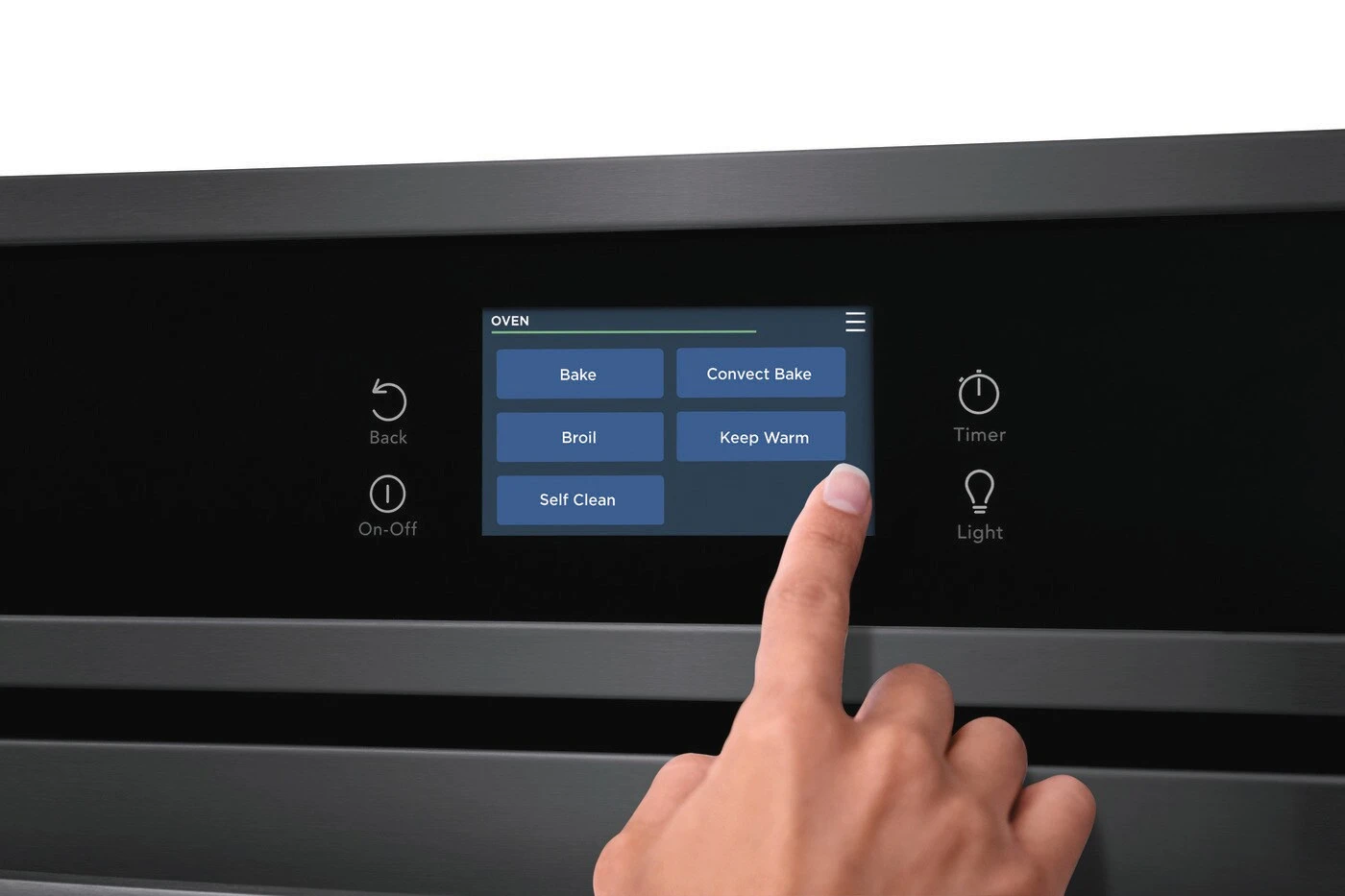

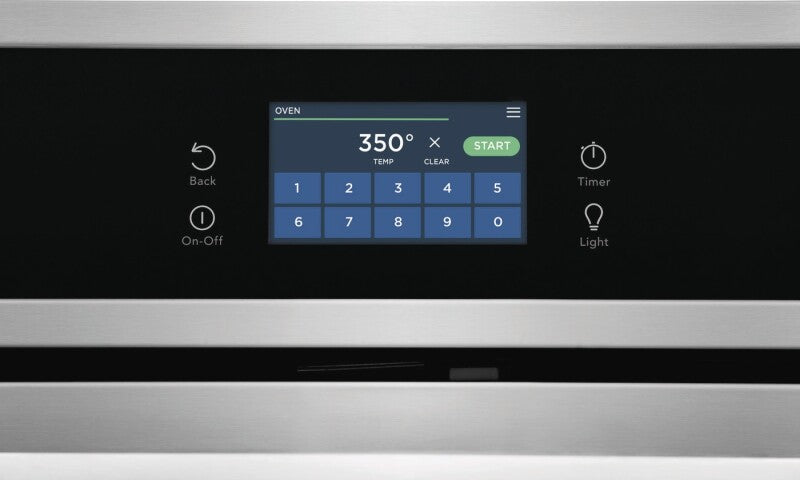

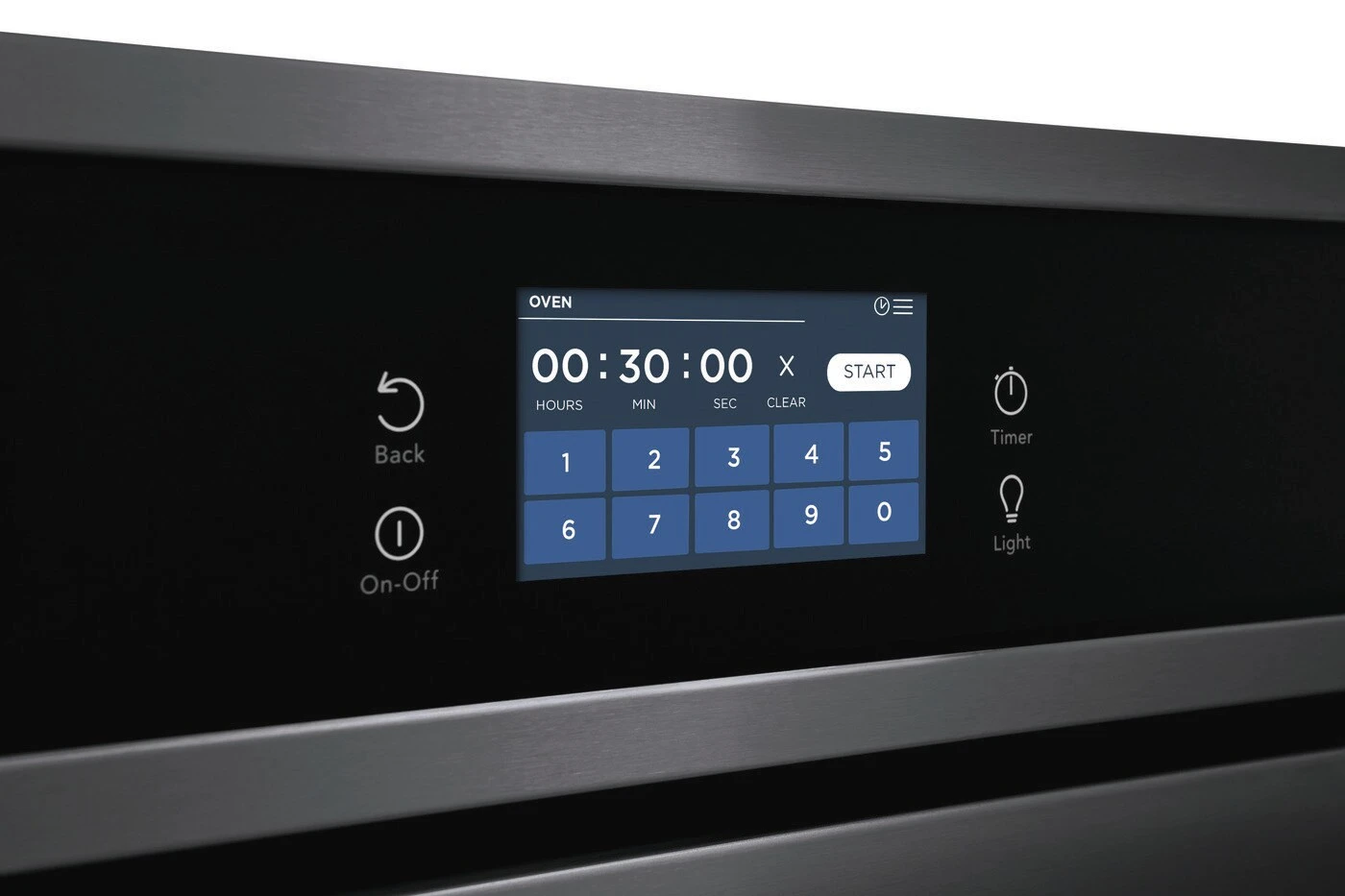

Premium Touch Screen Control Panel

Features a responsive 4.3 inch, full color, capacitive touch digital control panel.

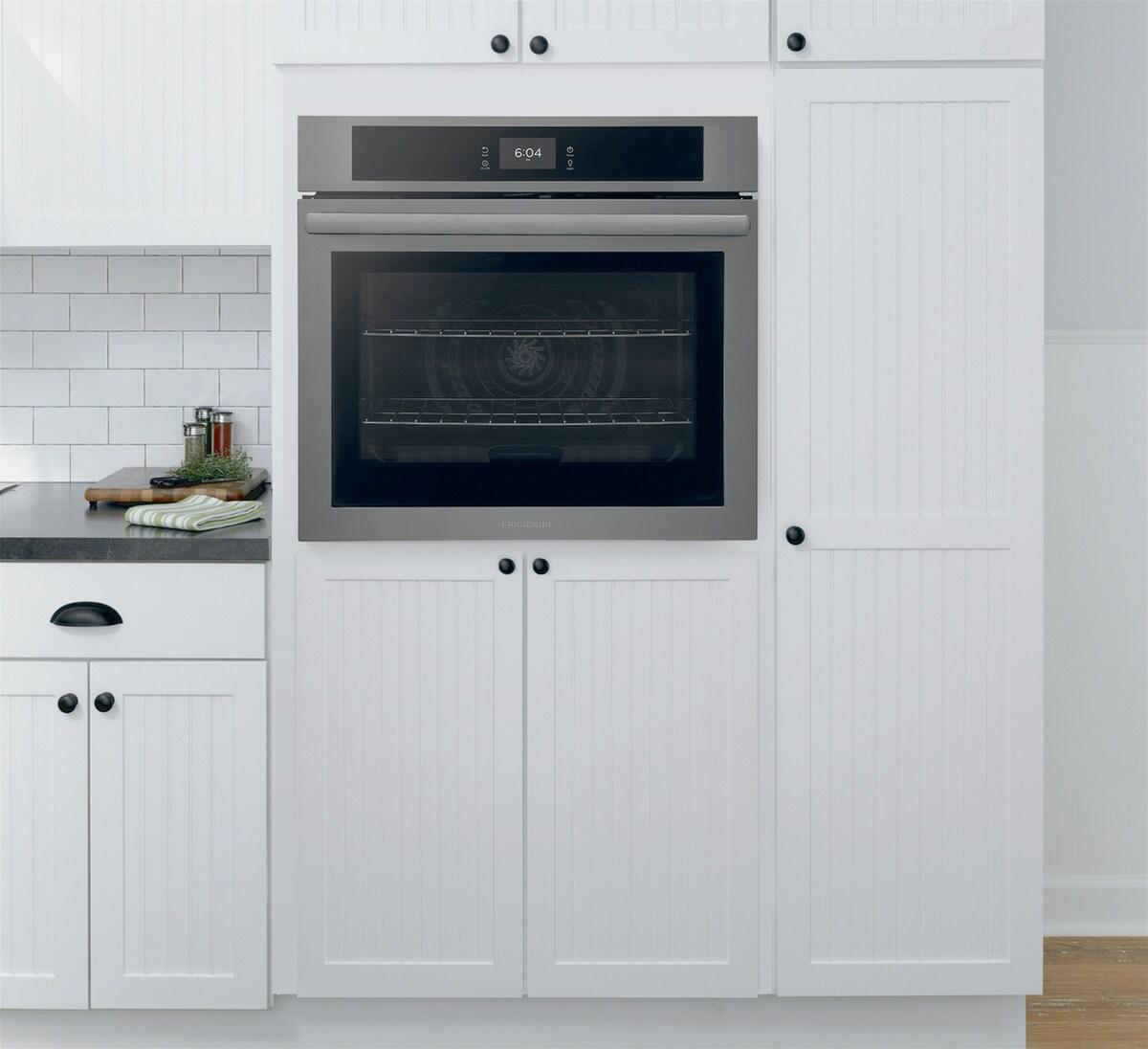

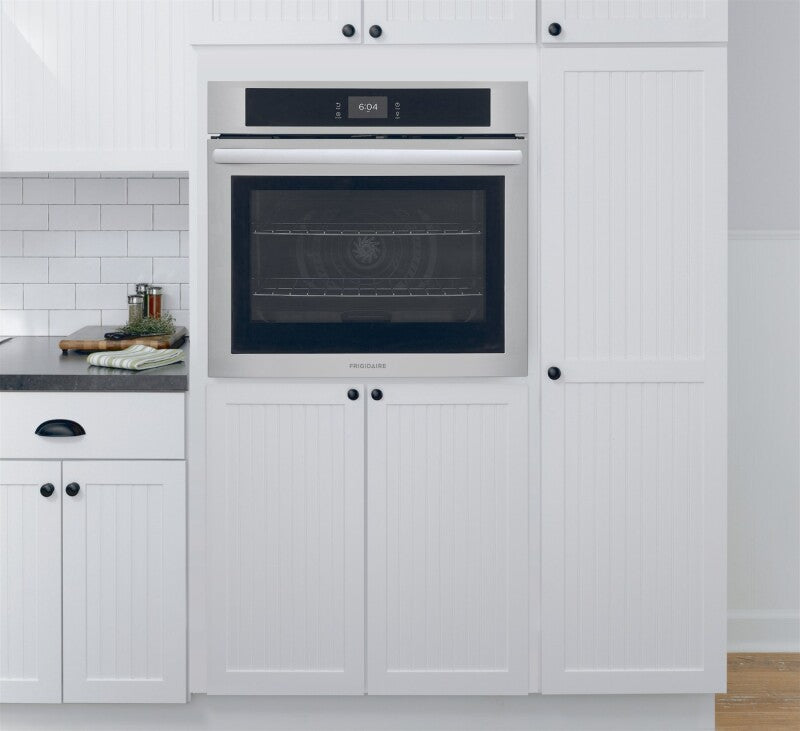

Frigidaire(R) Fit Promise

We promise that your new 30" Frigidaire(R) single wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. * Up to three hundred dollars via mail-in rebate. See https://www.frigidairefitpromise.com for additional information.

Custom Broil Temp Setting

Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.

Convenient Cook Time Setting

Allows you to program the amount of time you want your oven to cook and then turn off.

Keep Warm Setting
