SKU: FCVW3062AS | UPC: 12505566363

Frigidaire FCVW3062AS Undercabinet 30" Ventilation Hood Stainless Steel

Quick Specification More details

Width:
30"
Depth:
19.75"
Height:
4.94"
Type:
Under Cabinet Hoods

About this product

Filter Indicator Light
Carbon Charcoal Filter Included
Powerful Three Speed Ventilation Fan
Dishwasher Safe Grease Filter

Summer Sale

SKU: FCVW3062AS | UPC: 12505566363

Frigidaire FCVW3062AS Undercabinet 30" Ventilation Hood Stainless Steel

$289.00 ~~$498.97~~ Save $209.97 / 42% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
19.75"
Height:
4.94"
Type:
Under Cabinet Hoods

About this product

Filter Indicator Light
Carbon Charcoal Filter Included
Powerful Three Speed Ventilation Fan
Dishwasher Safe Grease Filter

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$289.00 ~~$498.97~~ Save $209.97 / 42% OFF

Product Details for Frigidaire FCVW3062AS

Technical Details

Other

Prop 65 Label	Yes
Warranty - Labor	1 Year

Dimensions & weight

Width	30 in.
Height	4.94 in.
Length	19.75 in.
Weight	13 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	35 in.
Shipping Height	9.94 in.
Shipping Length	24.75 in.
Shipping Weight	53 lbs.
Total of Shipping Weight	53 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.69 ft³
Dimensional Weight	21.05 lbs.
Total of Cubes	1.69 ft³
Total of Dimensional Weight	21.05 lbs.

Product details

Height	4 15/16"
Width	30"
Depth	19 3/4"
Control Type	Glass Touch
Filter Change Indicator	Yes
cUL Listed	Yes
HVI Listed	Yes
UL Listed	Yes
Voltage Rating	120 V
Watts @ 120 Volts	114 Watts
Product Weight	13 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Lighting Type	LED Strip
Number of Lights	1
Number of Light Settings	3
Duct Exit Location	Top
Hardwired	Yes
Power Supply Connection Type	Hard Wired
Ventilation Options	Convertible
Ducted Vent	Optional (See Manual)
Ductless Vent	Yes - Out of the Box
Exhaust Fan Speeds	3
Maximum Air Flow Capacity	330 CFM
Minimum Air Flow Capacity	110 CFM
Maximum Sones Rating	10.1 sone
Minimum Sones Rating	1.7 sone
Grease Filter Included	Yes
Grease Filter Quantity	2
Grease Filter Type	Aluminum Mesh
Grease Filter Dishwasher Safe	Yes
Charcoal Filter Included	Yes
Charcoal Filter Quantity	2

Description

The Frigidaire Undercabinet 30" Ventilation Hood features a filter indicator light that reminds you when to replace your carbon charcoal filter to continue capturing odors and circulating fresher air. It also offers LED lighting that illuminates the cooktop; capacitive touch controls that make selecting fan and lighting options more accessible, and a three-speed fan that recirculates air at 330 CFM.

Product Features

Filter Indicator Light
Let's you know when it's time to change your filter.
Carbon Charcoal Filter Included
Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
Powerful Three Speed Ventilation Fan
Quickly move odors and steam away from the cooktop's surface with three levels of ventilation that recirculate air up to 330 CFM.

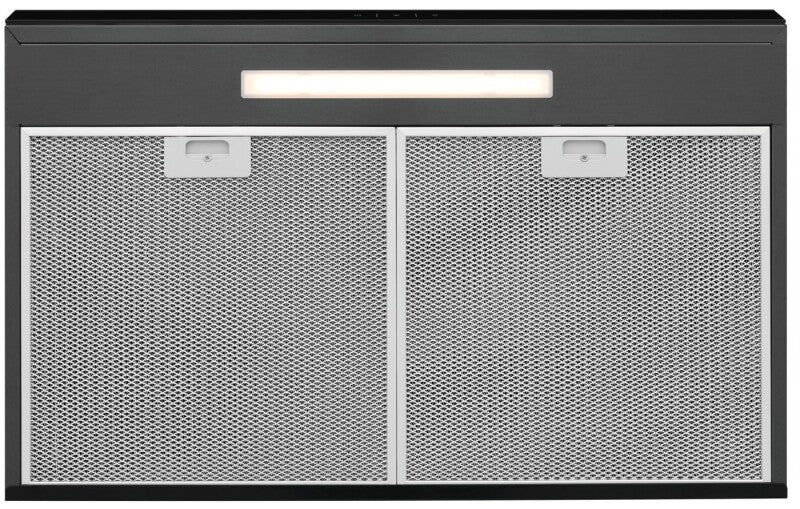

Dishwasher Safe Grease Filter
Easily clean the aluminum grease filter by putting it in the dishwasher.

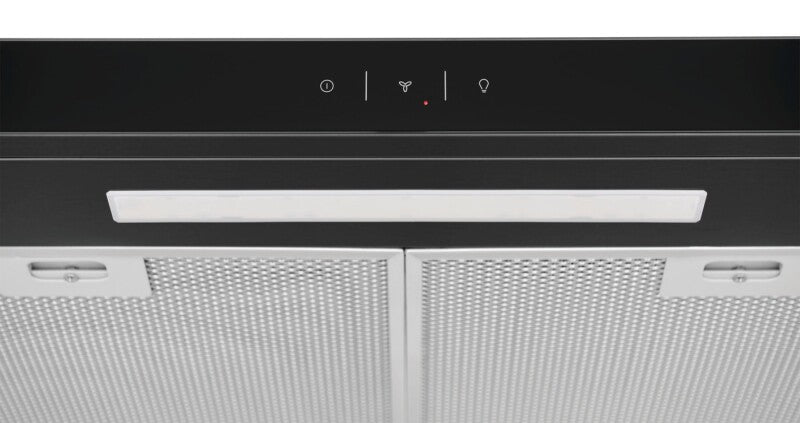

Capacitive Touch Control Panel
Easily adjust fan speed and lighting with responsive capacitive touch controls.
Convertible Design for Installation
Designed to fit a variety of installation needs, this convertible range hood can be configured for ducted or ductless venting.
Power Button
Easily turn on/off the fan and light with the press of a button.
Stylish Built-in Look
Achieve a built-in look with this undercabinet vent made to coordinate with your existing range or cooktop.
AHAM Certified
Bright LED Lighting
Get a clearer view of your cooktop with two LED lighting modes that illuminate the cooking surface.
