Product Details for Frigidaire FCVW3025AS

Technical Details

Other

Prop 65 Label Yes
Warranty - Labor 1 Year

Dimensions & weight

Width 30 in.
Height 5 in.
Length 18.63 in.
Weight 13 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 10 in.
Shipping Length 23.63 in.
Shipping Weight 53 lbs.
Total of Shipping Weight 53 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 1.62 ft³
Dimensional Weight 20.1 lbs.
Total of Cubes 1.62 ft³
Total of Dimensional Weight 20.1 lbs.

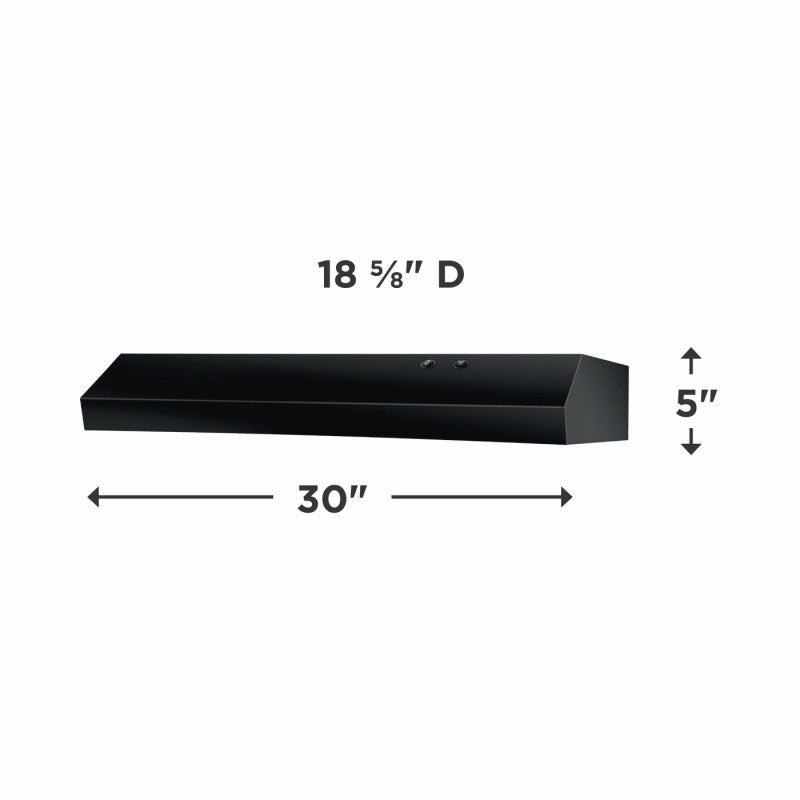

Product details

Height 5"
Width 30"
Depth 18 5/8"

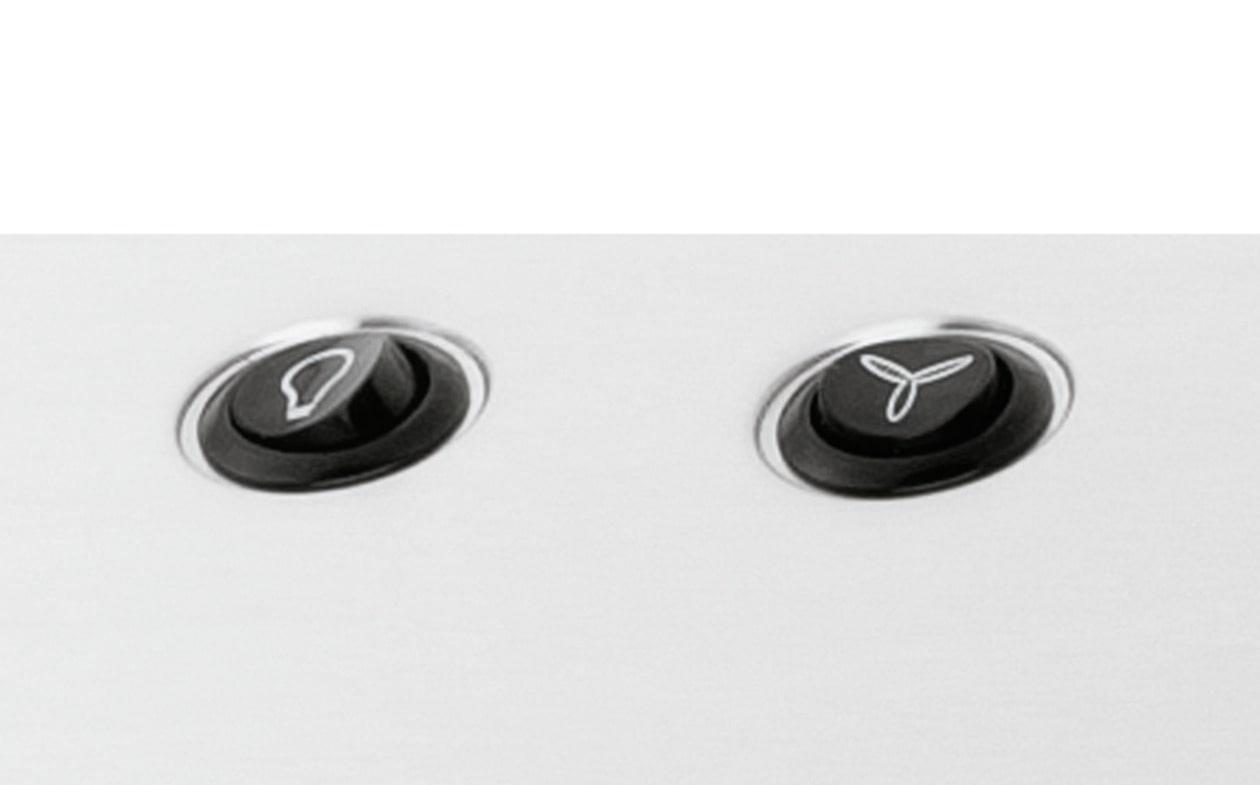

Control Type Rocker Switch
ADA Compliant Yes
UL Listed Yes
Voltage Rating 120 V
Product Weight 13 lbs
Prop 65 Label Yes
Warranty - Labor 1 Year
Warranty - Parts 1 Year
Lighting Type Incandescent
Number of Lights 1
Number of Light Settings 1
Duct Exit Location Top
Hardwired Yes
Power Supply Connection Type Hard Wired
Ventilation Options Convertible
Ducted Vent Optional (See Manual)
Ductless Vent Yes - Out of the Box
Exhaust Fan Speeds 2
Maximum Air Flow Capacity 230 CFM
Minimum Air Flow Capacity 170 CFM
Maximum Sones Rating 4.3 sone
Minimum Sones Rating 1.7 sone
Grease Filter Included Yes
Grease Filter Quantity 1
Grease Filter Type Aluminum Mesh
Grease Filter Dishwasher Safe Yes
Charcoal Filter Included Yes
Charcoal Filter Quantity 1

Description

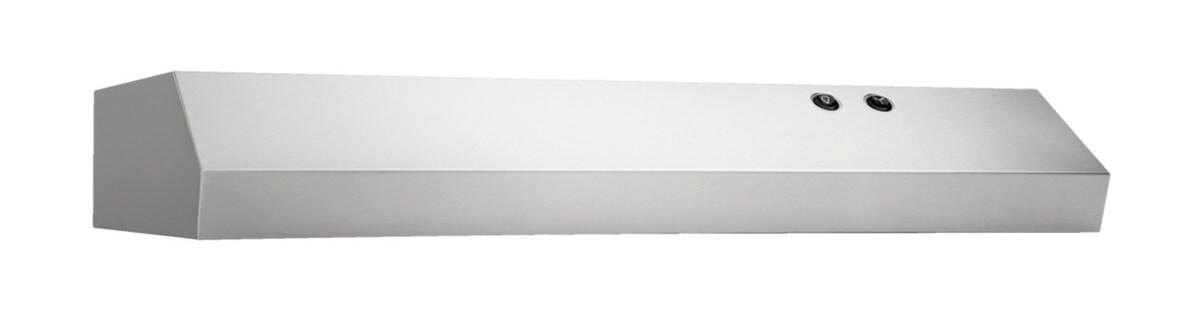

The Frigidaire 30" overhead range hood has a powerful 2-speed fan and includes a dishwasher safe grease filter, for easier cleanup.



Product Features

  • Two Speed Ventilation Fan
    Quickly move odors and steam away from the cooktop's surface with two levels of ventilation that recirculate air up to 220 CFM.
  • Incandescent Lighting
    Incandescent lighting helps with cooktop visibility.
  • Charcoal Filter Included
    Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
  • Dishwasher Safe Grease Filter
    Easily clean the aluminum grease filter by putting it in the dishwasher.
  • Convertible Exhaust System
    Designed to fit a variety of installation needs, it can be configured for ducted or ductless venting.
