SKU: FRHWM507422

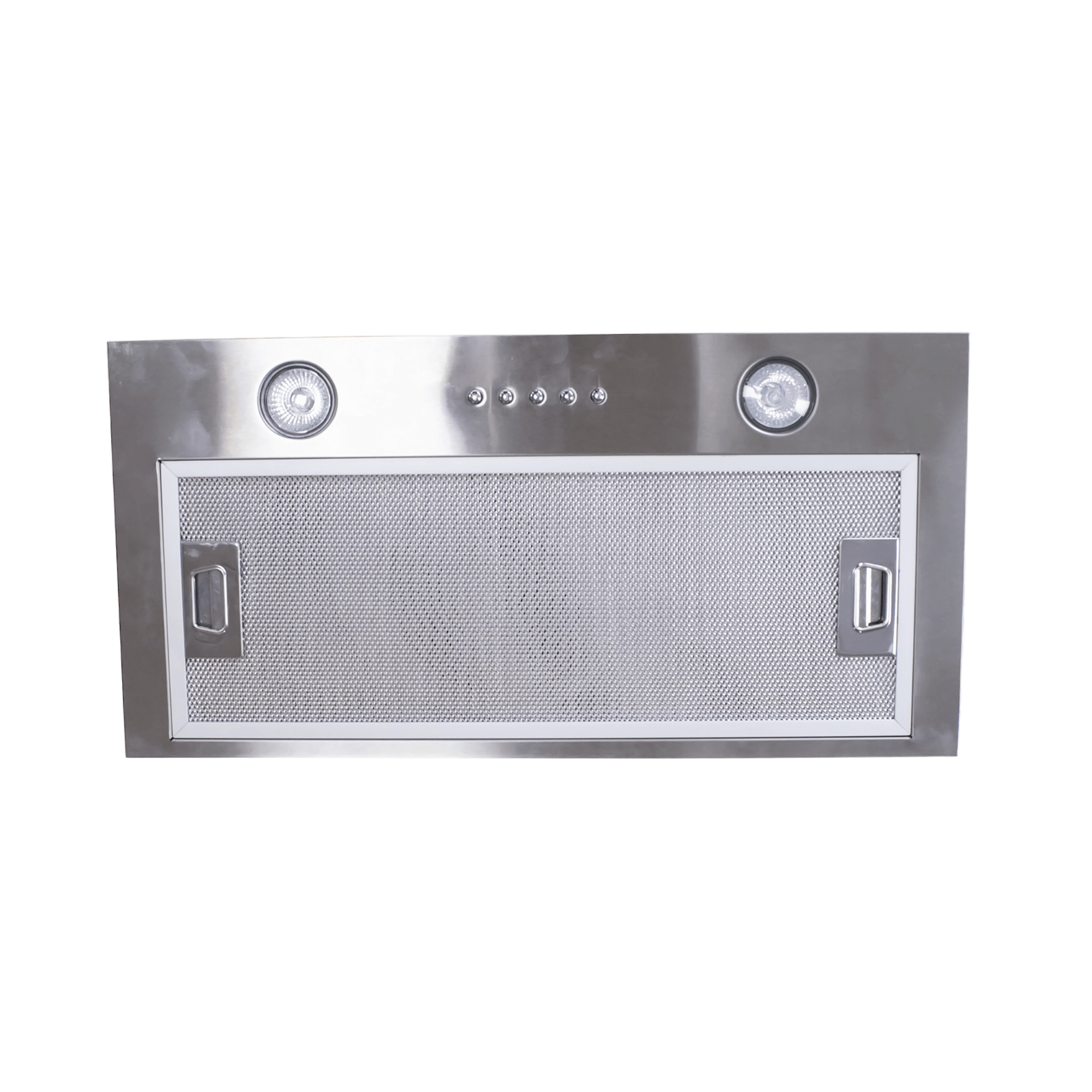

Forno FRHWM507422 22″ Built-In Range Hood with Mesh Filter Other

Quick Specification More details

Width:
22.44"
Depth:
11.26"
Height:
7.24"
Type:
Hood Inserts

About this product

Features stainless steel, mesh filter and two surface lights.
3 speed push button control makes it simple to adjust the fan speed according to your needs.
A 170 CFM airflow blower quickly and efficiently removes smoke and odours, ensuring maximum ventilation while minimizing noise levels for quiet operation.
Two surfaces lights offer long-lasting performance and energy efficiency to provide bright illumination for cooking and baking tasks.

Summer Sale

Clearance

SKU: FRHWM507422

Forno FRHWM507422 22″ Built-In Range Hood with Mesh Filter Other

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22.44"
Depth:
11.26"
Height:
7.24"
Type:
Hood Inserts

About this product

Features stainless steel, mesh filter and two surface lights.
3 speed push button control makes it simple to adjust the fan speed according to your needs.
A 170 CFM airflow blower quickly and efficiently removes smoke and odours, ensuring maximum ventilation while minimizing noise levels for quiet operation.
Two surfaces lights offer long-lasting performance and energy efficiency to provide bright illumination for cooking and baking tasks.

Product Details
Manuals & Guides
From The Manufacturer
Videos
Reviews

Contact us for Pricing

Product Details for Forno FRHWM507422

Technical Details

Specifications

Mount Type	Celling
Exhaust Method	Ducted
Duct Shape	Round
Smudge-Resistant Finish	No
Color Finish	Stainless Steel
Primary Material	Stainless Steel
Air Discharge Direction	Vertically Upward
Exhaust Vent Location	Top
Power Source	AC
Plug-In	Yes
Voltage	120
Amperage	1.3
Filter Type	Aluminium Filter
Washable Filter	Yes
Maximum Air Movement (CFM)	170
Number of Speeds	4
Speed Control Type	Push Button Control
Maximum Sones	4
Minimum Sones	3
Noise Level	65
Lighting Included	Yes
Bulb Included	Yes
Compatible Bulb Type	Halogen
Range Hood Chimney Extension Included	No
Blower Type	Interior unit
Chimney Short Kit Included	No
Damper Included	Yes
Crown Molding Included	Yes
Glass Component Included	No
Reversible Blower Capability	No
Timer	No
Heat Sensors	No
Delay Shut-Off	No
Remote Control Capable	No
Remote Included	No
Adjustable Height	No

Dimensions

Overall Height - Top to Bottom (in)	7.25
Overall Width - Side to Side (in)	22.43
Overall Depth - Front to Back (in)	11.25
Cutout Width - Side to Side (in)	20.75
Cutout Depth - Front to Back (in)	10.35
Overall Product Weight (lbs)	14.8

Warranty

Product Warranty	Yes
Warranty Length	2 Years
Full or Limited Warranty	Limited

Dimensions & weight

Width	22.44 in.
Height	7.24 in.
Length	11.26 in.
Weight	14.8 lbs.
Overall Height - Top to Bottom (in)	7.25
Overall Width - Side to Side (in)	22.43
Overall Depth - Front to Back (in)	11.25
Cutout Width - Side to Side (in)	20.75
Cutout Depth - Front to Back (in)	10.35
Overall Product Weight (lbs)	14.8

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	27.44 in.
Shipping Height	12.24 in.
Shipping Length	16.26 in.
Shipping Weight	54.8 lbs.
Total of Shipping Weight	54.8 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.06 ft³
Dimensional Weight	13.16 lbs.
Total of Cubes	1.06 ft³
Total of Dimensional Weight	13.16 lbs.

Description

The stainless steel insert Range Hood is a stylish and modern addition to any kitchen. With its stainless steel finish, aluminum filters, 3-speed push button control, and two surface lights, this range hood will make your cooking ventilation effective. The motor is both quiet and powerful, delivering an impressive 170 CFM of air flow. After cooking an option for automatic shut-off after 10 minutes of capture. Rest assured that your kitchen is protected. Its design and features, bring a modern look and superior performance to your kitchen.

Product Features

Features stainless steel, mesh filter and two surface lights.
3 speed push button control makes it simple to adjust the fan speed according to your needs.
A 170 CFM airflow blower quickly and efficiently removes smoke and odours, ensuring maximum ventilation while minimizing noise levels for quiet operation.
Two surfaces lights offer long-lasting performance and energy efficiency to provide bright illumination for cooking and baking tasks.
Maximum power ventilation at a low noise level of 65dB allows you to enjoy an effective ventilation system without obtrusive noise disruption
