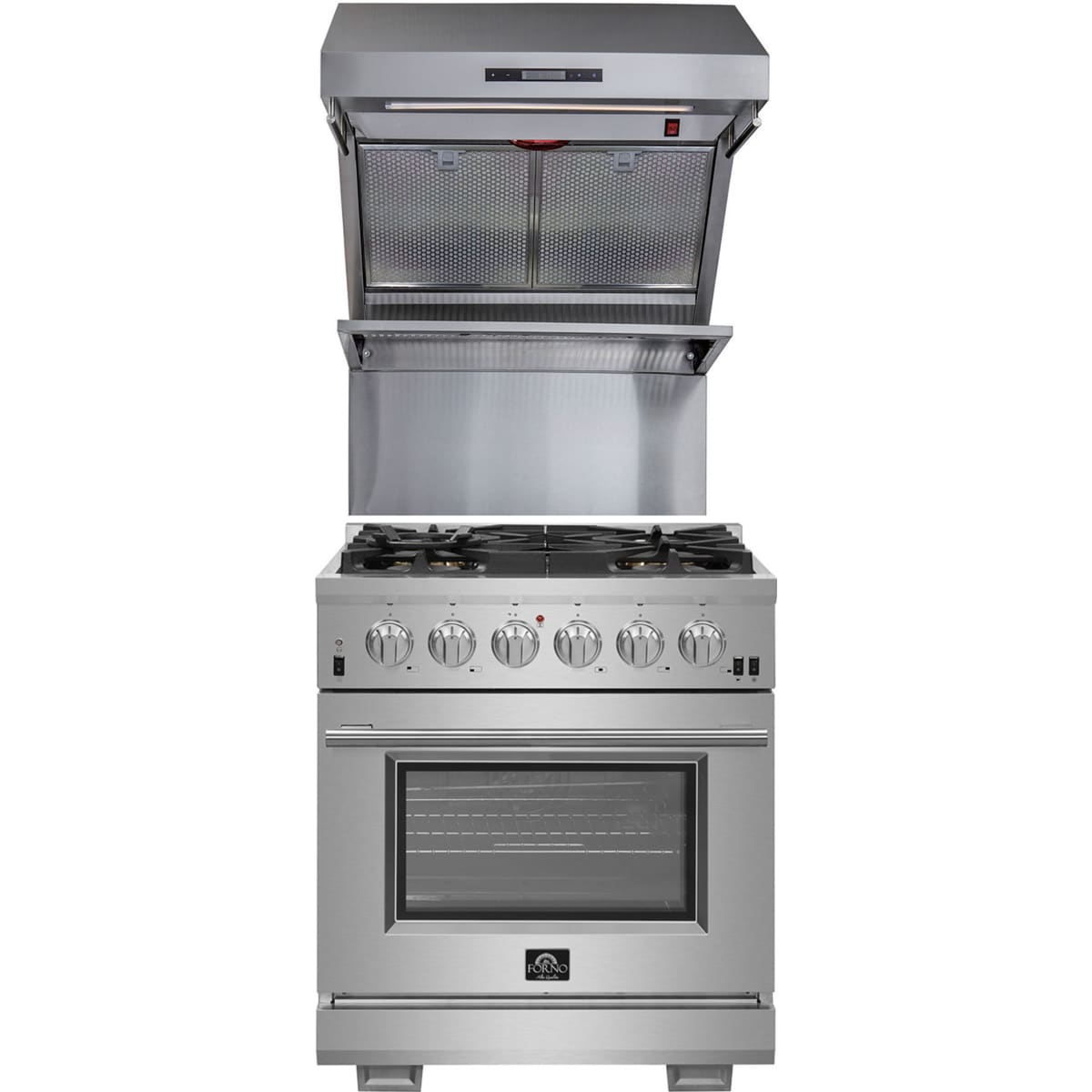

Name: Forno 2-Piece Package FFSGS618730 Freestanding Dual Fuel Range and FRHWM502930HB Wall Mount Range Hood
Brand: Forno
SKU: Forno-FFSGS618730-FRHWM502930HB
Price: 3799.00 USD
Availability: OutOfStock

What's included: 2 items

Forno FFSGS618730 Capriasca 30-Inch Freestanding Dual Fuel Range, 4 Burners, True Convection Oven Stainless Steel
- SKU SKU: FFSGS618730 UPC: 686136961387
- Type Freestanding Ranges
Forno FRHWM502930HB Savona 30-Inch Wall Mount Range Hood, Hybrid Filters, Backsplash Included Stainless Steel
- SKU SKU: FRHWM502930HB UPC: 686136950749
- Type Wall & Chimney Hoods

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$3,799.00 ~~$5,848.99~~ Save $2,049.99 / 35% OFF

Product Details for Forno FFSGS618730

Technical Details

Dimensions & weight

Width	30 in.
Height	28 in.
Length	37.4 in.
Weight	231 lbs.
Overall Height - Top to Bottom (in)	38
Overall Width - Side to Side (in)	30
Overall Depth - Front to Back (in)	29
Interior Height - Top to Bottom (in)	16
Interior Width - Side to Side (in)	24.92
Interior Depth - Front to Back (in)	18.7
Cutout Width - Side to Side (in)	30
Cutout Height - Top to Bottom (in)	36
Cutout Depth - Front to Back (in)	25
Overall Product Weight (lbs)	255.73
Depth with door open 90° (in)	44.25
Cutout Dimensions	30.5″W x 28"D
Oven Interior Dimensions	24.9″W x 16″H x 18.7″D

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	35 in.
Shipping Height	33 in.
Shipping Length	42.4 in.
Shipping Weight	271 lbs.
Total of Shipping Weight	271 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	18.18 ft³
Dimensional Weight	226.01 lbs.
Total of Cubes	18.18 ft³
Total of Dimensional Weight	226.01 lbs.

Header

Model Number	FFSGS6187-30
Brand Name	FORNO
Product UPC	686136961387
Market	CANADA,USA
Collection Name	Alta Qualita
Serie's Name	Capriasca
Product Name (Short & Sweet) < 36 Characters	Capriasca 30" Freestanding Dual Fuel
Product Description (more detailed) <= 100 characters	Capriasca 30-inch Dual Fuel Range Stainless Steel, 5 Burners, 4.32 cu.ft. True Convection Oven
Product Description (more detailed) > 100 characters	Capriasca 30-inch Dual Fuel Range All Stainless Steel with 5 Brass Burners 100,000 BTU, 4.32 cu.ft. & Wok Support

Technical information

Color/Finish	Stainless Steel
Fuel Type	Dual Fuel
Gas Type	Natural Gas
Gas Heat Configuration (cooktop)	Sealed Burners
Number of Burners/Cooking Zones	5
Cooking Surface Ignition Type	Push and Turn
Number of Ovens	1
Auto Re-Ignition	Yes
Double Oven Structure	Does Not Apply
Racks Material	Stainless-Steel
Oven Ignition Type	Knob
Broiler Location	Oven
Automatic Convection Conversion	No
Control Location	Front
Cooktop Hot Surface Indicator	No
Temperature Gauge	No
Clock	No
Door Panel Material	304 Stainless Steel
Oven Fuel	Electric
Number of Dual-Ring Burner	1
Oven Racks Type	Telescopic
Overall Bake Wattage	2000
Convection Oven	Yes
Overall True Convection Wattage	1500
Delay Start	No
Knobs Color/Finish	Zinc Coated
Burner Fuel	Gas
LP gas convertible	Yes
Total Cooktop BTU Output	100,000
Oval Burner	No
Cooktop Surface Structure	Grate; Deep Recessed
Overall Oven Capacity (Cubic Feet)	4.32
Number of Knobs	7
Number of Racks	3
Number of Rack Positions	5
Broiler	Yes
Bake Element	Yes
Interior Light	2
Oven Preheating Indicator	Yes
Storage Drawer	No
Timer	No
Primary Material	Metal
Control Panel Material	304 Stainless Steel
Dual-Ring Burner	Yes
Overall Broil Wattage	2800
Hidden Bake Element	Yes
Convection Type	True Convection
Cook time Option	No
Illuminated knob	Yes
Plug-in	Yes
Fingerprint-Resistant	No

General product weight & dimensions

Product Overall Weight (lbs)	255.73
Product Dimensions W x D x H (inches)	30 x 28 x 38
Product Width (in)	30
Product Depth (in)	28
Product Height (in)	38
Cutout dimensions W x D x H (inch)	30 x 25 x 36
Main Oven Interior Depth (IN)	18.70
Main Oven Interior Height (IN)	16.00
Main Oven Interior Width (IN)	24.92
Main Oven Usable Interior (W x D x H)	24 X 14 X 11

Certification

Safety Listing	cETLus
Title 20 - California Regulation	Does Not Apply
ISTA 6A	Yes
Star-K Certified	Does Not Apply
ADA Compliant	Does Not Apply

Warranty

Commercial Warranty	No
Warranty on Parts	2 Years
Warranty Script (English)	Experience peace of mind with FORNO products, each backed by a 2-year warranty covering labor and parts, ensuring satisfaction and confidence in the reliability of our high-quality appliances
Warranty Type	Limited
Warranty on Labor	2 Years

Shipping

Shipping Weight Box 1 (Carton Weight + 35 lbs)	363.49
Shipping Lenght Box 1 (with pallet)	48.00
Needs to be shipped on a pallet	Yes
Shipping Width Box 1 (with pallet)	40
Shipping Height Box 1 (Height carton + 6-inch of the pallet)	49.31

Description

The Forno 30 Inch Capriasca Dual Fuel Range brings professional styling and Performance into your home kitchen with its durable and beatiful 304 grade stainless-steel design. Cooking surface has 5 sealed dual-ring brass burners with a total output of 100,000 BTU. 20K dual-ring burner for boiling or searing and is able to perform simmering like melting chocolate or sauces, Continuous heavy-duty cast-iron grates allow for easily sliding pots or pans off heat when desired. This 4.32 cu.ft. true convection fan oven has an impressive blue enamel interior, allowing for easy cleaning. The 3-layer glass oven door window provides both heat retention and an unobstructed view. This oven also boasts a total output of 6,300 Watts, providing plenty of power for baking, roasting, and broiling. Included are 3 fully telescopic easy access stainless steel oven racks, concave Wok Ring and LP conversion kit. Additionally, zinc coated metal knobs with bezel rings will maintain their beauty for years.

Product Features

Sealed Dual-Ring Brass Burners can achieve high heat searing or delicate simmering control
Recessed Black Enamel Cooktop Cavity contains spills for quick clean-ups
4.32 Cu.Ft True Convection Fan Oven with 6,300 Watt Total Broil and Bake output
Dual element for high broil temperatures and lower wattage element for delicate fish and chicken broiling.
5 Sealed Dual-Ring Brass Burners combine a total -top out of 100,000 BTU
Continuous Cast Iron Grates provide even heat distribution and stable pots and allow for cookware and mobility off heat source
Adjustable Stainless Steel Legs Accommodate Counter Heights between 36” to 37”
3 Heavy-Duty Stainless Steel Telescopic Oven Racks with ball bearing rack guides
Sleek, Durable Design 304 Stainless-Steel Panels
Includes Rotisserie Skewer & Forks, LP conversion kit and 4-Prong Plug
Speckled Blue Enamel Oven Interior with 2 Halogen Lights
Pro-Style Handles and Illuminated Zinc Coated Metal Control Knobs and Bezel Rings

Manuals & Guides

FFSGS6187-30 Catalog Sheet

Reviews

Product Details
Manuals & Guides
From The Manufacturer
Videos
Reviews

$3,799.00 ~~$5,848.99~~ Save $2,049.99 / 35% OFF

Product Details for Forno FRHWM502930HB

Technical Details

Dimensions & weight

Width	29.53 in.
Height	25 in.
Length	22.6 in.
Weight	86.7 lbs.
Overall Height - Top to Bottom (in)	32.9
Overall Width - Side to Side (in)	30
Overall Depth - Front to Back (in)	26.2
Overall Product Weight (lbs)	86.7

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.53 in.
Shipping Height	30 in.
Shipping Length	27.6 in.
Shipping Weight	126.7 lbs.
Total of Shipping Weight	126.7 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	9.66 ft³
Dimensional Weight	120.03 lbs.
Total of Cubes	9.66 ft³
Total of Dimensional Weight	120.03 lbs.

Header

Model Number	FRHWM5029-30HB
Product UPC	686136950749
Collection Name	Alta Qualita
Product Name (Short & Sweet) < 36 Characters	Savona - 30" Wall Mount Range Hood w
Product Description (more detailed) <= 100 characters	This 30 Inch Savona wall mount range hood by Forno helps create a durable, all stainless steel desig
Brand Name	FORNO
Market	CANADA,USA
Serie's Name	Savona HB

Technical information

Color/Finish	Stainless Steel
Control Location	Front
Primary Material	Stainless Steel
Display Type	LCD
Decibel Speed 3 (dB)	58.00
Decibel Speed 1 (dB)	44.00
Bulb Type	LED Light Strip
Heating Lamp Maximum Wattage	220
Motor(s) Power (Watts)	60
Backsplash Dimensions W x H (inch)	29.53 x 12.6
Minimum Height from Cooktop	30.00
Minimum Decibel (dB)	44.00
Sones Speed 4	13.00
Sones Speed 2	5.00
Minimum Sones	3.00
RPM Speed 4	1510
RPM Speed 2	1050
Air Flow Speed 4	1019
Air Flow Speed 2	637
CFM speed 4	600
CFM speed 2	375
Minimum CFM	275
Range Hood Shape	Square
Number of Lights	1
Remote Control	No
Power off Function	Yes
Reversible Blower	No
Chimney Short Kit	No
Rangehood Chimney	No
Backsplash Included	Yes
Number of Heating Lamp	1
Speed Control Type	Touch
Duct Type	6-in Round
Damper	Yes
Filter Material	Stainless Steel and Aluminum Mesh
Air Discharge Direction	Vertically Upward
Charcoal Filters	No
Exhaust Vent Location	Top
Blower Material	Metal
Fingerprint-Resistant	No
Dishwasher Safe Filters	Yes
Clock	Yes
CEE Tier Qualified	Not Rated
Power Cord Location	Top
Decibel Speed 4 (dB)	65.00
Decibel Speed 2 (dB)	51.00
Bulb Wattage	10.00
Heating Lamp Type	Tungsten-Halogen E26
Heating Lamp Wattage	175.00
Duct length (inch)	59.00
Warming Shelves Dimensions W x D x H (inch)	29.53 x 12.01 x 3.46
Maximum Decibel (dB)	65.00
Sones Speed 3	8.00
Sones Speed 1	3.00
Maximum Sones	13.00
RPM Speed 3	1350
RPM Speed 1	880
Air Flow Speed 3	807
Air Flow Speed 1	467
CFM speed 3	475
CFM speed 1	275
Maximum CFM	600
Clean Filter Alert	No
Number of light settings	1
Power off Information	15 Minutes
Heat Sensors	No
Crown Molding	No
Chimney Extension Kit	No
Hardware Finish	Stainless Steel
Warming selve included	Yes
Heating Lamp Included	Yes
Speed Control	4
Damper Type	6-in Round
Removable Grease Filter	Yes
Filter Type	Hybrid
Vent Style	External
Vent Type	Ducted
Number of exhaust Vent	1
Number of Blower(s)	1

General product weight & dimensions

Product Overall Weight (lbs)	88.00
Product Dimensions W x D x H (inches)	29.53 x 25 x 39.49
Product Width (in)	29.53
Product Depth (in)	25
Product Height (in)	39.49
Cutout Depth (INCH)	12
Cutout dimensions W x D x H (inch)	30 x 25 x 39
Cutout Height (INCH)	39
Cutout Width (INCH)	30

Certification

Safety Listing	cETLus
Energy Star Certified	No
Energy Policy Act 1992 Compliant	Does Not Apply
ISTA 6A	Yes
ADA Compliant	No
UPLR Compliant	Yes
Certificate of Conformity (GCC)	No
File/Certification Number	5014042
Title 20 - California Regulation	Yes
Star-K Certified	No
TAA Compliant	No
CEE Tier Qualified	Not Rated

Warranty

Commercial Warranty	No
Warranty on Parts	2 Years
Warranty Script (English)	Experience peace of mind with FORNO products, each backed by a 2-year warranty covering labor and parts, ensuring satisfaction and confidence in the reliability of our high-quality appliances
Warranty Type	Limited
Warranty on Labor	2 Years
Warranty Length (Years)	2 Years

Shipping

Shipping Method	LTL
Shipping Width Box 1 (with pallet)	40
Shipping Depth Box 1 (with pallet)	48
Needs to be shipped on a pallet	yes
Shipping Height Box 1 (Height carton + 6-inch of the pallet)	38.9
Shipping Weight Box 1 (Carton Weight + 35 lbs)	159.3

Description

This 30 Inch Savona wall mount range hood by Forno helps create a durable, all stainless steel design. A quiet high-efficiency 600 CFM of ventilation power. The hybrid mesh filtration system reduces odors and maximizes filtration effectiveness. Designed to be user-friendly to remove, and totally submersible, these filters go right into the dishwasher for the ultimate in easy clean. With versatile fan settings, you can adjust the capture speed based on your cooking needs. Includes upper level warming rack, heated via an Infra-red bulb to keep your food and dishes warm. Dual utensil hangers are perfect for keeping your most frequently used tools at hand or to display your pans. All Forno products are backed by an iron clad 2-year warranty for your satisfaction. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.

Product Features

Experience peace of mind with FORNO products, each backed by a 2-year warranty covering labor and parts, ensuring satisfaction and confidence in the reliability of our high-quality appliances.

Manuals & Guides

FRHWM5029-30HB Specs
