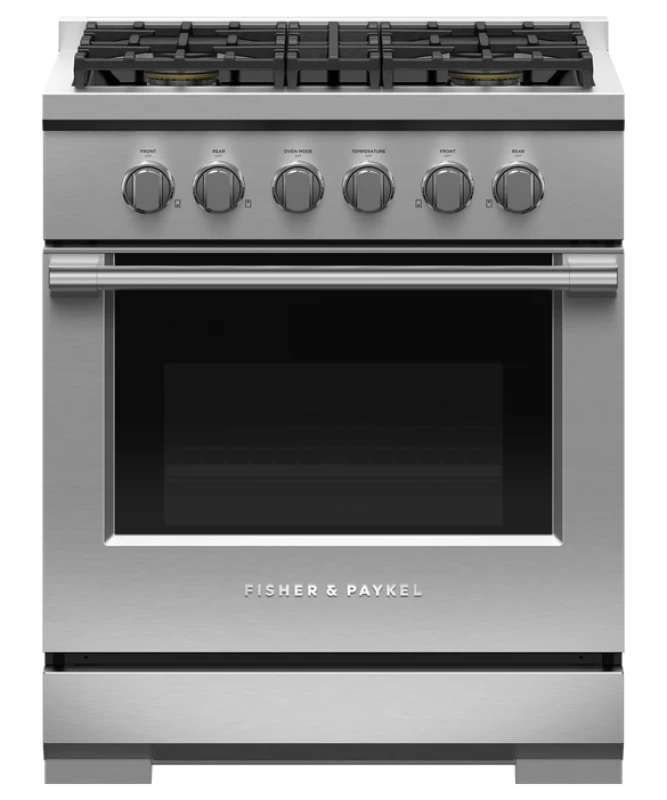

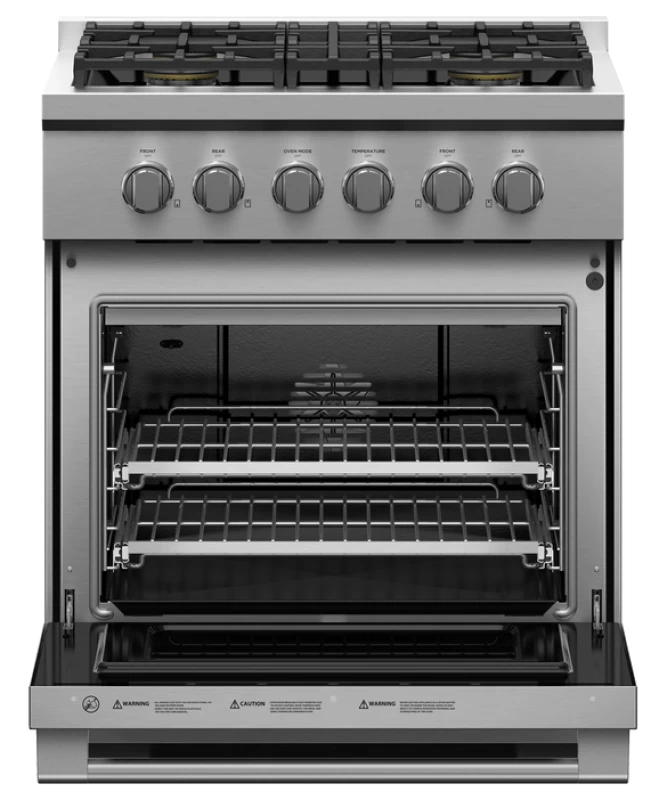

Product Details for Fisher Paykel RGV3304N
Technical Details
Burner ratings
| Maximum burner power | 22500 BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front left | 22500BTU |
| Power front right | 18500BTU |
| Total cooktop power | 78000 BTU |
Capacity
| Shelf positions | 5 |
| Total capacity | 4.6cu ft |
| Usable capacity | 3.4cu ft |
Cleaning
| Easy clean porcelain basepan | Yes |
Controls
| Electric circuit | 3 wire |
| Metal illuminated dials | Yes |
Gas requirements
| Fitting and pipe | ½ NPT, min. ⅝" ∅ flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
Oven features
| Auto re-ignition system | Yes |
| Broil pan | Yes |
| Electronic oven control | Yes |
| Full extension telescopic sliding shelves | Yes |
| Infrared Broiler | Yes |
| Titanium coated, illuminated metal dials | Yes |
Oven functions
| Bake | Yes |
| Broil | Yes |
| Convection bake | Yes |
| Number of functions | 4 |
| Slow cook | Yes |
Oven performance
| Bake power | 21,000 BTU |
| Broil power | 18,500 BTU |
Power requirements
| Power supply | 120 V, 60 Hz |
| Service | 15 A |

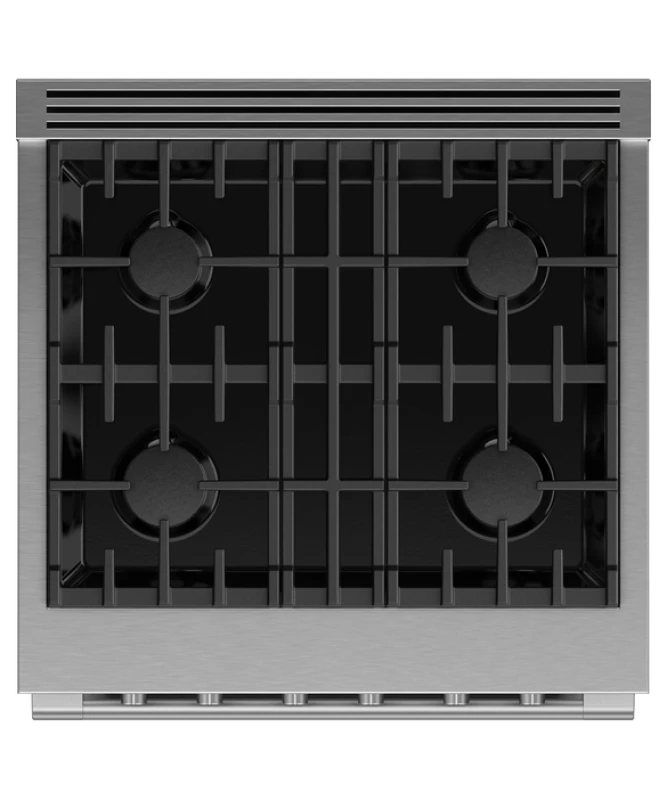

Rangetop features
| Sealed range top | Yes |
| Vent trim included | Yes |
Recommended back guards ventilation
| Combustible situation | BGRV3-3030H |
| Non combustible situation | BGRV2-3030 / BGRV2-1230 |
| Recommended hood | HCB30-6_N (Professional Range Hood) |
Safety
| ADA compliant | Yes |
| Full extension telescopic sliding shelves | Yes |
Dimensions & weight
| Width | 29 in. |
| Height | 35 in. |
| Length | 29 in. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 34 in. |
| Shipping Height | 40 in. |
| Shipping Length | 34 in. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 17.03 ft³ |
| Dimensional Weight | 211.76 lbs. |
| Total of Cubes | 17.03 ft³ |
| Total of Dimensional Weight | 211.76 lbs. |
Description
Professional style and performance, with high power burners delivering high heat or the most gentle simmer.
Product Features
- Cooktop Power
- Cooking Flexibility
- Design Quality
- Easy To Clean
- Total Control
