SKU: RDV3486GDL | UPC: 822843823864

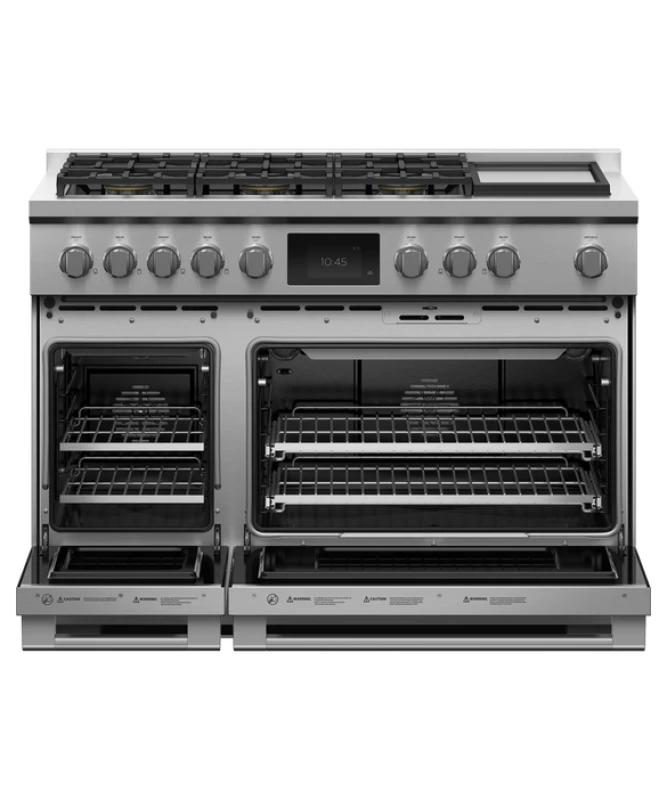

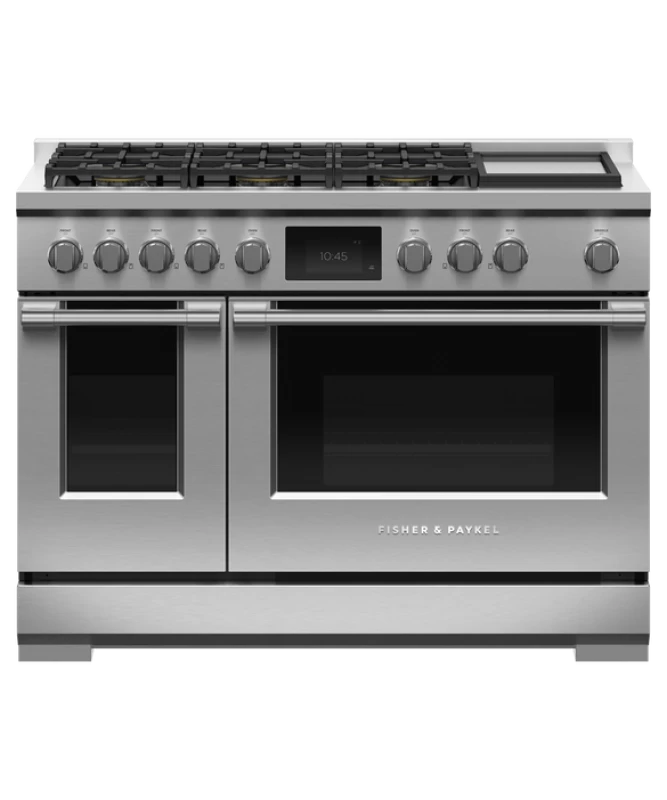

Fisher Paykel RDV3486GDL Dual Fuel Range, 48", 6 Burners with Griddle Other

Quick Specification More details

Width:
47"
Depth:
29"
Height:
35"
Type:
Professional Ranges

About this product

Cook With Confidence
Generous Capacity
Cooking Flexibility
Cooktop Power

More on the way

On Sale

SKU: RDV3486GDL | UPC: 822843823864

Fisher Paykel RDV3486GDL Dual Fuel Range, 48", 6 Burners with Griddle Other

$16,699.00 ~~$20,550.97~~ Save $3,851.97 / 18% OFF

Quantity:

More on the way

Active Rebates

Extended Protection

1-Year Extended Protection
$197.99
2-Year Extended Protection
$354.99
3-Year Extended Protection
$659.99
5-Year Extended Protection
$959.99
Manufacturer Warranty Only

Gas Pro Range Install — Direct Replacement, No Modifications
$350.00
Old Appliance Pro Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$249.99

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Related Accessories

Fisher Paykel AHP3R48BA Professional Round Flush Handles for Ranges, 48" Other

More on the way

On Sale

Fisher Paykel AHP3R48DC Professional Round Flush Handles for Ranges, 48" Other

More on the way

On Sale

Quick Specification More details

Width:
47"
Depth:
29"
Height:
35"
Type:
Professional Ranges

About this product

Cook With Confidence
Generous Capacity
Cooking Flexibility
Cooktop Power

Product Details for Fisher Paykel RDV3486GDL

Technical Details

Warranty

Parts	2 Year
Labor	2 Year
Parts and labor	Limited 2 years

Accessories (included)

Adjustable feet covers	Yes
Branded coin end cap	Yes
Telescopic sliding runners	Yes

Burner ratings

Maximum burner power	19000 BTU
Power back centre	13000BTU
Power back left	13000BTU
Power back right	13000BTU
Power front centre	15000BTU
Power front left	19000BTU
Power front right	15000BTU
Power griddle	15000BTU
Total cooktop power	103000 BTU

Capacity

Shelf positions (main oven)	5
Shelf positions (second oven)	5
Total capacity (main oven)	4.8cu ft
Total capacity second oven	2.1cu ft
Usable capacity (main oven)	3.8cu ft

Cleaning

Easy clean porcelain basepan	Yes
Pyrolytic proof shelf runners	Yes

Controls

Dial with illuminated halo	Yes
Dual control oven dials	Yes
High resolution display	Yes
Multi-language interface	Yes
Precise cooking with food probe	Yes
Recipe and food based functions	Yes
Sabbath mode	Yes
Smart Appliance	Yes
Tilting touch screen interface	Yes
Wi-Fi connectivity	Yes

Gas requirements

Fitting and pipe	½ NPT, min. ⅝" ∅ flex line
Supply Pressure (LPG)	11" to 14" W.C

Oven features

Auto re-ignition system	Yes
Concealed element	Yes
Electronic oven control	Yes
Food probe	Yes
Full extension telescopic sliding shelves	Yes
Large broil pan	Yes
Self-clean proof side racks	Yes
True convection	Yes

Oven functions

Air fry	Yes
Bake	Yes
Broil	Yes
Classic bake	Yes
Clean	Yes
Convection bake	Yes
Convection broil	Yes
Maxi Broil	Yes
Number of functions	15
Pastry bake	Yes
Pizza bake	Yes
Rapid proof	Yes
Roast	Yes
Slow cook	Yes
True convection	Yes
Warm	Yes

Power requirements

Connection	4-prong grounding type [NEMA 14-50P plug]
Power supply	120 / 240 V, 60 Hz
Service	50 A

Rangetop features

Sealed range top	Yes
Vent trim included	Yes

Recommended back guards ventilation

Combustible situation	BGRV3-3048H
Non combustible situation	BGRV2-3048 / BGRV2-1248
Recommended hood	HCB48-12_N (48" Professional Range Hood, Dual Blower)

Safety

ADA compliant	Yes
Child lock	Yes

Secondary oven features

3/4 Extension racks	2
Concealed element	Yes
Electronic oven control	Yes
Food probe	Yes
Internal light	Yes

Secondary oven functions

Air fry	Yes
Bake	Yes
Classic bake	Yes
Convection bake	Yes
Convection broil	Yes
Maxi broil	Yes
Number of secondary oven functions	11
Pastry bake	Yes
Pizza bake	Yes
Rapid proof	Yes
Roast	Yes
Warm	Yes

Dimensions & weight

Width	47 in.
Height	35 in.
Length	29 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	52 in.
Shipping Height	40 in.
Shipping Length	34 in.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	27.61 ft³
Dimensional Weight	343.2 lbs.
Total of Cubes	27.61 ft³
Total of Dimensional Weight	343.2 lbs.

Description

The Fisher & Paykel RDV3486GDL is a premium 48-inch freestanding dual fuel range designed for culinary excellence. It features six sealed Dual Flow Burners™, delivering up to 23,500 BTU for rapid boiling and precise low-temperature control. The integrated griddle provides versatility for a variety of cooking techniques. The range includes two independently operating ovens: a 4.8 cu. ft. main oven and a 2.1 cu. ft. secondary oven, offering a combined capacity of 6.9 cu. ft.. Both ovens support true convection and feature a self-cleaning function with self-clean-proof side racks. The intuitive tilting touchscreen interface offers guided cooking experiences, while the halo-illuminated dials provide visual cues for oven status. Built with stainless steel and cast-iron trivets, the RDV3486GDL combines durability with sleek design, making it a standout addition to any modern kitchen.
