Product Details for FISHER & PAYKEL HP24IDCHX4
Technical Details
Fan ratings
| Maximum air movement | 400 |
| Maximum speed sound rating | 7.5 |
| Speed 1 sound rating | 1 |
Installation and cleaning
| Air outlet size | 6.0 |
| Dishwasher safe filters | 2 |
| Ducted | Top extraction |
| Recirculation | Optional - top extraction |
Performance
| Extraction type | Perimeter |
| Fan speeds | 3 |
| Filter type | Mesh with perimeter extraction |
| Number of filters | 2 |
Power requirements
| Supply frequency | 60 |
| Supply voltage | 120 |
Product dimensions
| Depth | 11.0 |
| Height | 12.0 |
| Width | 20.0 |
Features
- With three fan speeds plus a boost function, select the perfect extraction rate for your cooking
- Perimeter extraction for efficient removal of steam and odors
- Powerful maximum air movement of 400CFM
- Pair with a compatible cooktop and the extraction rate will automatically adjust to suit your cooking
- Wi-Fi enabled for notifications through the SmartHQ(TM) app
Description

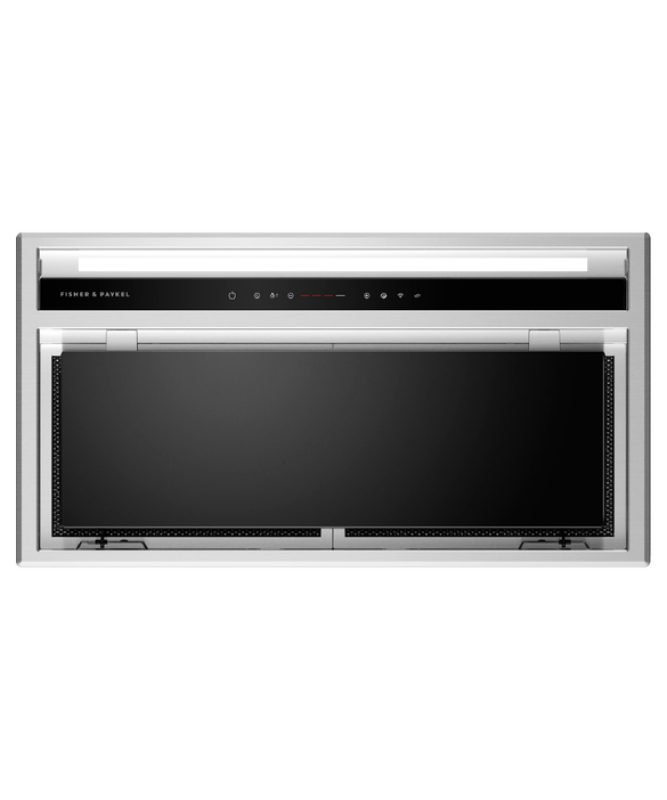

The brand Fisher & Paykel HP24IDCHX4 combines quiet, powerful performance and clean design in this premium 24″ Series 7 Integrated Insert Range Hood. Its robust 400 CFM maximum airflow with perimeter extraction and selectable 3-speed plus Boost fan efficiently removes smoke, grease, and odors. The intuitive capacitive touch controls let you adjust airflow and lighting, while the Wi‑Fi-enabled SmartHQ™ app integration allows remote monitoring and filter cleaning reminders. Designed with a sleek combination of black glass and stainless steel trim, the hood maintains a clean aesthetic with hidden screws. Maintenance is easy thanks to the dishwasher-safe mesh filters and SmartHQ™ filter cleaning alerts. Additional conveniences include a 6″ duct outlet, dimmable lighting, auto-off/run-on timer, and safety-enhancing filter cleaning alerts.
Manuals & Guides
- HP24IDCHX4 - Data Sheet (English)
- HP24IDCHX4 - Data Sheet Insert Rangehood
- HP24IDCHX4 - Guide d'installation FR
- HP24IDCHX4 - Installation Guide (Canadian French)
- HP24IDCHX4 - Gu a de instalaci n SP
- HP24IDCHX4 - Installation Guide (Mexican Spanish)
- HP24IDCHX4 - Installation Guide Insert Rangehood EN
- HP24IDCHX4 - Installation Guide (English)
- HP24IDCHX4 - Quick Reference guide
- HP24IDCHX4 - Quick Reference guide
- HP24IDCHX4 - Gu a del usuario ES
- HP24IDCHX4 - User Guide (Mexican Spanish)
- HP24IDCHX4 - Guide d'utilisation FR
- HP24IDCHX4 - User Guide (Canadian French)
- HP24IDCHX4 - User Guide Integrated Insert Rangehood EN
- HP24IDCHX4 - User Guide (English)
- HP24IDCHX4 - Right To Repair Declaration (English, Canadian French)
