Fisher & Paykel 5-Piece Package RF170WDLX5N 32 Freestanding Bottom Mount Refrigerator and CI365DTB4 Cooktop and OB30SPPTX1 30 Wall Oven and HD36 36 Downdraft Hood and DD24SAX9N 24 Full Console Single DishDrawer Dishwasher

$15,168.31 $24,715.99 Save $9,547.68 / 38% OFF

Out of stock

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Additional Services Available:

Freestanding Refrigerator Freezer, 32", 17.1 cu ft

Fisher Paykel RF170WDLX5N Freestanding Refrigerator Freezer, 32", 17.1 cu ft Other

Contact us for Pricing
View Details

Add Installation Services

Extended Protection

?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $30.99
  • $51.99
  • $75.99
  • $139.99

Delivery services

?

Delivery Services:
We offer a range of delivery services to meet your needs. Please note that these services are not available in certain locations.

For more details, please visit our Delivery and Installation Services page.

  • $110.00
  • $49.99
36" Series 7 5 Zone Induction Cooktop, 2 Smart Zones

Fisher Paykel CI365DTB4 36" Series 7 5 Zone Induction Cooktop, 2 Smart Zones Black Glass

$3,799.00 $5,399.97 Save $1,600.97 / 29% OFF
View Details

Add Installation Services

Extended Protection

?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $79.99
  • $155.99
  • $235.99
  • $359.99
30" Series 9 Professional Self-Cleaning Oven

Fisher Paykel OB30SPPTX1 30" Series 9 Professional Self-Cleaning Oven Stainless Steel

$5,899.00 $7,172.97 Save $1,273.97 / 17% OFF
View Details

Add Installation Services

Extended Protection

?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $123.99
  • $215.99
  • $334.99
  • $489.99

Delivery services

?

Delivery Services:
We offer a range of delivery services to meet your needs. Please note that these services are not available in certain locations.

For more details, please visit our Delivery and Installation Services page.

  • $250.00
  • $40.00
  • $49.99

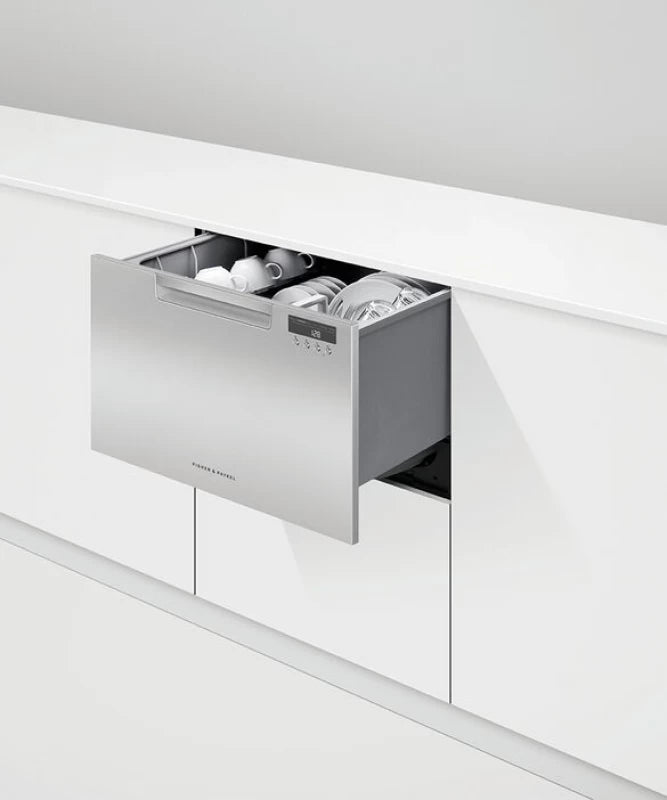

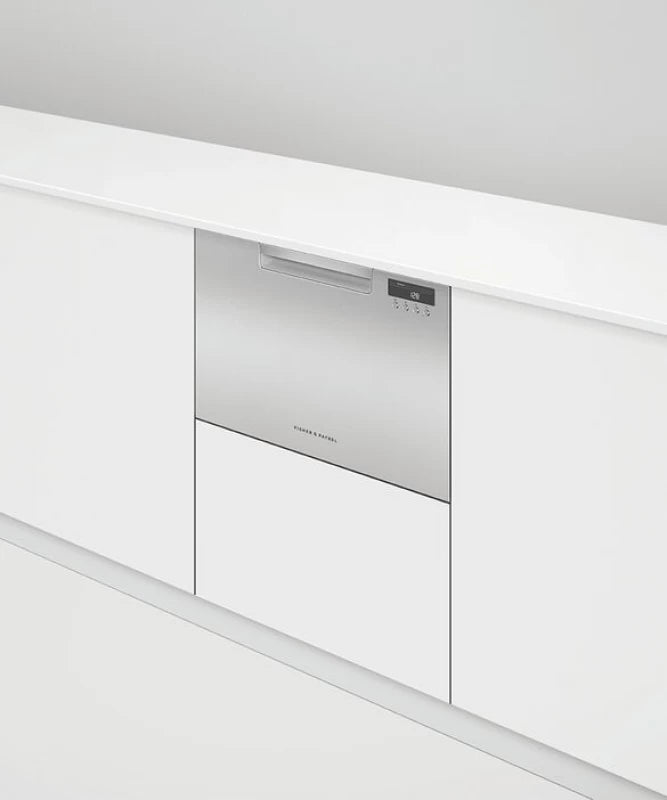

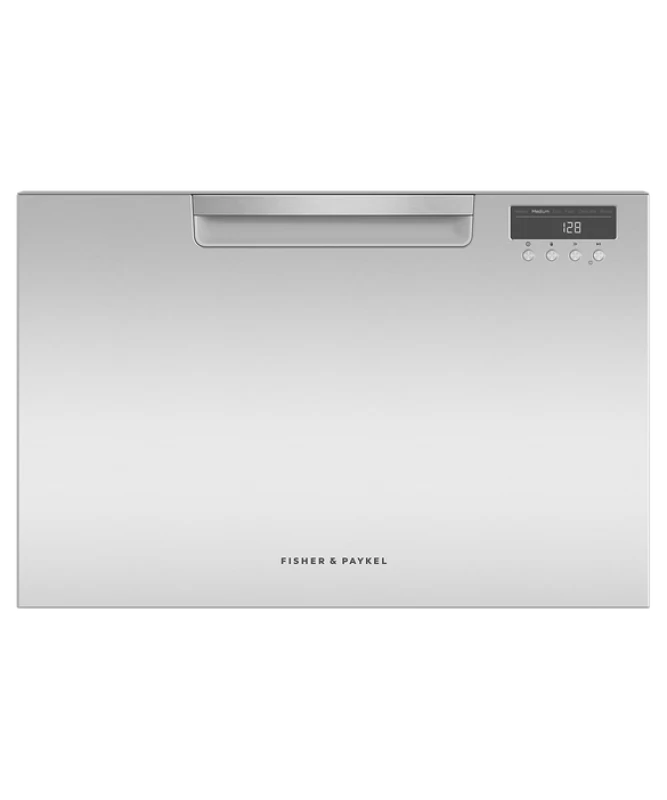

Series 7, Contemporary Single DishDrawer™ Dishwasher

Fisher Paykel DD24SAX9N Series 7, Contemporary Single DishDrawer™ Dishwasher Stainless Steel

$1,193.38 $1,825.97 Save $632.59 / 34% OFF
View Details

Add Installation Services

Extended Protection

?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $43.49
  • $75.99
  • $115.99
  • $163.99

What's included: 4 items

  • Freestanding Refrigerator Freezer, 32", 17.1 cu ft

    Fisher Paykel RF170WDLX5N Freestanding Refrigerator Freezer, 32", 17.1 cu ft Other

    • SKU: RF170WDLX5N UPC: 822843250684
    • Bottom Freezer Refrigerators
  • 36" Series 7 5 Zone Induction Cooktop, 2 Smart Zones

    Fisher Paykel CI365DTB4 36" Series 7 5 Zone Induction Cooktop, 2 Smart Zones Black Glass

    • SKU: CI365DTB4 UPC: 822843819720
    • Induction Cooktops
  • 30" Series 9 Professional Self-Cleaning Oven

    Fisher Paykel OB30SPPTX1 30" Series 9 Professional Self-Cleaning Oven Stainless Steel

    • SKU: OB30SPPTX1 UPC: 822843819218
    • Single Wall Ovens
  • Series 7, Contemporary Single DishDrawer™ Dishwasher

    Fisher Paykel DD24SAX9N Series 7, Contemporary Single DishDrawer™ Dishwasher Stainless Steel

    • SKU: DD24SAX9N UPC: 822843816033
    • Drawer Dishwashers
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
$15,168.31 $24,715.99 Save $9,547.68 / 38% OFF

Product Details for Fisher Paykel RF170WDLX5N

Technical Details

Warranty
Parts 2 Year
Labor 2 Year
Parts and labor 2 years
Sealed system parts and labor additional 3 years

Capacity
Total gross capacity 17.1cu ft
Volume freezer 4.8cu ft
Volume refrigerator 12.3cu ft

Consumption
Energy rating Energy star
Energy usage 452kWh/year
In-use energy carbon emissions estimate Carbon Emissions Info 165.7kgCO2e/year

Features
Adjustable door shelves 13
Adjustable glass shelves 4
Covered door shelves 2
Door alarm Yes
Fruit and vegetable bins 2
LED lighting Yes
Smart Appliance Yes
SmartTouch control panel Yes
Stackable bottle holders 2

Freezer features
Bottle chill Yes
Fast freeze Yes
Large plastic bins Yes

Performance
ActiveSmart™ Foodcare Yes
Adaptive defrost Yes
Frost free freezer Yes
Humidity control system Yes
Sabbath mode Yes

Power requirements
Rated current 10A
Supply frequency 60Hz
Supply voltage 115V

Other
Minimum air clearance - at rear 1 3⁄16"

Dimensions & weight
Width 31 in.
Height 67 in.
Length 27 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 36 in.
Shipping Height 72 in.
Shipping Length 32 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 32.45 ft³
Dimensional Weight 403.45 lbs.
Total of Cubes 32.45 ft³
Total of Dimensional Weight 403.45 lbs.

Description

The Fisher & Paykel RF170WDLX5N 17 cu. ft. Bottom Freezer Refrigerator offers a refined balance of form and function with intelligent cooling and timeless design. Featuring ActiveSmart™ technology, this model adjusts airflow and temperature in real-time based on usage, helping keep food fresher longer while optimizing energy efficiency. Its left-hand door hinge supports customized kitchen layouts, and the bottom freezer offers full extension bins for better organization. Inside the refrigerator, adjustable glass shelves, humidity-controlled produce bins, and spill-safe storage provide flexible and reliable performance. The stainless steel exterior is fingerprint-resistant and easy to clean, while LED lighting offers brilliant interior visibility. Quiet operation, durable materials, and contemporary aesthetics make this model a standout in its class.



Product Features

  • Activesmart Foodcare
  • Easy Cleaning
  • Design Quality
  • Simple Storage
  • Clever Energy

Manuals & Guides

From The Manufacturer

Reviews
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Rebates
  • Reviews
$15,168.31 $24,715.99 Save $9,547.68 / 38% OFF

Product Details for Fisher Paykel CI365DTB4

Technical Details

Burner ratings
Max burner power Yes

Cleaning
Flat easy clean glass surface Yes

Controls
Auto cut-off timer for each zone Yes
Minute timer Yes
Soft-touch electronic controls Yes
Touch and slide controls Yes

Performance
Auto rapid heat Yes
Dual zones Yes
Gentle heat Yes
Heat settings 9
Induction cooking technology Yes
PowerBoost Yes
SmartZone Yes

Power requirements
Amperage 39 or 45A
Power supply 208 or 240 V, 60 Hz

Safety
ADA compliant Yes
Individual hot surface indicators Yes
Keylock Yes
Pan detection system Yes
Safety time out Yes
Spillage auto off Yes
Surface hot indicators Yes

Warranty
Parts and labor 2 years

Zone ratings
Centre 1850⁄2600W (3000W/5500W)
Left front zone (PowerBoost set) 2100W (3700W)
Left rear zone (PowerBoost set) 2100W (3700W)
PowerBoost up to 5500W
Right front zone (PowerBoost set) 2100W (3700W)
Right rear zone (PowerBoost set) 2100W (3700W)

Zones
Number of elements 5

Dimensions & weight
Width 35 in.
Height 3 in.
Length 20 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 40 in.
Shipping Height 8 in.
Shipping Length 25 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 1.22 ft³
Dimensional Weight 15.11 lbs.
Total of Cubes 1.22 ft³
Total of Dimensional Weight 15.11 lbs.

Description

This Series 7 cooktop is a joy to use, with the instant response and energy efficiency of induction technology.


Product Features

  • Complementary Design
  • Enhanced Features
  • Instant Response
  • Safer Choice
  • Easy Cleaning
  • Superior Efficiency

Manuals & Guides

From The Manufacturer

Rebates

Fisher Paykel Rebate 2026 – Save Up to 15% Plus Extended Warranty

Fisher Paykel Rebate 2026 – Save Up to 15% Plus Extended Warranty

Available on qualifying appliances, by way of Prepaid Mastercard.
Valid: 01/01/2026 - 12/31/2026
Download Rebate formView all rebate products

Reviews
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Rebates
  • Reviews
$15,168.31 $24,715.99 Save $9,547.68 / 38% OFF

Product Details for Fisher Paykel OB30SPPTX1

Technical Details

Accessories (included)
Broil rack 1 set
Full extension sliding shelves 3 sets
Roasting pan 1
Smokeless broil tray 1
Wired temperature sensor 1

Capacity
Shelf positions 8
Total capacity 4.1cu ft
Usable capacity 3.6cu ft

Cleaning
Acid resistant graphite enamel Yes
Removable oven door Yes
Removable shelf runners Yes

Controls
Adjustable audio and display settings Yes
Automatic cooking/minute timer Yes
Automatic pre-set temperatures Yes
Celsius/Fahrenheit temperature Yes
Electronic clock Yes
Electronic oven control Yes
Food probe Yes
Guided cooking by food type and recipes Yes
Intuitive touchscreen display Yes
Multi-language display UK English, US English, Simplified Chinese, Français, Español
Sabbath mode with Star K certification Yes
Smart Appliance Yes

Functions
Aero Bake Yes
Aero Broil Yes
Air fry Yes
Bake Yes
Broil Yes
Classic bake Yes
Dehydrate Yes
Maxi Broil Yes
Number of functions 17
Pastry Bake Yes
Pizza bake Yes
Rapid proof Yes
Roast Yes
Self-clean Yes
Slow cook Yes
True Aero Yes
Vent bake Yes
Warm Yes

Performance
AeroTech™ technology Yes
Automatic rapid pre-heat Yes
Broil power 4400W
Broil width 20"
Number of passes on Maxi Broil 12
Number of passes on broil 10

Power requirements
Amperage 16.6 - 19.4A
Supply voltage 208 / 240V

Safety
ADA compliant Yes
Balanced oven door Yes
Catalytic venting system Yes
Control panel key lock Yes
CoolTouch door Yes
Non-tip shelves Yes

Dimensions & weight
Width 29 in.
Height 27 in.
Length 23 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 34 in.
Shipping Height 32 in.
Shipping Length 28 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 10.42 ft³
Dimensional Weight 129.56 lbs.
Total of Cubes 10.42 ft³
Total of Dimensional Weight 129.56 lbs.

Description

With professional styling, advanced cook functions and touchscreen, this large capacity oven is a highlight of our collection.


Product Features

  • Cook With Confidence
  • Generous Capacity
  • Multi-Function Flexibility
  • Exceptional Performance
  • Self-Cleaning
  • Design Freedom

Manuals & Guides

From The Manufacturer

Rebates

Fisher Paykel Rebate 2026 – Save Up to 15% Plus Extended Warranty

Fisher Paykel Rebate 2026 – Save Up to 15% Plus Extended Warranty

Available on qualifying appliances, by way of Prepaid Mastercard.
Valid: 01/01/2026 - 12/31/2026
Download Rebate formView all rebate products

Reviews
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
$15,168.31 $24,715.99 Save $9,547.68 / 38% OFF

Product Details for Fisher Paykel DD24SAX9N

Technical Details

Warranty
Parts 1 Year
Labor 1 Year
Parts and labor Limited 2 years

Accessories (included)
Cutlery basket Yes

Capacity and loading
Accommodates round plates up to 11"
Fixed height, foldable cupracks Yes
Fold down tines Yes
Place settings 7

Consumption
Energy rating Energy star
Energy usage 151kWh/year
In-use energy carbon emissions estimate Carbon Emissions Info 53.3kgCO2e/year
Water usage (per wash cycle) 1.81 gal

Controls
Electronic fault/Diagnostic indicator Yes
End of cycle beeps Yes
Energy saving delay start option of up to 12 hours Yes
Keylock Yes
Rinse aid indicator light Yes
Smart Appliance Yes

Features
Fan assisted drying Yes
Flood protection Yes
Flow through detergent dispenser Yes
Motor type BLDC
Quiet operation Yes
SmartDrive™ technology Yes

Performance
Noise emissions 43dBA

Power requirements
Amperage 5A
Electric circuit 3 wire
Rated current 15A
Supply frequency 60Hz
Supply voltage 100 - 120V

Safety and compliance
ADA compliant Yes

Wash programs
Delicate Yes
Eco Yes
Fast Yes
Heavy Yes
Medium Yes
Rinse Yes
Wash programs 6

Water connection
Water pressure 30kPa - 1000 kPa
Water supply 3⁄8" to suit Male Compression Fitting

Dimensions & weight
Width 23 in.
Height 16 in.
Length 22 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 28 in.
Shipping Height 21 in.
Shipping Length 27 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 4.69 ft³
Dimensional Weight 58.24 lbs.
Total of Cubes 4.69 ft³
Total of Dimensional Weight 58.24 lbs.

Description

A compact size to fit anywhere, room to wash a half load, and less bending.


Product Features

  • Ease of use
  • Flexible wash options
  • Complementary Design
  • Quiet performer

Manuals & Guides

From The Manufacturer

Reviews

Compare with similar products

This item

Recommendations

Previously viewed products
