Fisher & Paykel 4-Piece Package RF170WDLUX5N 32 Inch Freestanding Bottom Mount Refrigerator and OR30SDI6X1 30 Inch Freestanding Induction Range and DD24SDFTX9N 24 Inch Semi-Integrated Single DishDrawer and HC30PCX1 30 Inch Wall Mounted Pyramid Range Hood

$11,796.00 $18,251.99 Save $6,455.99 / 35% OFF

Out of stock

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Additional Services Available:

Freestanding Refrigerator Freezer, 32", 17.1 cu ft, Ice & Water

Fisher Paykel RF170WDLUX5N Freestanding Refrigerator Freezer, 32", 17.1 cu ft, Ice & Water Other

Contact us for Pricing
View Details

Add Installation Services

Extended Protection

?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $30.99
  • $51.99
  • $75.99
  • $139.99

Delivery services

?

Delivery Services:
We offer a range of delivery services to meet your needs. Please note that these services are not available in certain locations.

For more details, please visit our Delivery and Installation Services page.

  • $110.00
  • $49.99
30" Series 9 Contemporary 4 Zone Induction Range

Fisher Paykel OR30SDI6X1 30" Series 9 Contemporary 4 Zone Induction Range Stainless Steel

$5,799.00 $7,337.97 Save $1,538.97 / 20% OFF
View Details

Add Installation Services

Extended Protection

?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $123.99
  • $215.99
  • $334.99
  • $489.99

Delivery services

?

Delivery Services:
We offer a range of delivery services to meet your needs. Please note that these services are not available in certain locations.

For more details, please visit our Delivery and Installation Services page.

  • $350.00
  • $249.99

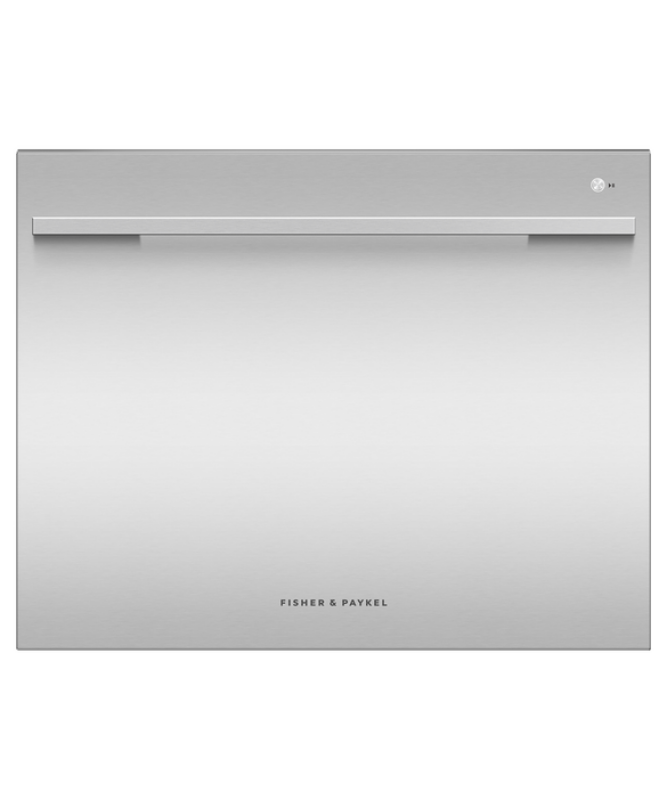

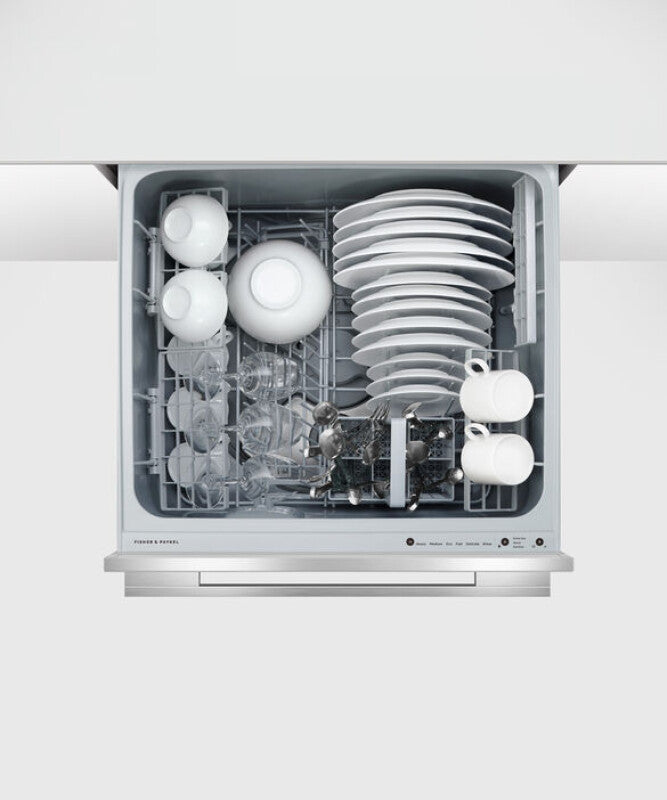

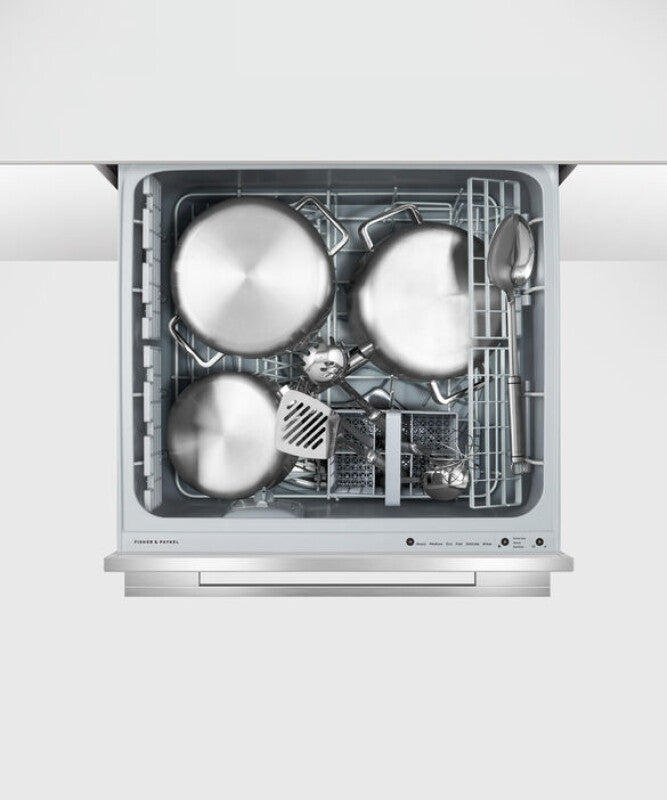

Series 9, Contemporary Tall Single DishDrawer™ Dishwasher

Fisher Paykel DD24SDFTX9N Series 9, Contemporary Tall Single DishDrawer™ Dishwasher Stainless Steel

$1,399.00 $1,559.97 Save $160.97 / 10% OFF
View Details

Add Installation Services

Extended Protection

?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $43.49
  • $75.99
  • $115.99
  • $163.99

Delivery services

?

Delivery Services:
We offer a range of delivery services to meet your needs. Please note that these services are not available in certain locations.

For more details, please visit our Delivery and Installation Services page.

  • $220.00
  • $29.95
  • $49.99

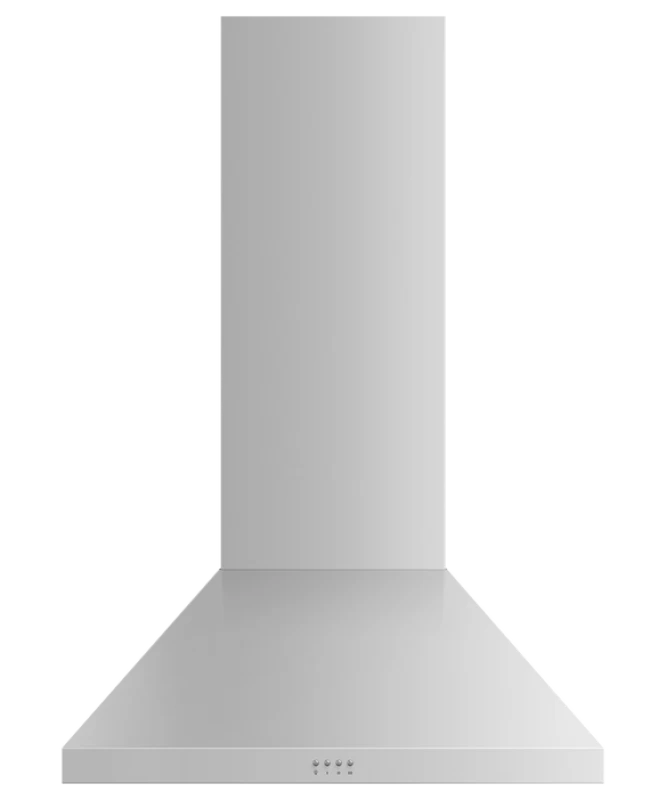

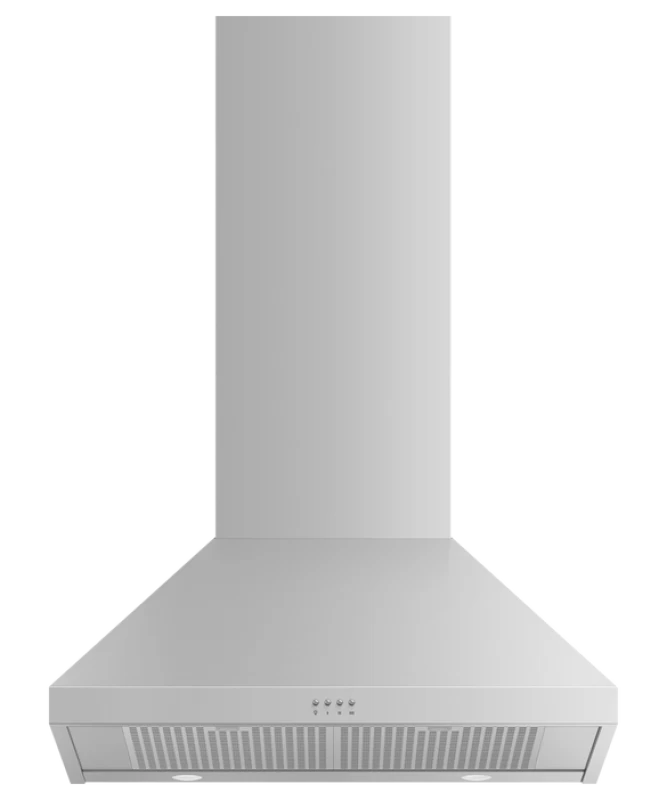

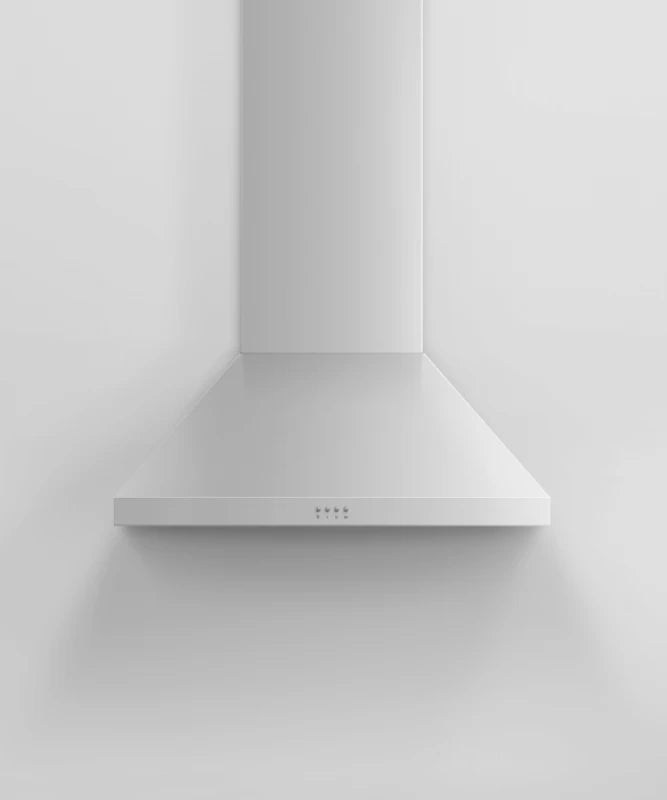

30" Series 7 Pyramid Chimney Wall Range Hood

Fisher Paykel HC30PCX1 30" Series 7 Pyramid Chimney Wall Range Hood Stainless Steel

$2,149.00 $3,296.97 Save $1,147.97 / 34% OFF
View Details

Add Installation Services

Extended Protection

?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $49.99
  • $83.99
  • $131.99
  • $195.99

Delivery services

?

Delivery Services:
We offer a range of delivery services to meet your needs. Please note that these services are not available in certain locations.

For more details, please visit our Delivery and Installation Services page.

  • $180.00
  • $49.99

What's included: 4 items

  • Freestanding Refrigerator Freezer, 32", 17.1 cu ft, Ice & Water

    Fisher Paykel RF170WDLUX5N Freestanding Refrigerator Freezer, 32", 17.1 cu ft, Ice & Water Other

    • SKU: RF170WDLUX5N UPC: 822843250677
    • Bottom Freezer Refrigerators
  • 30" Series 9 Contemporary 4 Zone Induction Range

    Fisher Paykel OR30SDI6X1 30" Series 9 Contemporary 4 Zone Induction Range Stainless Steel

    • SKU: OR30SDI6X1 UPC: 822843813223
    • Freestanding Ranges
  • Series 9, Contemporary Tall Single DishDrawer™ Dishwasher

    Fisher Paykel DD24SDFTX9N Series 9, Contemporary Tall Single DishDrawer™ Dishwasher Stainless Steel

    • SKU: DD24SDFTX9N UPC: 822843812233
    • Built-In Dishwashers
  • 30" Series 7 Pyramid Chimney Wall Range Hood

    Fisher Paykel HC30PCX1 30" Series 7 Pyramid Chimney Wall Range Hood Stainless Steel

    • SKU: HC30PCX1 UPC: 822843501564
    • Ducted Mount Hoods
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
$11,796.00 $18,251.99 Save $6,455.99 / 35% OFF

Product Details for FISHER & PAYKEL RF170WDLUX5N

Technical Details

Warranty
Parts 2 Year
Labor 2 Year
Parts and labor 2 years
Sealed system parts and labor additional 3 years

Capacity
Total gross capacity 17.1cu ft
Volume freezer 4.8cu ft
Volume refrigerator 12.3cu ft

Consumption
Energy rating Energy star
Energy usage 535kWh/year
In-use energy carbon emissions estimate Carbon Emissions Info 196.1kgCO2e/year

Features
Adjustable door shelves 14
Adjustable glass shelves 4
Covered door shelves 2
Door alarm Yes
Fruit and vegetable bins 2
LED lighting Yes
Smart Appliance Yes
SmartTouch control panel Yes
Stackable bottle holders 2
Ultra slim water dispenser Yes
Water Filter Model number 836848

Freezer features
Automatic ice maker Yes
Bottle chill Yes
Fast freeze Yes
Ice Boost Yes
Ice bin and scoop Yes
Large plastic bins Yes

Performance
ActiveSmart™ Foodcare Yes
Adaptive defrost Yes
Frost free freezer Yes
Humidity control system Yes
Sabbath mode Yes

Power requirements
Rated current 10A
Supply frequency 60Hz
Supply voltage 115V

Other
Minimum air clearance - at rear 1 3⁄16"

Dimensions & weight
Width 31 in.
Height 67 in.
Length 27 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 36 in.
Shipping Height 72 in.
Shipping Length 32 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 32.45 ft³
Dimensional Weight 403.45 lbs.
Total of Cubes 32.45 ft³
Total of Dimensional Weight 403.45 lbs.

Description

The brand Fisher & Paykel RF170WDLUX5N delivers modern refrigeration performance in a stylish, counter-depth 31¼" stainless steel footprint. With a generous 17.1 cu. ft. total capacity—including 12.3 cu. ft. fresh food and 4.8 cu. ft. freezer—it incorporates ActiveSmart™ Foodcare technology to intelligently maintain optimal temperature, airflow, and humidity. The unit features thoughtful storage with 14 adjustable door shelves, four secure glass shelves, humidity-controlled crisper bins, fruit & vegetable drawers, and stackable bottle holders. Equipped with an automatic ice maker, ultra-slim water dispenser, LED lighting, Sabbath mode, and frost-free freezer, it blends convenience and elegance for modern kitchens.



Product Features

  • ActiveSmart Foodcare
  • Easy Cleaning
  • Design Quality
  • WATER ON TAP
  • Ice Maker

Manuals & Guides

From The Manufacturer

Reviews
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Rebates
  • Reviews
$11,796.00 $18,251.99 Save $6,455.99 / 35% OFF

Product Details for FISHER & PAYKEL OR30SDI6X1

Technical Details

Warranty
Parts 2 Year
Labor 2 Year

Accessories (included)
2-pc grill system (Broil pan and Grill rack) Yes
Broil pan Yes
Full extension telescopic shelves 2 sets (part 578776)

Cleaning
Acid resistant graphite enamel Yes
Drop down broil element Yes
Drop down grill element Yes
Flat easy clean glass surface Yes
Pyrolytic proof shelf runners Yes
Pyrolytic self-clean Yes
Removable oven door Yes
Removable shelf runners Yes

Controls
Audio feedback Yes
Automatic cooking/minute timer Yes
Automatic pre-set temperatures Yes
Celsius/Fahrenheit temperature Yes
Electronic clock Yes
High resolution display Yes
Laser etched graphics Yes
Precise electronic temperature control Yes
Sabbath mode Yes
Toughened fused glass graphics Yes
Turned stainless steel clock buttons Yes
Turned stainless steel dials with illuminated halos Yes

Oven features
AeroTech™ technology Yes
Automatic rapid pre-heat Yes
Concealed element Yes
Electronic oven control Yes
Full extension telescopic sliding shelves Yes
Soft open/close door Yes
True convection Yes
Turned stainless steel clock dial Yes

Oven functions
Aero Bake Yes
Aero™ Pastry with Pizza mode Yes
Number of functions 9
Rapid proof Yes
Roast Yes
True convection Yes

Oven performance
Broil power 4050W
CoolTouch door Triple glazed
Warming drawer power 220W

Power requirements
Connection 4-prong [NEMA 14-50P power cord]
Power supply 120 / 240 V or 120 / 208 V, 60 Hz
Service 40 A

Rangetop features
Auto heat reduce Yes
Gentle heat Yes
Heat settings 9
Hob rear trim 3 1⁄8" (part 81656)
Induction cooking technology Yes

Rangetop performance
Number of cooking zones 4
PowerBoost Yes

Safety
ADA compliant Yes
Advanced cooling system Yes
Anti-tilt bracket Yes
Balanced oven door Yes
Catalytic venting system Yes
Child lock Yes
CoolTouch door Yes
Full extension telescopic sliding shelves Yes
Non-tip shelves Yes
Pan detection system Yes
Safety time out Yes
Spill containment 1⁄8 gallon
Spillage auto off Yes
Surface hot indicators Yes

Dimensions & weight
Width 29 in.
Height 35 in.
Length 25 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 34 in.
Shipping Height 40 in.
Shipping Length 30 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 14.68 ft³
Dimensional Weight 182.55 lbs.
Total of Cubes 14.68 ft³
Total of Dimensional Weight 182.55 lbs.

Description

You'll love the instant response induction cooktop with multi-function oven, perfect for making a roast, baking bread and more.


Product Features

  • Multi-Shelf Cooking
  • Quality And Durability
  • Power & Control
  • Easy To Clean
  • Even heat

Manuals & Guides

From The Manufacturer

Rebates

Fisher & Paykel Rebate 2026 – Save Up to 15% Plus Extended Warranty

Fisher & Paykel Rebate 2026 – Save Up to 15% Plus Extended Warranty

Available on qualifying appliances, by way of Prepaid Mastercard.
Valid: 01/01/2026 - 12/31/2026
Download Rebate formView all rebate products

Reviews
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Rebates
  • Reviews
$11,796.00 $18,251.99 Save $6,455.99 / 35% OFF

Product Details for FISHER & PAYKEL DD24SDFTX9N

Technical Details

Warranty
Parts 2 Year
Labor 2 Year
Parts and labor Limited 2 years

Accessories (included)
Cutlery basket Yes
Knife clip and multipurpose clip Yes

Capacity and loading
Accommodates round plates up to 12.25"
Adjustable height, foldable cupracks Yes
Fold down tines Yes
Pitch adjustable tines Yes
Place settings 7
Place settings per drawer 7

Consumption
Energy rating Energy star
Energy usage 144kWh/year
In-use energy carbon emissions estimate Carbon Emissions Info 50.8kgCO2e/year
Water usage (per wash cycle) 1.64 gal

Controls
Electronic fault/Diagnostic indicator Yes
End of cycle beeps Yes
Energy saving delay start option of up to 12 hours Yes
Internal wash selector Yes
Keylock Yes
Rinse aid indicator light Yes
Smart Appliance Yes

Features
Fan assisted drying Yes
Flood protection Yes
Flow through detergent dispenser Yes
Motor type BLDC
Quiet operation Yes
SmartDrive™ technology Yes

Performance
Noise emissions 42dBA

Power requirements
Amperage 5A
Electric circuit 3 wire
Rated current 15A
Supply frequency 60Hz
Supply voltage 100 - 120V

Safety and compliance
ADA compliant Yes

Wash program modifiers
Extra Dry Yes
Quick Yes
Sanitize Yes
Wash modifiers 3

Wash programs
Delicate Yes
Eco Yes
Fast Yes
Heavy Yes
Medium Yes
Rinse Yes
Wash programs 6

Water connection
Supplied hose to suit 3/8" (9mm) male compression fitting Yes
Water pressure 30kPa - 1000 kPa
Water supply 3⁄8" to suit Male Compression Fitting

Dimensions & weight
Width 23 in.
Height 18 in.
Length 22 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 28 in.
Shipping Height 23 in.
Shipping Length 27 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 5.27 ft³
Dimensional Weight 65.53 lbs.
Total of Cubes 5.27 ft³
Total of Dimensional Weight 65.53 lbs.

Description

With internal controls for a clean exterior aesthetic. The top drawer will fit your large dinner plates easily.


Product Features

  • Ease Of Use
  • Complementary design
  • Quick, Sanitize and Extra Dry options
  • Quiet Performer

Manuals & Guides

From The Manufacturer

Rebates

Fisher & Paykel Rebate 2026 – Save Up to 15% Plus Extended Warranty

Fisher & Paykel Rebate 2026 – Save Up to 15% Plus Extended Warranty

Available on qualifying appliances, by way of Prepaid Mastercard.
Valid: 01/01/2026 - 12/31/2026
Download Rebate formView all rebate products

Reviews
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Rebates
  • Reviews
$11,796.00 $18,251.99 Save $6,455.99 / 35% OFF

Product Details for FISHER & PAYKEL HC30PCX1

Technical Details

Accessories (included)
Aluminium filter 792558

Fan ratings
Maximum air movement 600CFM
Maximum speed sound rating 11.5sones
Speed 1 sound rating 1.5sones

Installation and cleaning
Air outlet size 8""
Ducted Vertical only
Stainless steel filter cover Yes
Two piece height adjustable flue Yes

Performance
Extraction type Surface
Fan speeds 3
Filter type Mesh
Number of filters 2

Power requirements
Lighting power 8W
Supply frequency 60Hz
Supply voltage 120V

Ventilation features
Light type LED

Warranty
Parts and labor 2 years

Dimensions & weight
Width 29 in.
Height 38 in.
Length 19 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 34 in.
Shipping Height 43 in.
Shipping Length 24 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 12.12 ft³
Dimensional Weight 150.63 lbs.
Total of Cubes 12.12 ft³
Total of Dimensional Weight 150.63 lbs.

Description

Pairing well with the stainless steel Classic Range, this wall chimney range hood extracts steam, grease and cooking odors effectively.


Product Features

  • With three fan speeds, select the perfect extraction rate for your cooking
  • Dishwasher-safe filters that are easy to remove and clean
  • Powerful 600 CFM maximum airflow with edge-to-edge extraction
  • Energy-efficient LED lighting to illuminate your cooktop

Manuals & Guides

From The Manufacturer

Rebates

Fisher & Paykel Rebate 2026 – Save Up to 15% Plus Extended Warranty

Fisher & Paykel Rebate 2026 – Save Up to 15% Plus Extended Warranty

Available on qualifying appliances, by way of Prepaid Mastercard.
Valid: 01/01/2026 - 12/31/2026
Download Rebate formView all rebate products

Reviews

Compare with similar products

This item

Recommendations

Previously viewed products
