Name: Fisher & Paykel 2-Piece Package OR30SDG4X1 & Paykel 30 Inch Freestanding Gas Range and DD24DDFTX9N & Paykel 24 Inch Fully-Integrated Double DishDrawer
Brand: FISHER & PAYKEL
SKU: Fisher&Paykel-OR30SDG4X1-DD24DDFTX9N
Price: 7398.00 USD
Availability: InStock

What's included: 2 items

Fisher Paykel OR30SDG4X1 30" Series 7 Contemporary 4 Burner Gas Range, Natural Gas Stainless Steel
- SKU SKU: OR30SDG4X1 UPC: 822843817115
- Type Freestanding Ranges

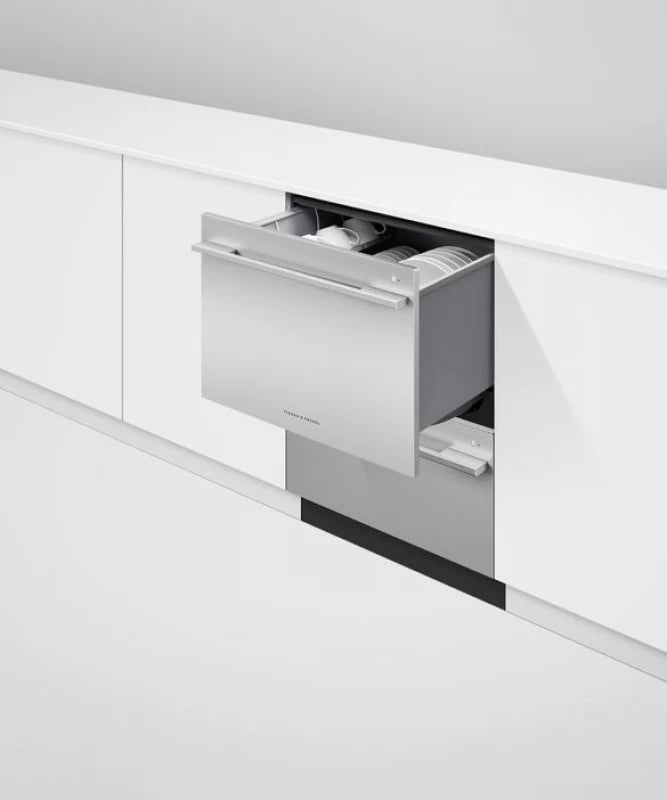

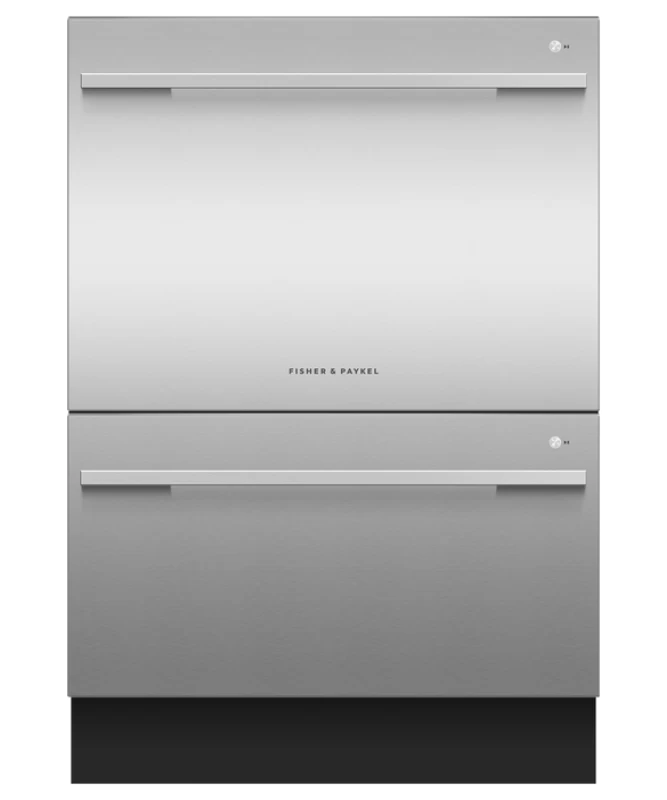

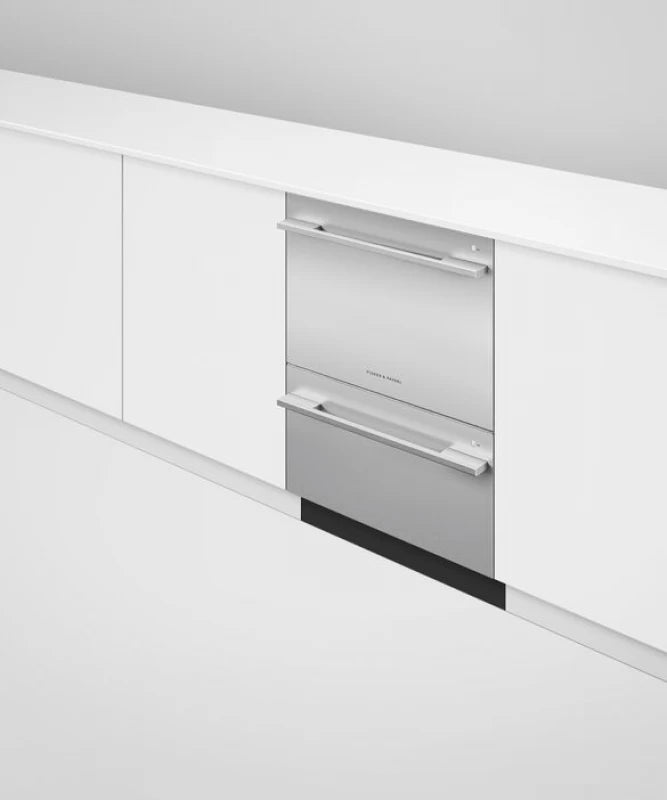

Fisher Paykel DD24DDFTX9N Series 9, Contemporary Tall Double DishDrawer™ Dishwasher Stainless Steel
- SKU SKU: DD24DDFTX9N UPC: 822843812226
- Type Built-In Dishwashers

Product Details
Manuals & Guides
From The Manufacturer
Rebates
Reviews

$7,398.00 ~~$10,940.99~~ Save $3,542.99 / 32% OFF

Product Details for FISHER & PAYKEL OR30SDG4X1

Technical Details

Warranty

Parts	2 Year
Labor	2 Year
Parts and labor	2 years

Accessories (included)

2-pc grill system (Broil pan and Grill rack)	Yes
Broil pan	Yes
Broil rack	Yes
Chromed shelf runners	1 set
Full extension telescopic shelves	2 sets (part 578776)
Small pot support	1 (part 533981 cast)

Burner ratings

Dual wok burner inner/outer (LPG)	1000 - 18000BTU
Dual wok burner inner/outer (natural gas)	1000 - 18000BTU
Maximum burner power	18000 BTU
Semi-rapid burner (LPG)	1500 - 7600BTU
Semi-rapid burner (natural gas)	1500 - 8000BTU
Total cooktop power	52000 BTU

Capacity

Shelf positions	7
Total capacity	3.5cu ft
Usable capacity	2.7cu ft

Cleaning

Acid resistant graphite enamel	Yes
Dishwasher proof grates	Yes
Removable oven door	Yes
Removable shelf runners	Yes

Controls

Laser etched graphics

Yes

Gas requirements

Supply Pressure (LPG)	11" W.C.P
Supply Pressure (natural gas)	4" W.C.P

Oven features

Auto re-ignition system	Yes
Concealed element	Yes
Convection	Yes
Electronic ignition	Yes
Full extension telescopic sliding shelves	Yes
Soft open/close door	Yes
Storage drawer	Yes

Oven functions

Bake	Yes
Convection bake	Yes
Maxi Broil	Yes
Number of functions	3

Oven performance

Bake power	14000 BTU
Broil	11000 BTU
CoolTouch door	Triple glazed

Power requirements

Connection	3-prong grounding type [NEMA 5-15P plug]
Power supply	120 V, 60 Hz
Service	15 A

Rangetop features

Hob rail	Yes
LPG/Natural gas compatible	Yes
Sealed range top	Yes

Safety

ADA compliant	Yes
Advanced cooling system	Yes
Anti-tilt bracket	Yes
Balanced oven door	Yes
CoolTouch door	Yes
Full extension telescopic sliding shelves	Yes
Non-tip shelves	Yes
Spill containment	1⁄2 gallon

Dimensions & weight

Width	29 in.
Height	35 in.
Length	25 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34 in.
Shipping Height	40 in.
Shipping Length	30 in.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	14.68 ft³
Dimensional Weight	182.55 lbs.
Total of Cubes	14.68 ft³
Total of Dimensional Weight	182.55 lbs.

Description

Add contemporary style to your kitchen, and enjoy the instant response and precision of a gas-fueled oven and cooktop.

Product Features

Design Quality
Large Capacity Oven
Performance Power
Easy Cleaning

Manuals & Guides

Rebates

Reviews

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$7,398.00 ~~$10,940.99~~ Save $3,542.99 / 32% OFF

Product Details for FISHER & PAYKEL DD24DDFTX9N

Technical Details

Warranty

Parts	2 Year
Labor	2 Year
Parts and labor	Limited 2 years

Accessories (included)

Cutlery basket	Yes
Kickstrip	Yes
Knife clip and multipurpose clip	Yes

Capacity and loading

Accommodates round plates up to	12.25" (top) 11" (bottom)
Adjustable height, foldable cupracks	Yes
Fold down tines	Yes
Pitch adjustable tines	Yes
Place settings	14
Place settings per drawer	7

Consumption

Energy usage	263kWh/year
In-use energy carbon emissions estimate Carbon Emissions Info	92.8kgCO2e/year
Water usage (per wash cycle)	3.28 gal running both tubs

Controls

Electronic fault/Diagnostic indicator	Yes
End of cycle beeps	Yes
Energy saving delay start option of up to 12 hours	Yes
Internal wash selector	Yes
Keylock	Yes
Rinse aid indicator light	Yes
Smart Appliance	Yes

Features

Fan assisted drying	Yes
Flood protection	Yes
Flow through detergent dispenser	Yes
Quiet operation	Yes
SmartDrive™ technology	Yes

Performance

Noise on standard cycle top drawer

42dBA

Power requirements

Amperage	10A
Electric circuit	3 wire
Rated current	15A
Supply frequency	60Hz
Supply voltage	100 - 120V

Wash program modifiers

Extra Dry	Yes
Quick	Yes
Sanitize	Yes
Wash modifiers	3

Wash programs

Delicate	Yes
Eco	Yes
Fast	Yes
Heavy	Yes
Medium	Yes
Rinse	Yes
Wash programs	6

Water connection

Inlet water temperature	Max 140°F
Supplied hose to suit 3/8" (9mm) male compression fitting	Yes
Water pressure	30kPa - 1000 kPa
Water supply	3⁄8" to suit Male Compression Fitting

Dimensions & weight

Width	23 in.
Height	34 in.
Length	22 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	28 in.
Shipping Height	39 in.
Shipping Length	27 in.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	9.96 ft³
Dimensional Weight	123.77 lbs.
Total of Cubes	9.96 ft³
Total of Dimensional Weight	123.77 lbs.

Description

Doing the dishes got easier. Load one drawer while the other washes – with the top drawer fitting your large dinner plates easily.

Product Features

Ease Of Use
Independent Wash
True half load
Complementary design
Quick, Sanitize and Extra Dry options
Quiet performer
