FABER MUDAMPER10 10"Make Up Air Kits

SKU: MUDAMPER10

    FABER MUDAMPER10 10"Make Up Air Kits
    FABER MUDAMPER10 10"Make Up Air Kits

    Key Specs

    • Type: Ducted mount hoods
    • Width: 0.0 Inch
    • Depth: 0.0 Inch
    • Height: 0.0 Inch

    More details

      $535.00

      Check Delivery Options

      More on the way

      Extended Protection

      ?

      Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

      Enjoy added peace of mind long after the original warranty expires.

      This Protection Plan includes:

      • Full parts and labor coverage during the whole period of the extension plan.
      • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
      • Food loss protection
      • 24/7 toll-free number for support

      Click here for full details.

      • $115.99
      • $163.99
      • Product Information
      • Technical Details
      • Manuals & Guides
      • Features
      • Reviews
      • General
      • Model: MUDAMPER10
      • Brand: Faber
      • Height: 0.0
      • Width: 0.0
      • Length: 0.0
      • Advanced Features
      • Wi-Fi Connectivity: No
      • Smart Features: No

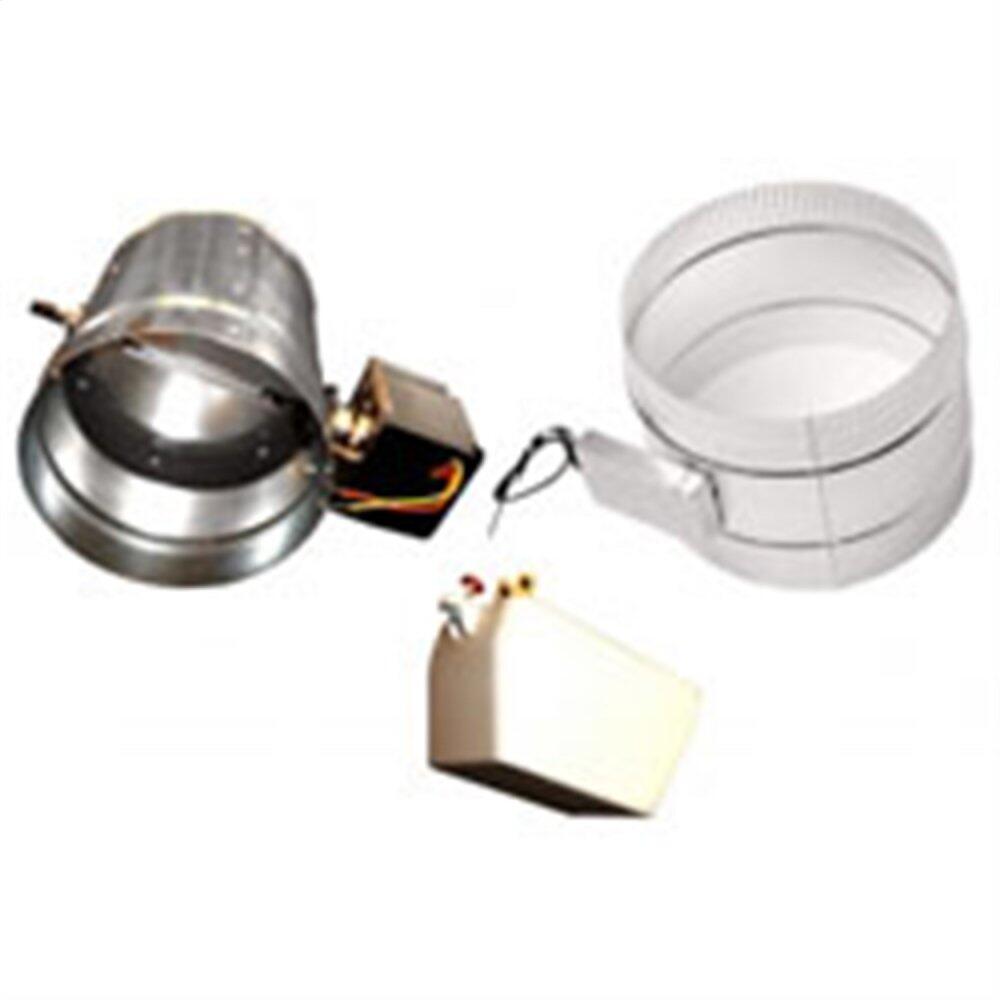

      The Faber MUDAMPER10 10-In. Make-Up Air Damper brings fresh air back into the home and improves hood performance. With higher cfm hoods more air is exhausted in tighter homes with less air coming back in. To "make up" for lost air, the Universal Make up Air kit brings fresh outside air into the home through a separate fresh air duct. The automatic damper opens inside the duct to bring in air when the hood is operating above 400 cfm and closes tightly when the hood is off. The kit includes 10-In. switch assembly, 10-In. automatic return air damper, and 24-Volt plug in transformer. The air switch assembly attaches on top of the hood in the ductwork and via low voltage wire "talks" to the make-up air damper. The air switch at the hood duct exit, activated by air flow, opens the damper outside to let in fresh air. The air switch then lowers when hood is off & tightly closes the outside damper. It opens when the hood is on, and closes when the hood is off.

      General Information
      Product Model MUDAMPER10
      Product Name Make-Up Air Damper
      Product Type Range Hood Damper
      Physical Characteristics
      Color Galvanized
      Miscellaneous
      Application/Usage Vent Hood
      Item Details
      Part Number MUDAMPER10
      Category Hoods/Ventilation
      UPS Shippable Y
      Shipping Weight 10
      UPC Code 8015139911365
      Product Dimensions English AIR FLOW SWITCH ASSEMBLY (Located inside Range Hood Ducting): 6 In. (h) x 10 In. (diameter)
      AUTOMATIC MAKEUP AIR DAMPER (Located inside Fresh Air Ducting): 8 In. (h) x 10 In. (diameter)
      • Faber MUDAMPER10 10-In. Make-Up Air Damper
      • Can be combined with most other hvac components and is a universal makeup air solution
      • Attaches on top of the hood in the ductwork and via low voltage wire "talks" to the make-up air damper
      • 24 Vac, 60 hz ac motor on damper
      • Fresh air damper opens automatically when hood is operating, closes shut when fan is turned off
      • Switch assembly attaches directly above the hood inside ducting
      • Can be installed in all ducting configurations (vertical, horizontal, down or after elbows)
      • Switch assembly fits inside all faber chimneys, compatible with all models over 300 cfm
      • Simple installation: no drilling, calibrations or measuring required
      • Designed and engineered to withstand heavy cooking contaminants (grease, steam, smoke and steam)
