Product Details for FABER INSD29SSV
Technical Details
Dimensions
| Cabinet Cutout Width | 27 5/8" |
| Cabinet Cutout Depth | 13 5/16" |
Ducting
| Ducting Type | Ducted/ Recirculating with FILTER1/FILTER1LL2 |
| Ducting Direction | Vertical, Horizontal |
| Duct Size | 6" Round |
Lighting
| Lighting Type | Energy-Efficient LED |
| Number of Light Bulbs | Two - 5 Watt - 1 level |
Grease filters
| Filter Type | Pro Stainless Steel Baffle |
| Grease Filter Dishwasher Safe | Yes |
Motor
| Number of Fan Speeds | 4 |
| Motor Class | PRO 295,395,600 Metal Impellers |
| VAM | Ability to set to 295, 395, 600 CFM |
Display
| Controls | Electronic with White LED |
| Intensive Speed (Minutes) | 10 |
| Delay Shut-off (Minutes) | 15 |
Features
- Delayed Auto-Off - Automatically turns the fan off after a set time (varies by the hood).
- LED LIGHT
More durable, brighter and energy-efficient, cool to touch LED Lights offer exceptional performance compared to standard bulbs. - Direct Vent - Top or direct rear venting (horizontal) to eliminate the need for extra ducting.
- VARI-DUCT
For increased installation options and better energy efficiency, Vari-Duct allows air to be vented via the top or back of a hood. - REMOTE CONTROL
The ADA compliant wireless remote conveniently controls all the hood's features. - Easy Snap - Spring loaded installation clips to to make installation easier.
- Led Light - Energy efficient and cool to the touch LED lighting.
- INTENSIVE SPEED
Designed to deal with even the strongest cooking aromas, the Intensive Speed function activates maximum extraction power for 10 minutes. - Pro - Metal impellers and metal housing around the motor.
- DELAY
Automatic shutdown delay: postpones the motor shutdown to eliminate residual odors completely. - Remote Control (Optional) - Operate hood functions with an optional ADA compliant wireless remote.
- VAM
VAM (Variable Air Management System) features enable you to permanently set extraction speeds in line with local building codes. - Intensive Speed - Turns on at the highest speed for 10 minutes.
- PRO MOTOR
Helping increase airflow through the hood, our Pro Motor delivers more powerful extraction to take care of even the strongest cooking odors. - EASY SNAP
The exclusive Easy Snap clip system is designed for an effortless installation of cabinet mounted hoods. - Variable Air Management
- Easy Snap Clip installation
- 15-minute delay shut-off
Description

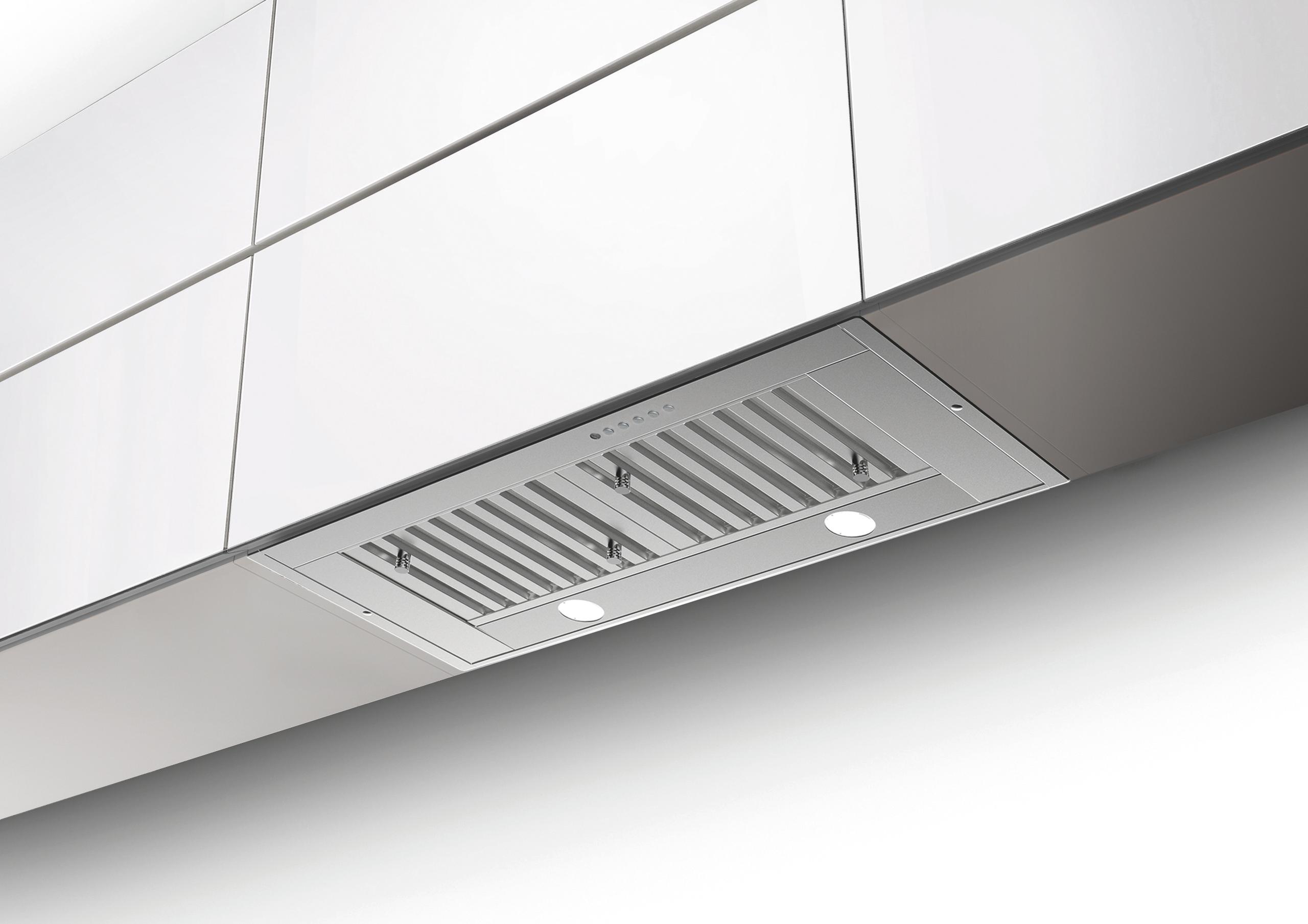

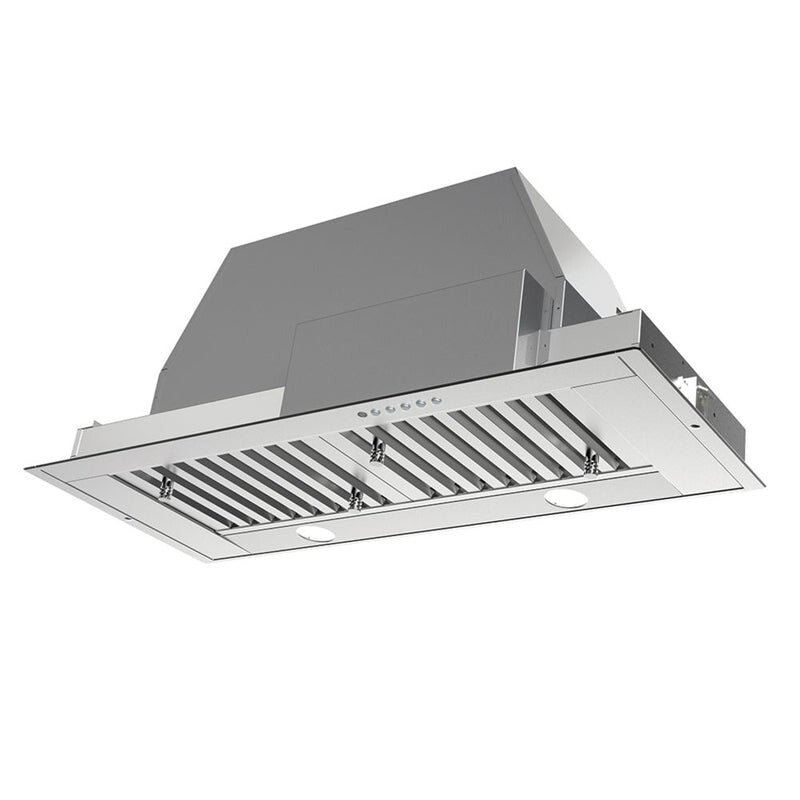

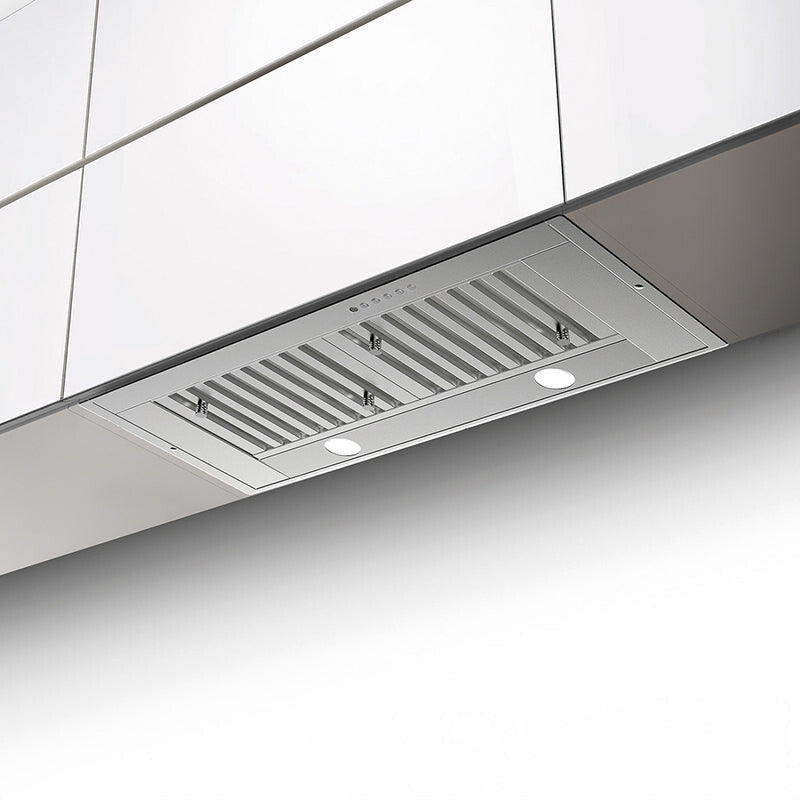

This timeless discreet insert hood is made of stainless steel with two modern LED lights to sufficiently light up the cooking surface below. The Inca SD features intensive speed and a powerful pro-motor with restaurant-style baffle filters that eliminate any cooking aroma. With the Easy Snap clip system, this insert hood installs effortlessly.
600, 395, 295 CFM PRO motor , all metal housing and impellers
4 speed electronic push control with Variable Air Management technology
LED lights
Optional ADA compliant Remote Control
Vari-duct top or back venting options
Restaurant Baffle style grease filters
Convertible to recirculating
Manuals & Guides
Key Features
Delayed Auto-Off - Automatically turns the fan off after a set time (varies by the hood).
LED LIGHT
More durable, brighter and energy-efficient, cool to touch LED Lights offer exceptional performance compared to standard bulbs.
