Sale price $3,999.00 Regular price $5,098.97 Save $1,099.97 / 21% OFF

Product Details for Electrolux ECWM3012AS

Technical Details

Product details

productLine Microwave Combination Wall Oven
powerType Electric 240v
size 30"
installationType Built-In
factory Springfield
color Stainless Steel
Sabbath Mode Yes

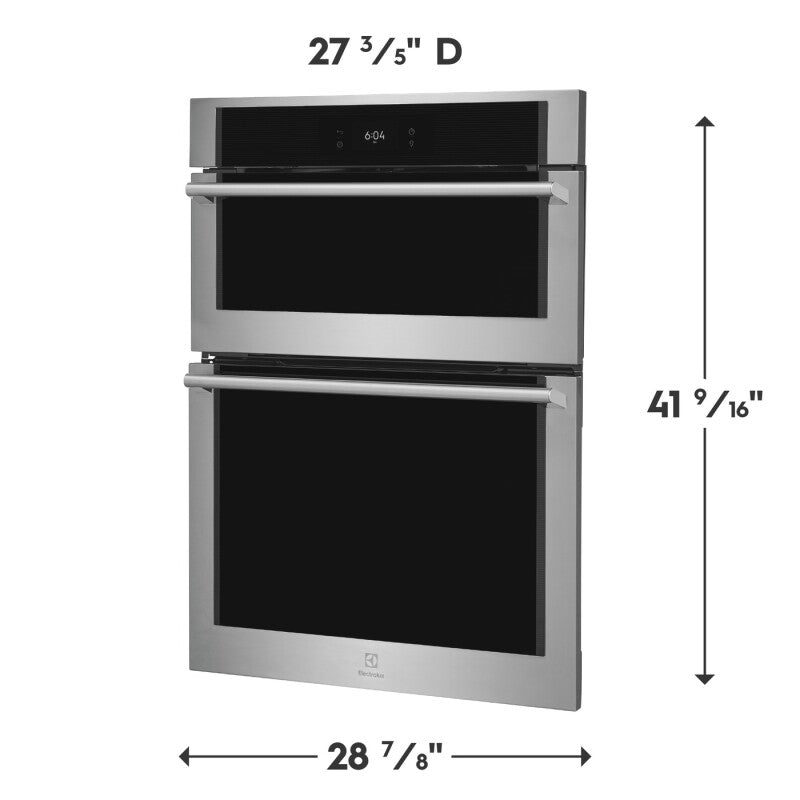

Height 41 9/16"
Width 28 7/8"
Depth 27 3/5"
Depth 25 3/16"
Depth With Door 90° Open 47 3/16"
Minimum Cutout Height 40 5/8"
Minimum Cutout Width 28 1/2"
Maximum Cutout Height 41 1/2"
Maximum Cutout Width 29"
Control Lock Yes
Air Fry Yes
Air Sous Vide Yes
Bake Yes
Bake Time Yes
Bread Proof Yes
Broil Yes
Cancel Yes
Child Lock Yes
Clear Off Yes
Clock Yes
Convection Bake Yes
Convection Roast Yes
Cook Time Yes
Dehydrate Yes
Delay Clean Yes
Delay Start Yes
Fast Preheat Yes
Keep Warm Yes
Kitchen Timer Yes
Light Yes
My Favorite Yes
Off Yes
Oven Light Yes
Perfect Turkey Yes
Preheat Yes
Probe Yes
Self Clean Yes
Set Clock Yes
Slow Cook Yes
Start Yes
Start Time Yes
Steam Bake Yes
Steam Clean Yes
Steam Roast Yes
Stop Yes
Temperature Display Yes
Timed Bake Yes
Timer On / Off Yes
User Preferences Yes
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature Yes
Delayed Bake Yes
Program Fahrenheit or Celsius Yes
Silent Control Panel Yes
Timed Cooking Yes
ADA Compliant No
CSA Listed Yes
RoHS Yes
Star-K Certification Yes
UL Listed Yes
Standard Width 30"
Depth With Handle 27 3/5"
Cutout Depth 23 5/8"
Oven Interior Height 18 1/8"
Oven Interior Width 25 3/16"
Oven Interior Depth 19 7/8"
Microwave Interior Height 9 5/16"
Microwave Interior Width 18 7/8"
Microwave Interior Depth 16 1/8"
Microwave Capacity 1.7 Cu. Ft.
Oven Capacity 5.3 Cu. Ft.
Amps @ 240 Volts 40 Amps
Connected Load @ 240V 8.3 kW
Minimum Circuit Required 40 Amps
Voltage Rating 240 V
Product Weight 245 lbs
Prop 65 Label Yes
Warranty - Labor 1 Year
Warranty - Parts 1 Year
AB-1200 Information available at electrolux.com/en/ab1200
Power Supply Connection Location Top Left
Rack Yes
Turntable Diameter 14"
Turntable Material Glass
Microwave Cooking Power 1000 Watts
Bacon Yes
Beverage Yes
Defrost Yes
Melt / Soften Yes
Popcorn Yes
Reheat Yes
Rice Yes
Top Grill Mode Yes
Veggies Yes
Bake Element 2500 Watts
Bake Element Pass 8
Bake Element Type Hidden
Broil Element 4000 Watts
Broil Element Pass 6
Broil System Yes
Cleaning System Yes
Convection Yes
Convection Element 3800 Watts
Convection Type Total
Number of Convection Fans 1
Number of Rack Positions 6
Oven Interior Color Midnight Black
Oven Light Quantity 2
Oven Light Type Halogen
Oven Light Watts 40 Watts
Rack Position Type Embossed
Rack Type 1 Handle Bull Nose
Rack Type 1 Quantity 1
Rack Type 2 Glide
Rack Type 2 Quantity 1
Rack Type 3 Air Fry Tray
Rack Type 3 Quantity 1
+ 30 Seconds Yes - One Touch
Display Interface Color White
Display Light Color White
Display Type Capacitive Touch
Convection Cooking - Bake Yes
Convection Element 1650 Watts
Wi-Fi Enabled Yes
Line of Business Food Preparation
Product Type Wall Oven

Dimensions & weight

Width 28.88 in.
Height 41.56 in.
Length 25.19 in.
Weight 245 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 33.88 in.
Shipping Height 46.56 in.
Shipping Length 30.19 in.
Shipping Weight 285 lbs.
Total of Shipping Weight 285 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 17.49 ft³
Dimensional Weight 217.47 lbs.
Total of Cubes 17.49 ft³
Total of Dimensional Weight 217.47 lbs.

Description

The Electrolux Connected Wall Oven and Microwave are designed to inspire culinary creativity. Packed with advanced technologies like Air Sous Vide, Steam cooking modes, Built-In Air Fry, and Advanced Convection, the wall oven also features Electrolux Connect Technology which allows for seamless operation from the mobile app.


Product Features

  • No Preheat
    Get your culinary delights on the table faster with No Preheat
  • Temperature Probe
    All your proteins cook to perfection with the Temperature Probe that prevents under- or over-cooking
  • 30-Minute Steam Clean
    Keep your oven looking its best with the 30-minute Steam Clean cycle that's chemical- and odor-free
  • Bread Proof
    Raise airy breads and balanced pizza dough with the gentle heat of the Bread Proof function
  • Dehydrate
    Create healthy snacks with intense flavor by preserving fruits, lean meats and herbs with the Dehydrate function
  • Turkey Option
    Precisely times your convection roast for turkey that is perfectly done -- crispy on the outside and juicy on the inside

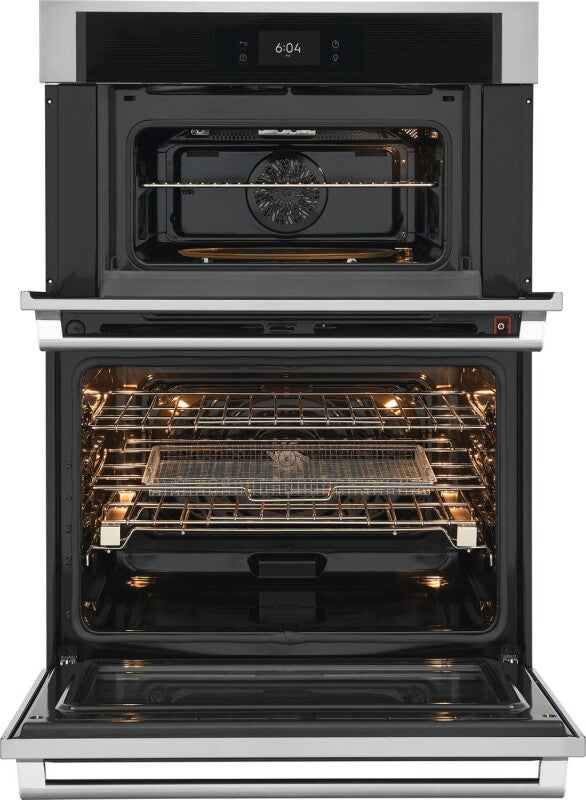

  • Included Air Fry Tray
    Get perfectly crisp tempura shrimp, samosas and more with ideal air fry results from the included air fry tray

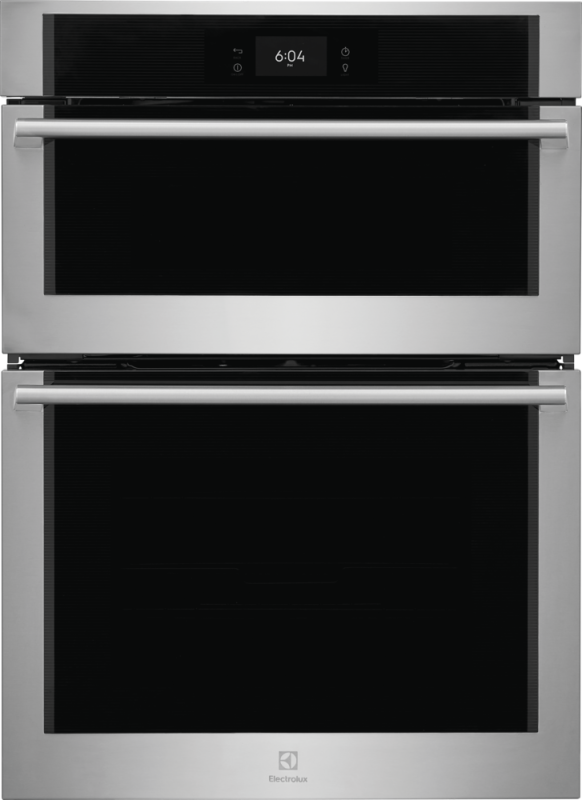

  • Sleek Design
    The sleek design of this microwave/wall oven combination with full color touch controls, stainless steel handles with gunmetal chrome standoffs and Electrolux signature pinstripe design looks beautiful in any kitchen
  • Microwave Convection Cooking
    Bake and brown your favorite foods with Convection Cooking in the microwave, the convenience of a microwave and the performance of an oven
  • Microwave Keep Warm Mode
    Making delicious meals is more effortless with Keep Warm mode which allows you to keep food warm while you finish the rest of the meal
  • Steam Bake & Steam Roast
    Enhance natural flavors - from meats to pastries and more - by creating a crisp, golden crust and a juicy, flavorful inside with the power of steam
  • Electrolux Connect Technology
    Cooking is more effortless with Electrolux Connect Technology, which allows you to set, preheat and monitor cook time remotely. When cook time ends, get alerts and even switch to “keep warm” mode to ensure dishes are all ready at the same time
  • Air Sous Vide Technology
    Preserve natural flavors & lock in moisture with our Air Sous Vide technology that uses precisely-controlled heat and airflow to give you sous vide results without the water bath
  • Luxury-Glide® Oven Racks
    Oven racks are so smooth they extend effortlessly
  • Luxury-Design® Lighting
    Get full visibility into the oven’s interior with our ramp-up halogen Luxury-Design® Lighting
  • Platinum Star® Limited Warranty
    Our exclusive warranty offers peace of mind for registered owners with two years of coverage on replacement parts.
  • Smoke Shield
    Select the Smoke Shield feature to reduce smoke and odors during high-temperature cooking modes like Air Fry, Convection Roast, Steam Bake and Steam Roast.

Key Features

Advanced Convection

Even your most challenging recipes turn out delicious with the precisely-controlled heat and air circulation of Advanced Convection

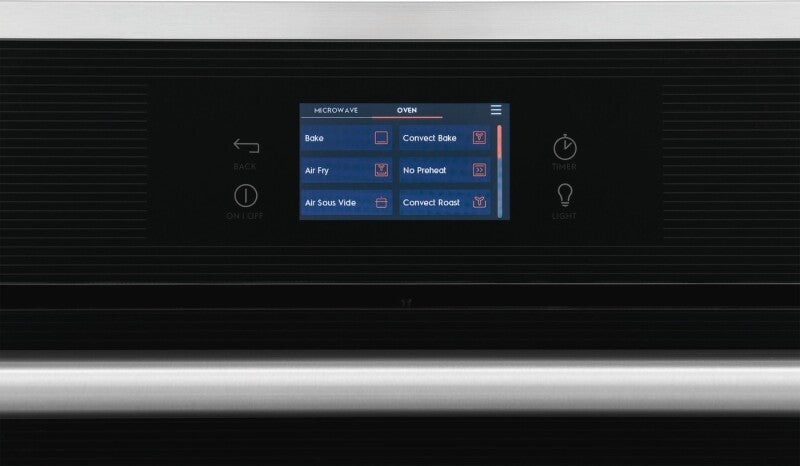

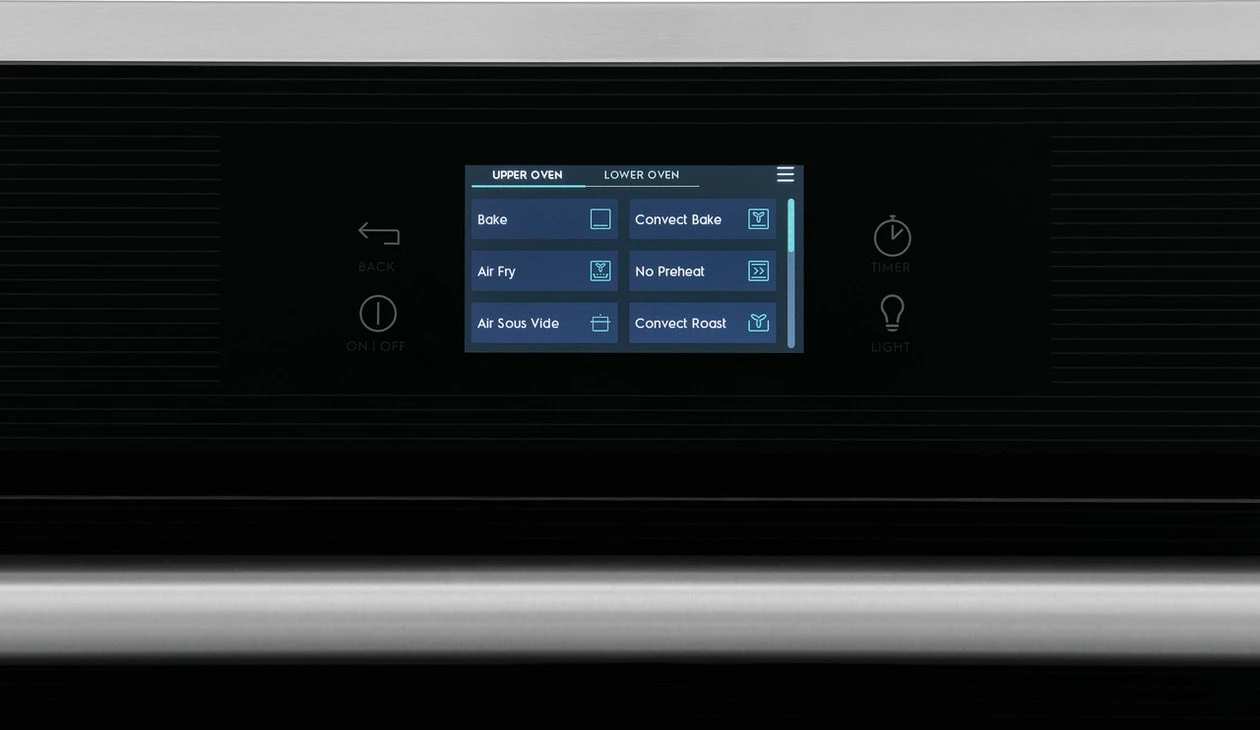

Full-Color Touch Controls

Operate your oven with ease with our intuitive Full-Color Touch Controls

Built-In Air Fry

Create crispy vegetable chips, juicy chicken parmesan and more with just a little oil with Built-In Air Fry
