Sale price $3,869.10 Regular price $4,298.97 Save $429.87 / 9% OFF

Product Details for Cafe CTS90DP3ND1

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 26.75 in
Overall Height 28.625 in
Oven Interior Dimensions (W x H x D) (in.) 25 x 17-3/8 x 20 1/4
Cabinet Width 30 in
Net Weight 161 lb
Overall Width 29.75 in
Cutout Dimensions (w x h x d) (in.) 28-5/8 x 27-5/16 x 23-1/2
Approximate Shipping Weight 177 lb
Cutout Depth (in) 23.5
Depth with Door Open 48.75 in
Cutout Height (in) 27.3125
Cutout Width (in) 28.625

Features

Oven Cooking Modes Turkey Mode
WiFi Connect Built-In
Fuel Type Electric
Product Type Single Oven
Oven Interior Hidden Bake
Cooking Technology Convection
Oven Features Closed Door Broiling
Cleaning Time Variable with Delay Clean Option
Configuration Single Oven
Oven Rack Positions (Single or Upper/Lower) 6
Oven Control Features Warm Mode
Sabbath Mode Yes
Oven Rack Features Embossed Rack Positions
Self-Clean Oven Door Lock Automatic
Cooking System True European Convection with Direct Air
Control Type 7" Full-Color Touch LCD Screen
Connected Capabilities The Google Assistant
OU Certified No
Oven Cleaning Type Self-Clean with Steam Clean Option
Oven Interior Black Gloss Finish
Oven Features 10-Pass Dual Broil Element
Connected Capabilities Fresco
Oven Cooking Modes Convection Bake Multi-Rack
Oven Control Features Audible Preheat Signal
Connected Capabilities Amazon Alexa
Connected Capabilities IFTTT
Connected Capabilities Innit
Connected Capabilities Sonos
Oven Control Features 12-Hour Shut-Off Capability
Oven Control Features Auto Recipe Conversion
Oven Control Features C° or F° Programmable
Oven Control Features Sabbath Mode
Oven Control Features Control Lock Capability
Oven Control Features Cook Time
Oven Control Features Dehydration
Oven Control Features Delay Time
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Mis-Wire Detection
Oven Control Features Oven Camera
Oven Control Features Proof Mode
Oven Control Features Remote Enabled
Oven Control Features Scan-to-cook
Oven Control Features Temperature Probe
Oven Cooking Modes Convection Bake
Oven Cooking Modes Convection Broil Hi/Lo
Oven Cooking Modes Convection Roast
Oven Cooking Modes Precision Cooking Modes
Oven Cooking Modes Thermal Bake
Oven Cooking Modes Thermal Broil Hi/Lo
Oven Cooking Modes No Preheat Air Fry
Oven Features 10-Pass Bake Element
Oven Interior 2 Halogen Interior Oven Lights
Oven Rack Features 2 Heavy-Duty Roller Racks
Connected Capabilities Google Home

Power / ratings

Bake Wattage 2850W
Convection Wattage 2400W
Electrical Requirements 208/240V ; 60Hz ; 20A
KW Rating at 240V 4.2
Amp Rating at 208V 20
Broiler Wattage 4300W
Amp Rating at 240V 20
KW Rating at 208V 3.2
Hertz 60

Appearance

Oven Door Features Soft-Close Hinges
Handle Color Brushed Stainless
Color Appearance Matte Black
Installation Undercounter
Handle Customizable
Installation Side-by-Side
Handle Design CAFÉ™ Stainless
Handle CAFÉ™ Pro Style
Installation Above Warming Drawer
Installation Under Cooktop
Installation Under Built-In Advantium
Installation Under Built-In Microwave
Oven Door Features Big View Oven Window

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Accessories UXWORXR30 - 30" Never Scrub Roller Rack
Optional Kits CXWS0H0PMSS Brushed Stainless
Optional Kits CXWS0H0PMBZ Brushed Bronze
Optional Kits CXWS0H0PMBT Brushed Black
Optional Kits CXWS0H0PMCU Brushed Copper
Optional Kits CXWS0H0PMCG Brushed Brass
Optional Kits CXWS0H0PMFB Flat Black

Dimensions & weight

Width 29.75 in.
Height 28.63 in.
Length 26.75 in.
Weight 161 lbs.
Oven Interior Dimensions (W x H x D) (in.) 25 x 17-3/8 x 20 1/4
Cutout Dimensions (w x h x d) (in.) 28-5/8 x 27-5/16 x 23-1/2

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 33.63 in.
Shipping Length 31.75 in.
Shipping Weight 177 lbs.
Total of Shipping Weight 177 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 13.18 ft³
Dimensional Weight 163.89 lbs.
Total of Cubes 13.18 ft³
Total of Dimensional Weight 163.89 lbs.

Capacity

Total Capacity (cubic feet) 5.00 cu ft

Description

Creating delectable meals of all sizes is an effortless endeavor with this CAFÉ™ Single Wall Oven. Features like No Preheat Air Fry and Precision Cooking Modes save you time whether you’re cooking for parties of two or 20. Plus an in-oven camera lets you


Product Features

  • Soft-Close Door
    A soft-close oven door reduces noise and eliminates slams, for a more peaceful environment in the kitchen
  • Customizable Finishes and Hardware Combinations
    Get a custom look in the kitchen by selecting your favorite hardware and finish combination. Choose from Matte White, Matte Black and Stainless Steel finishes, and Brushed Copper, Brushed Bronze, Brushed Black and Brushed Stainless hardware

Key Features

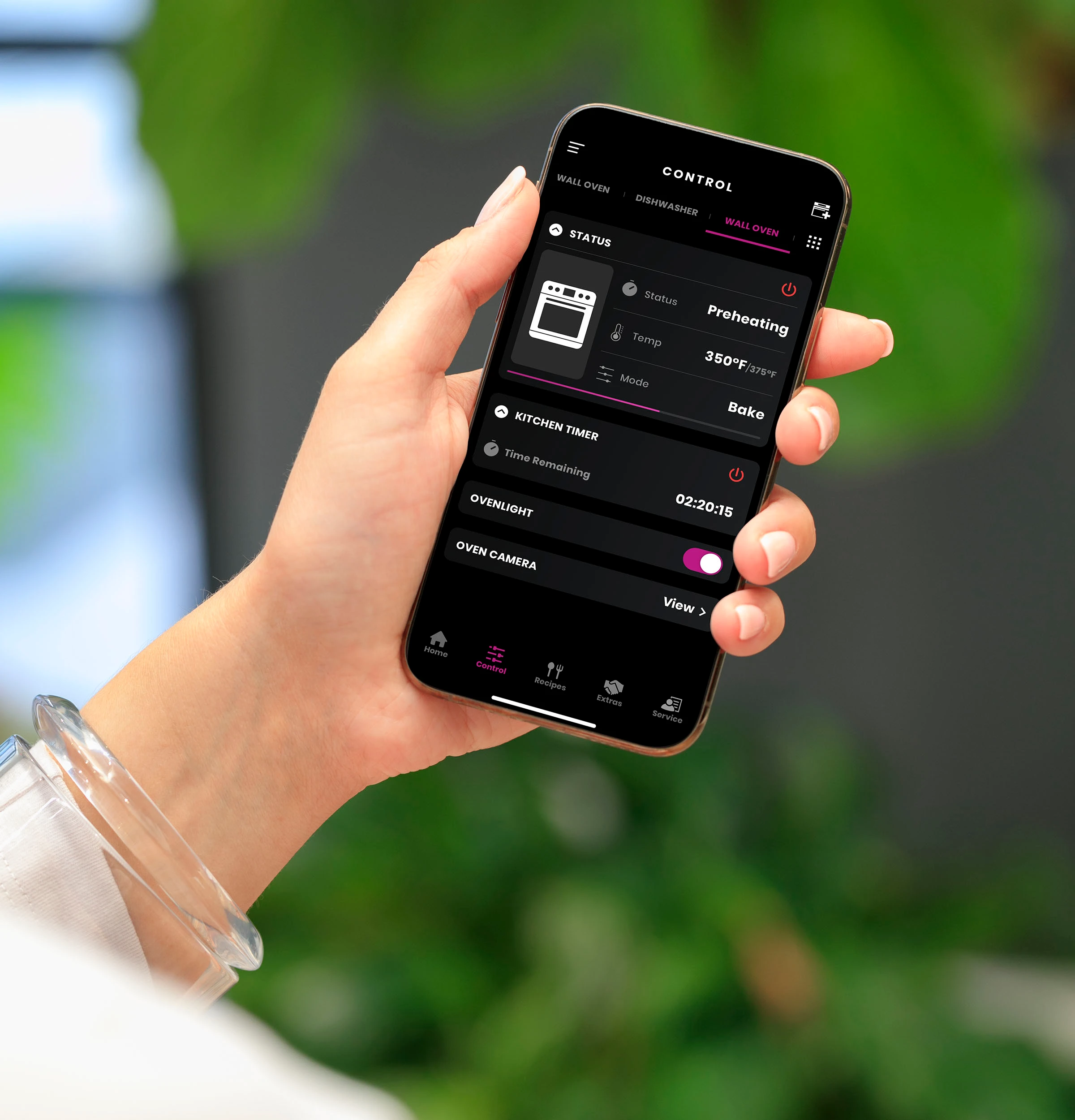

Built-In WiFi, Powered by SmartHQ App

Manage all aspects of your kitchen with the help of the SmartHQ™ App or your voice assistant (Select features require WiFi Connection) See details

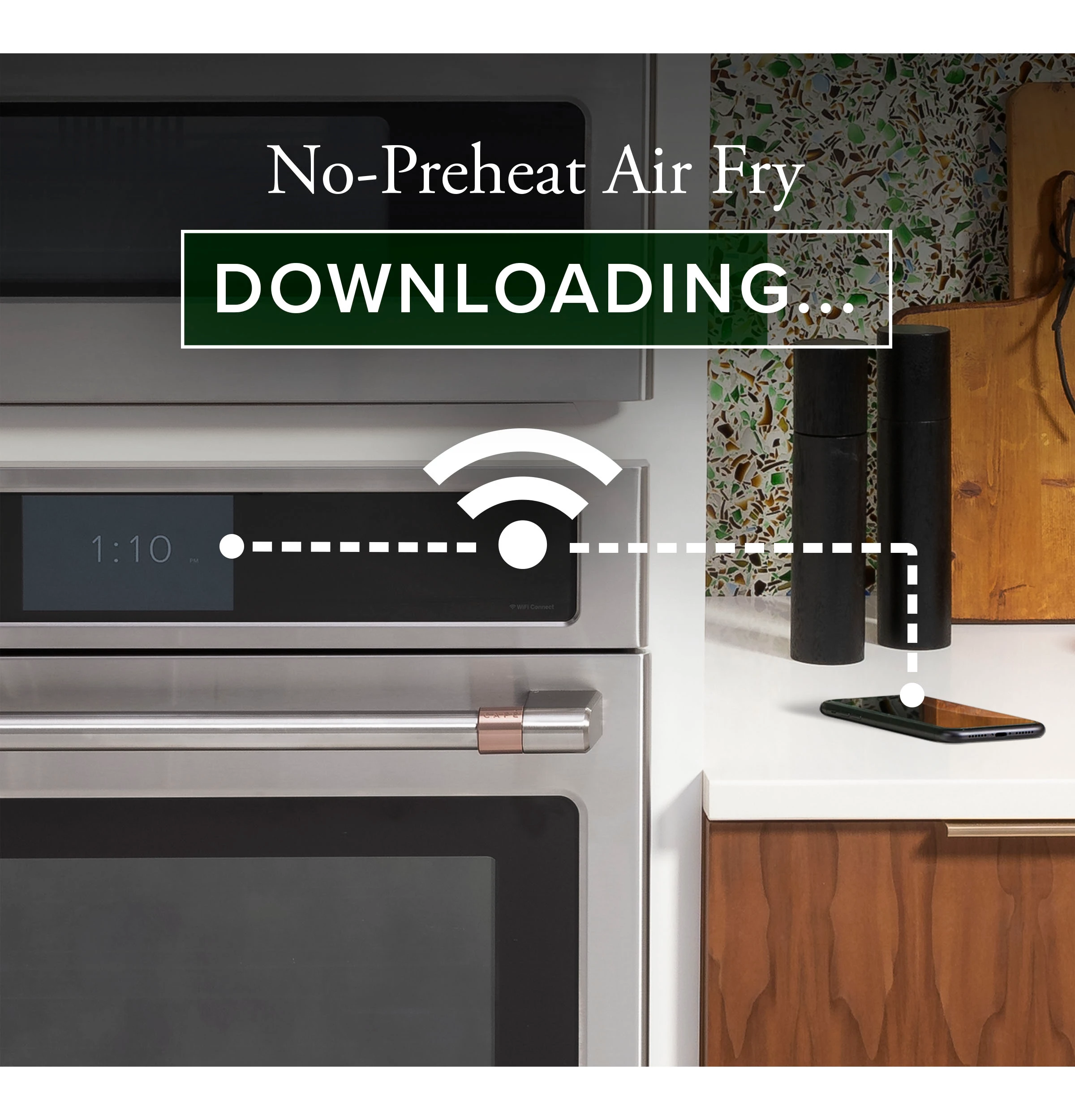

Personalized Features + Upgrades

Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire

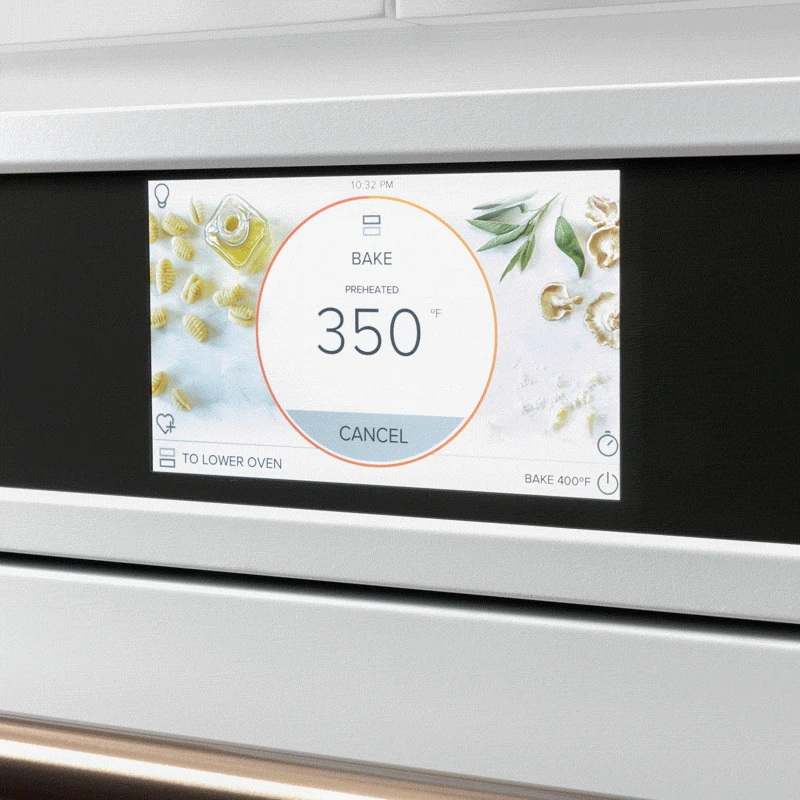

Brighten up life in the kitchen

Easily navigate settings using a stunning full color display that adds an unexpected touch of style to your kitchen, including custom screen backgrounds and weather updates

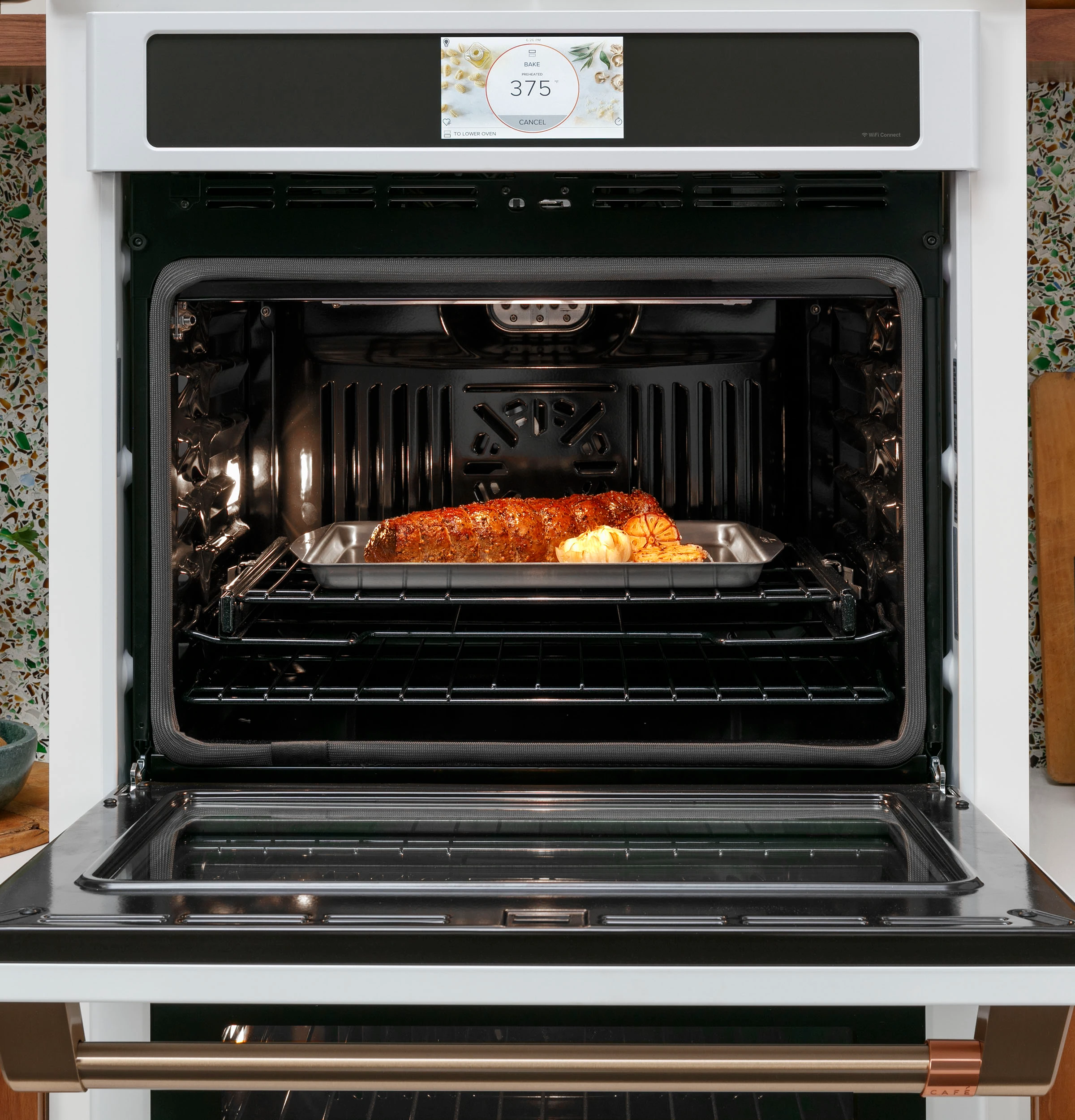

True European Convection with Direct Air

This oven features True European Convection, an advanced convection system that uses a third heating element and reversing fan for the highest level of heat and air circulation

No Preheat

Eliminate the need for preheating and save time with a variety of precision cooking modes

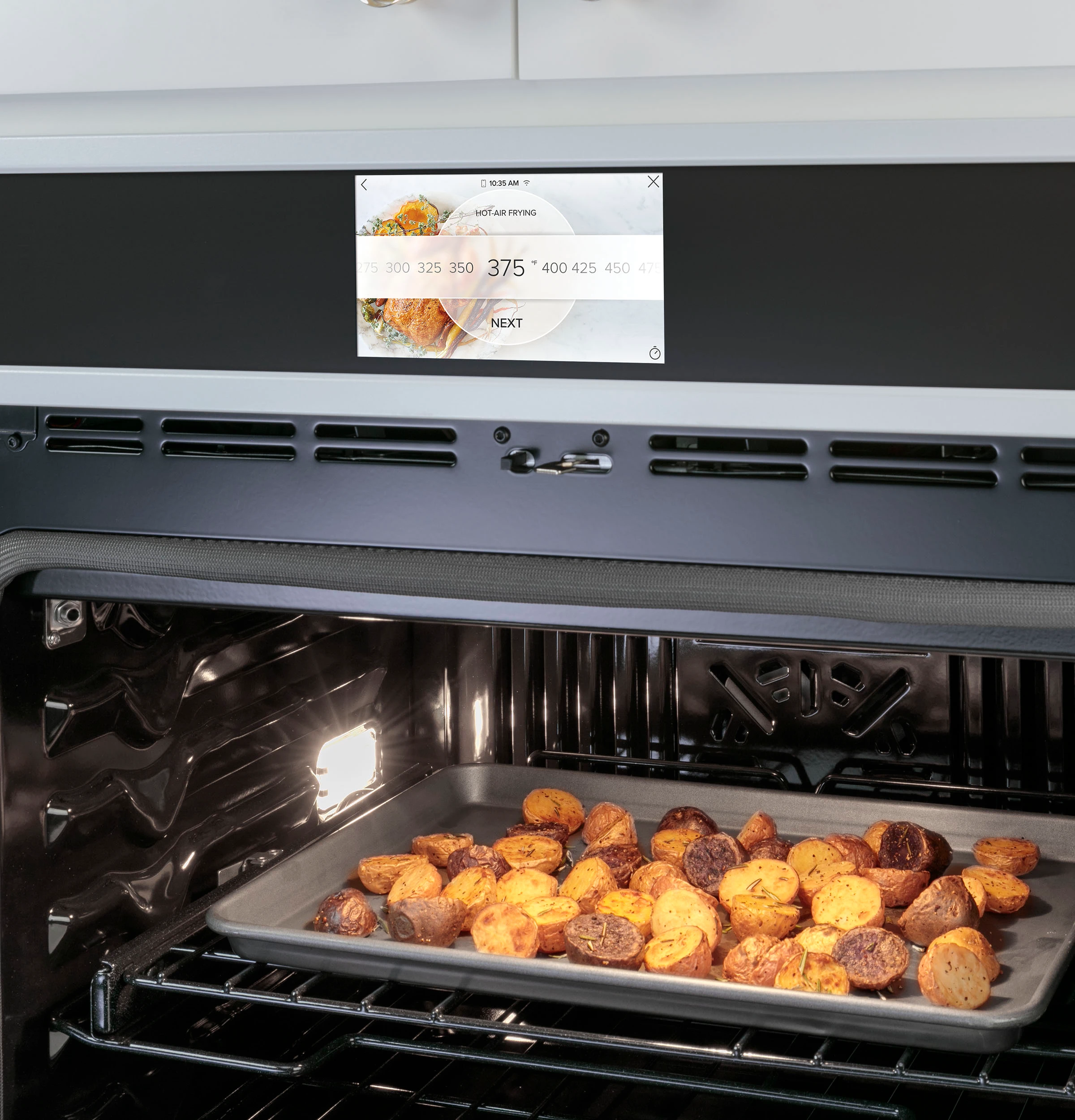

No Preheat Air Fry

Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray

Fit Guarantee

This oven will fit your existing cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details

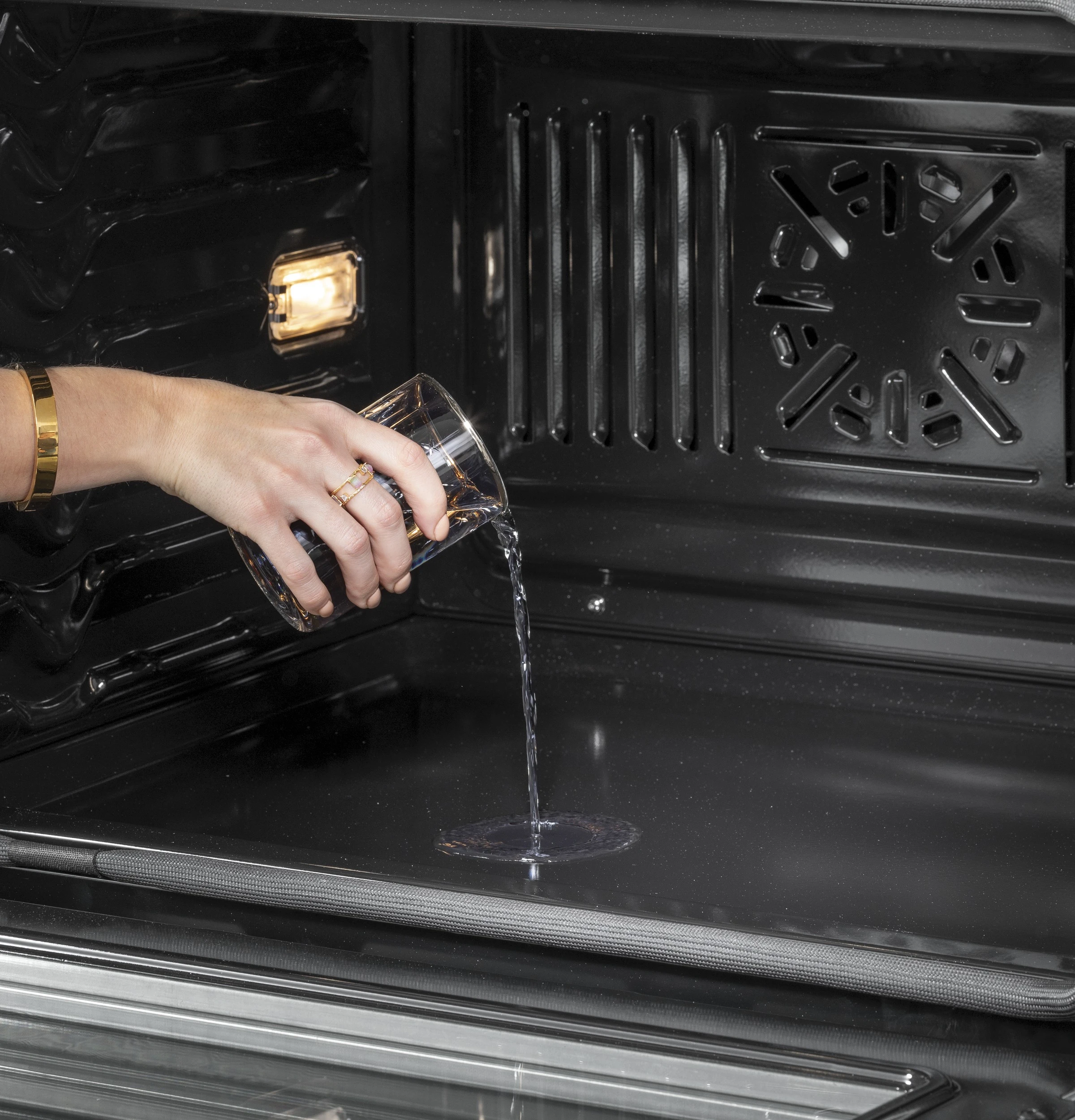

Self-Clean with Steam Clean

This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor

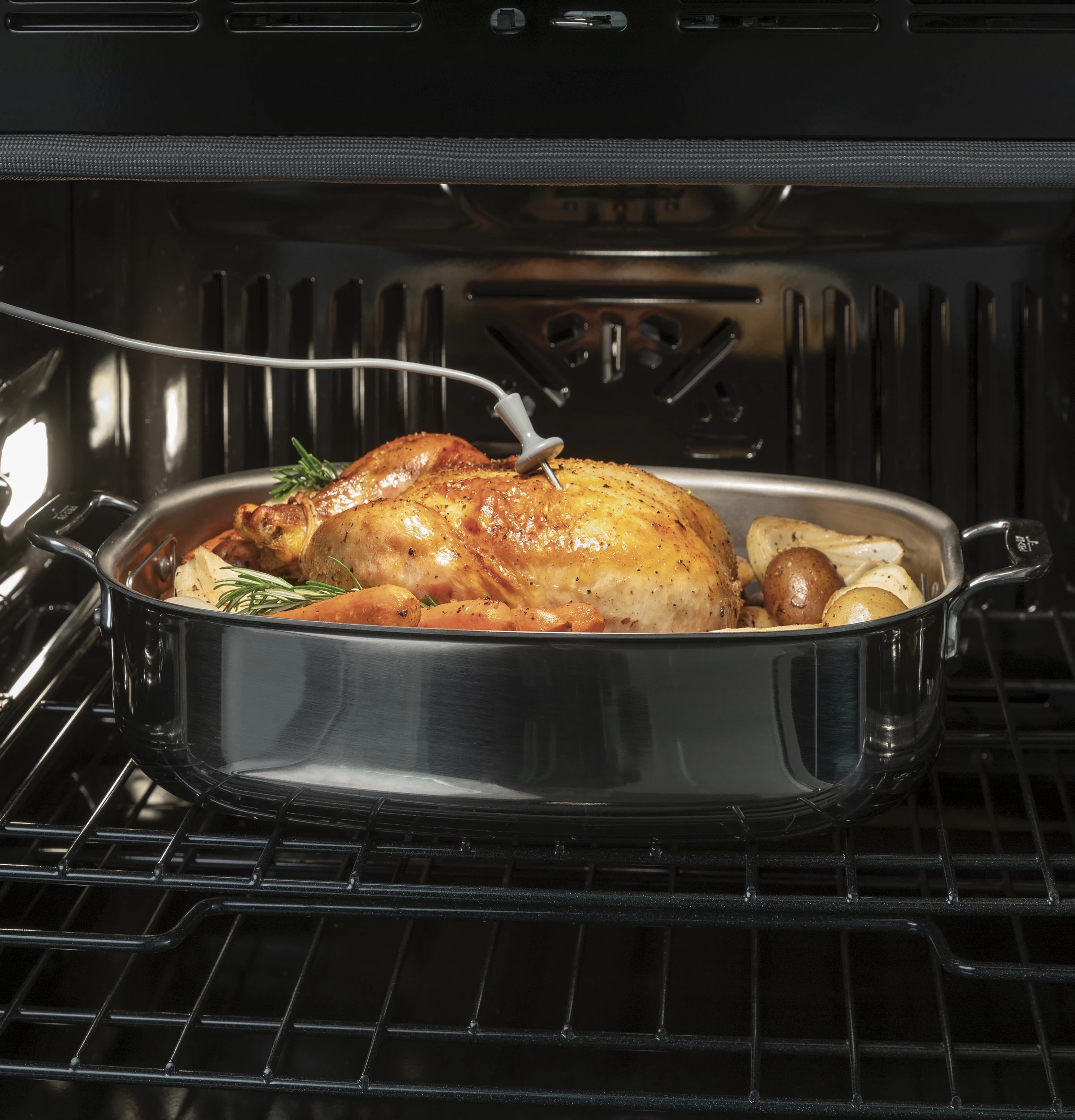

Temperature Probe

A precision temperature probe connects to the oven to ensure your food is properly cooked

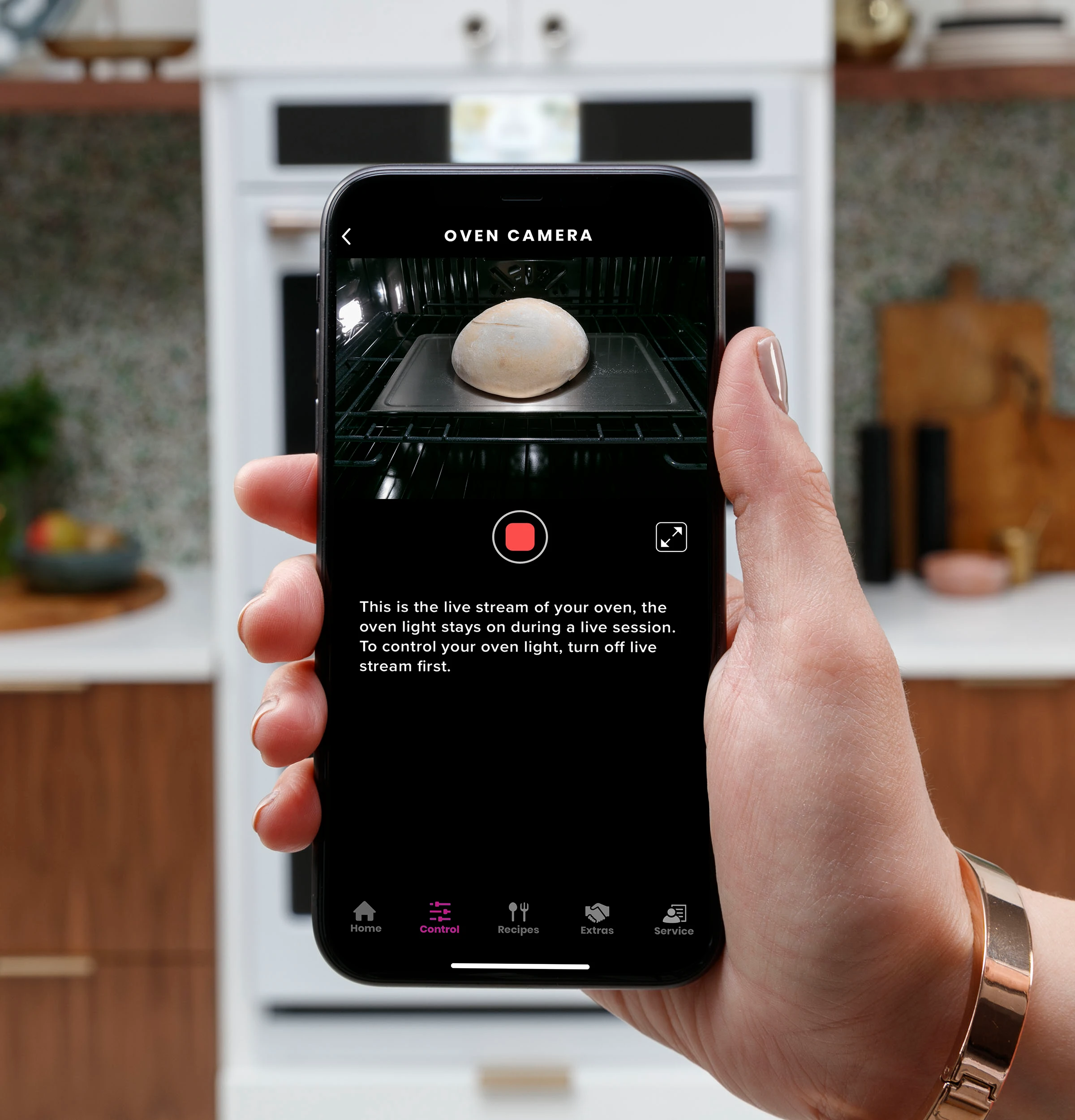

In-Oven Camera

Check status from anywhere without opening the oven door with live streaming video of your food on your smartphone

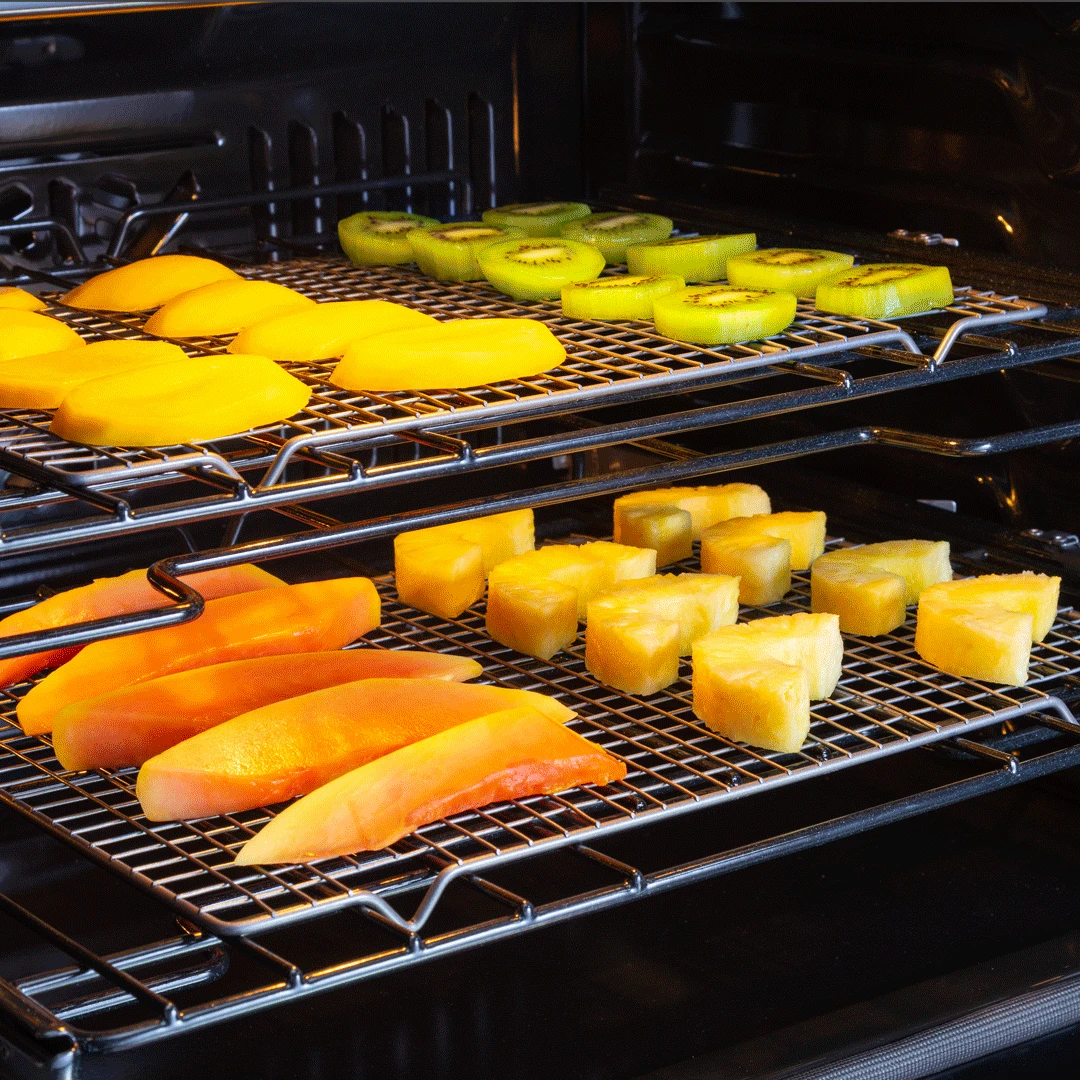

Food Dehydrator

Make homemade chips, spices and dehydrated fruits more easily than ever with a moisture-removing setting in your oven

Precision Cooking Modes

Simplify the cooking process with precision cooking modes that automatically track progress, and make time and temperature adjustments

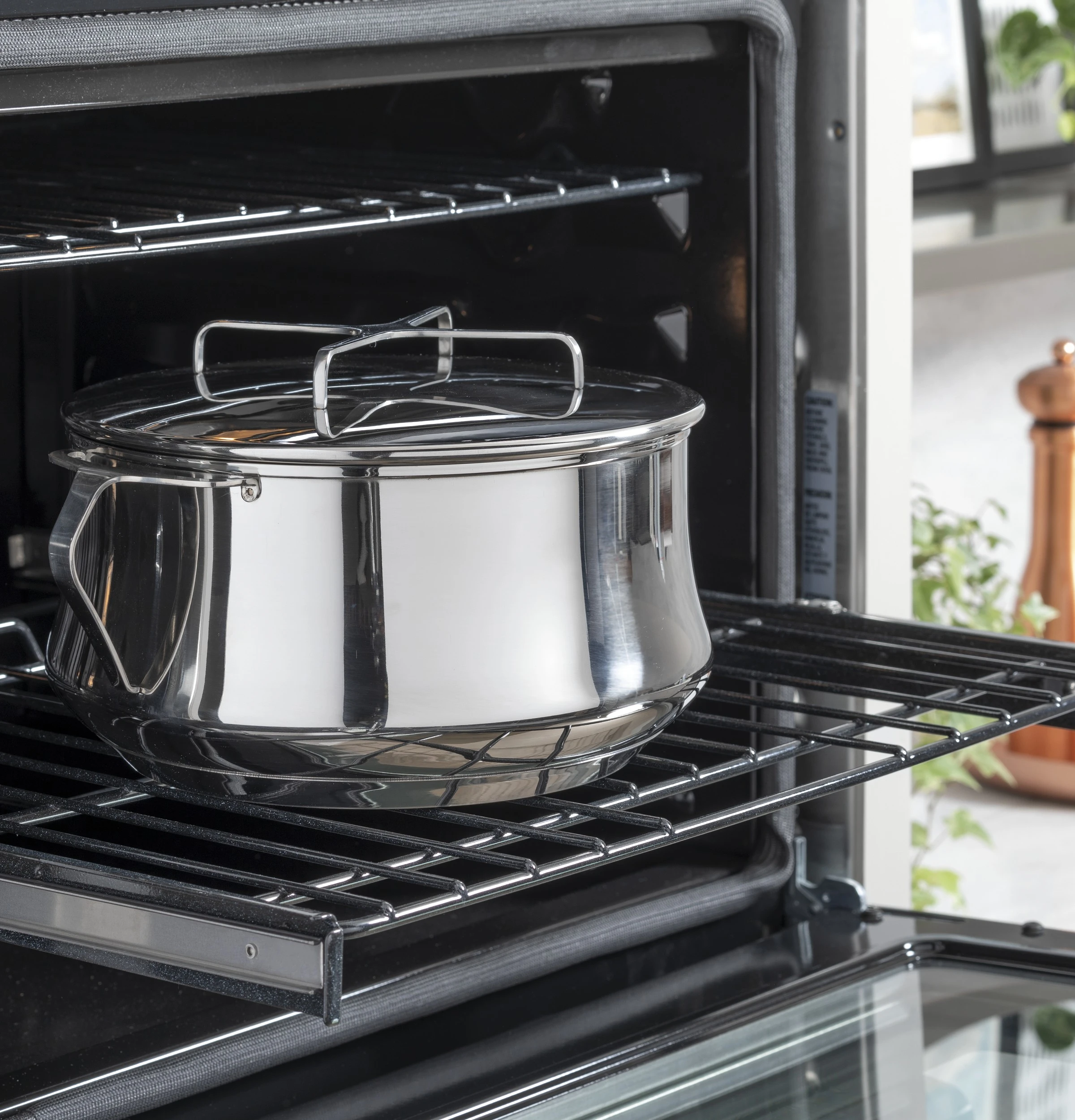

Heavy-Duty, Easy-Glide Rack

Easily access items with a rack that glides smoothly
