What's included: 5 items

  • Energy Star 18.6 Cu. Ft. Counter-depth French-door Refrigerator

    Cafe CWE19SP4NW2 Café 18.6 Cu. Ft. Counter-depth French-door Refrigerator Matte White

    • SKU SKU: CWE19SP4NW2 UPC: 84691845911
    • Type French Door Refrigerators
  • 30" Smart Slide-in, Front-control, Radiant And Convection Range

    Cafe CES700P4MW2 Café 30" Smart Slide-in, Front-control, Radiant And Convection Range Matte White

    • SKU SKU: CES700P4MW2 UPC: 84691846727
    • Type Slide-In Ranges
  • Café Customfit Stainless Interior Smart Dishwasher With Ultra Wash Top Rack And Dual Convection Ultra Dry, 44 Dba

    Cafe CDT858P4VW2 Café Customfit Stainless Interior Smart Dishwasher With Ultra Wash Top Rack And Dual Convection Ultra Dry, 44 Dba Matte White

    • SKU SKU: CDT858P4VW2 UPC: 84691914600
    • Type Built-In Dishwashers
  • 1.7 Cu. Ft. Convection Over-the-range Microwave Oven

    Cafe CVM517P4RW2 Café 1.7 Cu. Ft. Convection Over-the-range Microwave Oven Matte White

    • SKU SKU: CVM517P4RW2 UPC: 84691882718
    • Type Over-the-Range Microwaves
  • Wine Center

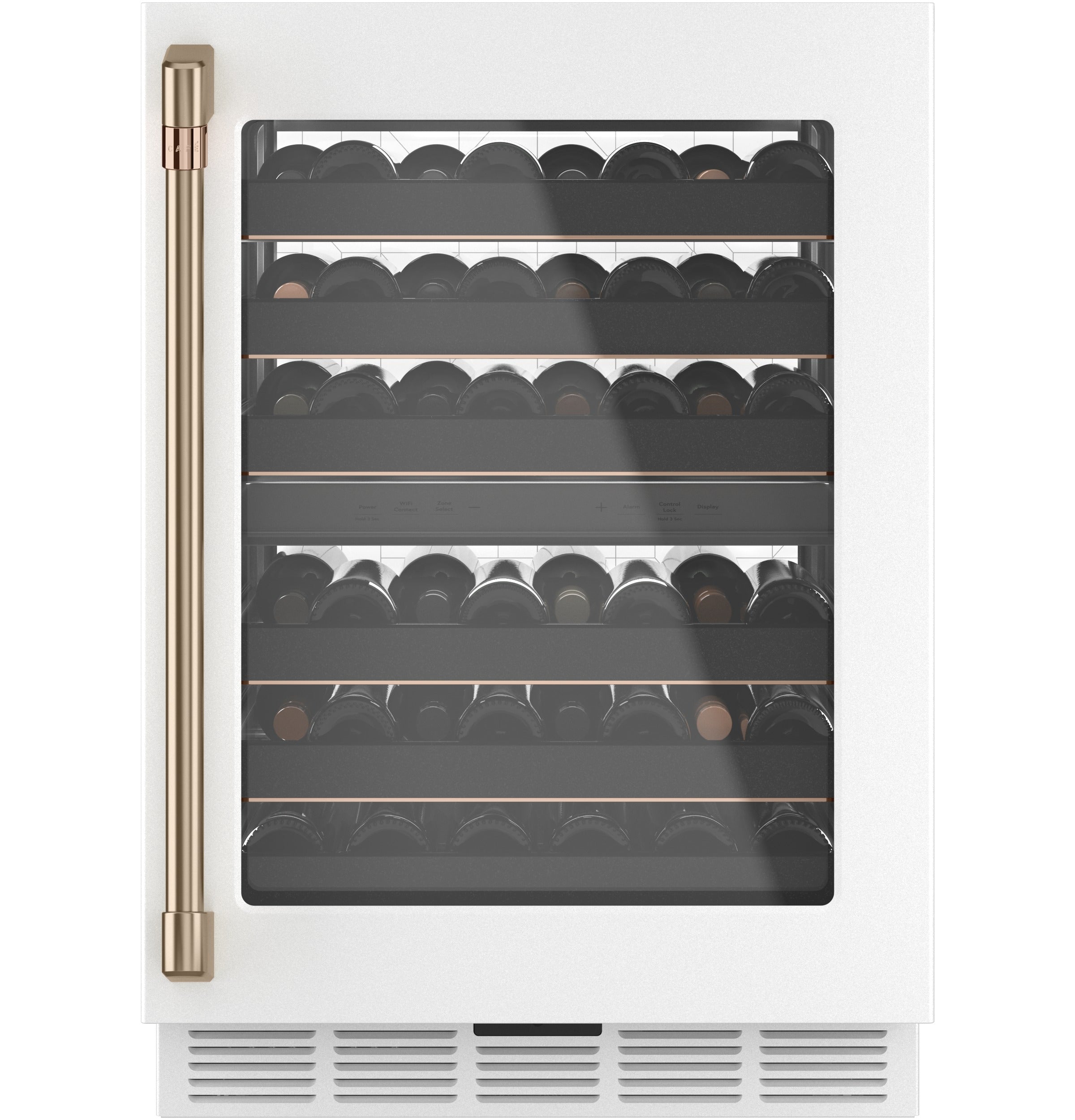

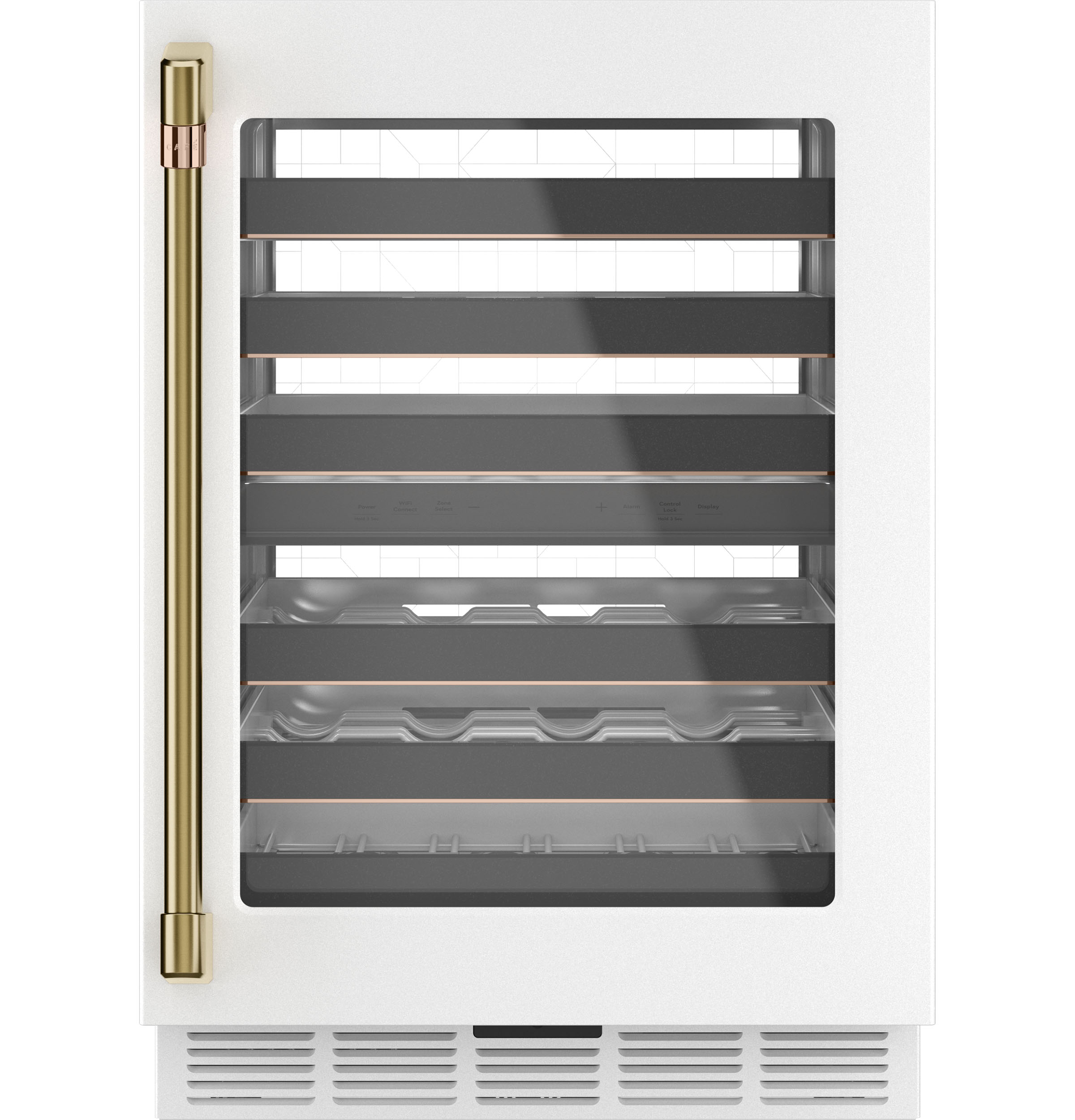

    Cafe CCP06DP4PW2 Café 46-bottle Dual Zone Wine Cooler Matte White

    • SKU SKU: CCP06DP4PW2 UPC: 84691853398
    • Type Wine Coolers
  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,539.13 Regular price $15,527.96 Save $4,988.83 / 32% OFF

Product Details for Cafe CWE19SP4NW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 31 in
Overall Height 69.875 in
Height to Top of Hinge 69.75 in
Net Weight 232 lb
Overall Width 32.75 in
Back Air Clearances 2 in
Approximate Shipping Weight 252 lb
Depth with Door Open 90° 42 in
Width w/Door Open 90 Degrees Incl. Handle 40.5 in
Case Depth Without Door 24.125 in
Top Air Clearances 1 in
Depth Without Handle 29 in
Height to Top of Case 68.625 in
Overall Depth with Handle 31 in
Side Air Clearances 1/8 in

Features

Temperature Management Features Turbo Cool setting
Control Type Upfront Electronic Temperature Controls
Icemaker Factory-Installed
Number of Doors 3
WiFi Connect Optional (Requires part no. PBX23W00Y1)
Performance Features Easily Removable Door Gaskets
Sabbath Mode Optional
Filter Location Upper right corner
Door Alarm Yes
Freezer Storage Baskets 2 Total
Freezer Cabinet Drawer Features Freezer Drawer
Defrost Type Frost Guard
Leveling System 2 Point Front Adjustable
Fresh Food Cabinet Shelves Glass
Fresh Food Door Bins Soft Touch Bin Liners
Freezer Features Interior Lighting - LED
Exterior Style Counter-Depth
Temperature Display Internal Digital
Fresh Food Features Soft Touch Bin Liners
Configuration French Door
Refrigerant Type R600a
Door Liner HIPS
Dispenser Internal Water
Fresh Food Cabinet Drawers Multi-Level Drawers
Water Filtration Water Filter Indicator Light
Product Type French-Door Refrigerator
OU Certified OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Fresh Food Cabinet Shelves 4 Split Adjustable
Fresh Food Door Bins 6 Adjustable with Gallon Storage
Fresh Food Cabinet Drawers 2 Humidity Controlled Drawers
Product Type Counter Depth Refrigerator
Control Type Digital Temperature Display
Freezer Features Ice Bucket
Freezer Storage Baskets 1 Full-Width, Full-Extension Plastic
Fresh Food Cabinet Drawers 1 Full-Width, Adjustable Temperature Drawer
Fresh Food Cabinet Shelves 5 Total
Fresh Food Cabinet Shelves 1 Quick Space Shelf
Fresh Food Door Bins 8 Clear Look
Fresh Food Door Bins 2 Fixed
Fresh Food Features Interior Lighting - Dual Level LED
Product Type Bottom Freezer Refrigerator
Temperature Management Features Multiflow Air System with Electronic Sensors
Water Filtration GE Water Filtration (XWFE Filter)

Capacity

Fresh Food Capacity 13.59 cu ft
Freezer Capacity 5.02 cu ft
Total Capacity (cubic feet) 18.60 cu ft

Accessories

Optional Kits CXMA3H3PNSS Brushed Stainless
Optional Kits CXMA3H3PNBZ Brushed Bronze
Optional Kits CXMA3H3PNBT Brushed Black
Optional Kits CXMA3H3PNCU Brushed Copper
Optional Kits CXMA3H3PNCG Brushed Brass
Optional Kits CXMA3H3PNFB Flat Black

Appearance

Case Color White
Exterior Design Hidden Door Hinges
Door Stops Yes
Handle Color Brushed Bronze
Counter-Depth Design Yes
Door Swing French Door
Color Appearance Matte White
Exterior Design Contoured Doors
Counter-Depth Design true
Handle CAFÉ™

Power / ratings

Energy Consumption (kWh/year) 547
Volts/Hertz/Amps 120v; 60Hz; 15A
Electrical Requirements 120V
Hertz 60
Watts 294

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance

Economical / quiet

Cabinet Liner ABS

Other

Back Air Clearances 2 in
Top Air Clearances 1 in
Side Air Clearances 0.125 in

Dimensions & weight

Width 32.75 in.
Height 69.88 in.
Length 31 in.
Weight 232 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 37.75 in.
Shipping Height 74.88 in.
Shipping Length 36 in.
Shipping Weight 252 lbs.
Total of Shipping Weight 252 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 41.05 ft³
Dimensional Weight 510.36 lbs.
Total of Cubes 41.05 ft³
Total of Dimensional Weight 510.36 lbs.

Description

Looking for a refrigerator that combines style and functionality? Look no further than the Cafe ENERGY STAR 18.6 Cu. Ft. Counter-Depth French-Door Refrigerator. With its stylish and modern French-door design and 18.6 cu. ft. capacity, this refrigerator is perfect for any kitchen. Its hidden door hinges and hinges on both the left and right sides make it easy to fit into any space. This refrigerator is more than just good looks – it's also packed with features that make it a must-have for any home. The Cafe ENERGY STAR 18.6 Cu. Ft. Counter-Depth French-Door Refrigerator boasts an advanced water filtration system as one of its standout features. With this advanced filtration system, you can rest easy knowing that you and your family are drinking clean and fresh-tasting water at all times. The system is designed to remove impurities such as lead, chlorine, and other contaminants, ensuring that the water you drink is pure and refreshing. The refrigerator also features a factory-installed icemaker, making it easy to keep your favorite drinks cold and refreshing. With ice always on hand, you never have to worry about running out, whether you're entertaining guests or just enjoying a refreshing drink on a hot day. In addition to its convenient water and ice features, the Cafe French-Door Refrigerator also boasts a door alarm that alerts you if the door is left open, so you never have to worry about spoiled food. And with its showcase LED lighting and two humidity-controlled drawers, this refrigerator makes it easy to find and store all of your favorite foods and beverages. The full-width, adjustable-temperature drawer is perfect for storing deli meats and cheeses, and the internal water dispenser means you can easily access fresh water without ever having to open the door. Plus, with no bulky dispenser on the door, you get more shelf space. With the Cafe ENERGY STAR 18.6 Cu. Ft. Counter-Depth French-Door Refrigerator, you get a high-end refrigerator that is both beautiful and functional. So why wait? Order the Cafe French-Door Refrigerator today!

Key Features

Fit for your unique space

Enjoy the aesthetic and amenities of a French-door refrigerator that fits in a 33-inch opening

Maintain the perfect environment for your food

Easily store your farmer's market veggies and fresh fruits in two humidity-controlled drawers, and place large items like party platters and sheet cakes in a full-width, adjustable-temperature drawer

Create a look that matches your personal style

Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste

Even your refrigerator is clutter free

Spend less time looking for your favorite frozen foods thanks to multi-level freezer baskets that make organization easy

Pick the perfect degree

Choose your refrigerator's exact temperature using easily adjustable controls with a digital actual temperature display

Slide-away convenience for more room

Make room for tall items like milk and fruit juice with a Quick Space shelf that slides away usefully

Enhanced Shabbos Mode

The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)

Your kitchen’s sightlines will thank you

Create a built-in look with counter-depth design that fits flush with surrounding cabinetry

Form on the outside, function on the inside

Enjoy a cleaner appliance appearance with internal water dispenser

Put your food in the spotlight

Display groceries like a gallery with showcase LED lighting positioned throughout the interior to spotlight your favorite foods and containers

Consistently cool and always fresh

Open the door as often as you need to while cooking or attending to guests and trust the Turbo Cool setting to make adjustments that will quickly return your refrigerator's internal temperature to your specified setting

Advanced Water Filtration

The included refrigerator water filter reduces 50+ impurities including lead, chlorine, microplastics, and PFOA/PFOS; providing clean, safe drinking water and ice (replacement water filters sold separately - check refrigerator filter compartment for compatible model)

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,539.13 Regular price $15,527.96 Save $4,988.83 / 32% OFF

Product Details for Cafe CES700P4MW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Height 37.375 in
Overall Depth 29.5 in
Net Weight 206 lb
Depth Without Handle 26.875 in
Cabinet Width 30 in
Approximate Shipping Weight 291 lb
Overall Width 29.875 in
Height to Top of Rear Vent Trim 37.375 in
Depth with Door Open 47.5 in
Oven Interior Dimensions (W x H x D) (in.) 24 x 19-7/8 x 20-5/8
Height to Cooking Surface (in.) 36.25 +/- .25

Features

Cooking System True Convection with Precise Air
Oven Interior Interior Oven Light
Element - Center 6" 80W Warming Zone
Oven Control Features Warm Mode
Oven Rack Features 3 Self-Clean Heavy-Duty Oven Racks
Element - Left Front 8"/5" 1900W
Oven Cleaning Type Steam Clean
Connected Capabilities The Google Assistant
Heating Element "ON" Indicator Light Yes
Product Type Slide-In Single Oven
Cooktop Type Radiant Smoothtop
Fuel Type Electric
Dual Ring Burners Yes
Element - Right Front 12"/9"/6" 3600W Power Boil
WiFi Connect Built-In
Control Location Front controls
Control Type Glass Touch
Drawer Type Warming Drawer; 3 Settings (High, Medium, Low)
Hot Surface Indicator Lights 1
Sabbath Mode Yes
Element - Left Rear 8" 2000W
Configuration Range with Storage Drawer
OU Certified No
Oven Features 8-Pass Broil Element
Oven Cooking Modes Warming
Cooktop Burner Type Smoothtop
Infinite Heat Controls Yes
Element - Right Rear 6" 1200W
Cooktop Surface Black Ceramic Glass
Oven Rack Positions (Single or Upper/Lower) 6
Self-Clean Oven Door Lock Automatic
Oven Rack Features 2 Self-Clean Heavy-Duty Oven Racks
Element - Right Front 12”/9”/6” 3600W Power Boil
Oven Control Features Auto Oven Shut-Off with Override
Connected Capabilities DiGiorno
Oven Cooking Modes Convection Bake
Connected Capabilities Amazon Alexa
Connected Capabilities IFTTT
Connected Capabilities Fresco
Connected Capabilities Innit
Connected Capabilities Sonos
Control Type Backlit
Cooking Technology True Convection with Precise Air
Cooktop Burner Type Radiant
Oven Cleaning Type Self-Clean
Oven Control Features Audible Preheat Signal
Oven Control Features Auto Recipe Conversion
Oven Control Features Auto Self Clean
Oven Control Features Sabbath Mode
Oven Control Features Chef Connect
Oven Control Features Control Lock Capability
Oven Control Features C° or F° Programmable
Oven Control Features Delay Bake Option (Time Bake)
Oven Control Features Delay Clean Option
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Fast Preheat
Oven Control Features Hi / Low Broil
Oven Control Features Oven "ON" Light
Oven Control Features Self-Clean Cool Down Time Display
Oven Control Features Temperature Probe
Oven Cooking Modes Baked Goods
Oven Cooking Modes Convection Roast
Oven Cooking Modes Frozen Pizza Single Rack (No Preheat)
Oven Cooking Modes Frozen Pizza Multi Rack
Oven Cooking Modes Frozen Snacks Single Rack (No Preheat)
Oven Cooking Modes Frozen Snacks Multi Rack
Oven Cooking Modes Proof
Oven Cooking Modes No Preheat Air Fry
Oven Interior Black Gloss Finish
Connected Capabilities Google Home
Oven Rack Features 1 Roller Rack

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Kits CXFCEHKPMSS Brushed Stainless
Trim Kit Optional
Optional Kits CXFCEHKPMBZ Brushed Bronze
Optional Kits CXFCEHKPMBT Brushed Black
Optional Kits CXFCEHKPMCU Brushed Copper
Trim Kit JXFILLR1SS
Optional Kits CXFCEHKPMCG Brushed Brass
Optional Kits CXFCEHKPMFB Flat Black

Appearance

Handle Professional Style
Textured Steel Side Panels Yes
Installation Free-standing cut-out
Oven Door Features Easy clean oven door
Handle Color Brushed Bronze
Control Knobs Brushed Bronze
Color Appearance Matte White
Handle Customizable
Handle Design CAFÉ™
Handle Consumer Removable
Installation Flush Appearance
Oven Door Features Big View Oven Window

Power / ratings

Electrical Requirements 208/240V ; 60Hz ; 40A
Amp Rating at 208V 40
Broiler Wattage 4000W
Amp Rating at 240V 40
Convection Wattage 2500W
KW Rating at 240V 13.8
Bake Wattage 2850W
KW Rating at 208V 10.4
Hertz 60

Warranty

Parts Warranty Limited 1-year entire appliance
Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Other

Oven Interior Dimensions (W x H x D) (in.) 24 x 19-7/8 x 20-5/8

Dimensions & weight

Width 29.88 in.
Height 37.38 in.
Length 29.5 in.
Weight 206 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 42.38 in.
Shipping Length 34.5 in.
Shipping Weight 291 lbs.
Total of Shipping Weight 291 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 19.06 ft³
Dimensional Weight 236.97 lbs.
Total of Cubes 19.06 ft³
Total of Dimensional Weight 236.97 lbs.

Capacity

Total Capacity (cubic feet) 5.70 cu ft

Description

Enjoy the attractive appearance of an edge-to-edge glass cooktop combined with the versatility of a 12"/9"/6" burner that includes Power Boil that greatly reduces the time you’ll spend waiting for water to boil. Also, True European Convection with Precise Air creates even heating for superior baking and roasting results.


Product Features

  • Create a look that matches your personal style
    Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste
  • Choose the range you want with total confidence
    When you’re updating your kitchen, attention to detail is a priority. That’s why CAFÉ™ 30” slide-in ranges are guaranteed for an exact fit or CAFÉ™ Appliances will pay up to $300 toward modifications.

Key Features

Built-In WiFi, Powered by SmartHQ App

Manage all aspects of your kitchen with the help of the SmartHQ™ App or your voice assistant (Select features require WiFi Connection) See details

Prepare foods to perfect doneness

Get roasts and meats just right with a temperature probe that lets you monitor progress without opening the oven door

An attractive appearance at all times

Every detail of your kitchen is designed to delight, thanks to a sleek backlit glass touch control panel that visually disappears when not in use and wakes up when prompted

Allow your appliances to interact with one another

Create a chef-like experience with Chef Connect, which can synchronize your appliance clocks and surface lights and vent when a range element is in use, and even your microwave and range clocks

Tough racks simplify loading and unloading

Easily access everything from heavy roasts to delicate desserts with a heavy duty roller rack that glides smoothly on ball bearings and can stand up to the heat of self-clean

Personalized Features + Upgrades

Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire

No-Preheat Air Fry

Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray (WiFi Enabled)

Seamless glass surface streamlines and simplifies cooking

A sleek look is yours with an edge-to-edge glass cooktop that provides a seamless, easy-to-clean surface with more usable cooking space for five course meals

The perfect match for pots and pans of all sizes

Tailor your burner size to your cookware with a 12"/9"/6" element with Power Boil

Precise control delivers consistently delicious results

Achieve perfectly even desserts with accurate heat circulation thanks to True Convection with Precise Air

From The Manufacturer

Videos

Rebates

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

OFFER VALID REGARDLESS OF PREVIOUSLY PURCHASED BRAND.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,539.13 Regular price $15,527.96 Save $4,988.83 / 32% OFF

Product Details for Cafe CDT858P4VW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 24 in
Overall Height 34 in
Height w/ Legs Retracted - Minimum Height 33.375 in
Cabinet Width 24 in
Net Weight 124 lb
Overall Width 23.75 in
Approximate Shipping Weight 137 lb
Overall Depth with Handle 26.3 in
Height w/Legs Extended - Maximum Height 34.625 in
Depth with Door Open 25.5 in
Depth Without Handle 24 in
Cutout Height (in) 33.5
Cutout Width (in) 24
Cutout Depth (in) 24

Features

Wash System 800 Series
Lower Rack Ball-Tip Tines
Sensor Clean Sensor
Tub Type Tall Tub
Leveling System 4 Leveling Legs
OU Certified No
Additional Protection Active Flood Protect
Number of Place Settings 16
Dishwasher Options WiFi/Remote Enabled
Latch Pull with Handle
Style Built-In Top Control
Number of Options 15
Water Filtration System 100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray One piece removable 3rd rack
Rack Features Lid Manager
Racking Material Nylon
Smart Assist Yes
Dishwasher Cycles Normal
Rack Color Black Pearl
Dispenser Rinse Aid with Indicator and Adjustment
EcoBalance Compatible Yes
WiFi Connect Built-In
Control Type Top Controls
Racking System Full 3rd rack
Dishwasher Drying Features Multi-Wattage Wash & Dry Element
Wash Arms Upper
Wash System Features Variable Speed Dual Pumps and Motors
Top Rack/3rd Rack Washing, Sliding 3rd Rack w/ removable caddy
Exterior Style Customizable Professional
Product Type Built-In
Connected Capabilities Google Home
Upper Rack Smooth Glide Upper Rack
Dishwasher Control Features Last Cycle Memory
Number of Cycles 6
Tub and Door Liner Stainless Steel
Sabbath Mode Yes
Showroom Power Mode Yes
Lower Rack 1/2 fixed tines, 1/2 fold down tines
Dishwasher Options Delay Start 1-12 Hr.
Rack Features Ball-Tipped Tines
Dishwasher Cycles Cascade Platinum Plus (on app)
Control Type Cap Touch Controls
Dishwasher Drying Features Heated Dry - Ultra/Normal/Off
Wash Arms 4 Wash Levels
Wash System Features Automatic HotStart
Upper Rack 1/2 fixed tines, 1/2 fold down tines
Dishwasher Control Features Cycle Countdown with Bi-Color LED Status Light on door
Control Type 8 Touchpads
Dishwasher Control Features Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled
Dishwasher Control Features Audible End-of-Cycle Signal
Dishwasher Cycles Auto Wash
Dishwasher Cycles Cookware
Dishwasher Cycles Gentle
Dishwasher Cycles Express
Dishwasher Drying Features Dual Convection Ultra Dry
Dishwasher Options Favorites
Dishwasher Options Presoak + Sanitize (Certified to NSF Standard 184)
Dishwasher Options Hi-Temp Wash
Dishwasher Options Silverware Wash
Dishwasher Options Heated Dry Off
Dishwasher Options Normal Dry
Dishwasher Options Ultra Dry
Dishwasher Options Lock Controls
Dishwasher Options Bottle Wash (on app)
Dishwasher Options Wash Zones/Half Load (on app)
Dishwasher Options Favorites (on app)
Dishwasher Options Sabbath Mode
Dishwasher Options Start/Cancel
Lower Rack 1 Rack handle
Rack Features Adjustable Upper Rack
Rack Features Full Extension Slides - Upper
Rack Features Cafe Flex Silverware Basket
Upper Rack Premium Height Adjustable
Upper Rack Ball-Tip Tines
Upper Rack Fixed tines with Bottle Jets
Upper Rack 1 Rack handle
Upper Rack Lid Manager
Wash Arms Lower
Wash Arms Middle
Wash Arms 3rd Rack
Wash Arms Bottle Jets
Wash Arms Deep Clean Silverware Jets
Wash System 4-Level
Wash System Features 90+ Spray Jet Wash System
Wash System Features Automatic Temperature Control
Wash System Features Bottle Jets (4)
Wash System Features Deep Clean Silverware Jets
Wash System Features Hard Food Disposer with removable filter
Wash System Features Middle Wash Arm
Wash System Features Lower Wash Arm
Connected Capabilities Amazon Alexa

Power / ratings

Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year) 240
Electrical Requirements 120v ; 60Hz ; 7.2A
Calrod Heater Watts 800/500
Volts/Hertz/Amps 120v; 60Hz; 7.2A
Hertz 60
Watts 936

Economical / quiet

Door Insulation Mastic
Quiet Package 44 dBA
Outer Wrap Full-wrap Blanket
Motor Type Variable Speed
Quiet Features Tub Collar Trim
Quiet Features Sealed Toe Kick
Door Insulation Insulation
Outer Wrap Bitumen
Quiet Features Quiet Water Valve

Accessories

Optional 12' Drain Hose Optional hose kit (WD24X10065)
Optional Kits CXADTH1PVSS Brushed Stainless
Optional Kits CXADTH1PVBZ Brushed Bronze
Optional Kits CXADTH1PVCU Brushed Copper
Optional Kits CXADTH1PVBT Brushed Black
Optional Kits CXADTH1PVCG Brushed Brass
Optional Kits CXADTH1PVFB Flat Black

Appearance

Installation Side Installation or Top Installation Included
Door Style Long Door with Top Controls
Handle Color Brushed Bronze
Door Appearance Full-length flat door
Color Appearance Matte White
Control Panel Color Matte Dark Slate, Fingerprint Resistant
Handle Design Customizable
Handle CAFÉ™
Installation Flush Cabinet Installation
Installation Built-Up Floor Capable

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Dimensions & weight

Width 23.75 in.
Height 34 in.
Length 24 in.
Weight 124 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.75 in.
Shipping Height 39 in.
Shipping Length 29 in.
Shipping Weight 137 lbs.
Total of Shipping Weight 137 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 11.22 ft³
Dimensional Weight 139.42 lbs.
Total of Cubes 11.22 ft³
Total of Dimensional Weight 139.42 lbs.

Description

CustomFit Top Rack with Ultra Wash
Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

CustomFit Basket with Ultra Wash
Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

CustomFit Lid Caddy
Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.

Ultra Wash & Dual Convection Ultra Dry
Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. Exceptional features like Variable-Pressure Jets and Dual-Convection Ultra Dry offer great results with every cycle.

Customizable Dishwasher Handles
Choose from six unique CAF(EBACK)(TM) handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

4 Bottle Wash Jets
This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Smart Features Powered by SmartHQ(TM)
Built-in WiFi and the SmartHQ(TM) app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

Smart Assist
Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.

Smooth-Glide Adjustable Middle Rack
Load your dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".

Presoak + Sanitize
Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.

Silverware Wash
Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.

Middle and Lower Rack Fold-Down Tines
Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

Wash Zones
Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.

Active Flood Protect
Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

Flush Installation
Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.



Product Features

  • Flush Installation
    Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.

Key Features

CustomFit Basket with Ultra Wash

Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

CustomFit Lid Caddy

Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.

Customizable Dishwasher Handles

Choose from six unique CAFÉ™ handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

4 Bottle Wash Jets

This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Smart Assist

Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.

Smooth-Glide Adjustable Middle Rack

Load your dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".

Presoak + Sanitize

Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.

Silverware Wash

Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.

Wash Zones

Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.

Middle and Lower Rack Fold-Down Tines

Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

Active Flood Protect

Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

CustomFit Top Rack with Ultra Wash

Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

Ultra Wash & Dual Convection Ultra Dry

Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. Exceptional features like Variable-Pressure Jets and Dual-Convection Ultra Dry offer great results with every cycle.

Smart Features Powered by SmartHQ

Built-in WiFi and the SmartHQ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

Smart Features Powered by SmartHQ™

Built-in WiFi and the SmartHQ™ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,539.13 Regular price $15,527.96 Save $4,988.83 / 32% OFF

Product Details for Cafe CVM517P4RW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Features

Display Type LED
Microwave Sensor Cooking Controls Steam Cook
Display Screen Size (Diagonal Length) 3.13
Electronic Digital Display with Clock Yes (LED)
Cooking Modes Microwave
Control Location Side Controls
Style Over-The-Range
Oven Interior Stainless Steel
Rack Type 2 Fixed Positions
Microwave Watts (IEC-705) 950 W
Turntable On / Off Yes
Power Levels 10
Control Type Glass Touch
Cooktop Lighting LED
Control Features Vent Fan
Product Type Over-the-range Microwave
Turntable Glass
Cooking Technology Microwave/Convection/Air Fry
Convection Cooking Controls Roast
Display On/Off Yes
Microwave Oven Interior Stainless Steel
Exhaust Fan Hi/Med/Low/Off
Vent Top
Interior Oven Light Halogen
Microwave Sensor Cooking Controls Cook (5 Foods)
Cooking Modes Convection Bake
Rack Type 1 Square Rack
Cooktop Lighting High/Low/Off
Control Features Air Fry
Convection Cooking Controls Fast Cook
Exhaust Fan 300-CFM
Vent Front
Control Features Start/Pause
Control Features Cancel/Off
Control Features Power Level
Control Features Add 30 Seconds
Control Features Cook Time
Control Features Steam Clean
Control Features Chef Connect On/Off
Control Features Timer On/Off
Control Features Turntable On/Off
Control Features Mute On/Off
Control Features Settings
Control Features Surface Light
Control Features My Cycle
Control Features Display On/Off
Control Features Defrost: Weight/Time
Control Features Sync Auto Off; Surface Light Sync; Vent Fan Sync
Control Type Dial
Convection Cooking Controls Bake
Cooking Modes Convection Roast
Cooking Modes Fast Cook
Cooking Modes Air Fry
Cooktop Lighting Auto Night Light
Exhaust Fan 3-Speed
Microwave Sensor Cooking Controls Popcorn
Microwave Sensor Cooking Controls Reheat
Microwave Sensor Cooking Controls Beverage
Rack Type 1 Round Rack
Turntable Size 13.6
Vent Back

Appearance

Door Swing Hinges on Left
Handle Color Brushed Bronze
Door Color Matte White
Case Color Graphite Gray
Color Appearance Matte White

Weights & dimensions

Approximate Shipping Weight 95 lb
Cabinet Width 30 in
Net Weight 85 lb
Overall Width 29.875 in
Overall Depth 17.9375 in
Overall Height 16.3125 in
Exterior Height (Rear) 16.5 in
Cavity (W x H x D) 21-5/8 x 9-3/4 x 14-1/8
Depth with Door Open 25.0625 in
Cutout Width (in) 30
Cutout Depth (in) 12
Cutout Height (in) 16.5

Power / ratings

Input Volts/Hertz 120/60
Electrical Input - 120V Amperage 14.5
Electrical Input - 120V Watts 1700

Warranty

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 5-year magnetron tube
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Accessories

Optional Kits CXOTRHKPMSS Brushed Stainless
Recirculating Charcoal Filter Kit WB02X35607
Optional Kits 36" Filler Kit -- JX36BW1
Optional Kits CXOTRHKPMBT Brushed Black
Optional Kits CXOTRHKPMCU Brushed Copper
Optional Kits CXOTRHKPMBZ Brushed Bronze
Optional Kits CXOTRHKPMCG Brushed Brass
Optional Kits CXOTRHKPMFB Flat Black
Optional Kits 15" Bump Out Kit - JXBUMPWW
Recirculating Charcoal Filter Kit Included

Capacity

Exhaust Capacity 300 ft3/min
Vent CFM 300
Total Capacity (cubic feet) 1.70 cu ft

Economical / quiet

Venting Type Externally Vented

Dimensions & weight

Width 29.88 in.
Height 16.31 in.
Length 17.94 in.
Weight 85 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 21.31 in.
Shipping Length 22.94 in.
Shipping Weight 95 lbs.
Total of Shipping Weight 95 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 5.06 ft³
Dimensional Weight 62.89 lbs.
Total of Cubes 5.06 ft³
Total of Dimensional Weight 62.89 lbs.

Description

Air Fry
Make your favorite "fried" foods healthy, thanks to a mode that crisps without using oil for frying

Create a streamlined cooking experience
Simplify your cooking steps by using Chef Connect to automatically activate vents and surface lights when a range element is turned on, as well as sync your microwave and range clocks

A simple and smart addition to your culinary repertoire
Fresh vegetables and rice are perfectly prepared with a steam cook button that simplifies the entire process

Say goodbye to guesswork
Enjoy consistently delicious results with sensor cooking controls that automatically adjust the time and power

Delicious results in no time at all
Enjoy oven-quality results in mere minutes with a fast cook setting that combines convection and microwave cooking technology

A microwave that's as versatile as you are
Achieve crisp, golden brown results with a convection cooking setting and a special rack that allows air to circulate around foods for even heat distribution

Brighten up the room
Illuminate the entire cooking surface with crisp, clear LED cooktop lighting that can also save on energy costs

Sparkling clean with just a wipe
Focus on the food and forget the mess knowing that the stainless steel interior with steam clean lets you swiftly wipe away spills and splatters

Like a breath of fresh air
Keep your kitchen ready for guests with a three-speed, 300-CFM venting system that removes smoke, grease, odors and moisture

Cook more at once
Prepare plenty of food with full-width removable oven rack that allow for multi-level cooking at the same time

Cook your way with just one touch of a button
Enjoy the convenience of one-touch cooking with My Cycle, a custom cycle that remembers the exact time and temperature settings of your favorite foods

More room for more food
Entertaining unexpected guests is easy with the 1.7 cu. ft. capacity that helps prepare a large amount of food quickly

10 Power Levels for Culinary Excellence
The Cafe Microwave offers 10 power levels, designed to elevate your cooking from the robust intensity needed for vibrant vegetables and aromatic beverages to the subtle warmth ideal for defrosting and nurturing delicate sauces

Express Elegance
Express Cook unites style & speed, offering you one-button 1 to 6 minutes of cooking time with flawless efficiency



Product Features

  • Like a breath of fresh air
    Keep your kitchen ready for guests with a three-speed, 300-CFM venting system that removes smoke, grease, odors and moisture
  • Cook more at once
    Prepare plenty of food with full-width removable oven rack that allow for multi-level cooking at the same time
  • Cook your way with just one touch of a button
    Enjoy the convenience of one-touch cooking with My Cycle, a custom cycle that remembers the exact time and temperature settings of your favorite foods
  • 10 Power Levels for Culinary Excellence
    The Cafe Microwave offers 10 power levels, designed to elevate your cooking from the robust intensity needed for vibrant vegetables and aromatic beverages to the subtle warmth ideal for defrosting and nurturing delicate sauces
  • Express Elegance
    Express Cook unites style & speed, offering you one-button 1 to 6 minutes of cooking time with flawless efficiency

Key Features

Delicious results in no time at all

Enjoy oven-quality results in mere minutes with a fast cook setting that combines convection and microwave cooking technology

A microwave that’s as versatile as you are

Achieve crisp, golden brown results with a convection cooking setting and a special rack that allows air to circulate around foods for even heat distribution

Brighten up the room

Illuminate the entire cooking surface with crisp, clear LED cooktop lighting that can also save on energy costs

More room for more food

Entertaining unexpected guests is easy with the 1.7 cu. ft. capacity that helps prepare a large amount of food quickly

Air Fry

Make your favorite "fried" foods healthy, thanks to a mode that crisps without using oil for frying

Create a streamlined cooking experience

Simplify your cooking steps by using Chef Connect to automatically activate vents and surface lights when a range element is turned on, as well as sync your microwave and range clocks

A simple and smart addition to your culinary repertoire

Fresh vegetables and rice are perfectly prepared with a steam cook button that simplifies the entire process

Say goodbye to guesswork

Enjoy consistently delicious results with sensor cooking controls that automatically adjust the time and power

Sparkling clean with just a wipe

Focus on the food and forget the mess knowing that the stainless steel interior with steam clean lets you swiftly wipe away spills and splatters

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,539.13 Regular price $15,527.96 Save $4,988.83 / 32% OFF

Product Details for Cafe CCP06DP4PW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Height 34.125 in
Overall Depth 26 in
Back Air Clearances 0 in
Top Air Clearances 0 in
Height to Top of Hinge 34.125 in
Side Air Clearances 0 in
Overall Width 23.75 in
Case Depth Without Door 21.75 in
Approximate Shipping Weight 165 lb
Depth Without Handle 23.375 in
Net Weight 155 lb
Cutout Height (in) 34.125
Cutout Width (in) 23.75
Cutout Depth (in) 26

Features

Hi Temp Alarm Yes, Audible & Visual
WiFi Connect Built-In
Dual Temp Zone Yes - Independent Upper & Lower Zones
Proximity Lighting Control Yes - On/Off Option, Multi Key or in App
Temperature Range 41 - 61 F
Number of Doors 1
Door Ajar Alarm Yes, Audible & Visual
Cooling method Compressor
Large Wine Bottle Capability Yes, Top Rack in Both Upper and Lower Zones
Product Type Wine Reserve
Defrost Type Auto
Interior Lighting LED/ LED Light Wall
Adjustable Temperature Control Yes
Triple Pane Glass Door Yes
Sabbath Mode Yes
Control Type Electronic
Choose Temp Zones Yes, Upper & Lower Zones
Wine Racks 6 Full-Extension, with Matte Black Fronts and Copper Accents
Refrigerant Type R600a
OU Certified No
Interior Lighting Control Door Open: Always On
Connected Capabilities Google Home
Leveling System Leveling Legs
Number of Cooling Zones 2
Interior Lighting Control Door Closed: On/Off Option
Connected Capabilities Amazon Alexa

Appearance

Toe kick Matte White, 3/4" adjustable
Color Appearance Matte White
Installation Built-In or Free-Standing
Door Swing Reversible Door
Handle Color Brushed Bronze
Door Stops 110 Degree
Handle CAFÉ™

Capacity

Unit Capacity 46 Wine Bottles
Total Capacity (cubic feet) 4.70 cu ft

Accessories

Optional Kits CXQW1H1PPSS - Brushed Stainless
Optional Kits CXQW1H1PPBZ - Brushed Bronze
Optional Kits CXQW1H1PPBT - Brushed Black
Optional Kits CXQW1H1PPCU - Brushed Copper
Optional Kits CXQW1H1PPCG Brushed Brass
Optional Kits CXQW1H1PPFB Flat Black

Power / ratings

Volts/Hertz 115V; 60Hz
Hertz 60
Electrical Requirements 115V

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes Full Five Year - Sealed System

Other

Back Air Clearances 0 in

Dimensions & weight

Width 23.75 in.
Height 34.13 in.
Length 26 in.
Weight 155 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.75 in.
Shipping Height 39.13 in.
Shipping Length 31 in.
Shipping Weight 165 lbs.
Total of Shipping Weight 165 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 12.19 ft³
Dimensional Weight 151.6 lbs.
Total of Cubes 12.19 ft³
Total of Dimensional Weight 151.6 lbs.

Description

With this Dual Zone wine chiller, you’ll keep red and white wines at their optimal temperatures so you’re always ready to host company. Its capacity is large enough to hold 46 bottles, and with a LED light wall that illuminates the entire interior, you can find the one you want in no time. Magnum bottle storage is especially helpful, letting you chill up to eight 1.5 liter bottles without sacrificing space on other shelves. Offering the latest in connected home capabilities, built-in WiFi allows you to control the unit remotely via the SmartHQ app.


Product Features

  • Open Door Notifications
    Protect your bottle collection by receiving a push notification on your smart phone each time the wine center door is open
  • Adjustable Lighting
    This wine center has flexible lighting options you can change from the SmartHQ app. Choose from proximity lighting that illuminates automatically as you approach, gradient lighting or lighting that turns on and off as you open or close the door
  • Temperature Alarm
    With a WiFi connected wine center, you receive notifications when the door has been left open or the power goes out. Now you can maintain ideal temperatures even when you're on the go
  • Hidden Temperature Controls
    These temperature controls let you make easy adjustments without distracting from the wine center's overall design
  • Customizable Handle Options
    Choose from four unique CAFÉ™ handle finishes to complement the rest of your kitchen, or your other CAFÉ™ appliances
  • Finish Options
    This wine center comes in multiple finish options, including Stainless, Matte Black and Matte White

Key Features

Flush Installation

With built-in, flush-to-cabinet installation, this wine center fits in perfectly with your home's overall design

Dual Zone Temperature Control

This wine center has two distinct zones that maintain any temperature between 41 and 61 degrees Fahrenheit, so you can keep both red and white wines at the perfect serving temperature

46-Bottle Capacity

Enjoy plenty of space to store rosé, champagne and all of your favorite wines

Articulating Door Hinges

These hinges prevent the wine center door from striking anything in the kitchen, including your cabinetry. They also help the door open smoothly and close softly

Reversible Door Options

Reversible door lets you choose whether the wine center opens to the left or the right

LED Light Wall

This wine center has an LED light wall that spans the back panel, illuminating the interior so every item is easy to find

Smart Technology

The wine center has Built-In WiFi so you can control it from anywhere. Using the SmartHQ app, you can remotely change your temperature or dim the LED light wall. Plus, you'll get the latest connected home capabilities with new modes and updates

Magnum Bottle Storage

Chill up to eight 1.5 liter bottles of wine or prosecco without scratching the label or sacrificing space on the other shelves

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

Compare with similar products

Recommendations

Previously viewed products
