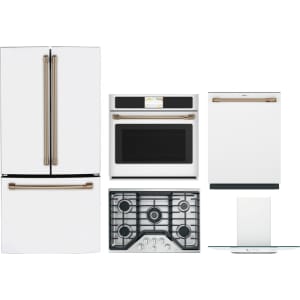

What's included: 5 items

  • Energy Star 18.6 Cu. Ft. Counter-depth French-door Refrigerator

    Cafe CWE19SP4NW2 Café 18.6 Cu. Ft. Counter-depth French-door Refrigerator Matte White

    • SKU SKU: CWE19SP4NW2 UPC: 84691845911
    • Type French Door Refrigerators
  • Professional Series 30" Smart Built-in Convection Single Wall Oven

    Cafe CTS90DP4NW2 Café Professional Series 30" Smart Built-in Convection Single Wall Oven Matte White

    • SKU SKU: CTS90DP4NW2 UPC: 84691842064
    • Type Single Wall Ovens
  • Café Customfit Stainless Interior Smart Dishwasher With Ultra Wash Top Rack And Dual Convection Ultra Dry, 44 Dba

    Cafe CDT858P4VW2 Café Customfit Stainless Interior Smart Dishwasher With Ultra Wash Top Rack And Dual Convection Ultra Dry, 44 Dba Matte White

    • SKU SKU: CDT858P4VW2 UPC: 84691914600
    • Type Built-In Dishwashers
  • Café 30" Gas Cooktop

    Cafe CGP95302MS1 Café 30" Gas Cooktop Stainless Steel

    • SKU SKU: CGP95302MS1 UPC: 84691834489
    • Type Gas Cooktops
  • 30" Wall-mount Glass Canopy Chimney Hood

    Cafe CVW73014MWM Café 30" Wall-mount Glass Canopy Chimney Hood Matte White

    • SKU SKU: CVW73014MWM UPC: 84691839149
    • Type Wall & Chimney Hoods
  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,030.31 Regular price $16,100.81 Save $6,070.50 / 37% OFF

Product Details for Cafe CWE19SP4NW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 31 in
Overall Height 69.875 in
Height to Top of Hinge 69.75 in
Net Weight 232 lb
Overall Width 32.75 in
Back Air Clearances 2 in
Approximate Shipping Weight 252 lb
Depth with Door Open 90° 42 in
Width w/Door Open 90 Degrees Incl. Handle 40.5 in
Case Depth Without Door 24.125 in
Top Air Clearances 1 in
Depth Without Handle 29 in
Height to Top of Case 68.625 in
Overall Depth with Handle 31 in
Side Air Clearances 1/8 in

Features

Temperature Management Features Turbo Cool setting
Control Type Upfront Electronic Temperature Controls
Icemaker Factory-Installed
Number of Doors 3
WiFi Connect Optional (Requires part no. PBX23W00Y1)
Performance Features Easily Removable Door Gaskets
Sabbath Mode Optional
Filter Location Upper right corner
Door Alarm Yes
Freezer Storage Baskets 2 Total
Freezer Cabinet Drawer Features Freezer Drawer
Defrost Type Frost Guard
Leveling System 2 Point Front Adjustable
Fresh Food Cabinet Shelves Glass
Fresh Food Door Bins Soft Touch Bin Liners
Freezer Features Interior Lighting - LED
Exterior Style Counter-Depth
Temperature Display Internal Digital
Fresh Food Features Soft Touch Bin Liners
Configuration French Door
Refrigerant Type R600a
Door Liner HIPS
Dispenser Internal Water
Fresh Food Cabinet Drawers Multi-Level Drawers
Water Filtration Water Filter Indicator Light
Product Type French-Door Refrigerator
OU Certified OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Fresh Food Cabinet Shelves 4 Split Adjustable
Fresh Food Door Bins 6 Adjustable with Gallon Storage
Fresh Food Cabinet Drawers 2 Humidity Controlled Drawers
Product Type Counter Depth Refrigerator
Control Type Digital Temperature Display
Freezer Features Ice Bucket
Freezer Storage Baskets 1 Full-Width, Full-Extension Plastic
Fresh Food Cabinet Drawers 1 Full-Width, Adjustable Temperature Drawer
Fresh Food Cabinet Shelves 5 Total
Fresh Food Cabinet Shelves 1 Quick Space Shelf
Fresh Food Door Bins 8 Clear Look
Fresh Food Door Bins 2 Fixed
Fresh Food Features Interior Lighting - Dual Level LED
Product Type Bottom Freezer Refrigerator
Temperature Management Features Multiflow Air System with Electronic Sensors
Water Filtration GE Water Filtration (XWFE Filter)

Capacity

Fresh Food Capacity 13.59 cu ft
Freezer Capacity 5.02 cu ft
Total Capacity (cubic feet) 18.60 cu ft

Accessories

Optional Kits CXMA3H3PNSS Brushed Stainless
Optional Kits CXMA3H3PNBZ Brushed Bronze
Optional Kits CXMA3H3PNBT Brushed Black
Optional Kits CXMA3H3PNCU Brushed Copper
Optional Kits CXMA3H3PNCG Brushed Brass
Optional Kits CXMA3H3PNFB Flat Black

Appearance

Case Color White
Exterior Design Hidden Door Hinges
Door Stops Yes
Handle Color Brushed Bronze
Counter-Depth Design Yes
Door Swing French Door
Color Appearance Matte White
Exterior Design Contoured Doors
Counter-Depth Design true
Handle CAFÉ™

Power / ratings

Energy Consumption (kWh/year) 547
Volts/Hertz/Amps 120v; 60Hz; 15A
Electrical Requirements 120V
Hertz 60
Watts 294

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance

Economical / quiet

Cabinet Liner ABS

Other

Back Air Clearances 2 in
Top Air Clearances 1 in
Side Air Clearances 0.125 in

Dimensions & weight

Width 32.75 in.
Height 69.88 in.
Length 31 in.
Weight 232 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 37.75 in.
Shipping Height 74.88 in.
Shipping Length 36 in.
Shipping Weight 252 lbs.
Total of Shipping Weight 252 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 41.05 ft³
Dimensional Weight 510.36 lbs.
Total of Cubes 41.05 ft³
Total of Dimensional Weight 510.36 lbs.

Description

Looking for a refrigerator that combines style and functionality? Look no further than the Cafe ENERGY STAR 18.6 Cu. Ft. Counter-Depth French-Door Refrigerator. With its stylish and modern French-door design and 18.6 cu. ft. capacity, this refrigerator is perfect for any kitchen. Its hidden door hinges and hinges on both the left and right sides make it easy to fit into any space. This refrigerator is more than just good looks – it's also packed with features that make it a must-have for any home. The Cafe ENERGY STAR 18.6 Cu. Ft. Counter-Depth French-Door Refrigerator boasts an advanced water filtration system as one of its standout features. With this advanced filtration system, you can rest easy knowing that you and your family are drinking clean and fresh-tasting water at all times. The system is designed to remove impurities such as lead, chlorine, and other contaminants, ensuring that the water you drink is pure and refreshing. The refrigerator also features a factory-installed icemaker, making it easy to keep your favorite drinks cold and refreshing. With ice always on hand, you never have to worry about running out, whether you're entertaining guests or just enjoying a refreshing drink on a hot day. In addition to its convenient water and ice features, the Cafe French-Door Refrigerator also boasts a door alarm that alerts you if the door is left open, so you never have to worry about spoiled food. And with its showcase LED lighting and two humidity-controlled drawers, this refrigerator makes it easy to find and store all of your favorite foods and beverages. The full-width, adjustable-temperature drawer is perfect for storing deli meats and cheeses, and the internal water dispenser means you can easily access fresh water without ever having to open the door. Plus, with no bulky dispenser on the door, you get more shelf space. With the Cafe ENERGY STAR 18.6 Cu. Ft. Counter-Depth French-Door Refrigerator, you get a high-end refrigerator that is both beautiful and functional. So why wait? Order the Cafe French-Door Refrigerator today!

Key Features

Fit for your unique space

Enjoy the aesthetic and amenities of a French-door refrigerator that fits in a 33-inch opening

Maintain the perfect environment for your food

Easily store your farmer's market veggies and fresh fruits in two humidity-controlled drawers, and place large items like party platters and sheet cakes in a full-width, adjustable-temperature drawer

Create a look that matches your personal style

Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste

Even your refrigerator is clutter free

Spend less time looking for your favorite frozen foods thanks to multi-level freezer baskets that make organization easy

Pick the perfect degree

Choose your refrigerator's exact temperature using easily adjustable controls with a digital actual temperature display

Slide-away convenience for more room

Make room for tall items like milk and fruit juice with a Quick Space shelf that slides away usefully

Enhanced Shabbos Mode

The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)

Your kitchen’s sightlines will thank you

Create a built-in look with counter-depth design that fits flush with surrounding cabinetry

Form on the outside, function on the inside

Enjoy a cleaner appliance appearance with internal water dispenser

Put your food in the spotlight

Display groceries like a gallery with showcase LED lighting positioned throughout the interior to spotlight your favorite foods and containers

Consistently cool and always fresh

Open the door as often as you need to while cooking or attending to guests and trust the Turbo Cool setting to make adjustments that will quickly return your refrigerator's internal temperature to your specified setting

Advanced Water Filtration

The included refrigerator water filter reduces 50+ impurities including lead, chlorine, microplastics, and PFOA/PFOS; providing clean, safe drinking water and ice (replacement water filters sold separately - check refrigerator filter compartment for compatible model)

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,030.31 Regular price $16,100.81 Save $6,070.50 / 37% OFF

Product Details for Cafe CTS90DP4NW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 26.75 in
Overall Height 28.625 in
Oven Interior Dimensions (W x H x D) (in.) 25 x 17-3/8 x 20 1/4
Cabinet Width 30 in
Net Weight 190 lb
Overall Width 29.75 in
Cutout Dimensions (w x h x d) (in.) 28-5/8 x 27-5/16 x 23-1/2
Approximate Shipping Weight 208 lb
Cutout Depth (in) 23.5
Depth with Door Open 48.75 in
Cutout Height (in) 27.3125
Cutout Width (in) 28.625

Features

WiFi Connect Built-In
Oven Cooking Modes Thermal Broil Hi/Lo
Fuel Type Electric
Product Type Single Oven
Oven Interior Hidden Bake
Cooking Technology Convection
Oven Features Closed Door Broiling
Cleaning Time Variable with Delay Clean Option
Configuration Single Oven
Oven Rack Positions (Single or Upper/Lower) 6
Oven Control Features Warm Mode
Sabbath Mode Yes
Oven Rack Features Embossed Rack Positions
Self-Clean Oven Door Lock Automatic
Cooking System True European Convection with Direct Air
Control Type 7" Full-Color Touch LCD Screen
Connected Capabilities The Google Assistant
OU Certified No
Oven Cleaning Type Self-Clean with Steam Clean Option
Oven Interior Black Gloss Finish
Oven Features 10-Pass Dual Broil Element
Connected Capabilities Fresco
Oven Cooking Modes Convection Bake Multi-Rack
Oven Control Features Audible Preheat Signal
Connected Capabilities Amazon Alexa
Connected Capabilities IFTTT
Connected Capabilities Innit
Connected Capabilities Sonos
Oven Control Features 12-Hour Shut-Off Capability
Oven Control Features Auto Recipe Conversion
Oven Control Features C° or F° Programmable
Oven Control Features Sabbath Mode
Oven Control Features Control Lock Capability
Oven Control Features Cook Time
Oven Control Features Dehydration
Oven Control Features Delay Time
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Mis-Wire Detection
Oven Control Features Oven Camera
Oven Control Features Proof Mode
Oven Control Features Remote Enabled
Oven Control Features Scan-to-cook
Oven Control Features Temperature Probe
Oven Cooking Modes Convection Bake
Oven Cooking Modes Convection Broil Hi/Lo
Oven Cooking Modes Convection Roast
Oven Cooking Modes Precision Cooking Modes
Oven Cooking Modes Thermal Bake
Oven Cooking Modes No Preheat Air Fry
Oven Features 10-Pass Bake Element
Oven Interior 2 Halogen Interior Oven Lights
Oven Rack Features 2 Heavy-Duty Roller Racks
Connected Capabilities Google Home

Power / ratings

Bake Wattage 2850W
Convection Wattage 2400W
Electrical Requirements 208/240V ; 60Hz ; 20A
KW Rating at 240V 4.2
Amp Rating at 208V 20
Broiler Wattage 4300W
Amp Rating at 240V 20
KW Rating at 208V 3.2
Hertz 60

Appearance

Oven Door Features Soft-Close Hinges
Handle Color Brushed Bronze
Color Appearance Matte White
Installation Undercounter
Handle Customizable
Installation Side-by-Side
Handle CAFÉ™ Pro Style
Installation Above Warming Drawer
Installation Under Cooktop
Installation Under Built-In Advantium
Installation Under Built-In Microwave
Oven Door Features Big View Oven Window

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Accessories UXWORXR30 - 30" Never Scrub Roller Rack
Optional Kits CXWS0H0PMSS Brushed Stainless
Optional Kits CXWS0H0PMBZ Brushed Bronze
Optional Kits CXWS0H0PMBT Brushed Black
Optional Kits CXWS0H0PMCU Brushed Copper
Optional Kits CXWS0H0PMCG Brushed Brass
Optional Kits CXWS0H0PMFB Flat Black

Dimensions & weight

Width 29.75 in.
Height 28.63 in.
Length 26.75 in.
Weight 190 lbs.
Oven Interior Dimensions (W x H x D) (in.) 25 x 17-3/8 x 20 1/4
Cutout Dimensions (w x h x d) (in.) 28-5/8 x 27-5/16 x 23-1/2

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 33.63 in.
Shipping Length 31.75 in.
Shipping Weight 208 lbs.
Total of Shipping Weight 208 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 13.18 ft³
Dimensional Weight 163.89 lbs.
Total of Cubes 13.18 ft³
Total of Dimensional Weight 163.89 lbs.

Capacity

Total Capacity (cubic feet) 5.00 cu ft

Description

Creating delectable meals of all sizes is an effortless endeavor with this CAFÉ™ Single Wall Oven. Features like No Preheat Air Fry and Precision Cooking Modes save you time whether you’re cooking for parties of two or 20. Plus an in-oven camera lets you monitor the progress of cooking food remotely, so you can mingle with friends during dinner parties or connect with family on busy weeknights. This wall oven is also designed to make clean-up the least eventful part of your evening, with smooth-gliding racks that can be left in the oven during the Self-Clean cycle and a Steam Clean option that’s perfect for wiping up messes after each meal. It all adds up to an easy experience that delivers stand-out results. Plus, it comes in countless combinations of finishes and hardware, to create a look as unique as you are.


Product Features

  • Soft-Close Door
    A soft-close oven door reduces noise and eliminates slams, for a more peaceful environment in the kitchen
  • Customizable Finishes and Hardware Combinations
    Get a custom look in the kitchen by selecting your favorite hardware and finish combination. Choose from Matte White, Matte Black and Stainless Steel finishes, and Brushed Copper, Brushed Bronze, Brushed Black and Brushed Stainless hardware

Key Features

Built-In WiFi, Powered by SmartHQ App

Manage all aspects of your kitchen with the help of the SmartHQ™ App or your voice assistant (Select features require WiFi Connection) See details

Personalized Features + Upgrades

Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire

Brighten up life in the kitchen

Easily navigate settings using a stunning full color display that adds an unexpected touch of style to your kitchen, including custom screen backgrounds and weather updates

True European Convection with Direct Air

This oven features True European Convection, an advanced convection system that uses a third heating element and reversing fan for the highest level of heat and air circulation

No Preheat

Eliminate the need for preheating and save time with a variety of precision cooking modes

No Preheat Air Fry

Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray

Fit Guarantee

This oven will fit your existing cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details

Self-Clean with Steam Clean

This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor

Temperature Probe

A precision temperature probe connects to the oven to ensure your food is properly cooked

In-Oven Camera

Check status from anywhere without opening the oven door with live streaming video of your food on your smartphone

Food Dehydrator

Make homemade chips, spices and dehydrated fruits more easily than ever with a moisture-removing setting in your oven

Precision Cooking Modes

Simplify the cooking process with precision cooking modes that automatically track progress, and make time and temperature adjustments

Heavy-Duty, Easy-Glide Rack

Easily access items with a rack that glides smoothly

From The Manufacturer

Videos

Rebates

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

OFFER VALID REGARDLESS OF PREVIOUSLY PURCHASED BRAND.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,030.31 Regular price $16,100.81 Save $6,070.50 / 37% OFF

Product Details for Cafe CDT858P4VW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 24 in
Overall Height 34 in
Height w/ Legs Retracted - Minimum Height 33.375 in
Cabinet Width 24 in
Net Weight 124 lb
Overall Width 23.75 in
Approximate Shipping Weight 137 lb
Overall Depth with Handle 26.3 in
Height w/Legs Extended - Maximum Height 34.625 in
Depth with Door Open 25.5 in
Depth Without Handle 24 in
Cutout Height (in) 33.5
Cutout Width (in) 24
Cutout Depth (in) 24

Features

Wash System 800 Series
Lower Rack Ball-Tip Tines
Sensor Clean Sensor
Tub Type Tall Tub
Leveling System 4 Leveling Legs
OU Certified No
Additional Protection Active Flood Protect
Number of Place Settings 16
Dishwasher Options WiFi/Remote Enabled
Latch Pull with Handle
Style Built-In Top Control
Number of Options 15
Water Filtration System 100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray One piece removable 3rd rack
Rack Features Lid Manager
Racking Material Nylon
Smart Assist Yes
Dishwasher Cycles Normal
Rack Color Black Pearl
Dispenser Rinse Aid with Indicator and Adjustment
EcoBalance Compatible Yes
WiFi Connect Built-In
Control Type Top Controls
Racking System Full 3rd rack
Dishwasher Drying Features Multi-Wattage Wash & Dry Element
Wash Arms Upper
Wash System Features Variable Speed Dual Pumps and Motors
Top Rack/3rd Rack Washing, Sliding 3rd Rack w/ removable caddy
Exterior Style Customizable Professional
Product Type Built-In
Connected Capabilities Google Home
Upper Rack Smooth Glide Upper Rack
Dishwasher Control Features Last Cycle Memory
Number of Cycles 6
Tub and Door Liner Stainless Steel
Sabbath Mode Yes
Showroom Power Mode Yes
Lower Rack 1/2 fixed tines, 1/2 fold down tines
Dishwasher Options Delay Start 1-12 Hr.
Rack Features Ball-Tipped Tines
Dishwasher Cycles Cascade Platinum Plus (on app)
Control Type Cap Touch Controls
Dishwasher Drying Features Heated Dry - Ultra/Normal/Off
Wash Arms 4 Wash Levels
Wash System Features Automatic HotStart
Upper Rack 1/2 fixed tines, 1/2 fold down tines
Dishwasher Control Features Cycle Countdown with Bi-Color LED Status Light on door
Control Type 8 Touchpads
Dishwasher Control Features Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled
Dishwasher Control Features Audible End-of-Cycle Signal
Dishwasher Cycles Auto Wash
Dishwasher Cycles Cookware
Dishwasher Cycles Gentle
Dishwasher Cycles Express
Dishwasher Drying Features Dual Convection Ultra Dry
Dishwasher Options Favorites
Dishwasher Options Presoak + Sanitize (Certified to NSF Standard 184)
Dishwasher Options Hi-Temp Wash
Dishwasher Options Silverware Wash
Dishwasher Options Heated Dry Off
Dishwasher Options Normal Dry
Dishwasher Options Ultra Dry
Dishwasher Options Lock Controls
Dishwasher Options Bottle Wash (on app)
Dishwasher Options Wash Zones/Half Load (on app)
Dishwasher Options Favorites (on app)
Dishwasher Options Sabbath Mode
Dishwasher Options Start/Cancel
Lower Rack 1 Rack handle
Rack Features Adjustable Upper Rack
Rack Features Full Extension Slides - Upper
Rack Features Cafe Flex Silverware Basket
Upper Rack Premium Height Adjustable
Upper Rack Ball-Tip Tines
Upper Rack Fixed tines with Bottle Jets
Upper Rack 1 Rack handle
Upper Rack Lid Manager
Wash Arms Lower
Wash Arms Middle
Wash Arms 3rd Rack
Wash Arms Bottle Jets
Wash Arms Deep Clean Silverware Jets
Wash System 4-Level
Wash System Features 90+ Spray Jet Wash System
Wash System Features Automatic Temperature Control
Wash System Features Bottle Jets (4)
Wash System Features Deep Clean Silverware Jets
Wash System Features Hard Food Disposer with removable filter
Wash System Features Middle Wash Arm
Wash System Features Lower Wash Arm
Connected Capabilities Amazon Alexa

Power / ratings

Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year) 240
Electrical Requirements 120v ; 60Hz ; 7.2A
Calrod Heater Watts 800/500
Volts/Hertz/Amps 120v; 60Hz; 7.2A
Hertz 60
Watts 936

Economical / quiet

Door Insulation Mastic
Quiet Package 44 dBA
Outer Wrap Full-wrap Blanket
Motor Type Variable Speed
Quiet Features Tub Collar Trim
Quiet Features Sealed Toe Kick
Door Insulation Insulation
Outer Wrap Bitumen
Quiet Features Quiet Water Valve

Accessories

Optional 12' Drain Hose Optional hose kit (WD24X10065)
Optional Kits CXADTH1PVSS Brushed Stainless
Optional Kits CXADTH1PVBZ Brushed Bronze
Optional Kits CXADTH1PVCU Brushed Copper
Optional Kits CXADTH1PVBT Brushed Black
Optional Kits CXADTH1PVCG Brushed Brass
Optional Kits CXADTH1PVFB Flat Black

Appearance

Installation Side Installation or Top Installation Included
Door Style Long Door with Top Controls
Handle Color Brushed Bronze
Door Appearance Full-length flat door
Color Appearance Matte White
Control Panel Color Matte Dark Slate, Fingerprint Resistant
Handle Design Customizable
Handle CAFÉ™
Installation Flush Cabinet Installation
Installation Built-Up Floor Capable

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Dimensions & weight

Width 23.75 in.
Height 34 in.
Length 24 in.
Weight 124 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.75 in.
Shipping Height 39 in.
Shipping Length 29 in.
Shipping Weight 137 lbs.
Total of Shipping Weight 137 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 11.22 ft³
Dimensional Weight 139.42 lbs.
Total of Cubes 11.22 ft³
Total of Dimensional Weight 139.42 lbs.

Description

CustomFit Top Rack with Ultra Wash
Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

CustomFit Basket with Ultra Wash
Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

CustomFit Lid Caddy
Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.

Ultra Wash & Dual Convection Ultra Dry
Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. Exceptional features like Variable-Pressure Jets and Dual-Convection Ultra Dry offer great results with every cycle.

Customizable Dishwasher Handles
Choose from six unique CAF(EBACK)(TM) handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

4 Bottle Wash Jets
This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Smart Features Powered by SmartHQ(TM)
Built-in WiFi and the SmartHQ(TM) app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

Smart Assist
Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.

Smooth-Glide Adjustable Middle Rack
Load your dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".

Presoak + Sanitize
Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.

Silverware Wash
Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.

Middle and Lower Rack Fold-Down Tines
Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

Wash Zones
Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.

Active Flood Protect
Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

Flush Installation
Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.



Product Features

  • Flush Installation
    Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.

Key Features

CustomFit Basket with Ultra Wash

Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

CustomFit Lid Caddy

Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.

Customizable Dishwasher Handles

Choose from six unique CAFÉ™ handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

4 Bottle Wash Jets

This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Smart Assist

Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.

Smooth-Glide Adjustable Middle Rack

Load your dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".

Presoak + Sanitize

Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.

Silverware Wash

Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.

Wash Zones

Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.

Middle and Lower Rack Fold-Down Tines

Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

Active Flood Protect

Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

CustomFit Top Rack with Ultra Wash

Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

Ultra Wash & Dual Convection Ultra Dry

Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. Exceptional features like Variable-Pressure Jets and Dual-Convection Ultra Dry offer great results with every cycle.

Smart Features Powered by SmartHQ

Built-in WiFi and the SmartHQ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

Smart Features Powered by SmartHQ™

Built-in WiFi and the SmartHQ™ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,030.31 Regular price $16,100.81 Save $6,070.50 / 37% OFF

Product Details for Cafe CGP95302MS1

Technical Details

Features

Cooktop Burner Type 5 Sealed
Burner - Right Rear 5,000 BTU
Valves (Degree of Turn) 270
Burner - Right Front 12,000 BTU
Fuel Type Natural Gas
Control Location Front Center
Cooktop Type Continuous Grates
Ignition System Electronic
Burner - Center 20,000 BTU Tri-ring Power Boil
Cooktop Surface Deep Stainless Steel
Cooktop Control Features Child Lock
Burner - Left Rear 9,500 BTU
Control Type Knob
Cooktop Burner Grate Features Edge-to-Edge Grates
Griddle Included
Cooktop Burner Grate Material Heavy Cast
Burner - Left Front 9,500 BTU
Product Type Cooktop
Cooktop Burner Grate Features Dishwasher Safe
Cooktop Burner Grate Features Continuous Grates
Griddle Cast Iron

Power / ratings

Burner BTU Ratings (000's/BTU) - LP Gas (1) 18.0; (1) 12.0; (2) 9.5; (1) 5.0
Burner BTU Ratings (000's/BTU) - Natural Gas (1) 20.0; (1) 12.0; (2) 9.5; (1) 5.0
Volts/Hertz/Amps 120V; 60Hz; 5A
Hertz 60
Electrical Requirements 120V

Weights & dimensions

Overall Height 5.5 in
Cabinet Width 30 in
Approximate Shipping Weight 51 lb
Overall Width 30 in
Net Weight 45 lb
Overall Depth 21 in
Cutout Width (in) 28.5
Cutout Height (in) 3.6875
Cutout Depth (in) 19.625

Warranty

Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance

Appearance

Color Appearance Stainless Steel
Cooktop Burner Grate Color Matte Black
Control Knobs White LED Backlit
Control Knobs Stainless Steel Appearance
Control Knobs Dishwasher Safe

Accessories

Optional Kits CXCG1K0PMCU Brushed Copper
Stainless Steel Cleaner Included
Griddle Accessory JXGRIDL230 Included
Optional Kits CXCG1K0PMBZ Brushed Bronze
Optional Kits CXCG1K0PMBT Brushed Black

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 30 in.
Height 5.5 in.
Length 21 in.
Weight 45 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 10.5 in.
Shipping Length 26 in.
Shipping Weight 51 lbs.
Total of Shipping Weight 51 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 2.01 ft³
Dimensional Weight 24.93 lbs.
Total of Cubes 2.01 ft³
Total of Dimensional Weight 24.93 lbs.

Description

Sears and sautés are handled with ease on a 20,000 BTU Tri-Ring Burner, while the Extra-Large, Integrated cooktop Griddle offers up the perfect space for crab cakes and veggies. White LED Backlit Heavy Duty Knobs add a spark to your kitchen. Offering a large cooking surface with five sealed burners, including a convenient simmer burner, this versatile cooktop makes creating any size or type of meal easy.


Product Features

  • Safety controls add peace of mind
    Prevent unintended burner activation with control lock capability
  • Let the dishwasher do the cleaning
    Enjoy the party without worrying about clean up, thanks to dishwasher-safe grates

Key Features

Versatile burner complements every cooking style

Sear, fry and sauté on a 20,000 BTU triple ring burner

Spend more time cooking and less time cleaning up

Keep your kitchen sparkling, even when there's a spill with sealed cooktop burners that contain messes for easy cleanup

Guaranteed to fit your space

When you’re updating your kitchen, attention to detail is a priority. That’s why CAFÉ™ cooktops are guaranteed for an exact fit or CAFÉ™ Appliances will pay up to $100 toward modifications.

More space, more burners, more impressive

Always have the space you need to whip up your specialties with a 30" cooktop with five sealed burners

Simmer away

Always get your hollandaise just right with a simmer burner that provides low, even heat

Extra-large griddle means more cooking with less cookware

Get the most from your cooktop and eliminate the need for extra cookware with an optional extra-large, integrated cooktop griddle

Stylish knobs show when burners are on

Give your kitchen a little glimmer with white LED knob lighting

One surface makes cooking easier

Easily move heavy cookware across the surface without worry, thanks to continuous, cast-iron grates

From The Manufacturer

Videos

Rebates

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

OFFER VALID REGARDLESS OF PREVIOUSLY PURCHASED BRAND.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Rebates
  • Reviews
Sale price $10,030.31 Regular price $16,100.81 Save $6,070.50 / 37% OFF

Product Details for Cafe CVW73014MWM

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 18.5 in
Overall Height 1.75 in
Cabinet Width 30 in
Net Weight 43 lb
Approximate Shipping Weight 60 lb
Overall Width 30 in

Features

Cooktop Lighting Halogen
Fan Speed Control 4-Speed
Max CFM 350
Ducting Vertical Only
Light Controls On/Off/Night
Filter Cleaning Dishwasher Safe
CFM/ Sones Rating 350/6.1 (Boost Speed)
Exhaust Options Vented to Outside
Product Type Wall-Mount Hood
6" Round Duct Yes
Control Type Electronic Touch
Control Location Front
Removable Grease Filter(s) Yes
Blower Type Internal
CFM/ Sones Rating 330/5.4 (High Speed)
CFM/ Sones Rating 160/.9 (Working Speed)
Exhaust Options Recirculating
Required Duct Size 6 in. Round
Control Type Backlit

Appearance

Blower / Light Switch Color Backlit
Material Steel
Color Appearance Matte White

Accessories

Optional Accessories UXRC70 - Remote Control
Optional Accessories UXDC734MWM - 10 (ft.) Ceiling Duct Cover Kit
Optional Accessories JXCF71 - Charcoal Filter

Power / ratings

Amp Rating at 120V 5.3
Watts 236
Hertz 60
Electrical Requirements 120V ; 60Hz ; 5.3A

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Economical / quiet

Venting Type Convertible

Dimensions & weight

Width 30 in.
Height 1.75 in.
Length 18.5 in.
Weight 43 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 6.75 in.
Shipping Length 23.5 in.
Shipping Weight 60 lbs.
Total of Shipping Weight 60 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 0.56 ft³
Dimensional Weight 5.85 lbs.
Total of Cubes 0.56 ft³
Total of Dimensional Weight 5.85 lbs.

Description

Easily eliminate odors that result from cooking large meals with a 350 CFM Venting System. Additional lighting features, like Electronic Backlit Controls, Dual Halogen Cooktop Lighting, and a Night Light mean you have the light you need when and where you need it - even for those midnight snacks.


Product Features

  • Freshen up your kitchen air
    Fill the kitchen with fresh air with two convertible venting options: recirculating or external venting
  • Light up your night
    See your way through midnight snacking with a night light that softly illuminates the cooktop and surrounding areas
  • Control at your fingertips
    Share favorite stories without interruption, thanks to an optional remote control that can change lighting and fan speed settings from anywhere in the kitchen.
  • Never forget to power down
    Keep conversations flowing without interruption thanks to an auto-off feature that deactivates the vent after 15 minutes
  • Clean up cleaning up
    Simplify clean-up with a dishwasher-safe filter that removes grease and can be cleaned alongside dishes too

Key Features

Design a kitchen that breathes

Keep your kitchen smelling fresh and ready for guests with a 350-CFM venting system with boost that removes smoke, grease, odors and moisture

Enjoy effortless control

Add a conversation-starter to your kitchen with electronic backlit controls that look great and are easy to use

Create a warmly lit atmosphere

Clearly watch the progress of preparing your favorite meals with dual halogen cooktop lighting that brightly illuminates the cooking surface

From The Manufacturer

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

Compare with similar products

Recommendations

Previously viewed products
