What's included: 5 items

  • Energy Star® 27.7 Cu. Ft. Smart French-door Refrigerator With Hot Water Dispenser

    Cafe CFE28TP4MW2 Café 27.7 Cu. Ft. Smart French-door Refrigerator With Hot Water Dispenser Matte White

    • SKU SKU: CFE28TP4MW2 UPC: 84691836186
    • Type French Door Refrigerators
  • Professional Series 30" Smart Built-in Convection Single Wall Oven

    Cafe CTS90DP4NW2 Café Professional Series 30" Smart Built-in Convection Single Wall Oven Matte White

    • SKU SKU: CTS90DP4NW2 UPC: 84691842064
    • Type Single Wall Ovens

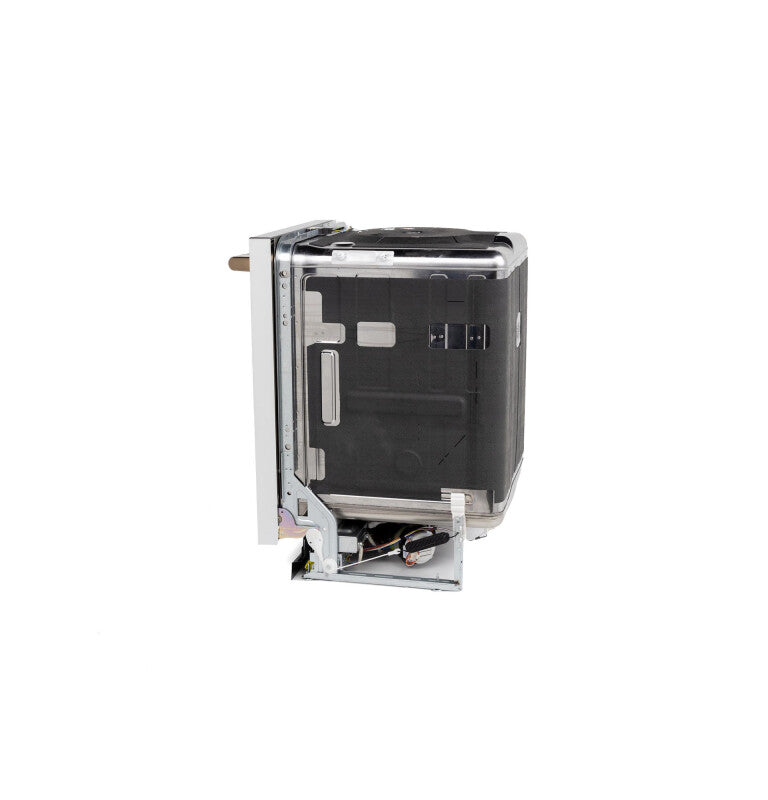

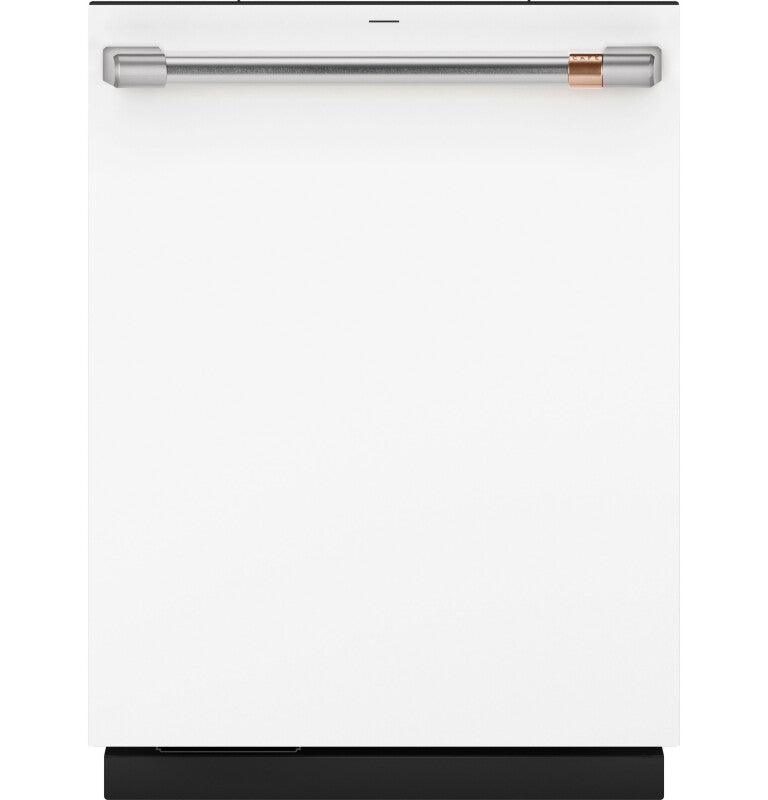

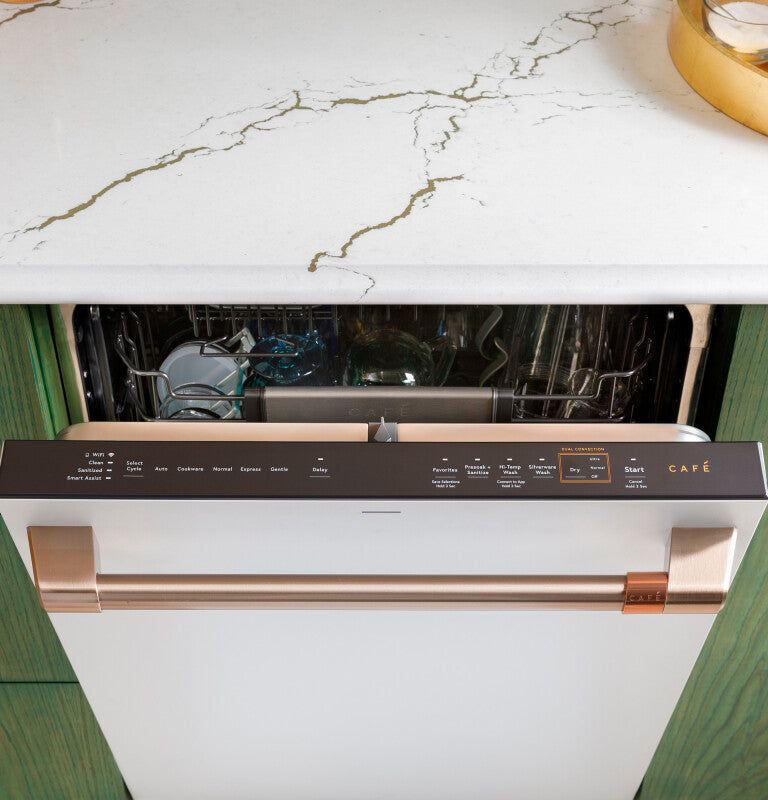

  • Café Customfit Stainless Interior Smart Dishwasher With Ultra Wash Top Rack And Dual Convection Ultra Dry, 44 Dba

    Cafe CDT858P4VW2 Café Customfit Stainless Interior Smart Dishwasher With Ultra Wash Top Rack And Dual Convection Ultra Dry, 44 Dba Matte White

    • SKU SKU: CDT858P4VW2 UPC: 84691914600
    • Type Built-In Dishwashers
  • Café 30" Touch-control Electric Cooktop

    Cafe CEP90301TBB Café 30" Touch-control Electric Cooktop Black

    • SKU SKU: CEP90301TBB UPC: 84691897675
    • Type Electric Cooktops

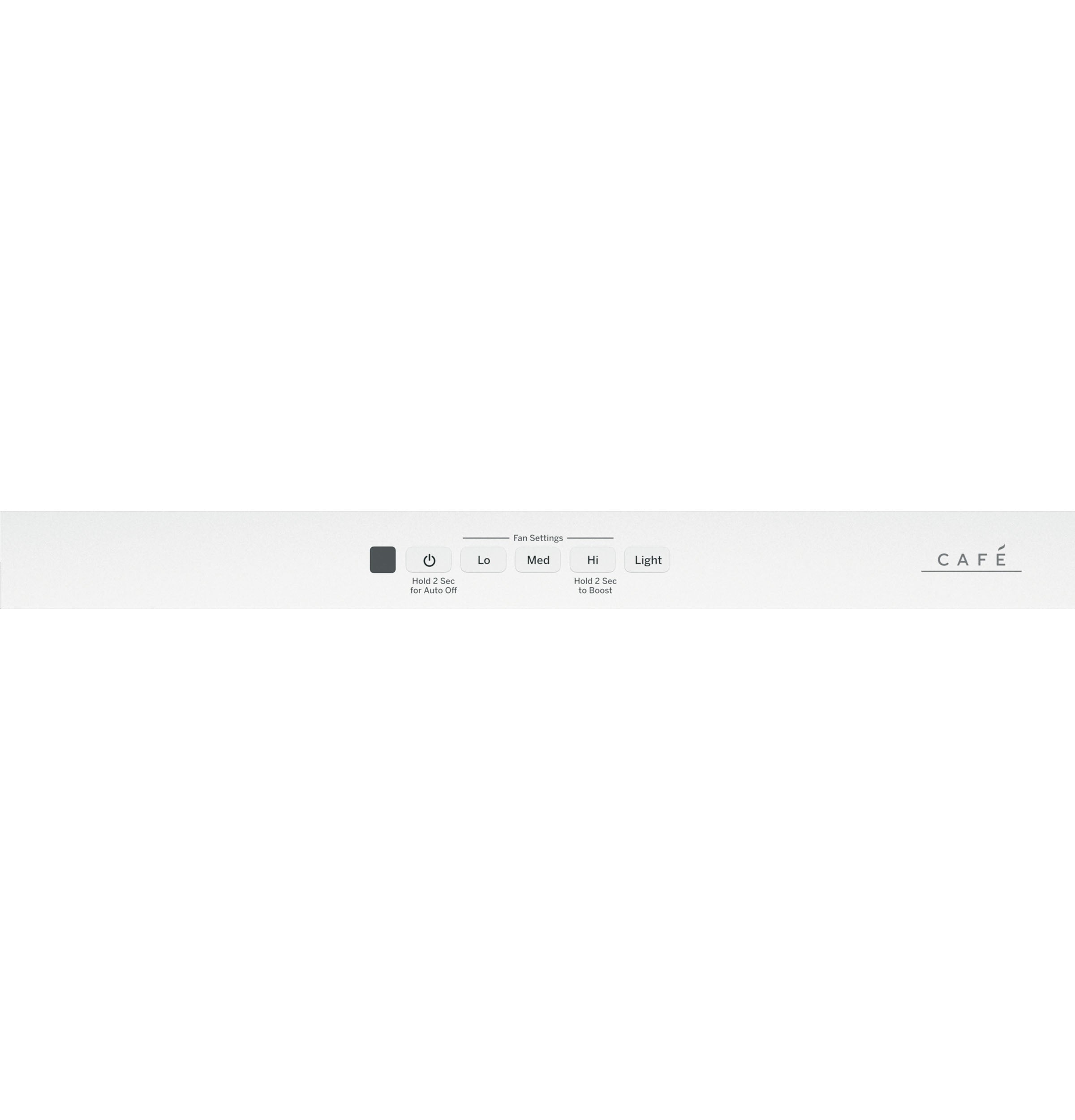

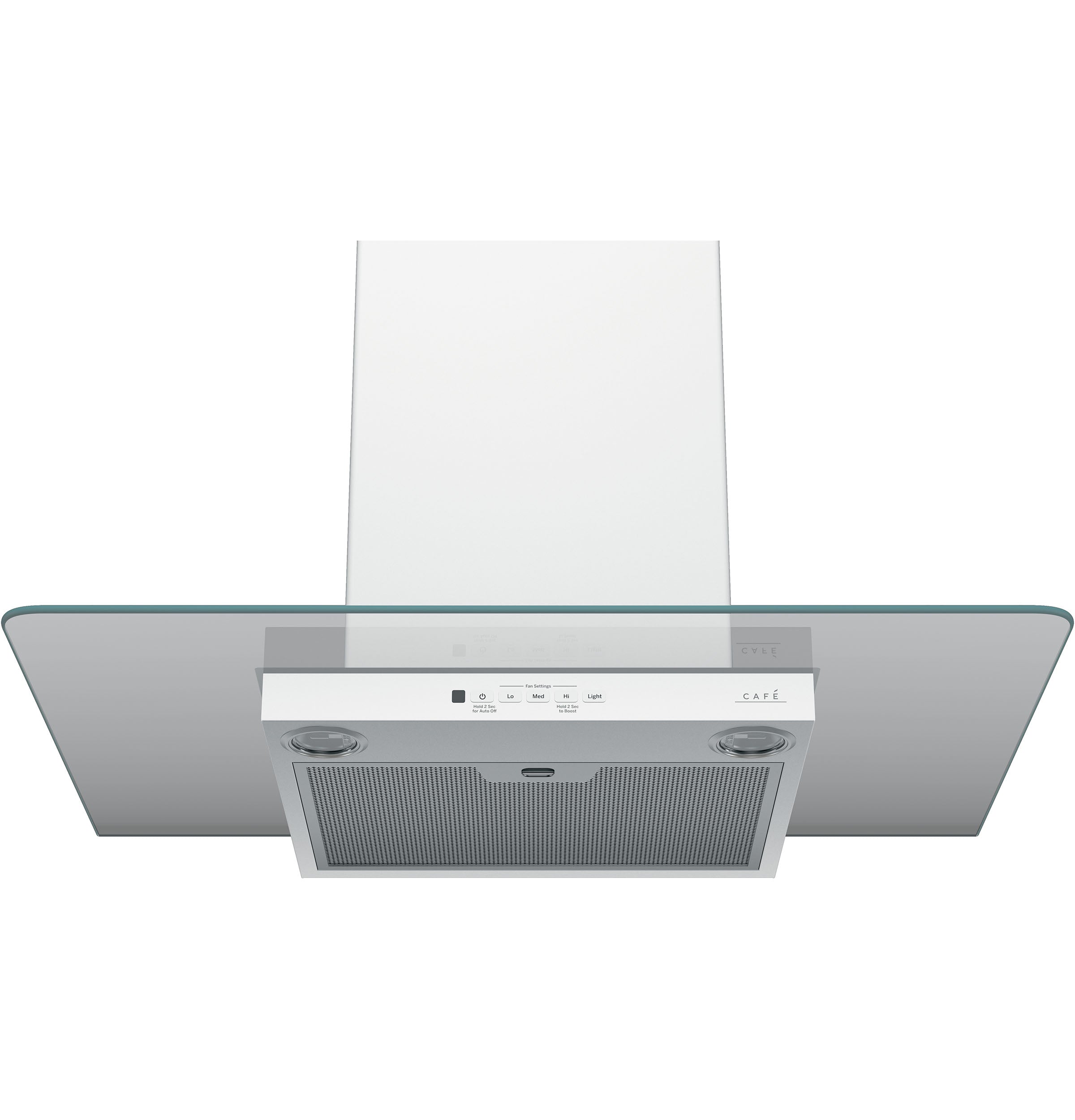

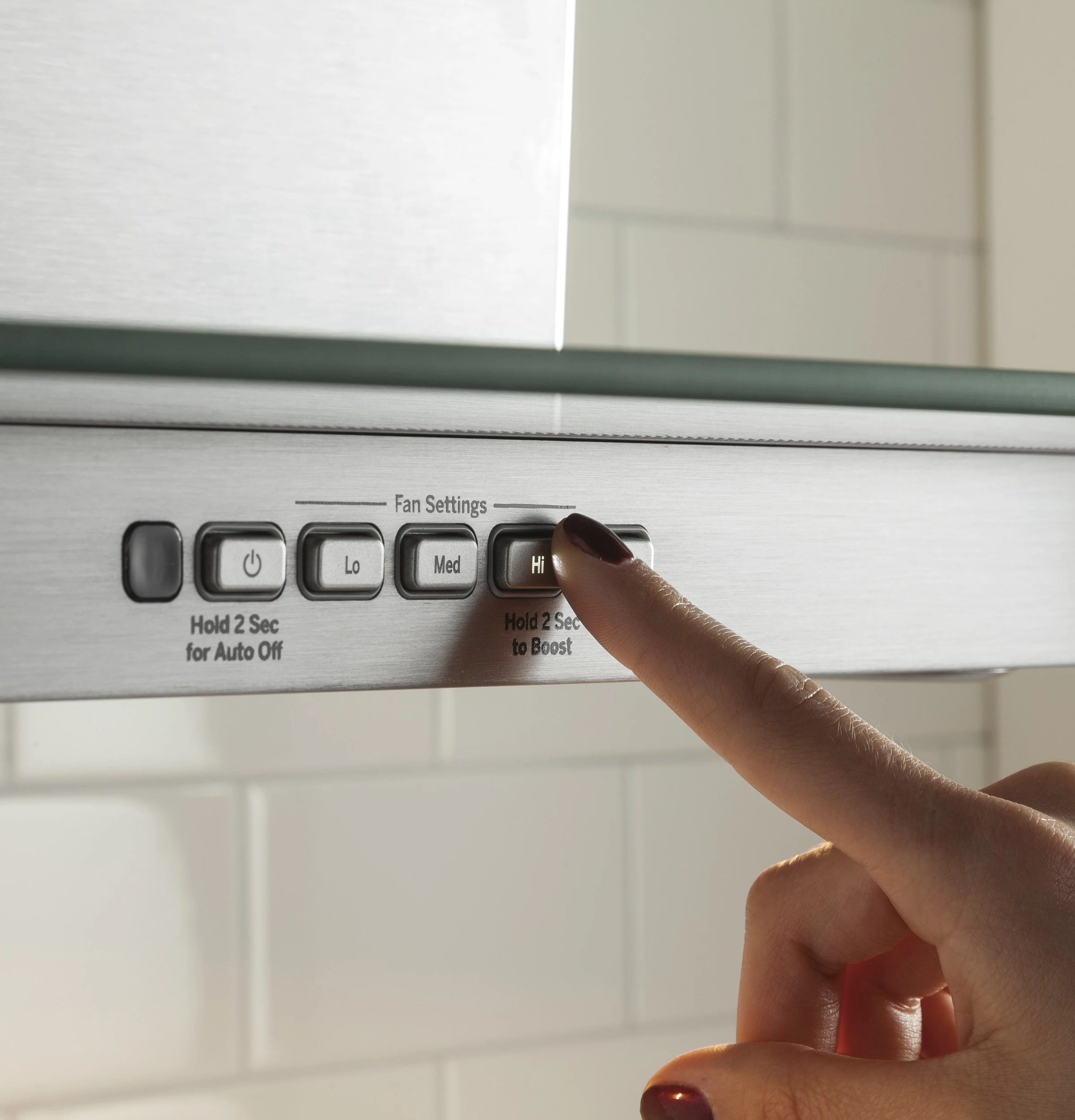

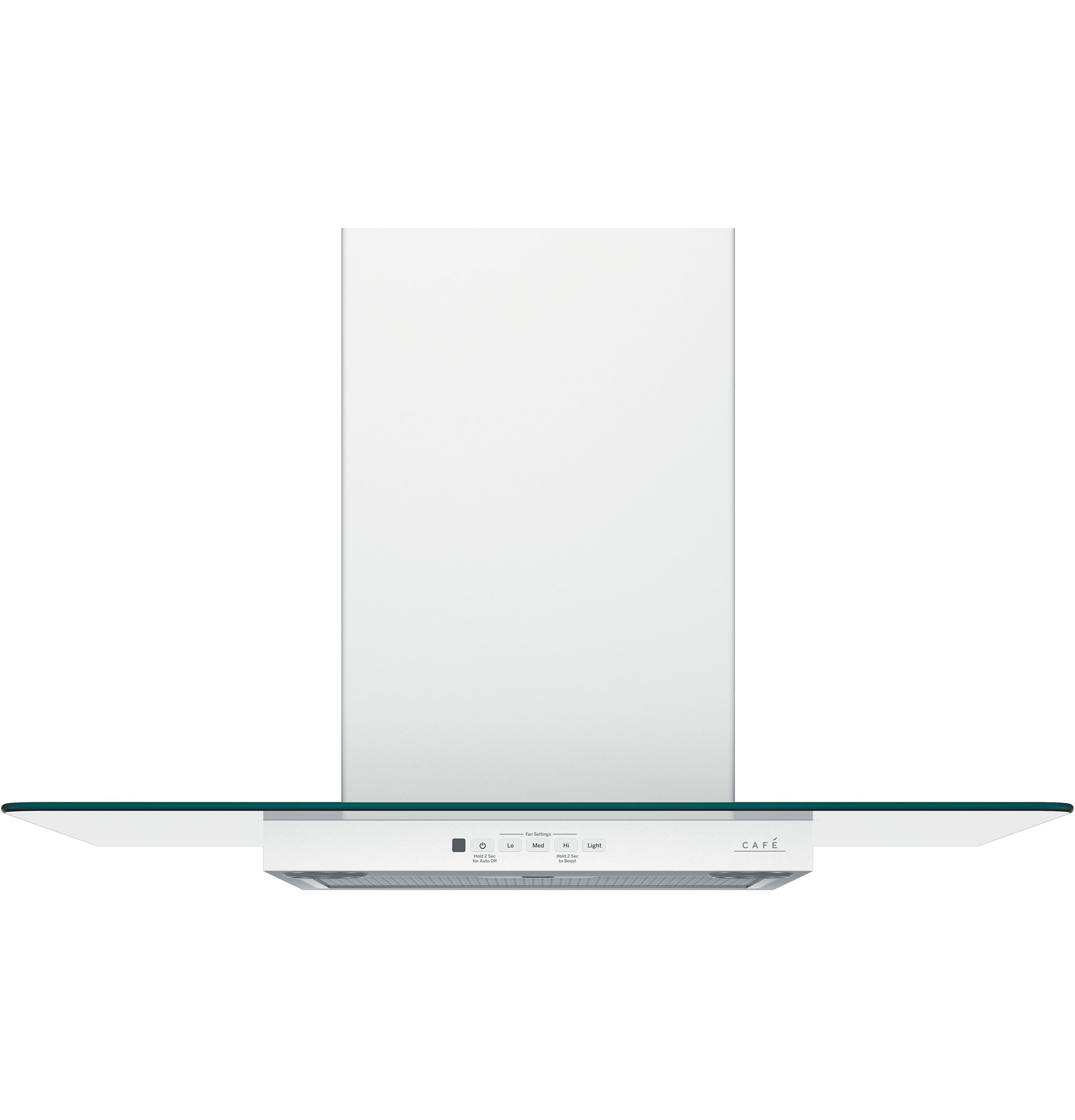

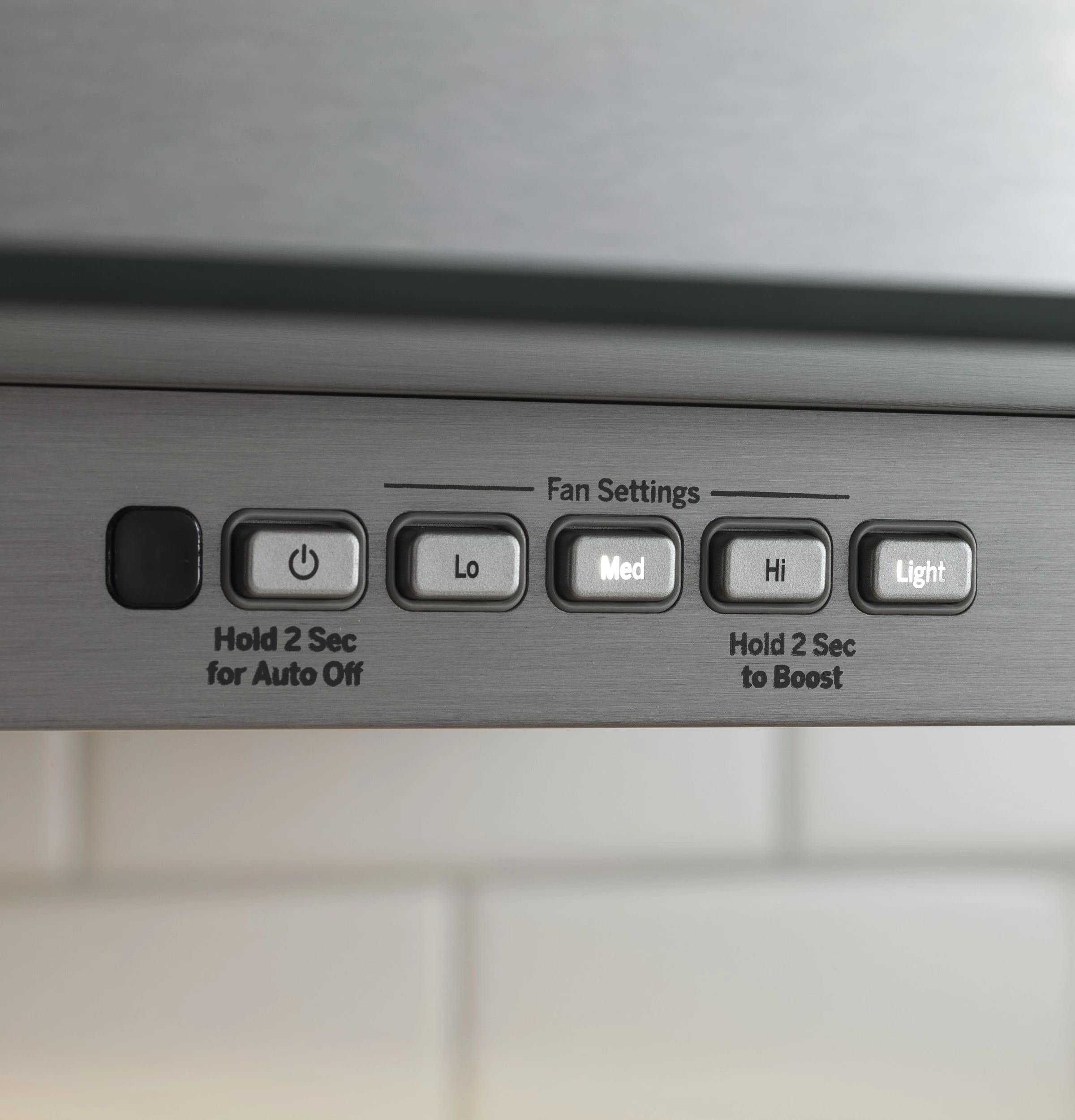

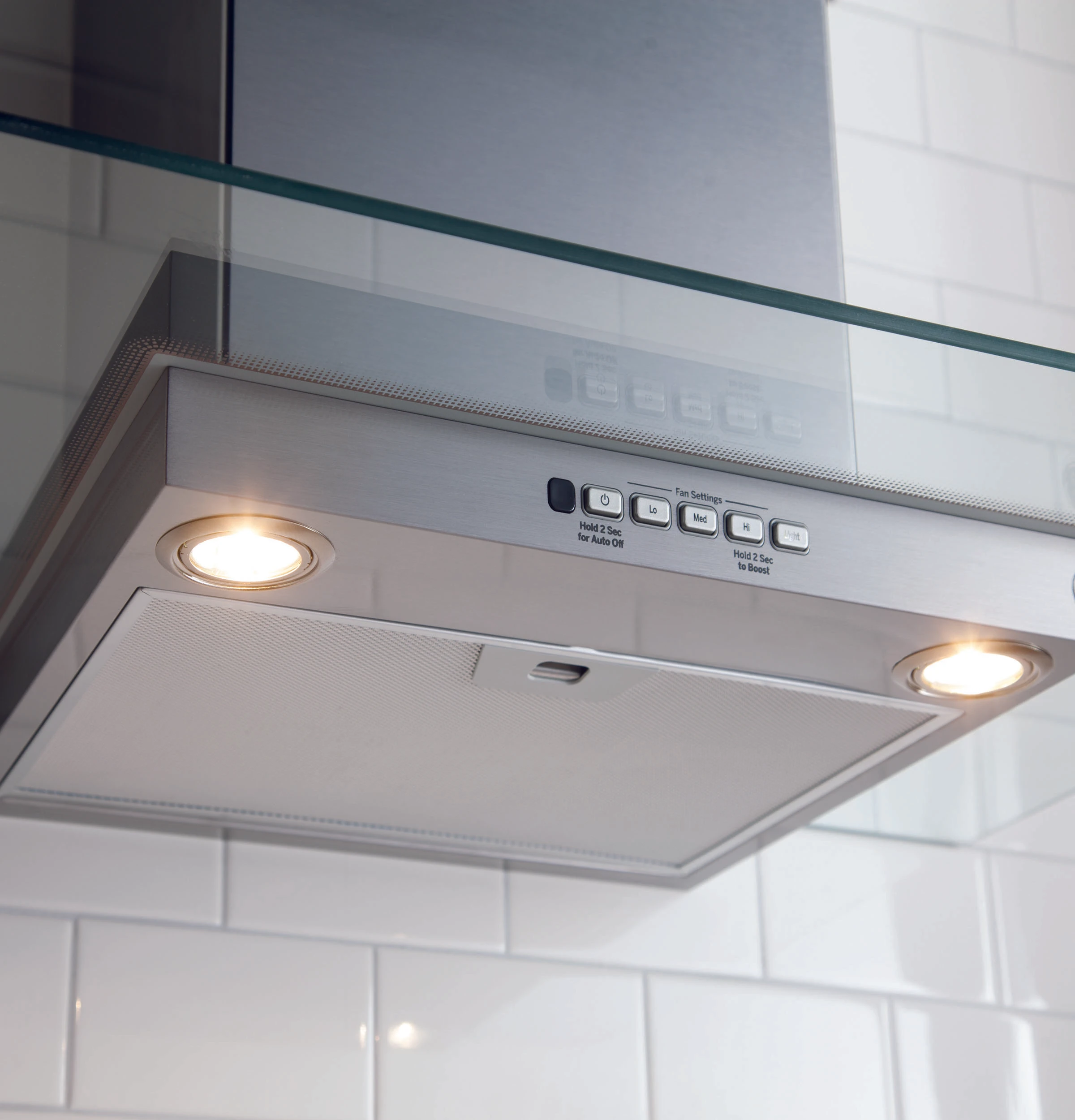

  • 30" Wall-mount Glass Canopy Chimney Hood

    Cafe CVW73014MWM Café 30" Wall-mount Glass Canopy Chimney Hood Matte White

    • SKU SKU: CVW73014MWM UPC: 84691839149
    • Type Wall & Chimney Hoods
  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,816.01 Regular price $17,124.67 Save $6,308.66 / 36% OFF

Product Details for Cafe CFE28TP4MW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Features

Temperature Management Features Turbo Cool setting
Dispenser Features Water Filter Indicator Light
Control Type External Touch Color LCD
Icemaker Space Saving Ice
Number of Doors 3
WiFi Connect Built-In
Performance Features Easily Removable Door Gaskets
Sabbath Mode Optional
Filter Location Left wall
Freezer Storage Baskets 2 Full-Width
Temperature Management System TwinChill™ Evaporators
Connected Capabilities IFTTT
Defrost Type Frost Guard
Fresh Food Door Features Drop Down Tray
Leveling System 2 Front Leveling Legs
Fresh Food Cabinet Shelves 5 Total - Glass with Silver Trim
Fresh Food Door Bins Soft Touch Bin Liners
Freezer Features Turbo Freeze
Exterior Style Standard Depth
Temperature Display External Digital
Fresh Food Features Soft Touch Bin Liners
Configuration French Door
Refrigerant Type R600a
Dispenser Large Stainless Steel
Fresh Food Cabinet Drawers Electronic Temperature Control w/ LED Lighting
Water Filtration Water Filter Indicator Light
Product Type French-Door Refrigerator
OU Certified OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Door Alarm Yes
Dispenser Features Hot Water
Connected Capabilities Google Home
Fresh Food Cabinet Shelves 3 Spill Proof
Fresh Food Door Bins 6 Total
Fresh Food Features Showcase LED Lighting 7
Fresh Food Cabinet Drawers 2 Adjustable Humidity Drawers
Water Filtration Advanced Filtration System
Dispenser Cubes, Crushed Ice and Water
Dispenser Features Precise Fill
Dispenser Features LCD Screen Controls
Dispenser Features Door Alarm
Dispenser Features LED Dispenser Light
Freezer Features Interior Lighting - Showcase LED (2)
Fresh Food Cabinet Drawers 3 Total
Fresh Food Cabinet Drawers 1 Full-Width, Adjustable Temperature Drawer
Fresh Food Cabinet Shelves 4 Split Adjustable; 1 Full-Width
Fresh Food Cabinet Shelves 1 Quick Space Shelf
Fresh Food Door Bins 2 Adjustable with Gallon Storage
Fresh Food Door Features Dairy Compartment
Fresh Food Features Deli Pan
Product Type Bottom Freezer Refrigerator
Water Filtration Removes Pharmaceuticals
Water Filtration Find your filter here
Exterior Style Free-Standing
Connected Capabilities Amazon Alexa

Accessories

Optional Kits CXLB3H3PMSS Brushed Stainless
Optional Matte White Side Panels CKLBRSFNW2
Optional Kits CXLB3H3PMBZ Brushed Bronze
Optional Kits CXLB3H3PMCU Brushed Copper
Optional Kits CXLB3H3PMBT Brushed Black
Optional Kits CXLB3H3PMCG Brushed Brass
Optional Kits CXLB3H3PMFB Flat Black
Optional Matte White Side Panels CKLBLSFNW2

Appearance

Case Color White
Exterior Design Flat Doors
Door Stops Yes
Handle Color Brushed Bronze
Door Swing French Door
Color Appearance Matte White
Hidden Door Hinge(s) Yes
Handle CAFÉ™

Weights & dimensions

Overall Depth 36.25 in
Height to Top of Hinge 69.875 in
Net Weight 388 lb
Overall Width 35.75 in
Back Air Clearances 2 in
Approximate Shipping Weight 423 lb
Depth with Door Open 90° 48.375 in
Width w/Door Open 90 Degrees Incl. Handle 44.75 in
Case Depth Without Door 29.375 in
Top Air Clearances 1 in
Depth Without Handle 35.25 in
Height to Top of Case 69 in
Overall Height 69.875 in
Overall Depth with Handle 36.25 in
Side Air Clearances 1/8 in

Power / ratings

Energy Consumption (kWh/year) 725
Volts/Hertz/Amps 120V ; 60Hz ; 15A
Electrical Requirements 120V
Hertz 60

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance

Capacity

Freezer Capacity 9.17 cu ft
Fresh Food Capacity 18.50 cu ft
Total Capacity (cubic feet) 27.70 cu ft

Dimensions & weight

Width 35.75 in.
Height 69.88 in.
Length 36.25 in.
Weight 388 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.75 in.
Shipping Height 74.88 in.
Shipping Length 41.25 in.
Shipping Weight 423 lbs.
Total of Shipping Weight 423 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 52.4 ft³
Dimensional Weight 651.46 lbs.
Total of Cubes 52.4 ft³
Total of Dimensional Weight 651.46 lbs.

Description

This refrigerator lets you achieve the perfect balance of form and function, backing its customizable appearance with features like a hot water dispenser, WiFi Connect and a Precise Fill setting—features that come together to make your kitchen as beautiful as it is useful.


Product Features

  • Create a look that matches your personal style
    Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste
  • Enhanced Shabbos Mode
    The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)
  • Advanced Water Filtration
    The included refrigerator water filter reduces 50+ impurities including lead, chlorine, microplastics, and PFOA/PFOS; providing clean, safe drinking water and ice (replacement water filters sold separately - check refrigerator filter compartment for compatible model)

Key Features

Fresh expectations

Expect fresh food each time you pull out the full-width, electronic temperature-controlled drawer, complete with LED lighting so every item is easy to find

The easiest way to fill your largest containers

Easily fill tall glasses and pitchers using a stainless steel dispenser with pullout tray that is designed to hold larger containers

Magnet-free photos for the refrigerator

Display your favorite photos on your refrigerator door in an entirely new way, with a built-in, brilliant-color LCD screen that has photo upload capabilities

Cozy up with a hot cup of tea anytime

Steep a relaxing herbal tea or prepare light & fluffy couscous with an adjustable hot water dispenser that provides precise temperatures and measurements

You're always in control, wherever you are

Use your voice or smart device to preheat water from your refrigerator while you relax in another part of the house

Guarantee a just-right fill

Whether you're filling a water bottle or adding water to a recipe, dispense an exact amount with just a touch by using the Precise Fill setting

Any food, always fresh

From produce to packaged goods, keep any food fresh with TwinChill™ evaporators that create separate climates in the fresh food and freezer sections

Put your food in the spotlight

Illuminate foods in the refrigerator and freezer with brilliant Showcase LED lighting, positioned throughout the interior and under the fresh-food doors

Cleverly store a little more

Perfect for storing a few smaller items, an in-the-door, drop-down tray easily releases and locks, so you have extra room when you need it

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,816.01 Regular price $17,124.67 Save $6,308.66 / 36% OFF

Product Details for Cafe CTS90DP4NW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 26.75 in
Overall Height 28.625 in
Oven Interior Dimensions (W x H x D) (in.) 25 x 17-3/8 x 20 1/4
Cabinet Width 30 in
Net Weight 190 lb
Overall Width 29.75 in
Cutout Dimensions (w x h x d) (in.) 28-5/8 x 27-5/16 x 23-1/2
Approximate Shipping Weight 208 lb
Cutout Depth (in) 23.5
Depth with Door Open 48.75 in
Cutout Height (in) 27.3125
Cutout Width (in) 28.625

Features

WiFi Connect Built-In
Oven Cooking Modes Thermal Broil Hi/Lo
Fuel Type Electric
Product Type Single Oven
Oven Interior Hidden Bake
Cooking Technology Convection
Oven Features Closed Door Broiling
Cleaning Time Variable with Delay Clean Option
Configuration Single Oven
Oven Rack Positions (Single or Upper/Lower) 6
Oven Control Features Warm Mode
Sabbath Mode Yes
Oven Rack Features Embossed Rack Positions
Self-Clean Oven Door Lock Automatic
Cooking System True European Convection with Direct Air
Control Type 7" Full-Color Touch LCD Screen
Connected Capabilities The Google Assistant
OU Certified No
Oven Cleaning Type Self-Clean with Steam Clean Option
Oven Interior Black Gloss Finish
Oven Features 10-Pass Dual Broil Element
Connected Capabilities Fresco
Oven Cooking Modes Convection Bake Multi-Rack
Oven Control Features Audible Preheat Signal
Connected Capabilities Amazon Alexa
Connected Capabilities IFTTT
Connected Capabilities Innit
Connected Capabilities Sonos
Oven Control Features 12-Hour Shut-Off Capability
Oven Control Features Auto Recipe Conversion
Oven Control Features C° or F° Programmable
Oven Control Features Sabbath Mode
Oven Control Features Control Lock Capability
Oven Control Features Cook Time
Oven Control Features Dehydration
Oven Control Features Delay Time
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Mis-Wire Detection
Oven Control Features Oven Camera
Oven Control Features Proof Mode
Oven Control Features Remote Enabled
Oven Control Features Scan-to-cook
Oven Control Features Temperature Probe
Oven Cooking Modes Convection Bake
Oven Cooking Modes Convection Broil Hi/Lo
Oven Cooking Modes Convection Roast
Oven Cooking Modes Precision Cooking Modes
Oven Cooking Modes Thermal Bake
Oven Cooking Modes No Preheat Air Fry
Oven Features 10-Pass Bake Element
Oven Interior 2 Halogen Interior Oven Lights
Oven Rack Features 2 Heavy-Duty Roller Racks
Connected Capabilities Google Home

Power / ratings

Bake Wattage 2850W
Convection Wattage 2400W
Electrical Requirements 208/240V ; 60Hz ; 20A
KW Rating at 240V 4.2
Amp Rating at 208V 20
Broiler Wattage 4300W
Amp Rating at 240V 20
KW Rating at 208V 3.2
Hertz 60

Appearance

Oven Door Features Soft-Close Hinges
Handle Color Brushed Bronze
Color Appearance Matte White
Installation Undercounter
Handle Customizable
Installation Side-by-Side
Handle CAFÉ™ Pro Style
Installation Above Warming Drawer
Installation Under Cooktop
Installation Under Built-In Advantium
Installation Under Built-In Microwave
Oven Door Features Big View Oven Window

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Accessories UXWORXR30 - 30" Never Scrub Roller Rack
Optional Kits CXWS0H0PMSS Brushed Stainless
Optional Kits CXWS0H0PMBZ Brushed Bronze
Optional Kits CXWS0H0PMBT Brushed Black
Optional Kits CXWS0H0PMCU Brushed Copper
Optional Kits CXWS0H0PMCG Brushed Brass
Optional Kits CXWS0H0PMFB Flat Black

Dimensions & weight

Width 29.75 in.
Height 28.63 in.
Length 26.75 in.
Weight 190 lbs.
Oven Interior Dimensions (W x H x D) (in.) 25 x 17-3/8 x 20 1/4
Cutout Dimensions (w x h x d) (in.) 28-5/8 x 27-5/16 x 23-1/2

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 33.63 in.
Shipping Length 31.75 in.
Shipping Weight 208 lbs.
Total of Shipping Weight 208 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 13.18 ft³
Dimensional Weight 163.89 lbs.
Total of Cubes 13.18 ft³
Total of Dimensional Weight 163.89 lbs.

Capacity

Total Capacity (cubic feet) 5.00 cu ft

Description

Creating delectable meals of all sizes is an effortless endeavor with this CAFÉ™ Single Wall Oven. Features like No Preheat Air Fry and Precision Cooking Modes save you time whether you’re cooking for parties of two or 20. Plus an in-oven camera lets you monitor the progress of cooking food remotely, so you can mingle with friends during dinner parties or connect with family on busy weeknights. This wall oven is also designed to make clean-up the least eventful part of your evening, with smooth-gliding racks that can be left in the oven during the Self-Clean cycle and a Steam Clean option that’s perfect for wiping up messes after each meal. It all adds up to an easy experience that delivers stand-out results. Plus, it comes in countless combinations of finishes and hardware, to create a look as unique as you are.


Product Features

  • Soft-Close Door
    A soft-close oven door reduces noise and eliminates slams, for a more peaceful environment in the kitchen
  • Customizable Finishes and Hardware Combinations
    Get a custom look in the kitchen by selecting your favorite hardware and finish combination. Choose from Matte White, Matte Black and Stainless Steel finishes, and Brushed Copper, Brushed Bronze, Brushed Black and Brushed Stainless hardware

Key Features

Built-In WiFi, Powered by SmartHQ App

Manage all aspects of your kitchen with the help of the SmartHQ™ App or your voice assistant (Select features require WiFi Connection) See details

Personalized Features + Upgrades

Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire

Brighten up life in the kitchen

Easily navigate settings using a stunning full color display that adds an unexpected touch of style to your kitchen, including custom screen backgrounds and weather updates

True European Convection with Direct Air

This oven features True European Convection, an advanced convection system that uses a third heating element and reversing fan for the highest level of heat and air circulation

No Preheat

Eliminate the need for preheating and save time with a variety of precision cooking modes

No Preheat Air Fry

Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray

Fit Guarantee

This oven will fit your existing cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details

Self-Clean with Steam Clean

This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor

Temperature Probe

A precision temperature probe connects to the oven to ensure your food is properly cooked

In-Oven Camera

Check status from anywhere without opening the oven door with live streaming video of your food on your smartphone

Food Dehydrator

Make homemade chips, spices and dehydrated fruits more easily than ever with a moisture-removing setting in your oven

Precision Cooking Modes

Simplify the cooking process with precision cooking modes that automatically track progress, and make time and temperature adjustments

Heavy-Duty, Easy-Glide Rack

Easily access items with a rack that glides smoothly

From The Manufacturer

Videos

Rebates

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

OFFER VALID REGARDLESS OF PREVIOUSLY PURCHASED BRAND.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,816.01 Regular price $17,124.67 Save $6,308.66 / 36% OFF

Product Details for Cafe CDT858P4VW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 24 in
Overall Height 34 in
Height w/ Legs Retracted - Minimum Height 33.375 in
Cabinet Width 24 in
Net Weight 124 lb
Overall Width 23.75 in
Approximate Shipping Weight 137 lb
Overall Depth with Handle 26.3 in
Height w/Legs Extended - Maximum Height 34.625 in
Depth with Door Open 25.5 in
Depth Without Handle 24 in
Cutout Height (in) 33.5
Cutout Width (in) 24
Cutout Depth (in) 24

Features

Wash System 800 Series
Lower Rack Ball-Tip Tines
Sensor Clean Sensor
Tub Type Tall Tub
Leveling System 4 Leveling Legs
OU Certified No
Additional Protection Active Flood Protect
Number of Place Settings 16
Dishwasher Options WiFi/Remote Enabled
Latch Pull with Handle
Style Built-In Top Control
Number of Options 15
Water Filtration System 100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray One piece removable 3rd rack
Rack Features Lid Manager
Racking Material Nylon
Smart Assist Yes
Dishwasher Cycles Normal
Rack Color Black Pearl
Dispenser Rinse Aid with Indicator and Adjustment
EcoBalance Compatible Yes
WiFi Connect Built-In
Control Type Top Controls
Racking System Full 3rd rack
Dishwasher Drying Features Multi-Wattage Wash & Dry Element
Wash Arms Upper
Wash System Features Variable Speed Dual Pumps and Motors
Top Rack/3rd Rack Washing, Sliding 3rd Rack w/ removable caddy
Exterior Style Customizable Professional
Product Type Built-In
Connected Capabilities Google Home
Upper Rack Smooth Glide Upper Rack
Dishwasher Control Features Last Cycle Memory
Number of Cycles 6
Tub and Door Liner Stainless Steel
Sabbath Mode Yes
Showroom Power Mode Yes
Lower Rack 1/2 fixed tines, 1/2 fold down tines
Dishwasher Options Delay Start 1-12 Hr.
Rack Features Ball-Tipped Tines
Dishwasher Cycles Cascade Platinum Plus (on app)
Control Type Cap Touch Controls
Dishwasher Drying Features Heated Dry - Ultra/Normal/Off
Wash Arms 4 Wash Levels
Wash System Features Automatic HotStart
Upper Rack 1/2 fixed tines, 1/2 fold down tines
Dishwasher Control Features Cycle Countdown with Bi-Color LED Status Light on door
Control Type 8 Touchpads
Dishwasher Control Features Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled
Dishwasher Control Features Audible End-of-Cycle Signal
Dishwasher Cycles Auto Wash
Dishwasher Cycles Cookware
Dishwasher Cycles Gentle
Dishwasher Cycles Express
Dishwasher Drying Features Dual Convection Ultra Dry
Dishwasher Options Favorites
Dishwasher Options Presoak + Sanitize (Certified to NSF Standard 184)
Dishwasher Options Hi-Temp Wash
Dishwasher Options Silverware Wash
Dishwasher Options Heated Dry Off
Dishwasher Options Normal Dry
Dishwasher Options Ultra Dry
Dishwasher Options Lock Controls
Dishwasher Options Bottle Wash (on app)
Dishwasher Options Wash Zones/Half Load (on app)
Dishwasher Options Favorites (on app)
Dishwasher Options Sabbath Mode
Dishwasher Options Start/Cancel
Lower Rack 1 Rack handle
Rack Features Adjustable Upper Rack
Rack Features Full Extension Slides - Upper
Rack Features Cafe Flex Silverware Basket
Upper Rack Premium Height Adjustable
Upper Rack Ball-Tip Tines
Upper Rack Fixed tines with Bottle Jets
Upper Rack 1 Rack handle
Upper Rack Lid Manager
Wash Arms Lower
Wash Arms Middle
Wash Arms 3rd Rack
Wash Arms Bottle Jets
Wash Arms Deep Clean Silverware Jets
Wash System 4-Level
Wash System Features 90+ Spray Jet Wash System
Wash System Features Automatic Temperature Control
Wash System Features Bottle Jets (4)
Wash System Features Deep Clean Silverware Jets
Wash System Features Hard Food Disposer with removable filter
Wash System Features Middle Wash Arm
Wash System Features Lower Wash Arm
Connected Capabilities Amazon Alexa

Power / ratings

Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year) 240
Electrical Requirements 120v ; 60Hz ; 7.2A
Calrod Heater Watts 800/500
Volts/Hertz/Amps 120v; 60Hz; 7.2A
Hertz 60
Watts 936

Economical / quiet

Door Insulation Mastic
Quiet Package 44 dBA
Outer Wrap Full-wrap Blanket
Motor Type Variable Speed
Quiet Features Tub Collar Trim
Quiet Features Sealed Toe Kick
Door Insulation Insulation
Outer Wrap Bitumen
Quiet Features Quiet Water Valve

Accessories

Optional 12' Drain Hose Optional hose kit (WD24X10065)
Optional Kits CXADTH1PVSS Brushed Stainless
Optional Kits CXADTH1PVBZ Brushed Bronze
Optional Kits CXADTH1PVCU Brushed Copper
Optional Kits CXADTH1PVBT Brushed Black
Optional Kits CXADTH1PVCG Brushed Brass
Optional Kits CXADTH1PVFB Flat Black

Appearance

Installation Side Installation or Top Installation Included
Door Style Long Door with Top Controls
Handle Color Brushed Bronze
Door Appearance Full-length flat door
Color Appearance Matte White
Control Panel Color Matte Dark Slate, Fingerprint Resistant
Handle Design Customizable
Handle CAFÉ™
Installation Flush Cabinet Installation
Installation Built-Up Floor Capable

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Dimensions & weight

Width 23.75 in.
Height 34 in.
Length 24 in.
Weight 124 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.75 in.
Shipping Height 39 in.
Shipping Length 29 in.
Shipping Weight 137 lbs.
Total of Shipping Weight 137 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 11.22 ft³
Dimensional Weight 139.42 lbs.
Total of Cubes 11.22 ft³
Total of Dimensional Weight 139.42 lbs.

Description

CustomFit Top Rack with Ultra Wash
Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

CustomFit Basket with Ultra Wash
Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

CustomFit Lid Caddy
Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.

Ultra Wash & Dual Convection Ultra Dry
Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. Exceptional features like Variable-Pressure Jets and Dual-Convection Ultra Dry offer great results with every cycle.

Customizable Dishwasher Handles
Choose from six unique CAF(EBACK)(TM) handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

4 Bottle Wash Jets
This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Smart Features Powered by SmartHQ(TM)
Built-in WiFi and the SmartHQ(TM) app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

Smart Assist
Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.

Smooth-Glide Adjustable Middle Rack
Load your dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".

Presoak + Sanitize
Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.

Silverware Wash
Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.

Middle and Lower Rack Fold-Down Tines
Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

Wash Zones
Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.

Active Flood Protect
Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

Flush Installation
Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.



Product Features

  • Flush Installation
    Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.

Key Features

CustomFit Basket with Ultra Wash

Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

CustomFit Lid Caddy

Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.

Customizable Dishwasher Handles

Choose from six unique CAFÉ™ handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

4 Bottle Wash Jets

This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Smart Assist

Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.

Smooth-Glide Adjustable Middle Rack

Load your dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".

Presoak + Sanitize

Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.

Silverware Wash

Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.

Wash Zones

Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.

Middle and Lower Rack Fold-Down Tines

Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

Active Flood Protect

Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

CustomFit Top Rack with Ultra Wash

Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

Ultra Wash & Dual Convection Ultra Dry

Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. Exceptional features like Variable-Pressure Jets and Dual-Convection Ultra Dry offer great results with every cycle.

Smart Features Powered by SmartHQ

Built-in WiFi and the SmartHQ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

Smart Features Powered by SmartHQ™

Built-in WiFi and the SmartHQ™ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $10,816.01 Regular price $17,124.67 Save $6,308.66 / 36% OFF

Product Details for Cafe CEP90301TBB

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Features

WiFi Connect Built-In
Filler trim kit JXTR32B
Cooktop Burner Type Smoothtop
Melt Setting Yes
Fuel Type Electric
Element - Left Front 7" 1500W
Indicator Lights Surface Element "ON"
Dual Ring Burners Yes
Element - Right Front 8"/5" 2200W Dual
Control Location Front Center
Cooktop Type Radiant Smoothtop
Cooktop Surface Black Ceramic Glass with Beveled Edge
Cooktop Control Features Sync-Burners Capability
WiFi Enabled Features Precision cooking with HestanCue Pans (HMI and App)
Element - Left Rear 7" 1500W (Keep Warm)
Control Type Glide Touch
Element - Center 9"/7"/5" 3000W Tri-ring Power Boil
Element - Right Rear 6" 1200W (Melt)
Product Type Cooktop
Connected Capabilities Google Home
Indicator Lights Red
Cooktop Control Features Control Lock Capability
WiFi Enabled Features Interfaces with SmartHQ App
Control Type Electronic
Cooktop Burner Type 5 Ribbon
Cooktop Control Features All-Off Control
Cooktop Control Features Custom Settings
Cooktop Control Features Keep-Warm Setting
Cooktop Control Features Kitchen timer
Cooktop Control Features Melt Setting
Cooktop Control Features LED Light level adjustment
Cooktop Control Features Sound adjustment
Indicator Lights 5 Hot Surface
WiFi Enabled Features Bluetooth Pairing - Chef Connect with Hoods/OTRs and HestenCue Pans (HMI)
Connected Capabilities Amazon Alexa

Power / ratings

Recommended Circuit Breaker (Amps) at 240V 40
Max. Connected Load (kW) at 240V 9.5
Max. Current Draw (Amps) at 240V 39.6
Max. Connected Load (kW) at 208V 7.1
Recommended Circuit Breaker (Amps) at 208V 40
Max. Current Draw (Amps) at 208V 34.1
Hertz 60
Electrical Requirements 208/240V ; 60Hz ; 40A

Weights & dimensions

Cooktop Size 30 in
Overall Height 3.375 in
Cabinet Width 30 in
Approximate Shipping Weight 40 lb
Overall Width 29.875 in
Net Weight 34 lb
Overall Depth 21.5 in
Cutout Height (in) 5.5625
Cutout Width (in) 28.5
Cutout Depth (in) 19.625

Warranty

Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance

Appearance

Color Appearance Black
Frameless Yes
Control Knobs Black

Dimensions & weight

Width 29.88 in.
Height 3.38 in.
Length 21.5 in.
Weight 34 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 8.38 in.
Shipping Length 26.5 in.
Shipping Weight 40 lbs.
Total of Shipping Weight 40 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 1.25 ft³
Dimensional Weight 15.6 lbs.
Total of Cubes 1.25 ft³
Total of Dimensional Weight 15.6 lbs.

Description

This electric cooktop is the perfect centerpiece for any kitchen. Five radiant cooking elements deliver precise, even heating for your signature dishes, and glide touch controls let you choose from 19 different settings with just a swipe of your finger. Powered by Bluetooth, Precision Temperature Control lets you use smart pans to take your results to the next level, dialing into the exact temperature desired, like you do on your oven. In addition to flawless functionality, a smooth glass surface is easy to clean and beveled edges bring design sophistication to your kitchen.

Key Features

Glide Touch Controls

Choose from 19 different heat settings with one easy swipe for precise heat control on this easy-to-clean electric cooktop.

Synchronized Elements

Connect and control two cooktop burners as one to create a bigger cooking surface for pans such as griddles.

Chef Connect

Synchronize your cooktop and CAFÉ™ over-the-range microwave or hood so that your fan and lights automatically come on when a burner is activated with Chef Connect

Keep Warm Setting

This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water.

Control Lock

Protect against unintentionally turning your cooktop on with a safety control lock setting.

Hot Surface Indicator Lights

A quick glance is all it takes to know when elements are hot on this electric cooktop with hot surface indicator lights.

Smart Cookware Rebate

Smart pans and a wireless sous vide probe easily pair with this smart cooktop to ensure you get the perfect cooking results. Earn a rebate for a free Hestan Cue smart pan

Built-in WiFi

This smart cooktop features Built-In WiFi so you can monitor your burners and view power levels, precision temperature, or on/off.

Fit Guarantee

This cooktop will fit your existing 30" cut-out or CAFÉ™ will help pay for modifications up to $100. See offer criteria and details

Easy Clean Surface with Beveled Edge

A smooth glass surface with beveled edge makes this an easy clean electric cooktop that adds a level of aesthetic sophistication

Power Boil on Tri- and Dual-Ring Elements

Cook more faster with a 3,000W Tri-ring element and a 2,200W dual-ring element that can handle any pan size.

Precision Temperature Control

Set your burner to an exact degree, not just high, medium or low, with Precision Temperature Control. Using a smart pan, the cooktop maintains a specific temperature – from 100 to 500 degrees. Perfect for sauces, candies and frying.

From The Manufacturer

Videos

Rebates

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

OFFER VALID REGARDLESS OF PREVIOUSLY PURCHASED BRAND.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Rebates
  • Reviews
Sale price $10,816.01 Regular price $17,124.67 Save $6,308.66 / 36% OFF

Product Details for Cafe CVW73014MWM

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 18.5 in
Overall Height 1.75 in
Cabinet Width 30 in
Net Weight 43 lb
Approximate Shipping Weight 60 lb
Overall Width 30 in

Features

Cooktop Lighting Halogen
Fan Speed Control 4-Speed
Max CFM 350
Ducting Vertical Only
Light Controls On/Off/Night
Filter Cleaning Dishwasher Safe
CFM/ Sones Rating 350/6.1 (Boost Speed)
Exhaust Options Vented to Outside
Product Type Wall-Mount Hood
6" Round Duct Yes
Control Type Electronic Touch
Control Location Front
Removable Grease Filter(s) Yes
Blower Type Internal
CFM/ Sones Rating 330/5.4 (High Speed)
CFM/ Sones Rating 160/.9 (Working Speed)
Exhaust Options Recirculating
Required Duct Size 6 in. Round
Control Type Backlit

Appearance

Blower / Light Switch Color Backlit
Material Steel
Color Appearance Matte White

Accessories

Optional Accessories UXRC70 - Remote Control
Optional Accessories UXDC734MWM - 10 (ft.) Ceiling Duct Cover Kit
Optional Accessories JXCF71 - Charcoal Filter

Power / ratings

Amp Rating at 120V 5.3
Watts 236
Hertz 60
Electrical Requirements 120V ; 60Hz ; 5.3A

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Economical / quiet

Venting Type Convertible

Dimensions & weight

Width 30 in.
Height 1.75 in.
Length 18.5 in.
Weight 43 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 6.75 in.
Shipping Length 23.5 in.
Shipping Weight 60 lbs.
Total of Shipping Weight 60 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 0.56 ft³
Dimensional Weight 5.85 lbs.
Total of Cubes 0.56 ft³
Total of Dimensional Weight 5.85 lbs.

Description

Easily eliminate odors that result from cooking large meals with a 350 CFM Venting System. Additional lighting features, like Electronic Backlit Controls, Dual Halogen Cooktop Lighting, and a Night Light mean you have the light you need when and where you need it - even for those midnight snacks.


Product Features

  • Freshen up your kitchen air
    Fill the kitchen with fresh air with two convertible venting options: recirculating or external venting
  • Light up your night
    See your way through midnight snacking with a night light that softly illuminates the cooktop and surrounding areas
  • Control at your fingertips
    Share favorite stories without interruption, thanks to an optional remote control that can change lighting and fan speed settings from anywhere in the kitchen.
  • Never forget to power down
    Keep conversations flowing without interruption thanks to an auto-off feature that deactivates the vent after 15 minutes
  • Clean up cleaning up
    Simplify clean-up with a dishwasher-safe filter that removes grease and can be cleaned alongside dishes too

Key Features

Design a kitchen that breathes

Keep your kitchen smelling fresh and ready for guests with a 350-CFM venting system with boost that removes smoke, grease, odors and moisture

Enjoy effortless control

Add a conversation-starter to your kitchen with electronic backlit controls that look great and are easy to use

Create a warmly lit atmosphere

Clearly watch the progress of preparing your favorite meals with dual halogen cooktop lighting that brightly illuminates the cooking surface

From The Manufacturer

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

Compare with similar products

Recommendations

Previously viewed products
