Product Details for Broan PMA400SS

Technical Details

Product details

Filter Type Micro Mesh
Heat Sentry™ Yes
HVI Certified Yes
Lighting Type LED
Sound Level (Sones) 1
UL Listed Yes
ADA Compliance Yes
Damper Included No
ENERGY STAR® certified Yes
Light Bulbs Included Yes
Light Levels 1
Material Steel
Nightlight Or Nighlight Setting No
Ductless Recirculation Capable Yes
Ductless Filter Or Kit Included No
Remote Operation Capable No
Speed Levels 1
Switch Control Type Wall Control
Rated Voltage 120
Boost Mode No
Minimum Height Above Cook Top 24
Rated Amps 2.3
Product Depth 11.4375
Product Height 10.5625
Product Width 21.375
Built-In Timer No
CFM 450
Diameter 3 1/4 in x 10 in (H-V) or 6 in round (V)
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) Integrated LED Module
Manufacturer Warranty 1 year

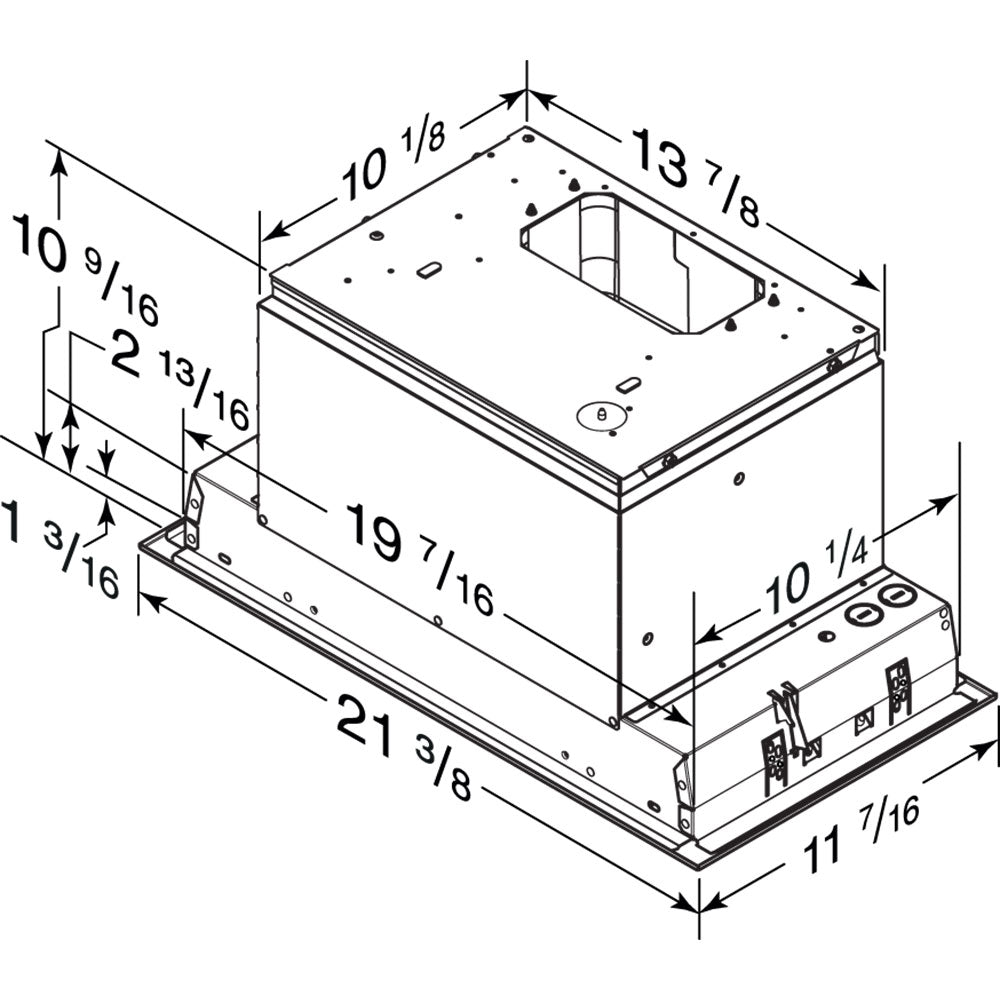

Dimensions & weight

Width 21.38 in.
Height 10.56 in.
Length 11.44 in.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 1.49 ft³
Dimensional Weight 18.58 lbs.
Total of Cubes 1.49 ft³
Total of Dimensional Weight 18.58 lbs.

Number of boxes, shipping dimensions, & shipping weight

Shipping Width 13.5 in.
Shipping Depth 24.2 in.
Shipping Height 15 in.
Shipping Weight 19 lb.

Description

From the leader in residential indoor air quality, this Broan® custom range hood insert is the perfect solution for cabinet installations and custom kitchen designs. As the only built-in range hood in the market that includes a remote wall control it provides convenient operation and is compatible with ADA applications. The kitchen is the most polluted room in the house regardless of type of cooking appliance; everything from smoke, odors and chemicals is in the air. The range hood is often forgotten as the primary and most effective way to get the pollutants out of the home. This range hood is HVI certified – guaranteed to provide efficient ventilation with 450 Max Blower CFM to remove the pollutants and improve the air you breathe. While ventilating the kitchen air this range hood is still quiet at 1 sones on normal speed which is as loud as a refrigerator noise. This Broan® built-in range hood features a smooth, stainless-steel surface that is easy to clean with quick-release dishwasher-safe filters. The bright 1-level, heat resistant LED lighting makes even the worst cook’s recipe look great. The EZ1 Installation System allows for 1-person installation, making installation fast for both the professional and DiY installers. At Broan-NuTone we believe that better quality of air means better quality of life.


Product Features

  • ADA Compatible: Included remote wall control provides convenient operation and is compatible with ADA applications
  • EZ1 Installation System: Easy single person installation in half the time for both professional and DiY installers
  • Efficient Ventilation: Remove smoke, odors and cooking pollutants with the 450 Max Blower CFM
  • Custom Built-In: Design your dream kitchen with the custom insert range hood that can be built-in to cabinets
  • ENERGY STAR Certified: Save energy costs and have powerful ventilation
  • Bright 1-level, heat resistant LED modules enhance your cooking experience
  • Dishwasher-safe aluminum mesh filters feature quick-release latch for easy removal
  • Works with optional stainless LB30SS and LB36SS liners.
  • Optional non-duct recirculation kit and filters available for indoor exhaust recirculation to suit your needs.
  • Works with optional universal make-up air dampers
