SKU: L500KL | UPC: 026715125135

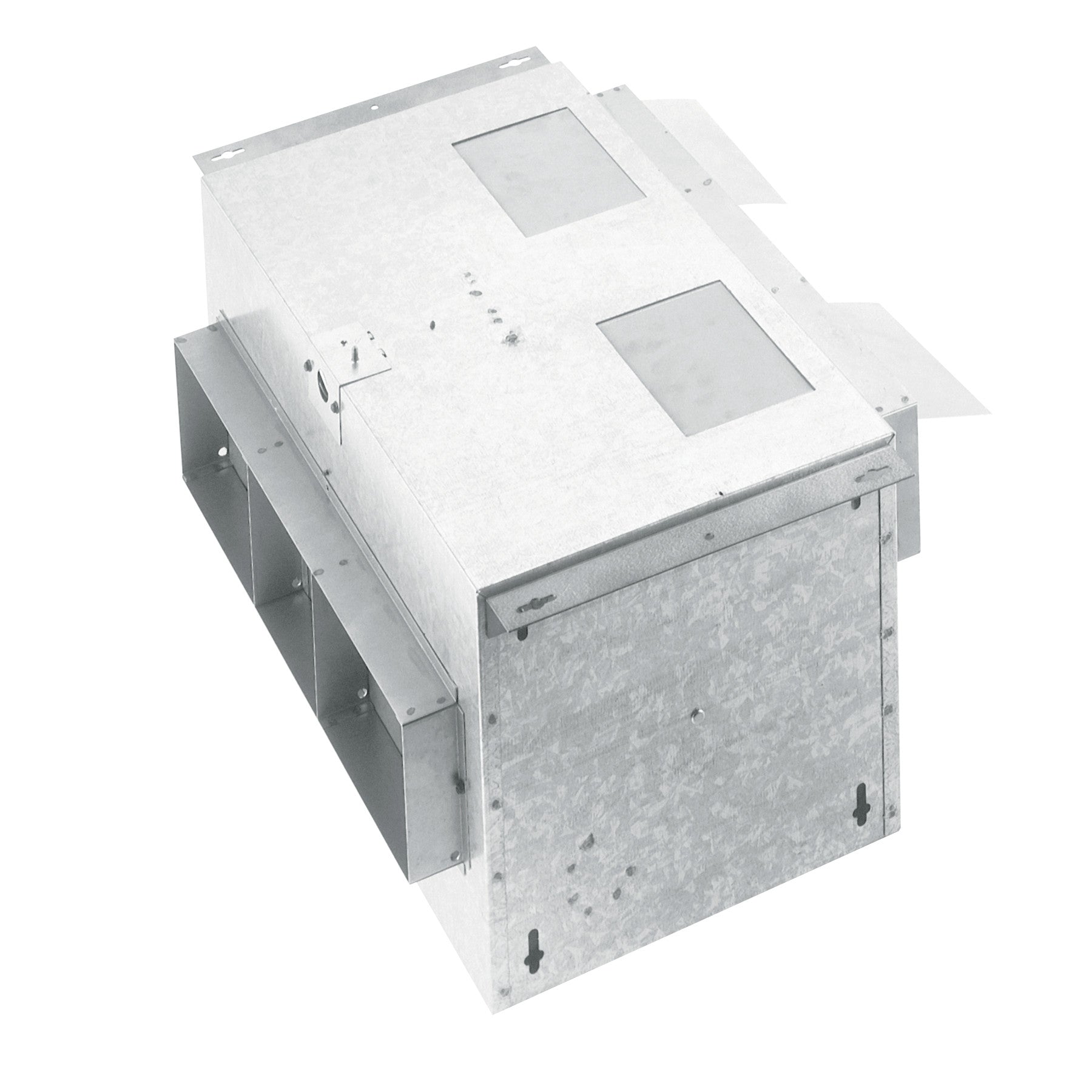

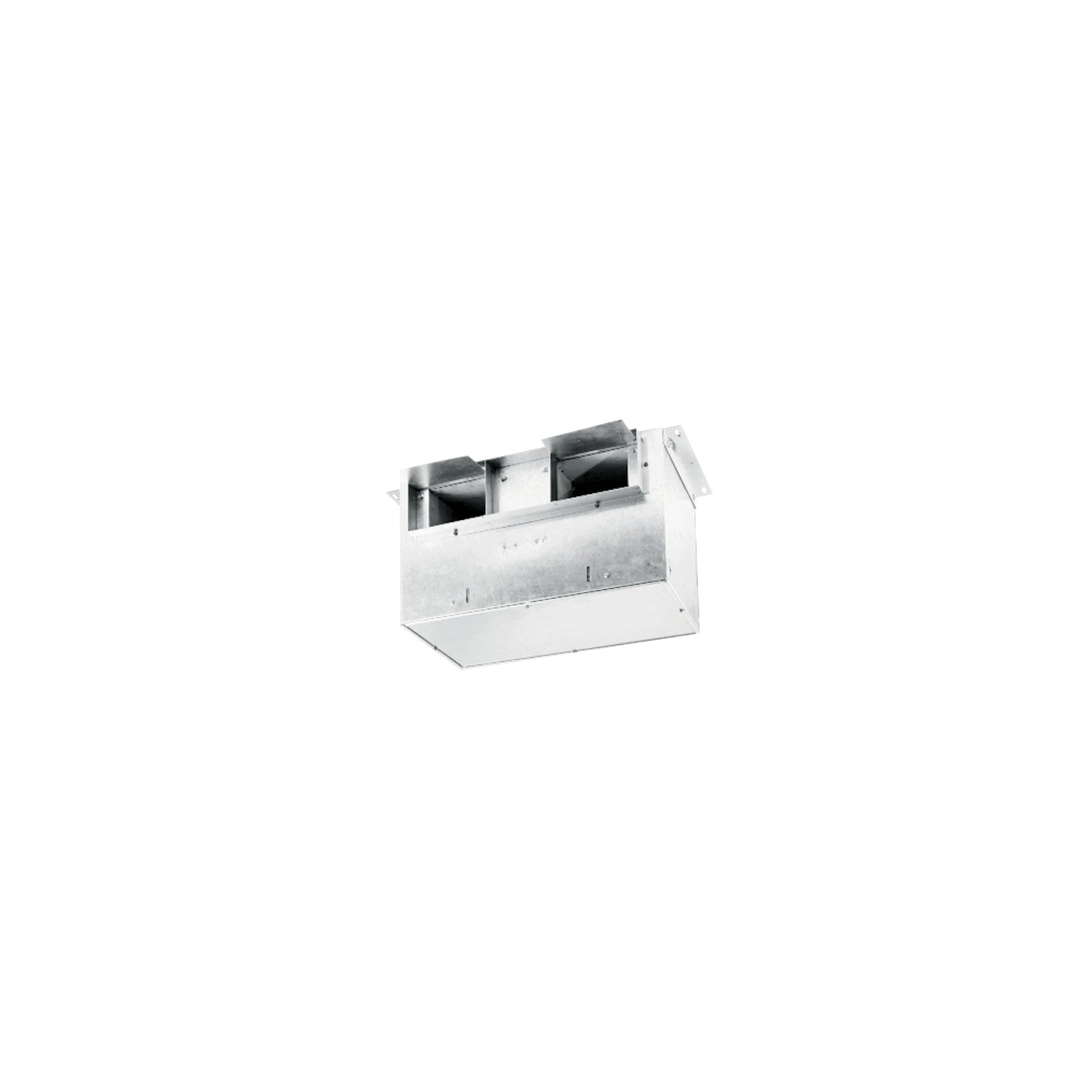

Broan L500KL LOSONE SELECT Ventilation Fan 472 CFM Straight Through, 3.8 Sones 459 CFM Right Angle Other

Quick Specification More details

Width:
21.5"
Depth:
11.75"
Height:
12.25"
Type:
Other

About this product

3.8 Audible Sones for privacy while using your bathroom
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Duct horizontally or vertically—In-line available with separate adapter
Quiet automatic backdraft dampers

Summer Sale

Clearance

SKU: L500KL | UPC: 026715125135

Broan L500KL LOSONE SELECT Ventilation Fan 472 CFM Straight Through, 3.8 Sones 459 CFM Right Angle Other

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
21.5"
Depth:
11.75"
Height:
12.25"
Type:
Other

About this product

3.8 Audible Sones for privacy while using your bathroom
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Duct horizontally or vertically—In-line available with separate adapter
Quiet automatic backdraft dampers

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Broan L500KL

Technical Details

Product details

CFM	472
ENERGY STAR® certified	No
Housing Dimensions	12-1/4" x 21-1/2" x 11-3/4"
Sound Level (Sones)	3.8
UL Listed	Yes
Humidity Sensing	No
Motion Sensing	No
Motor Engineered For Continuous Operation	Yes
Night Light	No
Radiation Damper Available	No
Room Side Installation	No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit	No
Heater Wattage	0
Rated Amps	2.2
Voltage	120
Can Be Used To Comply With Title 24	No
Manufacturer Warranty	1 Year
High Efficiency Luminaire	No

Dimensions & weight

Width	21.5 in.
Height	12.25 in.
Length	11.75 in.
Housing Dimensions	12-1/4" x 21-1/2" x 11-3/4"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	26.5 in.
Shipping Height	17.25 in.
Shipping Length	16.75 in.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.79 ft³
Dimensional Weight	22.26 lbs.
Total of Cubes	1.79 ft³
Total of Dimensional Weight	22.26 lbs.

Description

Broan(R) LOSONE SELECT(TM) Ventilation Fan; 472 CFM Straight Through, 3.8 Sones; 459 CFM Right Angle

Product Features

3.8 Audible Sones for privacy while using your bathroom
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Duct horizontally or vertically—In-line available with separate adapter
Quiet automatic backdraft dampers
Not for use over tub or shower
Suitable for use in the Kitchen
Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)
UL Listed and cUL listed for your safety and protection
AMCA licensed for air and sound performance
Powerful enough for rooms up to () sq. ft.
Two impact-resistant centrifugal blower wheels
472 CFM, Whole home or Commercial Ventilation
