SKU: L3500EXL | UPC: 026715124701

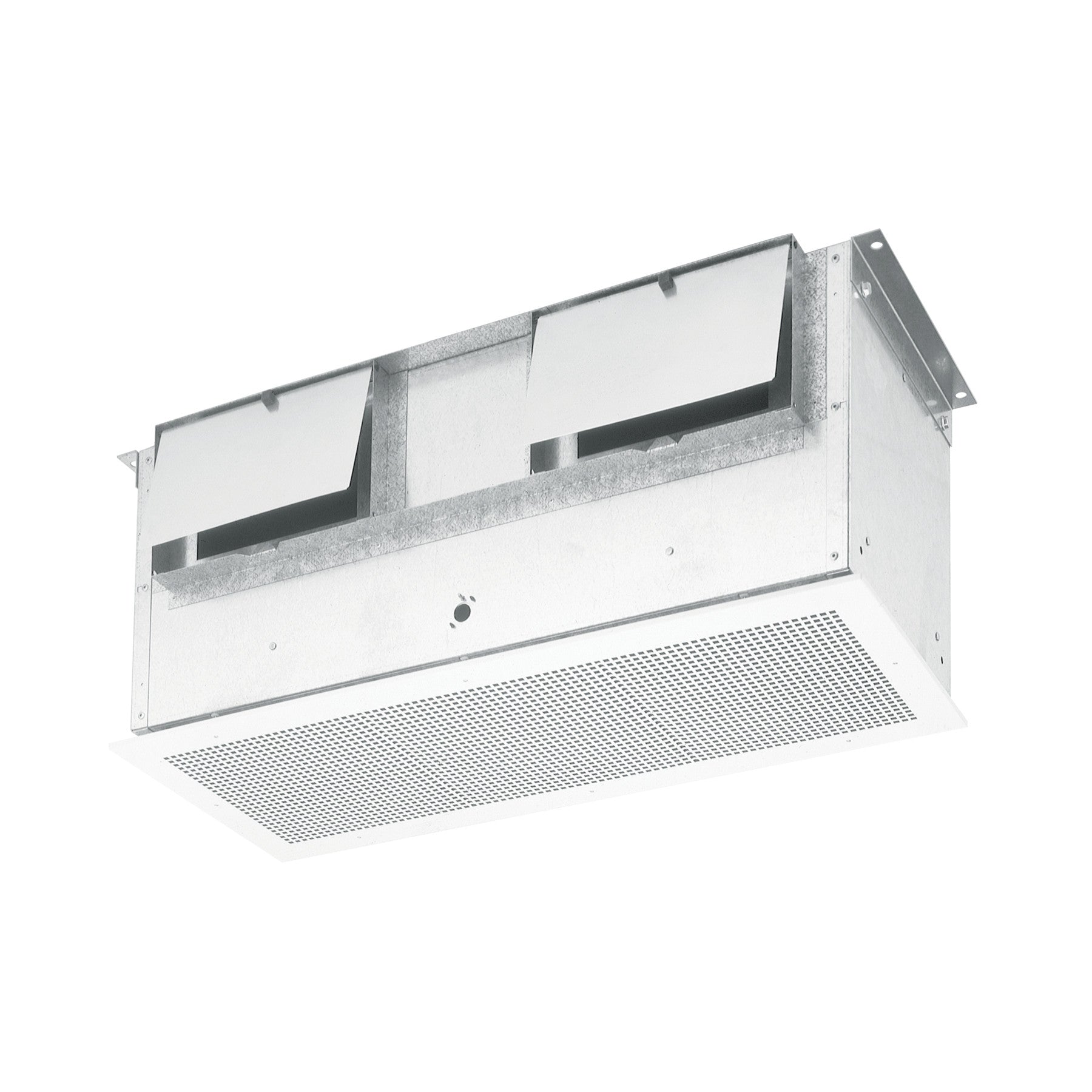

Broan L3500EXL LOSONE SELECT Ventilation Fan 3452 CFM Straight Through, 14.5 Sones 3696 CFM Right Angle White Painted Enamel

Quick Specification More details

Width:
47.25"
Depth:
16.75"
Height:
16.75"
Type:
Other

About this product

14.5 Audible Sones for privacy while using your bathroom
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Ducted horizontally or vertically, or in-line with separate adapter
Not for use over tub or shower

Summer Sale

Clearance

SKU: L3500EXL | UPC: 026715124701

Broan L3500EXL LOSONE SELECT Ventilation Fan 3452 CFM Straight Through, 14.5 Sones 3696 CFM Right Angle White Painted Enamel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
47.25"
Depth:
16.75"
Height:
16.75"
Type:
Other

About this product

14.5 Audible Sones for privacy while using your bathroom
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Ducted horizontally or vertically, or in-line with separate adapter
Not for use over tub or shower

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Broan L3500EXL

Technical Details

Product details

CFM	3452
ENERGY STAR® certified	No
Grille Length	18.375
Grille Width	47.25

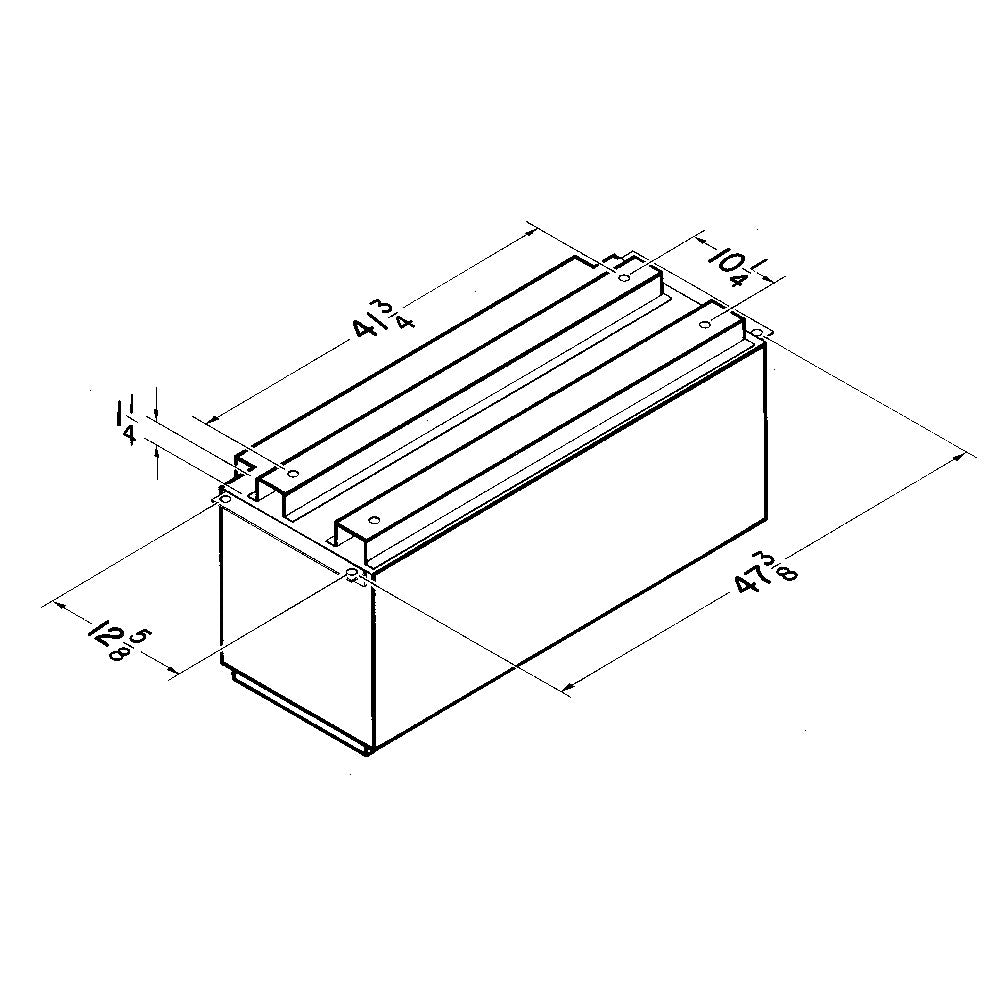

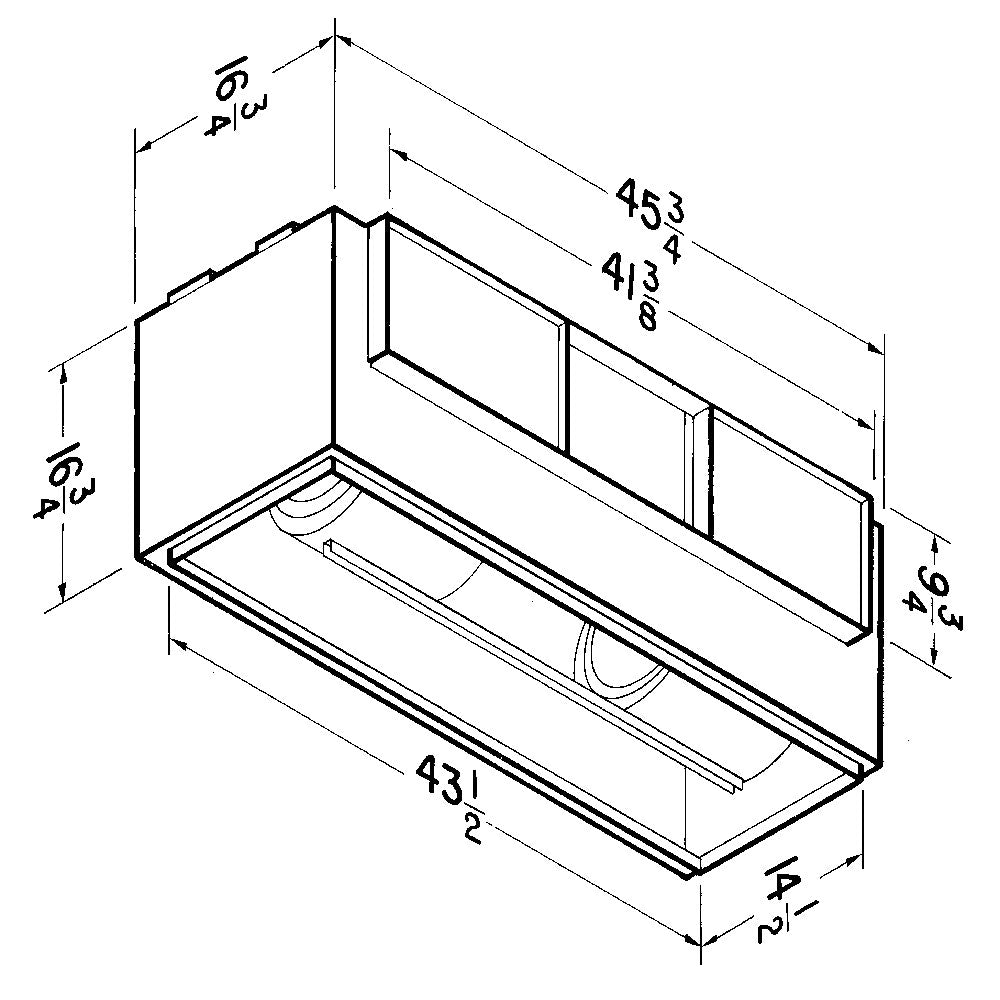

Housing Dimensions	16-3/4" x 45-3/4" x 16-3/4"
Sound Level (Sones)	14.5
UL Listed	Yes
Grille Finish	White Painted Enamel
Humidity Sensing	No
Motion Sensing	No
Motor Engineered For Continuous Operation	Yes
Night Light	No
Radiation Damper Available	No
Room Side Installation	No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit	No
Heater Wattage	0
Rated Amps	5.4
Voltage	120
Can Be Used To Comply With Title 24	No
Manufacturer Warranty	1 Year
High Efficiency Luminaire	No

Dimensions & weight

Width	47.25 in.
Height	16.75 in.
Length	16.75 in.
Housing Dimensions	16-3/4" x 45-3/4" x 16-3/4"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	52.25 in.
Shipping Height	21.75 in.
Shipping Length	21.75 in.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	7.67 ft³
Dimensional Weight	95.37 lbs.
Total of Cubes	7.67 ft³
Total of Dimensional Weight	95.37 lbs.

Description

Broan(R) LOSONE SELECT(TM) Ventilation Fan; 3452 CFM Straight Through, 14.5 Sones; 3696 CFM Right Angle

Product Features

14.5 Audible Sones for privacy while using your bathroom
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Ducted horizontally or vertically, or in-line with separate adapter
Not for use over tub or shower
Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)
UL Listed and cUL listed for your safety and protection
AMCA licensed for air and sound performance
Powerful enough for rooms up to () sq. ft.
Painted white enamel metal grille
Heavy-gauge galvanized steel housing resists corrosion
Single, impact-resistant centrifugal blower wheel
3452 CFM, Whole home or Commercial Ventilation
